Parts List Complete for NSS COLT 800PB

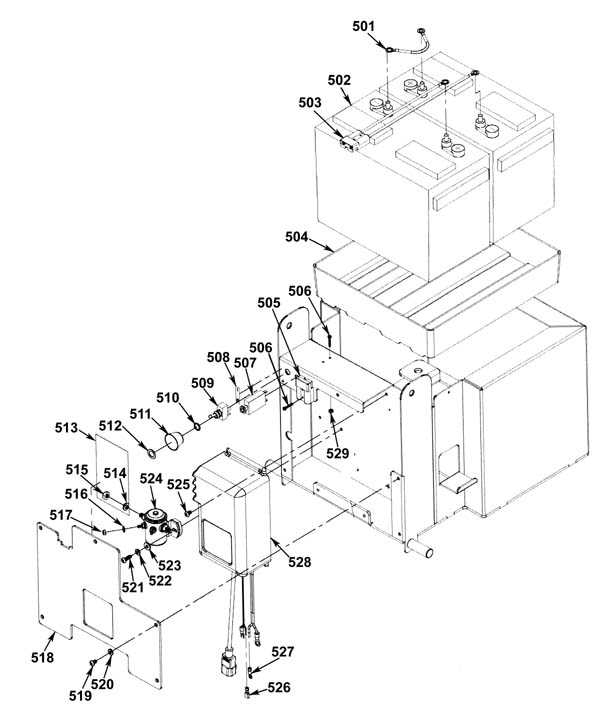

Internal Assembly - 164-1063
RefNbr Part Number Description Req Notes
501 164-2282 Battery jumper 1
503a 164-0594 Battery connector (OBSOLETE) 1 includes 503b
503b 991-2102 50amp charger plug SB50 only (red) 1
504 164-2140 Battery tray 1
505 164-7386 Wiring harness 1
506 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated 4
507 991-1609 25amp circuit breaker 1
508 164-7387 On/Off decal (OBSOLETE) 1
509 164-0023 Toggle switch 1
510 164-6007 Spacer 1
511 164-2116 Toggle switch guard 1
512 999-0024 Washer 5/16 flat stainless steel 1
513 164-7388 Wiring diagram decal (OBSOLETE) 1
514 999-0028 Washer 5/16 split lock plain finish 2
515 999-0376 Nut 5/16-24 hex jam left hand 2
516 999-0998 Washer #10 flat stainless steel 2
517 999-0239 Nut 10-32 k-lock zinc plated 2
518 164-7389 Charger cover plate (OBSOLETE) 1
519 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated 5
520 999-0060 Washer 1/4 split lock plain finish 5
521 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 2
522 999-0060 Washer 1/4 split lock plain finish 2
523 999-0123 Washer 1/4 SAE flat zinc plated 2
525 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated 4
526 164-4644 Female terminal 1
527 164-4649 10 ring terminal 1
528 164-7302 24V onboard battery charger 1
529 999-0195 Nut 6-32 hex plain 2
N/S 164-6477 Onboard charger extension cord 1
502 162-0011 12V 105Ah wet battery (SNSR) 2
502 162-0045 12V 140Ah AGM battery 2

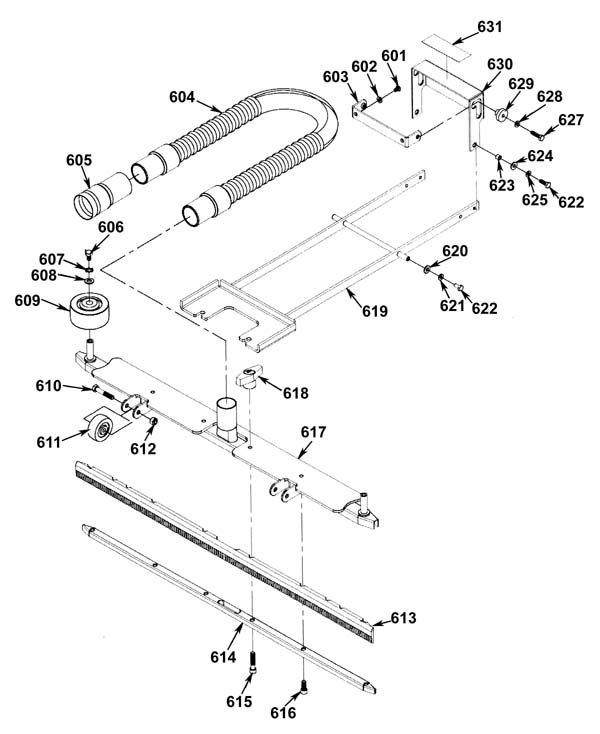

Front Mount Squeegee Assembly - 164-1064
RefNbr Part Number Description Req Notes
601 999-0175 Screw 1/4-20 x 3/8 pan head slotted zinc plated 2
602 999-0060 Washer 1/4 split lock plain finish 2
603 164-7391 Rear pivot bracket (OBSOLETE) 1
604 164-7392 32 inch hose with cuff 1
605 164-2600 1 1/2 inch hose coupling 1
606 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
607 999-0105 Washer 5/16 external star lock zinc plated 2
608 999-0024 Washer 5/16 flat stainless steel 2
609 991-2009 3 inch bumper wheel 2
610 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
611 991-2005 Small roller wheel (gray) 2
612 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
613 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear) 1
614 164-0243 Squeegee weldment (narrow mount) 1
615 999-0179 Screw 5/16-18 x 1 1/2 socket head alloy plain finish 2
616 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 4
617 164-0243 Squeegee weldment (narrow mount) 1
618 164-1565 Knob 2
619 164-7393 Squeegee lift arm (OBSOLETE) 1
620 999-0123 Washer 1/4 SAE flat zinc plated 2
621 999-0060 Washer 1/4 split lock plain finish 2
622 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
623 164-0136 Bushing 2
624 999-0123 Washer 1/4 SAE flat zinc plated 2
625 999-0060 Washer 1/4 split lock plain finish 2
627 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
628 999-0060 Washer 1/4 split lock plain finish 2
629 164-3032 Spacer guide 2
630 164-7394 Foot pedal with latch (OBSOLETE) 1
631 164-7395 Squeegee operation decal (OBSOLETE) 1
N/S 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 2
N/S 164-7981 Front mount squeegee kit (OBSOLETE) 1

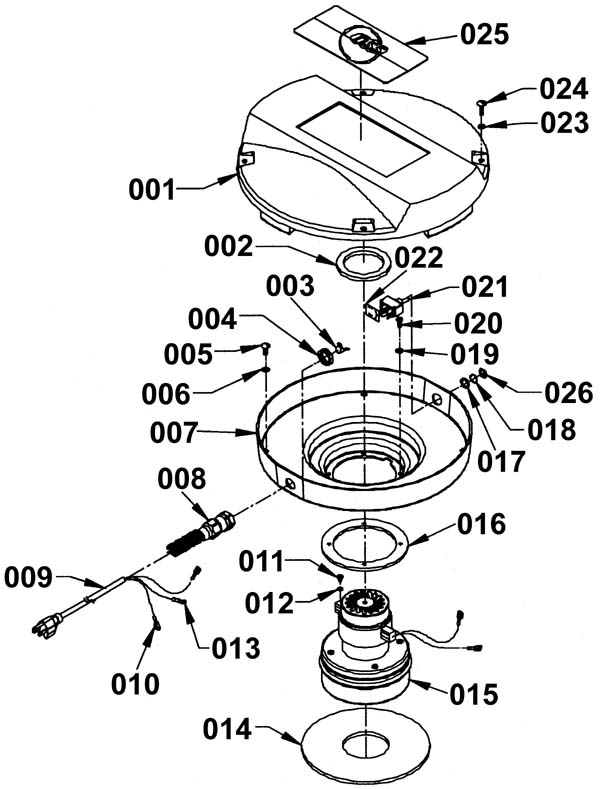

Motor and Lid Assembly - 164-2250
RefNbr Part Number Description Req Notes
001 164-2048 Top cover 1
002 164-4585 Neoprene motor seal 1
003 164-4515 Strain relief cord clamp 1
004 164-4516 Strain relief nut 1
005 999-0405 Screw 1/4-20 x 5/8 round head slotted zinc plated 4
006 999-0017 Washer 1/4 external star lock 4
007 164-2049 Air separator 1
008 164-4502 Strain relief 1
009a 164-1811 18/3 power cord 35 foot 1
009b 991-5007 18/3 replacement power cord 50 foot (black) 1 (NON-OEM)
010 998-0044 12-10 nylon female connector 2
011 999-0663 Screw 10-24 x 3/8 pan head phillips thread cutting 1
012 999-0053 Washer #10 split lock plain finish 1
013 164-4649 10 ring terminal 1
014 164-2050 Lower seal gasket 1
015a 991-1208 120V 2 stage vacuum motor peripheral 1
015b 164-1810 Carbon brush 2
016 164-0803 Vac motor/float gasket 1
017 164-3856 Switch lock ring 1
018 999-0260 Washer 1/2 internal starlock 1
019 999-0311 Washer #10 external star lock zinc plated 4
020 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 4
021 164-1532 On/off switch 1
022 164-2086 Toggle switch insulator 1
023 999-0017 Washer 1/4 external star lock 4
024 999-1382 Screw 1/4-20 x 1 truss head phillips 4
025 164-7294 Cloud burst decal (OBSOLETE) 1
026 999-1359 Nut 9/16 hex stainless steel 1

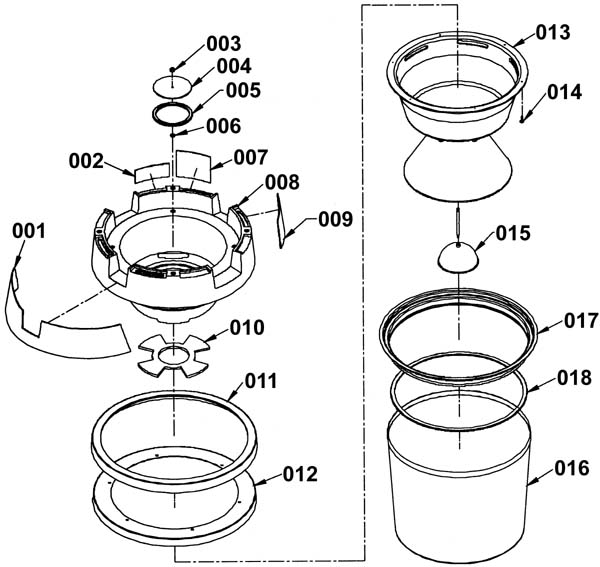

Power Head Assembly - 164-2251
RefNbr Part Number Description Req Notes
001 164-7295 Front decal 1
002a 164-2096 Identifier decal 1 (800)
002c 164-2098 Identifier decal 1 (1450)
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
004 164-1963 Float disc 1
005 164-6226 Float disc gasket 1
006 999-0998 Washer #10 flat stainless steel 1
007 164-3162 Electrical caution label 1
008 164-2036 Motor and float support lid 1
009 164-3162 Electrical caution label 1
010 164-5201 Float stand gasket 1
011 164-5199 Lid gasket 1
012 164-2040 Lid gasket support (black) 1
013 164-2037 Float stand 1
014 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 6
015a 164-5200 Float and stem assembly 1 (includes 015b and 015c)
015b 164-5200 Float and stem assembly 1
015c 164-1946 Float stem 1
016a 194-9010 Detent pedal 1 (includes 016b, 017, and 018)
016b 164-1977 Cloth dynel bag 1
016c 164-9010 Dynel filter bag assembly 1 (includes 016d, 017, and 018)
016d 164-1977 Cloth dynel bag 1
016e 164-2088 16 inch paper bag 1 (optional)
017 164-1921 Bag ring 1
018 164-1974 Bag gasket 1

Accessories - 164-2255
RefNbr Part Number Description Req Notes
1 164-7262 115V powerhead assembly
2 164-7264 HEPA powerhead assembly (includes 3-5)
3 164-2082 HEPA / micro filter assembly (includes 4 and 5)
4 164-2080 Micro filter mount assembly
5 164-2089 Micro filter stand assembly
6 164-2900 All purpose tool kit (includes 7-17)
7 164-2602 Flex hose 1 1/2 x 10 foot
8 164-6230 1 1/2 inch 2 piece steel wand
9 164-4937 15 inch squeegee tool assembly with wheels
10 164-4946 Squeegee blade 15 inch gum rubber (replacement for 164-4937)
12 164-4939 15 inch carpet tool with wheel
13 164-6100 2 1/2 inch round furniture tool brush
14 164-4720 Crevice tool
15 164-4721 7 inch wall brush
16 164-4722 Hose adaptor
17 164-2990 High up extension tube kit (2 piece)
18 164-2901 Basic wet pick-up kit (includes 19-22)
19 164-6229 14 inch squeegee tool assembly
20 164-6235 Squeegee blade 14 inch linatex (pkg of 2) (for wand tool) (replacement for 164-6229)
21 164-2337 Steel wand
22 164-0090 Hose 1 5/8 x 10 foot superthane with two cuffs
23 164-2898 Front squeegee assembly
24 164-9010 Dynel filter bag assembly
25 164-9275 10 foot superflex hose with swivel cuff
26 164-2604 1.5 inch x 25' Vac hose
27 164-2605 Vacuum hose - 50 feet
28 164-2606 1.5 inch x 10' Neoprene flex hose
29 164-2607 1-5/8 inch  x 7 ft. super flex hose

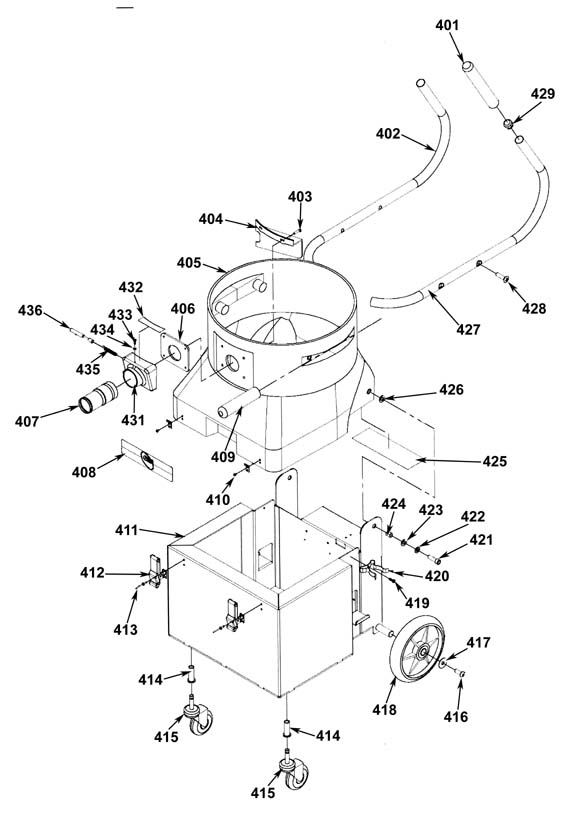

Container and Base Assembly - 164-9102
RefNbr Part Number Description Req Notes
401 164-2210 Handle grip 2
402 164-7396 Right tank handle (OBSOLETE) 1
403 999-0159 Screw 10-24 x 7/8 round head slotted zinc plated 4
404 164-5203 Intake baffle 1
405a 164-7397 8 gallon tank (OBSOLETE) 1
405b 164-1806 Intake assembly with gasket 1
406 164-5204 Intake gasket 1
407 164-2600 1 1/2 inch hose coupling 1
408 164-3903 Front decal (OBSOLETE) 1
409 164-7398 Handle grip (OBSOLETE) 2
410 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated 4
412 164-6302 Latch with keeper 2
413 164-1231 Pop rivet 4
414 164-2215 Plastic socket insert 2
415 164-2213 Caster - 7/16 x 1 3/4 stem 2
416 999-0592 Screw 3/8-16 x 1 button head socket plain finish 2
417 999-0716 Washer 3/8 x 1 1/4 fender 2
419 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated 2
420 164-7400 Tool clip (OBSOLETE) 2
421 999-0618 Screw 3/8-16 x 1 1/4 socket head stainless steel 2
422 999-0034 Washer 3/8 split lock plain finish 2
423 164-0941 Washer 13/32 x 13/16 2
424 164-1794 Muffler spacer 2
425 164-7401 Battery warning decal (OBSOLETE) 1
426 164-0941 Washer 13/32 x 13/16 2
427 164-7402 Left tank handle (OBSOLETE) 1
428 999-1242 Screw 3/8-16 x 1 oval head stainless steel 4
429 164-0222 Plug 2
430 164-5202 Intake assembly 1
431 164-1805 Polished intake 1
432 164-2106 Bag instruction decal 1
433 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated 1
434 999-0150 Washer #8 medium split lock 1
435 164-1808 Plunger spring 1
436 164-1809 Plunger pin 1

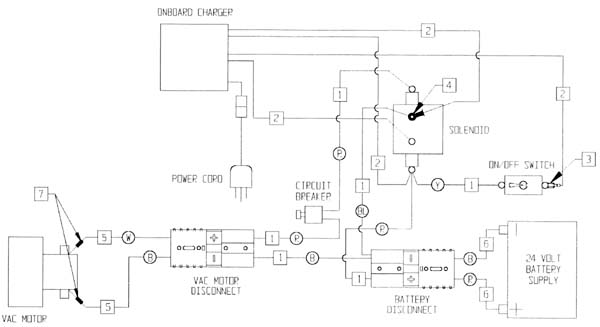

Wiring Diagram -

RefNbr Part Number Description Req Notes
