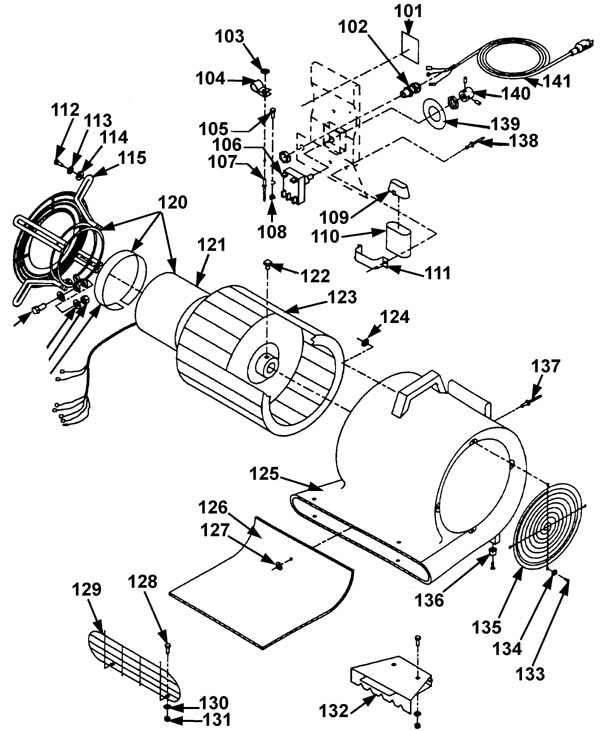

Entire Assembly - 164-8001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 101 |
N/A |
Not available |
1 |
(Shock warning decal) |
| 102 |
164-4606 |
Heyco strain relief |
1 |
|
| 103 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 105 |
999-1103 |
Bolt 1/4-20 x 3/4 hex head with nylon patch |
1 |
|
| 106 |
N/A |
Not available |
1 |
(3 speed switch) |
| 108 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 110 |
N/A |
Not available |
1 |
Capacitor |
| 111 |
164-3874 |
Capacitor strap |
1 |
|
| 112 |
999-1103 |
Bolt 1/4-20 x 3/4 hex head with nylon patch |
4 |
|
| 113 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 114 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 115 |
164-7006 |
Motor mount (OBSOLETE) |
1 |
|
| 116 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| 117 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 118 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 119 |
164-7007 |
Cork strip (OBSOLETE) |
1 |
|
| 120 |
164-7008 |
Motor with legs and grill (OBSOLETE) |
1 |
|
| 121 |
164-7009 |
Motor (OBSOLETE) |
1 |
|
| 122 |
999-0681 |
Screw 5/16-18 x 1/2 cup point square head set |
1 |
|
| 123 |
N/A |
Not available |
1 |
(Convex fan) |
| 124 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 125 |
164-7010 |
Main housing (OBSOLETE) |
1 |
|
| 126 |
164-7011 |
Air deflector (OBSOLETE) |
1 |
|
| 127 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 128 |
999-1103 |
Bolt 1/4-20 x 3/4 hex head with nylon patch |
2 |
|
| 129 |
164-7012 |
Finger guard (OBSOLETE) |
1 |
|
| 130 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 131 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 132a |
164-7013 |
Carpet clamp (OBSOLETE) |
1 |
(includes 132b and 132c) |
| 132b |
999-1103 |
Bolt 1/4-20 x 3/4 hex head with nylon patch |
2 |
|
| 132c |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 133 |
999-0680 |
Screw 6 x 1/2 pan head phillips T-A sheet metal |
4 |
|
| 134 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
| 135 |
164-7014 |
Grill (OBSOLETE) |
1 |
|
| 136 |
164-7015 |
Rubber foot |
4 |
|
| 139 |
N/A |
Not available |
1 |
(Switch speed decal) |
| 140 |
164-7017 |
Knob switch (OBSOLETE) |
1 |
|
| 141a |
N/A |
Not available |
1 |
(Power cord) (OEM) |
| 141b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
| 141c |
991-5001 |
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
|
|
