Parts List Complete for NORTHAMER AVB9QX

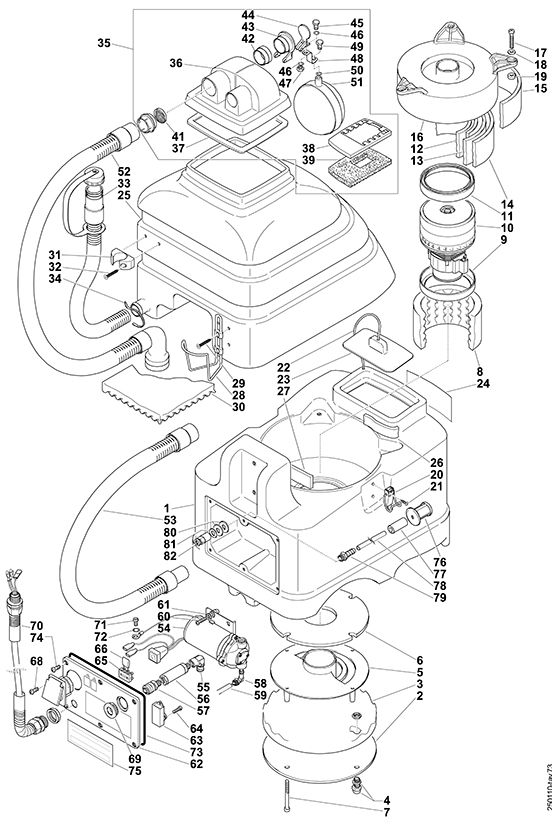

Tank Assembly - 220-0045
RefNbr Part Number Description Req Notes
1 220-1400 Solution tank lower (blue) 1
2 220-0747 Circular lower panel 1
3 220-0748 Lower soundproofing disc 1
4 220-0425 Strain relief with nut 1
5 220-0749 Lower motor flange 1
6 220-0750 Lower soundproofing filter 1
7 220-0746 Screw 1
8 220-0751 Lower soundproofing cylinder 1
9 220-0429 Vacuum motor gasket 1
10a 220-4076 220V 3 stage vacuum motor 1
10b 220-4077 120V 3 stage vacuum motor 1
10c 220-0743 100V 3 stage vacuum motor 1
11 220-0490 Gasket 1
12 220-0742 Soundproofing filter 1
13 220-0741 Soundproofing filter 1
14 220-0740 Soundproofing filter 1
15 220-0739 Soundproofing filter 1
16 220-0738 Aluminum silencing flange 1
17 220-0488 Screw 1
18 220-0489 Washer 1
19 220-0737 Vibration dampening 1
20 220-0493 Toggle 1
21 220-4035 Screw 1
22 220-1401 Rope 1
23 220-1402 Cover 1
24 220-1403 Lower tank decal 1
25 220-1404 Upper tank (blue) 1
26 220-1405 Tank gasket front 1
27 220-1406 Tank rear gasket 1
28 220-1407 1 liter chemical bottle holder 1
29 220-4035 Screw 1
30 220-0728 Soundproofing panel 1
31 220-4042 Clip 1
32 220-4041 Screw 1
33 220-0730 Drain hose with cap 1
34 220-4037 Tie 1
35 220-0636 Recovery tank lid with float assembly 1 (includes 36-39, 41-51)
36 220-0635 Recovery tank lid 1
37 220-0637 Gasket 1
38 220-0636 Recovery tank lid with float assembly 1
39 220-0639 Filter 1
41 220-0511 Filter 1
42 220-1410 Nut locking 1
43 220-1411 Floater fixed part 1
44 220-0768 Moving part for floater 1
45 220-0736 Screw 1
46 220-0521 Washer 2
47 220-0522 Nut 1
48 220-1412 Curved plate 1
49 220-0524 Screw 1
50 220-0525 Locking washer 1
51 220-4079 Float 1
52 220-1413 Motor hose 1
53 220-1414 Vacuum hose 1
54a 220-1415 220/240V solution pump 1
54b 220-0321 Solution pump 1
54c 220-1416 220V solution pump bypass 1
54d 220-4078 100psi pump 1
55 220-4019 Elbow 1
56 220-4020 Extension 1
57 220-0753 Coupling with anti drip fitting 1
58 220-4022 Elbow 1
59 220-1417 Pipe 1
60 220-4018 Screw 1
61 220-0489 Washer 1
62a 220-0754 Lower panel 1
62b 220-0755 Lower panel with hole for plug 1
63 220-0517 Radio interference suppressor 1
64 220-0518 Screw 1
65 220-4031 Connecting terminal 1
66 220-0519 Radio interference supressor 1
68 220-0518 Screw 1
69 220-4024 Bush 1
70a 220-0757 Cable sheath 1
70b 220-1451 Cable sheath assembly 1
71 220-1448 Screw 4 x 8 1
72 220-0521 Washer 1
73 220-0500 Panel gasket 1
74 220-4009 Screw 1
75 220-1419 Lower panel decal 1
76 220-0401 Filter 1
77 220-0427 Ballast 1
78 220-0495 Extraflex pipe 1
79 220-0496 Hose nipple 1
80 220-0400 Neoprene washer 1
81 220-4048 Metal washer 1
82 220-4047 Female quick disconnect 1

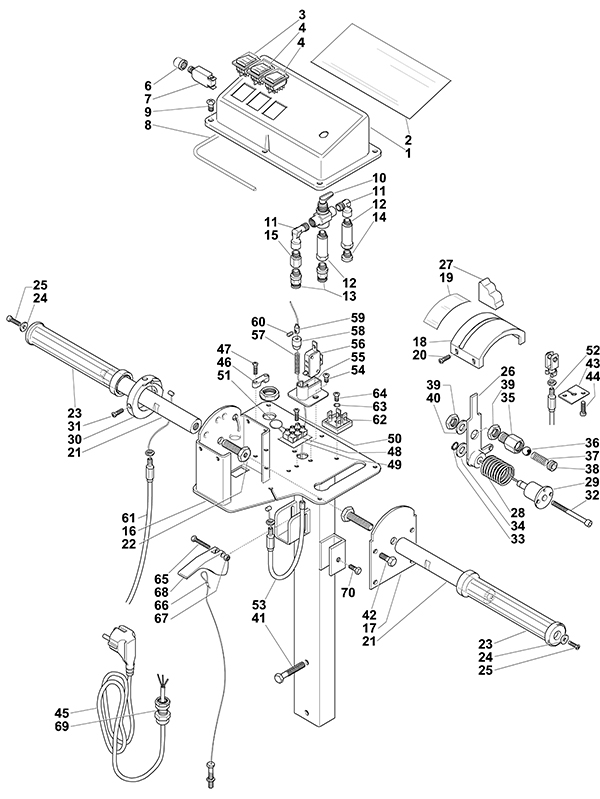

Handle Assembly - 220-0046
RefNbr Part Number Description Req Notes
1 220-1420 Upper panel 1
2 220-1421 Panel decal 1
3 220-0423 3 position switch 1
4 193-0120 Switch 2
6 220-0514 Cap 1
7 220-0411 Circuit breaker 1
8 220-0478 Panel gasket 1
9 220-4009 Screw 1
10 220-1423 Three position valve 1
11 220-0675 Elbow 2
12 220-0841 Extension 2
13 220-0822 Quick disconnect (orange) 1
14 220-1424 Cap 1
15 220-0910 Coupling 1
16 220-1452 Handle assembly 1
17 220-1425 Side cover 1
18 220-1426 Upper cover 1
19 220-1427 Upper cover decal 1
20 220-4009 Screw 1
21 220-1428 Cylindrical support handle 2
22 220-1429 Screw 12 inch diameter 1
23 220-0699 Handle grip 2
24 220-0489 Washer 2
25 220-0828 Screw 1
26 220-1430 Brush adjustment lever 1
27 220-1431 Brush lever cover 1
28 220-1432 Spring 1
29 220-1433 Spring support 1
30 220-1454 Flange 1
31 220-0494 Screw 1
32 220-1434 Screw 6 x 60 1
33 220-0665 O-ring 1
34 220-0590 Washer 1
35 220-1435 Pawl body 1
36 220-1439 Pawl sphere 1
37 220-1438 Pawl spring 1
38 220-1436 Pawl cap 1
39 220-1437 Pawl nut 2
40 220-1440 Washer 1
41 220-1441 Screw 8 x 50 1
42 220-0932 Screw 1
43 220-1442 Plate 1
44 220-4009 Screw 1
45 220-4027 Power cord 1
46 220-4029 Cable lock 1
47 220-1445 Screw 3 x 16 1
48 220-0472 Connecting terminal 1
49 220-1444 Insulating plate 1
50 220-1445 Screw 3 x 16 1
51 220-0515 Varistor 1
52 220-1446 Wire for brush adjustment 1
53 220-1447 Complete wire for pump 1
54 220-1448 Screw 4 x 8 1
55 220-1449 Micro-switch support 1
56 220-0679 Switch 1
57 220-0691 Complete pawl 1
58 220-0683 Stud 1
59 220-0682 Lock nut 1
60 220-0680 Dowel 1
61 220-1450 Wire assembly 1
62 220-0516 External rectifier 1
63 220-0521 Washer 1
64 220-0467 Screw 1
65 220-1455 Screw M6 x 40 1
66 220-1453 Squeegee support wire 1
67 220-0620 Locking nut 1
68 220-1456 Squeegee lever 1
69 220-0425 Strain relief with nut 1
70 220-0932 Screw 1

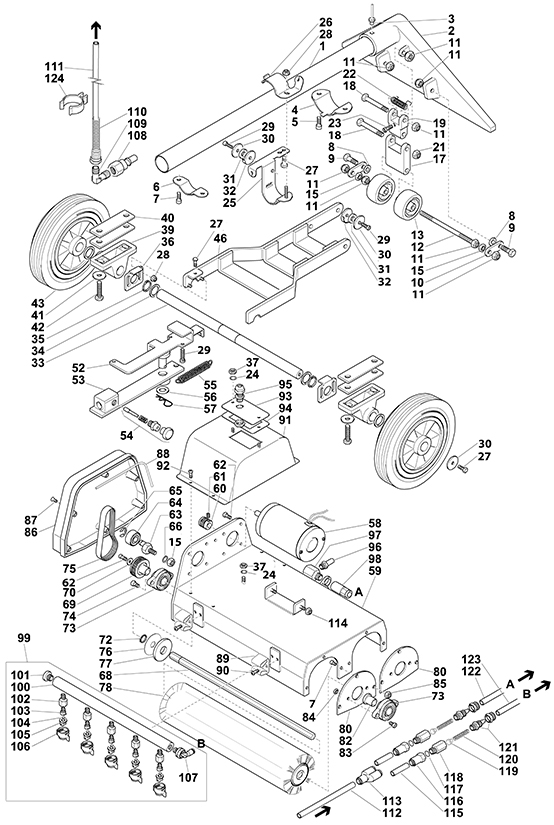

Brush and Wheel Assembly - 220-0047
RefNbr Part Number Description Req Notes
1 220-1457 640 mm straight pipe 1
2 220-1458 Vacuum head 1
3 220-0697 Rivet 1
4 220-1459 Vacuum head locking tie 1
5 220-1460 Screw 8 x 16 8.8 1
6 220-0855 Lower part for handle 1
7 220-0622 Screw 2
8 220-4048 Metal washer 2
9 220-1461 Special screw 8 x 20 2
10 220-1462 Rod 1
11 220-0594 Locking nut 8
12 220-1463 Wheel shaft 1
13 220-1464 Wheel 60D 2
15 220-0530 Nut 3
17 220-1465 Lower rod 1
18 220-1466 Screw m8 x 65 2
19 220-1467 Upper rod 1
21 220-1468 Nut special 8D 1
22 220-1469 Spring 1
23 999-1309 Screw M6-1 x 30mm hex head zinc 1
24 220-0521 Washer 2
25 220-1470 Support bracket for brush housing 1
26 220-1471 Support bracket tie 1
27 220-0570 Screw 4
28 220-0770 Nut with washer 3
29 220-0790 Screw 3
30 220-0783 Washer 4
31 220-1472 Thimble 2
32 220-1473 Washer 2
33 220-1474 20D Wheel shaft 1
34 220-1475 Washer 20 x 28 x 0 1
35 220-0807 Seeger 1
36 220-1476 Locking plate 1
37 220-0522 Nut 2
39 220-4238 Pillow block 2
40 220-4230 Distance plate 4
41 220-0593 Washer 2
42 220-1477 Screw M8 x 30 zinc 2
43 220-0413 Wheel 2
46 220-1478 Brush housing fork 1
52 220-1479 Squeegee raising arm 1
53 220-0795 Vacuum head support 1
54 220-0802 Complete pawl 1
55 220-0796 Spring 1
56 220-0564 Washer 1
57 220-0533 Cotter pin 1
58a 220-1480 240V brush motor 1
58b 220-1481 120V brush motor 1
59 220-1482 Brush housing 1
60 220-1483 Motor pulley 1
61 220-0541 Stop dowel 1
62 220-0776 Screw 2
63 220-0815 Belt stretcher shaft 1
64 220-1484 Bearing stainless steel 1
65 220-0660 O-ring 1
66 220-0613 Lock washer 1
68 220-1485 Brush shaft 1
69 220-1486 Brush pulley 1
70 220-0542 Washer 1
72 220-0446 Seegar 1
73 220-0303 Bearing with support 2
74 220-1487 Special screw m6 x 14 1
75 220-1488 Brush belt 1
76 220-0444 Mialar disc 1
77 220-0443 Rubber gasket 1
78 220-1489 Brush 1
80 220-0618 Plate 2
82 220-0617 Pulley 1
83 220-0543 Screw 1
84 220-0621 Brass nut 1
85 220-0620 Locking nut 1
86 220-1490 Belt 1
87 220-0488 Screw 1
88 220-1492 3mm gasket 1
89 220-1491 Manifold clip 1
90 220-1448 Screw 4 x 8 1
91 220-1493 Motor cover 1
92 220-4009 Screw 1
93 220-1494 Motor cover plate 1
94 220-1495 Cover plate gasket 1
95 220-0425 Strain relief with nut 1
96 220-1496 Front nozzle 1
97 220-1497 Coupling 1
98 220-4047 Female quick disconnect 1
99 220-1498 Manifold assembly 1 (includes 100-107)
100 220-1499 Manifold 1
101 220-0555 Cap 1
102 220-0449 Manifold 5
103 220-0616 Quick disconnect support 5
104 220-0326 O-ring 5
105 220-0820 Green tip nozzle 5
106 220-0327 Nut 5
107 220-1500 Automatic coupling 1
108 220-0432 Quick disconnect 1
109 220-1501 Elbow 1
110 220-0897 Spring 1
111 220-1502 49 cm rilsan hose 1
112 220-1503 106cm rilsan hose 1
113 220-1504 Automatic coupling r23-8 1
114 220-0594 Locking nut 1
115 220-1505 5cm rilsan hose 2
116 220-0862 Coupling 2
117 220-1506 O ring 2
118 220-0577 Brass coupling 2
119 220-0576 Rubber pin 2
120 220-0575 Spring 2
121 220-1507 Coupling without spring 2
122 220-1508 37cm rilsan hose 1
123 220-1509 25cm rilsan hose 1
124 220-0668 Clip 1
