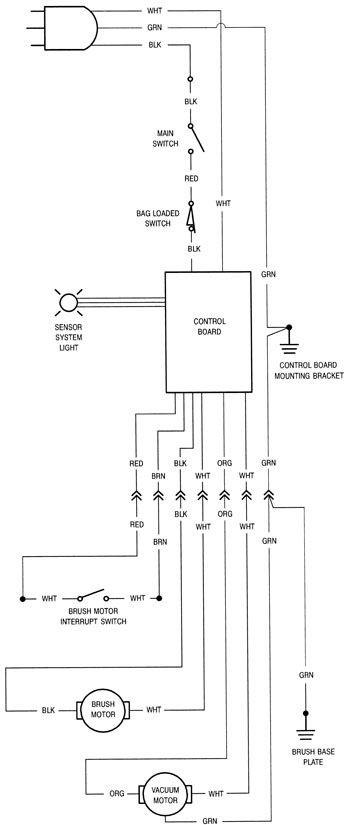

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Upper Assembly - 275-6113 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-0161 |
1 1/4 inch vacuum wand hose (OBSOLETE) |
1 |
|
| 3 |
175-0123 |
Indicator light decal (OBSOLETE) |
1 |
|
| 4 |
175-0124 |
White handle |
1 |
|
| 5 |
175-4398 |
Screw M5-.8 x 10mm phillips truss head zinc |
1 |
|
| 7 |
175-9855 |
Bolt M6-.8 x 30mm shield |
1 |
|
| 9 |
175-0127 |
Bottom lid plate |
1 |
|
| 10 |
999-0447 |
Screw 6-32 x 1/2 pan head phillips zinc plated |
4 |
|
| 11 |
475-1490 |
COVER, HSG, BAG, TEAL |
1 |
|
| 13a |
175-0014 |
Vacuum bags (pkg of 10) |
1 |
(OEM) |
| 13b |
991-8518 |
Paper vacuum bags (pkg of 10 and 2 filters) |
1 |
(NON-OEM) |
| 14 |
999-0740 |
Nut M5-.8 hex stainless steel |
2 |
|
| 15 |
175-0102 |
Snap switch (OBSOLETE) |
1 |
|
| 16 |
999-0738 |
Screw M3-.5 x 16mm pan head phillips zinc |
2 |
|
| 17 |
175-0131 |
Hose 1/8 x 18 inch |
1 |
|
| 19 |
175-0133 |
Switch and light bracket |
1 |
|
| 20 |
999-1161 |
Nut M3-.5 hex nylock stainless steel |
2 |
|
| 21a |
175-0104 |
120V control board |
1 |
(120V) |
| 21b |
275-2288 |
Control board |
1 |
(240V) |
| 22 |
175-0105 |
Vacuum motor foam filter |
1 |
|
| 23a |
175-0106 |
18/3 power cord 40 foot (OBSOLETE) |
1 |
(OEM) (120V) |
| 23b |
175-0047 |
Cord 3x1.00MMx50' 220V |
1 |
(OEM) (240V) |
| 23c |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 24 |
175-0001 |
Strain relief |
1 |
|
| 25 |
175-0134 |
Wand clip (OBSOLETE) |
1 |
|
| 26 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
3 |
|
| 27 |
175-0135 |
Latch strike |
1 |
|
| 28 |
175-7507 |
Compression spring |
1 |
|
| 29a |
175-0136 |
On/off rocker switch |
1 |
(120V) |
| 29b |
175-0006 |
Rocker switch |
1 |
(240V) |
| 30 |
175-0137 |
White bag housing |
1 |
|
| 31 |
275-8000 |
Label 3220 (OBSOLETE) |
1 |
|
| 32a |
175-0139 |
Anti-static wiring kit |
1 |
(includes 32b-32g) |
| 32b |
175-0140 |
Terminal ring #10 |
1 |
|
| 32c |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
|
| 32d |
175-0141 |
Wire assembly #18 x 18 (green) |
1 |
|
| 32e |
175-0142 |
1/4 inch male terminal |
1 |
|
| 32f |
175-0143 |
Wire assembly #18 x 18 with #6 ring (green) |
1 |
|
| 32g |
999-0447 |
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 33 |
175-7508 |
Screw M6 x 1 x 35mm truss head phillips zinc (OBSOELTE) |
2 |
|
| 34 |
175-0110 |
Crevice tool |
1 |
|
| 36b |
175-0112 |
Quick release cord hook |
1 |
(models 604900 and 604901) |
| 37 |
999-0530 |
Screw M4-.7 x 8mm pan head slotted zinc |
4 |
|
| 38 |
175-7510 |
Hose 1/4 x 18 inch (red) |
1 |
|
| N/S |
175-0130 |
19 inch swivel wand |
1 |
(included in KIT1) |
| KIT1 |
175-0103 |
Vacuum hose wand assembly (OBSOLETE) |
1 |
(includes 1-2) |
|
|
Vacuum Motor Housing Assembly - 275-6114 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-0103 |
Vacuum hose wand assembly (OBSOLETE) |
1 |
(includes 1-3) |
| 1 |
175-0161 |
1 1/4 inch vacuum wand hose (OBSOLETE) |
1 |
|
| 2 |
175-0130 |
19 inch swivel wand |
1 |
|
| 4a |
175-0113 |
120V vacuum motor |
1 |
(120V) |
| 4b |
275-2289 |
Vacuum motor 5.1 |
1 |
(240V) |
| 4c |
175-0114 |
Carbon brush (pkg of 2) |
2 |
(for 4a) |
| 4d |
275-2290 |
Carbon brush |
2 |
(for 4b) |
| 5 |
175-0163 |
Vacuum motor gasket |
1 |
|
| 6 |
175-0164 |
Noise foam 1/4 x 14 inch |
1 |
|
| 8 |
175-0166 |
Inlet plate gasket |
1 |
|
| 9 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
| 10 |
175-0167 |
Upper plate gasket |
1 |
|
| 11a |
275-9772 |
Exhaust filter cover (gray) (OBSOLETE) |
1 |
|
| 11b |
175-1783 |
Exhaust filter cover (teal) (OBSOLETE) |
1 |
|
| 12 |
175-0169 |
Vacuum motor clamping plate |
1 |
|
| 13 |
175-0170 |
Lower plate gasket |
1 |
|
| 14 |
175-0120 |
Exhaust filter |
1 |
|
| 15 |
175-0179 |
Shoulder pivot screw |
2 |
|
| 16 |
175-0171 |
Foot latching plate |
1 |
|
| 18 |
275-8006 |
Warning decal |
1 |
|
| 19 |
175-0173 |
White vacuum motor housing |
1 |
|
| 20 |
175-0129 |
Foot latching stud |
2 |
|
| 21 |
175-7508 |
Screw M6 x 1 x 35mm truss head phillips zinc (OBSOELTE) |
4 |
|
| 22 |
175-7511 |
Spring mounting bracket |
1 |
|
| 23 |
175-0193 |
Extension spring |
1 |
|
| 24 |
999-1042 |
Screw M4-1 x 12mm pan head phillips zinc |
4 |
|
| N/S |
175-0174 |
Lower wiring harness |
1 |
|
|
|
Base Assembly - 275-6115 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0447 |
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 2 |
175-0145 |
Height adjustment knob |
1 |
|
| 3 |
175-0146 |
Teal base (OBSOLETE) |
1 |
|
| 4 |
175-0147 |
Tennant decal |
1 |
|
| 5 |
175-0136 |
On/off rocker switch |
1 |
|
| 6a |
175-0116 |
Vacuum hose assembly with two cuffs (OBSOLETE) |
1 |
(includes 6b-8) |
| 6b |
175-0148 |
Base inlet cuff |
1 |
|
| 7 |
175-0149 |
Flex hose (OBSOLETE) |
1 |
|
| 9 |
175-0192 |
Screw M6 x .25mm hex head |
1 |
|
| 10 |
175-0151 |
Torsion spring |
1 |
|
| 12 |
999-1261 |
Washer M6 flat stainless steel |
1 |
|
| 15 |
175-5593 |
Screw M8 x 35mm truss head phillips |
2 |
|
| 16 |
175-0117 |
Guide wheel with bushing |
2 |
(includes 17) |
| 18 |
175-0080 |
Height adjustment cam |
1 |
|
| 19 |
175-0156 |
Brush motor gasket |
1 |
|
| 20 |
175-0118 |
14 inch brush assembly |
1 |
(includes 21a, 22) |
| 21a |
175-0069 |
Brush bearing |
2 |
(OEM) |
| 21b |
991-5125 |
Brush bearing |
2 |
(NON-OEM) |
| 22 |
175-0068 |
Bearing block |
2 |
|
| 23 |
175-0067 |
Brush pulley (OBSOLETE) |
1 |
|
| 24 |
175-0079 |
Brush drive belt |
2 |
|
| 25a |
175-0158 |
Roller and bracket assembly |
1 |
(includes 25b-29) |
| 25b |
175-0061 |
Roller wheel |
1 |
|
| 26 |
175-0060 |
Roller bracket |
1 |
|
| 27 |
175-0063 |
Torsion spring |
1 |
|
| 29 |
175-0064 |
Pivot bracket |
1 |
|
| 30 |
999-0879 |
Screw 8-32 x 1/4 truss head slotted stainless steel |
2 |
|
| 31 |
175-0159 |
14 inch shoe (OBSOLETE) |
1 |
|
| 32 |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
|
| 33 |
999-0530 |
Screw M4-.7 x 8mm pan head slotted zinc |
5 |
|
| 34 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
2 |
|
| 35 |
175-0160 |
Height adjustment decal |
1 |
|
| 36 |
175-0193 |
Extension spring |
1 |
|
| 37 |
175-0194 |
Screw M8 x 25mm pan head phillips |
1 |
|
| 38 |
175-0157 |
Motor pulley (OBSOLETE) |
1 |
|
| 39a |
175-0073 |
Brush motor (OBSOLETE) |
1 |
(120V) |
| 39b |
175-0074 |
Brush motor 220V (OBSOLETE) |
1 |
(240V) |
| 40 |
N/A |
Not available |
1 |
(csa decal) |
| 41 |
N/A |
Not available |
1 |
(cri decal) |
|
|
Accessories - 275-6116 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-0175 |
Attachment kit |
1 |
(includes 001-004) |
| 001 |
175-0176 |
Upholstery tool |
1 |
|
| 003 |
175-0178 |
Dusting brush |
1 |
|
| 004 |
175-0121 |
Extension wand |
1 |
|
| 005a |
175-0014 |
Vacuum bags (pkg of 10) |
1 |
(OEM) |
| 005b |
991-8518 |
Paper vacuum bags (pkg of 10 and 2 filters) |
1 |
(NON-OEM) |
| 006 |
175-0099 |
Cloth vacuum bag |
1 |
|
|
|
- Frequently Replaced Parts - 999-9971 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
175-0106 |
18/3 power cord 40 foot (OBSOLETE) |
|
(OEM) |
| 02 |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
|
(NON-OEM) |
| 03 |
175-0001 |
Strain relief |
|
|
| 04 |
175-0136 |
On/off rocker switch |
|
|
| 05 |
175-0079 |
Brush drive belt |
|
|
| 06 |
175-0157 |
Motor pulley (OBSOLETE) |
|
|
| 07 |
175-0068 |
Bearing block |
|
|
| 08 |
175-0118 |
14 inch brush assembly |
|
|
| 09 |
175-0073 |
Brush motor (OBSOLETE) |
|
|
| 10 |
175-0113 |
120V vacuum motor |
|
|
| 11 |
175-0105 |
Vacuum motor foam filter |
|
(secondary) |
| 12 |
175-0161 |
1 1/4 inch vacuum wand hose (OBSOLETE) |
|
|
| 13 |
175-0120 |
Exhaust filter |
|
(3 pack) |
| 14 |
175-0014 |
Vacuum bags (pkg of 10) |
|
(pkg of 10) |
|
|
