Parts List Complete for NOBLES ULTRA GLIDE

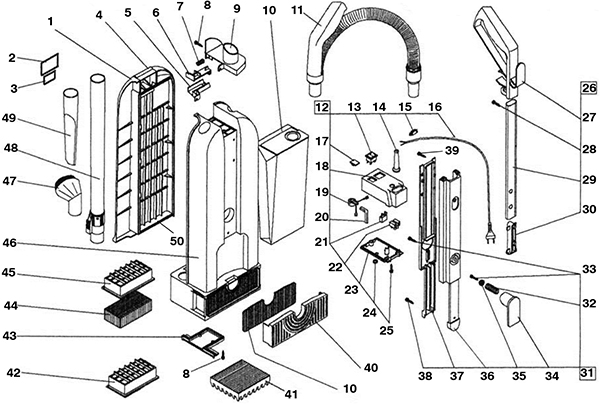

Bag Housing Assembly - 275-2194
RefNbr Part Number Description Req Notes
1 275-8005 Cover housing assembly (green) 1 (includes 2-3)
2 275-8006 Warning decal 1
3 175-7515 Important filter label 1
4 175-7516 Bag housing cover latch with spring 1
5 175-7518 Button guide 1
6 175-7519 Bag holder button 1
7 175-7520 Bag holder button spring 1
8 175-7521 Screw kit 3.9 x 16 (pkg of 20) 1
9 175-7522 Hose adapter 1
10a 175-7523 Paper vacuum bags and filters (pkg of 8 bags/2 filters) 1 (OEM)
10b 991-9011 Paper bags and filters (pkg of 10 and 2 filters) 1 (NON-OEM)
11 175-7524 Extension hose (OBSOLETE) 1 (hose with handle has been discontinued)
12 175-7525 Switch housing assembly 1 (includes 13-25)
13 175-7527 15amp main switch (OBSOLETE) 1
14 175-7526 Strain relief 1
15 175-7528 Cord clamp (OBSOLETE) 1
16a 175-7529 18/3 power cord 50 foot (OBSOLETE) 1 (OEM)
16b 991-5006 16/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
17 175-7530 Full bag lense (red) 1
18 175-7531 Switch housing 1
19 175-7532 Vacuum sensor with light 1
20 175-7533 Sensor tube 1
21 175-7534 RFI electrical filter 1
22 175-0027 25amp terminal strip 1
24 175-7536 Seal 1
25 175-7539 Screw kit 3 9/10 x 32mm (pkg of 20) 1
26 175-7537 Handle assembly 1 (includes 27-30)
27 175-7538 Handle 1
28 175-7540 Screw kit 3 9/10 x 13 (pkg of 20) 1
29 175-7541 Handle tube with buttons (OBSOLETE) 1
30 175-7542 Handle button assembly 1
31 175-7543 Front electrical panel assembly 1 (includes 32-39)
32 175-7544 Spring 1
33 175-7545 Screw kit 3 1/2 x 16mm (pkg of 20) 1
34 175-7546 Lower cord hook 1
35 175-7548 Ring clip 1
36 175-7547 Handle frame 1
37 175-7549 Handle cover 1
38 175-7550 Screw kit 3 9/10 x 9 1/2 (pkg of 20) 1
39 175-7551 Screw kit 3 1/2 x 16 (pkg of 20) 1
40 175-7552 Filter grill (OBSOLETE) 1
41 175-7554 Foam filter (OBSOLETE) 1
42 175-7555 HEPA filter 1 (optional)
43 175-7556 Conveyor 1
44 175-7557 Motor protection filter 1
45 175-7558 Filter housing 1
46 275-8008 Bag housing green 1
47 175-7561 Dusting brush 1
48 172-1453 Telescopic wand 1
49 175-7562 Crevice tool 1
50 175-7517 Bag housing cover gasket 1

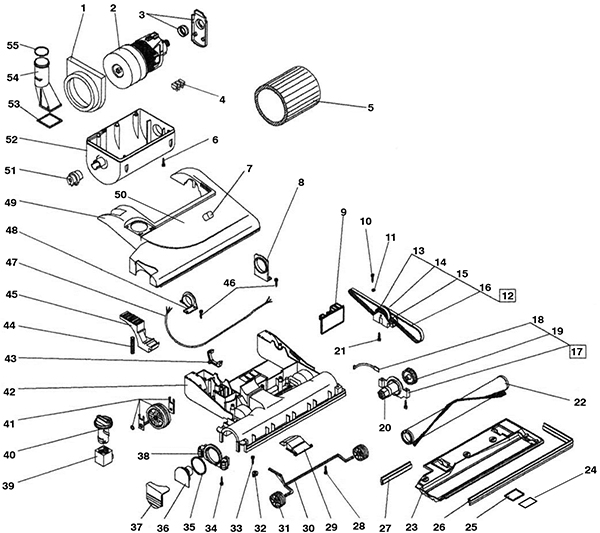

Single Motor Base Assembly - 275-2195
RefNbr Part Number Description Req Notes
1 175-7564 Vacuum motor gasket 1
2 175-7565 120V vacuum motor with pulley 1
3 175-7566 Motor gasket and holder 1
4 175-7567 5 pole terminal block 1
5 175-7568 Vacuum motor filter (OBSOLETE) 1
6 175-7539 Screw kit 3 9/10 x 32mm (pkg of 20) 1
7 175-7569 Red and green lens kit (2 lenses) 1
8 175-7570 Left support 1
9 175-7571 Circuit board 1
10 175-7545 Screw kit 3 1/2 x 16mm (pkg of 20) 1
11 175-7572 Washer kit (pkg of 20) 1
12 175-7573 Transmission assembly 1 (includes 13-16)
13 275-8010 Motor pulley assembly with bearings 1
14 175-7575 Pin (OBSOLETE) 1
15 175-7576 Support pulley 1
16 175-7577 Single motor timing belt 1
17 275-4625 Brush support assembly 1 (includes 18-19)
18 N/A Not available 1 (speed sensor)
19 175-7579 Brush pulley with metal insert 1
20 175-7580 Drive clutch kit 1
21 175-7581 Screw kit 3 9/10 X 1 1/3mm (pkg of 20) 1
22a 175-7582 12 inch brush roller 1
22b 175-7583 15 inch brush roller 1
23a 175-7584 12 inch shoe with labels 1
23b 175-7585 15 inch shoe with labels 1
24 175-7586 Important decal 1
25 175-7587 Warning decal 1
26a 175-7588 12 inch front bumper 1
26b 175-7589 15 inch front bumper 1
27 175-7590 15 inch rear bumper 1
28 175-7591 Screw kit 4.8 x 13mm (pkg of 20) 1
29 175-7592 Cover 1
30 175-7593 Front axle 1
31 175-7594 Front wheel 2
32 175-7595 Cover clip kit (pkg of 20) 1
33 175-7596 Screw kit (pkg of 20) 1
34 175-7597 Screw kit (pkg of 20) 1
35 172-1489 O-ring 1
36 172-1479 Roller support 1
37 175-7600 Side cover 1
38 175-7601 Side support assembly with wheels 1
39 175-7602 Brush adjuster block 1
40 175-7603 Adjusting knob 1
41 175-7604 Rear wheel assembly 2
42a 175-7605 12 inch base 1
42b 175-7606 15 inch base 1
43 175-7607 Base lifting lever 1
44 175-7609 12 and 15 inch foot pedal kit 1
45 175-7609 12 and 15 inch foot pedal kit 1
46 175-7612 Screw kit 3.9 x 19mm (pkg of 20) 1
47 175-7613 Base cord 1
48 275-5787 Right hand support 1
49a 275-8011 12 Inch cover with lens and label (green) 1
49b 275-8012 15 Inch cover with lens and label (green) 1
50 275-8013 Nobles UltraGlide label 1
51 175-7619 Latch pivot 1
52 175-7620 Vacuum motor housing 1
53 175-7622 Conveyor gasket 1
54 175-7621 Conveyor tube 1
55 175-7623 O-ring 1

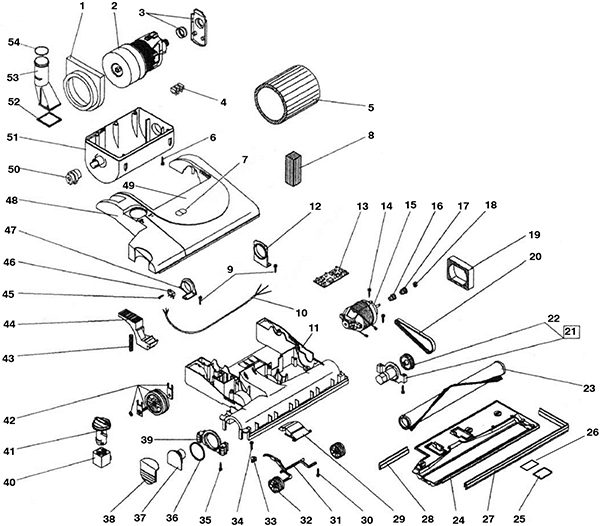

Dual Motor Base Assembly - 275-2196
RefNbr Part Number Description Req Notes
1 175-7564 Vacuum motor gasket 1
2 175-7624 120V vacuum motor with balancing disc 1
3 175-7566 Motor gasket and holder 1
4 175-0027 25amp terminal strip 1
5 175-7568 Vacuum motor filter (OBSOLETE) 1
6 175-7539 Screw kit 3 9/10 x 32mm (pkg of 20) 1
7 175-7625 Red and green lens kit (2 lenses) 1
8 175-7626 Filter 1
9 175-7612 Screw kit 3.9 x 19mm (pkg of 20) 1
10 175-7627 Base cord 1
11a 175-7629 12 inch base 1
11b 175-7628 15 inch base 1
11c 175-7630 18 inch base 1
12 175-7570 Left support 1
13 175-7631 Circuit board 1
14 175-7612 Screw kit 3.9 x 19mm (pkg of 20) 1
15a 175-7632 120V brush motor 1 (12 inch and 15 inch models)
15b 175-7633 120V brush motor 1 (18 inch models)
16 175-7634 Spacer 1
17 175-7635 Motor pulley 1
18 999-0869 Nut M4-.7 hex coarse thread plain finish 1
19 175-7636 Brush motor filter 1
20 175-7637 Timing belt (OBSOLETE) 1
21 175-7638 Brush support assembly with pulley 1 (includes 22)
22 175-7579 Brush pulley with metal insert 1
23a 175-7582 12 inch brush roller 1
23b 175-7583 15 inch brush roller 1
23c 175-7639 18 inch brush roller 1
24a 175-7640 12 inch shoe with labels 1 (includes 25-26)
24b 175-7641 15 inch shoe with labels 1 (includes 25-26)
24c 175-7642 18 inch shoe with labels 1 (includes 25-26)
25 175-7586 Important decal 1
26 175-7587 Warning decal 1
27a 175-7588 12 inch front bumper 1
27b 175-7589 15 inch front bumper 1
27c 175-7643 18 inch front bumper 1
28a 175-7590 15 inch rear bumper 1
28b 175-7644 18 inch rear bumper 1
29 175-7645 Cover 1
30 175-7591 Screw kit 4.8 x 13mm (pkg of 20) 1
31 175-7646 Front axle 1
32 175-7594 Front wheel 1
33 175-7595 Cover clip kit (pkg of 20) 2
34 175-7596 Screw kit (pkg of 20) 1
35 175-7597 Screw kit (pkg of 20) 1
36 172-1489 O-ring 1
37 172-1479 Roller support 1
38 175-7647 Side cover 1
39 175-7601 Side support assembly with wheels 1
40 175-7602 Brush adjuster block 1
41 175-7603 Adjusting knob 1
42 175-7648 Rear wheel assembly 1
43 175-7609 12 and 15 inch foot pedal kit 2
44 175-7609 12 and 15 inch foot pedal kit 1
45 175-7651 Screw kit (pkg of 20) 1
46 175-7652 Switch 1
47 275-5787 Right hand support 1
48a 275-8014 12 Inch cover with lens (green) 1
48b 275-8015 15 Inch cover with lens (green) 1
48c 275-8016 18 Inch cover with lens (green) 1
49 275-8017 Nobles UltraGlide label DM (OBSOLETE) 1
50 175-7619 Latch pivot 1
51 175-7620 Vacuum motor housing 1
52 175-7622 Conveyor gasket 1
53 175-7621 Conveyor tube 1
54 175-7623 O-ring 1

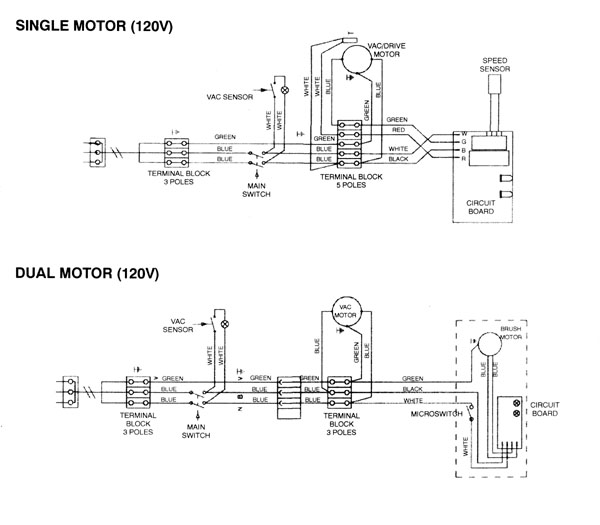

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 275-9996
RefNbr Part Number Description Req Notes
0.9835 175-7571 Circuit board

- Frequently Replaced Parts - 999-9978
RefNbr Part Number Description Req Notes
01 175-7529 18/3 power cord 50 foot (OBSOLETE) (OEM)
02 991-5008 18/3 replacement power cord 50 foot (beige) (NON-OEM)
03 175-7526 Strain relief
04 175-7527 15amp main switch (OBSOLETE) (power)
05 175-7635 Motor pulley
06 175-7632 120V brush motor
07 175-7624 120V vacuum motor with balancing disc
08 175-7568 Vacuum motor filter (OBSOLETE)
09 175-7524 Extension hose (OBSOLETE) (Hose with handle has been discontinued)
10 175-7553 Exhaust filter (pkg of 10)
11 175-7523 Paper vacuum bags and filters (pkg of 8 bags/2 filters) (OEM)
12 991-9011 Paper bags and filters (pkg of 10 and 2 filters) (NON-OEM)
13 175-7546 Lower cord hook
14 175-7588 12 inch front bumper
15 175-7637 Timing belt (OBSOLETE)
16 172-1479 Roller support (right)
17 175-7638 Brush support assembly with pulley (left)
18 175-7582 12 inch brush roller
