Parts List Complete for NOBLES TROOPER 1500H

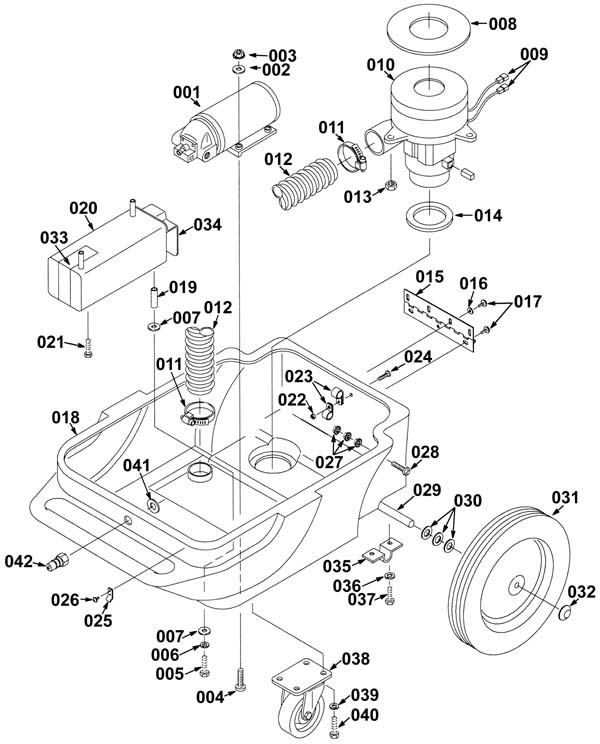

Base Assembly - 175-6266
RefNbr Part Number Description Req Notes
001a 175-6011 120V 100 PSI pump 1
001b 991-8225 Shurflo pump 1
002 999-0393 Washer 3/16 flat aluminum 4
003 999-0356 Nut 10-24 lock stainless steel 4
004 999-0002 Screw 10-24 x 1 1/2 pan head phillips zinc plated 4
005 999-0574 Screw 10-24 x 1 3/4 pan head slotted zinc plated 2
006 999-0446 Screw 5/16-18 x 1 3/4 round head slotted zinc plated 2
007 999-0393 Washer 3/16 flat aluminum 4
008 175-6084 Vacuum motor gasket 1 120v
009 175-0142 1/4 inch male terminal 2
010a 175-0198 120V 3 stage vacuum motor 1 Includes 010b and 010c
010b 175-6086 Carbon brush (pkg of 2) 1 May be bought without 010a
010c 175-5289 Shell 1 May be bought without 010a
010d 991-1213 120V 3 stage vacuum motor tangential 1 (NON-OEM)
011 175-2057 Hose clamp 2
012 175-1917 Hose 2 x 28 inch 1
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
014 175-1920 Vacuum motor intake gasket 1
015 175-6077 Tank hinge 1
016 999-0016 Washer 1/4 flat plain finish 4
017 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 7
018 175-1949 Chassis (OBSOLETE) 1 Green
019 175-0077 Spacer 2
020a 175-1953 120V heater assembly 1 Includes 020a
020b 175-1954 Heater insulator 1 May be purchased without 020b
021 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated 2
022 999-0442 Nut 10-24 nylon insert lock stainless steel 1
023 175-0339 P clamp 2
024 999-1031 Screw 10-24 x 1 truss head phillips stainless steel 1
025a 175-3369 Hood latch 2
025b 991-8561 Rubber draw latch with keeper 2
026 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
027 999-0356 Nut 10-24 lock stainless steel 3
028 999-1031 Screw 10-24 x 1 truss head phillips stainless steel 1
029 175-1900 Axle 1
030 999-0187 Washer 1/2 flat plain finish 6
031 175-1902 Wheel 2
032 175-6097 Hub cap 2
033 175-1961 Nylon strap with adhesive 1
034 175-1976 Heater cover 1
035 175-6098 Axle bracket 2
036 999-0632 Washer 1/4 split lock stainless steel 4
037 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
038 175-0888 4 inch swivel caster wheel 2
039 999-0632 Washer 1/4 split lock stainless steel 8
040 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
041 175-1825 Washer 1
042 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1

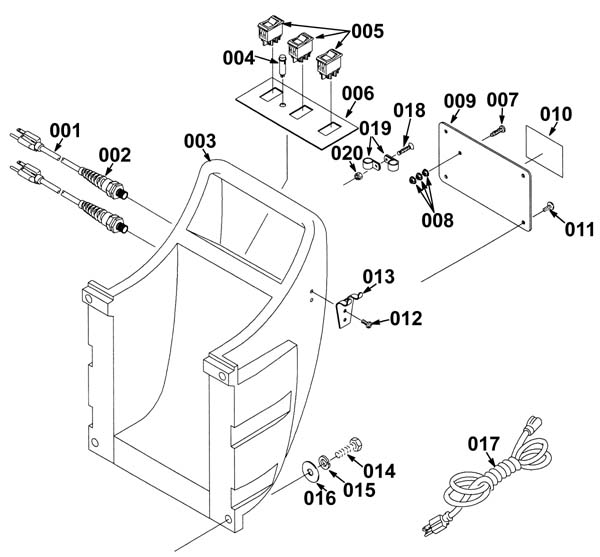

Handle Assembly - 175-6267
RefNbr Part Number Description Req Notes
001 175-0992 14/3 pigtail cord 20 inch 2
002 175-0001 Strain relief 2
003 175-1932 Green handle 1
004 175-1933 Indicator light 1
005 175-1008 Rocker switch 3
006 175-1935 Dash decal 1
007 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
008 999-0356 Nut 10-24 lock stainless steel 3
009 175-6542 Plate assembly with decal 1 Assembly includes 010
010 275-9008 Warning decal 1
011 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 4
012 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
013 175-6069 Drain hose bracket 1
014 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4
015 999-0034 Washer 3/8 split lock plain finish 4
016 999-0617 Washer 3/8 x 1 flat stainless steel 4
017 175-1937 14/3 extension cord 25 feet (yellow) 2
018 999-1549 Screw 10-24 x 3/4 flat head phillips stainless steel 1
019 175-0339 P clamp 2
020 999-0442 Nut 10-24 nylon insert lock stainless steel 1

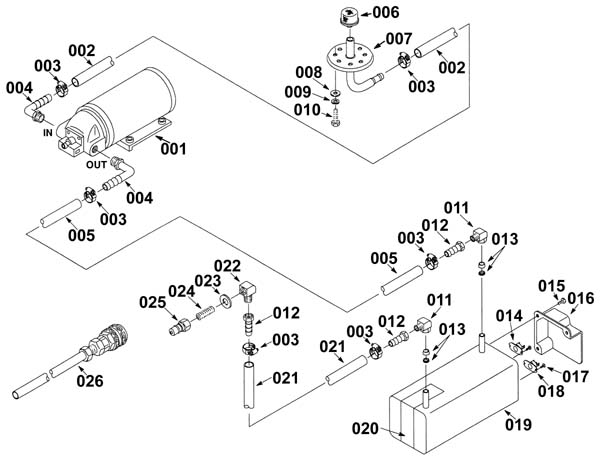

Plumbing Assembly - 175-6268
RefNbr Part Number Description Req Notes
001a 175-6011 120V 100 PSI pump 1
002 175-1978 Hose 3/8 x 24 inch 1
003 175-6081 Hose clamp 6
004 175-6019 90 degree barbed elbow 2
005 175-1982 Hose 3/8 x 16 inches 1
006 175-6079 Mesh filter screen 1
007 175-6021 Bladder plate fitting 1
008 999-0016 Washer 1/4 flat plain finish 4
009 999-0632 Washer 1/4 split lock stainless steel 4
010 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
011 175-1983 Fitting 1/4 x 5/16 2
012 175-6022 Brass fitting 3
013 175-1984 Ferrule stainless steel 2
014 175-1985 Thermostat control 1
015 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 3
016 175-1976 Heater cover 1
017 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 4
018 175-1986 Thermostat limit 1
019a 175-1953 120V heater assembly 1 Includes 019a
019b 175-1954 Heater insulator 1 Can be purchased separately
020 175-1931 Motor mounting system set 1
021 175-6665 Hose 3/8 x 5/8 x 12 inches (grey) 1
023 175-1825 Washer 1
024 175-6244 Nipple 1
025 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
026 175-3579 Pump out hose 1
1b 991-8225 Shurflo pump 1

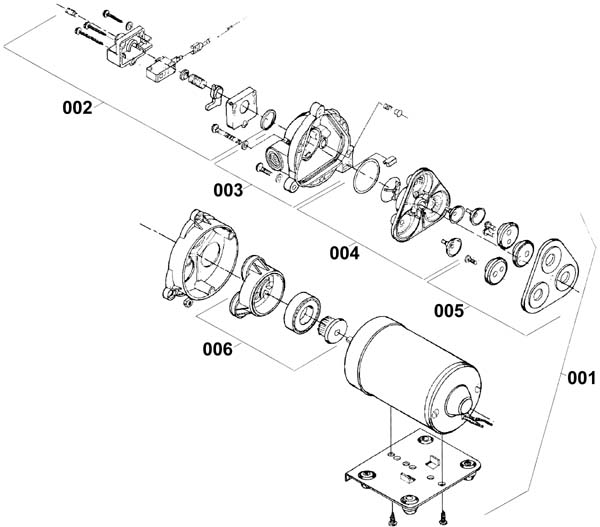

Pump Assembly - 175-6269
RefNbr Part Number Description Req Notes
001a 175-6011 120V 100 PSI pump 1 Includes 001-006
002a 175-6003 Pressure switch kit 1
002b 175-6004 Viton pressure switch kit 1
002c 175-6005 Shurflo diaphragm switch kit 1
003a 175-6006 Upper pump housing kit 1
003b 175-6007 Check valve kit 1
004 175-6008 Viton valve kit 1
005 175-6009 Shurflo valve kit 1
006 175-6010 Lower pump housing kit 1
1b 991-8225 Shurflo pump 1

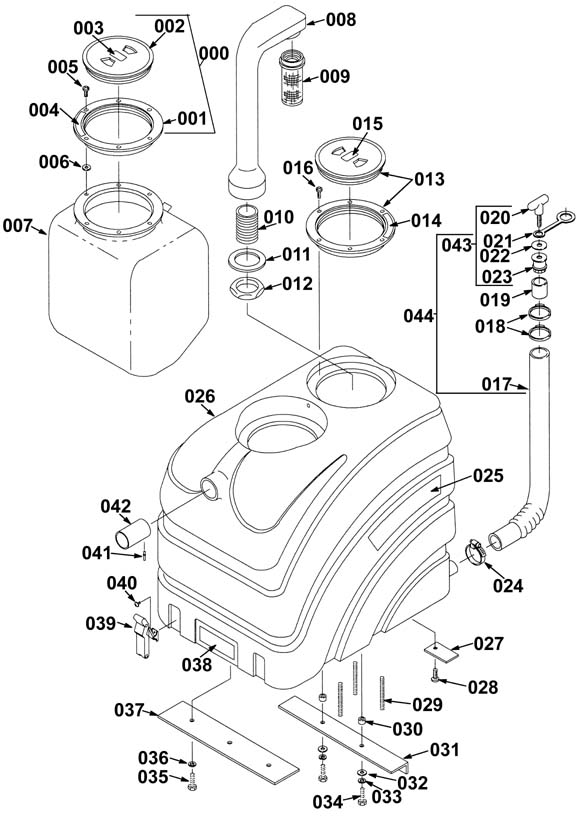

Recovery/Solution Tank Assembly - 175-6270
RefNbr Part Number Description Req Notes
000 175-6045 Tank lid assembly 1 Assembly includes 001 and 002
001 164-0205 Tank lid ring (black) 1
002a 164-0044 Tank lid (clear) 1
002b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
003 175-1938 Use bleeder hose decal 1
004 175-6101 Always close decal 1
005 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel 6
006 999-0016 Washer 1/4 flat plain finish 6
007 175-1989 Bladder bag 1
008 175-6047 Standpipe 1
009a 675-9887 Shut-off float 1 (OEM)
009b 991-5136 Shut-off float 1 (NON-OEM)
010 175-2639 1 1/2 inch nipple fitting 1
011 175-2640 Gasket 1
012 175-2907 Nut 1 1/2 flanged hex 1
013 164-0202 Tank lid assembly 1
014 175-6101 Always close decal 1
015 175-6107 Always drain decal 1
016 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 6
017a 175-1535 Drain hose assembly 1 Drain hose complete kit
017b 991-1907 22 inch molded hose with drain cap 1 (NON-OEM)
018 175-1789 Hose clamp 2 Drain hose complete kit
019 175-6074 Drain hose sleeve 1 Drain hose complete kit
020 175-6071 Drain plug knob 1 Drain hose plug assembly
021 175-6072 Drain plug strap 1 Drain hose plug assembly
022 999-1446 Washer 3/8 x 1 1/2 fender stainless steel 1 Drain hose plug assembly
023 175-6073 Fitting 1 Drain hose plug assembly
024 997-2007 Hose clamp 1
025 175-1942 Trooper 1500H decal (OBSOLETE) 2
026 175-1943 Green recovery tank 1 Green
027 175-2008 Plate 1
028 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 1
029 175-1029 Stud 1/4 x 4 1/4 inch 3
030 175-2726 Sleeved bushing 2
031 175-2013 Tank support bracket 1
032 999-0016 Washer 1/4 flat plain finish 2
033 999-0632 Washer 1/4 split lock stainless steel 2
034 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
035 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 3
036 999-0632 Washer 1/4 split lock stainless steel 3
037 175-2014 Front tank brace 1
038 275-5867 Front decal 1
039a 175-3369 Hood latch 2
039b 991-8561 Rubber draw latch with keeper 2
040 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
041 175-2016 Pop rivet 3/16 x 1/4 inch 1
042 175-2017 Inlet tube 1
043 175-6256 Drain hose kit 1 Kit inlcudes 020-023
044 175-6070 Drain plug assembly 1 Assembly includes 017-023

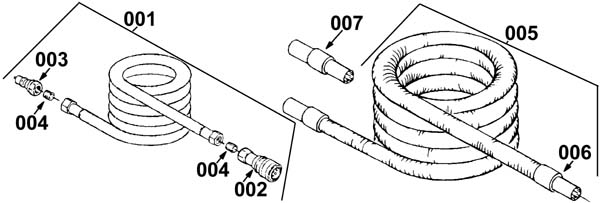

Hoses - 175-6271
RefNbr Part Number Description Req Notes
001a 175-3586 15 foot solution hose assembly 1 Assembly inlcudes 001b-004 (001a is optional)
001b 175-1979 25 foot solution hose assembly 1 Standard
001c 175-1946 50 foot solution hose assembly 1 Optional
001d 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male 1 (NON-OEM)
002 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
003 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
004 175-6244 Nipple 2
005a 175-3589 15 foot vacuum hose assembly 1 005 includes 006
005b 175-3590 25 foot vacuum hose assembly 1 005 includes 006
005c 175-3591 50 foot vacuum hose assembly 1 005 includes 006
006 175-6269 1 1/2 inch hose cuff (OBSOLETE) 2
007 175-8758 Connector 1
N/S 175-2646 Hose bag with draw string 1 Not Shown (optional)

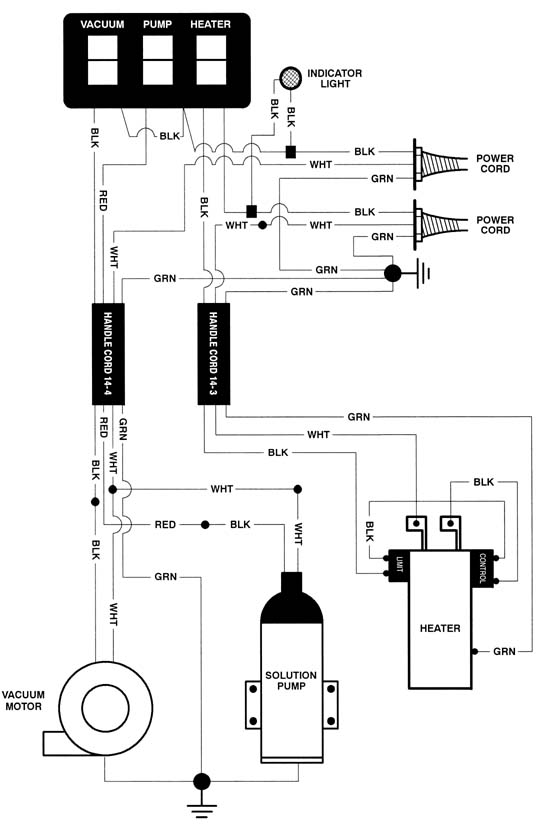

Wiring Diagram -

RefNbr Part Number Description Req Notes

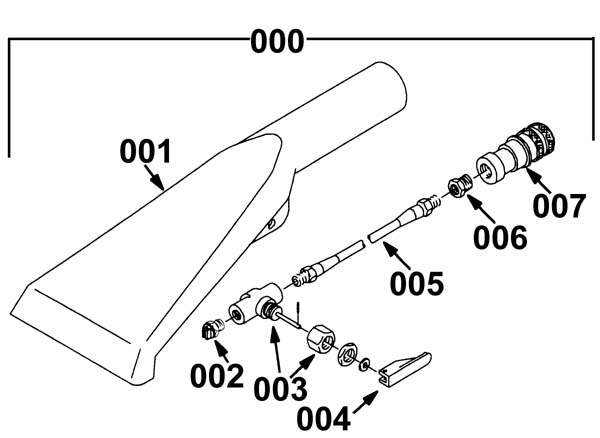

3 Inch Crevice Tool Assembly - 175-6273
RefNbr Part Number Description Req Notes
000 175-4827 3 inch crevice tool assembly 1 Includes 001-007
001 175-4828 3 inch crevice tool 1
002 175-4829 Brass v-jet fitting 1
003 175-1939 Ball valve 1
004 175-4830 Valve handle 1
005 175-4831 Solution hose 1
006 175-4832 Straight fitting 1
007 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1

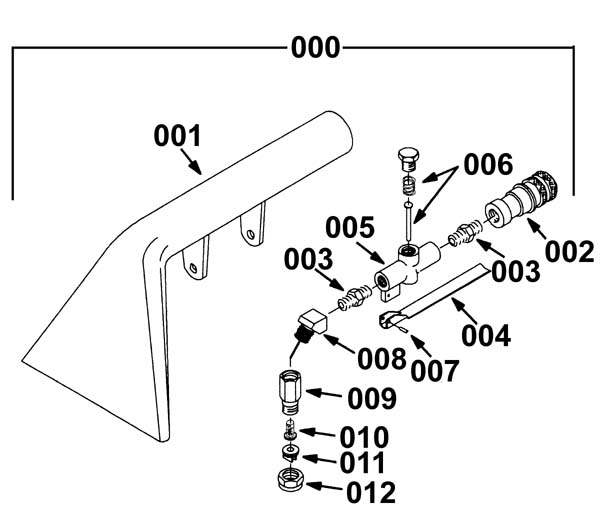

5 Inch Hand Tool Assembly - 175-6274
RefNbr Part Number Description Req Notes
000 175-3567 5 inch hand tool assembly 1 Inlcudes 001-012
001 175-3568 5 inch hand tool 1
002 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
003 175-6239 1/4 inch nipple 2
004 175-3569 Hand tool trigger 1
005 175-3570 Valve 1
006 175-3571 Valve pin and spring (OBSOLETE) 1
007 175-4841 Roll pin 1
008 175-6031 Straight jet fitting 1
009 175-3572 Spray body 1
010 175-1802 Mesh screen filter 1
011 175-3573 Spray tip 1
012 175-1834 Spray nozzle cap 1

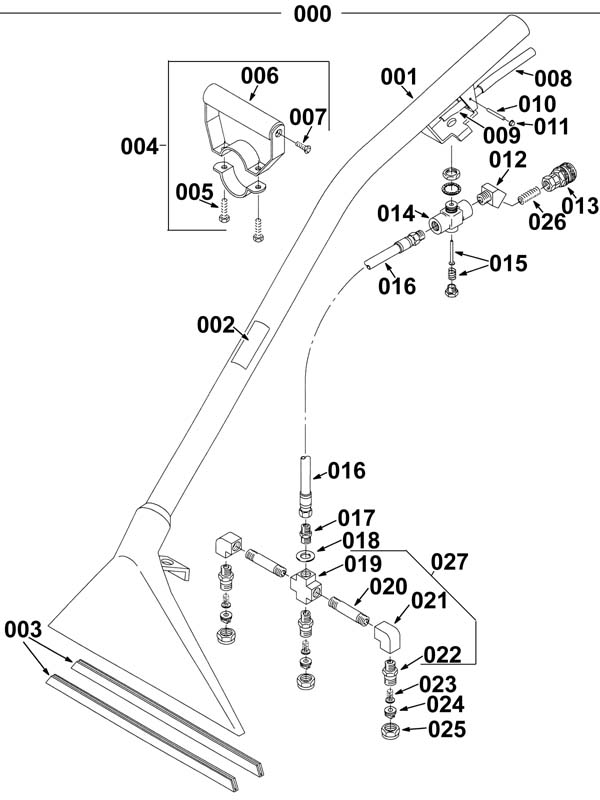

13 Inch Low Pressure Floor Tool - 175-6275
RefNbr Part Number Description Req Notes
000 175-3563 13 inch low pressure wand assembly 1 Assembly includes 001-027
001 175-1810 13 inch floor tool 1
002 175-3564 Low pressure tool decal 1
003 175-1321 13 inch pick-up shoe plate stainless steel 2
004 175-1812 Handle assembly (OBSOLETE) 1 Inlcudes 005-007
005 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
006 175-1813 Foam grip 1
007 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 2
008 175-1816 Handle sleeve 1
009 175-1815 Trigger 1
010 175-1817 Handle pin 1
011 175-1818 Nut 1/4 push 2
012 175-6031 Straight jet fitting 1
013 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
014 175-1819 Manual valve assembly 1 Includes 015
015 175-1820 Valve pin and spring kit 1
016 175-3565 Solution hose assembly 1
017 175-6239 1/4 inch nipple 1
018 175-1825 Washer 1
019 175-1829 Tee fitting 1
020 175-6015 Nipple 2
021 175-6248 90 degree elbow 2
022 175-1830 1/4 inch male spray body 3
023 175-1802 Mesh screen filter 3
024 175-3566 T-jet tip fitting 3
025 175-1834 Spray nozzle cap 3
026 175-6244 Nipple 1
027 175-1826 Spray bar without tips for 13 inch wand 1 Assembly inlcudes 019-022

16 Inch Low Pressure Floor Tool - 175-6276
RefNbr Part Number Description Req Notes
000 175-4314 16 inch low pressure wand assembly 1 Assembly includes 001-028
001 175-4299 16 inch floor tool 1
002 175-3564 Low pressure tool decal 1
003 175-6146 16 inch pick-up shoe plate stainless steel 2
004 175-1812 Handle assembly (OBSOLETE) 1 Inlcudes 005-007
005 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
006 175-1813 Foam grip 1
007 175-1750 Roll pin 2
008 175-1816 Handle sleeve 1
009 175-1815 Trigger 1
010 175-1817 Handle pin 1
011 175-1818 Nut 1/4 push 2
012 175-6031 Straight jet fitting 1
013 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
014 175-6244 Nipple 1
015 175-1819 Manual valve assembly 1 Includes 016
016 175-1820 Valve pin and spring kit 1
017 175-3565 Solution hose assembly 1
018 175-6239 1/4 inch nipple 1
019 175-1825 Washer 1
020 175-6253 1/4 inch brass tee 1 Spray bar assembly
021 175-6029 Straight tee 2 Spray bar assembly
022 175-6015 Nipple 2 Spray bar assembly
023 175-6248 90 degree elbow 2 Spray bar assembly
024 175-1830 1/4 inch male spray body 4 Spray bar assembly
025 175-1802 Mesh screen filter 4
026 175-3566 T-jet tip fitting 4
027 175-1834 Spray nozzle cap 4
028 175-4313 Spray bar without tips for 16 inch wand 1 Includes 020-024

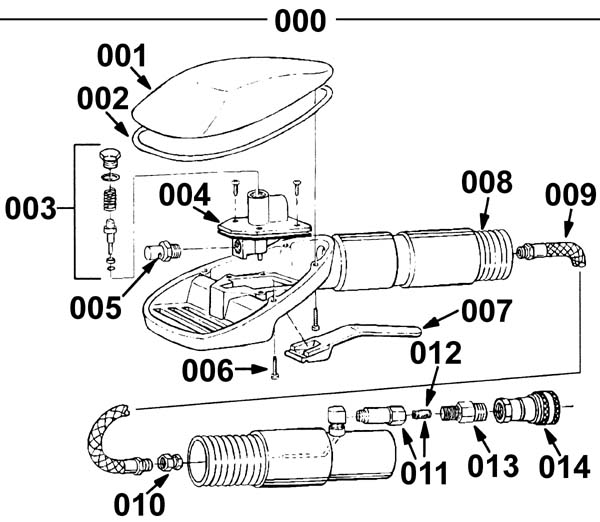

Upholstery Tool Assembly - 175-6277
RefNbr Part Number Description Req Notes
000a 175-4855 Low pressure upholstery tool assembly 1 Assembly includes 001-014
000b 175-5845 Vacuum motor bracket 1
001 175-4856 Upholstery tool cover 1
002 175-4857 Gasket 1
003 175-4858 Valve assembly 1
004 175-4859 Solution valve 1
005 175-4860 Nozzle 1
006 175-4861 Screw 6-32 x 3/4 inch 4
007 175-4862 Trigger 1
008 175-4863 Vacuum hose without cuffs 1
009 175-4864 Solution hose 1
010 175-4865 Fitting 1 3 pieces
011 175-4866 Inline filter assembly 1 Includes 012
012 175-4867 Filter screen 1 Can be purchased without 011
013 175-6239 1/4 inch nipple 1
014 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1

- Extractor Fit All Parts - 999-9400
RefNbr Part Number Description Req Notes
001a 991-8000 12 inch stainless head wand, 1 jet 120 PSI plastic valve (wands)
001b 991-8001 12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) (wands)
001c 991-8002 12 inch aluminum head wand, 3 jet, 120 PSI plastic valve (wands)
001d 991-8227 500psi brass valve (wands)
002a 991-8222 30 inch stair wand (open spray) (stair wand)
002b 991-8223 30 inch swivel head ergonomic stair wand (open spray) (stair wand)
004 991-8129 Handle 1-1/2 inch low profile comfort grip assist (wands)
005a 991-8128 120 PSI, acetel plastic valve, low heat 140 degrees (wands)
005b 991-8127 120 PSI, brass valve, stainless steel stem (wands)
005c 991-8226 Valve
005d 991-8171 400psi cast aluminum valve
007 991-8130 3-1/2 inch wide 120 PSI standard detailer, external spray (wands)
008 991-8132 10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
009 991-8133 20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
010 991-8136 10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml (hose assemblies and parts)
011 991-8137 20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml (hose assemblies and parts)
012 991-8134 10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi (hose assemblies and parts)
013 991-8135 20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings (hose assemblies and parts)
014 991-8138 10ft 100psi vac/sol hose assembly w/ 1/4 male fittings (hose assemblies and parts)
015 991-8139 20ft 100psi vac/sol hose assembly with male fittings (hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI)
016 991-8142 10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
017 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
018 991-8140 10ft 100psi vac/sol hose assembly w/ 1/4 female fittings (hose assemblies and parts)
021 991-8004 1 1/2 inch vacuum hose (sold by the foot) (hose assemblies and parts)
022 991-8005 1 1/2 inch replacement hose cuff (black) (hose assemblies and parts)
023 991-8131 1 1/2 inch hide-a-hose cuff (no swivel) (hose assemblies and parts)
026 991-8045 1/8 inch brass vee jet 8001 (1/8 brass vee jet)
027 991-8046 1/8 inch brass vee jet 8001.5 (1/8 brass vee jet)
028 991-8047 1/8 inch brass vee jet 8002 (1/8 brass vee jet)
029 991-8048 1/8 inch brass vee jet 8003 (1/8 brass vee jet)
030 991-8049 1/8 inch brass vee jet 8004 (1/8 brass vee jet)
031 991-8050 1/8 inch brass vee jet 8005 (OBSOLETE) (1/8 brass vee jet)
032 991-8051 1/8 inch brass vee jet 8006 (1/8 brass vee jet)
033 991-8052 1/8 inch brass vee jet 8008 (1/8 brass vee jet)
034 991-8053 1/8 inch brass vee jet 8010 (1/8 brass vee jet)
035 991-8054 1/8 inch brass vee jet 9502 (1/8 brass vee jet)
036 991-8055 1/8 inch brass vee jet 9503 (1/8 brass vee jet)
037 991-8056 1/8 inch brass vee jet 9504 (1/8 brass vee jet)
038 991-8057 1/8 inch brass vee jet 9505 (1/8 brass vee jet)
039 991-8058 1/8 inch brass vee jet 9506 (1/8 brass vee jet)
040 991-8059 1/8 inch brass vee jet 9508 (1/8 brass vee jet)
041 991-8060 1/8 inch brass vee jet 11001 (1/8 brass vee jet)
042 991-8061 1/8 inch brass vee jet 11001.5 (1/8 brass vee jet)
043 991-8062 1/8 inch brass vee jet 11002 (1/8 brass vee jet)
044 991-8063 1/8 inch brass vee jet 11003 (1/8 brass vee jet)
045 991-8064 1/8 inch brass vee jet 11004 (1/8 brass vee jet)
046 991-8065 1/8 inch brass vee jet 11005 (1/8 brass vee jet)
047 991-8066 1/8 inch brass vee jet 11006 (1/8 brass vee jet)
048 991-8067 1/8 inch brass vee jet 11008 (1/8 brass vee jet)
049 991-8068 1/8 inch brass vee jet 11010 (1/8 brass vee jet)
050 991-8021 1/4 inch brass vee jet 8001 (1/4 brass vee jet)
051 991-8022 1/4 inch brass vee jet 8001.5 (1/4 brass vee jet)
052 991-8023 1/4 inch brass vee jet 8002 (1/4 brass vee jet)
053 991-3005 1/4 inch brass vee jet 8003 (1/4 brass vee jet)
054 991-8025 1/4 inch brass vee jet 8004 (1/4 brass vee jet)
055 991-8026 1/4 inch brass vee jet 8005 (1/4 brass vee jet)
056 991-8027 1/4 inch brass vee jet 8006 (1/4 brass vee jet)
057 991-8028 1/4 inch brass vee jet 8008 (1/4 brass vee jet)
058 991-8029 1/4 inch brass vee jet 8010 (1/4 brass vee jet)
059 991-8030 1/4 inch brass vee jet 9502 (1/4 brass vee jet)
060 991-8031 1/4 inch brass vee jet 9503 (1/4 brass vee jet)
061 991-8032 1/4 inch brass vee jet 9504 (1/4 brass vee jet)
062 991-8033 1/4 inch brass vee jet 9505 (1/4 brass vee jet)
063 991-8034 1/4 inch brass vee jet 9506 (1/4 brass vee jet)
064 991-8035 1/4 inch brass vee jet 9508 (1/4 brass vee jet)
065 991-8036 1/4 inch brass vee jet 11001 (1/4 brass vee jet)
066 991-8037 1/4 inch brass vee jet 11001.5 (1/4 brass vee jet)
067 991-8038 1/4 inch brass vee jet 11002 (1/4 brass vee jet)
068 991-8039 1/4 inch brass vee jet 11003 (1/4 brass vee jet)
069 991-8040 1/4 inch brass vee jet 11004 (1/4 brass vee jet)
070 991-8041 1/4 inch brass vee jet 11005 (OBSOLETE) (1/4 brass vee jet)
071 991-8042 1/4 inch brass vee jet 11006 (1/4 brass vee jet)
072 991-3006 1/4 inch brass vee jet 11008 (1/4 brass vee jet)
073 991-8044 1/4 inch brass vee jet 11010 (1/4 brass vee jet)
074 991-8069 1/4 inch stainless vee jet 8001 (1/4 stainless vee jet)
075 991-8070 1/4 inch stainless vee jet 8002 (1/4 stainless vee jet)
076 991-8071 1/4 inch stainless vee jet 8003 (1/4 stainless vee jet)
077 991-8072 1/4 inch stainless vee jet 8004 (1/4 stainless vee jet)
078 991-8073 1/4 inch stainless vee jet 9501 (1/4 stainless vee jet)
079 991-8074 1/4 inch stainless vee jet 9502 (1/4 stainless vee jet)
080 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless vee jet)
081 991-8076 1/4 inch stainless vee jet 9504 (1/4 stainless vee jet)
082 991-8077 1/4 inch stainless vee jet 11003 (1/4 stainless vee jet)
083 991-8078 1/4 inch stainless vee jet 11004 (1/4 stainless vee jet)
084 991-8079 1/4 inch stainless vee jet 11006 (1/4 stainless vee jet)
085 991-8080 1/4 inch stainless vee jet 11008 (1/4 stainless vee jet)
086 991-8081 1/4 inch stainless/plastic tee jet 8002 (1/4 stainless/plastic tee jet)
087 991-8082 1/4 inch stainless/plastic tee jet 8003 (1/4 stainless/plastic tee jet)
088 991-8083 1/4 inch stainless/plastic tee jet 8004 (1/4 stainless/plastic tee jet)
089 991-8084 1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) (1/4 stainless/plastic tee jet)
090 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless/plastic tee jet)
091 991-8086 1/4 inch stainless/plastic tee jet 9504 (1/4 stainless/plastic tee jet)
092 991-3010 1/4 inch stainless/plastic tee jet 11003 (1/4 stainless/plastic tee jet)
093 991-8088 1/4 inch stainless/plastic tee jet 11004 (1/4 stainless/plastic tee jet)
094 991-8089 1/4 inch stainless/plastic tee jet 11006 (1/4 stainless/plastic tee jet)
095 991-8090 1/4 inch stainless/plastic tee jet 11008 (1/4 stainless/plastic tee jet)
096 991-8091 1/4 inch x 1/8 hex nipple H21
097 991-8092 1/4 inch x 1/4 hex nipple H22
098 991-8093 1/4 inch x 3/8 hex nipple H23
099 991-8094 45 degree street elbow 1/4 inch H24
100 991-8095 45 degree street elbow 1/8 inch H25
101 991-8096 45 degree union elbow 1/4 inch H26
102 991-8098 90 degree street elbow short 1/4 inch H28
103 991-8098 90 degree street elbow short 1/4 inch H28
104 991-8099 90 degree street elbow 1/8 inch H29
105 991-8100 90 degree street elbow short 1/8 inch H30
106 991-8101 90 degree union elbow 1/4 inch H31
107 991-8102 90 degree union elbow 1/8 inch H32
108 991-8103 30 degree union elbow 1/4 inch H33
109 991-8104 1/4 inch coupling H34
110 991-8105 1/8 inch coupling H35
111 991-8106 1/4 inch adapter H36
112 991-8107 1/8 inch adapter H37
113 991-8108 1/4 inch branch tee H38
114 991-8109 1/8 inch branch tee H39
115 991-8110 1/8 inch tee H40
116 991-8111 7/16 inch stainless steel hose clamp H41
117 997-2002 Hose clamp #6
118 991-8113 Strainer for 1/8 inch vee jets H43
119 991-8114 Strainer for 1/4 inch vee jets H44
120 991-8115 Strainer/check valve for 1/4 inch vee jets H45
121 991-8116 Brass strainer/check valve for tee jets H46
122 991-8117 500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47
123 991-8118 500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48
124 991-8119 500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49
125 991-8120 1/4 inch brass flood jets K1 or K2 H54
126 991-8158 1/4 inch BH2-60 female coupler (mate to QD40)
127 991-8150 1/4 inch BH2-61 male nipple (mate to QD80)
128 991-8144 B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55
129 991-8152 B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15
130 991-8145 B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55
131 991-8153 B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15
132 991-8146 BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65
133 991-8154 B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25
134 991-8147 BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65
135 991-8155 B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25
136 991-8148 Hansen 02 male nipple, mate to QD70
137 991-8156 Quick disconnect socket female to QD30
138 991-8149 1/8 inch male quick disconnect
139 991-8157 1/8 inch female quick disconnect socket
140 991-8151 BH3-61,3/8 inch FPT, Male Nipple, mate to QD85
141 991-8159 BH3-60, 3/8 inch fpt, female coupler, mate to QD45
142 991-8123 Bottom hex nut for Kingston or P valve H57
143 991-8121 1/8 inch brass flood jets K1 or K2 H55
144 991-8124 Inline filter H58
145 991-8122 1/8 inch special brass flood jets for V1245 H56
146 991-8008 120V 50 PSI Flo Jet pump (pumps)
147 991-8009 120V 100 PSI Flo Jet pump (pumps)
148 991-8218 120V 120 PSI pump (pumps)
149 991-8220 1/8 fpt brass female connector
150 991-1835 Crevice tool
Webpage Problem Reporting
