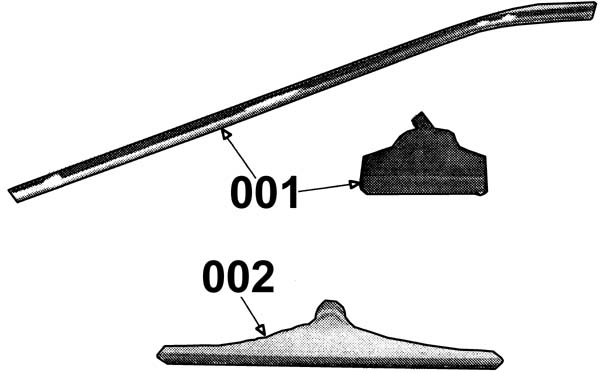

Floor Tools - 175-2207 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-1338 |
Turbo brush with wand floor tool kit 1-1/4 x 11 inches |
1 |
|
| 002 |
175-3600 |
Jet sweep with nylon brush floor tool 1-1/2 x 20 inches |
1 |
|
|
|

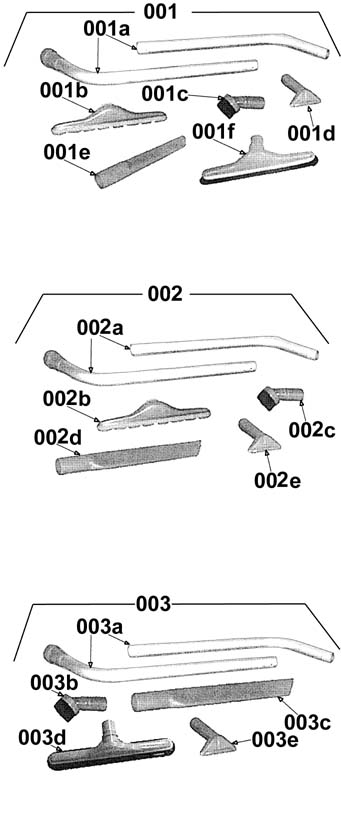

Optional Accessories - 175-2208 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-1339 |
Restaurant vacuum tool kit 1-1/2 inches |
1 |
Kit inlcudes 001a-001f |
| 001a |
175-1340 |
Double bend wand with aluminum button lock tool |
1 |
|
| 001b |
175-1341 |
Floor tool with scallops 1-1/2 x 14 inches |
1 |
|
| 001c1 |
175-1344 |
Dust brush tool with reducer 1-1/2 x 5 inches |
1 |
(OEM) |
| 001c2 |
991-3087 |
3 inch dust brush with reducer |
1 |
|
| 001d1 |
175-1492 |
Upholstery tool 1-1/2 x 5 inches (OBSOLETE) |
1 |
(OEM) |
| 001d2 |
991-3085 |
Upholstery tool |
1 |
(NON-OEM) |
| 001e |
175-1493 |
Crevice tool 1-1/2 x 11 inches |
1 |
|
| 001f |
175-1494 |
Hardfloor with nylon brush floor tool 1-1/2 x 14 inches |
1 |
|
| 002 |
175-1495 |
Commercial vacuum tool kit |
1 |
Kit inlcudes 002a-002e |
| 002a |
175-1340 |
Double bend wand with aluminum button lock tool |
1 |
|
| 002b |
175-1341 |
Floor tool with scallops 1-1/2 x 14 inches |
1 |
|
| 002c1 |
175-1344 |
Dust brush tool with reducer 1-1/2 x 5 inches |
1 |
(OEM) |
| 002c2 |
991-3087 |
3 inch dust brush with reducer |
1 |
(NON-OEM) |
| 002d |
175-1496 |
Crevice tool 1-1/2 x 17 inches |
1 |
|
| 002e1 |
175-1492 |
Upholstery tool 1-1/2 x 5 inches (OBSOLETE) |
1 |
(OEM) |
| 002e2 |
991-3085 |
Upholstery tool |
1 |
(NON-OEM) |
| 003 |
175-1497 |
E-Z glide commerical vacuum tool kit |
1 |
Kit inlcudes 003a-003e |
| 003a |
175-1340 |
Double bend wand with aluminum button lock tool |
1 |
|
| 003b1 |
175-1344 |
Dust brush tool with reducer 1-1/2 x 5 inches |
1 |
(OEM) |
| 003b2 |
991-3087 |
3 inch dust brush with reducer |
1 |
(NON-OEM) |
| 003c |
175-1496 |
Crevice tool 1-1/2 x 17 inches |
1 |
|
| 003d |
175-1498 |
E-Z glide with nylon brush floor tool 1-1/2 x 14 inches |
1 |
|
| 003e1 |
175-1492 |
Upholstery tool 1-1/2 x 5 inches (OBSOLETE) |
1 |
(OEM) |
| 003e2 |
991-3085 |
Upholstery tool |
1 |
(NON-OEM) |
|
|

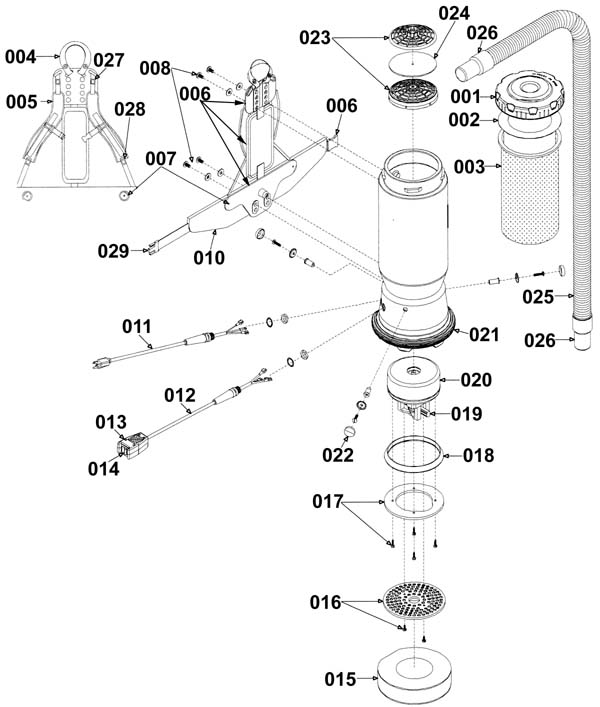

Entire Assembly - 175-2211 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-1886 |
Green twist cap |
1 |
|
| 002a |
175-3601 |
Filter bags (10 pack) |
1 |
OEM |
| 002b |
991-6013 |
6 quart paper bag (pkg of 10) |
2 |
(NON-OEM) |
| 002c |
991-9146 |
6qt paper vacuum bags (pkg of 10) |
1 |
(NON-OEM) |
| 003 |
175-1873 |
6 quart microcloth filter |
1 |
|
| 004 |
175-1781 |
Carry handle with rivet and washer set |
1 |
|
| 005a |
175-1791 |
Shoulder strap assembly with sternum strap |
1 |
|
| 005b |
N/A |
Not available |
1 |
Strap and two buckles |
| 006 |
175-1800 |
Two piece backplate assembly with center pad |
1 |
|
| 007 |
175-1801 |
Nut barrel set kit |
1 |
|
| 008 |
175-1811 |
Backplate connection plate |
1 |
|
| 009 |
175-1862 |
Waist belt keeper |
1 |
|
| 010a |
175-1821 |
Waist belt |
1 |
|
| 010b |
175-1822 |
Two-piece system complete backplate |
1 |
|
| 011 |
175-1887 |
Power cord assembly 16/3 x 18 inches |
1 |
|
| 012a |
175-1831 |
Cord switch assembly kit with box |
1 |
|
| 012b |
175-1844 |
Cord switch with crimps |
1 |
|
| 014 |
N/A |
Not available |
1 |
(on/off switch) |
| 015 |
175-1888 |
Sound muffler |
1 |
|
| 016 |
175-1890 |
Plastic air diffuser with screws |
1 |
|
| 017a |
175-1907 |
Motor compression ring with scews |
1 |
|
| 017b |
175-1828 |
Compression ring kit |
1 |
|
| 019 |
175-1909 |
Carbon brush set |
1 |
|
| 020a |
175-1910 |
Vacuum motor with crimps (OBSOLETE) |
1 |
|
| 020b |
175-1911 |
Vacuum motor with rectifier and crimps (OBSOLETE) |
1 |
|
| 020c |
175-1894 |
Fan motor with rectifer |
1 |
|
| 020d |
175-1916 |
Motor ground connections and wire clamp kit |
1 |
|
| 021 |
175-1922 |
Bottom bumper |
1 |
|
| 022 |
175-1931 |
Motor mounting system set |
1 |
|
| 023 |
175-1534 |
Filter dome with foam media |
1 |
|
| 024a |
175-1537 |
Foam media for dome filter |
1 |
|
| 024b |
175-1554 |
2-pack high filtration disk |
1 |
Optional |
| 025 |
175-1923 |
Static dissipating vacuum hose with cuffs |
1 |
|
| 026 |
175-1860 |
Swivel replacement hose cuff 1-1/2 inches |
1 |
|
| 027 |
175-1793 |
Shoulder strap adjustment buckle top |
1 |
|
| 028 |
175-1799 |
Shoulder strap adjustment buckle bottom |
1 |
|
| 029 |
175-1814 |
Waist belt latch |
1 |
|
| N/S |
175-1861 |
Extension cord with cord wrap 50 feet |
1 |
|
| N/S |
175-1921 |
Motor crimp kit |
1 |
Kit not shown |
|
|
