Parts List Complete for NOBLES STRIVE

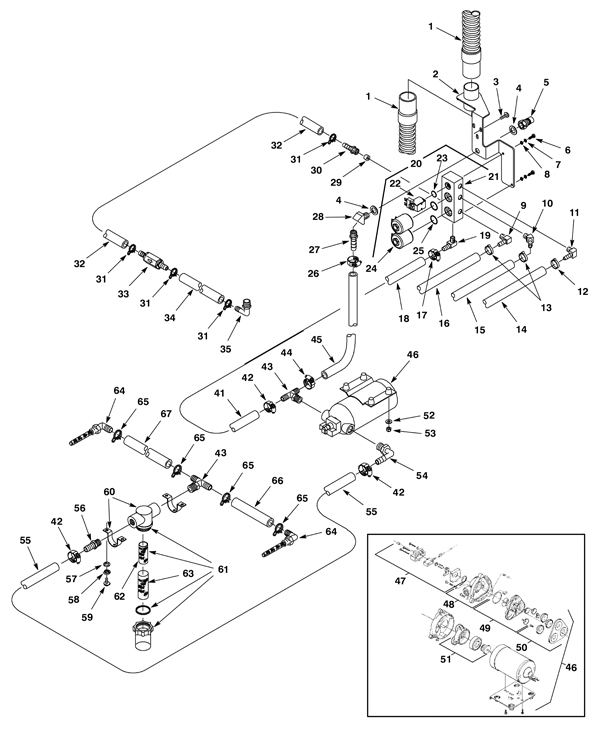

- Simplified Solution System - Before SN 10314331 -

RefNbr Part Number Description Req Notes

- Simplified Solution System - After SN 10314332 -

RefNbr Part Number Description Req Notes

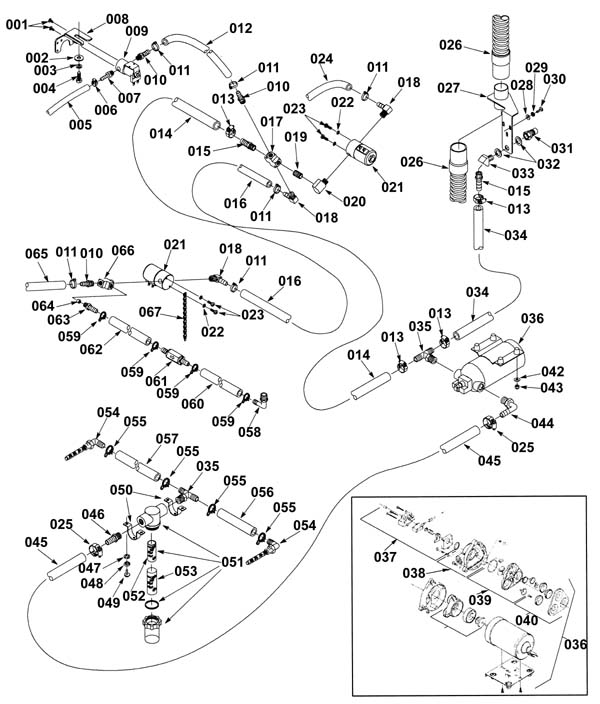

Low Pressure Upholstery Tool Assembly - 175-6128
RefNbr Part Number Description Req Notes
000 175-4855 Low pressure upholstery tool assembly 1 (includes 001-014)
001 175-4856 Upholstery tool cover 1
002 175-4857 Gasket 1
003 175-4858 Valve assembly 1
004 175-4859 Solution valve 1
005 175-4860 Nozzle 1
006 175-4861 Screw 6-32 x 3/4 inch 4
007 175-4862 Trigger 1
008 175-4863 Vacuum hose without cuffs 1
009 175-4864 Solution hose 1
010 175-4865 Fitting 1
011 175-4866 Inline filter assembly 1
012 175-4867 Filter screen 1
013 175-6239 1/4 inch nipple 1
014 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1

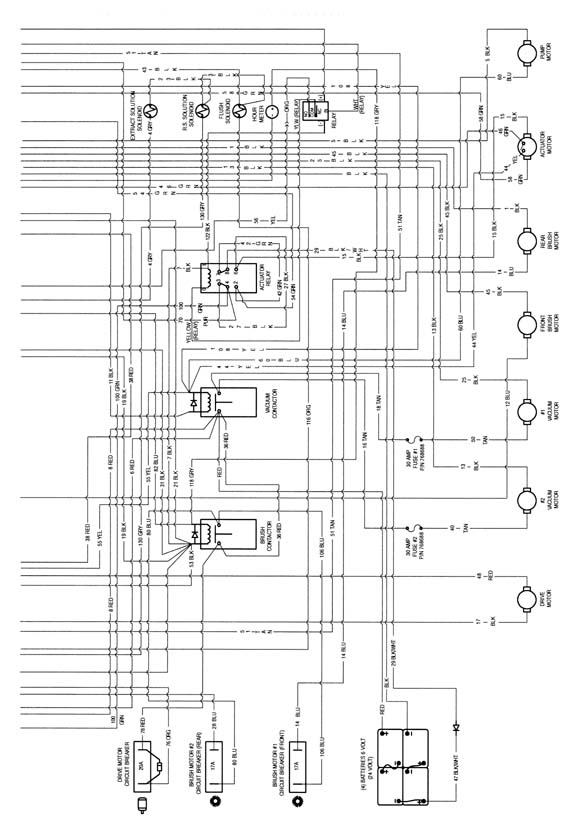

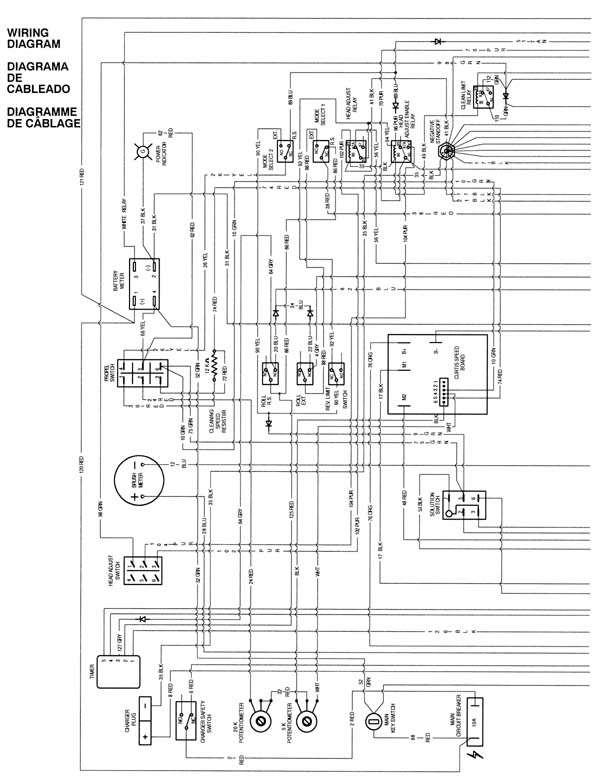

Wiring Diagram - 1 -

RefNbr Part Number Description Req Notes

Wiring Diagram - 2 -

RefNbr Part Number Description Req Notes

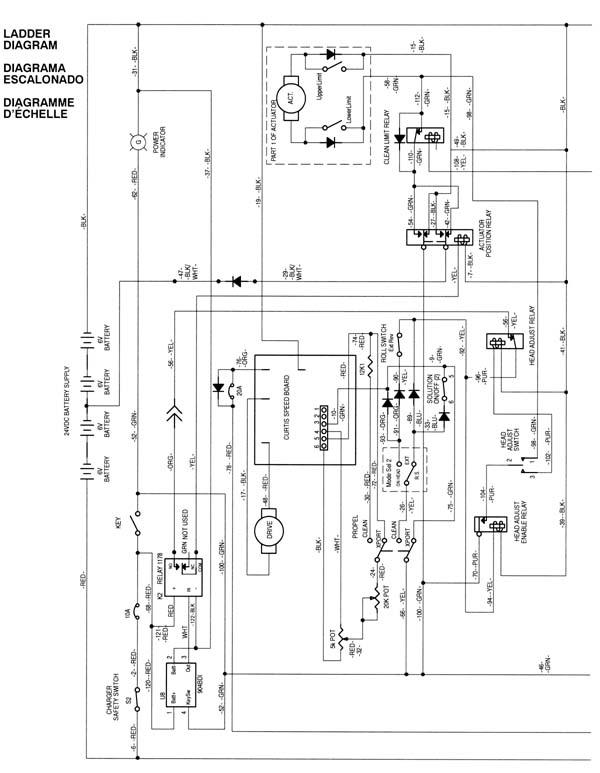

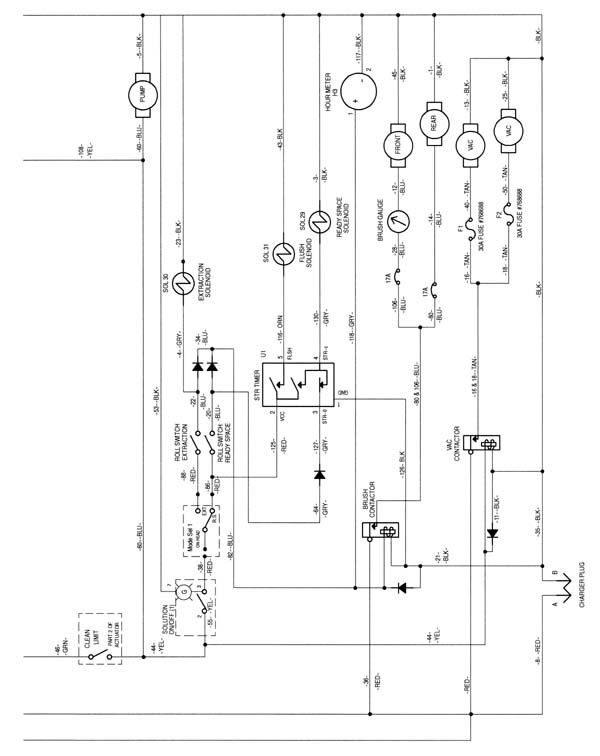

Ladder Diagram - 1 -

RefNbr Part Number Description Req Notes

Ladder Diagram - 2 -

RefNbr Part Number Description Req Notes

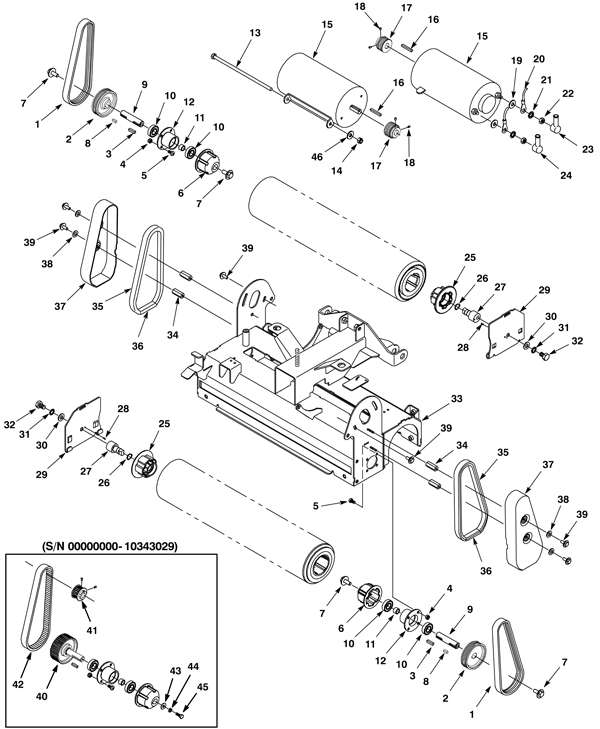

Roller and Brush Assembly - 175-6318
RefNbr Part Number Description Req Notes
001 175-9045 Soil transfer roller assembly 2
002 175-8779 Scrub brush 2

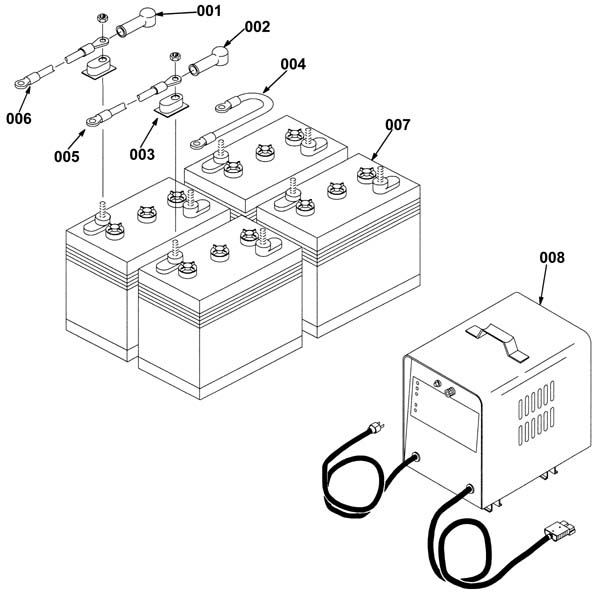

Battery and Charger Assembly - 175-6320
RefNbr Part Number Description Req Notes
001 175-1103 Battery cable boot (black) 4
002 175-1103 Battery cable boot (black) 4
003 175-2121 Battery terminal cover (clear) 8
004a 998-0010 Battery jumper cable - ring type (red) 3
004b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 1 (NON-OEM)
005 175-3138 Battery cable 5/16 x 3/8 (red) 1
006 175-3137 Battery cable (black) 1
007a 162-0003 6V 225Ah wet battery (SNSR) 4
007b 162-0043 6V 224Ah AGM battery (Group GC2) 4
008 175-3139 24V 19amp off board battery charger 1
N/S 991-2103 50amp charger plug SB50 with pins (red) 1

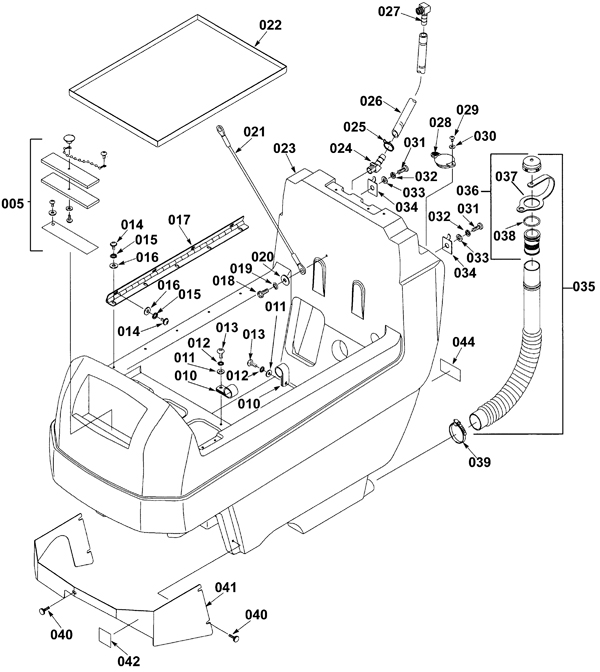

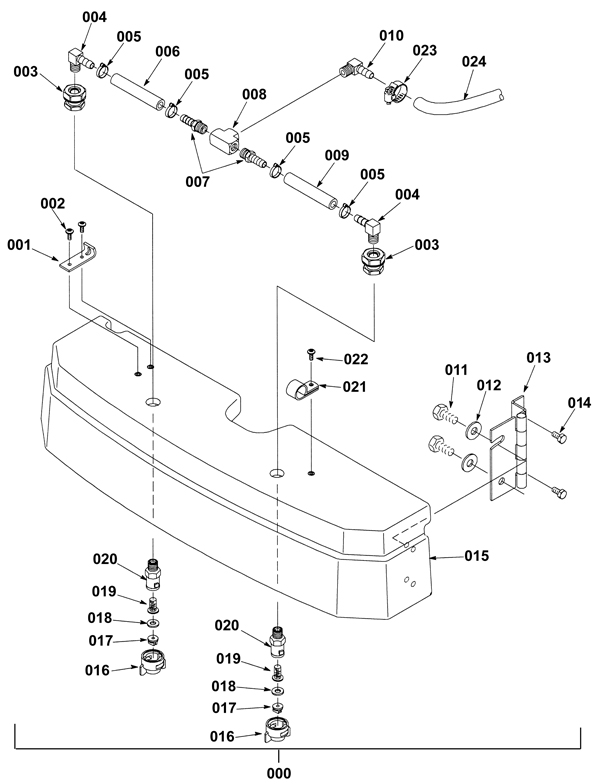

Solution Tank Assembly - 175-6321
RefNbr Part Number Description Req Notes
005 175-4220 Solution fill screen assembly 1
010 175-4223 P clamp 3
011 999-0016 Washer 1/4 flat plain finish 3
012 999-1117 Washer M6 split lock stainless steel 3
013 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 3
014 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 9
015 999-1117 Washer M6 split lock stainless steel 9
016 999-0016 Washer 1/4 flat plain finish 9
017 175-4221 Tank hinge 1
018 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
019 999-1117 Washer M6 split lock stainless steel 2
020 999-0016 Washer 1/4 flat plain finish 2
021 175-2651 Support cable 1
022 175-8751 Battery tray 1
023 175-8781 Solution tank 1
024 175-3061 Hosebarb 1
025 175-3671 Hose clamp 1
026 175-4216 Sight gauge hose 1
027 175-2997 Elbow 1
028 175-7825 Solution fill port cap 1
029 999-0531 Screw M5-.8 x 16mm pan head slotted zinc 1
030 999-0998 Washer #10 flat stainless steel 1
031 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
032 999-1117 Washer M6 split lock stainless steel 2
033 999-0016 Washer 1/4 flat plain finish 2
034 175-4215 Drain hose clip 2
035a 175-1153 Drain hose assembly 1 (Includes 036) (OEM)
035b 991-5126 Drain hose assembly (NON-OEM)
036a 175-4214 Drain plug assembly 1 (Includes 037-038)
036b 991-3028 Drain plug assembly 1
037 175-4214 Drain plug assembly 1
038 175-5804 O-ring 1
039 997-2007 Hose clamp 1
040 175-3718 Knob 5
041 175-8782 Scrub head shroud 1
042 175-4351 General hazard decal 1
044 175-8783 Wand decal 1

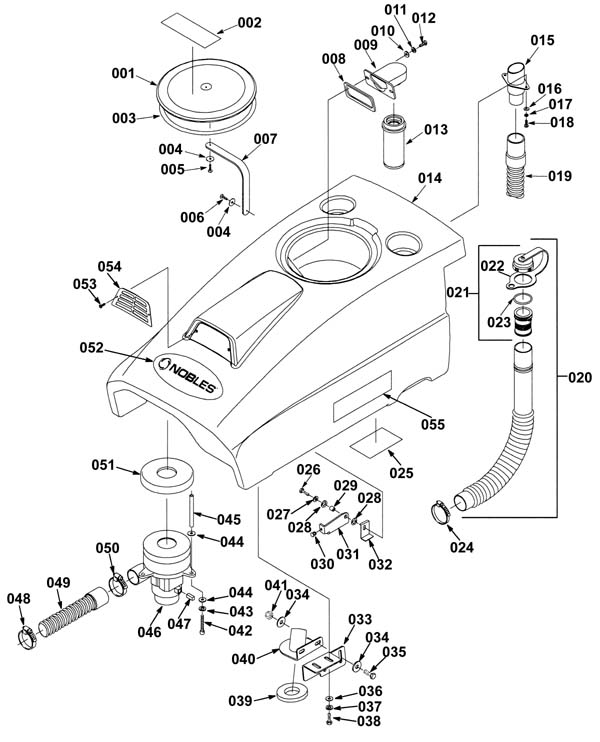

Recovery Tank Assembly - 175-6322
RefNbr Part Number Description Req Notes
001a 175-8784 Recovery tank lid assembly (lid, gasket, & label) 1 (Includes 001-003)
001b 991-7141 Recovery tank lid assembly 1
002 175-2868 Warning decal 1
003 175-8785 Recovery lid gasket 1
004 175-5797 Washer 1/6 flat zinc 2
005 999-1114 Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc 1
006 999-0434 Screw 6 x 3/8 pan head phillips 1
007 175-8786 Strap 1
008 175-4231 Float mount gasket 1
009 175-4232 Float cage mount 1
010 999-0016 Washer 1/4 flat plain finish 2
011 999-1117 Washer M6 split lock stainless steel 2
012 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel 2
013a 175-1804 Shut-off float 1
013b 991-3108 Shut off float 1 (NON-OEM)
014 175-8787 Recovery tank 1
015 175-4233 Hose adaptor 1
016 175-4234 Washer M5.3 flat 2
017 999-9132 Washer M5 split lock stainless steel 2
018 175-3234 Screw M5-.8 x 10mm pan head 2
019 175-0887 Vacuum hose 1 1/2 x 33 inch 1
020a 175-1153 Drain hose assembly 1 (Includes 021) (OEM)
020b 991-5126 Drain hose assembly (NON-OEM)
021a 175-4214 Drain plug assembly 1 (Includes 022-023) (OEM)
021b 991-3028 Drain plug assembly 1 (NON-OEM)
022 175-4214 Drain plug assembly 1
023 175-5804 O-ring 1
024 997-2007 Hose clamp 1
025 175-8788 Battery diagram decal 1
026 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 1
027 999-0553 Washer 5/16 medium split lock stainless steel 1
028 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
029 175-2673 Bushing 1
030 175-7780 Rubber bumper 1
031 175-4241 Tank support 1
032 175-4236 Stop bracket 1
033 175-8789 Vacuum mounting bracket 1
035 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
036 999-0016 Washer 1/4 flat plain finish 2
037 999-0632 Washer 1/4 split lock stainless steel 2
038 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
039 175-2028 Gasket 1
040 175-4247 Bracket 1
041 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
042 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 3
043 999-0632 Washer 1/4 split lock stainless steel 3
044 999-0016 Washer 1/4 flat plain finish 6
045 175-4243 Spacer 3
046a 175-4245 24V 3 stage vacuum motor 1 (Includes 047)
046b 991-1210-D 24V 3 stage vacuum motor tangential with Delphi plug 1
047 175-2658 Carbon brush (pkg of 2) 1
048 997-2007 Hose clamp 1
049 175-4246 Vacuum hose with one cuff 1
050 175-2057 Hose clamp 1
051 675-9893 Vacuum motor gasket 1
052 275-5867 Front decal 1
053 175-8791 Screw M4 x 7 x 8 truss head 2
054 175-8792 Battery cover grill 1
055 375-1675 Strive decal (Tennant Industrial) 2

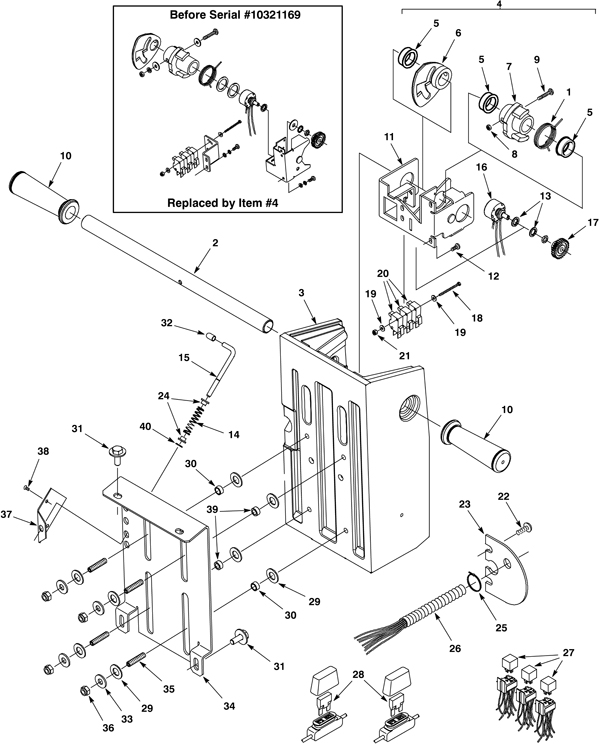

Control Console Assembly - 175-6323
RefNbr Part Number Description Req Notes
001 175-4260 Torsion spring 1
002 175-4253 Handle bar 1
003 175-8794 Control housing 1
004 175-4259 Potentiometer console bracket 1 (Includes 5-13) (After SN 10321168)
005a 475-0806 BUSHING, GRIP, THROTTLE [1610] 3 (After SN 10811648)
005b 175-3093 Flanged bushing 3 (Between SN 10321169-10811647)
006 275-5060 Cam switch plate 3 (After SN 10321169)
007 275-5061 Hub assembly with gear 1 (After SN 10321169)
008 999-1308 Nut M6-1 hex stainless steel 1
009 275-5062 Screw M6-1 x 35mm hex head 1 (After SN 10321169)
010a 675-9894 Handle grip 1
010b 991-8571 Handle grip 1 (NON-OEM)
011 275-5063 Potentiometer bracket 2
012 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 1
013 999-0201 Washer 3/8 internal star lock 4
014 175-4256 Compression spring 2
015 175-4254 Adjustment lever 1
016 175-4261 Potentiometer and wiring assembly 1
017 275-5064 Toothed gear 1
018 999-1166 Bolt M3-.5 x 40mm hex head stainless steel 1
019 175-1202 Flat washer 2
020 175-4273 Switch 4
021 999-1161 Nut M3-.5 hex nylock stainless steel 3
022 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
023 175-4277 Wiring harness retainer 2
024 175-4255 Flanged bushing 1
025 175-7795 Cable tie 2
026a 175-8796 24V main wiring harness 4 (Includes 27-28) (After SN 10243221)
026b 175-8797 24V main wiring harness 1 (Includes 27-28) (Before SN 10243220)
027 175-8635 40amp relay 1 (After SN 10243221)
028 375-0043 35amp fuse 3 (After SN 10243221)
029 999-0566 Washer 1/2 flat nylon 2
030 175-4269 Bearing 1
031 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 3
032 175-4278 Cap 2
033 999-0024 Washer 5/16 flat stainless steel 8
034 175-4272 Sliding plate 2
035 175-4271 Screw M8 x 35mm set 4
036 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
037 175-4250 Retainer plate 1
038 175-4251 Screw M4 x 8mm flat head phillips 2
039 175-4270 Bearing 2
040 175-4252 Retaining ring 1

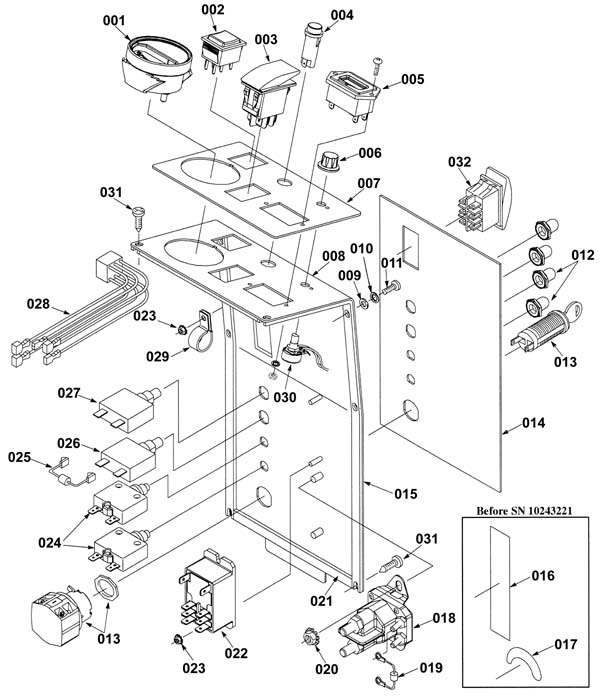

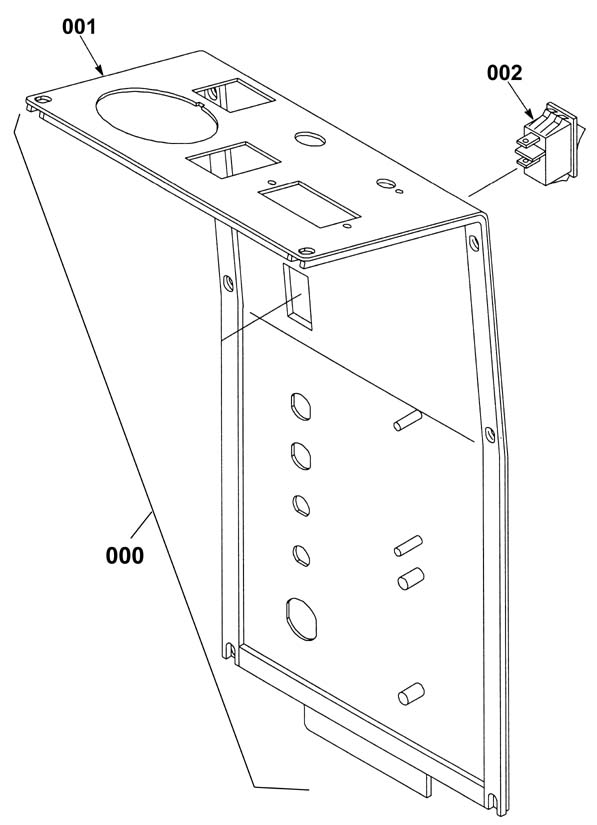

Component Panel Assembly - 175-6324
RefNbr Part Number Description Req Notes
001 175-8800 Brush pressure gauge 1
002 175-8630 Brush pressure switch 1
003 175-4822 Rocker switch 1
004 175-2849 Indicator light 1
005 175-3728 24V battery gauge with screw 1
006 175-4281 Potentiometer knob 1
007 175-8801 Main dash decal 1
008a 175-8802 Console panel 1 (After SN 10243220)
008b 175-8803 Console panel (OBSOLETE) 1 (Before SN 10243221)
009 999-9089 Washer M4 flat stainless steel 4
010 999-1083 Washer #8 internal star lock stainless steel 4
011 999-0530 Screw M4-.7 x 8mm pan head slotted zinc 4
012 175-7699 Switch boot 2
013a 175-4287 Key switch assembly (OBSOLETE) 1
013b 175-0185 Double sided key (steel) 1
014 175-8804 Console panel decal 1
015 175-4291 Console gasket 2
016 175-8805 Circuit breaker decal (OBSOLETE) 1 (Before SN 10243221)
017 175-4288 Key switch decal 1 (Before SN 10243221)
018 175-4293 24V relay 1
019 175-2757 Diode with ring terminals (small) 1
020 999-0497 Nut M6-1 nylon insert lock stainless steel 2
021 175-4292 Console gasket 2
022 175-8806 20amp relay 1
023 175-4290 Nut M4 x .70mm hex 3
024 175-6630 17amp circuit breaker 2
025 175-4295 Terminal diode 1
026 175-2337 20amp circuit breaker 1
027 175-2336 10amp circuit breaker 1
028 275-5067 Relay interrupter 1
029 175-8767 P clamp 1
030 175-4285 Potentiometer 1
031 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 4
032 175-3098 Lighted on/off rocker switch 1

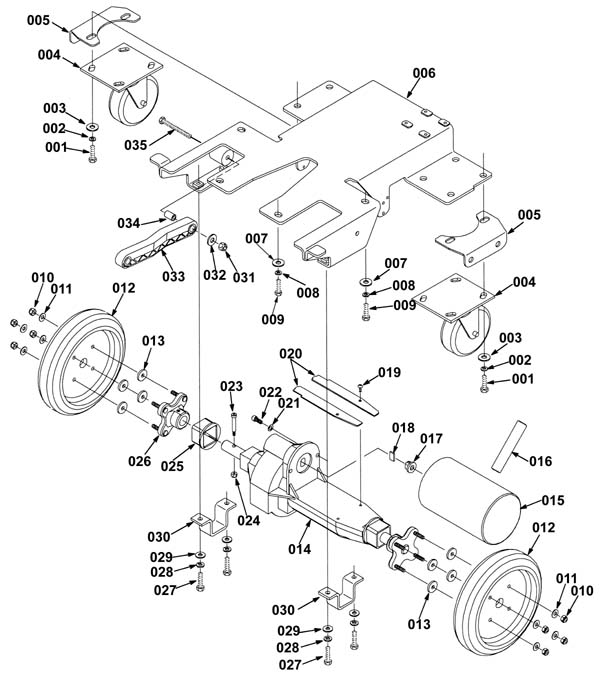

Wheel Assembly - 175-6325
RefNbr Part Number Description Req Notes
001a 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 8
001b 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
001c 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 4
002 999-1053 Washer 5/16 internal star lock stainless steel 8
003 999-0024 Washer 5/16 flat stainless steel 8
004a 175-2991 4 inch caster wheel 2 (OEM)
004b 991-2016 4 inch caster wheel 2 (NON-OEM)
005 175-8807 Caster tiedown bracket 2
006 175-8808 Transaxle frame 1
007 999-0024 Washer 5/16 flat stainless steel 4
008 999-1053 Washer 5/16 internal star lock stainless steel 4
009 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
010 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
011 999-0016 Washer 1/4 flat plain finish 8
012 175-4347 Wheel 2
013a 175-1097 Washer flat stainless steel 8
013b 175-3622 24V transaxle motor assembly 1 (Includes 014-026)
014 175-3654 Transaxle body 1
015 175-3657 24V transaxle motor 1 (Includes 016-022)
016 175-7898 Carbon brush (pkg of 4) 1
017 175-3655 Transaxle coupling 1
018 175-3656 Transaxle key 1
019 175-3664 Screw 8 x 1/2 panhead phillips 2
020 N/A Not available 2 (Shaft cover)
021 999-0238 Washer 1/4 internal star lock zinc plated 2
022 175-3663 Screw 1/4-20 x 5/8 socket 2
023 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 2
024 999-0442 Nut 10-24 nylon insert lock stainless steel 2
025 175-3660 Transaxle sleeve 2
026 275-5229 Transaxle wheel hub with retainer 2
027 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 4
028 999-1053 Washer 5/16 internal star lock stainless steel 4
029 999-0024 Washer 5/16 flat stainless steel 4
030 175-4349 Transaxle bracket 2
031 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2 (Before SN 10492842)
032a 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2 (After Sn 10492843)
032b 999-0024 Washer 5/16 flat stainless steel 2
033 175-2102 Scrub head lifting arm 2
034 175-4343 1 inch tube 2
035 999-9079 Screw M8 x 80mm hex head stainless steel 2
N/S 175-0921 Wire tie 2

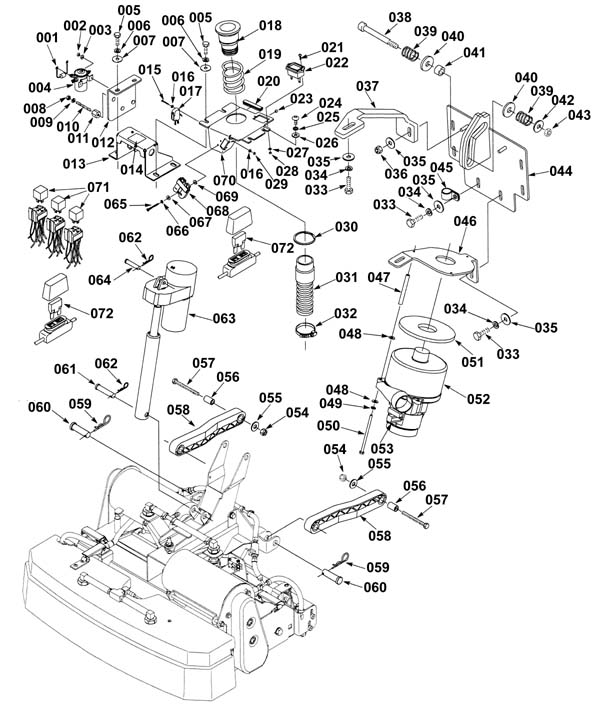

Scrub Head Lift Assembly - 175-6326
RefNbr Part Number Description Req Notes
001 175-2757 Diode with ring terminals (small) 1
002 999-0469 Nut M6-1 nylon insert lock zinc plated 2
003 999-0123 Washer 1/4 SAE flat zinc plated 2
004 175-2023 24V solenoid contactor 1
005 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
006 999-1053 Washer 5/16 internal star lock stainless steel 4
007 999-0024 Washer 5/16 flat stainless steel 4
008 999-0181 Nut 1/4-20 hex jam plain finish 1
009 999-0632 Washer 1/4 split lock stainless steel 1
010 175-3227 Threaded rod 1
011 175-3226 Insulated stand off 1
012 175-4352 Contactor bracket 1
013 175-8644 Actuator mounting bracket 1
014 175-4351 General hazard decal 1
015 175-1333 Screw M3-.5 x 20mm hex head 2
016 999-1553 Washer M3.5 flat zinc plated 4
017 175-4273 Switch 1
018 175-3635 Transition tube 1
019 175-4353 Compression spring 1
020 175-8621 Plastic edging 1
021 999-0738 Screw M3-.5 x 16mm pan head phillips zinc 2
022 175-8810 Hour meter gauge 1
023 999-0195 Nut 6-32 hex plain 2
024 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
025 999-0632 Washer 1/4 split lock stainless steel 2
026 999-0016 Washer 1/4 flat plain finish 2
027 999-1521 Washer M3 flat stainless steel 2
028 999-1161 Nut M3-.5 hex nylock stainless steel 2
029 999-1161 Nut M3-.5 hex nylock stainless steel 2
030 175-4355 Retaining ring 1
031 175-8811 Vacuum hose 1 1/2 x 6 inch 1 (With short cuff)
032 997-2007 Hose clamp 1
033 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
034 999-1053 Washer 5/16 internal star lock stainless steel 8
035 999-0024 Washer 5/16 flat stainless steel 9
036 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
037 175-4357 Bracket 1
038 175-8812 Bolt 1/2 x 3 1/4 shield 1
039 175-4371 Compression spring 2
040 175-4358 Washer 1 1/2 thrust 2
041 175-4359 Linkage roller 1
042 999-0032 Washer 3/8 USS flat plain finish 1
043 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 1
044 175-4013 Bracket 1
045 175-3005 P clamp 1
046 175-8813 Vacuum motor bracket 1
047 175-4243 Spacer 3
048 999-0016 Washer 1/4 flat plain finish 6
049 999-0632 Washer 1/4 split lock stainless steel 3
050 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish 3
051 675-9893 Vacuum motor gasket 1
052a 175-4361 24V 3 stage vacuum motor 1
052b 991-1230 24V 3 stage vacuum motor tangential with snout
053 175-2658 Carbon brush (pkg of 2) 1
054 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
055 999-0024 Washer 5/16 flat stainless steel 2
056 175-4343 1 inch tube 2
057 999-9079 Screw M8 x 80mm hex head stainless steel 2
058 175-2102 Scrub head lifting arm 2
059 175-2106 Cotter hair pin 2
060 175-2105 Clevis pin 2
061 175-5083 Clevis pin 1
062 175-4331 Cotter hair pin 2
063 175-8841 Roller vacuum tool 1
064 175-2111 Clevis pin 1
065 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
066 999-0148 Washer #6 external star lock zinc plated 2
067 999-1215 Washer #6 SAE flat zinc plated 2
068 991-2103 50amp charger plug SB50 with pins (red) 1
069 999-0393 Washer 3/16 flat aluminum 2
070 175-8815 Bracket 1
071 175-8635 40amp relay 3
072 175-8798 FUSE, BLADE, 030A [MAXI] (Tennant Industrial) 2

Scrub Head Assembly - 1 - 175-6327
RefNbr Part Number Description Req Notes
001 275-4735 Drive belt 2
002 275-4737 Sheave 2
003 175-8818 Square keyway 2
004 999-0497 Nut M6-1 nylon insert lock stainless steel 8
005 999-1041 Screw M6-1 x 12mm pan head phillips stainless steel 8
006 175-8819 Drive plug 2
007 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 4
008 275-1489 KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) 2
009 275-1492 Drive shaft 2
010 175-2471 Ball bearing 4
011 175-8820 Spacer 2
012 175-8821 Bearing housing 2
013 275-9683 Screw M8-1.25 x 210mm hex head 2
014 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
015a 275-7482 Brush motor 2 (Includes 15b-16)
015b 275-5306 Carbon brush (pkg of 4) 1
016 175-4202 Square keyway 1
017 275-4738 Sheave 2
018 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 4
019 999-0024 Washer 5/16 flat stainless steel 4
020 175-8677 Brush motor harness 2
021 999-1053 Washer 5/16 internal star lock stainless steel 4
022 999-1424 Nut M8-1.25 hex stainless steel 4
023 175-8682 Terminal boot (black) 2
024 175-8681 Terminal boot (red) (OBSOLETE) 2
025a 175-2475 Idler plug assembly 2 (Includes 25-28)
025b 175-2478 Brush idler plug 1
026 175-2472 Retaining ring 1
027 175-2476 Idler plug shaft 1
028 175-2477 Roll pin 1
029 175-8824 Roller door 2
030 999-0120 Washer 3/8 SAE flat 2
031 175-4494 Washer M10 2
032 175-2947 Bolt M10 x 1-1/2 x 16 hex head stainless steel 2
033 175-8825 Housing weldment 1
034 175-8826 Spacer 4
035 175-8827 Foam gasket 2
036 175-4292 Console gasket 2
037 175-8828 Belt cover 2
038 999-0016 Washer 1/4 flat plain finish 4
039 999-1383 Screw M6-1 x 16mm hex head stainless steel 8
040 175-8817 Belt kit (belts, square keyways and hardware) 2
041 175-2465 Drive sprocket 2
042 175-8816 Belt 2
043 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
044 175-4544 Washer M6 locking 2
045 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
046 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2

Scrub Head Assembly - 2 - 175-6328
RefNbr Part Number Description Req Notes
001 175-4814 Brass strainer fitting 2
002 175-2997 Elbow 2
003 175-6032 Hose clamp 5
004 175-8829 Hose 3/8 x 2 1/2 inch 1
005 175-1615 Tee fitting 1
006 175-1978 Hose 3/8 x 24 inch 1
007 175-8830 Hose 3/8 x 7 inch (gray) 1
009 999-1158 Washer #6 flat stainless steel 4
010 175-4273 Switch 2
011 999-1161 Nut M3-.5 hex nylock stainless steel 2
012 999-0954 Nut M4-.7 nylon insert lock stainless steel 6
013 175-8831 Latch 3
014 175-8832 Keeper clip 2
015 999-1040 Screw M3-.5 x 20mm pan head 6
016 175-8825 Housing weldment 1
017 175-8833 Splash shroud 2
018 175-4194 Quick jet cap (green) 2
019 175-6330 Spray nozzle 2
020 175-4193 Quick jet gasket 2
021 175-4192 Quick jet body 2
022 999-1424 Nut M8-1.25 hex stainless steel 2
023 999-1297 Screw M8 x 50mm hex head stainless steel 2

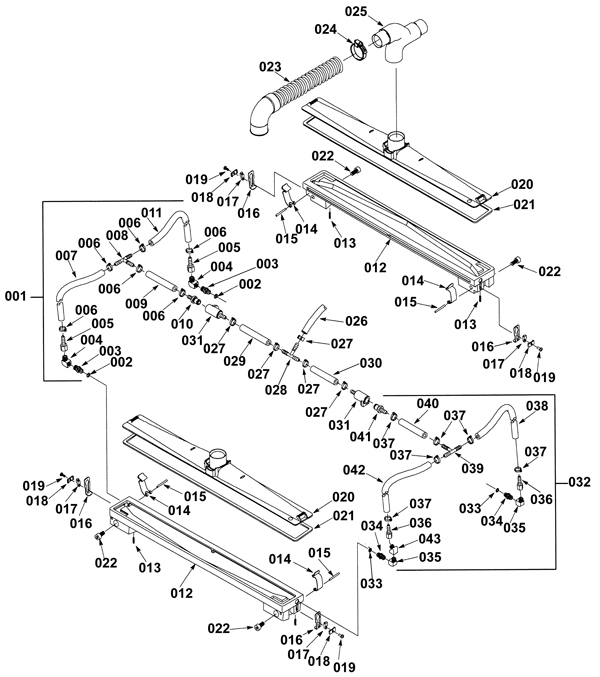

ReadySpace Vacuum Shoe and Solution Flush Line Assembly - 175-6329
RefNbr Part Number Description Req Notes
001 175-8834 Right side hose assembly 1 (Includes 002-011)
002 175-8835 O-ring seal 2
003 175-8836 Brass tip fitting 2
004 175-1661 90 degree elbow fitting 2
005 175-3529 Brass fitting 2
006 175-6170 Hose clamp 6
007 175-8837 Hose 1/4 x 8 inch (gray) 1
008 175-7303 1/4 inch union tee 1
009 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) 1
010 175-8839 Strainer fitting 1
011 175-7364 16 inch hose (gray) 2
012a 175-8840 Roller tool assembly 2 (Includes 012b-021)
012b 175-8841 Roller vacuum tool 2
013 175-8842 Compression spring 4
014 175-8843 Vacuum tool cover mounting clip 4
015 175-8844 Roll pin 1/8 x 1 1/4 inch 4
016 175-8845 Nozzle retaining latch 4
017 175-8846 Timing key 4
018 175-8847 Latch retainer 4
019 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 4
020 175-8848 Tool cover assembly 2
021 175-8849 Gasket 2
022 999-0802 Screw M8-1.25 x 16mm socket head 4
023 175-8850 Vacuum hose 1 1/2 x 11 3/4 inch 1
024 997-2007 Hose clamp 1
025 175-8851 Hose fitting assembly 1
026 175-7302 Hose 1/4 x 1/2 x 8 inches (gray) 1
027 175-6170 Hose clamp 5
028 175-7303 1/4 inch union tee 1
029 175-8852 Hose 1/4 x 1/2 x 10 inches (gray) 1
030 175-4877 Hose 1/4 x 9 1/2 inch (gray) 1
031 175-5311 Female fitting with valve 2
032 175-8853 Left side hose assembly 1 (Includes 033-043)
033 175-8835 O-ring seal 2
034 175-8836 Brass tip fitting 2
035 175-1661 90 degree elbow fitting 2
036 175-3529 Brass fitting 2
037 175-6170 Hose clamp 6
038 175-4876 PVC hose 1/4 x 12 inch (gray) 1
039 175-7303 1/4 inch union tee 1
040 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) 1
041 175-8839 Strainer fitting 1
042 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) 1
043 175-6041 Elbow 1/8 x 1/8 inch 1

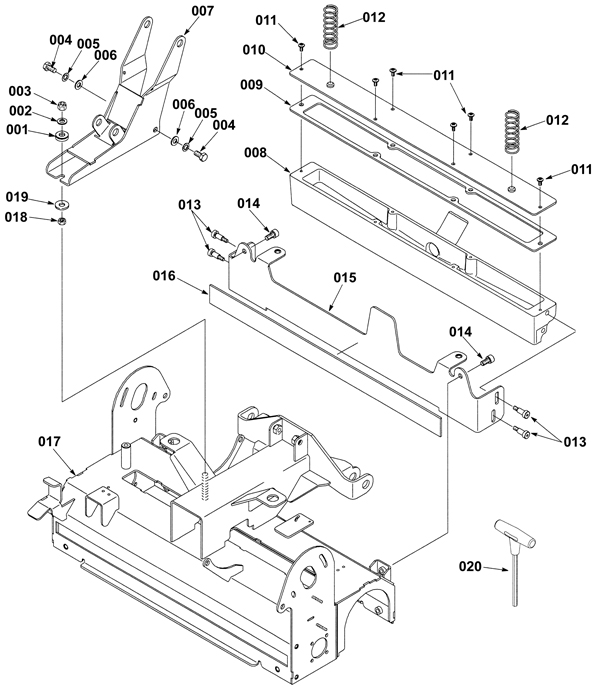

Extraction Vacuum Shoe Assembly - 175-6330
RefNbr Part Number Description Req Notes
001 175-4334 Washer spherical 1
002 999-9097 Washer M8 flat stainless steel 1
003 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
004 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
005 999-0406 Washer 5/16 internal star lock zinc plated 2
006 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
007 175-8854 Scrub deck mounting bracket 1
008 175-8856 Carpet pickup tool 1
009 175-8857 Carpet tool gasket 1
010 175-8858 Carpet tool plate 1
011 175-4398 Screw M5-.8 x 10mm phillips truss head zinc 6
012 175-8859 Compression spring 2
013 175-8860 Bolt M6 x 1 stainless steel 4
014 999-0802 Screw M8-1.25 x 16mm socket head 2
015 175-8861 Mounting bracket 1
016 175-8862 Gasket 1
017 175-8825 Housing weldment 1
018 999-1424 Nut M8-1.25 hex stainless steel 1
019 999-0024 Washer 5/16 flat stainless steel 1
020 175-8780 6mm hex head T-handle tool 1
N/S 175-8855 Vacuum shoe assembly 1 (Includes 008-016)

Bumper Assembly - 175-6331
RefNbr Part Number Description Req Notes
000 175-8863 Bumper assembly 1 Includes 001 to 020
001 175-8864 Bracket 1
002 999-0434 Screw 6 x 3/8 pan head phillips 2
003 175-4814 Brass strainer fitting 2
004 175-2997 Elbow 2
005 175-6032 Hose clamp 4
006 175-8865 Hose 3/4 x 4 inch 1
007 175-2613 Straight brass fitting 2
008 175-6253 1/4 inch brass tee 1
009 175-8865 Hose 3/4 x 4 inch 1
010 175-2997 Elbow 1
011a 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2 (Before SN 10314331)
011b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (After SN 10314332)
012 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
013 175-8866 Hinge 1
014 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
015 275-5072 Bumper 1
016 175-6431 Quick-jet cap 2
017 175-8869 Brass fitting tip 2
018 175-4193 Quick jet gasket 2
019 175-4204 Check valve filter screen 2
020 175-4192 Quick jet body 2
021 175-8767 P clamp 1
022 999-0434 Screw 6 x 3/8 pan head phillips 1
023 175-6081 Hose clamp 1
024a 175-8870 Hose 3/8 x 62 inch 6 (Before SN 10314331)
024b 275-5074 Hose 3/8 x 75 inch 6 (After SN 10314332)
N/S 175-1565 Pump out cover plate (OBSOLETE) 1 (16 gallon model with pump-out)

Solution Assembly - Before SN 10314331 - 175-6332
RefNbr Part Number Description Req Notes
001 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 2
002 999-0024 Washer 5/16 flat stainless steel 1
003 999-1053 Washer 5/16 internal star lock stainless steel 1
004 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
005 175-7302 Hose 1/4 x 1/2 x 8 inches (gray) 1
006 175-6170 Hose clamp 1
007 175-6024 Hosebarb 1
008 175-8776 Bracket (OBSOLETE) 1
009a 175-4308 24V solenoid valve 1 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve)
009b 991-8598 Replacement plunger with spring for solenoid valve 1
010 175-2613 Straight brass fitting 3
011 175-6032 Hose clamp 6
012 175-8871 Hose 3/8 x 8 inch 1
013 175-0199 Hose clamp 4
014 175-4298 11 inch hose (red) 1
015 175-6030 Straight hosebarb 2
016 175-8871 Hose 3/8 x 8 inch 1
017 175-1829 Tee fitting 1
018 175-2997 Elbow 3
019 175-6244 Nipple 1
021 175-8872 24V solenoid valve 2
022 999-0053 Washer #10 split lock plain finish 4
023 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated 4
024 175-8870 Hose 3/8 x 62 inch 6
025 175-6081 Hose clamp 2
026 175-0887 Vacuum hose 1 1/2 x 33 inch 2
027 175-4302 Bracket 1
028 999-0016 Washer 1/4 flat plain finish 3
029 999-1117 Washer M6 split lock stainless steel 3
030 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 3
031 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
032 175-1825 Washer 2
033 175-6031 Straight jet fitting 1
034 175-4298 11 inch hose (red) 1
035 175-3692 Tee fitting 2
036 175-4191 24V 100PSI solution pump 1 (Includes 037-041)
036b 991-6047 24V pump 100PSI (NON-OEM)
037a 175-6003 Pressure switch kit 1
037b 175-6004 Viton pressure switch kit 1
037c 175-6005 Shurflo diaphragm switch kit 1
038a 175-6006 Upper pump housing kit 1
038b 175-6007 Check valve kit 1
039 175-6008 Viton valve kit 1
040 175-6009 Shurflo valve kit 1
041 175-6010 Lower pump housing kit 1
042 999-0006 Washer 3/16 flat zinc plated 2
043 999-0442 Nut 10-24 nylon insert lock stainless steel 2
044 175-3685 90 degree elbow fitting 1
045 175-8684 15 inch reinforced hose 1
046 175-1025 Straight brass fitting 1
047 999-0393 Washer 3/16 flat aluminum 4
048 999-9132 Washer M5 split lock stainless steel 4
049 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 4
050 175-3690 U clamp 2
051 175-4310 Solution filter bowl assembly 1 (Includes 052)
052 175-6250 Strainer 1
053 175-4311 Mesh filter screen 1
054 175-4303 Inline filter with mesh screen 2
055 175-3671 Hose clamp 4
056 175-8873 Hose 1/2 x 3/4 inch 1
057 175-8874 Hose 1/2 x 3/4 inch 1
058 175-6019 90 degree barbed elbow 1
059 175-3671 Hose clamp 4
060 175-8662 Hose 3/8 x 7 3/4 inch 1
061 175-2842 Check valve 1
062 175-8662 Hose 3/8 x 7 3/4 inch 1
063 175-8694 Brass fitting 1
064 175-8875 Pipe plug 1
065 175-1978 Hose 3/8 x 24 inch 2
066 175-6029 Straight tee 1
067 175-8876 Static chain 1

Carpet Sprayer Pump Assembly - 175-6338
RefNbr Part Number Description Req Notes
001 175-8878 2 gallon heavy duty sprayer 1

Solution Switch Assembly - 175-6340
RefNbr Part Number Description Req Notes
000 N/A Not available 1 (On/off solution switch kit)
001 175-8880 Console panel 1
002 175-0136 On/off rocker switch 1
N/S 175-8882 Wire assembly (brown) 1
N/S 175-8881 Wire assembly (white) 1

- Know Your Machine -

RefNbr Part Number Description Req Notes

- Simplified Recovery System -

RefNbr Part Number Description Req Notes

- Simplified Electrical System -

RefNbr Part Number Description Req Notes

Low Pressure Wand Assembly - 275-2221
RefNbr Part Number Description Req Notes
0a 175-3563 13 inch low pressure wand assembly 1 (Includes 1a, 2-3a, 4-19b, 20-26)
0b 175-4314 16 inch low pressure wand assembly 1 (Includes 1b-2, 3b-18, 19c-26)
1a 175-1810 13 inch floor tool 1
1b 175-4299 16 inch floor tool 1
2 175-3564 Low pressure tool decal 1
3a 175-1321 13 inch pick-up shoe plate stainless steel 2
3b 175-6146 16 inch pick-up shoe plate stainless steel 2
4 175-1812 Handle assembly (OBSOLETE) 1 (Includes 5-7)
5 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 2
6 175-1813 Foam grip 1
7 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 2
8 175-1816 Handle sleeve 1
9 175-1815 Trigger 1
10 175-1817 Handle pin 1
11 175-1818 Nut 1/4 push 2
12 175-6031 Straight jet fitting 1
13 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
14 175-1819 Manual valve assembly 1 (includes 15)
15 175-1820 Valve pin and spring kit 1
16 175-3565 Solution hose assembly 1
17 175-6239 1/4 inch nipple 1
18 175-1825 Washer 1
19a 175-1826 Spray bar without tips for 13 inch wand 1 (includes 19b, 20-22)
19b 175-1829 Tee fitting 1
19c 175-4313 Spray bar without tips for 16 inch wand 1 (includes 19d-22)
19d 175-6253 1/4 inch brass tee 1
19e 175-6029 Straight tee 2
20 175-6015 Nipple 2
21 175-6248 90 degree elbow 2
22 175-1830 1/4 inch male spray body 3 (qty 4 for 16 inch)
23 175-1802 Mesh screen filter 3 (qty 4 for 16 inch)
24 175-3566 T-jet tip fitting 3 (qty 4 for 16 inch)
25 175-1834 Spray nozzle cap 3 (qty 4 for 16 inch)
26 175-6244 Nipple 1

Solution Assembly - After SN 10314332 - 275-3156
RefNbr Part Number Description Req Notes
1 175-0887 Vacuum hose 1 1/2 x 33 inch 2
2 275-5075 Vacuum hose bracket 1
3 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 3
4 999-0187 Washer 1/2 flat plain finish 2
5 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
6 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 2
7 999-9132 Washer M5 split lock stainless steel 2
8 999-0393 Washer 3/16 flat aluminum 2
9 175-2997 Elbow 1
10 175-3061 Hosebarb 1
11 175-4307 Hosebarb 1
12 175-6170 Hose clamp 1
13 175-6032 Hose clamp 2
14 275-5071 Hose 1/4 x 1/2 x 33 inches (gray) 3
15 275-5074 Hose 3/8 x 75 inch 6
16 275-3863 Hose 3/8 x 40 inch (gray) 4
17 175-6081 Hose clamp 1
18 175-8699 Hose 1/2 x 20 inch 2
19 N/A Not available 1 (Elbow)
20 275-5076 24V 3 station solenoid valve 1 (Includes 21-25)
21 275-5077 Manifold block 1
22 275-5078 24V series 3 solenoid valve 1 (Includes 23)
23 275-5079 Solenoid seal 1
24 275-5080 24V series 6 solenoid valve 2 (Includes 25)
25 275-5081 Solenoid seal 2
26 175-0199 Hose clamp 1
27 175-6030 Straight hosebarb 1
28 175-6031 Straight jet fitting 1
29 175-8875 Pipe plug 1
30 175-8694 Brass fitting 4
31 175-3671 Hose clamp 2
32 275-5082 20 inch hose 1
33 175-2842 Check valve 1
34 175-8662 Hose 3/8 x 7 3/4 inch 1
35 175-6019 90 degree barbed elbow 1
41 175-8699 Hose 1/2 x 20 inch 2
42 175-6081 Hose clamp 3
43 175-3692 Tee fitting 2
44 175-0199 Hose clamp 1
45 175-4298 11 inch hose (red) 1
46 175-4191 24V 100PSI solution pump 1 (Includes 47-51)
46b 991-6047 24V pump 100PSI (NON-OEM)
47a 175-6003 Pressure switch kit 1
47b 175-6004 Viton pressure switch kit 1
47c 175-6005 Shurflo diaphragm switch kit 1
48a 175-6006 Upper pump housing kit 1
48b 175-6007 Check valve kit 1
49 175-6008 Viton valve kit 1
50 175-6009 Shurflo valve kit 1
51 175-6010 Lower pump housing kit 1
52 999-0006 Washer 3/16 flat zinc plated 2
53 999-0442 Nut 10-24 nylon insert lock stainless steel 2
54 175-3685 90 degree elbow fitting 1
55 175-8684 15 inch reinforced hose 1
56 175-1025 Straight brass fitting 1
57 999-0393 Washer 3/16 flat aluminum 4
58 999-9132 Washer M5 split lock stainless steel 4
59 999-1225 Screw M5-.8 x 12mm pan head phillips zinc 4
60 175-3690 U clamp 2
61 175-4310 Solution filter bowl assembly 1 (Includes 62)
62 175-6250 Strainer 1
63 175-4311 Mesh filter screen 1
64 175-4303 Inline filter with mesh screen 2
65 375-0291 Hose clamp 4
66 175-8873 Hose 1/2 x 3/4 inch 1
67 175-8874 Hose 1/2 x 3/4 inch 1

Hand Tool Assembly - 5 inch - 275-4171
RefNbr Part Number Description Req Notes
0 175-3567 5 inch hand tool assembly 1 (Includes 1-12)
1 175-3568 5 inch hand tool 1
2 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
3 175-6239 1/4 inch nipple 2
4 175-3569 Hand tool trigger 1
5 175-3570 Valve 1
7 175-4841 Roll pin 1
8 175-6031 Straight jet fitting 1
9 175-3572 Spray body 1
10 175-1802 Mesh screen filter 1
11 175-3573 Spray tip 1
12 175-1834 Spray nozzle cap 1

Hand Tool Assembly - 3 inch - 275-4172
RefNbr Part Number Description Req Notes
000 175-4827 3 inch crevice tool assembly 1 (Includes 001-007)
001 175-4828 3 inch crevice tool 1
002 175-4829 Brass v-jet fitting 1
003 175-1939 Ball valve 1
004 175-4830 Valve handle 1
005 175-4831 Solution hose 1
006 175-4832 Straight fitting 1
007 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1

- Frequently Replaced Parts - 991-9023
RefNbr Part Number Description Req Notes
1a 162-0003 6V 225Ah wet battery (SNSR) 4
1b 162-0043 6V 224Ah AGM battery (Group GC2) 4
2 175-3139 24V 19amp off board battery charger 1
3 991-2103 50amp charger plug SB50 with pins (red) 1
4 998-0010 Battery jumper cable - ring type (red) 3
5 175-4822 Rocker switch 1
6 175-8630 Brush pressure switch 1
7 175-8872 24V solenoid valve 2
8a 175-8784 Recovery tank lid assembly (lid, gasket, & label) 1 (includes lid, gasket and label)
8b 991-7141 Recovery tank lid assembly 1
9 175-8785 Recovery lid gasket 1
10a 175-4214 Drain plug assembly 1 (OEM)
10b 991-3028 Drain plug assembly 1 (NON-OEM)
11a 175-1153 Drain hose assembly 1 (OEM)
11b 991-5126 Drain hose assembly 1 (NON-OEM)
12 175-4245 24V 3 stage vacuum motor 1
13 175-2658 Carbon brush (pkg of 2) 1
14 175-4191 24V 100PSI solution pump 1
14b 991-6047 24V pump 100PSI (NON-OEM)
15 175-4232 Float cage mount 1
16 175-1804 Shut-off float 1
17 175-6330 Spray nozzle 2
18 275-4735 Drive belt 2
19 175-8779 Scrub brush 2

- Batteries and Chargers - 999-7001
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 4
2 162-0043 6V 224Ah AGM battery (Group GC2) 4
3 162-5060 24V 20amp battery charger with small SB50 red plug 1
4 162-5070 24V 20amp AGM battery charger with small SB50 red plug 1
5 991-2103 50amp charger plug SB50 with pins (red) 1

- Extractor Fit All Parts - 999-9400
RefNbr Part Number Description Req Notes
001a 991-8000 12 inch stainless head wand, 1 jet 120 PSI plastic valve (wands)
001b 991-8001 12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) (wands)
001c 991-8002 12 inch aluminum head wand, 3 jet, 120 PSI plastic valve (wands)
001d 991-8227 500psi brass valve (wands)
002a 991-8222 30 inch stair wand (open spray) (stair wand)
002b 991-8223 30 inch swivel head ergonomic stair wand (open spray) (stair wand)
004 991-8129 Handle 1-1/2 inch low profile comfort grip assist (wands)
005a 991-8128 120 PSI, acetel plastic valve, low heat 140 degrees (wands)
005b 991-8127 120 PSI, brass valve, stainless steel stem (wands)
005c 991-8226 Valve
005d 991-8171 400psi cast aluminum valve
007 991-8130 3-1/2 inch wide 120 PSI standard detailer, external spray (wands)
008 991-8132 10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
009 991-8133 20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
010 991-8136 10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml (hose assemblies and parts)
011 991-8137 20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml (hose assemblies and parts)
012 991-8134 10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi (hose assemblies and parts)
013 991-8135 20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings (hose assemblies and parts)
014 991-8138 10ft 100psi vac/sol hose assembly w/ 1/4 male fittings (hose assemblies and parts)
015 991-8139 20ft 100psi vac/sol hose assembly with male fittings (hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI)
016 991-8142 10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
017 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
018 991-8140 10ft 100psi vac/sol hose assembly w/ 1/4 female fittings (hose assemblies and parts)
021 991-8004 1 1/2 inch vacuum hose (sold by the foot) (hose assemblies and parts)
022 991-8005 1 1/2 inch replacement hose cuff (black) (hose assemblies and parts)
023 991-8131 1 1/2 inch hide-a-hose cuff (no swivel) (hose assemblies and parts)
026 991-8045 1/8 inch brass vee jet 8001 (1/8 brass vee jet)
027 991-8046 1/8 inch brass vee jet 8001.5 (1/8 brass vee jet)
028 991-8047 1/8 inch brass vee jet 8002 (1/8 brass vee jet)
029 991-8048 1/8 inch brass vee jet 8003 (1/8 brass vee jet)
030 991-8049 1/8 inch brass vee jet 8004 (1/8 brass vee jet)
031 991-8050 1/8 inch brass vee jet 8005 (OBSOLETE) (1/8 brass vee jet)
032 991-8051 1/8 inch brass vee jet 8006 (1/8 brass vee jet)
033 991-8052 1/8 inch brass vee jet 8008 (1/8 brass vee jet)
034 991-8053 1/8 inch brass vee jet 8010 (1/8 brass vee jet)
035 991-8054 1/8 inch brass vee jet 9502 (1/8 brass vee jet)
036 991-8055 1/8 inch brass vee jet 9503 (1/8 brass vee jet)
037 991-8056 1/8 inch brass vee jet 9504 (1/8 brass vee jet)
038 991-8057 1/8 inch brass vee jet 9505 (1/8 brass vee jet)
039 991-8058 1/8 inch brass vee jet 9506 (1/8 brass vee jet)
040 991-8059 1/8 inch brass vee jet 9508 (1/8 brass vee jet)
041 991-8060 1/8 inch brass vee jet 11001 (1/8 brass vee jet)
042 991-8061 1/8 inch brass vee jet 11001.5 (1/8 brass vee jet)
043 991-8062 1/8 inch brass vee jet 11002 (1/8 brass vee jet)
044 991-8063 1/8 inch brass vee jet 11003 (1/8 brass vee jet)
045 991-8064 1/8 inch brass vee jet 11004 (1/8 brass vee jet)
046 991-8065 1/8 inch brass vee jet 11005 (1/8 brass vee jet)
047 991-8066 1/8 inch brass vee jet 11006 (1/8 brass vee jet)
048 991-8067 1/8 inch brass vee jet 11008 (1/8 brass vee jet)
049 991-8068 1/8 inch brass vee jet 11010 (1/8 brass vee jet)
050 991-8021 1/4 inch brass vee jet 8001 (1/4 brass vee jet)
051 991-8022 1/4 inch brass vee jet 8001.5 (1/4 brass vee jet)
052 991-8023 1/4 inch brass vee jet 8002 (1/4 brass vee jet)
053 991-3005 1/4 inch brass vee jet 8003 (1/4 brass vee jet)
054 991-8025 1/4 inch brass vee jet 8004 (1/4 brass vee jet)
055 991-8026 1/4 inch brass vee jet 8005 (1/4 brass vee jet)
056 991-8027 1/4 inch brass vee jet 8006 (1/4 brass vee jet)
057 991-8028 1/4 inch brass vee jet 8008 (1/4 brass vee jet)
058 991-8029 1/4 inch brass vee jet 8010 (1/4 brass vee jet)
059 991-8030 1/4 inch brass vee jet 9502 (1/4 brass vee jet)
060 991-8031 1/4 inch brass vee jet 9503 (1/4 brass vee jet)
061 991-8032 1/4 inch brass vee jet 9504 (1/4 brass vee jet)
062 991-8033 1/4 inch brass vee jet 9505 (1/4 brass vee jet)
063 991-8034 1/4 inch brass vee jet 9506 (1/4 brass vee jet)
064 991-8035 1/4 inch brass vee jet 9508 (1/4 brass vee jet)
065 991-8036 1/4 inch brass vee jet 11001 (1/4 brass vee jet)
066 991-8037 1/4 inch brass vee jet 11001.5 (1/4 brass vee jet)
067 991-8038 1/4 inch brass vee jet 11002 (1/4 brass vee jet)
068 991-8039 1/4 inch brass vee jet 11003 (1/4 brass vee jet)
069 991-8040 1/4 inch brass vee jet 11004 (1/4 brass vee jet)
070 991-8041 1/4 inch brass vee jet 11005 (OBSOLETE) (1/4 brass vee jet)
071 991-8042 1/4 inch brass vee jet 11006 (1/4 brass vee jet)
072 991-3006 1/4 inch brass vee jet 11008 (1/4 brass vee jet)
073 991-8044 1/4 inch brass vee jet 11010 (1/4 brass vee jet)
074 991-8069 1/4 inch stainless vee jet 8001 (1/4 stainless vee jet)
075 991-8070 1/4 inch stainless vee jet 8002 (1/4 stainless vee jet)
076 991-8071 1/4 inch stainless vee jet 8003 (1/4 stainless vee jet)
077 991-8072 1/4 inch stainless vee jet 8004 (1/4 stainless vee jet)
078 991-8073 1/4 inch stainless vee jet 9501 (1/4 stainless vee jet)
079 991-8074 1/4 inch stainless vee jet 9502 (1/4 stainless vee jet)
080 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless vee jet)
081 991-8076 1/4 inch stainless vee jet 9504 (1/4 stainless vee jet)
082 991-8077 1/4 inch stainless vee jet 11003 (1/4 stainless vee jet)
083 991-8078 1/4 inch stainless vee jet 11004 (1/4 stainless vee jet)
084 991-8079 1/4 inch stainless vee jet 11006 (1/4 stainless vee jet)
085 991-8080 1/4 inch stainless vee jet 11008 (1/4 stainless vee jet)
086 991-8081 1/4 inch stainless/plastic tee jet 8002 (1/4 stainless/plastic tee jet)
087 991-8082 1/4 inch stainless/plastic tee jet 8003 (1/4 stainless/plastic tee jet)
088 991-8083 1/4 inch stainless/plastic tee jet 8004 (1/4 stainless/plastic tee jet)
089 991-8084 1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) (1/4 stainless/plastic tee jet)
090 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless/plastic tee jet)
091 991-8086 1/4 inch stainless/plastic tee jet 9504 (1/4 stainless/plastic tee jet)
092 991-3010 1/4 inch stainless/plastic tee jet 11003 (1/4 stainless/plastic tee jet)
093 991-8088 1/4 inch stainless/plastic tee jet 11004 (1/4 stainless/plastic tee jet)
094 991-8089 1/4 inch stainless/plastic tee jet 11006 (1/4 stainless/plastic tee jet)
095 991-8090 1/4 inch stainless/plastic tee jet 11008 (1/4 stainless/plastic tee jet)
096 991-8091 1/4 inch x 1/8 hex nipple H21
097 991-8092 1/4 inch x 1/4 hex nipple H22
098 991-8093 1/4 inch x 3/8 hex nipple H23
099 991-8094 45 degree street elbow 1/4 inch H24
100 991-8095 45 degree street elbow 1/8 inch H25
101 991-8096 45 degree union elbow 1/4 inch H26
102 991-8098 90 degree street elbow short 1/4 inch H28
103 991-8098 90 degree street elbow short 1/4 inch H28
104 991-8099 90 degree street elbow 1/8 inch H29
105 991-8100 90 degree street elbow short 1/8 inch H30
106 991-8101 90 degree union elbow 1/4 inch H31
107 991-8102 90 degree union elbow 1/8 inch H32
108 991-8103 30 degree union elbow 1/4 inch H33
109 991-8104 1/4 inch coupling H34
110 991-8105 1/8 inch coupling H35
111 991-8106 1/4 inch adapter H36
112 991-8107 1/8 inch adapter H37
113 991-8108 1/4 inch branch tee H38
114 991-8109 1/8 inch branch tee H39
115 991-8110 1/8 inch tee H40
116 991-8111 7/16 inch stainless steel hose clamp H41
117 997-2002 Hose clamp #6
118 991-8113 Strainer for 1/8 inch vee jets H43
119 991-8114 Strainer for 1/4 inch vee jets H44
120 991-8115 Strainer/check valve for 1/4 inch vee jets H45
121 991-8116 Brass strainer/check valve for tee jets H46
122 991-8117 500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47
123 991-8118 500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48
124 991-8119 500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49
125 991-8120 1/4 inch brass flood jets K1 or K2 H54
126 991-8158 1/4 inch BH2-60 female coupler (mate to QD40)
127 991-8150 1/4 inch BH2-61 male nipple (mate to QD80)
128 991-8144 B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55
129 991-8152 B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15
130 991-8145 B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55
131 991-8153 B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15
132 991-8146 BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65
133 991-8154 B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25
134 991-8147 BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65
135 991-8155 B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25
136 991-8148 Hansen 02 male nipple, mate to QD70
137 991-8156 Quick disconnect socket female to QD30
138 991-8149 1/8 inch male quick disconnect
139 991-8157 1/8 inch female quick disconnect socket
140 991-8151 BH3-61,3/8 inch FPT, Male Nipple, mate to QD85
141 991-8159 BH3-60, 3/8 inch fpt, female coupler, mate to QD45
142 991-8123 Bottom hex nut for Kingston or P valve H57
143 991-8121 1/8 inch brass flood jets K1 or K2 H55
144 991-8124 Inline filter H58
145 991-8122 1/8 inch special brass flood jets for V1245 H56
146 991-8008 120V 50 PSI Flo Jet pump (pumps)
147 991-8009 120V 100 PSI Flo Jet pump (pumps)
148 991-8218 120V 120 PSI pump (pumps)
149 991-8220 1/8 fpt brass female connector
150 991-1835 Crevice tool
Webpage Problem Reporting
