Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

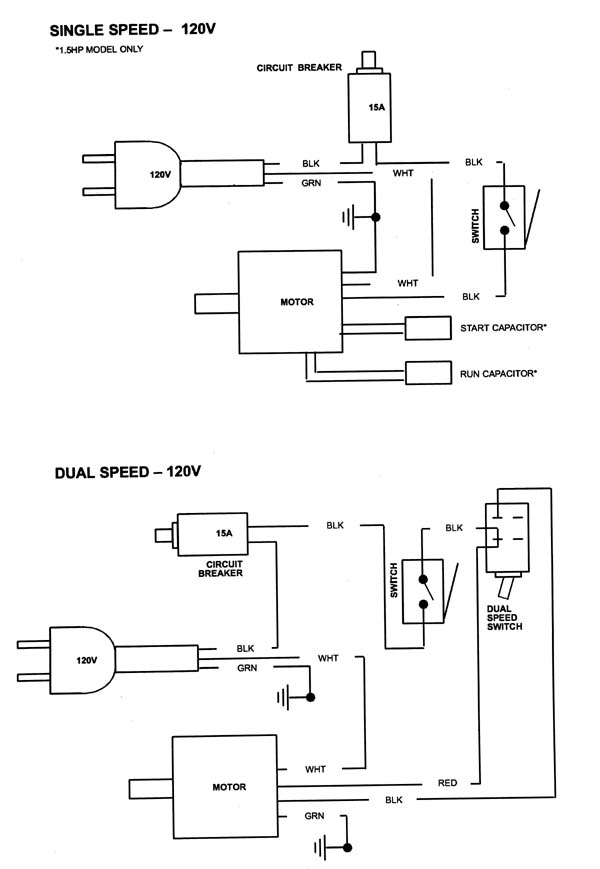

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

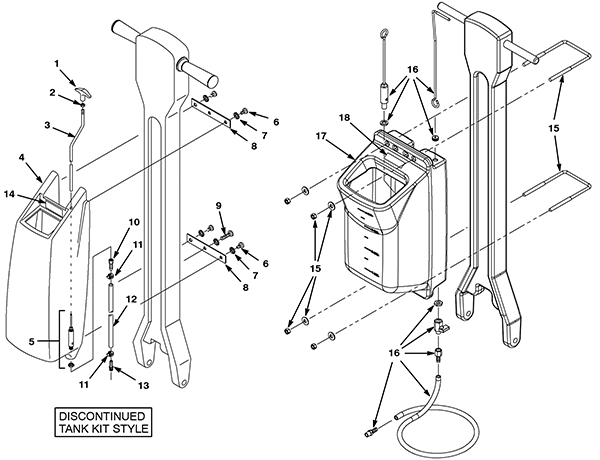

Solution Tank Assembly - 175-3035 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-6113 |
Height adjustment knob |
1 |
|
| 2 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
1 |
|
| 3 |
175-6522 |
Solution valve rod |
1 |
|
| 4 |
175-6521 |
Solution tank assembly |
1 |
|
| 5a |
175-3613 |
Solution valve assembly |
1 |
(includes 5b-5c) |
| 5b |
175-3613 |
Solution valve assembly |
1 |
|
| 5c |
175-6525 |
O-ring seal for valve |
1 |
|
| 6 |
999-0557 |
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
4 |
|
| 7 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
5 |
|
| 8 |
175-6526 |
Solution tank bracket |
2 |
|
| 9 |
999-1077 |
Screw 1/4-20 x 1/2 truss head phillips stainless steel |
1 |
|
| 10 |
175-6022 |
Brass fitting |
1 |
|
| 12 |
175-6527 |
Hose 3/8 x 10 inch |
1 |
|
| 13 |
175-2613 |
Straight brass fitting |
1 |
|
| 14 |
175-6528 |
Warning flammable decal |
1 |
|
| 15a |
175-6521 |
Solution tank assembly |
1 |
(includes 15b-18) |
| 15b |
275-9864 |
Hardware kit |
1 |
|
| 17 |
275-9866 |
Solution tank |
1 |
|
| 18 |
175-6528 |
Warning flammable decal |
1 |
|
|
|

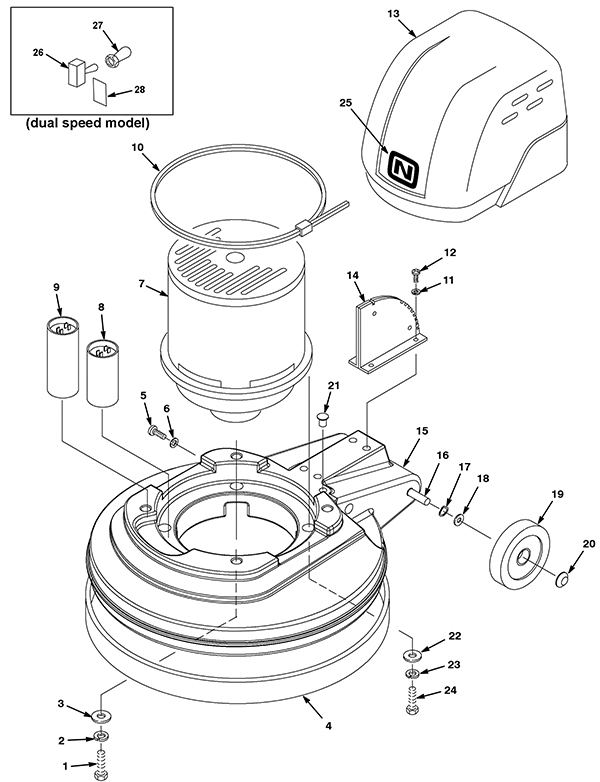

Base Assembly - 175-3036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0258 |
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
4 |
|
| 2 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 3 |
175-1097 |
Washer flat stainless steel |
4 |
|
| 4a |
175-1270 |
17 inch (430mm) bumper |
1 |
(17 inch) |
| 4b |
175-0298 |
20 inch bumper |
1 |
(20 inch) |
| 5 |
999-1080 |
Screw 1/4-20 x 5/8 truss head phillips stainless steel |
2 |
|
| 6 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
2 |
|
| 7a |
175-6615 |
120V 1.5HP brush motor assembly |
1 |
(single speed) (includes 7b-7c, 8-10) |
| 7b |
175-6611 |
Motor coupling |
1 |
|
| 7c |
175-6612 |
Imperial gearbox |
1 |
|
| 7d |
175-3497 |
120V 1.50HP brush motor assembly |
1 |
(dual speed) (includes 7e-7h) |
| 7e |
175-3491 |
Carbon brush (pkg of 4) |
1 |
|
| 7f |
175-3492 |
Carbon brush |
4 |
|
| 7g |
175-3493 |
600V 60amp rectifier |
1 |
|
| 7h |
175-3494 |
Speed control |
1 |
|
| 8 |
175-6616 |
Run capacitor |
1 |
(single speed) |
| 9 |
175-6614 |
Start capacitor |
1 |
(single speed) |
| 10 |
175-6617 |
Cable tie |
1 |
(single speed) |
| 11 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 12 |
999-0030 |
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 13a |
175-0283 |
Cover motor (green) |
1 |
(single speed) |
| 13b |
475-2372 |
COVER, MOTOR [FLOOR MACH DS, SPDSHINE] |
1 |
(dual speed) |
| 14 |
175-6530 |
Latching plate |
1 |
|
| 15a |
175-0295 |
17 inch base (green) |
1 |
|
| 15b |
175-0296 |
20 inch base (green) |
1 |
|
| 17 |
175-0293 |
Washer 1/2 compression zinc plated |
2 |
|
| 18 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 19a |
175-0292 |
4 inch rear wheel (gray) |
2 |
(OEM) |
| 19b |
991-1913 |
4 inch wheel (gray) |
2 |
(NON-OEM) |
| 22a |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
8 |
(single speed) |
| 22b |
999-0032 |
Washer 3/8 USS flat plain finish |
4 |
(dual speed) |
| 23a |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
(single speed) |
| 23b |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
(dual speed) |
| 24a |
175-1271 |
Screw 1/4-20 x 1 1/2 |
4 |
(single speed) |
| 24b |
999-0109 |
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
4 |
(dual speed) |
| 25 |
375-1470 |
Nobles decal (OBSOLETE) |
1 |
|
| 26 |
164-0290 |
Toggle switch |
1 |
(dual speed) |
| 27 |
175-0329 |
Rubber boot for switch |
1 |
(dual speed) |
| 28 |
175-1280 |
Operation decal |
1 |
(dual speed) |
|
|

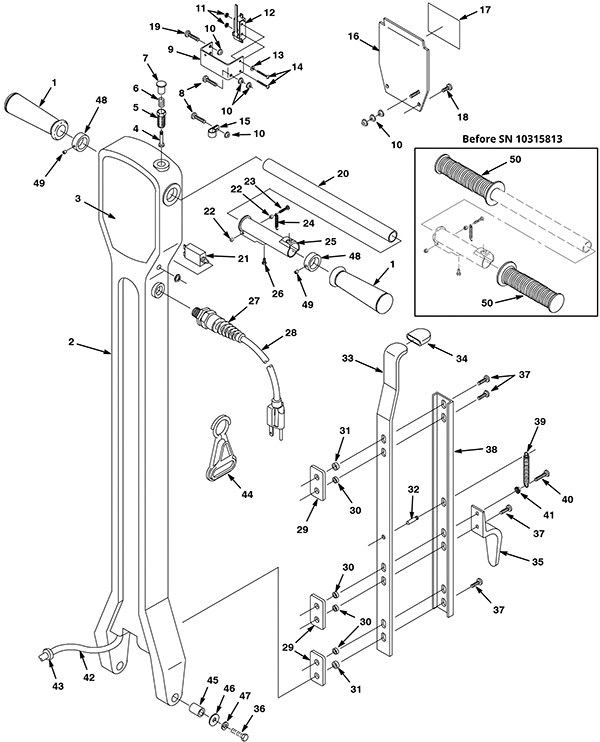

Handle Assembly - 175-3037 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
675-9894 |
Handle grip |
2 |
(after SN 10315812) |
| 1b |
991-8571 |
Handle grip |
2 |
(NON-OEM) |
| 2 |
175-0327 |
Handle (green) |
1 |
|
| 3 |
475-1296 |
LABEL, MODEL [NOBLES SPEEDSHINE SERIES] |
1 |
|
| 4 |
175-0332 |
Locking release pin |
1 |
|
| 5 |
175-0331 |
Locking socket |
1 |
|
| 6 |
175-0335 |
Locking pin spring |
1 |
|
| 7 |
175-0334 |
Locking release button |
1 |
|
| 8 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
2 |
|
| 9 |
175-0338 |
Switch bracket |
1 |
|
| 10 |
999-0356 |
Nut 10-24 lock stainless steel |
8 |
|
| 11 |
999-0144 |
Nut 6-32 k-lock zinc plated |
2 |
|
| 12 |
675-9886 |
Snap switch |
1 |
|
| 13 |
999-1158 |
Washer #6 flat stainless steel |
1 |
|
| 14 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 15a |
175-0144 |
P clamp |
1 |
(single speed models) |
| 15b |
175-0339 |
P clamp |
1 |
(dual speed models) |
| 16 |
275-5163 |
Rear handle plate with decal |
1 |
(includes 17) |
| 17 |
275-5164 |
Warning decal |
1 |
|
| 18 |
999-0999 |
Screw 10-24 x 3/8 truss head phillips stainless steel |
2 |
|
| 19 |
999-1029 |
Screw 10-24 x 5/8 truss head phillips stainless steel |
3 |
|
| 20 |
175-0328 |
Handle tube |
1 |
|
| 21a |
175-1186 |
15amp circuit breaker |
1 |
(single speed models) |
| 21b |
175-6630 |
17amp circuit breaker |
1 |
(dual speed models) |
| 21c |
991-8539 |
15amp circuit breaker |
1 |
(NON-OEM) |
| 22 |
999-0151 |
Nut 8-32 nylon insert lock zinc plated |
2 |
|
| 23 |
999-0827 |
Screw 8-32 x 1 pan head phillips zinc plated |
1 |
|
| 24 |
175-0336 |
Extension spring |
1 |
|
| 25 |
175-0333 |
Handle sleeve |
1 |
|
| 26 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
| 27 |
175-5502 |
Strain relief |
1 |
|
| 28a |
164-5077 |
14/3 power cord 50 foot |
1 |
|
| 28b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 30 |
175-0318 |
Sleeved bushing |
4 |
|
| 31 |
175-0317 |
Sleeved bushing |
2 |
|
| 33 |
475-1646 |
Handle latch |
1 |
|
| 34 |
175-0322 |
Handle latch grip |
1 |
|
| 36 |
999-0657 |
Bolt 1/2-13 x 2 18-8 hex head stainless steel |
2 |
|
| 37 |
999-1214 |
Screw 1/4-20 x 3/4 truss head slotted stainless steel |
5 |
|
| 38 |
175-1273 |
Handle latch channel |
1 |
|
| 39 |
175-7002 |
Extension spring |
1 |
|
| 40 |
999-1077 |
Screw 1/4-20 x 1/2 truss head phillips stainless steel |
1 |
|
| 41 |
999-0015 |
Nut 1/4-20 k-lock zinc plated |
1 |
|
| 42 |
175-1486 |
14/3 interconnect cord 57 inch |
1 |
|
| 43 |
175-1487 |
Strain relief bushing |
1 |
|
| 44 |
175-0236 |
Cord belt clip |
1 |
(optional) |
| 45 |
675-9888 |
Sleeved bushing |
2 |
|
| 46 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 47 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 48 |
175-1168 |
Handle collar |
2 |
(after SN 10315812) |
| 49 |
999-0096 |
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
(after SN 10315812) |
| 50 |
675-9894 |
Handle grip |
2 |
(before SN 10315813) |
|
|

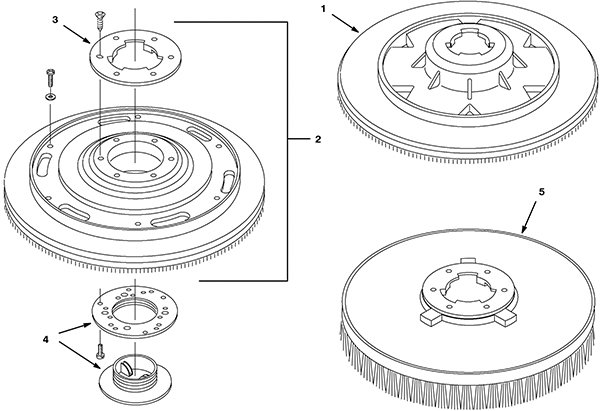

Brushes and Pad Driver Assembly - 175-9975 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
275-5102 |
Pad driver 17 inch (OBSOLETE) |
1 |
|
| 1b |
175-0306 |
20 inch pad driver assembly |
1 |
|
| 1c |
991-3091 |
19 inch VELCRO FACE PAD DRIVER W/PLATE |
1 |
(NON-OEM) |
| 2a |
175-0305 |
17 inch pad driver assembly |
1 |
(includes 3) |
| 2b |
175-0306 |
20 inch pad driver assembly |
1 |
|
| 2c |
175-0308 |
17 inch pad driver assembly (OBSOLETE) |
1 |
|
| 2e |
991-3091 |
19 inch VELCRO FACE PAD DRIVER W/PLATE |
1 |
(NON-OEM) |
| 3 |
175-0309 |
Clutch plate (plastic) |
1 |
|
| 4 |
996-0372 |
Big mouth pad holder (left hand thread) |
1 |
|
| 5a |
996-1300 |
Extra heavy grit stripping brush - 46 grit |
1 |
(optional) |
| 5b |
996-1301 |
Medium grit scrubbing brush - 180 grit (OBSOLETE) |
1 |
(optional) |
| 5c |
996-0049 |
15 inch heavy grit stripping brush - 80 grit |
1 |
(optional) |
| 5d |
996-1303 |
Super abrasive brush |
1 |
(optional) |
| 5e |
475-2502 |
BRUSH, DISK, SCB, 15 (OBSOLETE) |
1 |
(optional) |
| 5f |
275-7385 |
18 inch polyester scrub brush |
1 |
(optional) |
| 5g |
275-7152 |
17 inch nylon scrub brush (OBSOLETE) |
1 |
(optional) |
| 5h |
175-8982 |
20 inch polypropelene scrubbing brush |
1 |
(optional) |
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-9976 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
175-0289 |
Start capacitor (black) |
|
|
| 0.9835 |
996-3030 |
18 inch value daily cleaning brush assembly |
|
|
| 0.9835 |
175-5502 |
Strain relief |
|
|
| 0.9835 |
170-0694 |
Odum coupling |
|
|
| 0.9835 |
175-1186 |
15amp circuit breaker |
|
|
| 0.9835 |
675-9886 |
Snap switch |
|
(power) |
| 0.9835 |
175-0288 |
Run capacitor (silver) |
|
|
| 0.9835 |
164-5077 |
14/3 power cord 50 foot |
|
(OEM) |
| 0.9835 |
175-0335 |
Locking pin spring |
|
|
| 0.9835 |
175-0292 |
4 inch rear wheel (gray) |
|
(OEM) |
| 0.9835 |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 01 |
996-0047 |
18 inch heavy grit stripping brush - 80 grit |
|
|
| 02 |
996-0020 |
18 inch medium grit scrubbing brush - 180 grit |
|
|
| 03 |
996-0377 |
18 inch lite grit scrubbing brush - 500 grit |
|
|
| 05 |
996-0240 |
Carpet brush for 20 inch swing |
|
|
| 06 |
996-0071 |
19 inch pad driver |
|
|
| 07 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
|
|
| 08 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
1 |
|
| 09 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
1 |
|
|
|
