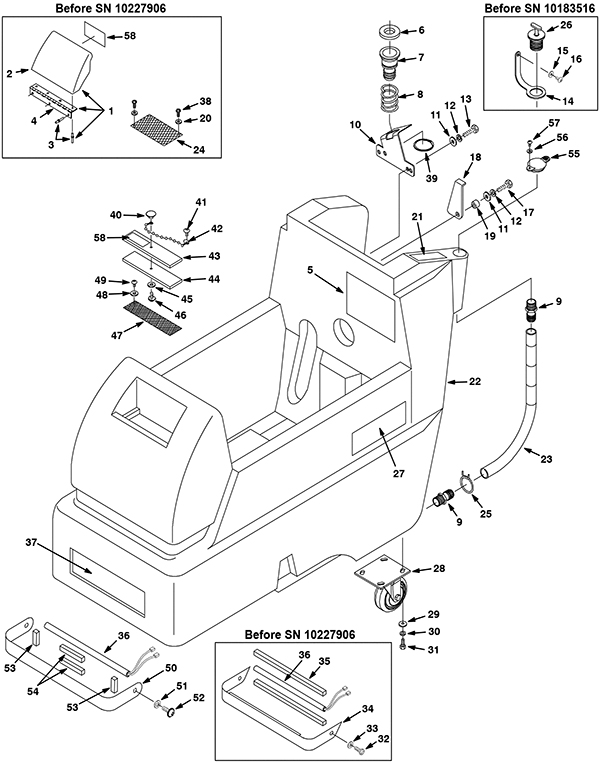

Solution Tank Assembly - 175-0065 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-2661 |
Solution tank lid assembly (green) |
1 |
(includes 2-4) |
| 2 |
175-2663 |
Solution tank lid (green) |
1 |
|
| 5 |
175-2982 |
Battery recharge decal |
1 |
|
| 6 |
675-9895 |
Vacuum motor gasket |
1 |
|
| 7 |
175-3635 |
Transition tube |
1 |
|
| 8 |
175-4353 |
Compression spring |
1 |
|
| 9 |
175-2676 |
Barbed fitting |
2 |
|
| 10 |
175-3636 |
Vacuum tube bracket |
1 |
|
| 11 |
999-0024 |
Washer 5/16 flat stainless steel |
3 |
|
| 12 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
3 |
|
| 13 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
| 14 |
175-2984 |
Plug strap (OBSOLETE) |
1 |
|
| 15 |
999-0393 |
Washer 3/16 flat aluminum |
1 |
|
| 16 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
1 |
|
| 17 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
| 18 |
175-2672 |
Recovery tank support |
1 |
|
| 20 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 21 |
N/A |
Not available |
1 |
(squeegee lever decal) |
| 22a |
175-2985 |
Solution tank (green) |
1 |
(before SN 10227907) |
| 22b |
275-4587 |
Solution tank (green) |
1 |
(after SN 10227906) |
| 23 |
175-3637 |
Drain hose with level indicator |
1 |
|
| 24 |
175-2666 |
Screen filter |
1 |
|
| 26 |
175-2653 |
1 1/2 inch expansion plug |
1 |
|
| 27a |
N/A |
Not available |
2 |
(2401) (2401 decal) |
| 27b |
175-2990 |
Decal inchspeed scrub 2601 inch (OBSOLETE) |
2 |
(2601) |
| 27c |
175-0087 |
FaST decal (OBSOLETE) |
2 |
(2401 FaST) |
| 27d |
175-0233 |
FaST decal |
2 |
(2601 FaST) |
| 28 |
175-2991 |
4 inch caster wheel |
2 |
|
| 29 |
999-0024 |
Washer 5/16 flat stainless steel |
8 |
|
| 30 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
8 |
|
| 31 |
999-0900 |
Screw M8-1.25 x 18mm hex head stainless steel |
8 |
|
| 32 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 33 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
|
| 34 |
175-2993 |
Light shield |
1 |
|
| 36 |
175-2995 |
12 Inch safety light |
1 |
|
| 37 |
N/A |
Not available |
1 |
(nobles logo decal) |
| 38 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
2 |
|
| 39 |
175-4355 |
Retaining ring |
1 |
|
| 41 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
1 |
|
| 42 |
175-5129 |
Ball chain #10 stainless steel |
1 |
|
| 43 |
175-4220 |
Solution fill screen assembly |
1 |
|
| 44 |
175-4220 |
Solution fill screen assembly |
1 |
|
| 45 |
999-1026 |
Washer #10 internal lock stainless steel |
1 |
|
| 46 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 47 |
175-4220 |
Solution fill screen assembly |
1 |
|
| 48 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 49 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
2 |
|
| 50 |
275-4590 |
Light shield |
1 |
|
| 51 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 52 |
175-4398 |
Screw M5-.8 x 10mm phillips truss head zinc |
2 |
|
| 53 |
175-1209 |
Gasket |
1.5 in |
|
| 55 |
175-7825 |
Solution fill port cap |
1 |
|
| 56 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
| 57 |
999-0531 |
Screw M5-.8 x 16mm pan head slotted zinc |
1 |
|
| 58 |
175-0235 |
Attention decal |
1 |
(FaST model) |
|
|

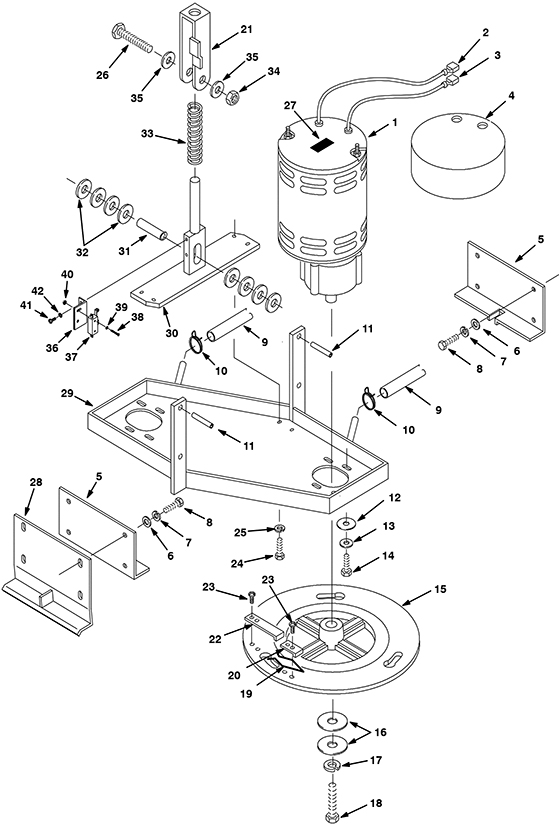

Drive Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

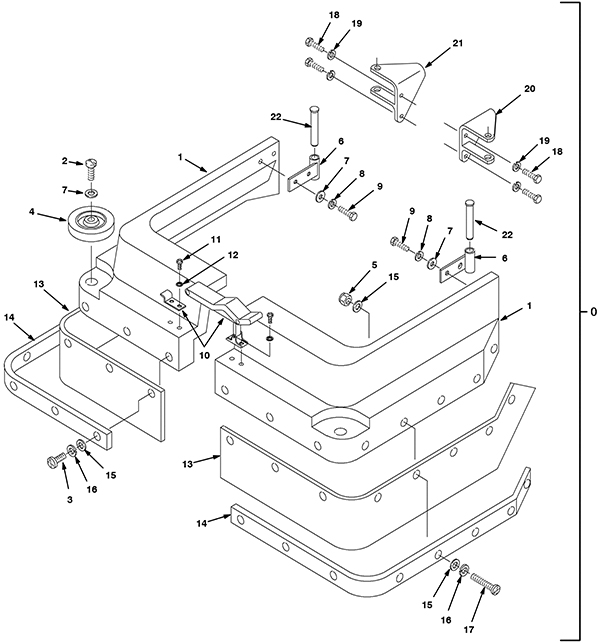

Brush Skirt Assembly - 175-0112 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
175-0360 |
Left side skirt assembly |
1 |
(includes 1a-17) (2401) |
| 0b |
175-0361 |
Left side skirt assembly |
1 |
(includes 1a-17) (2601) |
| 0c |
175-0362 |
Right side skirt assembly |
1 |
(includes 1a-17) (2401) |
| 0d |
175-0363 |
Right side skirt assembly |
1 |
(includes 1a-17) (2601) |
| 1a |
175-3045 |
Skirt left side green (2401) |
1 |
|
| 1b |
175-3046 |
Skirt left side green (2601) |
1 |
|
| 1c |
175-3047 |
Skirt right side green (2401) (OBSOLETE) |
1 |
|
| 1d |
175-3048 |
Skirt right side green (2601) |
1 |
|
| 2 |
999-0742 |
Screw M8-1.25 x 40mm pan head phillips zinc |
2 |
|
| 3 |
999-0901 |
Screw M5-.8 x 16mm pan head phillips stainless steel |
10 |
|
| 4 |
175-0117 |
Guide wheel with bushing |
2 |
|
| 5 |
999-0740 |
Nut M5-.8 hex stainless steel |
6 |
|
| 6 |
175-3049 |
Skirt mount bracket |
2 |
|
| 7 |
999-0024 |
Washer 5/16 flat stainless steel |
6 |
|
| 8 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 9 |
999-0900 |
Screw M8-1.25 x 18mm hex head stainless steel |
4 |
|
| 10a |
375-7802 |
Latch |
1 |
(OEM) |
| 10b |
991-8561 |
Rubber draw latch with keeper |
1 |
(NON-OEM) |
| 11 |
999-0530 |
Screw M4-.7 x 8mm pan head slotted zinc |
4 |
|
| 12 |
999-1083 |
Washer #8 internal star lock stainless steel |
4 |
|
| 13a |
175-3052 |
Splash guard 2401 |
2 |
|
| 13b |
175-3053 |
Splash guard 2601 |
2 |
|
| 14a |
175-3054 |
Splash guard strap 2401 |
2 |
|
| 14b |
175-3055 |
Splash guard strap 2601 |
2 |
|
| 15 |
999-0393 |
Washer 3/16 flat aluminum |
22 |
|
| 16 |
999-1026 |
Washer #10 internal lock stainless steel |
16 |
|
| 17 |
999-0797 |
Screw M5-.8 x 30mm pan head phillips stainless steel |
6 |
|
| 18 |
175-3679 |
Screw M8 x 1 1/4 x 20 |
4 |
|
| 19 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 20 |
175-3050 |
Skirt mount bracket lefthand |
1 |
|
| 21 |
175-3051 |
Skirt mount bracket righthand |
1 |
|
|
|

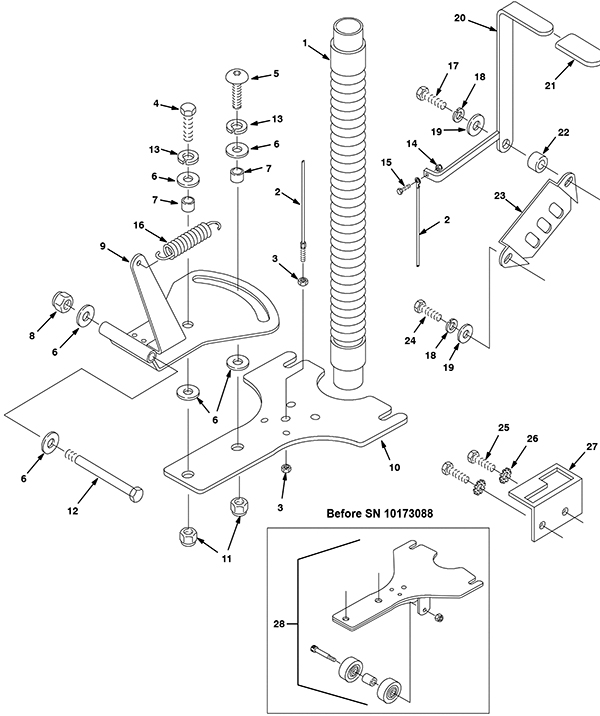

Squeegee Control Assembly - 175-0114 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3067 |
Vacuum hose 1 1/2 x 30 inch with cuffs |
1 |
|
| 2 |
175-3068 |
Squeegee lift cable |
1 |
|
| 3 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 4 |
999-0687 |
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
1 |
|
| 5 |
175-3701 |
Screw 1/2 - 13 x 1 1/4 |
1 |
|
| 6 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
6 |
|
| 7 |
175-2743 |
Sleeved bushing |
2 |
|
| 8 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
| 9 |
275-6137 |
Squeegee pivot mounting bracket (OBSOLETE) |
1 |
|
| 10 |
175-8742 |
Squeegee mount bracket |
1 |
|
| 11 |
999-0050 |
Nut 1/2-13 hex jam plain finish |
2 |
|
| 12 |
175-3069 |
Screw 1/2-13 x 5 1/2 |
1 |
|
| 13 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 14 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 15 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
| 17 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
| 18 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 19 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 20 |
175-3077 |
Squeegee lift handle |
1 |
|
| 21 |
175-2723 |
Handle grip (rubber) |
1 |
|
| 22 |
175-3078 |
Bushing spacer |
1 |
|
| 23 |
175-2728 |
Locking plate |
1 |
|
| 24 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
| 25 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
| 26 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 27 |
175-3080 |
Squeegee lock plate |
1 |
|
| 28 |
275-4796 |
Squeegee caster kit |
1 |
|
|
|

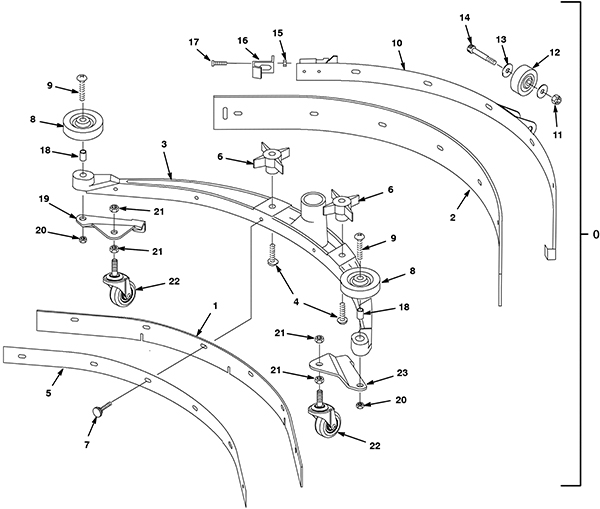

Squeegee Assembly - 175-0115 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
175-3706 |
Squeegee assembly linatex 28 inch (700mm) (OBSOLETE) |
1 |
(includes 1a, 1d, 2a, 3-23) (note: kit 275-4796 is required for models before SN 10173089) |
| 0b |
175-3710 |
Sgueegee assembly gum rubber (OBSOLETE) |
1 |
(includes 1b, 1e, 2b, 3-23) (note: kit 275-4796 is required for models before SN 10173089) |
| 0c |
175-0461 |
Squeegee assembly urethane |
1 |
(includes 1c, 1f, 2c, 3-23) (note: kit 275-4796 is required for models before SN 10173089) |
| 1a |
175-3707 |
Squeegee blades kit linatex 33 inch |
1 |
(includes 1d, 2a) |
| 1b |
175-3711 |
Squeegee blade kit curved gum rubber 33 inch (OBSOLETE) |
1 |
(includes 1e, 2b) |
| 1c |
175-8746 |
Squeegee blade kit urethane 33 inch (OBSOLETE) |
1 |
(includes 1f, 2c) |
| 1d |
175-2850 |
Squeegee blade 33 inch linatex curved front (red) |
1 |
|
| 1e |
175-3712 |
Squeegee blade 33 inch gum rubber front (tan) |
1 |
|
| 1f |
175-3708 |
Squeegee blade front urethane white 33 inch |
1 |
|
| 2a |
175-2851 |
Squeegee blade 33 inch linatex curved rear (red) |
1 |
|
| 2b |
175-3713 |
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
|
| 2c |
175-8747 |
Rear urethane squeegee blade 33 inch |
1 |
|
| 3 |
175-8748 |
Squeegee casting |
1 |
|
| 4 |
999-1039 |
Screw 5/16-18 x 1 1/2 truss head phillips stainless steel |
2 |
|
| 5 |
175-3715 |
Front strip retainer |
1 |
|
| 6 |
175-2208 |
Plastic star knob |
2 |
|
| 9 |
175-3716 |
Screw 5/16-18 x 1 3/4 |
2 |
|
| 10 |
175-3717 |
Squeegee rear ASM band |
1 |
|
| 11 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
|
| 13 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 14 |
175-3719 |
Screw 3/8 x 1 1/4 shoulder |
1 |
|
| 15 |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
|
| 16 |
175-3720 |
Squeegee band clip |
1 |
|
| 17 |
175-3721 |
Screw M5-.8 x 45mm |
1 |
|
| 19 |
175-8749 |
Right hand caster mounting swivel bracket |
1 |
(after SN 10173087) |
| 20 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 21 |
999-0767 |
Nut M10-1.5 hex coarse thread |
4 |
(after SN 10173087) |
| 22 |
175-7953 |
Swivel caster wheel |
2 |
(after SN 10173087) |
| 23 |
175-8750 |
Left hand caster mounting swivel bracket |
1 |
(after SN 10173087) |
|
|

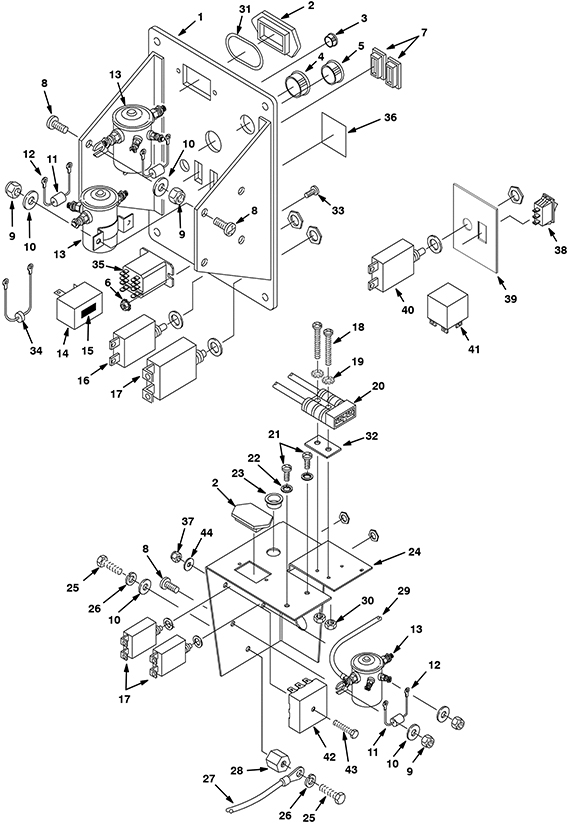

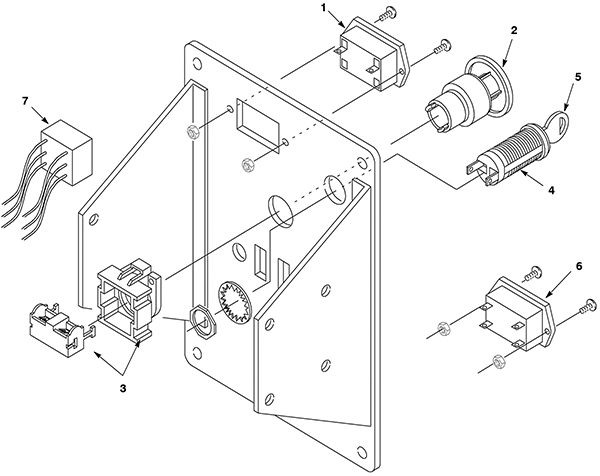

Electrical Panel Assembly - 175-0117 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-0297 |
Control panel housing |
1 |
|
| 2 |
175-3646 |
Hour meter plug |
2 |
|
| 6 |
999-0356 |
Nut 10-24 lock stainless steel |
2 |
|
| 8 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
6 |
|
| 9 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
6 |
|
| 10 |
999-0016 |
Washer 1/4 flat plain finish |
7 |
|
| 11 |
175-2757 |
Diode with ring terminals (small) |
3 |
|
| 12 |
175-0924 |
#10 ring terminal |
6 |
|
| 13 |
175-2023 |
24V solenoid contactor |
3 |
|
| 14 |
175-2756 |
24V flasher |
1 |
|
| 15 |
175-0287 |
Acrylic foam tape 1 inch x 1 foot |
1 |
|
| 16a |
175-3132 |
10amp brush circuit breaker (OBSOLETE) |
1 |
(OEM) |
| 16b |
991-8538 |
10amp circuit breaker |
1 |
(NON-OEM) |
| 17 |
375-1406 |
35amp circuit breaker (OBSOLETE) |
3 |
|
| 18 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 19 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 20 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 21 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 22 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
|
| 23 |
175-3134 |
Snap bushing |
1 |
|
| 24 |
175-3135 |
Bracket (OBSOLETE) |
1 |
|
| 25 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
| 26 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 27 |
175-3137 |
Battery cable (black) |
1 |
|
| 28 |
175-3226 |
Insulated stand off |
1 |
|
| 29 |
175-3138 |
Battery cable 5/16 x 3/8 (red) |
1 |
|
| 30 |
999-0144 |
Nut 6-32 k-lock zinc plated |
1 |
|
| 33 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
2 |
|
| 34 |
175-1182 |
Diode with ring terminals (large) |
1 |
|
| 36 |
175-2649 |
Do not spray decal |
1 |
|
| 37 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
(FaST model) |
| 38 |
175-7871 |
Rocker switch |
1 |
(FaST model) |
| 39 |
275-5739 |
FaST switch label |
1 |
(FaST model) |
| 40 |
175-3132 |
10amp brush circuit breaker (OBSOLETE) |
1 |
(FaST model) |
| 41 |
175-8635 |
40amp relay |
1 |
(FaST model) |
| 42 |
175-8623 |
Detergent pump timer |
1 |
(FaST model) |
| 43 |
175-6758 |
Screw M6-1 x 30mm hex head |
1 |
(FaST model) |
| 44 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
(FaST model) |
| N/S |
175-0247 |
Switch panel assembly |
1 |
(FaST model) |
|
|

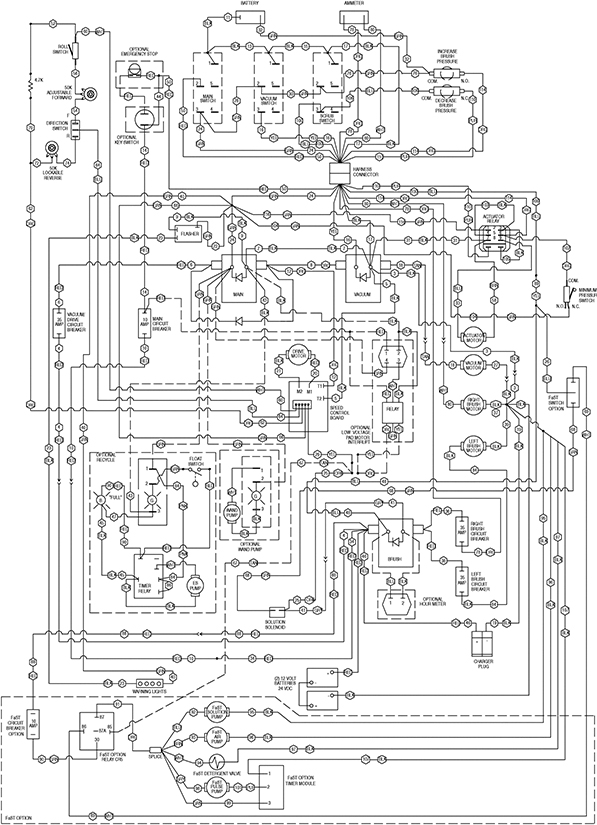

Wiring Diagram 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

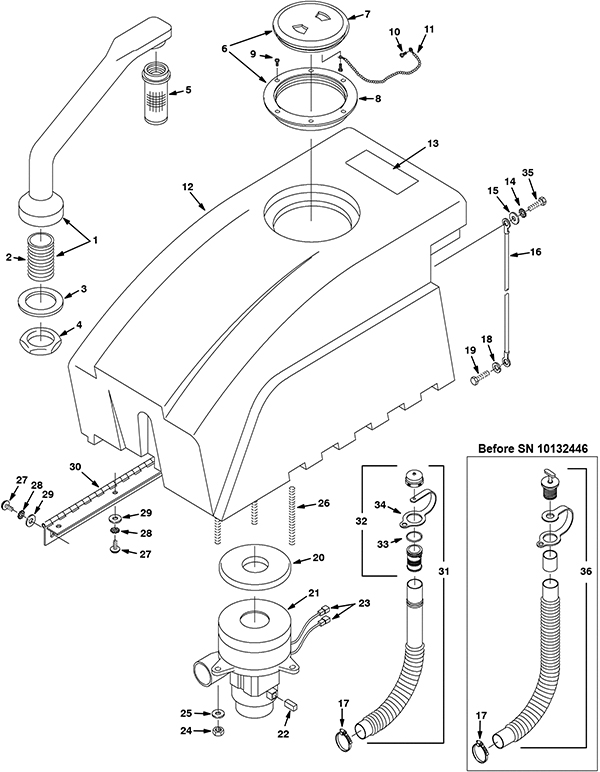

Recovery Tank Assembly - 175-0182 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-2998 |
Standpipe with nipple assembly |
1 |
(includes 2) |
| 2 |
175-2639 |
1 1/2 inch nipple fitting |
1 |
|
| 4 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 5a |
675-9887 |
Shut-off float |
1 |
(OEM) |
| 5b |
991-5136 |
Shut-off float |
1 |
(NON-OEM) |
| 6 |
164-0202 |
Tank lid assembly |
1 |
(includes 7-8) |
| 7a |
164-0044 |
Tank lid (clear) |
1 |
(OEM) |
| 7b |
991-1928 |
Tank lid (clear) (OBSOLETE) |
1 |
(NON-OEM) |
| 8 |
164-0205 |
Tank lid ring (black) |
1 |
|
| 9 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
6 |
|
| 10 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
2 |
|
| 12 |
175-0022 |
Recovery tank assembly |
1 |
(includes 13) |
| 13 |
175-2868 |
Warning decal |
1 |
|
| 14 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
1 |
|
| 15 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 16 |
175-2651 |
Support cable |
1 |
|
| 18 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 19 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
| 20 |
675-9893 |
Vacuum motor gasket |
1 |
|
| 21a |
275-5736 |
24V 3 stage vacuum motor |
1 |
(OEM) (includes 22) |
| 21b |
991-1210-P |
24V 3 stage vacuum motor tangential with Packard plug |
1 |
(NON-OEM) |
| 22 |
175-2658 |
Carbon brush (pkg of 2) |
2 |
|
| 23 |
175-0923 |
Male terminal |
2 |
|
| 24 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
3 |
|
| 25 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 27 |
999-1041 |
Screw M6-1 x 12mm pan head phillips stainless steel |
11 |
|
| 28 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
11 |
|
| 29 |
999-0016 |
Washer 1/4 flat plain finish |
11 |
|
| 30 |
175-3001 |
Recovery tank hinge |
1 |
|
| 31a |
175-1153 |
Drain hose assembly |
1 |
(includes 32-34) (OEM) |
| 31b |
991-5126 |
Drain hose assembly |
|
(NON-OEM) |
| 32a |
175-4214 |
Drain plug assembly |
1 |
(includes 33-34) (OEM) |
| 32b |
991-3028 |
Drain plug assembly |
1 |
(NON-OEM) |
| 34 |
175-4214 |
Drain plug assembly |
1 |
|
| 35 |
999-1041 |
Screw M6-1 x 12mm pan head phillips stainless steel |
1 |
|
| 36 |
N/A |
Not available |
1 |
(drain hose assembly) (replaced with 31) |
|
|
- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

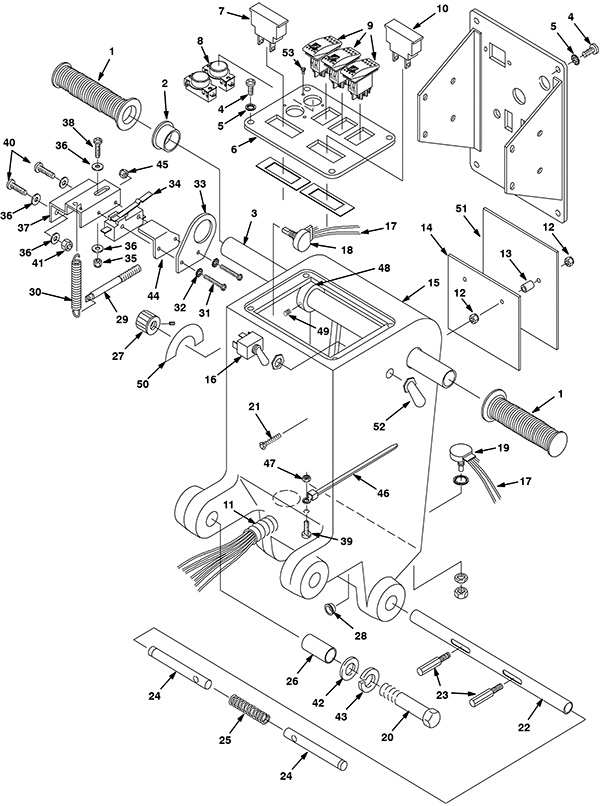

Console Assembly - 175-0443 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
675-9894 |
Handle grip |
2 |
(OEM) |
| 1b |
991-8571 |
Handle grip |
2 |
(NON-OEM) |
| 2 |
175-3093 |
Flanged bushing |
1 |
|
| 4 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
8 |
|
| 5 |
999-1026 |
Washer #10 internal lock stainless steel |
8 |
|
| 6a |
175-0247 |
Switch panel assembly |
1 |
(includes 6b-11) |
| 6b |
175-0256 |
Switch panel |
1 |
|
| 7 |
175-3643 |
Brush pressure gauge |
1 |
|
| 9 |
175-3098 |
Lighted on/off rocker switch |
3 |
|
| 10 |
175-2691 |
Battery voltage meter |
1 |
|
| 11 |
175-0247 |
Switch panel assembly |
1 |
|
| 12 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
| 15 |
175-3102 |
Control housing (green) |
1 |
|
| 16 |
175-3103 |
Toggle switch |
1 |
|
| 17 |
175-3120 |
Console harness with potentiometer |
1 |
(includes 18-19) |
| 18 |
175-3105 |
Potentiometer |
1 |
|
| 19 |
175-3106 |
Lockable potentiometer |
1 |
|
| 20 |
999-0619 |
Screw 10-24 x 3/4 truss head slotted stainless steel |
2 |
|
| 21 |
175-3107 |
Screw M4-.7 x 35mm flat head phillips |
2 |
|
| 22 |
175-3108 |
Handle adjustment tube |
1 |
|
| 23 |
175-2710 |
Handle adjustment pin |
2 |
|
| 24 |
175-3109 |
Handle locking pin |
2 |
|
| 27 |
175-1163 |
Speed control knob |
1 |
|
| 28 |
175-3111 |
Snap bushing |
1 |
|
| 29 |
175-3112 |
Spring return pin |
1 |
|
| 30 |
175-3113 |
Extension spring |
1 |
|
| 31 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 32 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 33 |
175-3115 |
Switch bracket |
1 |
|
| 34a |
175-3116 |
Snap switch |
1 |
(OEM) |
| 34b |
991-5121 |
Charger interlock switch (OBSOLETE) |
1 |
(NON-OEM) |
| 35 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 36 |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 37 |
175-3117 |
Switch mount |
1 |
|
| 38 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
1 |
|
| 39 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
1 |
|
| 40 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
| 41 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 42 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
| 43 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 44 |
175-3122 |
Switch plate |
1 |
|
| 45 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 47 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 48 |
175-1168 |
Handle collar |
2 |
|
| 49 |
999-0096 |
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
| 50 |
175-1169 |
Speed control decal |
1 |
|
| 51 |
175-3124 |
55amp speed control board |
1 |
|
| 52 |
175-3104 |
Switch boot |
1 |
|
| 53 |
999-1145 |
Screw 6-32 x 1/4 truss head phillips zinc plated |
4 |
|
|
|
Brush Drive Assembly - 175-0448 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
175-2599 |
24V brush motor with gearbox |
2 |
(includes 1b-1e) (OEM) |
| 1c |
175-3028 |
Brush card assembly |
1 |
|
| 1d |
175-2600 |
Carbon brush |
4 |
|
| 1e |
175-2601 |
Square keyway |
1 |
|
| 1f |
991-8524 |
36V 1.0HP brush motor assembly with gear box |
1 |
(NON-OEM) |
| 2 |
175-3032 |
Positive terminal ring |
1 |
|
| 3 |
175-3032 |
Positive terminal ring |
1 |
|
| 4 |
175-2598 |
Brush motor cover |
2 |
|
| 6 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
8 |
|
| 7 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 8 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
8 |
|
| 9 |
175-5592 |
Hose 3/8 x 5/8 x 9 inch |
1 |
|
| 12 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
8 |
|
| 13 |
999-0034 |
Washer 3/8 split lock plain finish |
8 |
|
| 14 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
| 15 |
175-2609 |
Drive plate |
2 |
|
| 16 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 17 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 18 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 19 |
175-2612 |
Spring clip |
2 |
|
| 20 |
175-2611 |
Brush plate clamp |
2 |
|
| 21 |
175-7900 |
Spring bracket |
1 |
|
| 22 |
175-3034 |
Driver release stop |
2 |
|
| 23 |
999-1114 |
Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc |
8 |
|
| 24 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
| 25 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 26 |
175-3031 |
Screw 3/8-16x2 |
1 |
|
| 27 |
175-0287 |
Acrylic foam tape 1 inch x 1 foot |
2 |
|
| 28 |
175-3037 |
Front lip skirt (OBSOLETE) |
1 |
|
| 29 |
175-3038 |
Motor mount bracket (OBSOLETE) |
1 |
|
| 30 |
175-9499 |
Spring mount bracket (OBSOLETE) |
1 |
|
| 32 |
175-3041 |
Washer flat |
8 |
|
| 34 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
| 35 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 36 |
175-9692 |
Brush switch bracket (OBSOLETE) |
1 |
|
| 37 |
175-2049 |
25amp roller switch (OBSOLETE) |
1 |
|
| 38 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 39 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 40 |
999-0144 |
Nut 6-32 k-lock zinc plated |
2 |
|
| 41 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 42 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
|
|
|

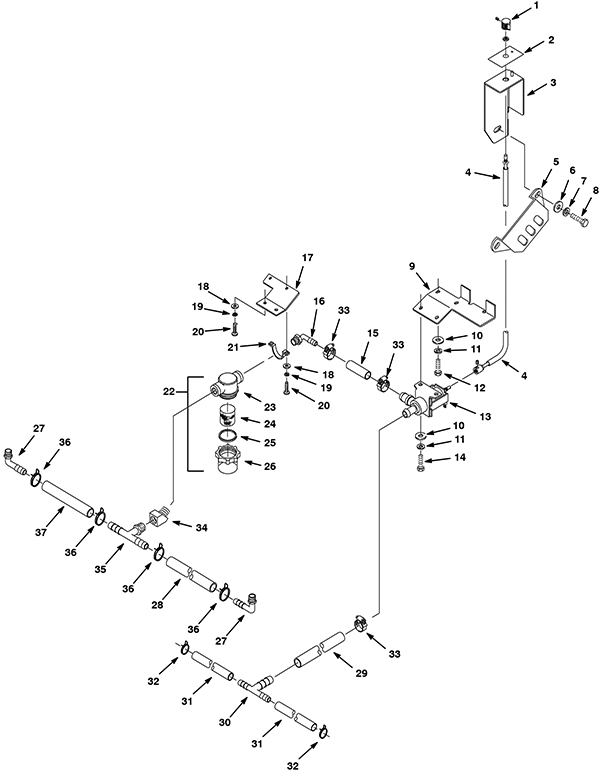

Solution Flow Assembly - 175-0595 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-9027 |
Solution control knob |
1 |
|
| 2 |
175-3680 |
Solution control decal |
1 |
|
| 3 |
175-3681 |
Solution control bracket |
1 |
|
| 4 |
175-3682 |
Sol. flow control cable (OBSOLETE) |
1 |
|
| 5 |
175-2728 |
Locking plate |
1 |
|
| 6 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 7 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 8 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
| 9 |
175-3683 |
Solenoid mount bracket (OBSOLETE) |
1 |
|
| 10 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 11 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 12 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 13a |
175-3684 |
24V solenoid valve |
1 |
|
| 13b |
175-8698 |
Solenoid valve rebuild kit (internal parts) |
1 |
|
| 14 |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
2 |
|
| 15 |
175-1043 |
3 inch hose |
1 |
|
| 16 |
175-3685 |
90 degree elbow fitting |
1 |
|
| 17 |
175-3686 |
Filter bowl bracket |
1 |
|
| 18 |
175-3687 |
Washer m5 x 1 flat |
4 |
|
| 19 |
999-9132 |
Washer M5 split lock stainless steel |
4 |
|
| 20 |
175-3689 |
Screw M5-.8 x 12mm truss head phillips stainless steel |
4 |
|
| 22a |
175-9025 |
In-line screen filter assembly |
1 |
(includes 23-26) (OEM) |
| 22b |
991-8582 |
Mesh inline filter |
1 |
(NON-OEM) |
| 23 |
175-5865 |
Top filter body housing |
1 |
|
| 24a |
175-5866 |
Mesh filter screen |
1 |
(OEM) |
| 24b |
991-8569 |
Mesh filter screen stainless steel |
1 |
(NON-OEM) |
| 25 |
175-5867 |
Filter gasket |
1 |
|
| 26a |
175-5868 |
Short clear filter bowl |
1 |
(OEM) |
| 26b |
991-8575 |
Short bowl (clear) |
1 |
(NON-OEM) |
| 27 |
175-3685 |
90 degree elbow fitting |
2 |
|
| 28 |
175-3697 |
425mm hose (OBSOLETE) |
1 |
|
| 29 |
175-3697 |
425mm hose (OBSOLETE) |
1 |
|
| 30 |
175-5591 |
Tee fitting 3/8 x 3/8 x 1/2 |
1 |
|
| 31 |
175-5592 |
Hose 3/8 x 5/8 x 9 inch |
1 |
|
| 34 |
175-3691 |
Brass fitting |
1 |
|
| 35 |
175-3692 |
Tee fitting |
1 |
|
| 37 |
175-3694 |
Hose 1/2 x 6 inch |
1 |
|
|
|

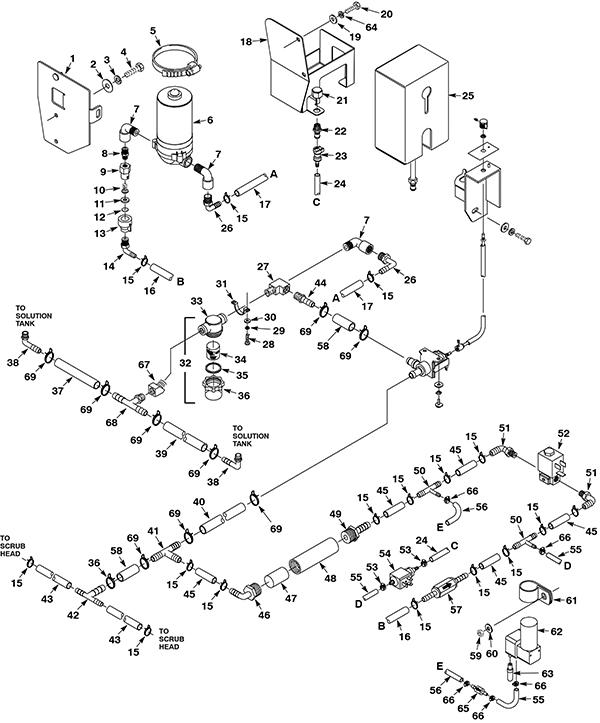

Solution Flow Assembly - FaST - 175-0596 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-0450 |
Mounting bracket (OBSOLETE) |
1 |
|
| 2 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
2 |
|
| 3 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 4 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 6 |
275-5763 |
Solution pump 24V (OBSOLETE) |
1 |
|
| 7 |
175-8701 |
Plastic fitting |
3 |
|
| 8 |
175-8702 |
Plastic strainer fitting |
1 |
|
| 9a |
175-8703 |
Plastic fitting cap assembly |
1 |
(includes 9b-13) |
| 9b |
175-7948 |
Plastic spray body fitting |
1 |
|
| 10 |
175-5248 |
Mesh screen |
1 |
|
| 11 |
175-5246 |
Washer 11/32 x 3/4 x 1/8 flat viton |
1 |
|
| 12 |
175-8704 |
Orifice plate |
1 |
|
| 13 |
175-8726 |
Plastic spray cap fitting |
1 |
|
| 14 |
175-6926 |
Plastic elbow fitting |
1 |
|
| 15 |
175-3671 |
Hose clamp |
16 |
|
| 16 |
175-8981 |
PVC braided hose 3/8 x 10 inch |
1 |
|
| 17 |
175-7950 |
Braided hose 3/8 x 21 inch |
1 |
|
| 18 |
175-0453 |
Box holder bracket (OBSOLETE) |
1 |
|
| 19 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 20 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
| 21 |
175-5313 |
Plastic cap fitting |
1 |
|
| 22 |
275-4743 |
Straight plastic fitting |
1 |
|
| 23 |
275-4744 |
Female coupling |
1 |
|
| 24 |
275-5764 |
PVC hose 12 1/2 inch |
1 |
|
| 25 |
N/A |
Not available |
1 |
(detergent) |
| 26 |
175-7933 |
90 degree plastic elbow |
2 |
|
| 27 |
175-5869 |
Tee fitting 3/8 x 3/8 inch |
1 |
|
| 28 |
175-3689 |
Screw M5-.8 x 12mm truss head phillips stainless steel |
4 |
|
| 29 |
999-9132 |
Washer M5 split lock stainless steel |
4 |
|
| 30 |
175-3687 |
Washer m5 x 1 flat |
4 |
|
| 32a |
175-9025 |
In-line screen filter assembly |
1 |
(includes 33-36) (OEM) |
| 32b |
991-8582 |
Mesh inline filter |
1 |
(NON-OEM) |
| 33 |
175-5865 |
Top filter body housing |
1 |
|
| 34a |
175-5866 |
Mesh filter screen |
1 |
(OEM) |
| 34b |
991-8569 |
Mesh filter screen stainless steel |
1 |
(NON-OEM) |
| 35 |
175-5867 |
Filter gasket |
1 |
|
| 36a |
175-5868 |
Short clear filter bowl |
1 |
(OEM) |
| 36b |
991-8575 |
Short bowl (clear) |
1 |
(NON-OEM) |
| 37 |
175-3694 |
Hose 1/2 x 6 inch |
1 |
|
| 38 |
175-3685 |
90 degree elbow fitting |
2 |
|
| 39 |
175-3697 |
425mm hose (OBSOLETE) |
1 |
|
| 41 |
175-0459 |
Tee fitting (Tennant Industrial) |
1 |
|
| 42 |
175-5591 |
Tee fitting 3/8 x 3/8 x 1/2 |
1 |
|
| 43 |
175-5592 |
Hose 3/8 x 5/8 x 9 inch |
2 |
|
| 44 |
175-5234 |
Plastic fitting |
1 |
|
| 45 |
175-8715 |
PVC board hose |
5 |
|
| 46 |
175-3595 |
Plastic fitting |
1 |
|
| 47 |
175-3597 |
Foam filter |
3 |
|
| 48 |
175-3596 |
Plastic tube |
1 |
|
| 49 |
275-8710 |
Straight plastic fitting (Tennant Industrial) |
1 |
|
| 50 |
175-8729 |
Plastic tee fitting (Tennant Industrial) |
2 |
|
| 51 |
175-7937 |
90 degree plastic elbow |
2 |
|
| 52 |
275-4769 |
24V solenoid valve |
1 |
|
| 54 |
175-8719 |
24v detergent pump |
1 |
|
| 57 |
175-2842 |
Check valve |
1 |
|
| 58 |
175-5249 |
Hose 1/2 x 1 foot (Tennant Industrial) |
2 |
|
| 59 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
|
| 60 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 61 |
175-5314 |
P clamp (Tennant Industrial) |
1 |
|
| 63 |
175-5318 |
Filter assembly |
1 |
|
| 64 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 65 |
175-8713 |
C valve fitting |
1 |
|
| 67 |
175-3691 |
Brass fitting |
1 |
|
| 68 |
175-3692 |
Tee fitting |
1 |
|
|
|
Control Panel Assembly - 175-0739 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
175-3148 |
Hour meter kit |
1 |
(includes 1b) |
| 2a |
175-3150 |
Emergency stop kit |
1 |
(includes 2b-3) |
| 2b |
275-1416 |
Safety shut-off switch |
1 |
|
| 3 |
275-1416 |
Safety shut-off switch |
1 |
|
| 4a |
175-3145 |
Key switch kit |
1 |
(includes 4b-5) |
| 4b |
175-3727 |
Key switch (OBSOLETE) |
1 |
(includes 5) |
| 5 |
175-0185 |
Double sided key (steel) |
1 |
|
| 6a |
175-3149 |
Low voltage cutoff kit (OBSOLETE) |
1 |
(includes 6b-7) |
| 6b |
175-3728 |
24V battery gauge with screw |
1 |
|
| 7 |
175-3149 |
Low voltage cutoff kit (OBSOLETE) |
1 |
|
| N/S |
175-3725 |
Wire #18 x 5 inchblue ASM |
1 |
(included with 1a) |
| N/S |
175-3726 |
Wire #18 x 5 inchblack ASM |
1 |
(included with 1a) |
| N/S |
175-1220 |
5 inch wire assembly (red) |
1 |
(included with 2a) |
| N/S |
175-1221 |
5 inch wire assembly (red) |
1 |
(included with 2a) |
| N/S |
175-3730 |
9 inch wire assembly (green) |
1 |
(included with 6a) |
| N/S |
175-1216 |
8 inch wire assembly with terminal ring (black) |
1 |
(included with 6a) |
| N/S |
175-1214 |
12 inch wire assembly (red) |
1 |
(included with 6a) |
| N/S |
175-0037 |
Wire tie |
1 |
(included with 6a) |
|
|

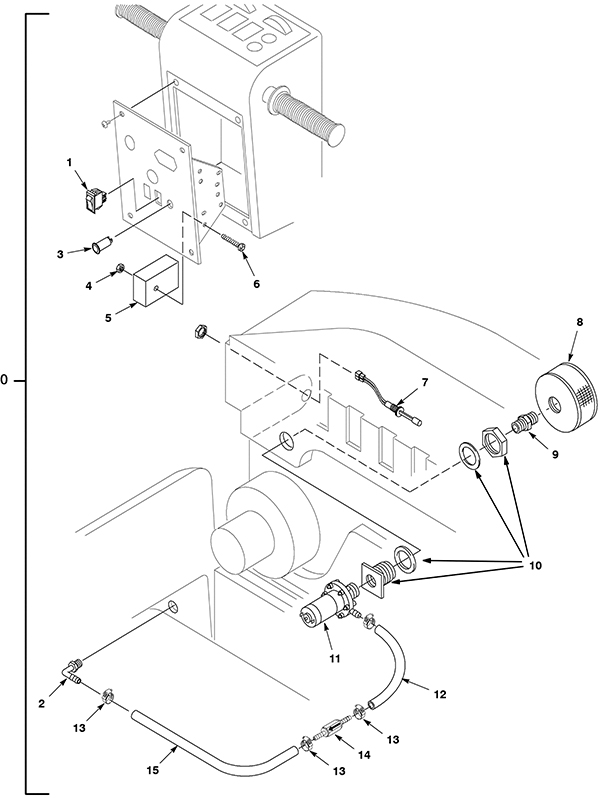

Solution Assembly - Extended Scrub - 175-0740 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-3722 |
ES kit (OBSOLETE) |
1 |
(includes 1-15) |
| 1 |
175-2847 |
Rocker switch |
1 |
|
| 2 |
175-2844 |
90 degree elbow fitting |
1 |
|
| 3 |
175-2849 |
Indicator light |
1 |
|
| 4 |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
|
| 6 |
999-1085 |
Screw M5-.8 x 30mm pan head phillips zinc plated |
1 |
|
| 7 |
175-2835 |
Liquid level switch with nut |
1 |
|
| 8 |
175-2836 |
Screen filter (OBSOLETE) |
1 |
|
| 9 |
175-2837 |
3/4 inch nipple fitting (OBSOLETE) |
1 |
|
| 10 |
175-2838 |
Bulkhead fitting 3/4 inch (OBSOLETE) |
1 |
|
| 11 |
175-2840 |
24V solution pump |
1 |
|
| 12 |
175-4885 |
Hose 3/8 x 8 |
1 |
|
| 14 |
175-2842 |
Check valve |
1 |
|
| 15 |
175-8777 |
Hose 3/8 x 1 1/4 foot |
1 |
|
| N/S |
175-3724 |
Extended scrub wire harness (OBSOLETE) |
1 |
(included with 0) |
| N/S |
175-2839 |
Filter decal (OBSOLETE) |
1 |
(included with 0) |
|
|

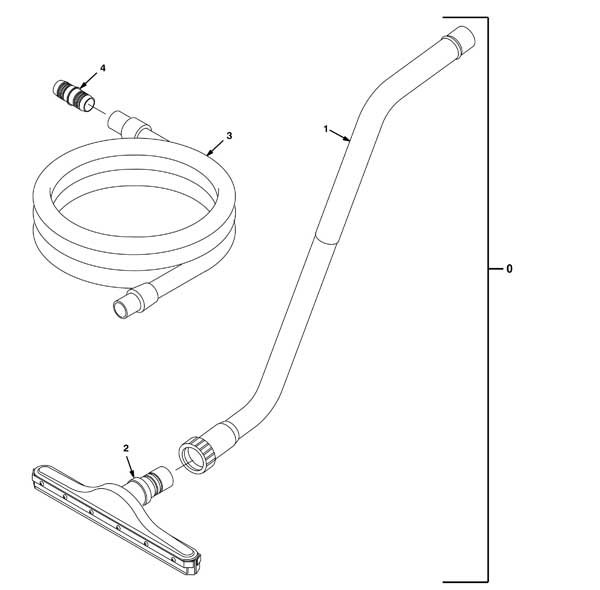

Squeegee Wand Assembly - 175-0741 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-2632 |
Wet pick-up carpet tool assembly |
1 |
(includes 1-4) |
| 1 |
175-2633 |
Aluminum double bend wand |
1 |
|
| 2 |
175-2634 |
14 inch squeegee floor tool |
1 |
|
| 3 |
175-2635 |
Vacuum hose 1 1/2 x 10 foot |
1 |
|
|
|

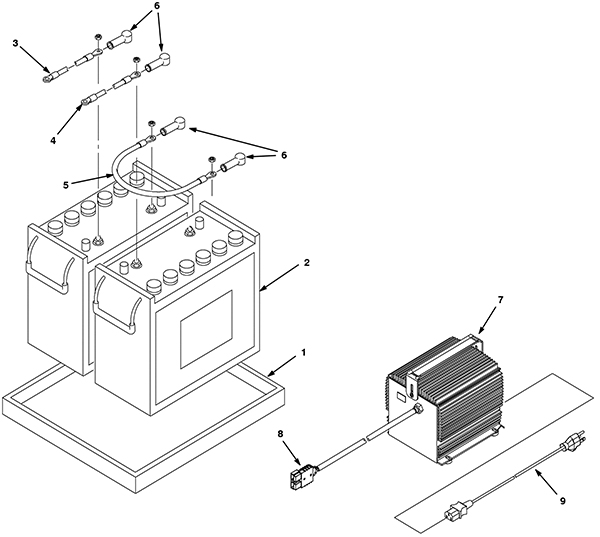

- Batteries, Brushes and Chargers - 175-9959 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0057 |
12V 150Ah wet battery |
2 |
|
|
175-3139 |
24V 19amp off board battery charger |
1 |
|
|
275-2468 |
12 inch polypropelene scrubbing brush (pkg of 2) (OBSOLETE) |
2 |
|
|
996-1024 |
Polypropelene scrubbing brush (set of 2) (OBSOLETE) |
2 |
|
|
475-2614 |
BRUSH, DISK, SCB, 12.0D [1PICK=1CTN] |
2 |
|
|
996-1025 |
Extra heavy grit stripping brush 46 grit (set of 2) (OBSOLET |
2 |
|
|
475-2625 |
BRUSH, DISK, SCB, 12.0D [1PICK=1CTN] (OBSOLETE) |
2 |
|
|
996-1026 |
Extra heavy grit stripping brush - 46 grit (set of 2) |
2 |
|
|
|
- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|
Brushes and Pad Driver Assembly - 275-0598 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
275-2468 |
12 inch polypropelene scrubbing brush (pkg of 2) (OBSOLETE) |
2 |
(includes 2-3) |
| 1b |
996-1024 |
Polypropelene scrubbing brush (set of 2) (OBSOLETE) |
2 |
(includes 2-3) |
| 1c |
475-2614 |
BRUSH, DISK, SCB, 12.0D [1PICK=1CTN] |
2 |
(includes 2-3) |
| 1d |
996-1025 |
Extra heavy grit stripping brush 46 grit (set of 2) (OBSOLET |
2 |
(includes 2-3) |
| 1e |
475-2625 |
BRUSH, DISK, SCB, 12.0D [1PICK=1CTN] (OBSOLETE) |
2 |
(includes 2-3) |
| 1f |
996-1026 |
Extra heavy grit stripping brush - 46 grit (set of 2) |
2 |
(includes 2-3) |
| 2 |
175-2627 |
Lugs with scews (set of 3) |
6 |
|
| 3 |
175-2630 |
Pad holder base plate |
2 |
|
| 4a |
996-1056 |
Pad driver (set of 2) |
2 |
(includes 5-7) (2401) |
| 4b |
996-1057 |
Pad driver (set of 2) (OBSOLETE) |
2 |
(includes 5-7) (2601) |
| 5 |
175-2627 |
Lugs with scews (set of 3) |
6 |
|
| 6 |
175-2630 |
Pad holder base plate |
2 |
|
| 7 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
2 |
|
|
|
Battery and Charger Assembly - 275-0734 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3140 |
Battery tray |
1 |
|
| 2 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 3 |
175-3137 |
Battery cable (black) |
1 |
|
| 4 |
175-3138 |
Battery cable 5/16 x 3/8 (red) |
1 |
|
| 5 |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 6 |
175-1103 |
Battery cable boot (black) |
4 |
|
| 7 |
175-3139 |
24V 19amp off board battery charger |
1 |
(includes 8) |
| 8 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 9 |
275-0052 |
16/3 charger extension cord 10 foot |
1 |
|
|
|

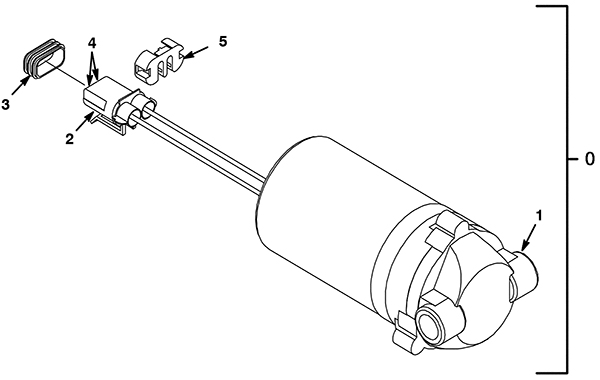

Solution Pump Assembly - FaST - 275-0735 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
275-5763 |
Solution pump 24V (OBSOLETE) |
1 |
(includes 1-5) |
| 1 |
175-8752 |
Pump head kit |
1 |
|
| 2 |
175-8753 |
Female connector |
1 |
|
| 3 |
175-8754 |
14/16 wire seal |
2 |
|
| 4 |
175-8755 |
TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) |
2 |
|
| 5 |
175-8756 |
Male and female secondary lock |
1 |
|
|
|

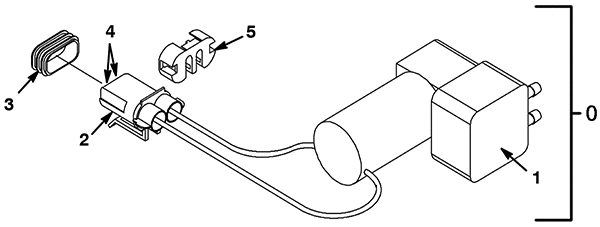

Air Pump Assembly - FaST - 275-0736 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-8712 |
Air pump |
1 |
(includes 1-5) |
| 1 |
175-5317 |
Air compressor diaphragm repair kit |
1 |
|
| 2 |
175-8753 |
Female connector |
1 |
|
| 4 |
275-8096 |
Female terminal |
2 |
|
| 5 |
175-8756 |
Male and female secondary lock |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Batteries - 999-5050 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
|
|
- Chargers - 999-5065 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 2 |
162-5070 |
24V 20amp AGM battery charger with small SB50 red plug |
1 |
|
| 3 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 4a |
162-5079 |
SCR assembly kit |
1 |
|
| 4b |
372-1254 |
Fuse assembly |
1 |
|
| 5 |
162-5087 |
AC cord set kit |
1 |
|
| 6 |
162-5081 |
Control board assembly |
1 |
|
|
|
