Parts List Complete for NOBLES SPEEDSCRUB 2400

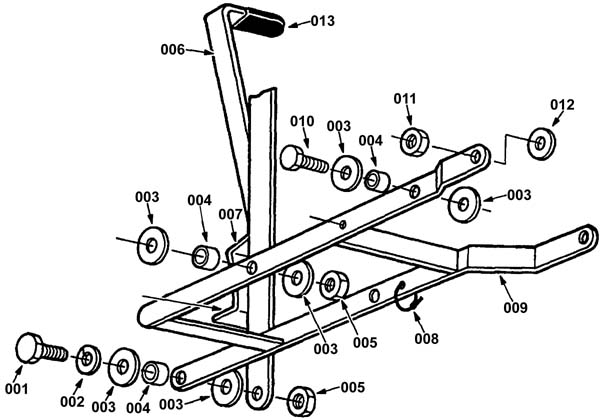

Brush Lift Assembly - 175-0164
RefNbr Part Number Description Req Notes
001 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel 1
002 999-0126 Washer 1/2 split lock 1
003 999-0559 Washer 1/2 x 1/4 flat stainless steel 10
004 175-2743 Sleeved bushing 5
005 999-1208 Nut 1/2-13 nylon insert lock stainless steel 3
006 175-0937 Foot lever 1
007 175-2745 Non-slip pad 2
008 175-0037 Wire tie 1
009 175-0938 Lift bracket weldment 1 (model 2001)
010 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 1
011 999-0050 Nut 1/2-13 hex jam plain finish 1 (model 2001)
012 175-0939 Thrust washer 1
013 175-2723 Handle grip (rubber) 1

Brush and Pad Driver Assembly 2 - 175-0166
RefNbr Part Number Description Req Notes
1 175-6648 Hose 3/8 x 18 inches 2.1 ft
2 175-6081 Hose clamp 2
3 175-2844 90 degree elbow fitting 1
4 175-0952 Brush motor 24V (OBSOLETE) 1
5 999-0126 Washer 1/2 split lock 2
6 999-1208 Nut 1/2-13 nylon insert lock stainless steel 2
7 175-0953 Motor bracket 1
8 175-0954 Idler adjustment bracket 1
9 175-0955 Screw 5/16-18 x 2 1/2 1
10 175-0956 Idler pulley 2
11 175-0957 Brush bearing 2
12 999-0617 Washer 3/8 x 1 flat stainless steel 2
13 999-0034 Washer 3/8 split lock plain finish 2
14 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 1
15 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel 7
16 999-0553 Washer 5/16 medium split lock stainless steel 7
17 999-0024 Washer 5/16 flat stainless steel 3
18 N/A Not available 1 Square keyway
19 999-0944 Screw 10-32 x 1/4 cup point socket set alloy plain finish 2
20 175-0961 Motor pulley 1
21 175-0957 Brush bearing 4
22 175-0963 Spacer bearings 2
23 175-0964 Belt (OBSOLETE) 2
24 175-0965 Main pulley (OBSOLETE) 2
25 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 4
26 999-1026 Washer #10 internal lock stainless steel 4
27 175-3034 Driver release stop 2
28 175-0966 Drive plate (OBSOLETE) 2
29 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
30 999-0126 Washer 1/2 split lock 2
31 999-0050 Nut 1/2-13 hex jam plain finish 2
34 175-2612 Spring clip 2
35 175-2611 Brush plate clamp 2
36 999-1026 Washer #10 internal lock stainless steel 4
37 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 4
38 999-0553 Washer 5/16 medium split lock stainless steel 8
39 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 8
40 175-6648 Hose 3/8 x 18 inches 2.1 ft

Chassis Assembly - 175-0167
RefNbr Part Number Description Req Notes
001a 175-0967 Solution tank door assembly 1 (includes 002-004)
001b 175-0968 Solution tank door 1
003 175-3633 Hinge 1
005 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 2
006 999-1158 Washer #6 flat stainless steel 2
007 175-2666 Screen filter 2 in
008 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 2
009 175-0969 Light shield (OBSOLETE) 1
010 175-1209 Gasket 3 ft
011 175-2995 12 Inch safety light 1
012 175-0970 Chassis (OBSOLETE) 1
013 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 1 (battery charger)
014 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 2 (battery)
015 175-2602 Female terminal 1
016 175-0972 Battery placement decal 1
017a 998-0010 Battery jumper cable - ring type (red) 1 (OEM)
017b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 1 (NON-OEM)
018 175-1150 Battery tray 1
019 175-2038 Charger plug bracket 1
020 175-2039 Black wire #12 x 17 5/16 1
021 175-0974 Red wire #12 x 12 3/8 1
022a N/A Not available 1 (OEM) (50amp connector)
022b 991-8536 50amp Anderson connector (gray) 1 (NON-OEM)
023 999-0148 Washer #6 external star lock zinc plated 2
024 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 2
025 999-0064 Screw 10-24 x 7/16 round head slotted zinc plated 2
026 999-1026 Washer #10 internal lock stainless steel 2
028a 175-0975 Side decal (1701) (OBSOLETE) 2
028b N/A Not available 2 (2001 side decal)
028c 175-0977 Side decal (2400) (OBSOLETE) 2
029 175-0912 Nobles decal (OBSOLETE) 1

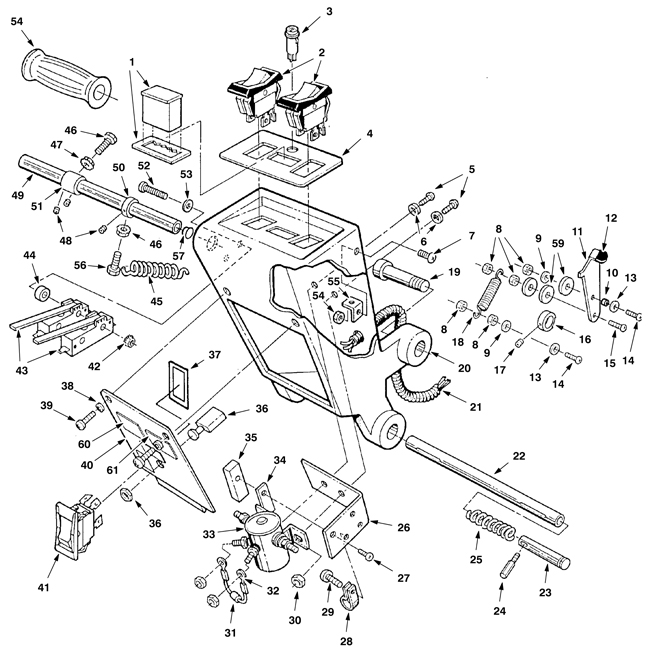

Control Console Assembly 2 - 175-0169
RefNbr Part Number Description Req Notes
1 175-3099 24V battery voltage meter 1
2 175-1008 Rocker switch 2
3 175-2849 Indicator light 1
4 175-0997 Dash decal (OBSOLETE) 1
5 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 2
6 999-1026 Washer #10 internal lock stainless steel 2
7 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
9 999-0016 Washer 1/4 flat plain finish 2
10 175-0998 Bushing 1/4 x 3/8 x .15 1
11 273-8959 Dome accessory decal 1
12 175-1000 Two speed latch grip (OBSOLETE) 1
13 999-0016 Washer 1/4 flat plain finish 2
14 999-0375 Screw 1/4-20 x 1 round head slotted zinc plated 2
15 999-0366 Screw 1/4-20 x 1 1/2 round head slotted zinc plated 1
16 175-1001 Speed latch collar (OBSOLETE) 1
17 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 1
18 175-1002 Spring (OBSOLETE) 1
19 175-0981 Bolt 5/8 x 2 shoulder 2
20 175-1003 Control housing (OBSOLETE) 1
21 175-1004 Wire harness assembly (OBSOLETE) 1
22 175-3108 Handle adjustment tube 1
23 175-3109 Handle locking pin 2
24 175-2710 Handle adjustment pin 2
25 175-2712 Spring 1
26 175-0987 Electrical mount bracket 1
27 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
28 175-0988 P clamp 1
29 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
30 999-0356 Nut 10-24 lock stainless steel 2
31 N/A Not available 2 (ring terminal)
32 175-2757 Diode with ring terminals (small) 1
33 175-2023 24V solenoid contactor 1
34 175-0287 Acrylic foam tape 1 inch x 1 foot .09 ft
35 175-2756 24V flasher 1
36 175-2762 35amp circuit breaker 1
37 N/A Not available 1 (retainer switch plate)
38 999-1026 Washer #10 internal lock stainless steel 2
39 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 2
40 N/A Not available 1 (housing cover)
41 175-1008 Rocker switch 1
42 175-1009 Nut lock 2
43 675-9886 Snap switch 2
44 175-1010 Spacer (OBSOLETE) 2
45 175-2705 Roll throttle spring (OBSOLETE) 1
46 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 1
47 999-0181 Nut 1/4-20 hex jam plain finish 2
48 999-0312 Screw 1/4-20 x 3/8 socket head shoulder 3
49 175-1012 Tube handle 1
50 175-2702 Handle collar 1
51 N/A Not available 1 (switch collar)
52 275-5619 Screw 6-32 x 2-1/4 (OBSOLETE) 2
53 999-1158 Washer #6 flat stainless steel 2
54 675-9894 Handle grip 2
55 999-0356 Nut 10-24 lock stainless steel 1
56 175-2706 Spring bracket 1
57 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
58 N/A Not available 1 (plug)
59 175-1097 Washer flat stainless steel 3
60 275-9008 Warning decal 1
61 275-1360 Warning decal 1

Curved Squeegee Assembly - 175-0170
RefNbr Part Number Description Req Notes
000a 175-2059 Squeegee assembly curved 27 inch (680mm) (OBSOLETE) 1 (after 2001) (includes 11-22)
000b N/A Not available 1 (before 2001) (old style no longer available, replace with new style)
001 175-3073 Squeegee mount bracket 1
002 175-2060 Vacuum hose with cuffs 1 1/2 x 24 inch 1
003 175-3068 Squeegee lift cable 1
004a 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2 (before 2001)
004b 999-0015 Nut 1/4-20 k-lock zinc plated 2 (after 2001)
005 175-1016 Pivot mount bracket 1
006 175-2743 Sleeved bushing 2
007 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
008 999-0126 Washer 1/2 split lock 2
009 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 2
010 175-2970 Extension spring 1
011 275-9958 27 inch (680mm) squeegee weldment 1 (from 1997-2001)
012 175-2027 Curved squeegee gasket 1
013 175-2035 Squeegee retaining plate 2 (from 1997-2001)
014a 175-2036 Squeegee blade 27 inch (680mm) urethane 2 (standard)
014b 275-5092 Squeegee blade kit 27 inch (680mm) linatex (OBSOLETE) 1 (optional) (includes 014c and 014d)
014c 175-9060 Squeegee blade 27 inch (680mm) linatex rear (OBSOLETE) 1 (optional)
014d 275-9421 Squeegee blade 27 inch (680mm) linatex front (OBSOLETE) 1 (optional)
014e 175-9059 Squeegee blade 27 inch gum rubber rear (OBSOLETE) 1 (optional)
015a 999-0586 Screw 10-24 x 1/2 truss head stainless steel 18 (after 2001)
015b 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 18 (before 2001)
016 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
017 175-2812 Knob 2
018 175-0117 Guide wheel with bushing 2
019 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 2
020 175-3091 Squeegee roller assembly 2
021 999-0553 Washer 5/16 medium split lock stainless steel 2
022 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2

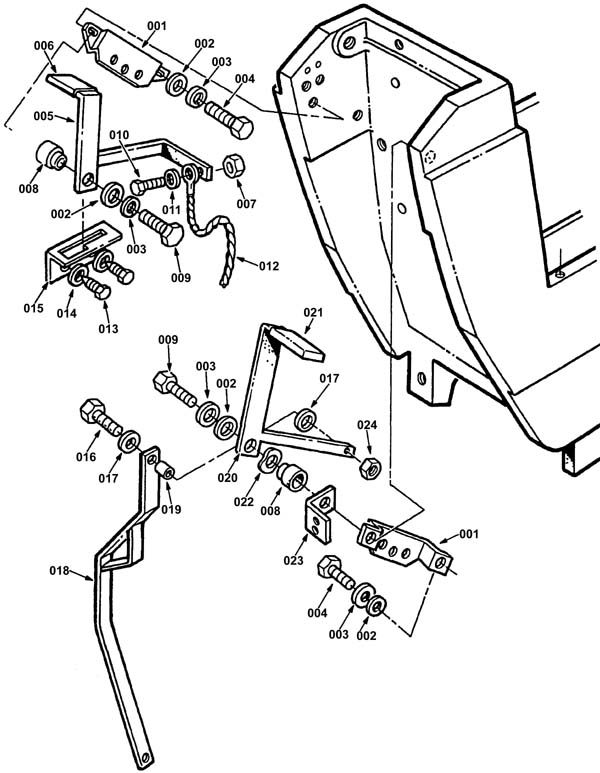

Lever Assembly - 175-0171
RefNbr Part Number Description Req Notes
001 175-2728 Locking plate 2
002 999-0024 Washer 5/16 flat stainless steel 4
003 999-0553 Washer 5/16 medium split lock stainless steel 4
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
005 175-1019 Squeegee lift handle 1
006 175-2723 Handle grip (rubber) 1
007 999-0181 Nut 1/4-20 hex jam plain finish 1
008 175-3057 Bushing 2
009 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
010 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
011 999-0632 Washer 1/4 split lock stainless steel 1
012 175-3068 Squeegee lift cable 1
013 999-0064 Screw 10-24 x 7/16 round head slotted zinc plated 2
014 999-0311 Washer #10 external star lock zinc plated 2
015 175-3080 Squeegee lock plate 1
016 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 1
017 999-0016 Washer 1/4 flat plain finish 2
018 175-3060 Solution valve lever 1
019 175-2726 Sleeved bushing 1
020 N/A Not available 1 (solution control handle)
021 175-2723 Handle grip (rubber) 1
022 175-3058 Washer 3/4 wave 1
023 175-2729 Hose hanger bracket 1
024 999-0181 Nut 1/4-20 hex jam plain finish 1

Rear Panel Assembly - 175-0172
RefNbr Part Number Description Req Notes
001 175-2653 1 1/2 inch expansion plug 2
002 175-2028 Gasket 1
003 175-2751 Tube adapter 1
004 175-2752 Tube adapter spring 1
005 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 1
006 999-0553 Washer 5/16 medium split lock stainless steel 1
007 999-0024 Washer 5/16 flat stainless steel 2
008 175-2672 Recovery tank support 1
009 175-2673 Bushing 1
010 175-1021 Tube mounting bracket 1
011 175-1022 Plate brush lift latch 1
012 999-0016 Washer 1/4 flat plain finish 2
013 999-0632 Washer 1/4 split lock stainless steel 2
014 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
015 175-1021 Tube mounting bracket 1
016 999-0024 Washer 5/16 flat stainless steel 1
017 999-0553 Washer 5/16 medium split lock stainless steel 4
018 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
019 999-0430 Nut 5/16-18 hex jam plain finish 2
020 175-3009 Round knob assembly 1
021 175-2060 Vacuum hose with cuffs 1 1/2 x 24 inch 1
022 175-1024 Hose assembly with markers 1
023 175-6081 Hose clamp 1
024 175-1025 Straight brass fitting 2
025 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated 2
026 175-2729 Hose hanger bracket 1
027 175-2654 Drain hose strap 2
028 175-2655 Drain hose sleeve 1
029 175-2656 Drain hose 1

Recovery Tank Assembly - 175-0173
RefNbr Part Number Description Req Notes
001a 675-9887 Shut-off float 1 (OEM)
001b 991-5136 Shut-off float 1 (NON-OEM)
002a 175-2998 Standpipe with nipple assembly 1 (includes 003 and 004)
002b N/A Not available 1 (Stand pipe)
004 175-2639 1 1/2 inch nipple fitting 1
005 175-2640 Gasket 1
006 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 6
007 164-0202 Tank lid assembly 1 (includes 008 and 009)
008a 164-0044 Tank lid (clear) 1 (OEM)
008b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
009 164-0205 Tank lid ring (black) 1
010 175-2650 Chain 1
011 999-0434 Screw 6 x 3/8 pan head phillips 1
012 999-1111 Screw 6-32 x 3/4 pan head phillips sheet metal 1
013 175-1027 Recovery tank (OBSOLETE) 1
014 175-6644 Battery recharging decal 1
015 175-1029 Stud 1/4 x 4 1/4 inch 3
016 997-2007 Hose clamp 1
017 N/A Not available 1 (Recovery tank hinge)
018 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 5
019 999-1024 Washer 1/4 external tooth lock stainless steel 5
020 999-0016 Washer 1/4 flat plain finish 5
021 175-2667 P clamp 1
022 999-0016 Washer 1/4 flat plain finish 4
023 999-1024 Washer 1/4 external tooth lock stainless steel 4
024 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel 4
025 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
026 175-0923 Male terminal 2
027 675-9893 Vacuum motor gasket 1
028 175-2907 Nut 1 1/2 flanged hex 1
029a 991-1203 24V 2 stage vacuum motor tangential 1 (NON-OEM)
029b 175-2658 Carbon brush (pkg of 2) 1
029c 175-1034 120V motor 1
029d 991-9278 120V 2 stage vacuum motor dual ball tangential 1 (NON-OEM)
029e 175-0251 Carbon brush (pkg of 2) 1
029f 993-1735 120 VOLT 2 STAGE VAC MOTOR (VM-13) 1 (NON-OEM)
030 175-0921 Wire tie 1
031 175-2979 Vacuum exhaust muffler 1 (OEM)

Skirt Assembly 1 - 175-0174
RefNbr Part Number Description Req Notes
001 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated 4
002 999-1026 Washer #10 internal lock stainless steel 4
003 N/A Not available 2 (Bumper clamp)
004a N/A Not available 1 (1701 bumper kit)
004b 275-5103 Bumper kit (2001) (OBSOLETE) 1
005 991-5122 1/4 nylon tree push-in rivet 9
006 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 2
007 175-0117 Guide wheel with bushing 2
008a 175-1037 Skirt-1701 (OBSOLETE) 1 (model 1701)
008b N/A Not available 1 (Skirt - model 2001)
009 N/A Not available 2 (Caster shield)
010a 175-1780 3 inch swivel caster wheel 2 (wheel with caster)
010b 175-1039 3 inch wheel (OBSOLETE) 2 (wheel only)
011 999-0016 Washer 1/4 flat plain finish 8
012 999-0632 Washer 1/4 split lock stainless steel 8
013 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
014 999-0024 Washer 5/16 flat stainless steel 4
015 999-0553 Washer 5/16 medium split lock stainless steel 4
016 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4
017a N/A Not available 1 (weight - model 1701)
017b 175-1041 Weight 1 (model 2001)
018 999-0553 Washer 5/16 medium split lock stainless steel 2
019 175-0955 Screw 5/16-18 x 2 1/2 2
020 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 1
021 999-0632 Washer 1/4 split lock stainless steel 1
022 999-0016 Washer 1/4 flat plain finish 2
023 175-2726 Sleeved bushing 1
024 175-3060 Solution valve lever 1
025 175-2030 Roll pin 1
026 175-2031 Valve arm 1
027 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
028 999-0442 Nut 10-24 nylon insert lock stainless steel 2
029 999-0393 Washer 3/16 flat aluminum 2
030 175-2029 3-way ball valve 1
031 175-2614 90 degree elbow fitting 2
032 175-1042 1/4 Inch hex brass plug fitting 1
033 175-6030 Straight hosebarb 1
034 175-6081 Hose clamp 2
035 175-1043 3 inch hose 1
036 175-1044 Filter screen 1
037 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel 2
038 999-0393 Washer 3/16 flat aluminum 1
039a 175-1045 Resistor 1.5A 50W (OBSOLETE) 1
039b N/A Not available 1 (resistor 1.8A 50W)
040 175-1047 Solution valve bracket 1
041 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
042 999-0632 Washer 1/4 split lock stainless steel 2
043 175-0037 Wire tie 1
044 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel 2
045 999-0356 Nut 10-24 lock stainless steel 2
046 175-3061 Hosebarb 1
047 175-6081 Hose clamp 1
048 175-6648 Hose 3/8 x 18 inches 1
049 175-2997 Elbow 1
050 175-6081 Hose clamp 2
051 175-6648 Hose 3/8 x 18 inches 1

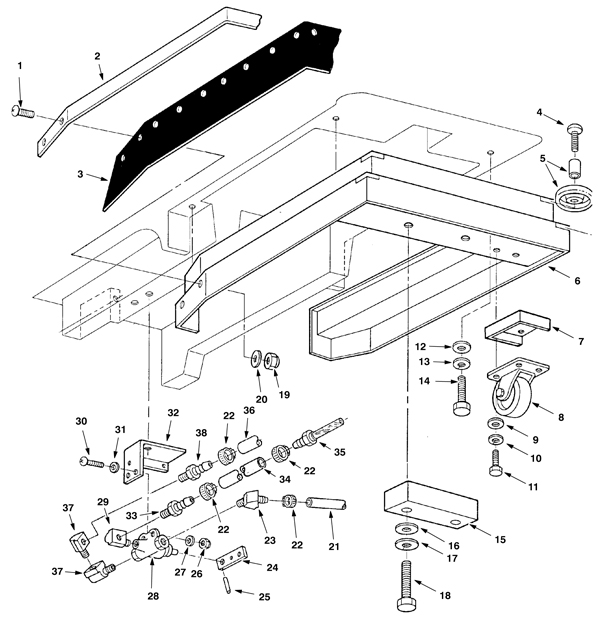

Skirt Assembly 2 - 175-0175
RefNbr Part Number Description Req Notes
1 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 22
2 N/A Not available 2 Splash guard strap
3 N/A Not available 2 Splash guard
4 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 4
5 175-0117 Guide wheel with bushing 4
6 N/A Not available 1
7 N/A Not available 2 (Caster shield)
8 175-1780 3 inch swivel caster wheel 2
9 999-0016 Washer 1/4 flat plain finish 8
10 999-0632 Washer 1/4 split lock stainless steel 8
11 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 8
12 999-0024 Washer 5/16 flat stainless steel 4
13 999-0553 Washer 5/16 medium split lock stainless steel 4
14 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
15 175-1041 Weight 1
16 999-0024 Washer 5/16 flat stainless steel 2
17 999-0553 Washer 5/16 medium split lock stainless steel 2
18 175-0955 Screw 5/16-18 x 2 1/2 2
19 999-0442 Nut 10-24 nylon insert lock stainless steel 22
20 999-0393 Washer 3/16 flat aluminum 22
21 175-6648 Hose 3/8 x 18 inches 2.1 ft
22 175-6081 Hose clamp 4
23 175-3061 Hosebarb 1
24 175-2031 Valve arm 1
25 175-2030 Roll pin 1
26 999-0442 Nut 10-24 nylon insert lock stainless steel 2
27 999-0393 Washer 3/16 flat aluminum 2
28 175-2029 3-way ball valve 1
29 175-1051 Street elbow 1
30 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel 2
31 999-0393 Washer 3/16 flat aluminum 2
32 175-1047 Solution valve bracket 1
33 175-6030 Straight hosebarb 1
34 175-1043 3 inch hose .34 ft
35 175-1044 Filter screen 1
36 175-6648 Hose 3/8 x 18 inches 2.1 ft
37 175-2614 90 degree elbow fitting 2
38 175-2613 Straight brass fitting 1

Squeegee Assembly - 175-0176
RefNbr Part Number Description Req Notes
000a 175-1052 26.5 inch squeegee assembly (OBSOLETE) 1 (1701) (includes 1-3, 5-6, 14-18a, 19a, 20a, 21a, 22a, and 23-25a)
000b 175-0886 27 inch squeegee assembly 1 (2001) (includes 1-3, 5-6, 14-17, 18b, 19b, 20b, 21b, 22b, 23-24, and 25b)
000c 175-1054 Squeegee assembly curved 31 inch (780mm) (OBSOLETE) 1 (2400) (includes 1-3, 5-6, 14-17, 18c, 19c, 20c, 21c, 22c, 23-24, and 25c)
001 175-0117 Guide wheel with bushing 2
002 999-1039 Screw 5/16-18 x 1 1/2 truss head phillips stainless steel 2
003 175-2812 Knob 2
004 175-3073 Squeegee mount bracket 1
005 175-1055 Gasket 1
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
007 175-3068 Squeegee lift cable 1
008 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 2
009 999-0126 Washer 1/2 split lock 2
010 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
011 175-2743 Sleeved bushing 2
012a 175-1016 Pivot mount bracket 1 (1701 and 2001E)
012b 175-1056 Squeegee pivot mount with drive 1 (2400 and 2001B)
013 175-2970 Extension spring 2
014 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
015 999-0553 Washer 5/16 medium split lock stainless steel 2
016 175-3091 Squeegee roller assembly 2
017 999-0586 Screw 10-24 x 1/2 truss head stainless steel 12
018a 175-1058 17 inch front Squeegee plate (OBSOLETE) 1 (1701)
018b 175-1059 27 inch (680mm) front squeegee plate 1 (2001)
018c N/A Not available 1 (2400 - front squeegee plate)
019a 175-1060 Squeegee backing blade 2 (1701)
019b 175-2036 Squeegee blade 27 inch (680mm) urethane 2 (2001)
019c N/A Not available 2 (2400 - serrated squeegee blade)
020a N/A Not available 2 (1701 - squeegee blade spacer)
020b 175-1063 Squeegee blade spacer (OBSOLETE) 2 (2001)
020c 275-4626 Squeegee spacer (OBSOLETE) 2 (2400)
021a 175-1060 Squeegee backing blade 2 (1701)
021b 175-2036 Squeegee blade 27 inch (680mm) urethane 2 (2001)
021c 175-3090 31 inch curved squeegee blade urethane 2 (2400)
022a 175-1071 Squeegee channel (OBSOLETE) 1 (1701)
022b 175-1067 27 inch squeegee weldment 1 (2001)
022c 275-9963 Squeegee channel (OBSOLETE) 1 (2400)
023 999-0393 Washer 3/16 flat aluminum 2
024 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
025a 175-1068 17 inch squeegee plate rear (OBSOLETE) 1 (1701)
025b 175-1069 27 inch rear squeegee plate 1 (2001)
025c 175-1070 40 inch squeegee weldment 1 (2400)

Wheel Axle Assembly 1 - 175-0177
RefNbr Part Number Description Req Notes
001 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
002 999-0034 Washer 3/8 split lock plain finish 2
003 999-0617 Washer 3/8 x 1 flat stainless steel 2
004 175-1072 8 inch wheel 2
005 175-1073 Axle 1
006 175-1074 Squeegee pivot and axle mounting bracket 2
007 175-1016 Pivot mount bracket 1
008 175-1075 Nut acorn 2
009 999-0559 Washer 1/2 x 1/4 flat stainless steel 4
010 175-2743 Sleeved bushing 2
011 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel 2
012 999-0170 Nut 3/8-16 hex plain finish 2
013 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 2
014 175-2970 Extension spring 2

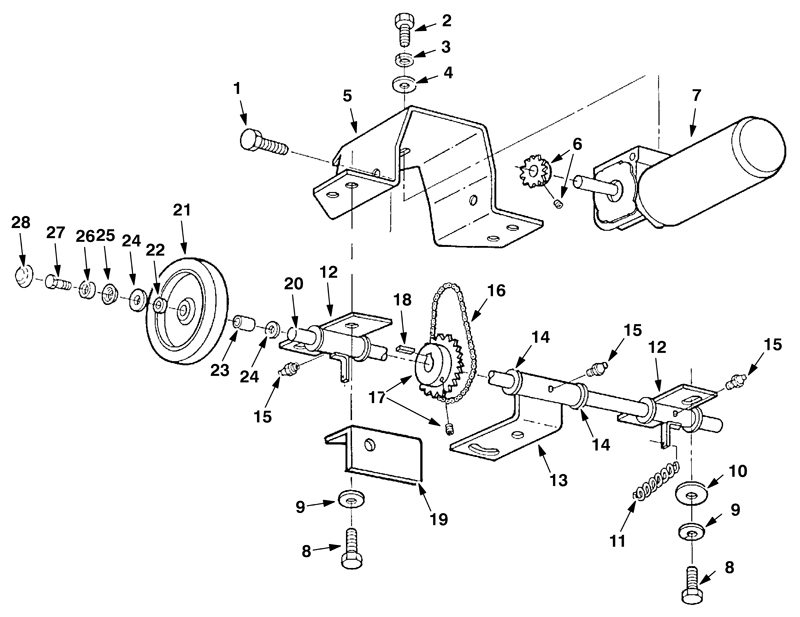

Wheel Axle Assembly 2 - 175-0178
RefNbr Part Number Description Req Notes
1 999-0687 Bolt 1/2-13 x 1 1/4 hex head stainless steel 2
2 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
3 999-0632 Washer 1/4 split lock stainless steel 4
4 999-0016 Washer 1/4 flat plain finish 4
5 275-5620 Motor mounting plate 1
6 175-1077 Sprocket with set screw (OBSOLETE) 1
7a 175-1078 24V Drive motor 1
7b 175-1079 Brush card (OBSOLETE) 1
8 999-0561 Bolt 1/2-13 x 1 hex head stainless steel 4
9 999-0126 Washer 1/2 split lock 4
10 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
11 175-2970 Extension spring 1
12 175-1080 Axle bracket with bearings 2
13 175-1056 Squeegee pivot mount with drive 1
14 175-1081 Axle bearing (OBSOLETE) 2
15 175-1082 Grease fitting 3
16a 175-1083 Roller chain (OBSOLETE) 1.34 ft
16b 175-1084 Connecting link (OBSOLETE) 1
16c 175-1085 Off set link (OBSOLETE) 1
17 175-1086 Drive wheel sprocket 1
18 175-1087 Square keyway 1
19 175-1088 Chain shield (OBSOLETE) 1
20 175-1089 Drive shaft axle 1
21a 175-1090 Righthand wheel assembly 1 (includes 22-23)
21b 175-1091 Lefthand wheel assembly 1 (includes 22-23)
22 175-1092 Bearing seal 4
23 175-1093 Bearing 2
24 999-0187 Washer 1/2 flat plain finish 2
25 175-1095 Washer 2
26 999-0553 Washer 5/16 medium split lock stainless steel 2
27 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel 2
28 175-1096 Wheel cap 2

Ladder Diagram -

RefNbr Part Number Description Req Notes

Wiring Diagram 1 -

RefNbr Part Number Description Req Notes

Wiring Diagram 2 -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Chargers - 175-9959
RefNbr Part Number Description Req Notes
162-0057 12V 150Ah wet battery 2
175-3139 24V 19amp off board battery charger 1
275-2468 12 inch polypropelene scrubbing brush (pkg of 2) (OBSOLETE) 2
996-1024 Polypropelene scrubbing brush (set of 2) (OBSOLETE) 2
475-2614 BRUSH, DISK, SCB, 12.0D [1PICK=1CTN] 2
996-1025 Extra heavy grit stripping brush 46 grit (set of 2) (OBSOLET 2
475-2625 BRUSH, DISK, SCB, 12.0D [1PICK=1CTN] (OBSOLETE) 2
996-1026 Extra heavy grit stripping brush - 46 grit (set of 2) 2

- Pads - 255-1200
RefNbr Part Number Description Req Notes
01 255-1240 12 inch aqua plus burnishing pad (pkg of 20)
02 255-1235 12 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1264 12 inch Blue ace pad (pkg of 20)
04 255-1242 12 inch Blue Jay burnishing pad (pkg of 20)
05 255-1212 12 inch Cure white pad (pkg of 5)
06 255-1277 12 inch Diamondback extreme stripping pad (pkg of 20)
07 255-1238 12 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1221 12 inch gorilla lite burnishing pad (pkg of 20)
09 255-1250 12 inch gorilla spray buff/polish/burnish pad (pkg of 20)
10 255-1265 12 inch Heat concrete bonding pad (pkg of 5)
11 255-1230 12 inch jaguar burnishing pad (pkg of 20)
12 255-1290 12 inch premium black stripping pad (pkg of 20)
13 255-1270 12 inch premium blue cleaning pad (pkg of 20)
14 255-1292 12 inch premium brown stripping pad (pkg of 20)
15 255-1280 12 inch premium green scrubbing pad (pkg of 20)
16 255-1260 12 inch premium red scrubbing pad (pkg of 20)
17 255-1252 12 inch premium tan polishing pad (pkg of 20)
18 255-1220 12 inch premium white polishing pad (pkg of 20)
19 255-1295 12 inch razorback stripping pad (pkg of 20)
20 255-1247 12 inch Redwood maroon floor prep pad (pkg of 10)
21 255-1255 12 inch Ruff non-abrasive brush pad (pkg of 2)
22 255-1211 12 inch superspeed rubberized pad (pkg of 20)
23 255-0193 12 inch Superscreen sand screen 100grit(pkg of 10) (OBSOLETE
24 255-0194 12 inch Superscreen sand screen 120 grit (pkg of 10)
25 255-0195 12 inch Superscreen sand screen 180 grit (pkg of 10)
26 255-0191 12 inch Superscreen sand screen 60 grit (pkg of 10)
27 255-0192 12 inch Superscreen sand screen 80 grit (pkg of 10)
28 255-0108 12 inch Professional sand screen 100 grit (pkg of 10)
29 255-0109 12 inch Professional sand screen 120 grit (pkg of 10)
30 255-0110 12 inch Professional sand screen 180 grit (pkg of 10)
31 255-0106 12 inch Professional sand screen 60 grit (pkg of 10)
32 255-0107 12 inch Professional sand screen 80 grit (pkg of 10)
34 255-1224 12 inch Tiger carpet bonnet (pkg of 2)
35 255-9535 12 inch Diamond by Gorilla 11000 Grit (pkg of 2)
36 255-9532 12 inch Diamond by Gorilla 1500 Grit (pkg of 2)
37 255-9529 12 inch Diamond by Gorilla 200 Grit (pkg of 2)
38 255-9533 12 inch Diamond by Gorilla 3000 Grit (pkg of 2)
39 255-9530 12 inch Diamond by Gorilla 400 Grit (pkg of 2)
40 255-9531 12 inch Diamond by Gorilla 800 Grit (pkg of 2)
41 255-9534 12 inch Diamond by Gorilla 8000 Grit (pkg of 2)
42 255-9637 12 inch Diamond starter pack (1 of each grit)
43 255-1215 12 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1216 12 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Batteries - 999-5050
RefNbr Part Number Description Req Notes
1 162-0002 12V 185Ah wet battery (SNSR) 2
2 162-0047 12V 215Ah AGM battery (Group J185) 2

- Chargers - 999-5065
RefNbr Part Number Description Req Notes
1 162-5060 24V 20amp battery charger with small SB50 red plug 1
2 162-5070 24V 20amp AGM battery charger with small SB50 red plug 1
3 991-2103 50amp charger plug SB50 with pins (red) 1
4a 162-5079 SCR assembly kit 1
4b 372-1254 Fuse assembly 1
5 162-5087 AC cord set kit 1
6 162-5081 Control board assembly 1
Webpage Problem Reporting
