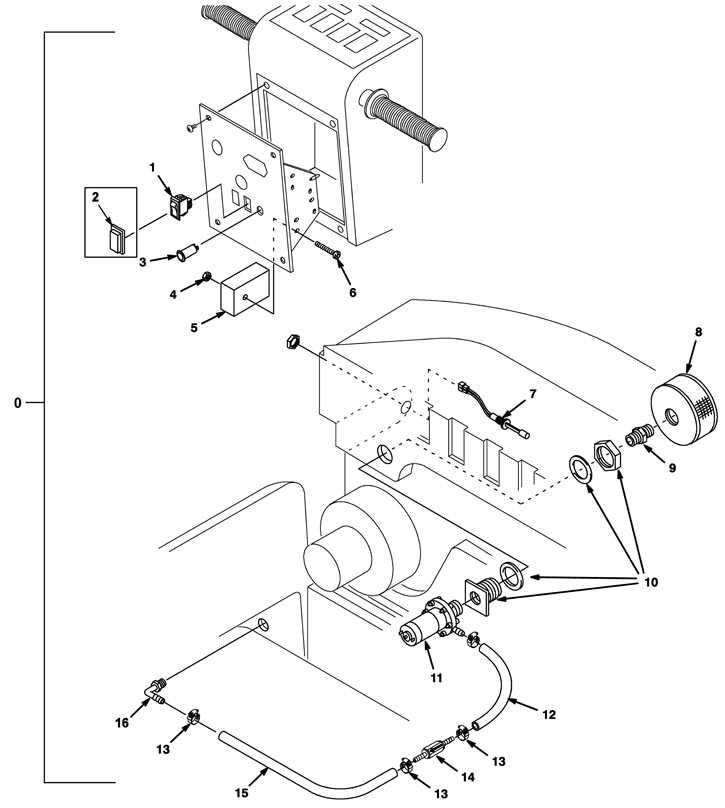

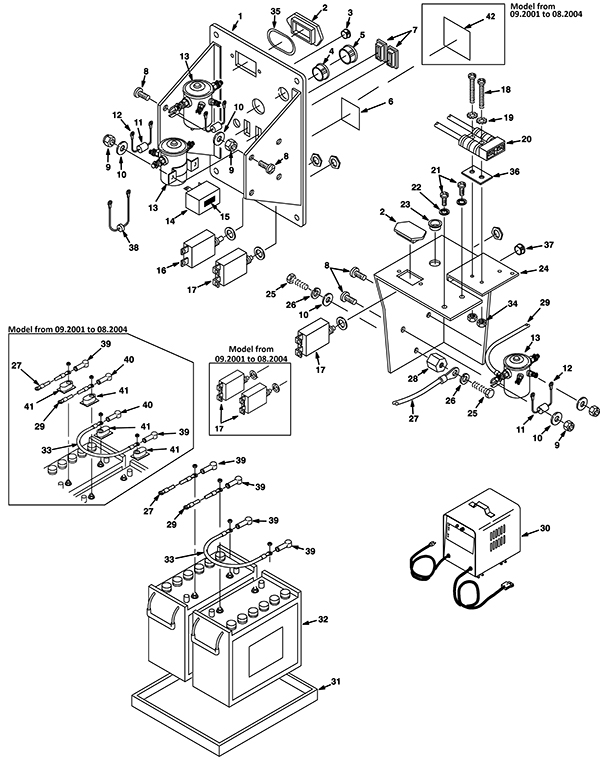

- Batteries, Brushes and Chargers - 175-9956 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
| 3 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 4 |
991-2103 |
50amp charger plug SB50 with pins (red) |
|
|
| 5 |
996-1385 |
19 inch heavy grit stripping brush - 80 grit |
1 |
|
| 6 |
996-0124 |
19 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 7 |
996-1386 |
19 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 8 |
996-1387 |
19 inch polypropylene scrubbing brush |
1 |
|
| 9 |
996-0605 |
19 inch Pad driver |
1 |
|
| 10 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
1 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|

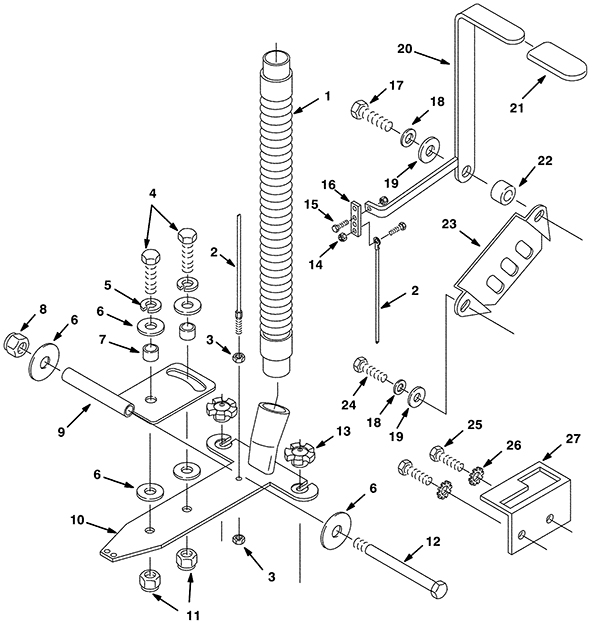

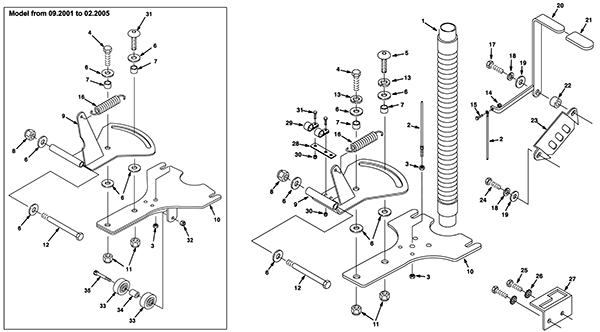

Squeegee Control Assembly - After 09.2001 - 275-2081 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3067 |
Vacuum hose 1 1/2 x 30 inch with cuffs |
1 |
|
| 2 |
175-3068 |
Squeegee lift cable |
2 |
|
| 3 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 4 |
999-0687 |
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
2 |
|
| 5 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 6 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
6 |
|
| 7 |
175-2743 |
Sleeved bushing |
2 |
|
| 8 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
| 9 |
175-3072 |
Squeegee mount pivot (OBSOLETE) |
1 |
|
| 10 |
175-3073 |
Squeegee mount bracket |
1 |
|
| 11 |
999-0050 |
Nut 1/2-13 hex jam plain finish |
2 |
|
| 12 |
175-3069 |
Screw 1/2-13 x 5 1/2 |
1 |
|
| 14 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 15 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 16 |
175-3076 |
Squeegee cable link plate (OBSOLETE) |
1 |
|
| 17 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
| 18 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 19 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 20 |
175-3077 |
Squeegee lift handle |
1 |
|
| 21 |
175-2723 |
Handle grip (rubber) |
1 |
|
| 22 |
175-3078 |
Bushing spacer |
1 |
|
| 23 |
175-2728 |
Locking plate |
1 |
|
| 24 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
| 25 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
| 26 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 27 |
175-3080 |
Squeegee lock plate |
1 |
|
|
|

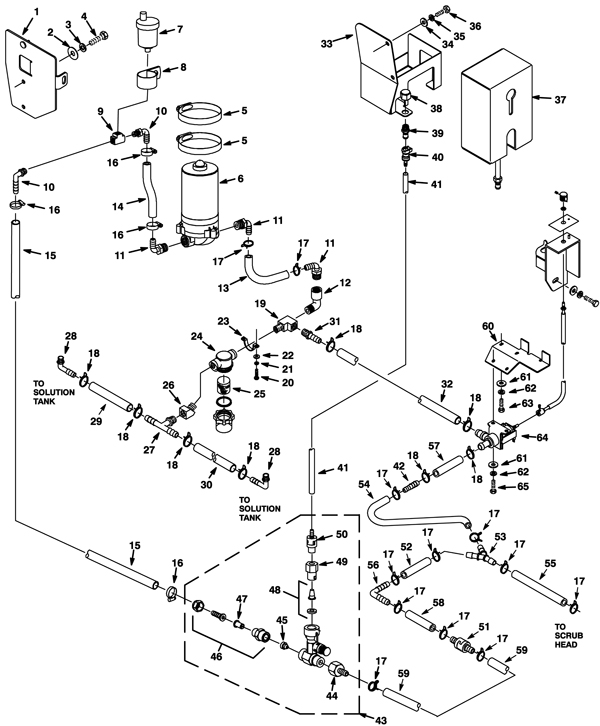

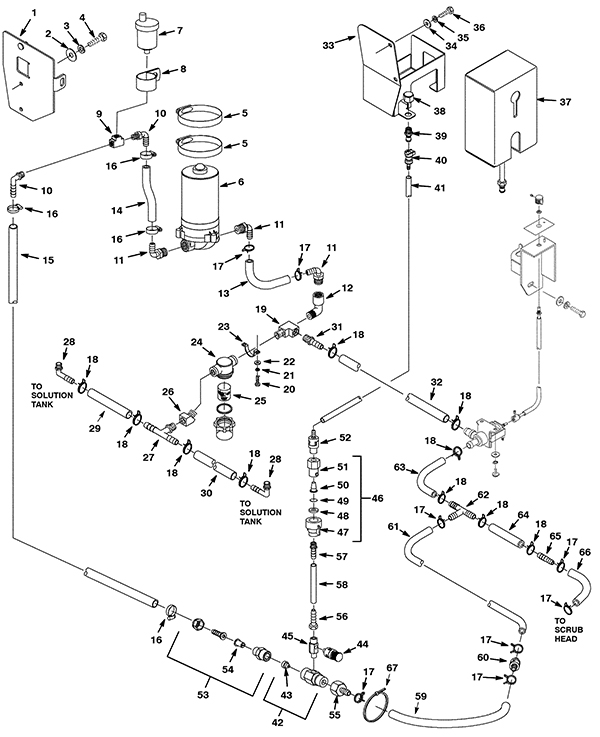

Solution Assembly - FaST Model - From 09-2004 to 05-2006 - 275-5163 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-0450 |
Mounting bracket (OBSOLETE) |
1 |
|
| 2 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
2 |
|
| 3 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 4 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 6 |
175-7934 |
24V solution pump |
1 |
|
| 7 |
175-7941 |
Air vent valve |
1 |
|
| 8 |
175-5314 |
P clamp (Tennant Industrial) |
1 |
|
| 9 |
175-7939 |
Brass tee fitting |
1 |
|
| 10 |
175-7937 |
90 degree plastic elbow |
2 |
|
| 11 |
175-7933 |
90 degree plastic elbow |
3 |
|
| 12 |
175-8701 |
Plastic fitting |
1 |
|
| 13 |
275-8237 |
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
1 |
|
| 14 |
275-4939 |
1 foot PVC hose clear |
1 |
|
| 15 |
275-8237 |
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
1 |
|
| 18 |
375-0291 |
Hose clamp |
10 |
|
| 19 |
175-5869 |
Tee fitting 3/8 x 3/8 inch |
1 |
|
| 20 |
175-3689 |
Screw M5-.8 x 12mm truss head phillips stainless steel |
4 |
|
| 21 |
999-9132 |
Washer M5 split lock stainless steel |
4 |
|
| 22 |
175-3687 |
Washer m5 x 1 flat |
4 |
|
| 24a |
175-9025 |
In-line screen filter assembly |
1 |
(OEM) |
| 24b |
991-8582 |
Mesh inline filter |
1 |
(NON-OEM) |
| 25a |
175-5866 |
Mesh filter screen |
1 |
(OEM) |
| 25b |
991-8569 |
Mesh filter screen stainless steel |
1 |
(NON-OEM) |
| 26 |
175-3691 |
Brass fitting |
1 |
|
| 27 |
175-3692 |
Tee fitting |
1 |
|
| 28 |
175-3685 |
90 degree elbow fitting |
2 |
|
| 29 |
275-7539 |
Hose 1/2 x 3/4 |
1 |
|
| 30 |
275-7540 |
Hose 1/2 x 3/4 inch |
1 |
|
| 31 |
175-5234 |
Plastic fitting |
1 |
|
| 32 |
275-7538 |
Hose 1/2 x 3/4 |
1 |
|
| 33 |
175-0453 |
Box holder bracket (OBSOLETE) |
1 |
|
| 34 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 35 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 36 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
| 38 |
175-5313 |
Plastic cap fitting |
1 |
|
| 39 |
275-4743 |
Straight plastic fitting |
1 |
|
| 40 |
275-4744 |
Female coupling |
1 |
|
| 41 |
175-9691 |
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
|
| 42 |
N/A |
Not available |
1 |
(injector assembly) (includes 43) |
| 44 |
N/A |
Not available |
1 |
(check valve) |
| 45 |
N/A |
Not available |
1 |
(adapter) |
| 46 |
N/A |
Not available |
1 |
(cap fitting assembly) (includes 47-51) |
| 47 |
175-8726 |
Plastic spray cap fitting |
1 |
|
| 48 |
175-5246 |
Washer 11/32 x 3/4 x 1/8 flat viton |
1 |
|
| 49 |
275-5927 |
Plate (black) |
1 |
|
| 50 |
275-8235 |
Mesh screen |
1 |
|
| 51 |
175-7948 |
Plastic spray body fitting |
1 |
|
| 52 |
175-7949 |
Check valve |
1 |
|
| 53 |
175-7945 |
Mesh filter assembly (OBSOLETE) |
1 |
(includes 54) |
| 54 |
175-5248 |
Mesh screen |
1 |
|
| 55 |
175-7943 |
Brass fitting |
1 |
|
| 56 |
175-5468 |
Barbed fitting |
1 |
|
| 58 |
175-9691 |
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
|
| 59 |
275-4939 |
1 foot PVC hose clear |
1 |
|
| 60 |
175-7929 |
Check valve |
1 |
|
| 61 |
275-8237 |
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
1 |
|
| 62 |
175-4810 |
Tee fitting |
1 |
|
| 63 |
175-5870 |
Hose 1/2 x 8 inch |
1 |
|
| 64 |
175-5870 |
Hose 1/2 x 8 inch |
1 |
|
| 65 |
175-6956 |
Plastic strainer fitting |
1 |
|
| 66 |
275-4939 |
1 foot PVC hose clear |
1 |
|
|
|

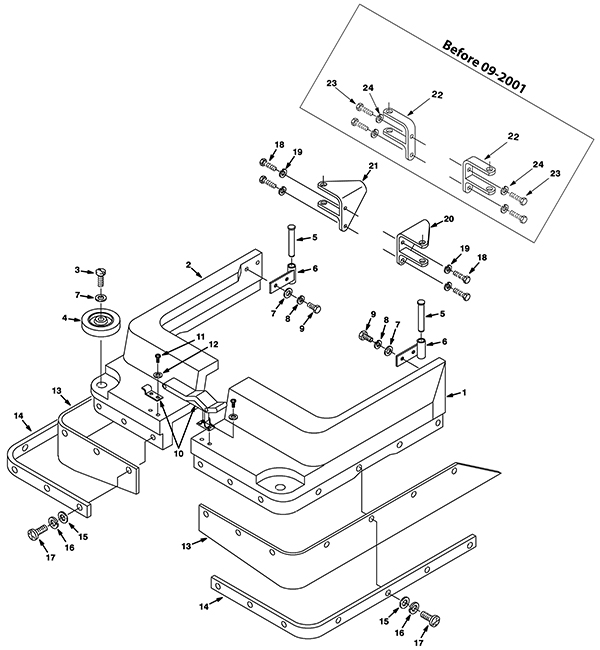

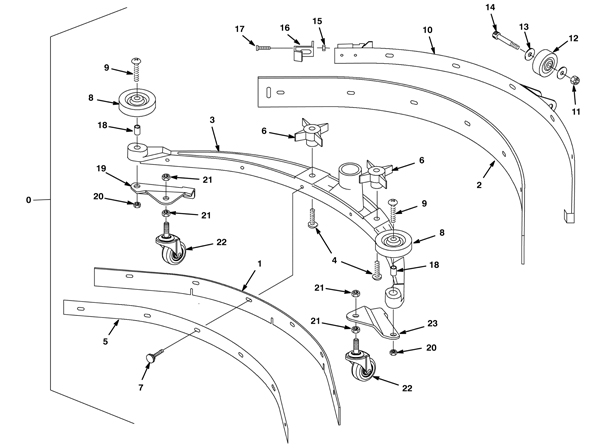

Squeegee Assembly - After 09.2001 - 275-8858 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
175-3706 |
Squeegee assembly linatex 28 inch (700mm) (OBSOLETE) |
1 |
(inlcudes 1a and 2a) |
| 0b |
175-3710 |
Sgueegee assembly gum rubber (OBSOLETE) |
1 |
(includes 1e and 2c) |
| 0c |
175-3711 |
Squeegee blade kit curved gum rubber 33 inch (OBSOLETE) |
1 |
(includes 1c and 2d) |
| 1a |
175-3707 |
Squeegee blades kit linatex 33 inch |
1 |
|
| 1b |
175-2850 |
Squeegee blade 33 inch linatex curved front (red) |
1 |
|
| 1c |
175-3708 |
Squeegee blade front urethane white 33 inch |
1 |
|
| 1d |
175-3710 |
Sgueegee assembly gum rubber (OBSOLETE) |
1 |
|
| 1e |
175-3711 |
Squeegee blade kit curved gum rubber 33 inch (OBSOLETE) |
1 |
|
| 1f |
175-3712 |
Squeegee blade 33 inch gum rubber front (tan) |
1 |
|
| 2a |
175-2851 |
Squeegee blade 33 inch linatex curved rear (red) |
1 |
|
| 2b |
175-3709 |
Squeegee blade rear urethane 33 inch (OBSOLETE) |
1 |
|
| 2c |
175-3713 |
Squeegee blade 33 inch gum rubber rear (tan) |
1 |
|
| 2d |
175-8747 |
Rear urethane squeegee blade 33 inch |
1 |
|
| 3 |
175-8748 |
Squeegee casting |
1 |
|
| 4 |
999-1039 |
Screw 5/16-18 x 1 1/2 truss head phillips stainless steel |
2 |
|
| 5 |
175-3715 |
Front strip retainer |
1 |
|
| 6 |
175-2208 |
Plastic star knob |
2 |
|
| 8a |
175-0117 |
Guide wheel with bushing |
2 |
(OEM) |
| 8b |
991-8570 |
Bumper wheel |
2 |
(NON-OEM) |
| 9 |
175-3716 |
Screw 5/16-18 x 1 3/4 |
2 |
|
| 10 |
175-3717 |
Squeegee rear ASM band |
1 |
|
| 11 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
|
| 13 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 14 |
175-3719 |
Screw 3/8 x 1 1/4 shoulder |
1 |
|
| 15 |
999-0495 |
Nut M5-.8 nylon insert lock zinc plated |
1 |
|
| 16 |
175-3720 |
Squeegee band clip |
1 |
|
| 17 |
175-3721 |
Screw M5-.8 x 45mm |
1 |
|
| 19 |
175-8749 |
Right hand caster mounting swivel bracket |
1 |
(after 09-04) |
| 20 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
(after 09-04) |
| 21 |
999-0767 |
Nut M10-1.5 hex coarse thread |
4 |
(after 09-04) |
| 22a |
175-7953 |
Swivel caster wheel |
2 |
(OEM) (after 09-04) |
| 22b |
991-8581 |
Swivel caster wheel |
2 |
(NON-OEM) |
| 23 |
175-8750 |
Left hand caster mounting swivel bracket |
1 |
(after 09-04) |
|
|
Squeegee Wand Assembly - 275-9021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-2632 |
Wet pick-up carpet tool assembly |
1 |
(includes 1-4) |
| 1 |
175-2633 |
Aluminum double bend wand |
1 |
|
| 2 |
175-2634 |
14 inch squeegee floor tool |
1 |
|
| 3 |
175-2635 |
Vacuum hose 1 1/2 x 10 foot |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|

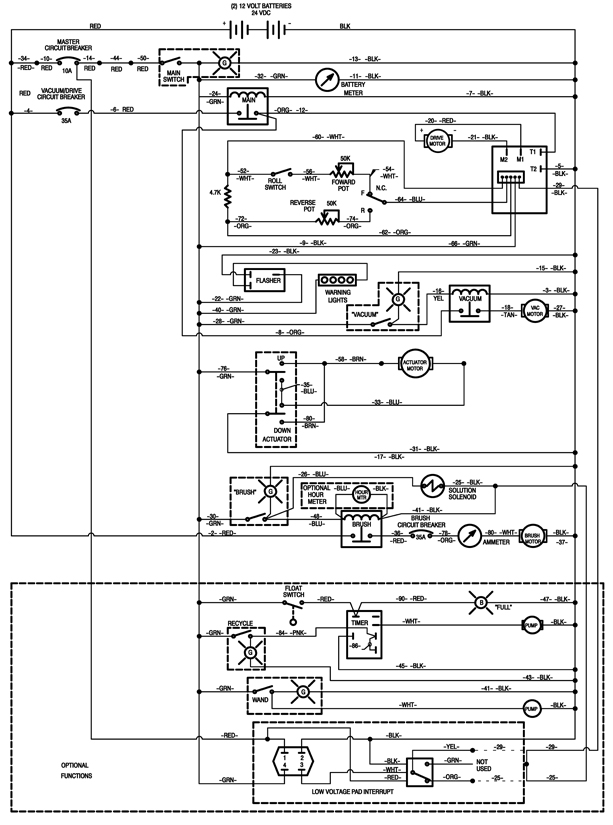

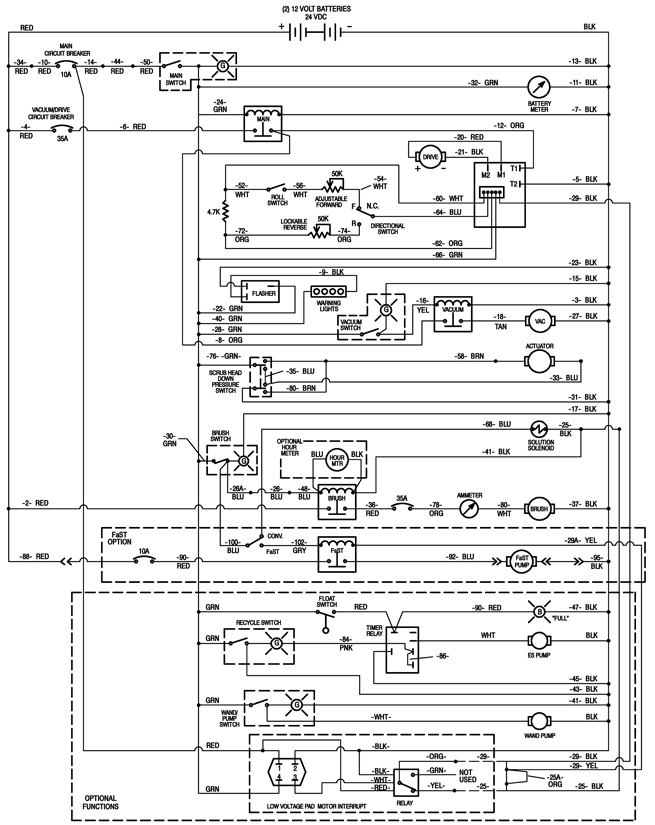

Wiring Diagram - 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

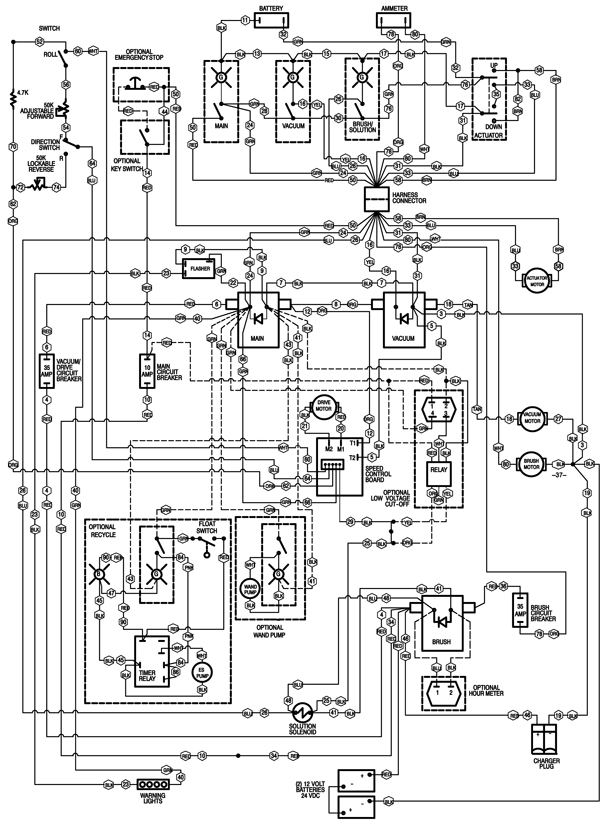

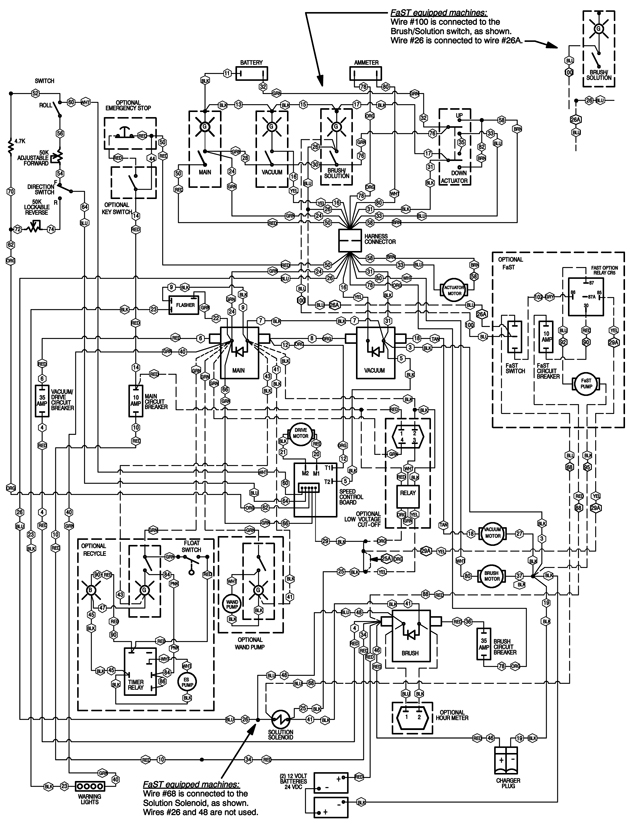

Wiring Diagram - 2 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram - 1 - FaST Model - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram - 2 - FaST Model - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

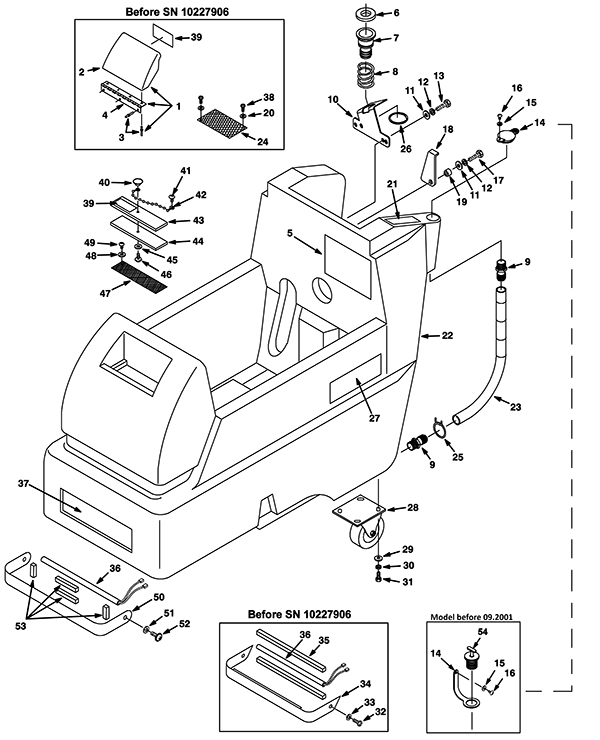

Solution Tank Assembly - 275-9944 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-2661 |
Solution tank lid assembly (green) |
1 |
(includes 2-4) (before SN 10227906) |
| 2 |
175-2663 |
Solution tank lid (green) |
1 |
(before SN 10227906) |
| 4 |
175-3633 |
Hinge |
1 |
(before SN 10227906) |
| 5 |
175-2982 |
Battery recharge decal |
1 |
|
| 6 |
675-9895 |
Vacuum motor gasket |
1 |
|
| 7 |
175-3635 |
Transition tube |
1 |
|
| 8 |
175-4353 |
Compression spring |
1 |
|
| 9 |
175-2676 |
Barbed fitting |
2 |
|
| 10 |
175-3636 |
Vacuum tube bracket |
1 |
|
| 11 |
999-0024 |
Washer 5/16 flat stainless steel |
3 |
|
| 12 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
3 |
|
| 13 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
| 14a |
175-2984 |
Plug strap (OBSOLETE) |
1 |
(before 09.2001) |
| 14b |
175-7825 |
Solution fill port cap |
1 |
(after 09.2001) |
| 15a |
999-0393 |
Washer 3/16 flat aluminum |
1 |
(before 09.2001) |
| 15b |
999-0998 |
Washer #10 flat stainless steel |
1 |
(after 09.2001) |
| 16a |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
1 |
(before 09.2001) |
| 16b |
999-0531 |
Screw M5-.8 x 16mm pan head slotted zinc |
1 |
(after 09.2001) |
| 17 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
| 18 |
175-2672 |
Recovery tank support |
1 |
|
| 20 |
999-1158 |
Washer #6 flat stainless steel |
2 |
(before SN 10227906) |
| 21 |
N/A |
Not available |
1 |
Squeegee lever decal |
| 22a |
175-2985 |
Solution tank (green) |
1 |
(before SN 10227906) |
| 22b |
275-4587 |
Solution tank (green) |
1 |
(after SN 10227906) |
| 23 |
175-3637 |
Drain hose with level indicator |
1 |
|
| 24 |
175-2666 |
Screen filter |
1 |
(before SN 10227906) |
| 26a |
175-3008 |
Retaining ring |
1 |
(from 02.2002 to 06.2006) |
| 26b |
175-4355 |
Retaining ring |
1 |
(after 06.2006) |
| 27a |
175-3638 |
Decal inchspeed scrub 2001hd inch (OBSOLETE) |
2 |
|
| 27b |
N/A |
Not available |
2 |
(Speed Scrub 2001HD FaST decal) |
| 28 |
175-2991 |
4 inch caster wheel |
2 |
|
| 29a |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
(from 02.2002 to 06.2006) |
| 29b |
999-0024 |
Washer 5/16 flat stainless steel |
8 |
(after 06.2006) |
| 30a |
999-1081 |
Washer M10 split lock stainless steel |
8 |
(from 02.2002 to 06.2006) |
| 30b |
999-0553 |
Washer 5/16 medium split lock stainless steel |
8 |
(after 06.2006) |
| 31a |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
8 |
(from 02.2002 to 06.2006) |
| 31b |
999-0900 |
Screw M8-1.25 x 18mm hex head stainless steel |
8 |
(after 06.2006) |
| 32a |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
(from 02.2002 to 06.2006) |
| 32b |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
(before SN 10227906) |
| 33 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
(before SN 10227906) |
| 34 |
175-2993 |
Light shield |
1 |
(before SN 10227906) |
| 35 |
175-1209 |
Gasket |
2 |
(before SN 10227906) |
| 36 |
175-2995 |
12 Inch safety light |
1 |
(before SN 10227906) |
| 38 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
2 |
(before SN 10227906) |
| 39 |
175-0235 |
Attention decal |
1 |
(FaST model) |
| 41 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
1 |
|
| 42 |
175-5129 |
Ball chain #10 stainless steel |
1 |
|
| 43 |
175-4220 |
Solution fill screen assembly |
1 |
|
| 44 |
175-4220 |
Solution fill screen assembly |
1 |
|
| 45 |
999-1026 |
Washer #10 internal lock stainless steel |
1 |
|
| 46 |
999-0371 |
Screw 10-32 x 1/2 pan head phillips zinc plated |
1 |
|
| 47 |
175-4220 |
Solution fill screen assembly |
1 |
|
| 48 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 49 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
2 |
|
| 50 |
275-4590 |
Light shield |
1 |
|
| 51 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 52 |
175-4398 |
Screw M5-.8 x 10mm phillips truss head zinc |
2 |
|
| 54 |
175-2653 |
1 1/2 inch expansion plug |
1 |
(before 09.2001) |
|
|

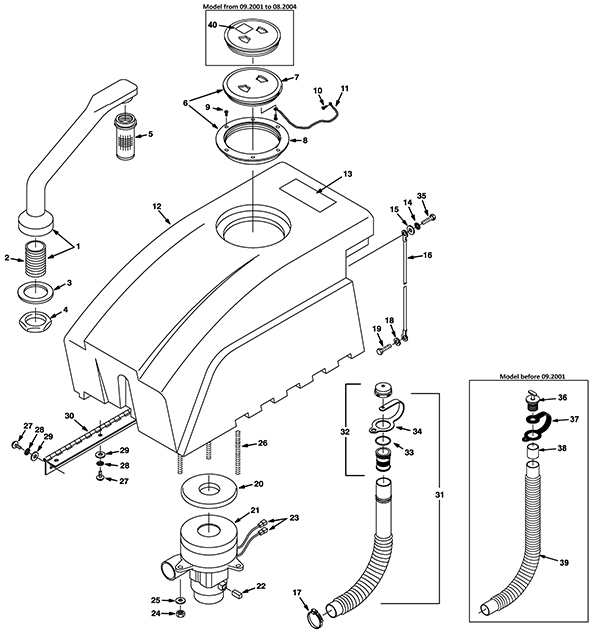

Recovery Tank Assembly - 275-9945 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-2998 |
Standpipe with nipple assembly |
1 |
(includes item 2) |
| 2 |
175-2639 |
1 1/2 inch nipple fitting |
1 |
|
| 4 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 5 |
675-9887 |
Shut-off float |
1 |
|
| 6 |
164-0202 |
Tank lid assembly |
1 |
(includes 7-8) |
| 7a |
164-0044 |
Tank lid (clear) |
1 |
(OEM) |
| 7b |
991-1928 |
Tank lid (clear) (OBSOLETE) |
1 |
(NON-OEM) |
| 8 |
164-0205 |
Tank lid ring (black) |
1 |
|
| 9 |
999-1111 |
Screw 6-32 x 3/4 pan head phillips sheet metal |
6 |
|
| 10 |
999-0434 |
Screw 6 x 3/8 pan head phillips |
2 |
|
| 12a |
175-0022 |
Recovery tank assembly |
1 |
(includes 13) (after 09.2004) |
| 12b |
175-3000 |
Recovery tank green |
1 |
(before 09.2004) |
| 13 |
175-2868 |
Warning decal |
1 |
(after 06.2006) |
| 14 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
1 |
|
| 15 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 16 |
175-2651 |
Support cable |
1 |
|
| 18 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 19 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
| 20 |
675-9893 |
Vacuum motor gasket |
1 |
|
| 21 |
275-5736 |
24V 3 stage vacuum motor |
1 |
(includes 22) |
| 22 |
175-2658 |
Carbon brush (pkg of 2) |
1 |
|
| 23 |
175-0923 |
Male terminal |
2 |
|
| 24 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
3 |
|
| 25 |
999-0016 |
Washer 1/4 flat plain finish |
3 |
|
| 27 |
999-1041 |
Screw M6-1 x 12mm pan head phillips stainless steel |
11 |
|
| 28 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
11 |
|
| 29 |
999-0016 |
Washer 1/4 flat plain finish |
11 |
|
| 30 |
175-3001 |
Recovery tank hinge |
1 |
|
| 31 |
175-1153 |
Drain hose assembly |
1 |
(includes 32) (after 06.2006) |
| 32a |
175-4214 |
Drain plug assembly |
1 |
(OEM) (includes 33-34) (after 06.2006) |
| 32b |
991-3028 |
Drain plug assembly |
1 |
(NON-OEM) |
| 33 |
175-5804 |
O-ring |
1 |
(after 09.2001) |
| 34 |
175-4214 |
Drain plug assembly |
1 |
(after 09.2001) |
| 35 |
999-1041 |
Screw M6-1 x 12mm pan head phillips stainless steel |
1 |
|
| 36 |
175-2653 |
1 1/2 inch expansion plug |
2 |
(before 09.2001) |
| 37 |
175-2654 |
Drain hose strap |
1 |
(before 09.2001) |
| 38 |
175-2655 |
Drain hose sleeve |
1 |
(before 09.2001) |
| 39 |
175-2656 |
Drain hose |
1 |
(before 09.2001) |
| 40 |
175-2649 |
Do not spray decal |
1 |
(from 09.2001 to 08.2004) |
|
|

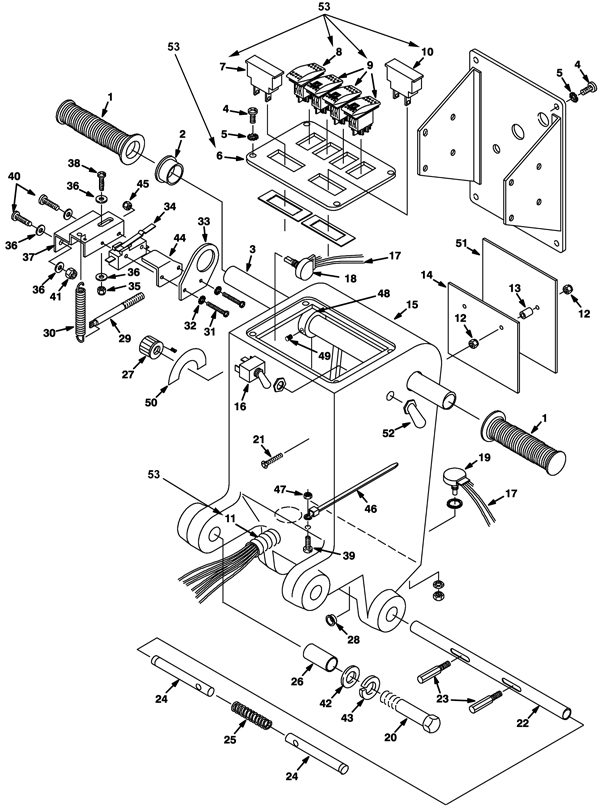

Console Assembly - 275-9946 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
675-9894 |
Handle grip |
2 |
(OEM) |
| 1b |
991-8571 |
Handle grip |
2 |
(NON-OEM) |
| 2 |
175-3093 |
Flanged bushing |
1 |
|
| 4a |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
8 |
(from 02.2002 to 06.2006) |
| 4b |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
8 |
(after 06.2006) |
| 5 |
999-1026 |
Washer #10 internal lock stainless steel |
8 |
(from 02.2002 to 06.2006) |
| 6 |
175-3096 |
Switch panel (OBSOLETE) |
1 |
|
| 7 |
175-3643 |
Brush pressure gauge |
1 |
|
| 8 |
175-3097 |
Momentary rocker switch |
1 |
|
| 9 |
175-3098 |
Lighted on/off rocker switch |
3 |
|
| 10 |
175-2691 |
Battery voltage meter |
1 |
|
| 11a |
175-3644 |
Main harness (OBSOLETE) |
1 |
(after 02.2002) |
| 11b |
175-3121 |
Harness main/switch/console (OBSOLETE) |
1 |
(before 02.2002) |
| 12 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
| 15 |
175-3102 |
Control housing (green) |
1 |
|
| 16 |
175-3103 |
Toggle switch |
1 |
|
| 17 |
175-3120 |
Console harness with potentiometer |
1 |
(includes 18-19) |
| 18 |
175-3105 |
Potentiometer |
1 |
|
| 19 |
175-3106 |
Lockable potentiometer |
1 |
|
| 20 |
999-0619 |
Screw 10-24 x 3/4 truss head slotted stainless steel |
2 |
|
| 21 |
175-3107 |
Screw M4-.7 x 35mm flat head phillips |
2 |
|
| 22 |
175-3108 |
Handle adjustment tube |
1 |
|
| 23 |
175-2710 |
Handle adjustment pin |
2 |
|
| 24 |
175-3109 |
Handle locking pin |
2 |
|
| 27a |
175-1163 |
Speed control knob |
1 |
(after 02.2002) |
| 27b |
N/A |
Not available |
1 |
(Speed control knob) (before 02.2002) |
| 28 |
175-3111 |
Snap bushing |
1 |
|
| 29 |
175-3112 |
Spring return pin |
1 |
|
| 30 |
175-3113 |
Extension spring |
1 |
|
| 31 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 32 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 33 |
175-3115 |
Switch bracket |
1 |
|
| 34 |
175-3116 |
Snap switch |
1 |
|
| 35 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 36 |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 37 |
175-3117 |
Switch mount |
1 |
|
| 38 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
1 |
|
| 39 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
1 |
|
| 40 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
| 41 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 42a |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
(after 02.2002) |
| 42b |
999-0114 |
Washer 1/2 SAE flat |
2 |
(before 02.2002) |
| 43 |
999-0126 |
Washer 1/2 split lock |
2 |
|
| 44a |
175-3122 |
Switch plate |
1 |
|
| 45 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 47 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 48 |
175-1168 |
Handle collar |
2 |
|
| 49 |
999-0096 |
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
| 50 |
175-1169 |
Speed control decal |
1 |
|
| 51 |
175-3124 |
55amp speed control board |
1 |
|
| 52 |
175-3104 |
Switch boot |
1 |
|
| 53 |
175-3642 |
Switch panel asm (OBSOLETE) |
1 |
(includes 6-11) |
|
|

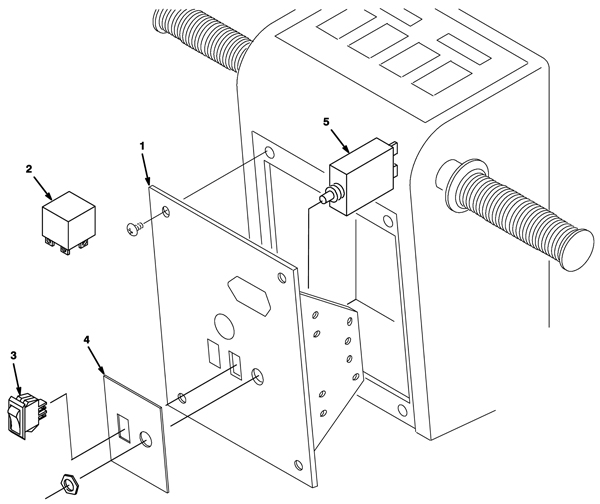

Component Panel Assembly - FaST Model - 275-9947 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-8632 |
Switch panel |
1 |
|
| 3 |
175-7871 |
Rocker switch |
1 |
|
| 4 |
275-5739 |
FaST switch label |
1 |
|
| 5 |
175-3132 |
10amp brush circuit breaker (OBSOLETE) |
1 |
|
| N/S |
275-7537 |
Wire harness |
1 |
|
| N/S |
175-2848 |
Rocker switch splash guard |
1 |
(after 09.2004) |
|
|
Electrical/Battery Assembly - 275-9948 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-0297 |
Control panel housing |
1 |
|
| 2 |
175-3646 |
Hour meter plug |
2 |
|
| 6a |
275-1360 |
Warning decal |
1 |
(from 09.2001 to 06.2006) |
| 6b |
175-2649 |
Do not spray decal |
1 |
(after 06.2006) |
| 8 |
999-1084 |
Screw M6-1 x 16mm truss head slotted stainless steel |
6 |
|
| 9 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
6 |
|
| 10 |
999-0016 |
Washer 1/4 flat plain finish |
7 |
|
| 11 |
175-2757 |
Diode with ring terminals (small) |
3 |
|
| 12 |
175-0924 |
#10 ring terminal |
6 |
|
| 13 |
175-2023 |
24V solenoid contactor |
3 |
|
| 14 |
175-2756 |
24V flasher |
1 |
|
| 15 |
175-0287 |
Acrylic foam tape 1 inch x 1 foot |
1 |
|
| 16 |
175-3132 |
10amp brush circuit breaker (OBSOLETE) |
1 |
|
| 17 |
175-3133 |
35amp circuit breaker (OBSOLETE) |
2 |
|
| 18 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 19 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 20 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 21 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 22 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
|
| 23 |
175-3134 |
Snap bushing |
1 |
|
| 24 |
175-3135 |
Bracket (OBSOLETE) |
1 |
|
| 25a |
999-0018 |
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
(from 09.2001 to 08.2004) |
| 25b |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
(after 08.2004) |
| 26 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 27 |
175-3137 |
Battery cable (black) |
1 |
|
| 28 |
175-3226 |
Insulated stand off |
1 |
|
| 29 |
175-3138 |
Battery cable 5/16 x 3/8 (red) |
1 |
|
| 30 |
175-3139 |
24V 19amp off board battery charger |
1 |
|
| 31 |
175-3140 |
Battery tray |
1 |
|
| 32 |
162-0057 |
12V 150Ah wet battery |
2 |
|
| 33 |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 34 |
999-0144 |
Nut 6-32 k-lock zinc plated |
2 |
|
| 37 |
175-1410 |
Dome plug |
1 |
(after 09.2004) |
| 38 |
175-1182 |
Diode with ring terminals (large) |
1 |
|
| 39 |
175-1103 |
Battery cable boot (black) |
4 |
|
| 40 |
175-1103 |
Battery cable boot (black) |
2 |
(from 09.2001 to 08.2004) |
| 41 |
175-2121 |
Battery terminal cover (clear) |
4 |
(from 09.2001 to 08.2004) |
| 42 |
275-2370 |
Read manual decal |
1 |
(from 09.2001 to 08.2004) |
|
|

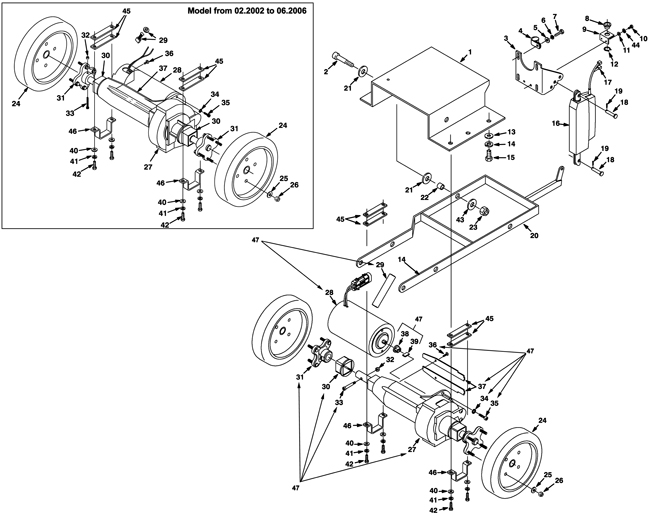

Drive Assembly - After 02.2002 - 275-9949 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3002 |
Base transaxle plate |
1 |
|
| 2 |
175-3648 |
Shoulder bolt (Tennant industrial) |
2 |
|
| 3a |
275-4594 |
Actuator bracket |
1 |
(after 02.2004) |
| 3b |
275-4594 |
Actuator bracket |
1 |
(from 06.2004-06.2006) |
| 5 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 6 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 7a |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
(after 02.2002) |
| 7b |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
(before 02.2002) |
| 8a |
175-8735 |
Cable bushing |
1 |
(from 02.2002 to 06.2006) |
| 8b |
175-8735 |
Cable bushing |
1 |
(after 06.2006) |
| 9 |
175-3007 |
Cable guide bracket |
1 |
|
| 10 |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
2 |
|
| 11 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 12 |
175-3008 |
Retaining ring |
1 |
|
| 13 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 14 |
999-1081 |
Washer M10 split lock stainless steel |
2 |
|
| 15a |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
2 |
(from 09.2004-06.2006) |
| 15b |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
2 |
(before 06.2006) |
| 17 |
175-3011 |
Female terminal |
2 |
|
| 20 |
175-3650 |
Lift scrub head bracket |
1 |
|
| 21 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
| 23 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
| 24a |
175-3017 |
Neoprene solid wheel |
2 |
|
| 24b |
675-9896 |
Air filled (pneumatic) tire |
2 |
|
| 24c |
175-3652 |
Foam filled wheel |
2 |
|
| 24d |
175-3146 |
Air filled (pneumatic) tire kit (pkg of 2) (OBSOLETE) |
1 |
|
| 24e |
175-3147 |
Foam filled tire kit (pkg of 2) (OBSOLETE) |
1 |
|
| 25 |
999-0016 |
Washer 1/4 flat plain finish |
8 |
|
| 26 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
8 |
|
| 27 |
175-3654 |
Transaxle body |
1 |
|
| 28 |
175-3657 |
24V transaxle motor |
1 |
|
| 29a |
175-7898 |
Carbon brush (pkg of 4) |
1 |
(after SN 10169615 for motor 614165) |
| 29b |
175-4345 |
Carbon brush (pkg of 2) |
1 |
(before SN 10169615 for motor 612877) |
| 29c |
175-3658 |
Carbon kit brushes w/ caps (2/pk) (OBSOLETE) |
1 |
(from 02.2002 to 06.2006) |
| 30 |
175-3660 |
Transaxle sleeve |
2 |
|
| 31 |
275-5229 |
Transaxle wheel hub with retainer |
2 |
|
| 32 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 33 |
999-0745 |
Screw 10-24 x 1 1/4 socket head shoulder |
2 |
|
| 34 |
999-0238 |
Washer 1/4 internal star lock zinc plated |
2 |
|
| 35a |
175-3663 |
Screw 1/4-20 x 5/8 socket |
2 |
(from 02.2002 to 06.2006) |
| 35b |
999-1320 |
Screw M6-1 x 20mm socket head stainless steel |
2 |
(after 06.2006) |
| 36 |
999-0458 |
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
2 |
|
| 37a |
175-3665 |
Transaxle cover (OBSOLETE) |
1 |
(from 02.2002 to 06.2006) |
| 37b |
N/A |
Not available |
2 |
(shaft cover) (after 06.2006) |
| 38 |
175-3655 |
Transaxle coupling |
1 |
|
| 39 |
175-3656 |
Transaxle key |
1 |
|
| 40 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 41 |
999-1081 |
Washer M10 split lock stainless steel |
4 |
|
| 42 |
175-3019 |
Screw M10 x 35mm |
4 |
|
| 43 |
999-0032 |
Washer 3/8 USS flat plain finish |
2 |
|
| 44a |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
2 |
(after 09.2004) |
| 44b |
999-0016 |
Washer 1/4 flat plain finish |
2 |
(before 09.2004) |
| 45 |
175-3666 |
Axle spacer |
4 |
|
| 46 |
175-3667 |
Transaxle MTG bracket |
2 |
|
| 47 |
175-3622 |
24V transaxle motor assembly |
1 |
(includes 27-28, 29c-35a, 36-37a, 38-39 for models from 02.2002 to 06.2006) (includes 27-29b, 30-34, 35b, 36, 37b-39 for models after 06.2006) |
|
|

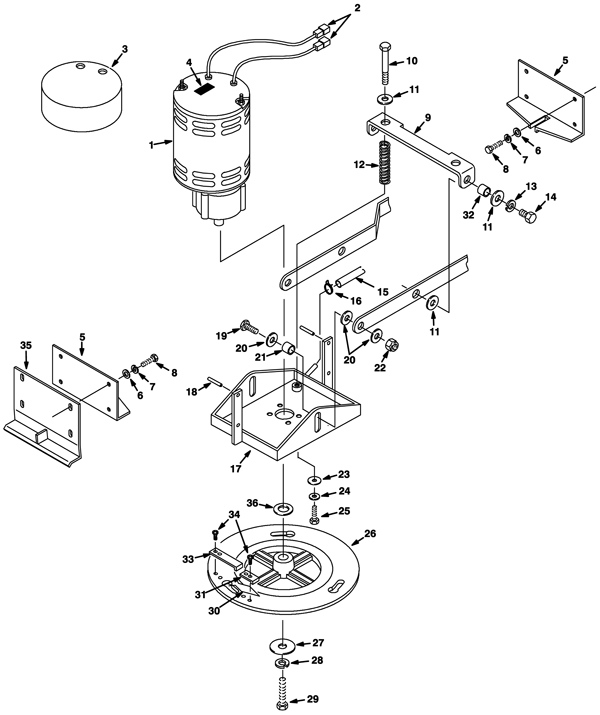

Brush Drive Assembly - 275-9950 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
175-2599 |
24V brush motor with gearbox |
1 |
(includes 1b-1e) |
| 1b |
175-3028 |
Brush card assembly |
1 |
|
| 1c |
175-2600 |
Carbon brush |
1 |
|
| 1d |
175-2601 |
Square keyway |
1 |
|
| 2a |
175-3029 |
Terminal ring 1/4 inch |
1 |
|
| 2b |
175-3032 |
Positive terminal ring |
1 |
|
| 3 |
175-2598 |
Brush motor cover |
1 |
|
| 4 |
175-0287 |
Acrylic foam tape 1 inch x 1 foot |
1 |
|
| 6 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
8 |
|
| 7 |
999-0632 |
Washer 1/4 split lock stainless steel |
8 |
|
| 8 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
8 |
|
| 9 |
175-3659 |
Spring bracket |
1 |
|
| 10 |
175-3668 |
Screw 3/8 - 16 x 3 1/2 (OBSOLETE) |
2 |
|
| 11 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
6 |
|
| 12 |
175-3669 |
Brush pressure spring |
2 |
|
| 13 |
999-0034 |
Washer 3/8 split lock plain finish |
2 |
|
| 14 |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
2 |
|
| 15a |
175-3670 |
Tubing 3/4 inchIDx21 inch (OBSOLETE) |
1 |
(from 09.2001 to 03.2005) |
| 15b |
175-8976 |
Hose 3/8 x 5/8 |
1 |
(after 03.2005) |
| 17 |
175-3672 |
Brush motor mount bracket (OBSOLETE) |
1 |
|
| 19 |
999-0558 |
Bolt 1/2-13 x 1 1/2 hex head stainless steel |
2 |
|
| 20 |
999-0187 |
Washer 1/2 flat plain finish |
6 |
|
| 22 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
2 |
|
| 23 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 24 |
999-0034 |
Washer 3/8 split lock plain finish |
4 |
|
| 25a |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
(from 09.2001 to 03.2005) |
| 25b |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
(after 03.2005) |
| 26 |
175-2609 |
Drive plate |
1 |
|
| 27 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 28 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 29 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
| 30 |
175-2612 |
Spring clip |
1 |
|
| 31 |
175-2611 |
Brush plate clamp |
1 |
|
| 33 |
175-3034 |
Driver release stop |
1 |
|
| 34 |
999-1114 |
Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc |
4 |
|
| 35 |
175-3037 |
Front lip skirt (OBSOLETE) |
1 |
|
| 36 |
999-0187 |
Washer 1/2 flat plain finish |
1 |
|
|
|
Skirt Assembly - 275-9951 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3675 |
Operator LH skirt green |
1 |
|
| 2 |
175-3676 |
Operator RH skirt green |
1 |
|
| 3 |
999-0742 |
Screw M8-1.25 x 40mm pan head phillips zinc |
2 |
|
| 4 |
175-0117 |
Guide wheel with bushing |
2 |
|
| 6 |
175-3049 |
Skirt mount bracket |
2 |
|
| 7 |
999-0024 |
Washer 5/16 flat stainless steel |
6 |
|
| 8 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 9 |
999-0900 |
Screw M8-1.25 x 18mm hex head stainless steel |
4 |
|
| 10a |
375-7802 |
Latch |
1 |
(OEM) |
| 10b |
991-8561 |
Rubber draw latch with keeper |
1 |
(NON-OEM) |
| 11 |
999-0530 |
Screw M4-.7 x 8mm pan head slotted zinc |
4 |
|
| 12 |
999-1083 |
Washer #8 internal star lock stainless steel |
4 |
|
| 13 |
175-3677 |
Splash guard (OBSOLETE) |
2 |
|
| 14 |
175-3678 |
Splash guard strap (OBSOLETE) |
2 |
|
| 15 |
999-0393 |
Washer 3/16 flat aluminum |
14 |
|
| 16 |
999-1026 |
Washer #10 internal lock stainless steel |
14 |
|
| 17 |
999-0901 |
Screw M5-.8 x 16mm pan head phillips stainless steel |
14 |
|
| 18 |
175-3679 |
Screw M8 x 1 1/4 x 20 |
4 |
|
| 19 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 20 |
175-3050 |
Skirt mount bracket lefthand |
1 |
|
| 21 |
175-3051 |
Skirt mount bracket righthand |
1 |
|
| 22 |
N/A |
Not available |
4 |
(before 09-2001) (Skirt mount bracket) |
| 23 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
(before 09-2001) |
| 24 |
999-0632 |
Washer 1/4 split lock stainless steel |
1 |
(before 09-2001) |
|
|

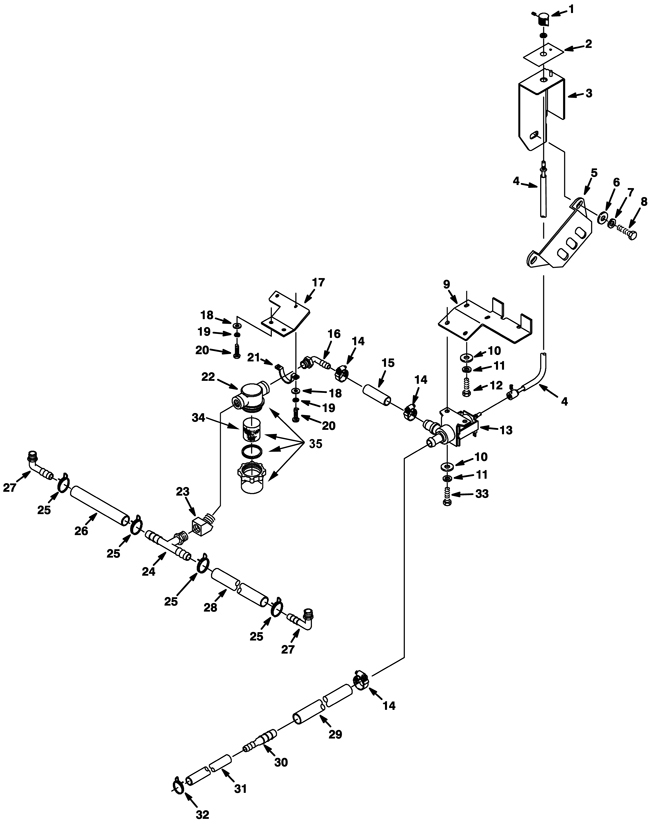

Solution Assembly - 275-9952 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-9027 |
Solution control knob |
1 |
|
| 2 |
175-3680 |
Solution control decal |
1 |
|
| 3 |
175-3681 |
Solution control bracket |
1 |
|
| 4 |
175-3682 |
Sol. flow control cable (OBSOLETE) |
1 |
|
| 5 |
175-2728 |
Locking plate |
1 |
|
| 6 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 7 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 8 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
| 9 |
175-3683 |
Solenoid mount bracket (OBSOLETE) |
1 |
|
| 10 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 11 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 12 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 13a |
175-3684 |
24V solenoid valve |
1 |
|
| 13b |
175-8698 |
Solenoid valve rebuild kit (internal parts) |
1 |
(after 06.2006) |
| 15 |
275-7538 |
Hose 1/2 x 3/4 |
1 |
|
| 16 |
175-3685 |
90 degree elbow fitting |
1 |
|
| 17 |
175-3686 |
Filter bowl bracket |
1 |
|
| 18 |
175-3687 |
Washer m5 x 1 flat |
4 |
|
| 19 |
999-9132 |
Washer M5 split lock stainless steel |
4 |
|
| 20 |
175-3689 |
Screw M5-.8 x 12mm truss head phillips stainless steel |
4 |
|
| 22a |
175-9025 |
In-line screen filter assembly |
1 |
(OEM) |
| 22b |
991-8582 |
Mesh inline filter |
1 |
(NON-OEM) |
| 23 |
175-3691 |
Brass fitting |
1 |
|
| 24 |
175-3692 |
Tee fitting |
1 |
|
| 26 |
275-7539 |
Hose 1/2 x 3/4 |
1 |
|
| 27 |
175-3685 |
90 degree elbow fitting |
2 |
|
| 28 |
275-7540 |
Hose 1/2 x 3/4 inch |
1 |
|
| 29 |
275-7541 |
Hose 1/2 x 3/4 inch |
1 |
|
| 30 |
175-6956 |
Plastic strainer fitting |
1 |
|
| 31 |
175-8976 |
Hose 3/8 x 5/8 |
1 |
|
| 33a |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
2 |
(after 06.2006) |
| 33b |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
(before 06.2006) |
| 34a |
175-5866 |
Mesh filter screen |
1 |
(OEM) (after 06.2006) |
| 34b |
991-8569 |
Mesh filter screen stainless steel |
1 |
(NON-OEM) |
| 35a |
175-9025 |
In-line screen filter assembly |
1 |
(OEM) (from 09.2001 to 06.2006) |
| 35b |
991-8582 |
Mesh inline filter |
1 |
(NON-OEM) |
| 35c |
175-5867 |
Filter gasket |
1 |
|
| 35d |
175-5868 |
Short clear filter bowl |
1 |
(OEM) |
| 35e |
991-8575 |
Short bowl (clear) |
1 |
(NON-OEM) |
|
|
Solution Assembly - FaST Model - After 06-2006 - 275-9953 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-0450 |
Mounting bracket (OBSOLETE) |
1 |
|
| 2 |
999-1119 |
Washer 1/4 x 1 fender zinc plated |
2 |
|
| 3 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 4 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 6 |
175-7934 |
24V solution pump |
1 |
|
| 7 |
175-7941 |
Air vent valve |
1 |
|
| 8 |
175-5314 |
P clamp (Tennant Industrial) |
1 |
|
| 9 |
175-7939 |
Brass tee fitting |
1 |
|
| 10 |
175-7937 |
90 degree plastic elbow |
2 |
|
| 11 |
175-7933 |
90 degree plastic elbow |
3 |
|
| 12 |
175-8701 |
Plastic fitting |
1 |
|
| 13 |
275-8237 |
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
1 |
|
| 14 |
275-4939 |
1 foot PVC hose clear |
1 |
|
| 17 |
175-3671 |
Hose clamp |
12 |
|
| 19 |
175-5869 |
Tee fitting 3/8 x 3/8 inch |
1 |
|
| 20 |
175-3689 |
Screw M5-.8 x 12mm truss head phillips stainless steel |
4 |
|
| 21 |
999-9132 |
Washer M5 split lock stainless steel |
4 |
|
| 22 |
175-3687 |
Washer m5 x 1 flat |
4 |
|
| 24a |
175-9025 |
In-line screen filter assembly |
1 |
(OEM) |
| 24b |
991-8582 |
Mesh inline filter |
1 |
(NON-OEM) |
| 25a |
175-5866 |
Mesh filter screen |
1 |
(OEM) |
| 25b |
991-8569 |
Mesh filter screen stainless steel |
1 |
(NON-OEM) |
| 26 |
175-3691 |
Brass fitting |
1 |
|
| 27 |
175-3692 |
Tee fitting |
1 |
|
| 28 |
175-3685 |
90 degree elbow fitting |
2 |
|
| 29 |
275-7539 |
Hose 1/2 x 3/4 |
1 |
|
| 30 |
275-7540 |
Hose 1/2 x 3/4 inch |
1 |
|
| 31 |
175-5234 |
Plastic fitting |
1 |
|
| 32 |
275-7538 |
Hose 1/2 x 3/4 |
1 |
|
| 33 |
175-0453 |
Box holder bracket (OBSOLETE) |
1 |
|
| 34 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 35 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 36 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
| 38 |
175-5313 |
Plastic cap fitting |
1 |
|
| 39 |
275-4743 |
Straight plastic fitting |
1 |
|
| 40 |
275-4744 |
Female coupling |
1 |
|
| 41 |
175-9691 |
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
|
| 42 |
175-6956 |
Plastic strainer fitting |
1 |
|
| 43 |
175-7942 |
FaST injector kit |
1 |
(includes 44-50) |
| 44 |
175-7943 |
Brass fitting |
1 |
|
| 46 |
175-7945 |
Mesh filter assembly (OBSOLETE) |
1 |
(includes 47) |
| 47 |
175-5248 |
Mesh screen |
1 |
|
| 48 |
175-7947 |
Tan oriface replacement kit (OBSOLETE) |
1 |
|
| 49 |
175-7948 |
Plastic spray body fitting |
1 |
|
| 50 |
175-7949 |
Check valve |
1 |
|
| 51 |
175-7929 |
Check valve |
1 |
|
| 52 |
275-8237 |
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
1 |
|
| 53 |
275-5768 |
Plastic fitting |
1 |
|
| 54 |
275-8237 |
HOSE, AFMKT, PVC, BRD, 0.38ID, 02FT, CLR (Tennant Industria |
1 |
|
| 55 |
275-4939 |
1 foot PVC hose clear |
1 |
|
| 56 |
175-8716 |
FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) |
1 |
|
| 57 |
275-7538 |
Hose 1/2 x 3/4 |
1 |
|
| 58 |
275-4939 |
1 foot PVC hose clear |
1 |
|
| 59 |
275-4939 |
1 foot PVC hose clear |
1 |
|
| 60 |
275-7543 |
Solenoid mounting bracket |
1 |
|
| 61 |
999-0016 |
Washer 1/4 flat plain finish |
4 |
|
| 62 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 64a |
175-3684 |
24V solenoid valve |
1 |
|
| 64b |
175-8698 |
Solenoid valve rebuild kit (internal parts) |
1 |
|
|
|
Squeegee Control Assembly - After 08.2001 - 275-9954 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3067 |
Vacuum hose 1 1/2 x 30 inch with cuffs |
1 |
|
| 2 |
175-3068 |
Squeegee lift cable |
1 |
|
| 3 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 4 |
999-0687 |
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
1 |
|
| 5 |
175-3701 |
Screw 1/2 - 13 x 1 1/4 |
1 |
|
| 6 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
6 |
|
| 7 |
175-2743 |
Sleeved bushing |
2 |
|
| 8 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
| 9 |
275-6137 |
Squeegee pivot mounting bracket (OBSOLETE) |
1 |
|
| 10a |
275-4796 |
Squeegee caster kit |
1 |
(from 09.2001 to 02.2005) |
| 10b |
175-8742 |
Squeegee mount bracket |
1 |
(after 02.2005) |
| 11 |
999-0050 |
Nut 1/2-13 hex jam plain finish |
2 |
|
| 12 |
175-3069 |
Screw 1/2-13 x 5 1/2 |
1 |
|
| 13a |
999-0126 |
Washer 1/2 split lock |
2 |
(after 02.2005) |
| 13b |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
2 |
(from 09.2001 to 02.2005) |
| 14 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 15 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
1 |
|
| 17 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
1 |
|
| 18 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 19 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 20 |
175-3077 |
Squeegee lift handle |
1 |
|
| 21 |
175-2723 |
Handle grip (rubber) |
1 |
|
| 22 |
175-3078 |
Bushing spacer |
1 |
|
| 23 |
175-2728 |
Locking plate |
1 |
|
| 24 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
| 25 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
| 26 |
999-0311 |
Washer #10 external star lock zinc plated |
2 |
|
| 27 |
175-3080 |
Squeegee lock plate |
1 |
|
| 28 |
275-7544 |
Mounting plate |
1 |
(FaST model) |
| 29 |
175-4629 |
P clamp |
2 |
(FaST model) |
| 30 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
3 |
(FaST model) |
| 31 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
3 |
(FaST model) |
| 32 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
(from 09.2001 to 02.2005) |
| 33 |
991-2013 |
Wheel |
2 |
(from 09.2001 to 02.2005) |
| 34 |
175-2830 |
Spacer |
1 |
(from 09.2001 to 02.2005) |
| 35 |
275-5175 |
Bolt shoulder 5/16-18 x 5 1/2 inch |
1 |
(from 09.2001 to 02.2005) |
|
|
ES Kit - 275-9956 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-3722 |
ES kit (OBSOLETE) |
1 |
(includes 1-16) |
| 1 |
175-2847 |
Rocker switch |
1 |
|
| 2 |
175-2848 |
Rocker switch splash guard |
1 |
(from 09.2001 to 06.2006) |
| 3 |
175-2849 |
Indicator light |
1 |
|
| 4a |
999-0495 |
Nut M5-.8 nylon insert lock zinc plated |
1 |
(from 09.2001 to 06.2006) |
| 4b |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
(after 06.2006) |
| 6 |
999-1085 |
Screw M5-.8 x 30mm pan head phillips zinc plated |
1 |
|
| 7 |
175-2835 |
Liquid level switch with nut |
1 |
|
| 8 |
175-2836 |
Screen filter (OBSOLETE) |
1 |
|
| 9 |
175-2837 |
3/4 inch nipple fitting (OBSOLETE) |
1 |
|
| 10 |
175-2838 |
Bulkhead fitting 3/4 inch (OBSOLETE) |
1 |
|
| 11 |
175-2840 |
24V solution pump |
1 |
|
| 12a |
175-6318 |
Hose 3/8 x 8 inch |
1 |
(from 09.2001 to 06.2006) |
| 12b |
175-4885 |
Hose 3/8 x 8 |
1 |
(after 06.2006) |
| 14 |
175-2842 |
Check valve |
1 |
|
| 15a |
175-6318 |
Hose 3/8 x 8 inch |
1 |
(from 09.2001 to 06.2006) |
| 15b |
175-8777 |
Hose 3/8 x 1 1/4 foot |
1 |
(after 06.2006) |
| 16 |
175-2844 |
90 degree elbow fitting |
1 |
|
| N/S |
175-3724 |
Extended scrub wire harness (OBSOLETE) |
1 |
|
| N/S |
175-2839 |
Filter decal (OBSOLETE) |
1 |
|
|
|

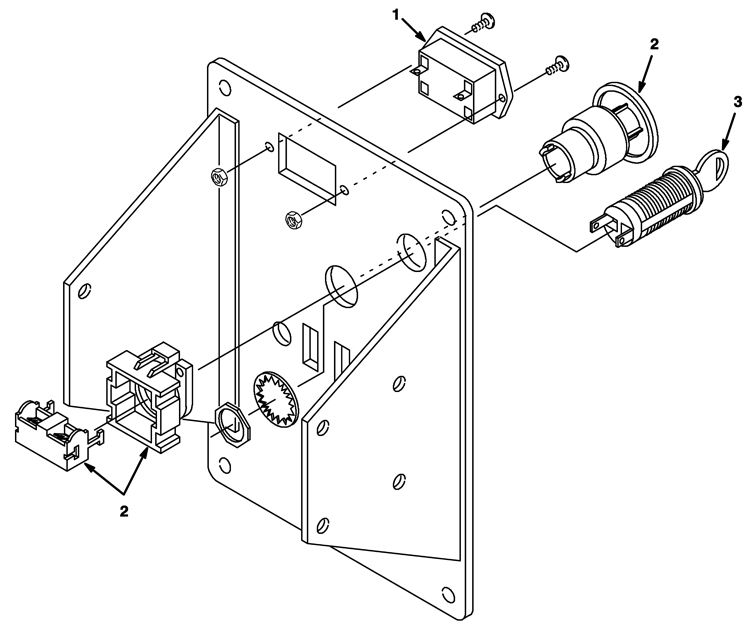

Hour Meter, Emergency Stop, Keyswitch, and Low Voltage Kits - 275-9957 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
175-3148 |
Hour meter kit |
1 |
(includes 1b-1d) |
| 1c |
175-3725 |
Wire #18 x 5 inchblue ASM |
1 |
|
| 1d |
175-3726 |
Wire #18 x 5 inchblack ASM |
1 |
|
| 2a |
175-3150 |
Emergency stop kit |
1 |
(includes 2b-2e) |
| 2b |
275-1416 |
Safety shut-off switch |
1 |
|
| 2c |
175-1220 |
5 inch wire assembly (red) |
1 |
|
| 2d |
175-1221 |
5 inch wire assembly (red) |
1 |
|
| 3a |
175-3145 |
Key switch kit |
1 |
(includes 3b-3c) |
| 3b |
175-3727 |
Key switch (OBSOLETE) |
1 |
|
| 3c |
175-0185 |
Double sided key (steel) |
1 |
|
| N/S |
175-3149 |
Low voltage cutoff kit (OBSOLETE) |
1 |
(includes the following not shown parts) |
| N/S |
175-3728 |
24V battery gauge with screw |
1 |
|
| N/S |
175-3149 |
Low voltage cutoff kit (OBSOLETE) |
1 |
|
| N/S |
175-3730 |
9 inch wire assembly (green) |
1 |
|
| N/S |
175-1216 |
8 inch wire assembly with terminal ring (black) |
1 |
|
| N/S |
175-1214 |
12 inch wire assembly (red) |
1 |
|
|
|

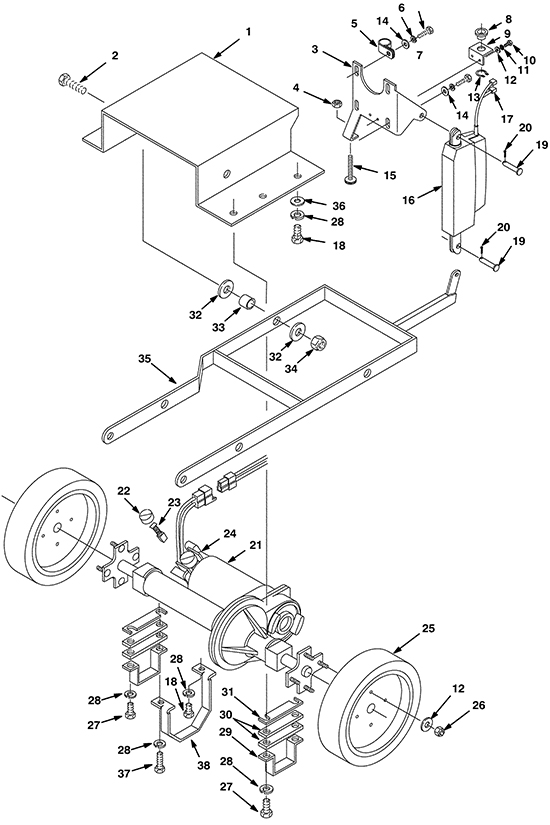

Drive Assembly - Before 02.2002 - 375-9379 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-3002 |
Base transaxle plate |
1 |
|
| 2 |
999-0687 |
Bolt 1/2-13 x 1 1/4 hex head stainless steel |
2 |
|
| 3 |
275-4594 |
Actuator bracket |
1 |
|
| 4 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
2 |
|
| 6 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 7 |
999-1653 |
Screw M8-1.25 x 30mm hex head stainless steel |
4 |
|
| 8 |
175-8735 |
Cable bushing |
1 |
|
| 9 |
175-3007 |
Cable guide bracket |
1 |
|
| 10 |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
2 |
|
| 11 |
999-1024 |
Washer 1/4 external tooth lock stainless steel |
2 |
|
| 12 |
999-0016 |
Washer 1/4 flat plain finish |
10 |
|
| 13 |
175-3008 |
Retaining ring |
1 |
|
| 14 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 15 |
175-3009 |
Round knob assembly |
1 |
|
| 17 |
175-3011 |
Female terminal |
2 |
|
| 18 |
175-2947 |
Bolt M10 x 1-1/2 x 16 hex head stainless steel |
2 |
|
| 21 |
175-3013 |
24V transaxle kit |
1 |
|
| 23 |
175-3015 |
Carbon brush (sold individually) |
2 |
|
| 24 |
175-3013 |
24V transaxle kit |
1 |
|
| 25 |
175-3017 |
Neoprene solid wheel |
2 |
|
| 26 |
999-1201 |
Nut 1/4-28 nylon insert lock hex stainless steel |
8 |
|
| 27 |
175-3019 |
Screw M10 x 35mm |
3 |
|
| 28 |
999-1081 |
Washer M10 split lock stainless steel |
6 |
|
| 29 |
175-3020 |
Transaxle mounting bracket |
2 |
|
| 30 |
175-3021 |
Axle spacer (OBSOLETE) |
4 |
|
| 31 |
175-3022 |
Spacer (OBSOLETE) |
2 |
|
| 32 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
| 34 |
999-1208 |
Nut 1/2-13 nylon insert lock stainless steel |
2 |
|
| 35 |
175-3650 |
Lift scrub head bracket |
1 |
|
| 36 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 37 |
175-5037 |
Bolt M10 x 45mm hex head |
1 |
|
| 38 |
175-3026 |
Transaxle guard (OBSOLETE) |
1 |
|
|
|

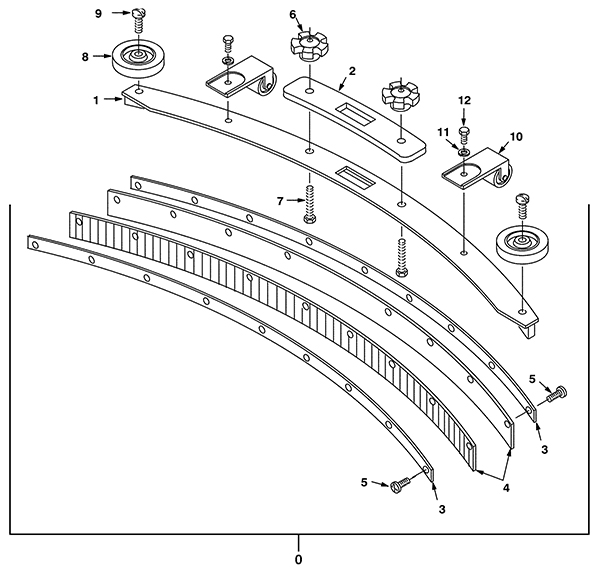

Squeegee Assembly - Before 09.2001 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Batteries - 999-5055 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0011 |
12V 105Ah wet battery (SNSR) |
2 |
|
| 2 |
162-0042 |
12V 115Ah AGM battery (Group 31) |
2 |
|
| 3 |
162-1014 |
12V 130ah AGM battery |
2 |
|
|
|
- Chargers - 999-5065 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-5060 |
24V 20amp battery charger with small SB50 red plug |
1 |
|
| 2 |
162-5070 |
24V 20amp AGM battery charger with small SB50 red plug |
1 |
|
| 3 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 4a |
162-5079 |
SCR assembly kit |
1 |
|
| 4b |
372-1254 |
Fuse assembly |
1 |
|
| 5 |
162-5087 |
AC cord set kit |
1 |
|
| 6 |
162-5081 |
Control board assembly |
1 |
|
|
|
- Frequently Replaced Parts - 999-9983 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0011 |
12V 105Ah wet battery (SNSR) |
|
(2) |
| 2 |
162-0042 |
12V 115Ah AGM battery (Group 31) |
|
(2) |
| 3 |
162-5124 |
24V 12amp smart battery charger with small SB50 red plug |
|
|
| 4 |
991-2103 |
50amp charger plug SB50 with pins (red) |
|
|
| 5 |
998-0010 |
Battery jumper cable - ring type (red) |
|
|
| 6 |
175-3727 |
Key switch (OBSOLETE) |
|
|
| 7 |
175-0185 |
Double sided key (steel) |
|
|
| 8 |
175-3098 |
Lighted on/off rocker switch |
|
(vac and brush) |
| 9a |
175-3684 |
24V solenoid valve |
|
(OEM) |
| 19b |
993-0744 |
VALVE 24V. |
|
(NON-OEM) |
| 10a |
175-9025 |
In-line screen filter assembly |
|
(OEM) |
| 10b |
991-8582 |
Mesh inline filter |
|
(NON-OEM) |
| 11 |
175-3713 |
Squeegee blade 33 inch gum rubber rear (tan) |
|
XR Squeegee |
| 12 |
175-3712 |
Squeegee blade 33 inch gum rubber front (tan) |
|
XR Squeegee |
| 13 |
175-2851 |
Squeegee blade 33 inch linatex curved rear (red) |
|
XR Squeegee |
| 14 |
175-2850 |
Squeegee blade 33 inch linatex curved front (red) |
|
XR Squeegee |
| 15 |
175-3090 |
31 inch curved squeegee blade urethane |
|
Standard Squeegee, 2 required |
| 16 |
175-3067 |
Vacuum hose 1 1/2 x 30 inch with cuffs |
|
|
| 17a |
164-0044 |
Tank lid (clear) |
|
(OEM) |
| 17b |
991-1928 |
Tank lid (clear) (OBSOLETE) |
|
(NON-OEM) |
| 18 |
175-2653 |
1 1/2 inch expansion plug |
|
|
| 20a |
275-5736 |
24V 3 stage vacuum motor |
|
(OEM) |
| 20b |
991-1210 |
24V 3 stage vacuum motor tangential |
|
(NON-OEM) |
| 21 |
175-2658 |
Carbon brush (pkg of 2) |
|
|
| 22 |
996-3071 |
19 inch value daily cleaning brush assembly (OBSOLETE) |
|
|
| 23 |
996-1385 |
19 inch heavy grit stripping brush - 80 grit |
|
|
| 24 |
996-0124 |
19 inch medium grit scrubbing brush - 180 grit |
|
|
| 25 |
996-1386 |
19 inch lite grit scrubbing brush - 500 grit |
|
|
| 26 |
996-0605 |
19 inch Pad driver |
|
|
| 27 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
|
|
| 28 |
991-2202 |
Big mouth pad holder set (blue) |
|
|
|
|
