Low Pressure Upholstery Tool Assembly - Model 1002564 - 175-6128 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-4855 |
Low pressure upholstery tool assembly |
1 |
(includes 001-014) |
| 001 |
175-4856 |
Upholstery tool cover |
1 |
|
| 003 |
175-4858 |
Valve assembly |
1 |
|
| 004 |
175-4859 |
Solution valve |
1 |
|
| 006 |
175-4861 |
Screw 6-32 x 3/4 inch |
4 |
|
| 008 |
175-4863 |
Vacuum hose without cuffs |
1 |
|
| 009 |
175-4864 |
Solution hose |
1 |
|
| 011 |
175-4866 |
Inline filter assembly |
1 |
|
| 012 |
175-4867 |
Filter screen |
1 |
|
| 013 |
175-6239 |
1/4 inch nipple |
1 |
|
| 014 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
|
Low Pressure Wand Assembly - Model 1002564 - 275-2221 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
175-3563 |
13 inch low pressure wand assembly |
1 |
(Includes 1a, 2-3a, 4-19b, 20-26) |
| 0b |
175-4314 |
16 inch low pressure wand assembly |
1 |
(Includes 1b-2, 3b-18, 19c-26) |
| 1a |
175-1810 |
13 inch floor tool |
1 |
|
| 1b |
175-4299 |
16 inch floor tool |
1 |
|
| 2 |
175-3564 |
Low pressure tool decal |
1 |
|
| 3a |
175-1321 |
13 inch pick-up shoe plate stainless steel |
2 |
|
| 3b |
175-6146 |
16 inch pick-up shoe plate stainless steel |
2 |
|
| 4 |
175-1812 |
Handle assembly (OBSOLETE) |
1 |
(Includes 5-7) |
| 5 |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
2 |
|
| 7 |
999-0990 |
Screw 1/4-20 x 5/8 flat head phillips stainless steel |
2 |
|
| 8 |
175-1816 |
Handle sleeve |
1 |
|
| 11 |
175-1818 |
Nut 1/4 push |
2 |
|
| 12 |
175-6031 |
Straight jet fitting |
1 |
|
| 13 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
| 14 |
175-1819 |
Manual valve assembly |
1 |
(includes 15) |
| 15 |
175-1820 |
Valve pin and spring kit |
1 |
|
| 16 |
175-3565 |
Solution hose assembly |
1 |
|
| 17 |
175-6239 |
1/4 inch nipple |
1 |
|
| 19a |
175-1826 |
Spray bar without tips for 13 inch wand |
1 |
(includes 19b, 20-22) |
| 19b |
175-1829 |
Tee fitting |
1 |
|
| 19c |
175-4313 |
Spray bar without tips for 16 inch wand |
1 |
(includes 19d-22) |
| 19d |
175-6253 |
1/4 inch brass tee |
1 |
|
| 19e |
175-6029 |
Straight tee |
2 |
|
| 21 |
175-6248 |
90 degree elbow |
2 |
|
| 22 |
175-1830 |
1/4 inch male spray body |
3 |
(qty 4 for 16 inch) |
| 23 |
175-1802 |
Mesh screen filter |
3 |
(qty 4 for 16 inch) |
| 24 |
175-3566 |
T-jet tip fitting |
3 |
(qty 4 for 16 inch) |
| 25 |
175-1834 |
Spray nozzle cap |
3 |
(qty 4 for 16 inch) |
|
|
Hand Tool Assembly - 5 inch - Model 1002564 - 275-4171 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-3567 |
5 inch hand tool assembly |
1 |
(Includes 1-12) |
| 1 |
175-3568 |
5 inch hand tool |
1 |
|
| 2 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
| 3 |
175-6239 |
1/4 inch nipple |
2 |
|
| 4 |
175-3569 |
Hand tool trigger |
1 |
|
| 8 |
175-6031 |
Straight jet fitting |
1 |
|
| 10 |
175-1802 |
Mesh screen filter |
1 |
|
| 12 |
175-1834 |
Spray nozzle cap |
1 |
|
|
|
Hand Tool Assembly - 3 inch - Model 1002564 - 275-4172 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
175-4827 |
3 inch crevice tool assembly |
1 |
(Includes 001-007) |
| 001 |
175-4828 |
3 inch crevice tool |
1 |
|
| 002 |
175-4829 |
Brass v-jet fitting |
1 |
|
| 003 |
175-1939 |
Ball valve |
1 |
|
| 004 |
175-4830 |
Valve handle |
1 |
|
| 005 |
175-4831 |
Solution hose |
1 |
|
| 006 |
175-4832 |
Straight fitting |
1 |
|
| 007 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
|
|

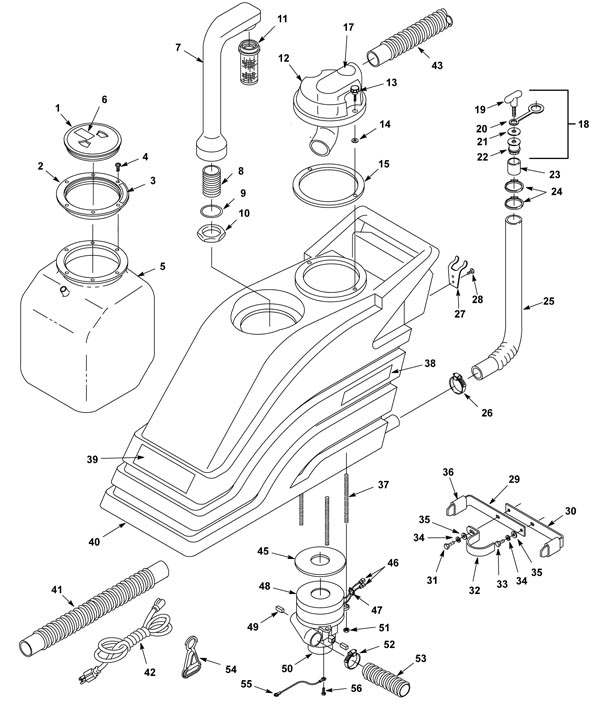

Recovery Tank Assembly - Model 1002564 - 275-9220 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
175-6045 |
Tank lid assembly |
1 |
(includes 1b and 2) |
| 1b |
164-0044 |
Tank lid (clear) |
1 |
|
| 1c |
991-1928 |
Tank lid (clear) (OBSOLETE) |
1 |
(NON-OEM) |
| 2 |
175-3580 |
Outer tank lid ring |
1 |
|
| 3 |
175-6101 |
Always close decal |
1 |
|
| 4 |
999-1028 |
Screw 10-24 x 3/4 truss head phillips stainless steel |
6 |
|
| 5 |
175-6083 |
10 gallon bladder bag |
1 |
|
| 6 |
175-6107 |
Always drain decal |
1 |
|
| 7 |
175-6047 |
Standpipe |
1 |
(includes 8) |
| 8 |
175-2639 |
1 1/2 inch nipple fitting |
1 |
|
| 10 |
175-2907 |
Nut 1 1/2 flanged hex |
1 |
|
| 11a |
675-9887 |
Shut-off float |
1 |
(OEM) |
| 11b |
991-5136 |
Shut-off float |
1 |
(NON-OEM) |
| 12a |
175-6048 |
Tank lid assembly |
1 |
(includes 12b-17) |
| 14 |
175-6161 |
Nylon washer |
2 |
|
| 15 |
175-6049 |
Tank lid gasket |
1 |
|
| 17 |
175-6109 |
Do not allow foam decal |
1 |
|
| 18 |
175-6070 |
Drain plug assembly |
1 |
(includes 19-22) |
| 19 |
175-6071 |
Drain plug knob |
1 |
|
| 20 |
175-6072 |
Drain plug strap |
1 |
|
| 21 |
175-6162 |
Washer 3/8 flat fender stainless steel |
1 |
|
| 23 |
175-6074 |
Drain hose sleeve |
1 |
|
| 25a |
175-1535 |
Drain hose assembly |
1 |
(OEM) |
| 25b |
991-1907 |
22 inch molded hose with drain cap |
1 |
(NON-OEM) |
| 27 |
175-6069 |
Drain hose bracket |
1 |
|
| 28 |
999-0447 |
Screw 6-32 x 1/2 pan head phillips zinc plated |
2 |
|
| 29 |
175-6100 |
Tank brace bracket with holes |
1 |
|
| 30 |
175-6099 |
Tank brace bracket with threads |
1 |
|
| 31 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
1 |
|
| 32 |
175-6103 |
Tank brace clamp |
1 |
|
| 33 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
1 |
|
| 34 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 35 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 37 |
175-6078 |
Stud 1/4-20 x 5 inch full threaded |
3 |
|
| 38a |
175-7209 |
Logo decal (OBSOLETE) |
2 |
(1016) |
| 38b |
175-7210 |
Logo decal (OBSOLETE) |
2 |
(1020) |
| 39 |
275-5867 |
Front decal |
1 |
|
| 40 |
175-7211 |
Recovery tank (teal) |
1 |
|
| 41 |
175-9503 |
Vacuum hose 1 1/2 x 36 inch (OBSOLETE) |
1 |
|
| 42a |
175-6091 |
16/3 extension cord 50 foot (yellow) |
1 |
(OEM) |
| 42b |
991-5002 |
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
| 43a |
175-6038 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(OEM) |
| 43b |
991-5154 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(NON-OEM) |
| 45 |
175-6084 |
Vacuum motor gasket |
1 |
|
| 46 |
175-3011 |
Female terminal |
2 |
|
| 48a |
175-0198 |
120V 3 stage vacuum motor |
1 |
(Tennant) (includes 48c-50) |
| 48b |
991-1213 |
120V 3 stage vacuum motor tangential |
1 |
(Ametek-Lamb) |
| 48c |
175-0140 |
Terminal ring #10 |
1 |
|
| 49 |
175-6086 |
Carbon brush (pkg of 2) |
1 |
|
| 51 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 53 |
175-6090 |
Exhaust hose 2 x 26 inch (black) |
1 |
|
| 54 |
175-0236 |
Cord belt clip |
1 |
|
| 55 |
175-7215 |
18 gauge wire assembly |
1 |
|
| 56 |
999-0557 |
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
1 |
|
|
|

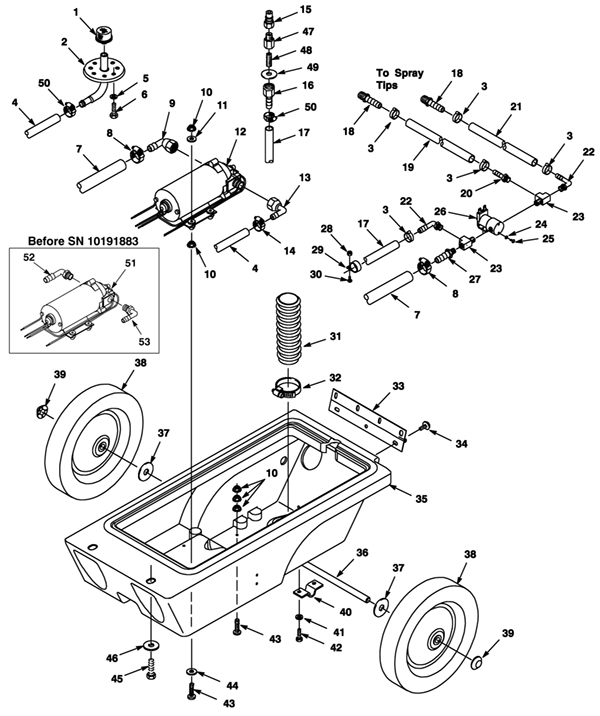

Chassis Assembly - Model 1002564 - 275-9920 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-6079 |
Mesh filter screen |
1 |
|
| 2 |
175-6021 |
Bladder plate fitting |
1 |
|
| 4 |
175-7216 |
Hose 3/8 x 31 inch (gray) |
1 |
|
| 5 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 6 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
4 |
|
| 7 |
175-7221 |
24 inch hose (red) |
1 |
|
| 10 |
999-0356 |
Nut 10-24 lock stainless steel |
11 |
|
| 11 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 12a |
275-9114 |
120V 100 PSI pump |
1 |
|
| 12b |
175-0142 |
1/4 inch male terminal |
1 |
|
| 12c |
175-0140 |
Terminal ring #10 |
1 |
|
| 13 |
175-9868 |
Swivel fitting 1/2 x 3/8 inch |
1 |
|
| 15 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
| 16 |
175-6022 |
Brass fitting |
1 |
|
| 18 |
175-2613 |
Straight brass fitting |
2 |
|
| 20 |
175-7218 |
Plastic straight fitting |
1 |
|
| 21 |
275-4905 |
Hose 3/8 x 22 1/2 inch (gray) |
1 |
|
| 22 |
175-2844 |
90 degree elbow fitting |
2 |
|
| 23 |
175-6029 |
Straight tee |
2 |
|
| 24 |
999-1083 |
Washer #8 internal star lock stainless steel |
2 |
|
| 25 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
2 |
|
| 26a |
175-6025 |
Solution solenoid valve |
1 |
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
| 26b |
991-8598 |
Replacement plunger with spring for solenoid valve |
1 |
|
| 27 |
175-6030 |
Straight hosebarb |
1 |
|
| 28 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 30 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
1 |
|
| 31 |
175-6090 |
Exhaust hose 2 x 26 inch (black) |
1 |
|
| 34 |
999-0557 |
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
7 |
|
| 35a |
275-9960 |
Chassis frame (OBSOLETE) |
1 |
(1016) |
| 35b |
175-7220 |
Chassis frame (OBSOLETE) |
1 |
(1020) |
| 37 |
999-0187 |
Washer 1/2 flat plain finish |
2 |
|
| 40 |
175-6098 |
Axle bracket |
2 |
|
| 41 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 42 |
999-0633 |
Bolt 1/4-20 x 5/8 hex head stainless steel |
4 |
|
| 43 |
999-0002 |
Screw 10-24 x 1 1/2 pan head phillips zinc plated |
5 |
|
| 44 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 45 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
2 |
|
| 46 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 49 |
999-0187 |
Washer 1/2 flat plain finish |
1 |
|
| 51a |
175-6011 |
120V 100 PSI pump |
1 |
(OEM) (before SN 10191883) |
| 51b |
175-3011 |
Female terminal |
1 |
(before SN 10191883) |
| 51c |
175-0140 |
Terminal ring #10 |
1 |
(before SN 10191883) |
| 51d |
991-8225 |
Shurflo pump |
1 |
(NON-OEM) |
| 52 |
175-6016 |
Elbow |
1 |
(before SN 10191883) |
| 53 |
175-6019 |
90 degree barbed elbow |
1 |
(before SN 10191883) |
|
|

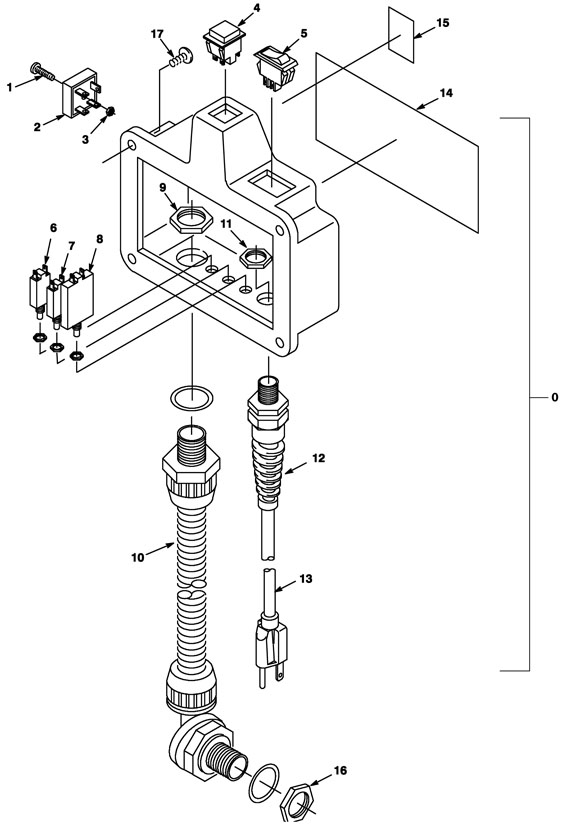

Control Console Assembly - Model 1002564 - 275-9921 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
175-7222 |
120V control box assembly (black) |
1 |
(includes 1-15) |
| 2 |
175-6052 |
15amp rectifier |
1 |
|
| 3 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 4 |
175-6057 |
Brush pulse switch |
1 |
Brush pressure switch |
| 5 |
175-0005 |
Rocker switch |
1 |
On/off switch |
| 6 |
175-6060 |
1.5amp circuit breaker |
1 |
(pump) |
| 7 |
275-5777 |
2amp circuit breaker |
1 |
(brush) |
| 8 |
175-6061 |
12amp circuit breaker |
1 |
(vacuum) |
| 9 |
175-6158 |
Nut 1/2 conduit |
1 |
|
| 10 |
175-3554 |
Wiring harness |
1 |
|
| 12 |
175-0001 |
Strain relief |
1 |
|
| 13a |
175-6064 |
14/3 pigtail cord 18 inch |
1 |
|
| 13b |
991-5002 |
16/3 extension cord 50 foot (orange) |
1 |
|
| 14 |
175-3906 |
Warning decal |
1 |
|
| 15 |
175-3562 |
On/off decal |
1 |
|
| 16 |
175-6158 |
Nut 1/2 conduit |
1 |
|
| 17 |
999-0557 |
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
4 |
|
|
|

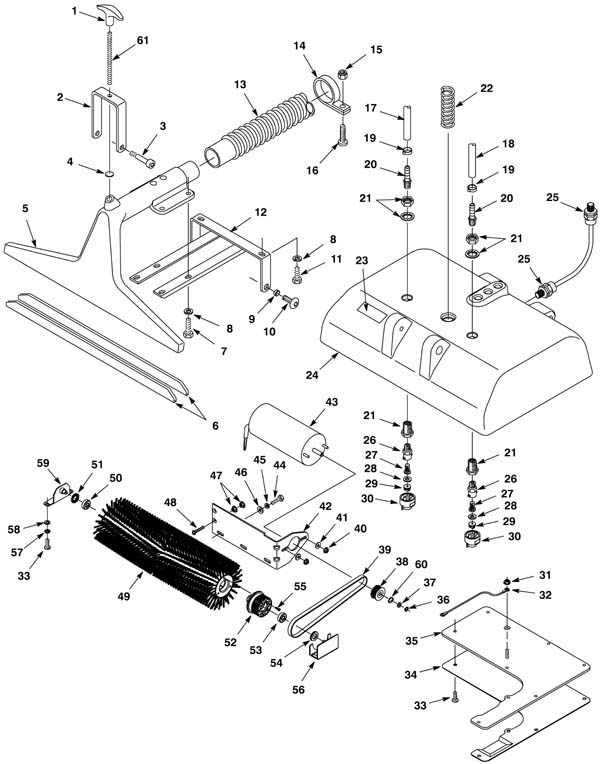

Brush Base Assembly - Model 1002564 - 275-9922 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
175-6113 |
Height adjustment knob |
1 |
|
| 2 |
175-6152 |
Height adjustment bracket |
1 |
|
| 3 |
175-6156 |
Screw 3/8 x 3/4 shoulder |
2 |
|
| 5a |
175-6148 |
16 inch pick-up tool (black) |
1 |
(1016) |
| 5b |
175-6151 |
20 inch pick-up tool (black) |
1 |
(1020) |
| 6a |
175-6146 |
16 inch pick-up shoe plate stainless steel |
2 |
(1016) |
| 6b |
175-6147 |
20 inch pick-up shoe plate stainless steel |
2 |
(1020) |
| 7 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
| 8 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 10 |
175-6187 |
Screw 3/8-16 x 3/4 inch truss head phillips |
2 |
|
| 11 |
999-0030 |
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
2 |
|
| 12 |
175-6153 |
Mounting bracket |
1 |
|
| 13a |
175-6038 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(OEM) |
| 13b |
991-5154 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
1 |
(NON-OEM) |
| 15 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 16 |
999-0009 |
Screw 10-24 x 1 round head slotted zinc plated |
1 |
|
| 17 |
175-4868 |
Hose 3/8 x 24 1/2 inch (gray) |
1 |
|
| 18 |
175-7292 |
Vinyl tubing 3/8 x 30 inch (gray) |
1 |
|
| 20 |
175-2613 |
Straight brass fitting |
2 |
|
| 21 |
175-4814 |
Brass strainer fitting |
2 |
|
| 22 |
175-7224 |
Compression spring |
1 |
|
| 23 |
175-6108 |
Height adjustment decal |
1 |
|
| 24a |
275-6110 |
16 inch (400mm) brush housing (gray) |
1 |
(1016) |
| 24b |
175-3538 |
20 inch base (black) |
1 |
(1020) |
| 26 |
175-4192 |
Quick jet body |
2 |
|
| 27 |
175-4204 |
Check valve filter screen |
2 |
|
| 28 |
175-4193 |
Quick jet gasket |
2 |
|
| 29a |
175-7242 |
T-jet fitting (OBSOLETE) |
2 |
(1016) |
| 29b |
175-7227 |
Spray jet tip |
2 |
(1020) |
| 30 |
175-4194 |
Quick jet cap (green) |
2 |
|
| 31 |
999-0356 |
Nut 10-24 lock stainless steel |
1 |
|
| 32 |
175-3578 |
Ground wire assembly |
1 |
|
| 33 |
175-3689 |
Screw M5-.8 x 12mm truss head phillips stainless steel |
10 |
|
| 34 |
175-7228 |
Brush base plate |
1 |
|
| 35 |
175-7229 |
Brush base plate gasket |
1 |
|
| 36 |
175-7230 |
Retaining clip |
1 |
|
| 37 |
999-1666 |
Washer M7 flat stainless steel |
1 |
|
| 38 |
175-7231 |
Motor pulley |
1 |
|
| 40 |
999-0239 |
Nut 10-32 k-lock zinc plated |
2 |
|
| 41 |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
|
| 42 |
175-6438 |
Motor mounting bracket |
1 |
|
| 43 |
175-7232 |
120V 1/4HP brush motor |
1 |
|
| 44 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
2 |
|
| 45 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 46 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 47 |
999-0356 |
Nut 10-24 lock stainless steel |
2 |
|
| 48 |
999-0421 |
Screw 10-24 x 1/2 flat head phillips zinc plated |
1 |
|
| 49a |
175-7233 |
13 inch stiff scrub brush assembly - CYLINDRICAL (OBSOLETE) |
1 |
(1016) (includes 050 and 051) |
| 49c |
175-7235 |
17 inch stiff scrub brush assembly - CYLINDRICAL |
1 |
(1020) (includes 050 and 051) |
| 49d |
175-7236 |
17 inch soft scrub brush assembly - CYLINDRICAL |
1 |
(1020) (includes 050 and 051) |
| 50a |
175-0069 |
Brush bearing |
1 |
(OEM) |
| 50b |
991-5125 |
Brush bearing |
1 |
(NON-OEM) |
| 52 |
175-7237 |
Brush pulley assembly |
1 |
(includes 53 and 54) |
| 53a |
175-0069 |
Brush bearing |
1 |
(OEM) |
| 53b |
991-5125 |
Brush bearing |
1 |
(NON-OEM) |
| 55 |
175-7238 |
Screw 6 x 1 pan head phillips stainless steel |
3 |
|
| 57 |
999-1026 |
Washer #10 internal lock stainless steel |
2 |
|
| 58 |
999-0393 |
Washer 3/16 flat aluminum |
2 |
|
| 60 |
175-7241 |
Washer 3/8 wave |
1 |
|
| 61 |
175-6114 |
Threaded stud |
1 |
|
|
|

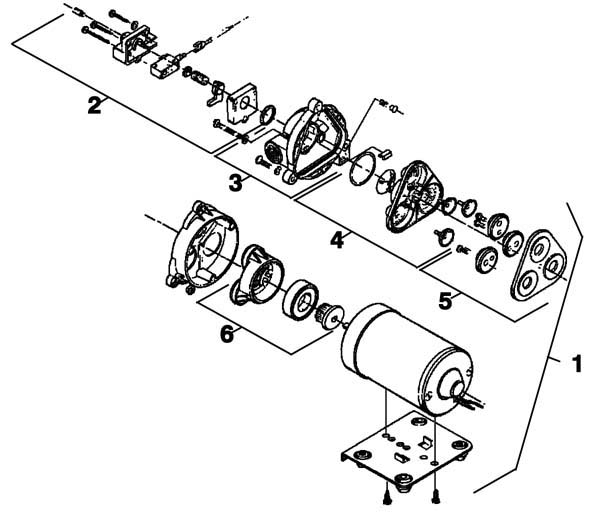

Pump Breakdown Assembly - Model 1002564 - 275-9924 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
175-6011 |
120V 100 PSI pump |
1 |
(OEM) (before SN 10191883) (includes 2a-6) |
| 1b |
991-8225 |
Shurflo pump |
1 |
(NON-OEM) |
| 2a |
175-6003 |
Pressure switch kit |
1 |
(OEM) (includes 2c and 2d) |
| 2b |
993-1411 |
Pressure switch kit |
1 |
(NON-OEM) |
| 2c |
175-6004 |
Viton pressure switch kit |
1 |
|
| 2d |
175-6005 |
Shurflo diaphragm switch kit |
1 |
|
| 3a |
175-6006 |
Upper pump housing kit |
1 |
(includes 3b) |
| 3b |
175-6007 |
Check valve kit |
1 |
|
| 5 |
175-6009 |
Shurflo valve kit |
1 |
|
| 6 |
175-6010 |
Lower pump housing kit |
1 |
|
|
|

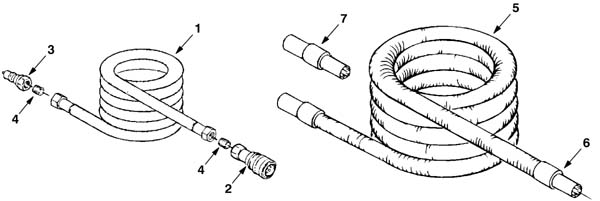

Solution and Vacuum Hose Assembly - Model 1002564 - 275-9930 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
175-3586 |
15 foot solution hose assembly |
1 |
(includes 2-4) |
| 1b |
175-3587 |
25 foot solution hose assembly |
1 |
(includes 2-4) |
| 1c |
175-3588 |
50 foot solution hose assembly |
1 |
(includes 2-4) |
| 2 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
1 |
|
| 3 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
1 |
|
| 5a |
175-3589 |
15 foot vacuum hose assembly |
1 |
(includes 6 and 7) |
| 5b |
175-3590 |
25 foot vacuum hose assembly |
1 |
(includes 6 and 7) |
| 5c |
175-3591 |
50 foot vacuum hose assembly |
1 |
(includes 6 and 7) |
| 6 |
175-6269 |
1 1/2 inch hose cuff (OBSOLETE) |
2 |
|
| N/S |
175-2646 |
Hose bag with draw string |
1 |
|
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
- Frequently Replaced Parts - Model 1002564 - 999-9973 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
175-6064 |
14/3 pigtail cord 18 inch |
|
|
| 02 |
991-5002 |
16/3 extension cord 50 foot (orange) |
|
|
| 03 |
175-0001 |
Strain relief |
|
|
| 04 |
175-0005 |
Rocker switch |
|
(power and vac) |
| 05 |
175-6057 |
Brush pulse switch |
|
(brush) |
| 06a |
175-6025 |
Solution solenoid valve |
|
(if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) |
| 06b |
991-8598 |
Replacement plunger with spring for solenoid valve |
1 |
|
| 07 |
172-4204 |
Screw M4-.7 x 10mm stainless steel |
|
|
| 08a |
175-6038 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
|
(OEM) |
| 08b |
991-5154 |
Vacuum hose with cuffs 1 1/2 x 53 inch |
|
(NON-OEM) |
| 10 |
175-6049 |
Tank lid gasket |
|
|
| 11a |
175-4214 |
Drain plug assembly |
|
|
| 11b |
991-3028 |
Drain plug assembly |
|
|
| 12a |
175-1535 |
Drain hose assembly |
|
|
| 12b |
991-1907 |
22 inch molded hose with drain cap |
|
(NON-OEM) |
| 13 |
175-0198 |
120V 3 stage vacuum motor |
|
(Nobles) |
| 14 |
991-1213 |
120V 3 stage vacuum motor tangential |
|
(Ametek-Lamb) |
| 15 |
275-9114 |
120V 100 PSI pump |
|
|
| 17a |
675-9887 |
Shut-off float |
|
(OEM) |
| 17b |
991-5136 |
Shut-off float |
|
(NON-OEM) |
| 18 |
175-4814 |
Brass strainer fitting |
|
|
| 19 |
175-6079 |
Mesh filter screen |
|
|
| 20 |
175-4192 |
Quick jet body |
|
|
| 21 |
175-4193 |
Quick jet gasket |
|
|
| 22 |
175-7242 |
T-jet fitting (OBSOLETE) |
|
|
| 23 |
175-4194 |
Quick jet cap (green) |
|
|
| 24 |
372-3063 |
Belt tension pulley |
|
|
|
|
