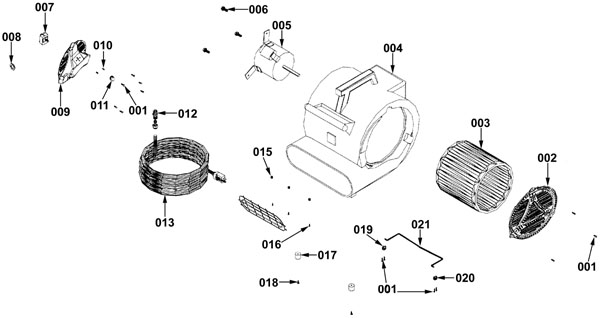

Assembly - 175-1189 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
275-4598 |
Screw 6-20 x 1/2 pan head phillips thread forming |
|
|
| 002 |
275-4599 |
Intake panel (OBSOLETE) |
|
|
| 003 |
275-4600 |
Blower fan with locknut (OBSOLETE) |
|
|
| 004 |
275-4601 |
Body housing (black) |
|
|
| 005 |
275-4602 |
.5 HP motor with capacitor (OBSOLETE) |
|
|
| 006 |
999-0578 |
Bolt 3/8-16 x 1/2 hex head grade 5 plain finish |
|
|
| 007 |
275-4603 |
Switch (OBSOLETE) |
|
|
| 008 |
275-4604 |
Nut 1/2 metal conduit lock |
|
|
| 009 |
275-4605 |
Motor control housing panel |
|
|
| 010 |
275-4606 |
Screw M4 x 6 flat head phillips |
|
|
| 011 |
275-4607 |
Switch knob (OBSOLETE) |
|
|
| 012 |
275-4608 |
Strain relief (OBSOLETE) |
|
|
| 013a |
275-4609 |
14/3 power cord 25 foot |
|
|
| 013b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) |
| 014 |
275-4610 |
Discharge guard |
|
|
| 015 |
275-4611 |
Nut 8-32 x 1/2 nylock |
|
|
| 016 |
999-0462 |
Screw 8-32 x 1/2 pan head slotted zinc plated |
|
|
| 017 |
275-4612 |
Rubber foot bumper (black) |
|
|
| 018 |
999-0697 |
Screw 8-32 x 3/4 pan head phillips stainless steel |
|
|
| 019 |
275-4613 |
Right tilt foot stand |
|
|
| 020 |
275-4614 |
Left tilt foot stand |
|
|
| 021b |
275-4616 |
Handle and wheels |
|
|
|
|

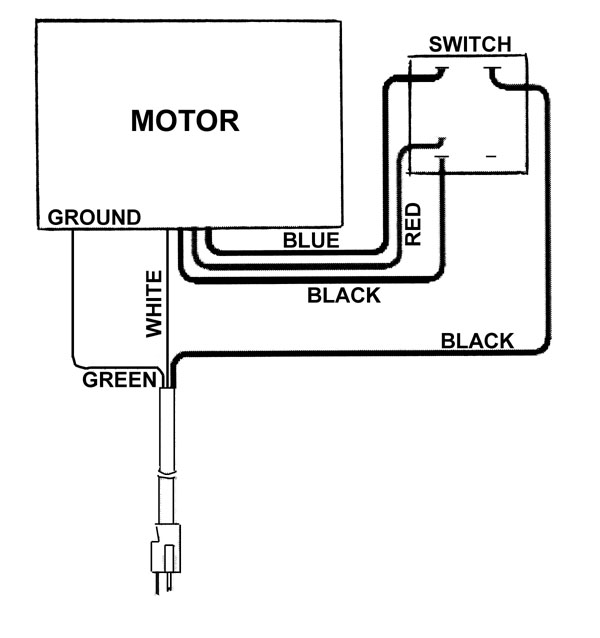

Electrical Diagram - |
|
