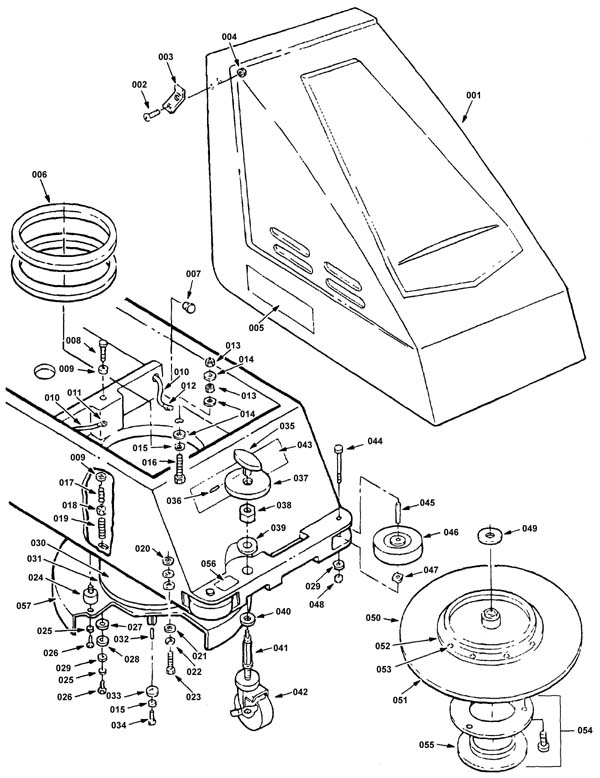

Brush Drive Assembly - 175-1006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-1098 |
Battery cover (OBSOLETE) |
1 |
|
| 002 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
4 |
|
| 003a |
175-3369 |
Hood latch |
2 |
|
| 003b |
991-8561 |
Rubber draw latch with keeper |
2 |
|
| 004 |
999-0195 |
Nut 6-32 hex plain |
4 |
|
| 005 |
175-1099 |
Side decal (OBSOLETE) |
2 |
|
| 007 |
N/A |
Not available |
1 |
(not available) |
| 008 |
175-1101 |
Screw (OBSOLETE) |
2 |
|
| 009 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
1 |
|
| 010 |
N/A |
Not available |
2 |
Wire assembly |
| 011 |
175-1103 |
Battery cable boot (black) |
1 |
|
| 012 |
175-1103 |
Battery cable boot (black) |
1 |
|
| 013 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
2 |
|
| 014 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 015 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
1 |
|
| 016 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
| 017 |
N/A |
Not available |
1 |
(not available) |
| 018 |
999-0182 |
Nut 1/2-20 hex plain finish |
1 |
|
| 019 |
N/A |
Not available |
1 |
Threaded spacer |
| 020 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 021 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 022 |
999-0632 |
Washer 1/4 split lock stainless steel |
1 |
|
| 023 |
999-0076 |
Bolt 1/2-20 x 1 hex head grade 5 plain finish |
1 |
|
| 024 |
N/A |
Not available |
1 |
(not available) |
| 025 |
999-0034 |
Washer 3/8 split lock plain finish |
1 |
|
| 026 |
175-1108 |
Screw .36 x .62 hex head |
1 |
|
| 027 |
999-0187 |
Washer 1/2 flat plain finish |
1 |
|
| 029 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 030a |
175-1112 |
24 Volt motor |
1 |
|
| 030b |
175-1113 |
Carbon brush (sold individually) |
4 |
Sold each |
| 032 |
175-1087 |
Square keyway |
1 |
|
| 033 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 034 |
999-1194 |
Screw 5/16-24 x 1 1/4 hex head stainless steel |
1 |
|
| 035 |
N/A |
Not available |
1 |
Knob |
| 036 |
999-0944 |
Screw 10-32 x 1/4 cup point socket set alloy plain finish |
1 |
|
| 037 |
N/A |
Not available |
1 |
(not available) |
| 038 |
N/A |
Not available |
1 |
(not available) |
| 039 |
N/A |
Not available |
1 |
Tapered washer |
| 040 |
175-3390 |
Drain tank cap 3.85 thread pye |
1 |
|
| 041 |
N/A |
Not available |
1 |
(not available) |
| 042 |
N/A |
Not available |
1 |
(not available) |
| 043 |
175-0912 |
Nobles decal (OBSOLETE) |
1 |
|
| 044 |
N/A |
Not available |
2 |
Screw |
| 045 |
N/A |
Not available |
2 |
(not available) |
| 046 |
N/A |
Not available |
2 |
(not available) |
| 047 |
175-0293 |
Washer 1/2 compression zinc plated |
2 |
|
| 048 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
| 049 |
999-0006 |
Washer 3/16 flat zinc plated |
1 |
|
| 050 |
N/A |
Not available |
1 |
(not available) |
| 051 |
N/A |
Not available |
1 |
(not available) |
| 052 |
N/A |
Not available |
1 |
(not available) |
| 053 |
175-1122 |
Cap and screw (pkg of 8) |
1 |
|
| 054a |
991-2202 |
Big mouth pad holder set (blue) |
1 |
|
| 054b |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
1 |
(NON-OEM) |
| 054c |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
1 |
(NON-OEM) |
| 055 |
991-2205 |
Deep lock ring and pad grip ring |
1 |
|
| 056 |
175-1123 |
Brush adjustment decal (OBSOLETE) |
1 |
|
| 057 |
175-1124 |
Pad driver guard (OBSOLETE) |
1 |
|
|
|

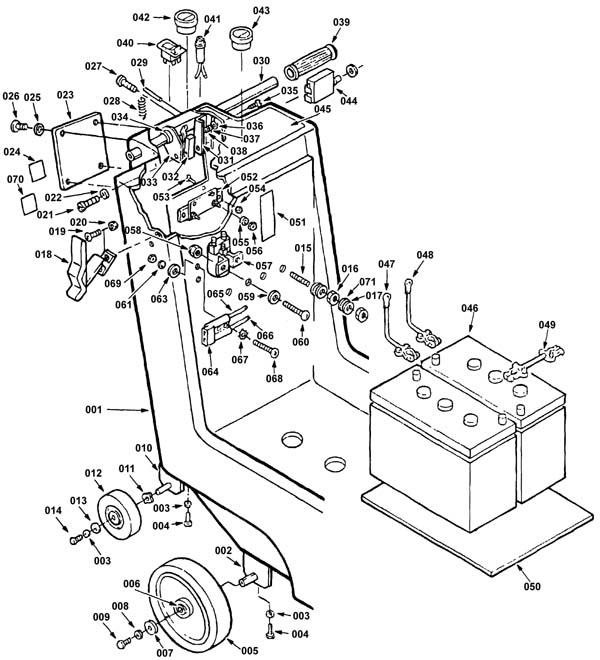

Chassis Assembly - 175-1007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
175-1111 |
Chassis (OBSOLETE) |
1 |
|
| 002 |
N/A |
Not available |
1 |
(not available) |
| 003 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 004 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 005 |
175-1072 |
8 inch wheel |
2 |
|
| 006 |
175-1118 |
Bearing (OBSOLETE) |
2 |
|
| 007 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 008 |
999-0034 |
Washer 3/8 split lock plain finish |
2 |
|
| 009 |
999-0812 |
Screw 3/8-16 x 7/8 hex head grade 5 plain finish |
2 |
|
| 010 |
N/A |
Not available |
1 |
(not available) |
| 011 |
175-0293 |
Washer 1/2 compression zinc plated |
2 |
|
| 012 |
175-1119 |
Rear wheel (OBSOLETE) |
2 |
|
| 013 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 014 |
N/A |
Not available |
2 |
Washer |
| 015 |
175-1125 |
Stud (OBSOLETE) |
2 |
|
| 016 |
999-0593 |
Nut 5/16-18 hex stainless steel |
8 |
|
| 017 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 018a |
175-3369 |
Hood latch |
2 |
|
| 018b |
991-8561 |
Rubber draw latch with keeper |
2 |
|
| 019 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
8 |
|
| 020 |
999-0195 |
Nut 6-32 hex plain |
8 |
|
| 021 |
999-1109 |
Screw 6-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 022 |
999-0364 |
Washer #6 internal star lock zinc plated |
1 |
|
| 023 |
175-1128 |
Rear panel (OBSOLETE) |
1 |
|
| 024 |
275-1360 |
Warning decal |
1 |
|
| 025 |
999-0053 |
Washer #10 split lock plain finish |
4 |
|
| 026 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
4 |
|
| 027 |
999-0811 |
Screw 10-32 x 3/8 pan head phillips stainless steel |
1 |
|
| 028 |
N/A |
Not available |
1 |
(not available) |
| 029 |
N/A |
Not available |
1 |
(not available) |
| 030 |
N/A |
Not available |
1 |
(not available) |
| 031 |
175-3117 |
Switch mount |
1 |
|
| 032a |
175-3116 |
Snap switch |
1 |
|
| 032b |
991-5121 |
Charger interlock switch (OBSOLETE) |
1 |
(NON-OEM) |
| 033 |
175-3115 |
Switch bracket |
1 |
|
| 034 |
175-3093 |
Flanged bushing |
1 |
|
| 035 |
N/A |
Not available |
1 |
Screw |
| 036 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 037 |
N/A |
Not available |
1 |
(not available) |
| 038 |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 039a |
675-9894 |
Handle grip |
2 |
|
| 039b |
991-8571 |
Handle grip |
2 |
(NON-OEM) |
| 040 |
175-1008 |
Rocker switch |
1 |
|
| 041 |
175-2849 |
Indicator light |
1 |
|
| 042 |
N/A |
Not available |
1 |
(not available) |
| 043 |
N/A |
Not available |
1 |
(not available) |
| 044 |
N/A |
Not available |
1 |
(not available) |
| 045 |
175-1132 |
Dash decal (OBSOLETE) |
1 |
|
| 047 |
175-1133 |
Cable neg (OBSOLETE) |
1 |
|
| 048 |
175-1134 |
Cable pos (OBSOLETE) |
1 |
|
| 049 |
175-2659 |
Battery cable 15 inch x 6 gauge - clamp style |
1 |
|
| 050 |
175-1135 |
Battery plate (OBSOLETE) |
1 |
|
| 051 |
N/A |
Not available |
1 |
Battery charger decal |
| 052 |
N/A |
Not available |
1 |
(not available) |
| 053 |
999-1549 |
Screw 10-24 x 3/4 flat head phillips stainless steel |
4 |
|
| 054 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 055 |
999-0632 |
Washer 1/4 split lock stainless steel |
1 |
|
| 056 |
999-0181 |
Nut 1/4-20 hex jam plain finish |
2 |
|
| 057 |
N/A |
Not available |
1 |
(not available) |
| 058 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 059 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
|
| 060 |
999-1027 |
Screw 10-24 x 1 1/4 round head phillips stainless steel |
2 |
|
| 061 |
999-0364 |
Washer #6 internal star lock zinc plated |
2 |
|
| 062 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 063 |
999-1158 |
Washer #6 flat stainless steel |
2 |
|
| 064 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 065 |
175-1140 |
Red wire (OBSOLETE) |
1 |
|
| 066 |
175-1141 |
Black wire (OBSOLETE) |
1 |
|
| 067 |
999-0148 |
Washer #6 external star lock zinc plated |
2 |
|
| 068 |
999-1109 |
Screw 6-32 x 3/4 pan head phillips stainless steel |
2 |
|
| 069 |
999-0195 |
Nut 6-32 hex plain |
2 |
|
| 070 |
N/A |
Not available |
1 |
(not available) |
| 071 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 046 |
162-0002 |
12V 185Ah wet battery (SNSR) |
2 |
|
| 046 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
2 |
|
|
|

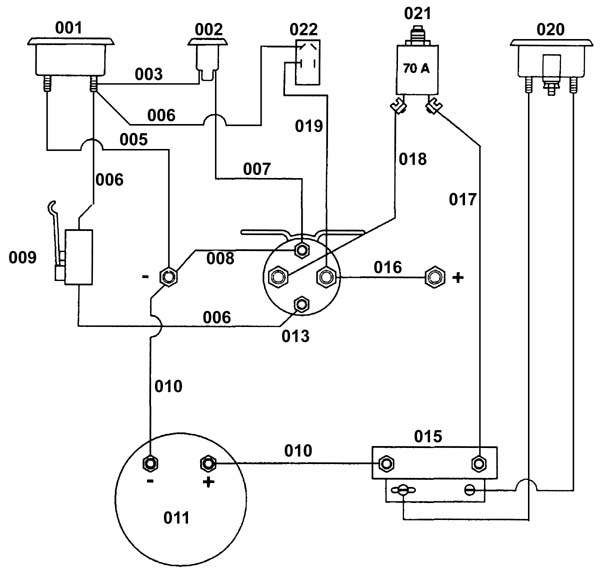

Electrical Diagram - 175-1008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
|
(not available) |
| 002 |
175-2849 |
Indicator light |
|
|
| 003 |
N/A |
Not available |
|
(not available) |
| 005 |
N/A |
Not available |
|
(not available) |
| 006 |
N/A |
Not available |
|
(not available) |
| 007 |
N/A |
Not available |
|
(not available) |
| 008 |
N/A |
Not available |
|
(not available) |
| 009a |
175-3116 |
Snap switch |
|
|
| 009b |
991-5121 |
Charger interlock switch (OBSOLETE) |
|
(NON-OEM) |
| 010 |
N/A |
Not available |
|
Wire assembly |
| 011 |
N/A |
Not available |
|
(not available) |
| 013 |
N/A |
Not available |
|
(not available) |
| 015 |
N/A |
Not available |
|
(not available) |
| 016 |
N/A |
Not available |
|
Wire assembly |
| 017 |
N/A |
Not available |
|
Wire assembly |
| 018 |
N/A |
Not available |
|
Wire assembly |
| 019 |
N/A |
Not available |
|
(not available) |
| 020 |
N/A |
Not available |
|
(not available) |
| 021 |
N/A |
Not available |
|
(not available) |
| 022 |
175-1008 |
Rocker switch |
|
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
