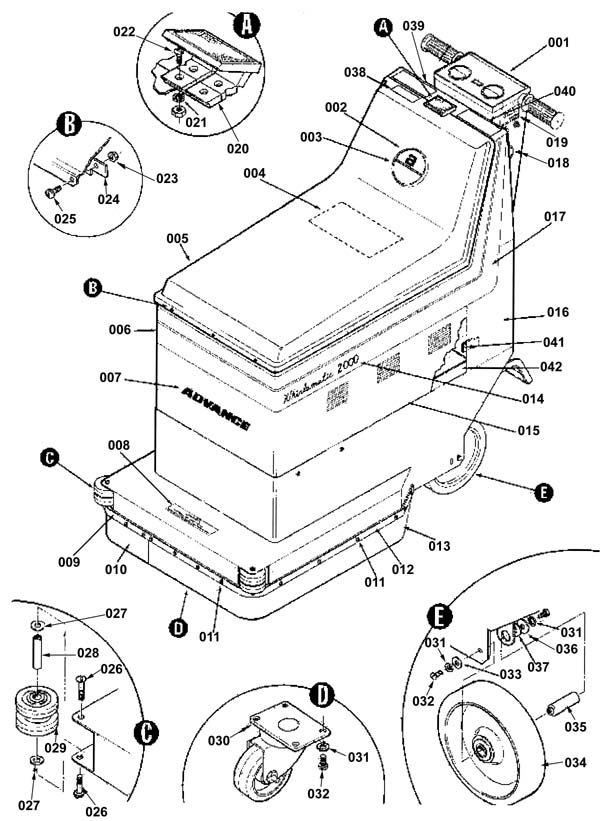

Housing Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

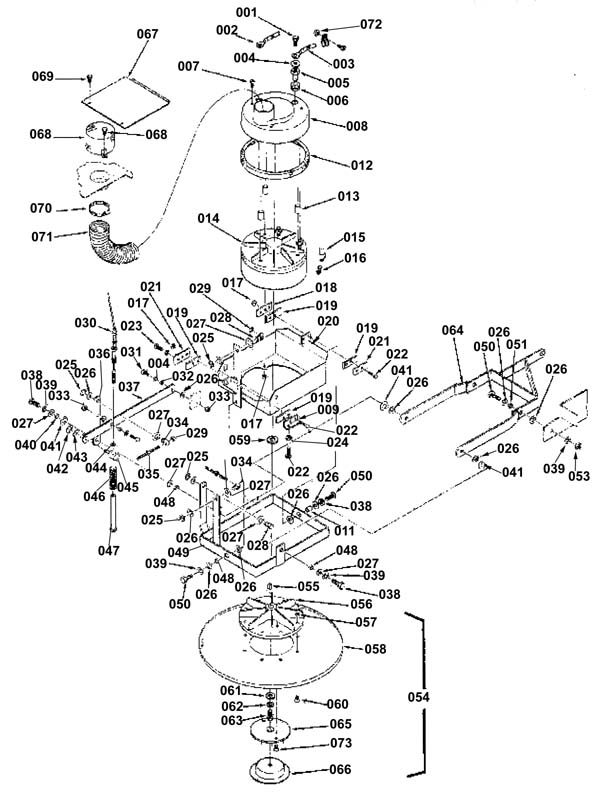

Drive Unit Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

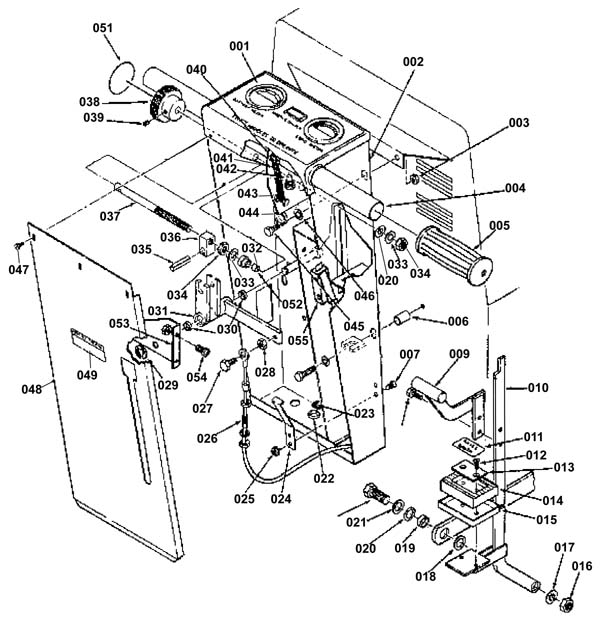

Control Handle Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

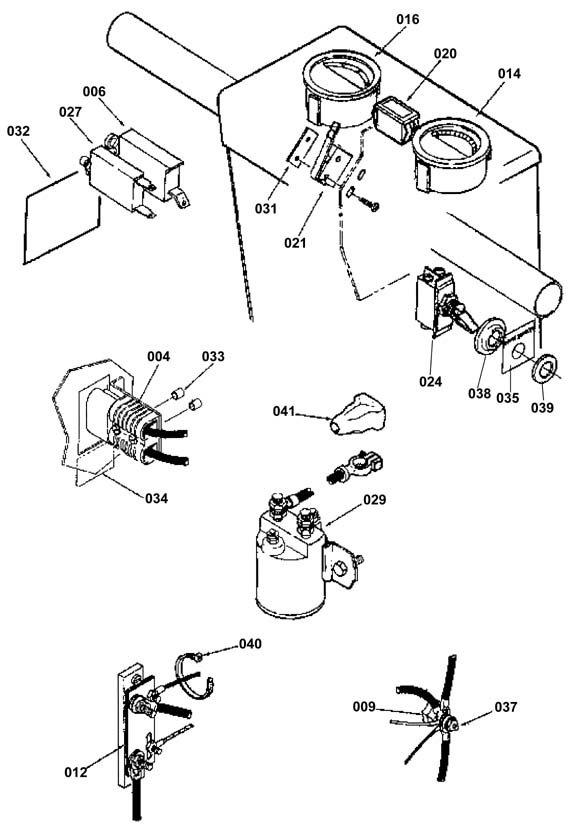

Electrical Components - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 172-9943 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
172-8172 |
Wheel 6 x 1/2 inch - includes bearing |
|
|
| 04 |
172-0221 |
Battery cable assembly - clamp type |
|
|
| 05 |
172-7108 |
Pad holder assembly (OBSOLETE) |
|
|
| 07a |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
|
|
| 07b |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
|
|
| 03 |
162-0002 |
12V 185Ah wet battery (SNSR) |
3 |
|
| 08 |
162-0047 |
12V 215Ah AGM battery (Group J185) |
3 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
