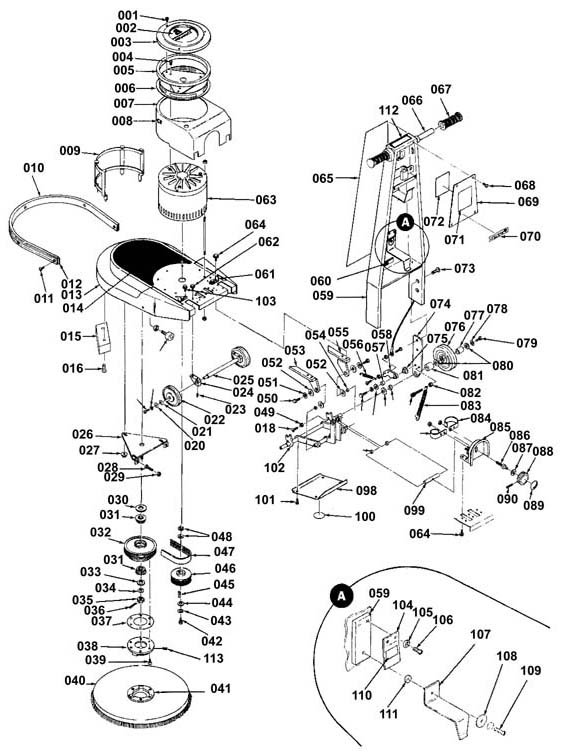

Handle and Base Assembly - 172-1057 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0417 |
Screw 10-24 x 3/4 flat head slotted zinc plated |
3 |
|
| 002 |
N/A |
Not available |
1 |
(Advance decal) |
| 003 |
172-8070 |
Shroud cover (OBSOLETE) |
1 |
|
| 004 |
N/A |
Not available |
3 |
Screw 5/16-18 x 5/8 |
| 005 |
172-8069 |
Filter (OBSOLETE) |
1 |
|
| 006 |
N/A |
Not available |
1 |
Bracket weldment |
| 007 |
272-0059 |
Shroud (OBSOLETE) |
1 |
|
| 008 |
270-0060 |
2 sided velcro 14 x 20 inch |
1 |
|
| 009 |
272-0061 |
Support weldment (OBSOLETE) |
1 |
|
| 010 |
272-0062 |
Bumper (OBSOLETE) |
1 |
|
| 011 |
999-0417 |
Screw 10-24 x 3/4 flat head slotted zinc plated |
5 |
|
| 012 |
272-0053 |
Bumper strap (OBSOLETE) |
1 |
|
| 013 |
N/A |
Not available |
1 |
(Base decal) |
| 014 |
272-0056 |
Base weldment |
1 |
|
| 015 |
272-0057 |
Weight (OBSOLETE) |
2 |
|
| 016 |
N/A |
Not available |
4 |
Screw 1/2-20 x 1/2 |
| 018 |
N/A |
Not available |
6 |
#10-24 x 5/8 |
| 019 |
N/A |
Not available |
2 |
#10 Shakeproof washer |
| 020 |
999-0588 |
Washer 7/8 flat stainless steel |
2 |
|
| 021 |
272-1670 |
Washer 3/8 bowed |
2 |
|
| 023 |
N/A |
Not available |
2 |
Setscrew 1/4-20 x 3/8 |
| 024 |
272-0064 |
Block (OBSOLETE) |
2 |
|
| 025 |
N/A |
Not available |
1 |
Axle |
| 026 |
272-0066 |
Plate weldment (OBSOLETE) |
1 |
|
| 027 |
N/A |
Not available |
3 |
Nut 5/16-18 |
| 028 |
N/A |
Not available |
2 |
Screw 1/4-20 x 1-1/4 |
| 029 |
N/A |
Not available |
2 |
Nut 1/4-20 |
| 030 |
172-4572 |
Seal shaft |
1 |
|
| 032 |
272-0067 |
Pully with bearing pc404x (OBSOLETE) |
1 |
|
| 033 |
172-4569 |
Washer 19/32 x 1 3/8 x 1/8 flat hardened |
1 |
|
| 034 |
N/A |
Not available |
1 |
Washer 9/16 |
| 035 |
999-0425 |
Nut 9/16-12 hex slotted plain finish |
1 |
|
| 036 |
N/A |
Not available |
1 |
Cotter Key |
| 037 |
272-0068 |
Gasket (OBSOLETE) |
1 |
|
| 038 |
272-0069 |
Casting drive cap (OBSOLETE) |
1 |
|
| 039 |
N/A |
Not available |
6 |
Screw #12-24 x 5/8 |
| 040 |
996-0709 |
20 inch pad driver |
1 |
|
| 041 |
172-8422 |
Clutch plate (OBSOLETE) |
1 |
|
| 042 |
N/A |
Not available |
1 |
Screw 5/16-24 x 5/8 |
| 043 |
N/A |
Not available |
3 |
Washer 5/16 shakeproof |
| 044 |
172-3047 |
Washer 11/32 x 1/8 flat |
1 |
|
| 046a |
272-0071 |
Sheave j-12 x 3-3/4 (OBSOLETE) |
1 |
|
| 046b |
272-0072 |
Sheave j-12 x 4-1/2 (OBSOLETE) |
1 |
|
| 047a |
272-0073 |
Poly V belt (OBSOLETE) |
1 |
|
| 047b |
272-0074 |
Belt, poly-v 370j12 (OBSOLETE) |
1 |
|
| 048 |
172-0551 |
Washer 25/32 x 1 5/8 x 1/64 |
2 |
|
| 049 |
N/A |
Not available |
12 |
Nut #10-24 |
| 050 |
N/A |
Not available |
2 |
Screw 1/4-20 x 1 |
| 051 |
N/A |
Not available |
2 |
Washer 1/4 shakeproof |
| 053 |
272-0075 |
Bracket weldment left hand (OBSOLETE) |
1 |
|
| 055 |
272-0076 |
Bracket weldment right hand (OBSOLETE) |
1 |
|
| 056 |
172-8197 |
Extension spring |
2 |
|
| 058 |
272-0077 |
Catch assembly (OBSOLETE) |
2 |
|
| 059 |
272-0078 |
Handle weldment (OBSOLETE) |
1 |
|
| 060 |
N/A |
Not available |
1 |
(Name plate) |
| 061 |
N/A |
Not available |
5 |
Clip |
| 062 |
N/A |
Not available |
2 |
Screw #10-24 x 5/8 |
| 063a |
N/A |
Not available |
1 |
Motor 115V |
| 063b |
N/A |
Not available |
1 |
motor 230V |
| 064 |
N/A |
Not available |
14 |
Screw 1/4-20 x 5/8 |
| 065 |
N/A |
Not available |
1 |
(Handle decal) |
| 066 |
272-0084 |
Handle tube (OBSOLETE) |
1 |
|
| 067a |
164-0304 |
Handle grip |
2 |
|
| 067b |
172-1057 |
Solution tank lid (OBSOLETE) |
2 |
(NON-OEM) |
| 067c |
991-8571 |
Handle grip |
2 |
(NON-OEM) |
| 068 |
N/A |
Not available |
4 |
Screw #8-32 x 3/8 |
| 069 |
172-1375 |
Cover plate (OBSOLETE) |
1 |
|
| 070 |
N/A |
Not available |
1 |
(Breaker decal) |
| 071 |
172-5020 |
Warning decal (OBSOLETE) |
1 |
|
| 072 |
N/A |
Not available |
1 |
(Wiring decal) |
| 073 |
N/A |
Not available |
4 |
Screw 5/16-18 x 5/8 |
| 074 |
272-0088 |
Plate (OBSOLETE) |
1 |
|
| 076 |
172-4549 |
5 inch wheel (OBSOLETE) |
2 |
|
| 077 |
272-0090 |
Sleeve 3/8 x 1/2 x 1-3/16 (OBSOLETE) |
2 |
|
| 078 |
N/A |
Not available |
2 |
Washer shakeproof |
| 079 |
N/A |
Not available |
2 |
Screw 3/8-16 x 2 |
| 080 |
272-1835 |
Washer flat |
4 |
|
| 081 |
172-2623 |
Collar (OBSOLETE) |
2 |
|
| 082 |
N/A |
Not available |
2 |
Nut 5/16-18 |
| 083 |
272-0091 |
Spring extension 1/2 x 6 cl11j |
4 |
|
| 084a |
272-0092 |
Clamp 2 diamater (OBSOLETE) |
1 |
|
| 084b |
272-0093 |
Capicitor clamp 230v (OBSOLETE) |
1 |
|
| 085 |
272-0094 |
Bracket weldment (OBSOLETE) |
1 |
|
| 086 |
272-0095 |
Shaft adjust (OBSOLETE) |
1 |
|
| 087 |
172-6237 |
Washer 3/8 bowed (OBSOLETE) |
1 |
|
| 089 |
N/A |
Not available |
1 |
(Pad pressure decal) |
| 090 |
N/A |
Not available |
1 |
Setscrew #10-24 x 1/2 |
| 091 |
272-0097 |
Clamp 1-3/8 diamater (OBSOLETE) |
1 |
|
| 092 |
N/A |
Not available |
2 |
Screw 5/16-18 x 1-1/2 |
| 093 |
172-0079 |
Sleeve bearing (OBSOLETE) |
2 |
|
| 094 |
N/A |
Not available |
2 |
Washer 5/8 |
| 095 |
172-2067 |
Washer 11/32 x 1/8 flat |
2 |
|
| 096 |
N/A |
Not available |
2 |
Screw 5/16-18 x 5/8 |
| 097 |
N/A |
Not available |
2 |
(Sleeved bearing) (please order 172-0069) |
| 098 |
272-0098 |
Cover plate (OBSOLETE) |
1 |
|
| 099 |
272-0099 |
Shaft (OBSOLETE) |
1 |
|
| 100 |
172-5044 |
Hands clear decal |
2 |
|
| 101 |
N/A |
Not available |
4 |
Screw #10-24 x 1/4 |
| 102 |
272-0100 |
Axle weldment (OBSOLETE) |
1 |
|
| 103 |
N/A |
Not available |
2 |
Screw #10-24 x 5/8 |
| 104 |
272-0101 |
Spring (OBSOLETE) |
1 |
|
| 105 |
N/A |
Not available |
2 |
Washer #10 shakeproof |
| 106 |
N/A |
Not available |
2 |
Screw #10-24 x 1/4 |
| 107 |
272-0102 |
Cord hook (OBSOLETE) |
1 |
|
| 108 |
272-0103 |
Washer 7/32 flat |
1 |
|
| 109 |
N/A |
Not available |
1 |
Screw #10-24 x 1/2 |
| 110 |
N/A |
Not available |
1 |
(Cord hook decal) |
| 111 |
172-2836 |
Bushing (OBSOLETE) |
1 |
|
| 112 |
172-5023 |
Warning decal (OBSOLETE) |
1 |
|
| 113 |
999-0096 |
Screw 1/4-20 x 1/4 cup point socket set plain finish |
3 |
|
|
|

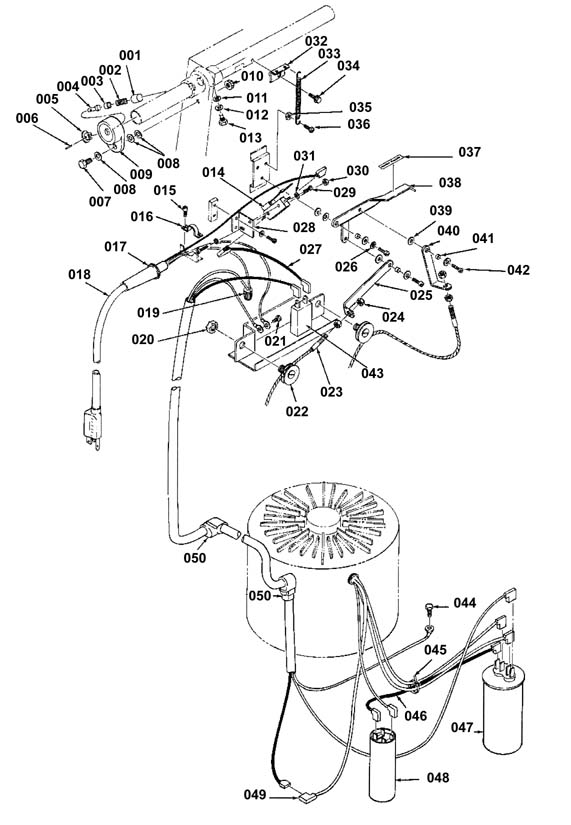

Electrical Assembly - 172-1058 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 006 |
172-4527 |
Spring pin |
1 |
|
| 007 |
N/A |
Not available |
1 |
Screw 1/4-20 x 5/8 |
| 008 |
N/A |
Not available |
3 |
Washer 1/4 flat |
| 010 |
N/A |
Not available |
1 |
Nut 1/4-20 whiz |
| 011 |
N/A |
Not available |
1 |
Washer shakeproof |
| 012 |
N/A |
Not available |
1 |
Washer 5/16 flat |
| 014 |
172-0270 |
Snap switch (OBSOLETE) |
1 |
|
| 015 |
N/A |
Not available |
4 |
Screw #8-32 x 5/8 |
| 016 |
N/A |
Not available |
1 |
Clamp strain relief |
| 017 |
N/A |
Not available |
1 |
Strain relief |
| 018 |
172-6258 |
14/3 power cord 75 foot |
1 |
|
| 019 |
172-4513 |
Wire connector |
1 |
|
| 020 |
N/A |
Not available |
2 |
Nut 7/16-14 hex |
| 021 |
N/A |
Not available |
2 |
Screw #10-24 x 1/2 |
| 022 |
272-0105 |
Pulley idler 1-1/4 x 19/64 (OBSOLETE) |
2 |
|
| 023 |
172-0018 |
Wire rope assembly (OBSOLETE) |
2 |
|
| 024 |
N/A |
Not available |
4 |
Nut 1/4-20 hex |
| 025 |
272-0106 |
Link (OBSOLETE) |
1 |
|
| 026 |
N/A |
Not available |
1 |
Washer shakeproof |
| 027 |
272-0107 |
Wire assembly #14 x 6 (OBSOLETE) |
2 |
|
| 028 |
272-0108 |
Switch plate (OBSOLETE) |
1 |
|
| 029 |
N/A |
Not available |
2 |
Screw #4-40 x 7/8 |
| 030 |
N/A |
Not available |
1 |
Nut #4 hex |
| 031 |
N/A |
Not available |
2 |
Washer #4 flat |
| 032 |
272-0109 |
Spring mounting tab (OBSOLETE) |
1 |
|
| 033 |
172-4506 |
Extension spring (OBSOLETE) |
2 |
|
| 034 |
N/A |
Not available |
1 |
Screw #8-32 x 1/2 |
| 035 |
N/A |
Not available |
2 |
Nut #10-24 hex |
| 036 |
N/A |
Not available |
2 |
Screw #10-24 x 3/4 |
| 037 |
172-5019 |
Handle decal |
1 |
|
| 038 |
272-0110 |
Handle weldment (OBSOLETE) |
1 |
|
| 039 |
N/A |
Not available |
7 |
Washer #10 flat |
| 040 |
272-0111 |
Link cable (OBSOLETE) |
1 |
|
| 042 |
N/A |
Not available |
3 |
Screw #10-24 x 3/4 |
| 043a |
172-9572 |
15amp circuit breaker |
1 |
|
| 043b |
172-2160 |
10amp circuit breaker |
1 |
|
| 043c |
991-8539 |
15amp circuit breaker |
1 |
(NON-OEM) |
| 044 |
N/A |
Not available |
2 |
Screw #10-24 x 1/2 |
| 045 |
997-2101 |
6 inch cable tie |
2 |
|
| 046 |
272-0107 |
Wire assembly #14 x 6 (OBSOLETE) |
2 |
|
| 047a |
N/A |
Not available |
1 |
Capacitor |
| 047b |
172-3023 |
Capacitor 115v (OBSOLETE) |
1 |
|
| 048a |
272-0114 |
Capacitor 108-130 mfd (OBSOLETE) |
1 |
|
| 048b |
N/A |
Not available |
1 |
Capacitor |
| 049 |
272-0116 |
Receptacle flag |
1 |
|
| 050 |
172-6146 |
Strain relief |
2 |
|
|
|
- Commonly Asked For Parts - 172-9920 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
172-6258 |
14/3 power cord 75 foot |
|
|
| 02 |
996-0709 |
20 inch pad driver |
|
|
| 03 |
172-4549 |
5 inch wheel (OBSOLETE) |
|
|
| 04 |
172-8069 |
Filter (OBSOLETE) |
|
|
| 05 |
172-0270 |
Snap switch (OBSOLETE) |
|
|
| 06a |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 06b |
991-5001 |
14/3 extension cord 50 foot (yellow) |
|
(NON-OEM) |
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
