Parts List Complete for NILFISK Terra 4300B

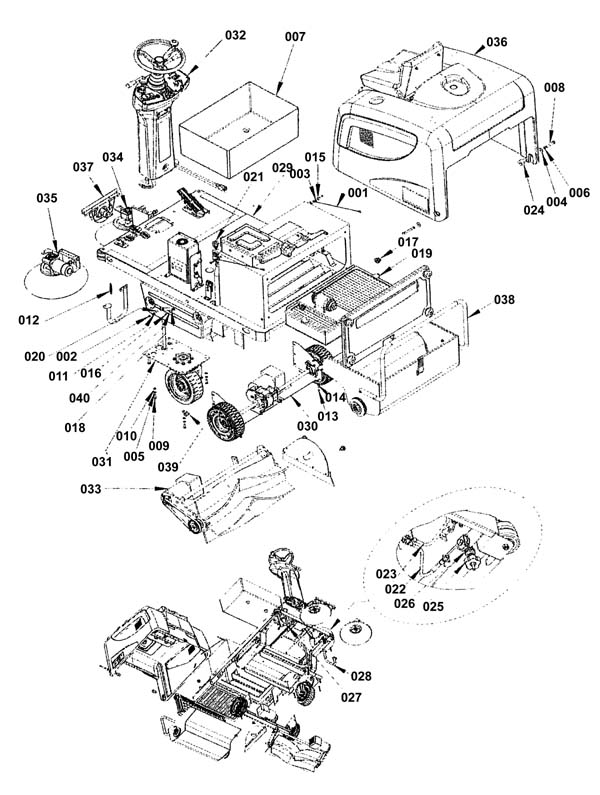

Entire Assembly -

RefNbr Part Number Description Req Notes

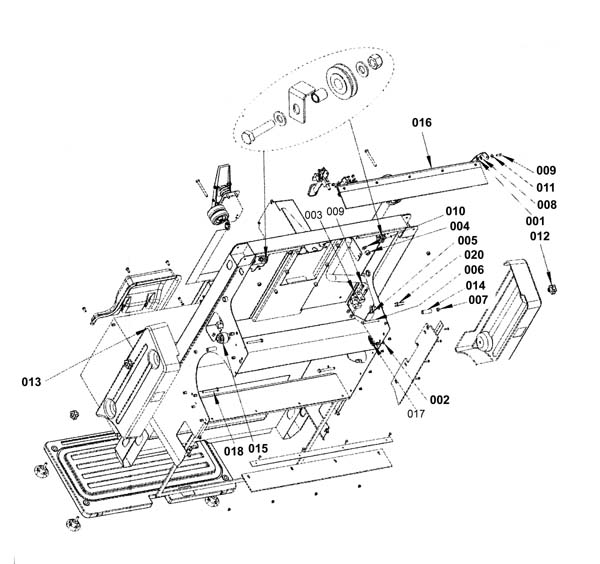

Lower Chassis Assembly - 272-2251
RefNbr Part Number Description Req Notes
001 999-0497 Nut M6-1 nylon insert lock stainless steel 4
002 272-8452 Screw M6 X 25 mm (OBSOLETE) 1
003 272-8253 Collar pipe fixing 2
004 272-8254 Nut M10 self lock hex head 2
005 272-8255 Bracket (OBSOLETE) 1
006 999-9079 Screw M8 x 80mm hex head stainless steel 1
007 999-0579 Nut M8-1.25 hex coarse thread zinc 4
008 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 5
009 272-8256 Screw M6 X 16 mm cylindrical head (OBSOLETE) 1
010 999-1262 Washer M10 flat 1
011 272-0785 Washer 6 x 16 flat 2
012 572-3784 KNOB M8 PKD 4
013 272-8239 Right hatch 1
014 272-8404 Spacer 9 X 15 X 42 1/5 4
015 272-8257 Buzzer 1
017 272-8258 Spring 1
018 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel 3
019 272-8405 Screw M6 X 40 mm cylindrical head 4
020 272-8401 Electrical assemblies hardware kit 2

Side Chassis Assembly - 272-2252
RefNbr Part Number Description Req Notes
001 999-9078 Screw M8 x 70mm hex head 2
003 272-8260 Front skirt plate 4
004 272-8261 Rear skirt 1
005 272-8407 Waste container gasket 1
006 999-9079 Screw M8 x 80mm hex head stainless steel 2
007 172-3653 Main screw (OBSOLETE) 8
008 999-1257 Screw M6-1 x 16mm pan head Phillips 6
009 272-8262 Side skirt 1
010 272-8263 Side skirt plate 1
011 272-8408 Cap 1
012 999-1267 Washer M8 flat zinc 4
013 999-9100 Washer M5 flat stainless steel 4
014 999-0051 Washer #6 medium split lock 2
015 172-4823 Screw M6 x 16mm hex head 2
016 272-8409 Screw 4 4/5 X 16 mm hex head (OBSOLETE) 8
017 272-8410 Nut M8 self lock hex head (OBSOLETE) 4
018 272-8152 Bumper roller 4
019 272-8264 Hatch left 1
020 272-8160 Filter cover 1
021 999-0531 Screw M5-.8 x 16mm pan head slotted zinc 4
022 272-8411 Chassis (OBSOLETE) 1
023 272-8265 Air deflector (OBSOLETE) 1
024 272-8266 Knob M8 X 40 mm 4
025 272-8267 Vacuum motor kit (OBSOLETE) 1
025 272-8267 Vacuum motor kit (OBSOLETE) 1
027 272-8268 Plate 1
028 272-8412 Cap 40 2/5 (OBSOLETE) 2
029 272-8413 Antislip kit (OBSOLETE) 1
030 272-8269 Nut M8 (OBSOLETE) 4
031 999-0497 Nut M6-1 nylon insert lock stainless steel 1
032 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 5
033 272-8270 Skirt raising device (OBSOLETE) 1
034 272-8271 Front skirt (OBSOLETE) 1
035 272-8272 Screw M5 X 15 mm hex head (OBSOLETE) 5
036 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 1
037 272-8256 Screw M6 X 16 mm cylindrical head (OBSOLETE) 1
038 272-0785 Washer 6 x 16 flat 1
039 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 2
040 172-4823 Screw M6 x 16mm hex head 2
041 272-8273 Rear skirt plate (OBSOLETE) 1
042 272-8414 Bracket (OBSOLETE) 1
043 181-2002 Recovery tank lid gasket 1
N/S 272-8274 Non marking skirts kit 1

Bonnet Assembly - 272-2253
RefNbr Part Number Description Req Notes
001 272-8392 Bonnet assembly hardware kit 19 Screw 4' 3/5 x 19' 1/5 pan head
002a 272-8275 Seat with microswitch 1
002b 272-8418 Microswitch 1
003 272-8392 Bonnet assembly hardware kit 4 Washer 8 split
004 272-8392 Bonnet assembly hardware kit 4 Washer 8 x 32 flat
005 272-8392 Bonnet assembly hardware kit 2 Screw M6 x 12 mm hex head
006 272-8392 Bonnet assembly hardware kit 4 Screw M8 x 50 mm hex head
007 272-8276 Cap 38.1 1
008 999-0579 Nut M8-1.25 hex coarse thread zinc 4
009 272-8277 Seat holder bonnet 1
010 272-8278 Grate side (OBSOLETE) 2
011 272-8279 Grate front (OBSOLETE) 1
012 272-8415 Plate cable fixing (OBSOLETE) 2
013 272-8280 Decals kit 1
014 272-8281 Bonnet gaskets kit (OBSOLETE) 1
015 272-8392 Bonnet assembly hardware kit 2 Screw M6 x 20 mm hex head
016 272-8392 Bonnet assembly hardware kit 2 Washer 6 split
017 172-3668 Spacer 6 1/2 X 10 X 4 1/2 2
018 272-8392 Bonnet assembly hardware kit 4 Washer 6 x 18 flat
019 272-8416 P clamp 6
020 272-8282 Gasket 500 mm (OBSOLETE) 1
021 272-8417 Harness bonnet (OBSOLETE) 1
022 272-8418 Microswitch 1
023 272-8392 Bonnet assembly hardware kit 1 includes 001, 003 thru 006, 015, 016 and 018

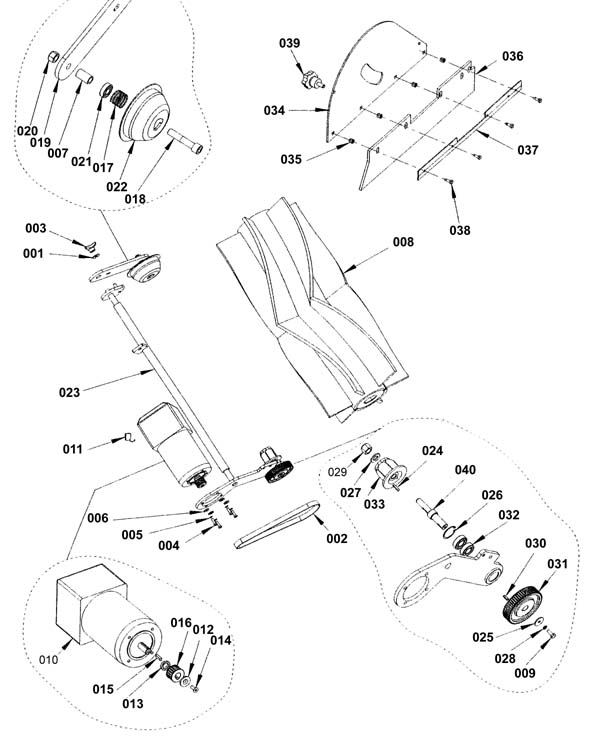

Main Broom Assembly - 272-2254
RefNbr Part Number Description Req Notes
001 272-8115 Main broom assembly hardware kit 1 Washer 8 x 24 flat
002 272-8283 Belt 1
003 172-3664 Knob M8 1
004 272-8115 Main broom assembly hardware kit 4 Screw M6 x 20 hex head
005 272-8115 Main broom assembly hardware kit 4 Washer 6 split
006 272-8115 Main broom assembly hardware kit 4 Washer 6 x 18 flat
007 272-8116 Spacer 12 x 17 x 28 (OBSOELTE) 1
008a 272-8284 Main broom 300 x 700 standard 1
008b 272-8159 Main broom 1
008c 272-8285 Main broom natural fiber 1
009 272-8115 Main broom assembly hardware kit 1 Screw M6 x 16 hex head
010 272-8154 Main broom motor assembly 1
011 272-8286 Carbon brush kit (pkg of 4) 4
012 272-0778 Spacer 6 1/2 x 25 x 2 1/2 1
013 272-8287 Spacer 14 X 23 X 5 1
014 272-8115 Main broom assembly hardware kit 1 Screw M6 x 16
015 181-0942 Square keyway 1
016 272-8288 Pulley 205 M 156 F high torque drive 1
017 172-3800 Spring 1
018 272-8115 Main broom assembly hardware kit 1 Screw M12 x 60 mm cylindrical head
019 272-8289 Main broom lever 1
020 272-8115 Main broom assembly hardware kit 1 Nut M12 self lock low hex head
021 172-3799 Ball bearing 1
022 172-3798 Hub 1
023 272-8290 Main broom shaft 1
024 272-8153 Key 4 x 4 x 20 1
025 272-8115 Main broom assembly hardware kit 1 Washer 6 x 24 flat
026 272-8113 Retaining ring (OBSOLETE) 1
027 272-8115 Main broom assembly hardware kit 2 Washer 12 x 24 flat
028 272-8115 Main broom assembly hardware kit 1 Washer toothed 3/5
029 272-8115 Main broom assembly hardware kit 1 Nut M12 self lock hex head
030 272-8419 Key 4 x 4 x 15 1
031 272-8291 Pulley 1
032 272-8114 Ball bearing 2
033 272-8111 Main broom hub 1
034 272-8292 Main broom hatch 1
035 272-8115 Main broom assembly hardware kit 4 Screw nut
036 272-8262 Side skirt 1
037 272-8263 Side skirt plate 1
038 272-8115 Main broom assembly hardware kit 4 Screw 4 4/5 x 16 hex head
039 472-1227 KNOB LOBED M6X15 PKD 2
040 272-8112 Main broom pin 1
041 272-8115 Main broom assembly hardware kit 1 includes 001, 004 thru 006, 009, 014, 018, 020, 025, 027 thru 029, 035 and 038

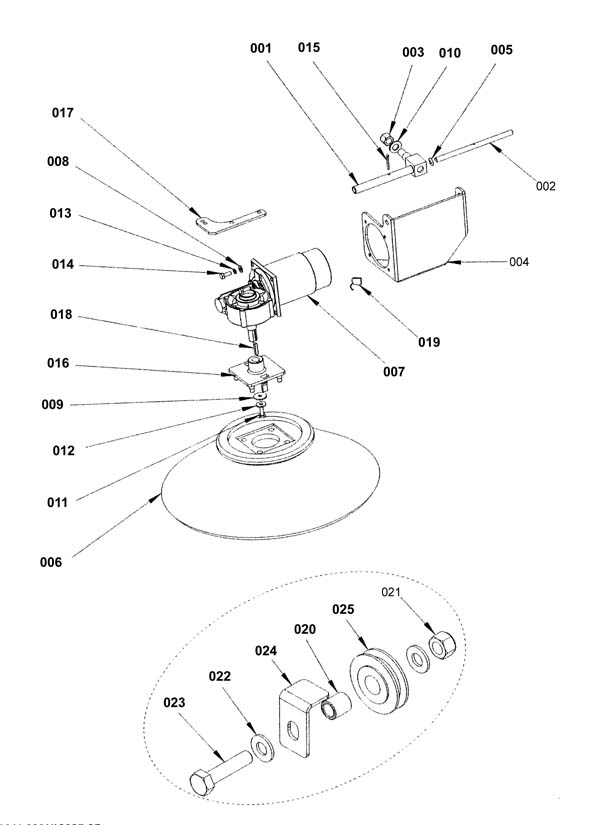

Right Side Broom Assembly - 272-2255
RefNbr Part Number Description Req Notes
001 272-8294 Side broom pin 1
002 272-8295 Side broom pin 1
003 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Nut M12 self lock hex head
004 272-8296 Support side broom right 1
005 272-8297 Spring 6' 1/5 x 15 x 1/2 1
006a 172-3670 Steel mix side broom 1
006b 172-3671 Natural fiber side broom 1
007 272-8298 Reduction motor 1
008 272-8108 Left side broom assembly hardware kit (OBSOLETE) 4 Washer 6 x 12 1/2 flat
009 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Washer 6 x 24 flat
010 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Washer 12 x 24 flat
011 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Screw M6 x 20 mm hex head
012 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Washer 6 x 18 flat
013 272-8108 Left side broom assembly hardware kit (OBSOLETE) 4 Washer toothed
014 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
015 272-8299 Split pin 3 x 20 1
016 272-8110 Broom holding flange 1
017 272-9156 Flange 1
018 172-3730 Square keyway 1
019 472-1391 CARBON BRUSH 2 PCS SET 2
020 272-8420 Spacer 8' 1/5 x 12 x 13' 1/2 1
021 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Nut M8 self lock low hex head
022 272-8108 Left side broom assembly hardware kit (OBSOLETE) 2 Washer 8 x 17 flat
023 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
024 272-8302 Bracket cable fixing (OBSOLETE) 1
025 272-8303 Pulley 1
026 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 includes 003, 008 thru 013, 021thru 022

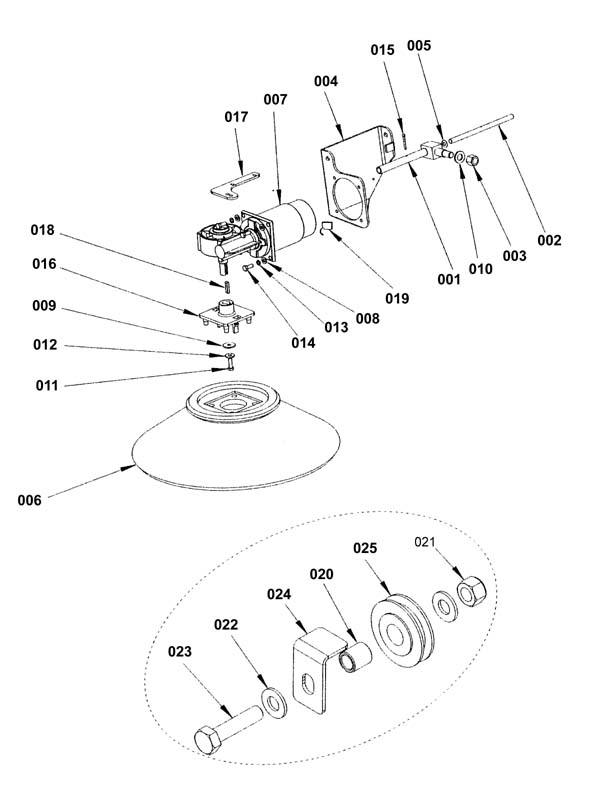

Left Side Broom Assembly - 272-2256
RefNbr Part Number Description Req Notes
001 272-8294 Side broom pin 1
002 272-8295 Side broom pin 1
003 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Nut M12 self lock hex head
004 272-8304 Support left side broom 1
005 272-8297 Spring 6' 1/5 x 15 x 1/2 1
006a 172-3670 Steel mix side broom 1
006b 172-3671 Natural fiber side broom 1
007 272-8421 Reduction motor 60 watt (OBSOLETE) 1
008 272-8108 Left side broom assembly hardware kit (OBSOLETE) 4 Washer 6 x 12 1/2 flat
009 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Washer 6 x 24 flat
010 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Washer 12 x 24 flat
011 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Screw M6 x 20 mm hex head
012 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Washer 6 x 18 flat
013 272-8108 Left side broom assembly hardware kit (OBSOLETE) 4 Washer toothed
014 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4
015 272-8299 Split pin 3 x 20 1
016 272-8110 Broom holding flange 1
017 272-9156 Flange 1
018 172-3730 Square keyway 1
019 472-1391 CARBON BRUSH 2 PCS SET 2
020 272-8420 Spacer 8' 1/5 x 12 x 13' 1/2 1
021 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 Nut M8 self lock low hex head
022 272-8108 Left side broom assembly hardware kit (OBSOLETE) 2 Washer 8 x 17 flat
023 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1
024 272-8302 Bracket cable fixing (OBSOLETE) 1
025 272-8303 Pulley 1
026 272-8108 Left side broom assembly hardware kit (OBSOLETE) 1 includes 003, 008 thru 013, 021 thru 022

Steering Assembly - 272-2257
RefNbr Part Number Description Req Notes
001 272-8394 Steering assembly hardware kit 4 Nut M5 hex head
002 272-8253 Collar pipe fixing 4
003 272-8394 Steering assembly hardware kit 8 Nut M6 self lock low hex head
004 999-9083 Screw M4-.7 x 30mm hex head stainless steel 4
005 272-8306 Split pin 4 x 25 4
006 272-8394 Steering assembly hardware kit 4 Screw M8 x 25 mm
007 272-8307 Steering column 1
008 272-8422 Washer 18 x 36 flat (OBSOLETE) 4
009 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
010 272-8394 Steering assembly hardware kit 5 Washer 8 split
011 272-8394 Steering assembly hardware kit 8 Screw M6 x 40 mm cylindrical head
012 272-8394 Steering assembly hardware kit 6 Nut M4 self lock low hex head
013 272-8394 Steering assembly hardware kit 2 Nut M12 x 1 1/2 mm self lock hex head
014 272-8394 Steering assembly hardware kit 8 Washer 5 x 10 flat
015 272-8394 Steering assembly hardware kit 8 Washer 6 x 12 1/2 flat
016 272-8394 Steering assembly hardware kit 2 Screw M12 x 30 mm
017 472-1188 COLUMN STEERING KIT 1
018 272-8309 Support 1
019 472-1253 PLUNGER M10 D.6 W/NUT PKD 1
020 272-8423 Support 2
021 272-8311 Spacer 12' 1/5 x 24 x 4 (OBSOLETE) 2
022 272-8394 Steering assembly hardware kit 2 Washer 12 x 36 flat
023 272-8312 Tension rod M5 x 52 mm (OBSOLETE) 2
024 272-8313 Joint 1
026 272-8394 Steering assembly hardware kit 2 Screw M4 x 50 mm hex head
027 272-8315 Rubber bellow 2
028 272-8316 Lever 1
029 272-8317 Lever brooms (OBSOLETE) 2
030 272-8318 Handle lever (OBSOLETE) 2
031 272-8319 Front cover 1
032 272-8394 Steering assembly hardware kit 4 Screw M5 x 25 mm hex head
033 272-8320 Steering wheel 1
034 272-8321 Bellow rubber (OBSOLETE) 1
035 272-8394 Steering assembly hardware kit 4 Nut M5 self lock low hex head
036 272-8322 Cap 1
037 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel 3
038 272-8394 Steering assembly hardware kit 1 Nut M18 x 1 1/2 low hex head
039 272-8394 Steering assembly hardware kit 2 Nut M14 hex head
040 272-8424 Circlip M10 1
041 272-8394 Steering assembly hardware kit 2 Nut M10 hex head
042 272-8394 Steering assembly hardware kit 1 Washer 8 x 24 flat
043 272-8394 Steering assembly hardware kit 2 Washer 6 x 12 1/2 flat
044 472-1252 PLUNGER M10 W/CABLE KIT 1
045 272-8394 Steering assembly hardware kit 2 Screw M6 x 12 mm hex head
046 999-0783 Screw M8-1.25 x 16mm hex head 1
047 172-3668 Spacer 6 1/2 X 10 X 4 1/2 2
048 272-8394 Steering assembly hardware kit 4 Washer 8 x 17 flat
049 272-8324 Fork M10 1
050 272-8394 Steering assembly hardware kit 1 Washer 6 x 16 flat
051 272-8325 Dowel M4 X 6 mm 2
052 472-1285 LEVER MAIN BROOM PKD 1
053 272-8426 Main broom plate 1
054 272-8427 Main broom lever (OBSOLETE) 1
055 272-8428 Bar M10 X 410 mm 1
056 272-8429 Side broom lever 1
057 272-8394 Steering assembly hardware kit 1 Screw M6 x 30 mm hex head
058 272-8394 Steering assembly hardware kit 1 Nut hex M6
058 272-8394 Steering assembly hardware kit 1
059 272-8394 Steering assembly hardware kit 1 Nut M6 low hex head
060 272-8305 24V micro relay 1
061 272-8394 Steering assembly hardware kit 1 includes 001, 003, 006, 010 thru 016, 022, 026, 032, 035, 038 thru 039, 041 thru 043, 045, 048, 050, 057 thru 059

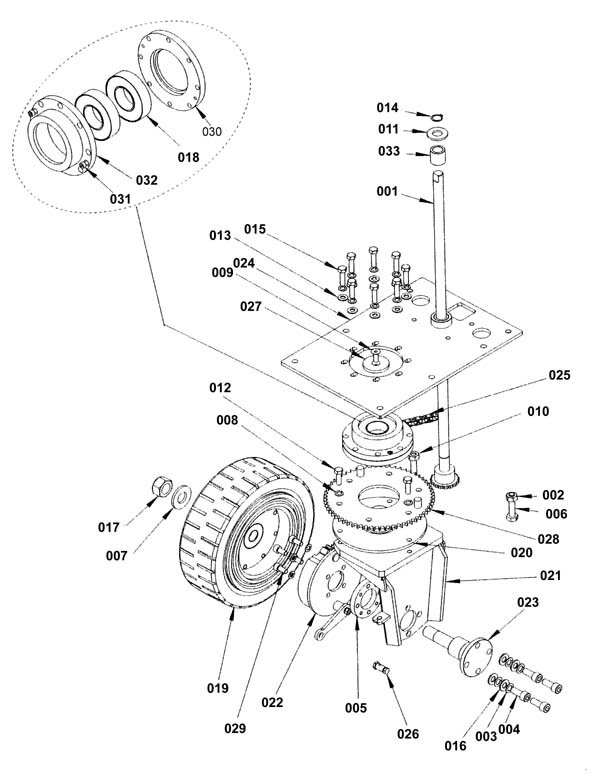

Front Wheel Assembly - 272-2259
RefNbr Part Number Description Req Notes
001 272-8326 Steering shaft 1
002 272-8390 Front wheel assembly hardware kit 2 Nut M10 hex head
003 272-8390 Front wheel assembly hardware kit 4 Washer 10 split
004 272-8390 Front wheel assembly hardware kit 4 Screw M10 x 25 mm cylindrical head
005 272-8327 Front wheel brake flange (OBSOLETE) 1
006 999-9084 Screw M10 x 45mm hex head stainless steel 1
007 272-8390 Front wheel assembly hardware kit 1 Washer 20 x 43 flat
008 272-8390 Front wheel assembly hardware kit 15 Washer 8 split
009 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 1
010 999-9081 Screw M10-1.5 x 65mm hex head stainless steel 1
011 272-8390 Front wheel assembly hardware kit 1 Washer 17 x 35 flat
012 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 3
013 272-8390 Front wheel assembly hardware kit 9 Washer 8 x 17 flat
014 572-3661 RING D 17 UNI7435 10 PCS SET 1
015 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 8
016 272-8390 Front wheel assembly hardware kit 4 Washer 10 x 21flat
017 272-8390 Front wheel assembly hardware kit 1 Nut M20 self lock low hex head
018 272-8395 Ball bearing 2
019a 272-8396 Front wheel 1
019b 272-8329 Non marking front wheel 1
020 272-8430 Spacer (OBSOLETE) 1
021 272-8431 Front wheel support 1
022 272-8330 Brake block (OBSOLETE) 1
023 272-8432 Front wheel pin (OBSOLETE) 1
024 272-8433 Supporting plate 1
025 272-8331 Chain 3/8 inch 1
026 272-8338 Brake pedal assembly kit 1
027 272-8332 Washer (OBSOLETE) 1
028 272-8333 Crown (OBSOLETE) 1
029 272-8390 Front wheel assembly hardware kit 4 Screw M8 x 16 mm cylindrical head
030 272-8334 Flange 1
031 272-8390 Front wheel assembly hardware kit 2 Screw M5 x 12 mm cylindrical head
032 272-8335 Flange 1
033 272-8336 Bush 17 X 25 X 25 1
034 272-8390 Front wheel assembly hardware kit 1 includes 002 thru 004, 007 thru 008, 011, 013, 016 thru 017, 029 and 031

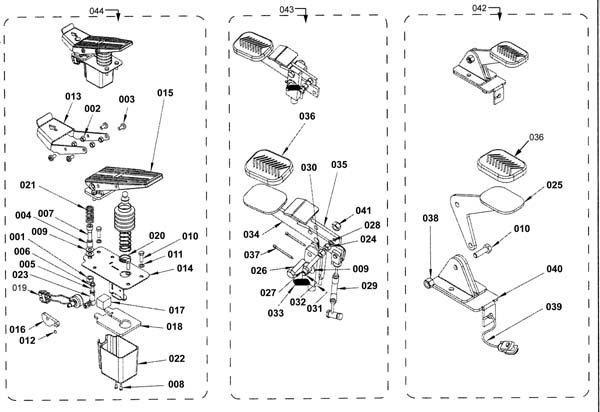

Pedal Assemblies - 272-2260
RefNbr Part Number Description Req Notes
001 270-8199 Speed control pedal assembly 1 Nut M8 self lock low hex head
002 270-8199 Speed control pedal assembly 6 Nut M6 self lock low hex head
003 999-1257 Screw M6-1 x 16mm pan head Phillips 4
004 270-8199 Speed control pedal assembly 1 Spacer 8 x 12 x 12 1/2
005 270-8199 Speed control pedal assembly 1 Rod tension M6 x 32 mm
006 270-8199 Speed control pedal assembly 2 Nut M6 low hex head
007 270-8199 Speed control pedal assembly 1 Screw M8 x 25 mm cylindrical head
008 270-8199 Speed control pedal assembly 2 Screw 3 9/10 x 13 hex head
009 270-8199 Speed control pedal assembly 4 Washer 8 x 17 flat
010 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 4
011 270-8199 Speed control pedal assembly 3 Washer 6 split
012 270-8199 Speed control pedal assembly 1 Dowel M4 x 6 mm
013 270-8199 Speed control pedal assembly 1 Speed control pedal bracket
014 270-8199 Speed control pedal assembly 1 Speed control pedal support
015 270-8199 Speed control pedal assembly 1 Speed control pedal
016 270-8199 Speed control pedal assembly 1 Lever
017 270-8199 Speed control pedal assembly 1 Gasket 24 mm
018 270-8199 Speed control pedal assembly 1 Pedal gasket
019 270-8199 Speed control pedal assembly 1 Harness drive pedal
020 270-8199 Speed control pedal assembly 1 Washer
021 270-8199 Speed control pedal assembly 1 Spring 35 mm
022 270-8199 Speed control pedal assembly 1 Pedal cover
023 270-8199 Speed control pedal assembly 1 Dowel M6
024 272-8338 Brake pedal assembly kit 1 Nut M5 hex head
025 272-8337 Skirt raising device assembly kit (OBSOLETE) 1 Pedal skirt raising device
026 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1
027 272-8338 Brake pedal assembly kit 1 Screw M5 X 25 mm hex head
028 272-8338 Brake pedal assembly kit 1 Washer 5 split
029 272-8338 Brake pedal assembly kit 1 Brake cable
030 272-8338 Brake pedal assembly kit 1 Nut M5 self lock hex head
031 272-8338 Brake pedal assembly kit 1 Support pedal
032 272-8338 Brake pedal assembly kit 1 Pin pedal
033 272-8338 Brake pedal assembly kit 1 Spring
034 272-8338 Brake pedal assembly kit 1 Pedal
035 272-8338 Brake pedal assembly kit 1 Pedal brake
036 272-8337 Skirt raising device assembly kit (OBSOLETE) 2 Pedal cover
037 272-8338 Brake pedal assembly kit 2 Split pin 2 x 25
038 272-8337 Skirt raising device assembly kit (OBSOLETE) 1 Nut M6 self lock hex head
039 272-8337 Skirt raising device assembly kit (OBSOLETE) 1 Cable skirt raising device
040 272-8337 Skirt raising device assembly kit (OBSOLETE) 1 Pedal support
041 272-8338 Brake pedal assembly kit 1 Nut M6
042 272-8337 Skirt raising device assembly kit (OBSOLETE) 1 includes 025, 036, 038 thru 040
043 272-8338 Brake pedal assembly kit 1 includes 025, 027 thru 035, 037, 041

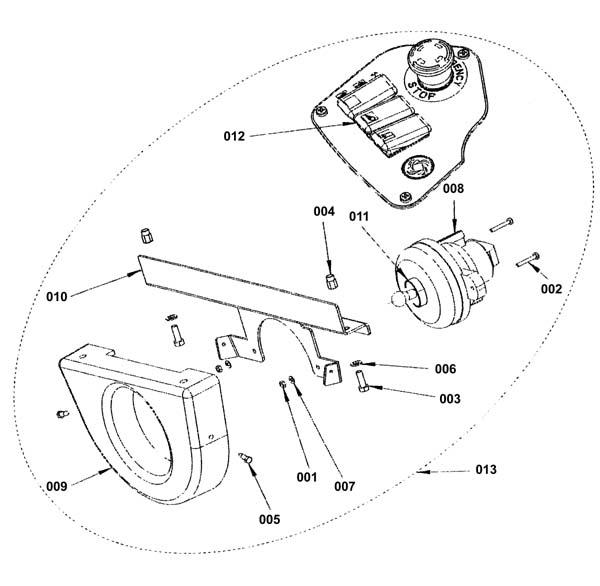

Control Panel Assemblies - 272-2261
RefNbr Part Number Description Req Notes
001 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 6
002 272-8340 Emergency switch 1
003 272-8341 Contact 1
004 272-8434 Filter shaker vacuum on/off switch 1
005 272-8342 Front light switch 1
006 272-8343 Switch 1
007 272-8435 Left control panel (OBSOLETE) 1
008 272-8344 Decal left control panel (OBSOLETE) 1
009 991-1634 Key (pkg of 2) 1
010 272-8397 Control panel assembly hardware kit 4 Screw M4 x 5 mm pan head
011a 991-1634 Key (pkg of 2) 1
011a 172-3785 Key switch with two keys 1
012 272-8397 Control panel assembly hardware kit 4 Spacer
013 272-8397 Control panel assembly hardware kit 4 Screw M4 x 8 mm
014 272-8345 Electronic board 1
015 272-8436 Right control panel (OBSOLETE) 1
016 272-8437 Decal right control panel (OBSOLETE) 1
017 272-8346 Horn 1
018 272-8347 Harness control panel (OBSOLETE) 1
019 272-8397 Control panel assembly hardware kit 1 includes 010 and 012 thru 013

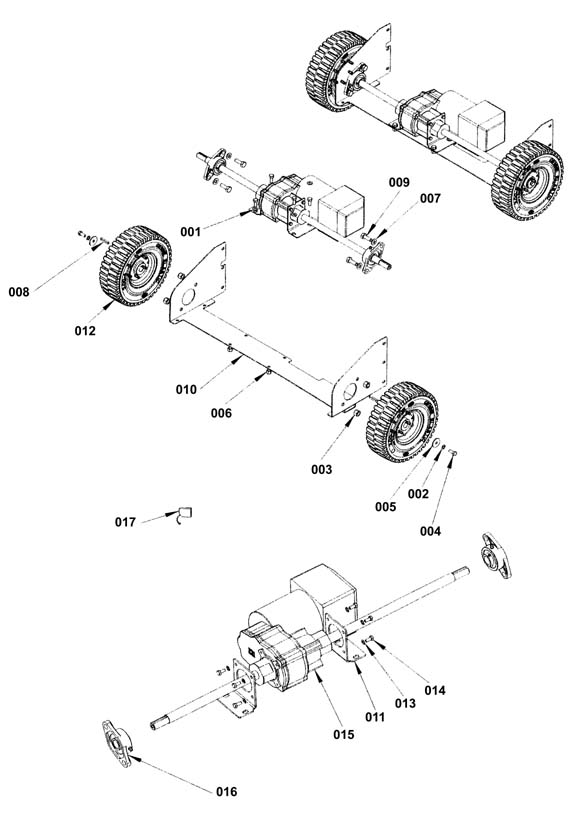

Drive System Assembly - 272-2262
RefNbr Part Number Description Req Notes
001 272-8398 Drive assembly hardware kit 4 Washer 8 x 17 flat
002 272-8398 Drive assembly hardware kit 2 Washer 8 split
003 272-8398 Drive assembly hardware kit 4 Nut M10 self lock hex head
004 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 6
005 272-8398 Drive assembly hardware kit 2 Washer 8 x 32 flat
006 272-8398 Drive assembly hardware kit 4 Nut M8 self lock hex head
007 272-8398 Drive assembly hardware kit 4 Washer 10 x 21 flat
008 272-0751 Feather key 2
009 999-0774 Bolt M10-1.5 x 30mm hex head stainless steel full thread 4
010 272-8348 Rear wheels bridge 1
011 272-8349 Drive motor support 2
012a 272-8350 Rear wheel 2
012b 272-8438 Non marking rear wheel (OBSOLETE) 1
013 999-0051 Washer #6 medium split lock 8
014 999-0978 Bolt M6-1 x 14mm hex head stainless steel 8
015 272-8240 Drive motor assembly includes axle 1
016 272-8351 Ball bearing with flange 2
017 272-0845 Carbon brush kit 1
018 272-8398 Drive assembly hardware kit 1 includes 001 thru 003, 005 thru 007

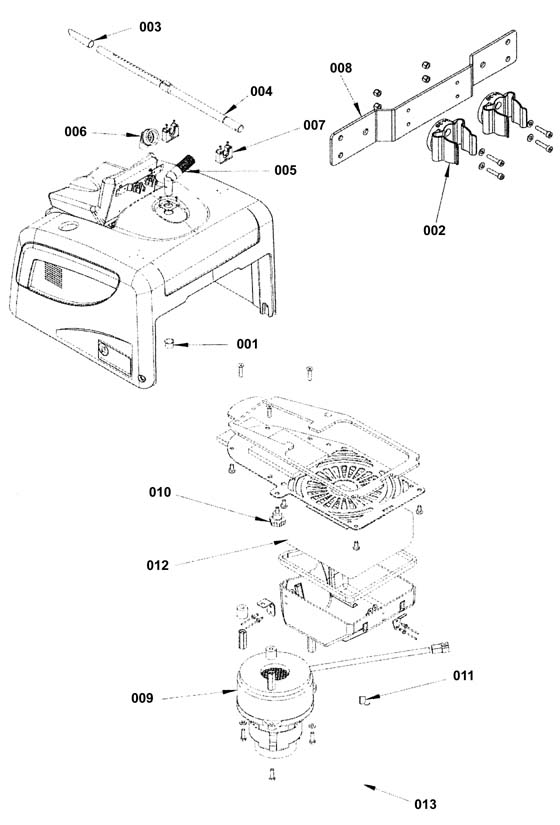

Dust Control Assembly - 272-2263
RefNbr Part Number Description Req Notes
001 999-1267 Washer M8 flat zinc 4
002 272-8440 Clamp 2
003 272-8353 Filter gaskets kit 1
004 272-8354 Filter shaker kit 1
005a 272-8355 Filter paper 1
005b 272-8356 Antistatic polyester filter 1
005c 272-8357 Polyester filter 1
006 472-3360 NUT SELF L. M8 UNI7473 10 PCS 4
007 272-8441 Filter shaker frame (OBSOLETE) 1
N/S 272-8442 Pre-filter grid 1

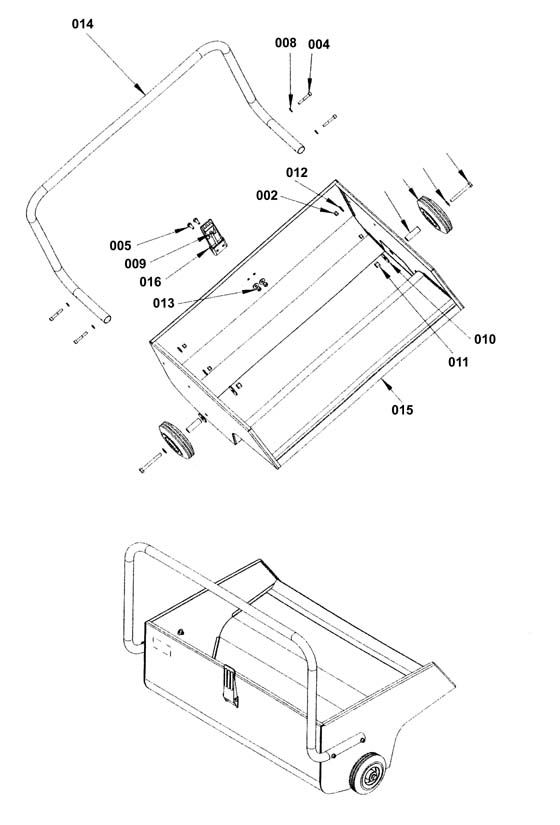

Waste Container Assembly - 272-2264
RefNbr Part Number Description Req Notes
001 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel 2
002 272-8399 Waste container hardware kit 4 Nut M6 self lock hex head
003 272-8399 Waste container hardware kit 2 Washer 8 x 17 flat
004 272-8399 Waste container hardware kit 4 Screw M6 x 40 mm cylindrical head
005 999-1257 Screw M6-1 x 16mm pan head Phillips 2
006 272-8359 Wheel (OBSOLETE) 2
007 272-8360 Bushing 2
008 272-8399 Waste container hardware kit 4 Washer 6 x 12 1/2 flat
009 272-8399 Waste container hardware kit 1 Nut M6 hex head
010 272-8399 Waste container hardware kit 4 Washer 8 x 32 flat
011 272-8399 Waste container hardware kit 2 Nut M8 self lock hex head
012 272-8399 Waste container hardware kit 6 Washer 6 x 18 flat
013 272-8399 Waste container hardware kit 2 Nut M8 self lock hex head stainless steel
014 272-8443 Waste container handle (OBSOLETE) 1
015 272-8444 Waste container (OBSOLETE) 1
016 272-8361 Hook 1
017 272-8399 Waste container hardware kit 1 includes 002 thru 004 and 008 thru 013
N/S 272-8400 Mini dirt containers kit (OBSOLETE) 1

Electrical Parts Assemblies - 272-2265
RefNbr Part Number Description Req Notes
001 272-8401 Electrical assemblies hardware kit 1 Screw hex head M6 X 8 mm
002 272-8401 Electrical assemblies hardware kit 1 Nut hex self lock low M5
003 272-8362 Fuse 10 amp 1
004 272-8363 10amp fuse 3
005 181-0963 40amp fuse 1
006 272-8401 Electrical assemblies hardware kit 1 Washer 5 x 15 flat
007 999-0777 Screw M4-.7 x 10mm hex head plain finish 2
008 272-8401 Electrical assemblies hardware kit 4 Screw 4 1/5 x 9 1/2 hex head
009 272-8401 Electrical assemblies hardware kit 4 Washer split 5
010 272-8364 Electrical components cover box 1
011 272-8401 Electrical assemblies hardware kit 2 Nut M4 self lock low hex head
012 272-8365 25amp fuse 2
013 272-8401 Electrical assemblies hardware kit 1 Washer 6 x 12 1/2 flat
014 272-8401 Electrical assemblies hardware kit 6 Washer 4 x 9 flat
015 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2
016 272-8401 Electrical assemblies hardware kit 2 Washer 6 split
017 272-8401 Electrical assemblies hardware kit 2 Washer 6 x 18 flat
018 272-7143 Spacer M4 2
019 272-8401 Electrical assemblies hardware kit 2 Screw M4 x 8 hex head
020 172-3814 Main fuse holder 1
021 272-9579 Insulator 1
022 272-7141 24V switch 1
023 272-8366 Fuse box 1
024 272-8367 24V relay 2
025 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 3
026 272-8401 Electrical assemblies hardware kit 2 Screw pan head M4 X 20 mm
027 272-8368 Fuse 70 amp 1
028 275-2572 Right hand front arm weldment (gray) (Tennant Industrial) 1
029 272-8370 Electric components box (OBSOLETE) 1
030 472-1233 CONTROLLER DRIVE WHEEL PKD 1
031 172-3648 15amp fuse 2
032 272-8371 Grommet (OBSOLETE) 2
033 272-8445 Electric box gasket (OBSOLETE) 1
034 272-8372 Electric box harness (OBSOLETE) 1
035 272-8446 Battery harness 1
036 272-8373 Harness machine 1
037 272-8374 120amp connector (red) 1
038 272-8401 Electrical assemblies hardware kit 1 includes 001 thru 002, 006, 008 thru 009, 011, 013 thru 014, 016 thru 017, 019 and 026

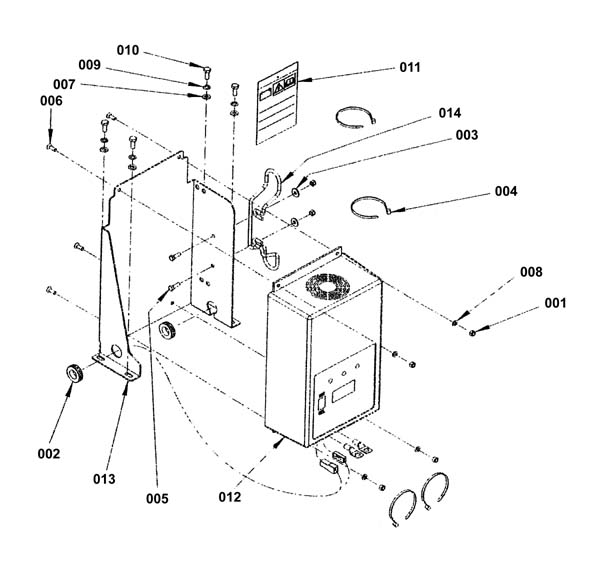

Battery Charger Assembly - 272-2266
RefNbr Part Number Description Req Notes
001 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 6
002 272-8375 Chock (OBSOLETE) 2
003 999-9100 Washer M5 flat stainless steel 2
004 272-8376 Wire tie 4
005 N/A Not available 2 (Screw)
006 170-9106 Screw M5 x 14mm 4
007 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 4
008 999-9100 Washer M5 flat stainless steel 4
009 999-0051 Washer #6 medium split lock 4
010 172-4823 Screw M6 x 16mm hex head 4
011 272-8378 Instruction card (OBSOLETE) 1
012 272-8142 Battery charger 110V 1
013 272-8379 Bracket 1
014 272-0659 On-board charger cord wrap 1
015 272-0666 15amp fuse 1
016 272-8142 Battery charger 110V 1
017 272-8142 Battery charger 110V 1
018 272-8142 Battery charger 110V 1
019 272-0670 Cooling fan (OBSOLETE) 1
020 272-8142 Battery charger 110V 1

Vacuum Cleaner Kit Assembly - 272-2267
RefNbr Part Number Description Req Notes
001 272-1971 Sleeve 1
002 272-8402 Vacuum cleaner kit 2 Hose clamp
003 172-1988 Flexible nozzle 1
004 181-0548 Telescopic extension tube aluminum 1
005 272-8381 Hose with bent end and sleeve 1
006 272-8402 Vacuum cleaner kit 1 Brush nozzle
007 272-8382 Hose clamp 30-40 2
008 272-8402 Vacuum cleaner kit 1 Tool mounting bracket
009 272-8383 24V vacuum motor 1
010 472-1227 KNOB LOBED M6X15 PKD 2
011 272-8069 Carbon brushes set 1
012 270-8244 Dust bag 1
013 272-8402 Vacuum cleaner kit 1 includes 001, 002, 006, 008, and N/S
N/S 272-8402 Vacuum cleaner kit 1 Installation instructions
N/S 272-8402 Vacuum cleaner kit 1 Vacuum cleaner harness
N/S 272-7141 24V switch 1

Working Light Kit Assembly - 272-2268
RefNbr Part Number Description Req Notes
001 272-8451 Working light kit (OBSOLETE) 2 Nut M3 hex head
002 272-8451 Working light kit (OBSOLETE) 2 Screw M3 x 20 mm pan head
003 272-8272 Screw M5 X 15 mm hex head (OBSOLETE) 2
004 172-3770 Insert M5 (OBSOLETE) 2
005 272-8385 Screw hex head 3 9/10 X 13 2
006 999-9100 Washer M5 flat stainless steel 2
007 272-8386 Washer flat 3 X 7 2
008 272-8451 Working light kit (OBSOLETE) 1 Light
009 272-8451 Working light kit (OBSOLETE) 1 Protection working light
010 272-8451 Working light kit (OBSOLETE) 1 Light support plate
011 272-8387 24V lamp (OBSOLETE) 1
012 272-8343 Switch 1
013 272-8451 Working light kit (OBSOLETE) 1 includes 001 thru 002, 008 thru 010, and N/S
N/S 272-8451 Working light kit (OBSOLETE) 1 Installation instructions
N/S 272-8363 10amp fuse 1 Fuse 10 amp

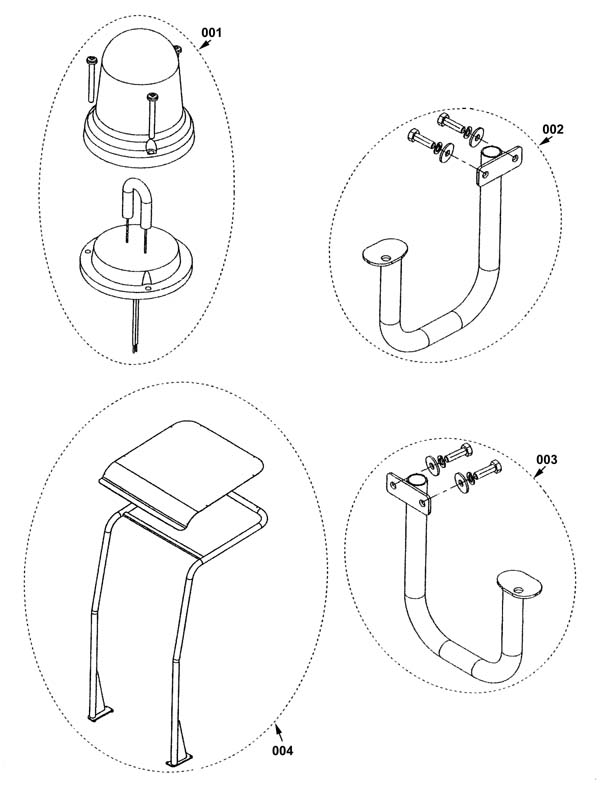

Accessories - 272-2269
RefNbr Part Number Description Req Notes
001 272-8388 Flashing beacon kit 1
002 272-8250 Right bumper broom kit (OBSOLETE) 1
003 272-8251 Left bumper broom kit (OBSOLETE) 1
004 272-8389 Overhead guard kit 1
N/S 272-8448 Installation instructions flashing beacon (OBSOLETE) 1
N/S 272-8447 Terminal (OBSOLETE) 1
N/S 272-8449 Installation instructions broom bumpers (OBSOLETE) 1
N/S 272-8450 Installation instructions overhead guard (OBSOLETE) 1

- Commonly Asked For Parts - 272-9981
RefNbr Part Number Description Req Notes
01 472-1233 CONTROLLER DRIVE WHEEL PKD
02 272-8239 Right hatch
03 181-2002 Recovery tank lid gasket
04 272-8109 Main broom cable
05 172-3671 Natural fiber side broom
06 172-3670 Steel mix side broom
07 272-8107 Paper filter (OBSOLETE)
08 181-1733 Automatic key
09 272-7328 Side broom steel mix (OBSOLETE)
10 272-7329 Clamp with pin
11 472-0868 SIDE BROOM NAT. FIBRE
12 272-8246 Cable right side broom
13 272-8245 Cable left side broom
Webpage Problem Reporting
