- Commonly Asked For Parts - 272-9915 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 02 |
272-5688 |
Side broom belt |
|
|
| 03 |
372-1135 |
Short transmission belt |
|
|
|
|

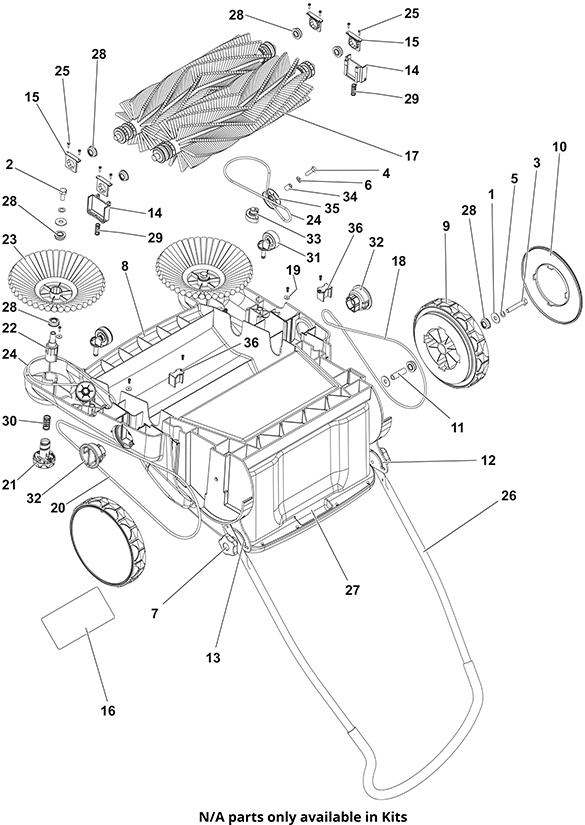

Entire Assembly - 372-0044 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
6 |
(washer 10x30) (only available in KIT1) |
| 2 |
N/A |
Not available |
2 |
(screw M10x20) (only avaailable in KIT1) |
| 3 |
N/A |
Not available |
2 |
(screw M10x60) (only available in KIT1) |
| 4 |
N/A |
Not available |
2 |
(screw M8x25) (only available in KIT1) |
| 5 |
999-9099 |
Washer M10 flat stainless steel |
4 |
(included in KIT1) |
| 6 |
999-9097 |
Washer M8 flat stainless steel |
2 |
(included in KIT1) |
| 9 |
472-0809 |
DRIVING WHEEL |
2 |
|
| 10 |
472-0810 |
COVER WHEEL |
2 |
|
| 11 |
N/A |
Not available |
2 |
(bushing) (only available in KIT1) |
| 12 |
472-0811 |
BRACKET HANDLE SUPPORT LEFT |
1 |
|
| 13 |
472-0812 |
BRACKET HANDLE SUPPORT RIGHT |
1 |
|
| 14 |
472-0813 |
MOVABLE SUPPORT |
2 |
|
| 15 |
472-0814 |
BEARING SUPPORT |
4 |
|
| 16 |
472-0824 |
DECAL ADVANCE TERRA 26M |
1 |
|
| 17 |
472-0931 |
CENTRAL BROOM ASSY (OBSOLETE) |
2 |
|
| 18 |
372-1135 |
Short transmission belt |
1 |
|
| 19 |
N/A |
Not available |
4 |
(flat washer) (only available in KIT1) |
| 20 |
272-5688 |
Side broom belt |
1 |
|
| 22 |
472-0815 |
SUPPORT ADJUSTABLE BROOM |
2 |
|
| 25 |
N/A |
Not available |
18 |
(pan head screw) (only available in KIT1) |
| 27 |
372-2702 |
Dirt container (gray) (OBSOLETE) |
1 |
|
| 28 |
472-0818 |
BALL BEARING |
12 |
|
| 29 |
372-2703 |
Spring meter (OBSOLETE) |
2 |
|
| 30 |
472-0819 |
SPRING METER SPEC C0720-055-15 |
2 |
|
| 31 |
472-0820 |
CASTOR WHEEL |
2 |
|
| 33 |
472-0822 |
PULLEY SUPPORT |
2 |
|
| 34 |
N/A |
Not available |
2 |
(bushing) (only available in KIT1) |
| 36 |
372-2704 |
Support bearing (OBSOLETE) |
2 |
|
| N/S |
472-0931 |
CENTRAL BROOM ASSY (OBSOLETE) |
2 |
|
| N/S |
372-1135 |
Short transmission belt |
1 |
|
| N/S |
272-5688 |
Side broom belt |
1 |
|
| N/S |
472-0818 |
BALL BEARING |
12 |
|
| N/S |
472-0820 |
CASTOR WHEEL |
2 |
|
| KIT1 |
372-2705 |
Hardware kit (OBSOLETE) |
1 |
(includes 1-6, 11, 19, 25, 34) |
|
|
|
