Parts List Complete for NILFISK SR1300B

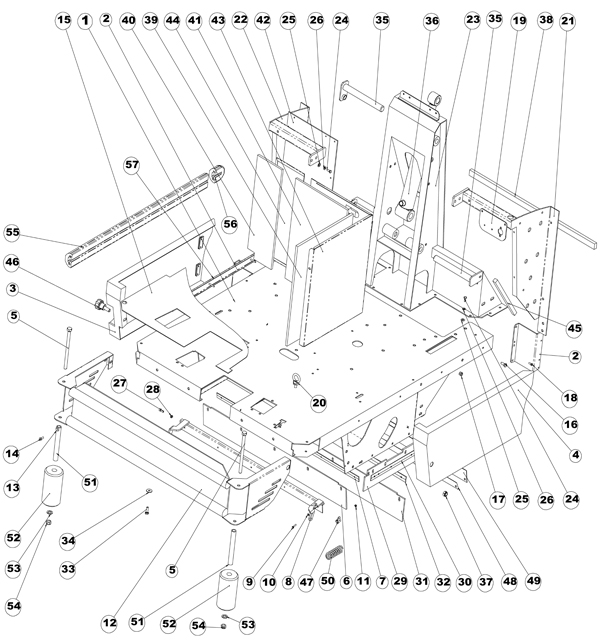

Frame Assembly - 172-9122
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Frame)
2 N/A Not available 2 (Support)
3 N/A Not available 1 (Right hand hatch)
4 N/A Not available 1 (Left hand hatch)
5 N/A Not available 2 (Screw)
6 272-6835 Front flap 1
7 272-6836 Plate (OBSOLETE) 1
8 272-6837 Flap raising device (OBSOLETE) 1
9 N/A Not available 5 (Screw)
10 N/A Not available 5 (Washer)
11 N/A Not available 5 (Nut)
12 N/A Not available 1 (Bumper)
13 272-5891 Washer (OBSOLETE) 4
14 272-5891 Washer (OBSOLETE) 4 (Screw)
15 N/A Not available 1 (Mat board)
16 172-3687 Screw 8x16 8
17 272-8269 Nut M8 (OBSOLETE) 8
18 170-9106 Screw M5 x 14mm 8
19 N/A Not available 1 (Bracket)
20 N/A Not available 2 (Eyebolt)
21 N/A Not available 1 (Left support)
22 N/A Not available 1 (Right support)
23 N/A Not available 1 (Screw)
24 172-4823 Screw M6 x 16mm hex head 2
25 N/A Not available 2 (Plain washer)
26 272-9520 Washer M8 split lock (OBSOLETE) 2
27 272-8256 Screw M6 X 16 mm cylindrical head (OBSOLETE) 2
28 172-3667 Nut M6 self locking (OBSOLETE) 2
29 272-8262 Side skirt 1
30 272-8263 Side skirt plate 1
31 272-6839 Rear flap 1
32 272-6840 Plate (OBSOLETE) 1
33 172-3707 Screw 8x25 hex head (OBSOLETE) 6
34 999-1267 Washer M8 flat zinc 6
35 N/A Not available 2 (Pit)
36 N/A Not available 1 (Cylinder)
38 N/A Not available 1 (Gasket)
39 N/A Not available (Panel)
40 N/A Not available (Panel)
41 N/A Not available (Panel)
42 N/A Not available 2 (Dust cover)
43 N/A Not available (Bulkhead)
44 N/A Not available (Bulkhead extension)
45 N/A Not available 2 (Gasket)
46 N/A Not available 1 (Knob)
47 272-8255 Bracket (OBSOLETE) 1
48 N/A Not available 1 (Plate)
49 N/A Not available 1 (Flap)
50 272-8258 Spring 1
51 N/A Not available 2 (Screw)
52 N/A Not available 2 (Bumper roller)
53 272-9498 Washer flat 2
55 N/A Not available 2 (Side protection)
56 N/A Not available 2 (Bumper end)
57 N/A Not available 2 (Protection plate)

Front Cover Assembly - 172-9124
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Frame support)
2 N/A Not available 1 (Right hand cover)
3 N/A Not available 1 (Left hand cover)
4 N/A Not available 1 (Front cover
5 N/A Not available 1 (Fuel tank)
6 N/A Not available 1 (Fuel tank cap)
7 N/A Not available 1 (Pipe holder)
8 N/A Not available 1 (Cover)
9 N/A Not available 1 (Joystick lever)
10 N/A Not available 2 (Hinge)
11 N/A Not available 1 (Seat holder bonnet)
12 N/A Not available 1 (Seat reinforcement bonnet)
13 472-1365 SEAT PKD 1
14 N/A Not available 1 (Cover)
15 N/A Not available 1 (Container box)
16 N/A Not available 1 (Cover)
17 N/A Not available 1 (Front guard)
18 N/A Not available 2 (Side guard grate)
19 272-6838 Washer (OBSOLETE) 4
20 172-4835 Screw M6 x 20mm 4
21 N/A Not available 1 (O-ring)
22 N/A Not available 1 (Under cover left hand frame support)
23 N/A Not available 2 (Under cover right hand frame support)
24 N/A Not available 1 (Plate)
25 N/A Not available 1 (Decal)
26 N/A Not available 1 (Battery decal)
27 N/A Not available (Side panel)
28 N/A Not available (Panel)
30 N/A Not available (Decal)

Traction Assembly - 172-9125
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Support)
2 N/A Not available 1 (Sprocket wheel)
3 172-3725 Support 3
4 172-3724 Support 3
5 172-3684 Ball bearing 3
6 N/A Not available 6 (Screw)
7 172-3687 Screw 8x16 2
8 999-1267 Washer M8 flat zinc 2
9 272-0751 Feather key 2
10 N/A Not available 1 (Motodifferential)
11 999-0803 Washer M5 flat plain finish 4
12 N/A Not available 4 (Screw)
13 N/A Not available 1 (Bracket)
14 272-0845 Carbon brush kit 2
15 N/A Not available 2 (Chain)
16 N/A Not available 1 (Fan)
17 N/A Not available 1 (Rear bridge)
18 272-6843 Brake block 1
19 272-6843 Brake block 1
20 172-3687 Screw 8x16 8
21 N/A Not available 2 (Crown)
22 N/A Not available 2 (Wheel) (Includes items 29-34)
23 N/A Not available 12 (Screw)
24 272-6844 Nut 2
25 272-6631 Master link (OBSOLETE) 2
26 N/A Not available 11 (Oil)
27 N/A Not available 2 (Screw)
28 N/A Not available 1 (Thermocouple)
29 N/A Not available 2 (Semicircle)
30 N/A Not available 2 (Ball bearing)
31 N/A Not available 2 (Spacer)
32 N/A Not available 2 (Tire)
33 N/A Not available 2 (Ball bearing)
34 N/A Not available 2 (Semicircle with hub)
35 N/A Not available 2 (Spring)

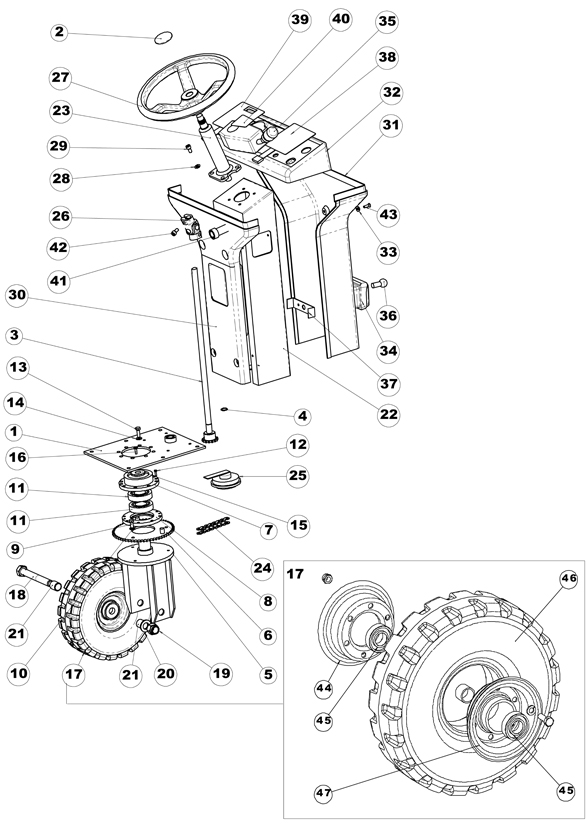

Steering Assembly - 172-9126
RefNbr Part Number Description Req Notes
1 272-6868 Plate (OBSOLETE) 1
2 272-8322 Cap 1
3 N/A Not available 1 (Steering shaft)
4 572-3661 RING D 17 UNI7435 10 PCS SET 1
5 272-6848 Wheel support 1
6 272-8333 Crown (OBSOLETE) 1
7 272-8335 Flange 1
8 272-8334 Flange 1
9 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 3
10 272-9520 Washer M8 split lock (OBSOLETE) 3
11 272-8395 Ball bearing 2
12 N/A Not available 1 (Screw)
13 172-3707 Screw 8x25 hex head (OBSOLETE) 8
14 272-9520 Washer M8 split lock (OBSOLETE) 8
15 272-8332 Washer (OBSOLETE) 1
16 172-4835 Screw M6 x 20mm 1
17 N/A Not available 1 (Wheel) (Includes items 44-47)
18 N/A Not available 1 (Screw)
19 N/A Not available 1 (Nut)
20 272-6845 Washer 1
21 272-6846 Spacer (OBSOLETE) 2
22 N/A Not available 1 (Front panel)
23 272-8307 Steering column 1
24 270-0852 Chain (69 links) 1
25 472-1366 HORN 24V PKD 1
26 272-8313 Joint 1
27 272-8320 Steering wheel 1
28 999-1267 Washer M8 flat zinc 4
29 N/A Not available 4 (Screw)
30 N/A Not available 1 (Rear cover)
31 N/A Not available 1 (Front cover)
32 N/A Not available 1 (Control panel)
33 272-6838 Washer (OBSOLETE) 4
34 272-6847 Headlight (OBSOLETE) 1
35 N/A Not available 1 (Lever)
36 272-8387 24V lamp (OBSOLETE) 1
37 N/A Not available 1 (Bracket)
38 N/A Not available 1 (Decal)
39 N/A Not available 1 (Decal)
40 N/A Not available 1 (Adhesive)
41 N/A Not available 1 (Push button)
42 N/A Not available 1 (Screw)
43 172-4835 Screw M6 x 20mm 8
44 N/A Not available 1 (Semicircle)
45 N/A Not available 2 (Ball bearing)
46 N/A Not available 1 (Tire)
47 N/A Not available 1 (Semicircle w/ hub)

Control Pedal and Lever Assembly - 172-9127
RefNbr Part Number Description Req Notes
1 170-9149 Pedal (OBSOLETE) 1
2 N/A Not available 1 (Bracket)
3 N/A Not available 1 (Potentiometer)
4 N/A Not available 1 (Connecting rod)
5 272-0639 Microswitch 1
6 N/A Not available 1 (Spacer)
7 N/A Not available 1 (Tension rod)
8 272-7164 Elbow joint 1
9 272-0650 Screw 3 x 20 hex head (OBSOLETE) 2
10 272-0655 Nut m3 hex head self lock (OBSOLETE) 2
11 N/A Not available 1 (Screw 4 x 16 hex head)
12 170-9155 Rubber pedal cover 1
13 172-3665 Screw 6 x 12 hex head 2
14 N/A Not available 2 (Washer)
15 172-3667 Nut M6 self locking (OBSOLETE) 3
16 N/A Not available 2 (Screw)
17 N/A Not available 1 (Pedal)
19 472-1423 CLEVIS M6X24 GALV. DIN71752 PK 2
20 172-3779 Clip 1
21 272-6849 Pedal support (OBSOLETE) 1
22 272-6850 Pedal lever (OBSOLETE) 1
23 181-0917 Pedal cover 1
24 999-1312 Screw M6-1 x 20mm hex head stainless steel 1
25 N/A Not available 1 (Brake level)
26 N/A Not available 1 (Support)
27 N/A Not available 5 (Plate)
28 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 5
29 472-3360 NUT SELF L. M8 UNI7473 10 PCS 1
30 N/A Not available 1 (Brake cable)
31 N/A Not available 1 (Cable)
32 N/A Not available 1 (Cable)
33 N/A Not available 1 (Cable)
34 170-9154 Washer (OBSOLETE) 1

Rear Cover and Filter Assembly - 172-9128
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Filter container)
2 N/A Not available 1 (Lid cover)
3 N/A Not available 1 (Filter fixing frame)
4 272-6851 Filtershaker 1
5 N/A Not available 1 (Plate)
6 272-8440 Clamp 2
7 N/A Not available 1 (Electric fan)
8 272-8355 Filter paper 1
9 999-1267 Washer M8 flat zinc 4
10 N/A Not available 4 (Nut)
11 N/A Not available 4 (Screw 4 x 16 hex head)
12 272-9285 Washer M4 flat 4
13 270-8173 Knob 2
14 N/A Not available 2 (Rubber washer)
15 N/A Not available 2 (Washer M7 thick rubber)
16 272-0772 Nut M6 wing (pkg 5) 2
17 N/A Not available 2 (Clamp)
18 N/A Not available 2 (Plate)
19 N/A Not available 1 (Guard)
20 472-3360 NUT SELF L. M8 UNI7473 10 PCS 4

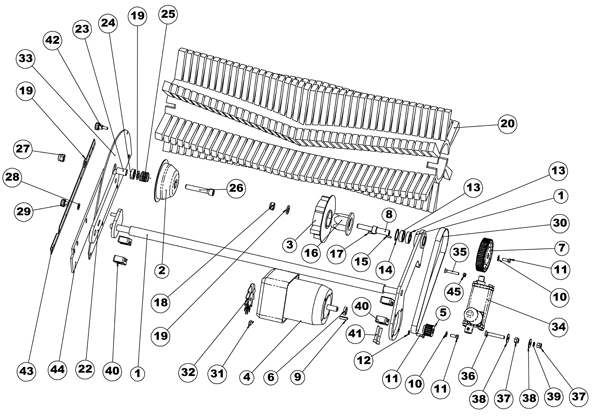

Main Brush Assembly - 172-9129
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Main brush shaft)
2 172-3798 Hub 1
3 172-3807 Hub (OBSOLETE) 1
4 N/A Not available 1 (Brush motor)
5 272-8288 Pulley 205 M 156 F high torque drive 1
6 272-8288 Pulley 205 M 156 F high torque drive 1
7 272-8287 Spacer 14 X 23 X 5 1
8 272-8112 Main broom pin 1
9 172-3730 Square keyway 1
10 172-3731 Washer 6 x 24 x 2 6
11 999-1312 Screw M6-1 x 20mm hex head stainless steel 5
12 172-3731 Washer 6 x 24 x 2 4
13 272-8114 Ball bearing 2
14 272-8113 Retaining ring (OBSOLETE) 1
15 272-8153 Key 4 x 4 x 20 1
16 272-8111 Main broom hub 1
17 172-3729 Square key (OBSOLETE) 1
18 172-2372 Nut hex 1
19 272-9498 Washer flat 3
20 272-6852 Center brush (OBSOLETE) 1
22 272-8289 Main broom lever 1
23 272-8116 Spacer 12 x 17 x 28 (OBSOELTE) 1
24 172-3799 Ball bearing 1
25 172-3800 Spring 1
26 272-6853 Screw 1
27 172-2372 Nut hex 1
28 999-1267 Washer M8 flat zinc 1
29 172-3664 Knob M8 1
30 272-8283 Belt 1
31 272-8286 Carbon brush kit (pkg of 4) 2
32 N/A Not available 1 (Fan)
33 272-8292 Main broom hatch 1
34 N/A Not available 1 (Jack with micro)
35 N/A Not available 1 (Screw)
36 272-9495 Screw 8 x 55 (OBSOLETE) 1
37 472-3360 NUT SELF L. M8 UNI7473 10 PCS 2
38 999-1267 Washer M8 flat zinc 2 (washer)
39 272-9520 Washer M8 split lock (OBSOLETE) 2
40 272-8253 Collar pipe fixing 2
41 272-8405 Screw M6 X 40 mm cylindrical head 4
42 472-1227 KNOB LOBED M6X15 PKD 2
43 272-8263 Side skirt plate 1
44 272-8262 Side skirt 1
45 172-3667 Nut M6 self locking (OBSOLETE) 1

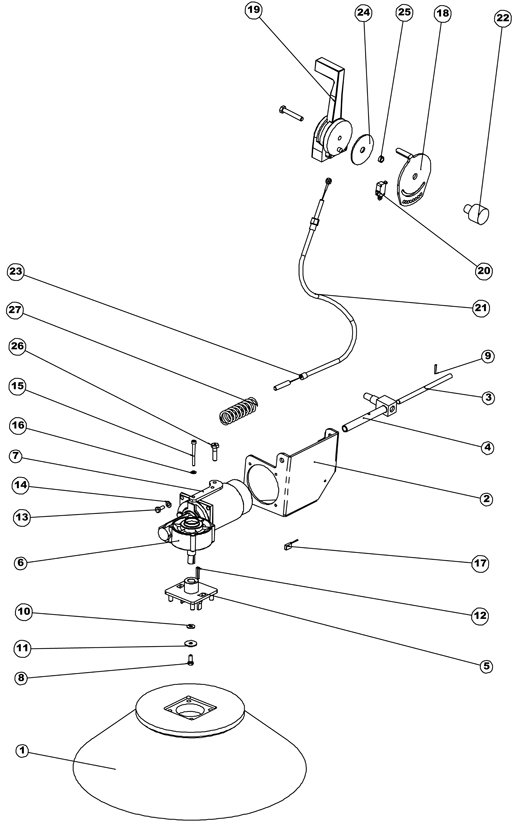

Side Brush Assembly - 172-9131
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Side brush)
2 272-8296 Support side broom right 1
3 272-8295 Side broom pin 1
4 272-8294 Side broom pin 1
5 272-8110 Broom holding flange 1
6 N/A Not available 1 (Right reduction gear)
7 272-6858 Bracket (OBSOLETE) 1
8 N/A Not available 1 (Plated screw)
9 272-8299 Split pin 3 x 20 2
10 272-8297 Spring 6' 1/5 x 15 x 1/2 1
11 172-3731 Washer 6 x 24 x 2 1
12 172-3730 Square keyway 1
13 172-4823 Screw M6 x 16mm hex head 1
14 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 4
15 272-6859 Screw 4
16 999-0803 Washer M5 flat plain finish 2
17 272-8286 Carbon brush kit (pkg of 4) 2
18 N/A Not available 2 (Right lever retainer)
19 272-6860 Lever 1
20 272-0639 Microswitch 1
21 N/A Not available 1 (Cable)
22 N/A Not available 1 (Knob)
23 N/A Not available 1 (Bushing)
24 N/A Not available 1 (Spacer)
25 N/A Not available 1 (Spacer)
26 272-6861 Screw (OBSOLETE) 1
27 272-8242 Spring 1

Hydraulic Assembly - 172-9132
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Cylinder)
2 N/A Not available 2 (Tube)
3 N/A Not available 2 (Screw)
4 N/A Not available 1 (Hydraulic motor)
5 N/A Not available 2 (Screw)
6 272-6862 Gasket 4
7 272-4506 Gasket 4
8 N/A Not available 1 (Oil)

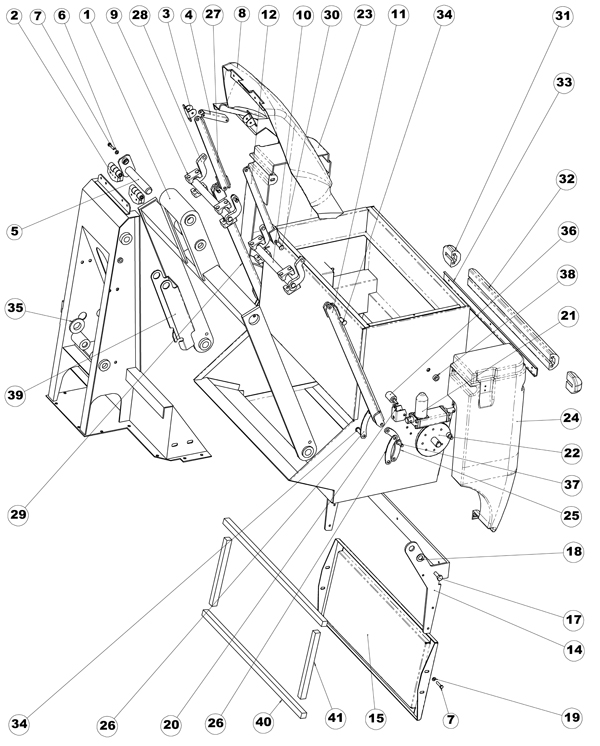

Recovery Tank Assembly - 172-9133
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Lifting arm)
2 N/A Not available 2 (Hinge)
3 N/A Not available 2 Hinge)
4 N/A Not available 1 (Control lever)
5 N/A Not available 1 (Pin)
6 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 1
7 N/A Not available 5 (Screw)
8 N/A Not available 1 (Undercover)
9 N/A Not available 4 (Collar)
10 N/A Not available 1 (Left hand shaft)
11 N/A Not available 1 (Left hand pin)
12 N/A Not available 1 (Left hand pin)
14 N/A Not available 1 (Lever)
15 N/A Not available 1 (Hatch)
17 272-6857 Screw 2
18 N/A Not available 2 (Washer)
19 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 4
20 N/A Not available 1 (Bracket)
21 N/A Not available 1 (Jack)
22 N/A Not available 2 (Pin)
23 N/A Not available 1 (Right hand cover)
24 N/A Not available 1 (Left hand cover)
25 N/A Not available 2 (Arm)
26 N/A Not available 4 (Arm)
27 N/A Not available 1 (Right hand pin)
28 N/A Not available 1 (Right hand shaft)
29 N/A Not available 1 (Right hand pin)
30 N/A Not available 4 (Pin)
31 N/A Not available 2 (Terminal)
32 N/A Not available 1 (Rear guard)
33 N/A Not available 1 (Plate)
34 N/A Not available 2 (Pin)
35 N/A Not available 2 (Guide cable)
36 N/A Not available 1 (Pit)
37 N/A Not available 2 (Pit)
38 N/A Not available 2 (Spacer)
39 N/A Not available 1 (Bracket)
40 N/A Not available 2 (Gasket)
41 N/A Not available 2 (Gasket)

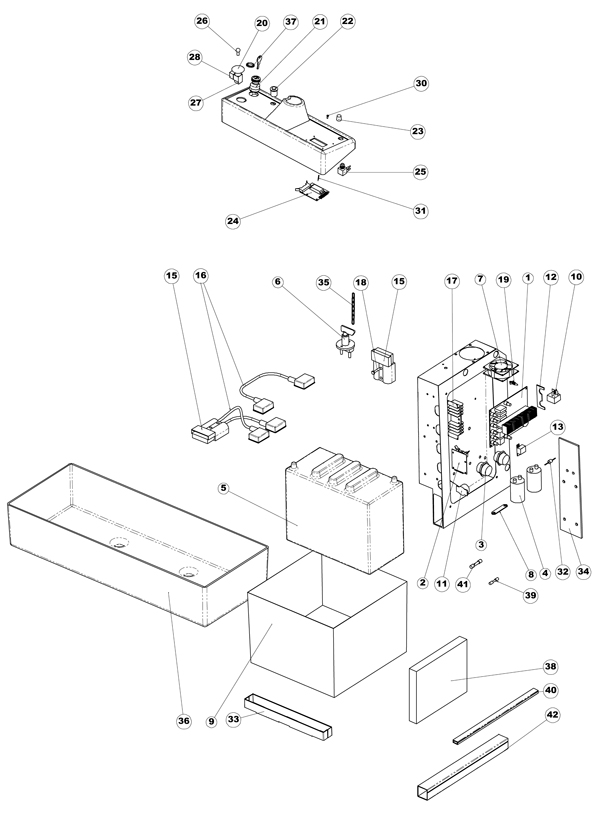

Electronic Assembly - 172-9134
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (Card)
2 N/A Not available 1 (Card)
3 N/A Not available 2 (Switch)
4 181-0965 Contactor 1
5 162-0005 6V 305Ah wet battery (SNSR) 4
6 272-4572 Battery stop key 1
7 N/A Not available 1 (Fan)
8 N/A Not available 1 (Plate)
9 N/A Not available 1 (Battery container)
10 N/A Not available 1 (Relay)
11 N/A Not available 1
12 N/A Not available 1 (Fuse)
13 N/A Not available 1 (Resistance)
15 272-0636 Battery connector 1
16 N/A Not available 1 (Cables)
17 N/A Not available 1 (Heat waste)
18 N/A Not available 1 (Cables)
19 N/A Not available 6 (Spacer)
20 272-6864 Switch 1
21 181-0071 Key switch (OBSOLETE) 1
22 172-3766 Push button (OBSOLETE) 1
23 272-0679 Knob (for potentiometer) 1
24 N/A Not available 1 (Card)
25 N/A Not available 1 (Potentiometer)
26 N/A Not available 1 (Lamp)
27 272-6865 Contact 1
28 272-8341 Contact 1
30 N/A Not available 4 (Screw)
31 N/A Not available 4 (Spacer)
32 N/A Not available 1 (Diode)
33 N/A Not available 1 (Battery container frame)
34 N/A Not available 1 (Dust proof filter)
35 N/A Not available 354 (Chain)
36 272-6866 Container 1
37 N/A Not available 1 (Spacer)
38 172-3706 Insulating panel 2
39 N/A Not available 1 (Glass fuse)
40 N/A Not available 1 (Cable protection)
41 N/A Not available 1 (Glass fuse)
42 N/A Not available 1 (Cable protection)

Wiring Diagram -

RefNbr Part Number Description Req Notes
Webpage Problem Reporting
