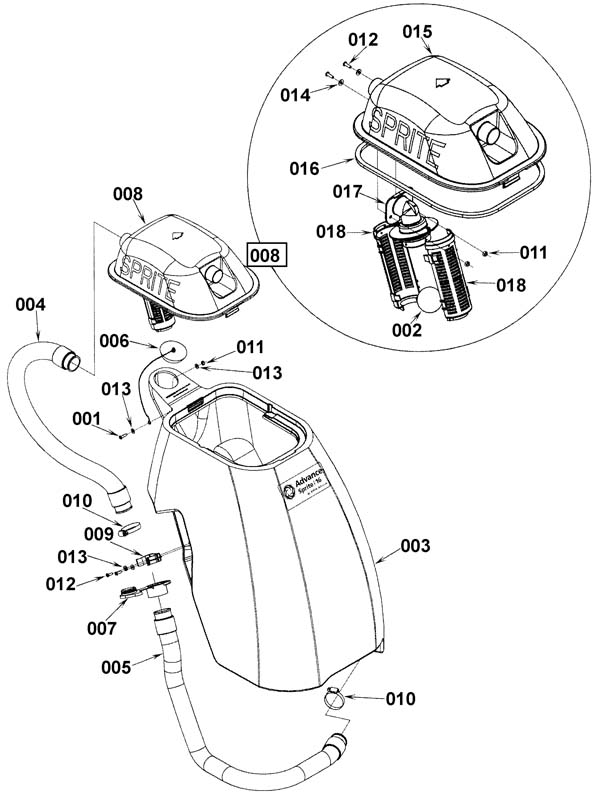

Tank Assembly - 172-2195 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
| 002 |
172-0192 |
Float ball |
1 |
|
| 003a |
272-2828 |
12 gallon tank assembly (OBSOLETE) |
1 |
|
| 003b |
N/A |
Not available |
1 |
(16 gallon tank assembly) |
| 004 |
172-8386 |
30 inch hose assembly |
1 |
|
| 005 |
172-0456 |
34 inch hose assembly |
1 |
|
| 007 |
272-1731 |
Drain hose plug 1.5 inch dark gray |
1 |
|
| 008 |
272-0375 |
Tank lid assembly (gray) (OBSOLETE) |
1 |
(includes 002, 011, 012, 014 thru 018) |
| 009 |
272-1159 |
Plastic clamp |
1 |
|
| 010 |
997-2000 |
Hose clamp |
2 |
|
| 011 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
3 |
|
| 012 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
|
| 013 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 014 |
172-2311 |
Washer 9/16 |
2 |
|
| 015 |
272-2831 |
Tank lid assembly (gray) (OBSOLETE) |
1 |
|
| 016 |
172-0455 |
Tank lid gasket |
1 |
|
| 017 |
272-2835 |
Elbow float |
1 |
|
| 018 |
172-0517 |
Float cage half (2 required for full float cage) |
2 |
|
|
|

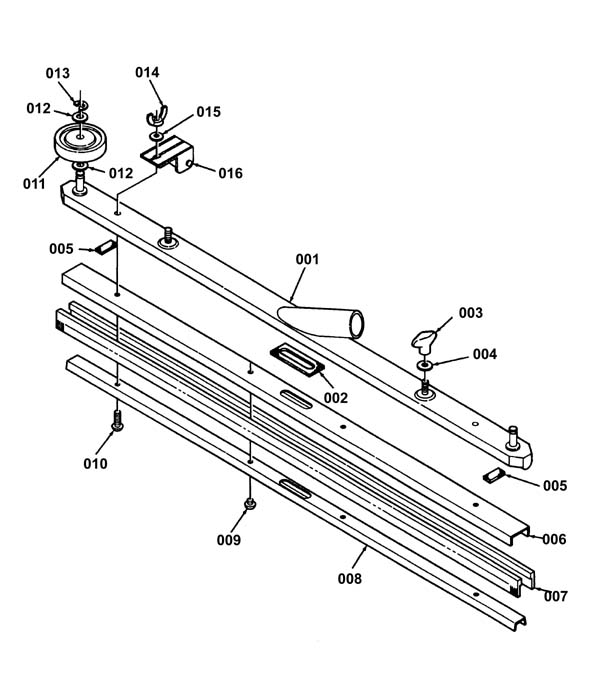

Squeegee Lift Assembly - 172-9004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
172-6181 |
Squeegee assembly (OBSOLETE) |
1 |
(Includes items 1 - 16) |
| 001b |
172-6230 |
Squeegee cartridge assembly (OBSOLETE) |
1 |
(Includes items 6 - 10 and 14) |
| 001c |
172-6229 |
Squeegee tool |
1 |
(Only) |
| 003 |
172-4099 |
Nut 5/16-18 thumb |
2 |
|
| 004 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 007 |
172-6232 |
Squeegee blade blue 25 1/2 inch |
2 |
|
| 009 |
999-0343 |
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
2 |
|
| 010 |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
2 |
|
| 011 |
172-0274 |
Guide wheel |
2 |
|
| 012 |
172-0404 |
Washer 25/64 x 5/8 x 1/16 flat |
4 |
|
| 013 |
172-0315 |
Retaining ring |
2 |
|
| 014 |
999-1948 |
Nut 1/4-20 wing lock |
2 |
|
| 015 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 016 |
172-0276 |
Roller assembly |
2 |
|
|
|
- Commonly Asked For Parts - 172-9915 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01a |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 01b |
991-5001 |
14/3 extension cord 50 foot (yellow) |
|
(NON-OEM) |
| 02 |
181-1384 |
On/off switch (OBSOLETE) |
|
|
| 03 |
172-3899 |
Link wheel (OBSOLETE) |
|
|
| 05a |
272-5148 |
14 inch ABS squeegee (for wands with a lock collar) |
|
|
| 05b |
472-5358 |
BLADES 4 REPL. FOR 209233 |
|
|
| 06 |
991-1208 |
120V 2 stage vacuum motor peripheral |
|
|
|
|
