Parts List Complete for NILFISK SPRITE 12HP

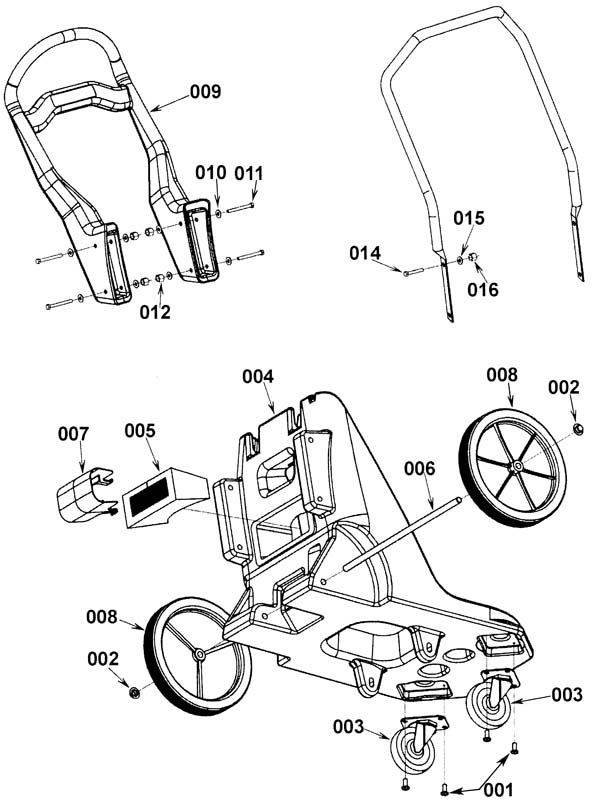

Cart Handle Assembly - 172-2193
RefNbr Part Number Description Req Notes
001 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
002 172-4017 1/2 inch push cap 2
003 172-5072 4 inch caster 2
004 272-2850 Chassis 1
005 272-2851 Silencer (OBSOLETE) 1
006 272-2852 Axle (OBSOLETE) 1
007 272-2856 Exhaust deflector 1
008 172-4016 10 inch wheel 2
009 N/A Not available 1 (Handle)
010 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
011 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4
012 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
014 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 4
015 999-0120 Washer 3/8 SAE flat 1
016 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4

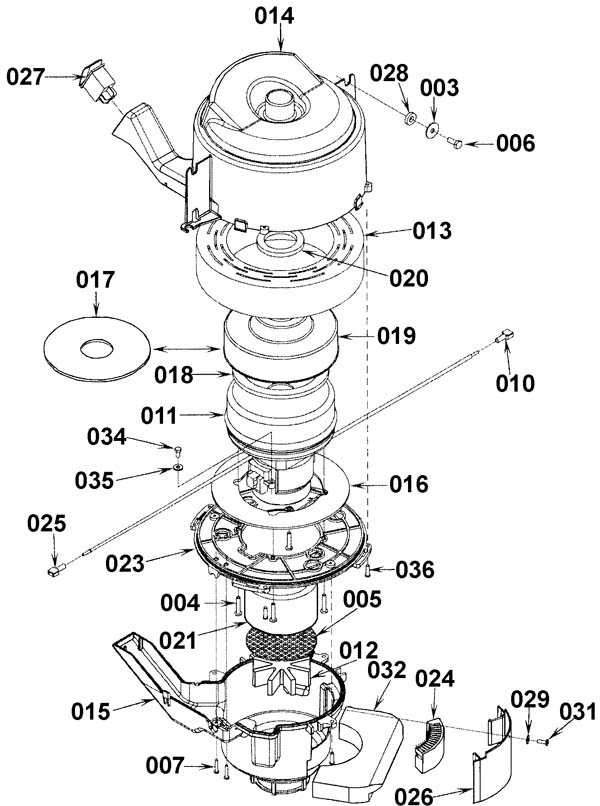

Vacuum Motor Assembly - 172-2194
RefNbr Part Number Description Req Notes
003 172-0553 Washer 17/64 x 1/16 flat 4
004 182-0012 Screw 10-14 x .88 phillips pan plastite 4
005 272-2813 Screen 1
006 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
007 172-4414 Screw 6-32 x 3/4 pan phillips stainless steel 2
010 272-2814 1/4 inch spade terminal 1
011a 272-2815 120V vacuum motor assembly 1 (standard model) (OEM, includes 011c thru 011f)
011b 991-1208 120V 2 stage vacuum motor peripheral 1 (HP model) (NON-OEM)
011c 172-7105 120V vacuum motor 1 (HP model)
011d 172-6012 Carbon brush (pkg of 2) 1
011e 172-6202 Ball bearing 2
011f 172-6203 Rotating fan (OBSOLETE) 2
012 172-0607 Cool air intake filter 1
013 172-0609 Acoustic dampener 1
014 172-0611 Upper motor cover (OBSOLETE) 1
015 172-0610 Lower motor cover (OBSOLETE) 1
016 172-0613 Motor gasket 1
017 272-2818 Stiffener plate (OBSOLETE) 1
018 172-0605 Upper gasket 1
019a 172-0614 Stiffener plate (OBSOLETE) 1 (standard model)
019b 272-2818 Stiffener plate (OBSOLETE) 1 (HP model)
020 172-0606 Motor cover gasket 1
021 272-2819 Lower motor seal (OBSOLETE) 1
023 172-0612 Base plate (OBSOLETE) 1
024 172-0608 Acoustic dampener (OBSOLETE) 1
025 272-2821 1/4 inch spade terminal 1
026 272-2822 Guard 1
027 272-5087 Rocker DPST switch 1
028 999-0024 Washer 5/16 flat stainless steel 4
029 999-0412 Washer #8 SAE flat 1
031 181-1165 Screw 8-15 x 1/2 pan head phillips 1
032 172-0615 Deflector 1
034 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 1
035 999-0053 Washer #10 split lock plain finish 1
036 272-5244 Screw 8-15 x 9/16 pan head phillips plastic 7
N/S 272-2825 120V power module kit 1 (standard)
N/S 272-2827 120V power module kit (OBSOLETE) 1 (horsepower)
N/S 272-2820 RFI filter bracket (OBSOLETE) 1
N/S 272-0013 14/3 power cord set 50 foot (black) (OBSOLETE) 1 (OEM)
N/S 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
N/S 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)

Tank Assembly - 172-2195
RefNbr Part Number Description Req Notes
001 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 1
002 172-0192 Float ball 1
003a 272-2828 12 gallon tank assembly (OBSOLETE) 1
003b N/A Not available 1 (16 gallon tank assembly)
004 172-8386 30 inch hose assembly 1
005 172-0456 34 inch hose assembly 1
006 172-8387 Stopper 1
007 272-1731 Drain hose plug 1.5 inch dark gray 1
008 272-0375 Tank lid assembly (gray) (OBSOLETE) 1 (includes 002, 011, 012, 014 thru 018)
009 272-1159 Plastic clamp 1
010 997-2000 Hose clamp 2
011 999-0442 Nut 10-24 nylon insert lock stainless steel 3
012 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 4
013 999-0006 Washer 3/16 flat zinc plated 4
014 172-2311 Washer 9/16 2
015 272-2831 Tank lid assembly (gray) (OBSOLETE) 1
016 172-0455 Tank lid gasket 1
017 272-2835 Elbow float 1
018 172-0517 Float cage half (2 required for full float cage) 2

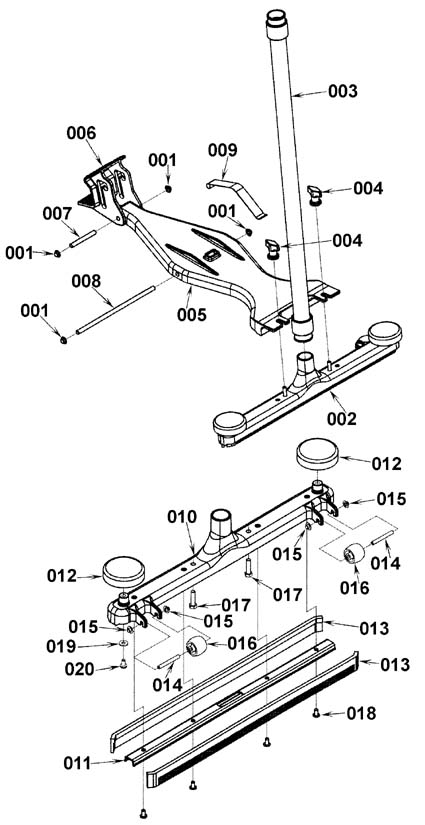

Squeegee Lift Assembly (Air Scoop) - 172-2196
RefNbr Part Number Description Req Notes
001 172-4142 Nut 3/8 push cap 4
002a 272-5111 24 inch squeegee assembly 1 (Sprite Air Scoop 12)
002b 272-2836 30 inch squeegee assembly 1 (Sprite Air Scoop 16)
003 172-0456 34 inch hose assembly 1
004 272-2056 Nut 5/16 thumb 2
005 272-8013 Plastic squeegee lift weldment 1
006 272-8015 Pedal 1
007 272-5117 Pedal axle 1
008 272-8016 Axle weldment 1
009 272-8017 Spring 1
010a 272-5114 24 inch squeegee housing 1 (Sprite Air Scoop 12)
010b 272-2838 30 inch squeegee housing 1 (Sprite Air Scoop 16)
011a 272-5112 24 inch squeegee retainer 1 (Sprite Air Scoop 12)
011b 272-2839 30 inch squeegee retainer 1 (Sprite Air Scoop 16)
012 272-5115 Guide wheel 2
013a 172-0454 Squeegee blade 24 inch (blue) 2 (Sprite Air Scoop 12)
013b 272-2840 Squeegee blade 30 inch 2 (Sprite Air Scoop 16)
014 272-5113 Axle 2
015 272-5254 Nut 1/4 push cap 4
016 272-5116 Wheel 2
017 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
018 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4
019 999-0998 Washer #10 flat stainless steel 2
020 272-5255 Screw 10-16 X .38 phillips pan head stainless steel type b 2
KIT 272-0043 Squeegee lifting kit 30 inch (OBSOLETE) 1 (Sprite Air Scoop 16)
KIT 272-0042 Squeegee lifting kit 20 inch (OBSOLETE) 1 (Sprite Air Scoop 12)

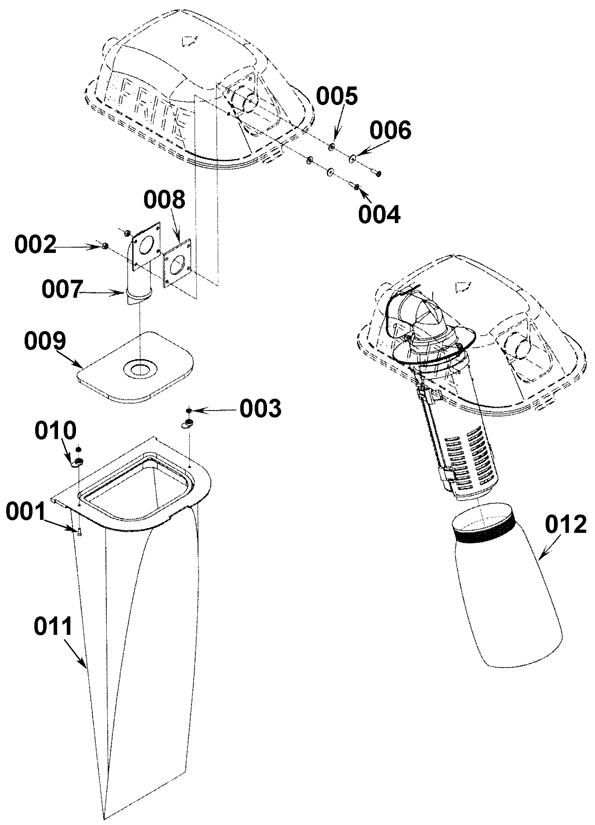

Dry Filter Bag Assembly (optional) - 172-2198
RefNbr Part Number Description Req Notes
001 999-0618 Screw 3/8-16 x 1 1/4 socket head stainless steel 2
002 999-0442 Nut 10-24 nylon insert lock stainless steel 4
003 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
004 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 4
005 999-0006 Washer 3/16 flat zinc plated 4
006 999-1107 Washer 1/2 bonded neoprene stainless steel 4
007 272-2843 Tube weldment (OBSOLETE) 1
008 272-2844 Dome gasket (OBSOLETE) 1
009 272-2845 Cloth bag cover assembly (OBSOLETE) 1
010 272-2846 Bag clip (OBSOLETE) 2
011 172-7657 Filter kit 1
012 172-7657 Filter kit 1

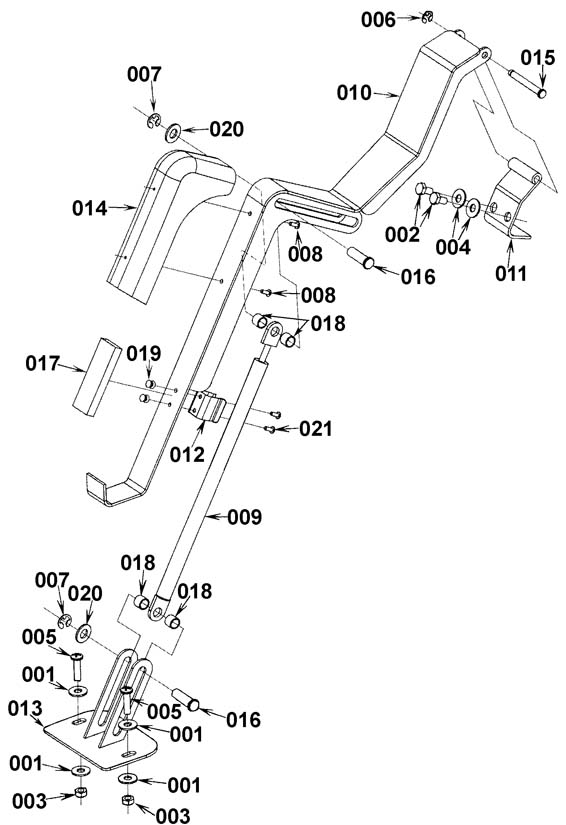

Tip and Pour Assembly - 172-2199
RefNbr Part Number Description Req Notes
001 999-0016 Washer 1/4 flat plain finish 4
002 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 2
003 999-0304 Nut 1/4-20 nylon lock jam stainless steel 2
004 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
005 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 2
006 172-0392 Retaining ring 1
007 172-0315 Retaining ring 2
008 999-0277 Screw 6-32 x 3/8 hex washer head unslotted thread rolling 2
009 N/A Not available 1 (Gas cylinder)
010 N/A Not available 1 (Lift assist weldment)
011 N/A Not available 1 (Assist hinge)
012 N/A Not available 1 (Clip)
013 N/A Not available 1 (Base weldment)
014 N/A Not available 1 (Lift assist bracket)
015 272-2848 Grooved pin (OBSOLETE) 1
016 N/A Not available 2 (Pin)
017 N/A Not available 1 (Foam pad)
018 272-2849 Bushing (OBSOLETE) 4
019 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
020 172-0404 Washer 25/64 x 5/8 x 1/16 flat 2
021 172-4953 Screw 6-32 x 5/16 pan head phillips 2

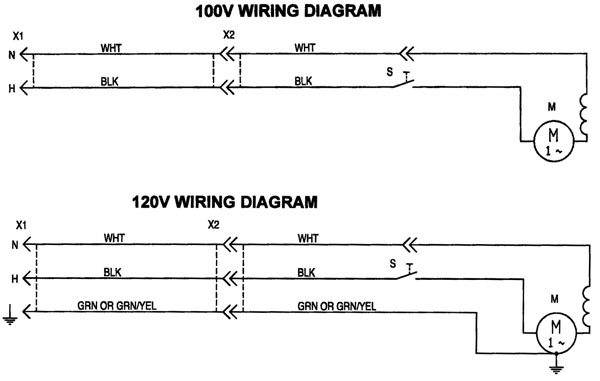

Wiring Diagram 100V -

RefNbr Part Number Description Req Notes

Wiring Diagram 120V -

RefNbr Part Number Description Req Notes

Optional Tool Kits - 172-2202
RefNbr Part Number Description Req Notes
172-9103 2 piece wand 1
