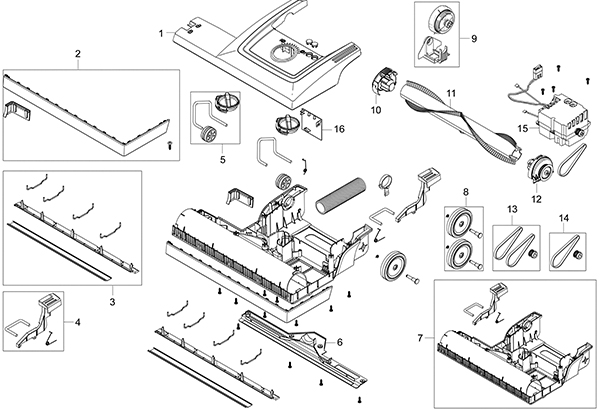

Base Assembly - 172-1109 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
272-9218 |
12 inch single motor brush housing cover (gray) |
1 |
|
| 1b |
272-9219 |
12 inch dual motor brush housing cover (gray) |
1 |
|
| 1c |
270-0435 |
12 inch single motor brush housing cover (blue) |
1 |
|
| 1d |
270-0436 |
12 inch dual motor brush housing cover (blue) |
1 |
|
| 1e |
272-9220 |
15 inch single motor brush housing cover (gray) |
1 |
|
| 1f |
272-9221 |
15 inch dual motor brush housing cover (gray) |
1 |
|
| 1g |
270-0437 |
15 inch single motor brush housing cover (blue) |
1 |
|
| 1h |
270-0438 |
15 inch dual motor brush housing cover (blue) |
1 |
|
| 1i |
272-9222 |
18 inch dual motor brush housing cover (gray) |
1 |
|
| 1i |
270-0439 |
18 inch dual motor brush housing cover (blue) |
1 |
|
| 2a |
272-6121 |
Bumper kit |
1 |
(with front and rear bumper) (12H) |
| 2b |
272-9232 |
12 inch bumper kit |
1 |
(with front and rear bumper) |
| 2c |
272-9233 |
15 inch bumper kit |
1 |
(with front and rear bumper) |
| 2d |
272-9234 |
18 inch bumper kit |
1 |
|
| 3a |
272-9226 |
12 inch brush shoe support kit |
1 |
|
| 3b |
272-9227 |
15 inch brush shoe support kit |
1 |
|
| 3c |
272-9228 |
18 inch brush shoe support kit |
1 |
|
| 4 |
272-9237 |
Pedal with shaft and spring |
1 |
|
| 5 |
272-9235 |
Height adjustment kit |
1 |
|
| 6a |
272-9229 |
12 inch brush shoe |
1 |
|
| 6b |
272-9230 |
15 inch brush shoe |
1 |
|
| 6c |
272-9231 |
18 inch brush shoe |
1 |
|
| 7a |
272-9223 |
12 inch chassis |
1 |
|
| 7b |
272-9224 |
15 inch chassis |
1 |
|
| 7c |
272-9225 |
18 inch chassis |
1 |
|
| 9 |
272-9217 |
Clutch and bearing kit |
1 |
|
| 10 |
272-9213 |
Bearing cover |
1 |
|
| 11a |
272-9210 |
12 inch brush roller |
1 |
|
| 11b |
272-9211 |
15 inch brush roller |
1 |
|
| 11c |
272-9212 |
18 inch brush roller |
1 |
|
| 13 |
272-9215 |
Drive belt kit for single motor vacuums |
1 |
(includes 2 belts and 1 cog wheel) |
| 14 |
272-9216 |
Drive belt kit for dual motor vacuums |
1 |
(includes 1 belt and 1 cog wheel) |
| 15a |
272-9206 |
Brush motor with circuit board with green and red lights |
1 |
(with circuit board and micro switch) |
| 15b |
272-6225 |
Micro switch |
1 |
(for 15a) |
| 16a |
270-0440 |
120V power control board kit |
1 |
|
| 16b |
372-3741 |
230V power control board kit (OBSOLETE) |
1 |
|
|
|

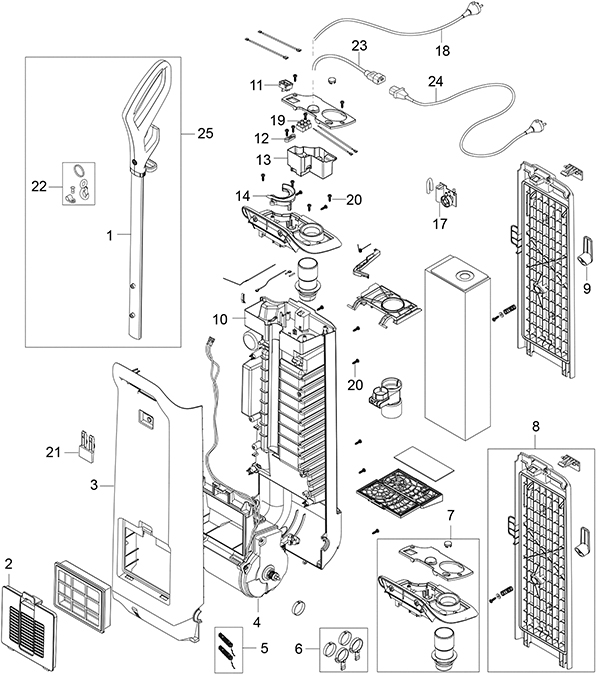

Handle and Back Housing Assembly - 172-1110 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9238 |
Handle assembly |
1 |
(for all spectrum models except 12H) |
| 2a |
272-9241 |
Exhaust filter cover (gray) |
1 |
|
| 2b |
270-0432 |
Exhaust filter cover (blue) |
1 |
|
| 3a |
272-9240 |
Front body cover (gray) |
1 |
|
| 3b |
270-8138 |
Front body cover (blue) |
1 |
|
| 4 |
272-9204 |
120V vacuum motor |
1 |
|
| 5 |
272-9205 |
Carbon brush (pkg of 2) |
1 |
|
| 6 |
272-9245 |
Joint assembly |
1 |
|
| 7a |
272-9239 |
Top cover kit (gray) |
1 |
|
| 7b |
270-0433 |
Top cover kit (blue) |
1 |
|
| 8a |
270-0434 |
Rear cover (blue) |
1 |
|
| 8b |
272-9242 |
Rear cover (gray) |
1 |
|
| 10a |
272-9244 |
Rear body cover (gray) |
1 |
|
| 10b |
270-8139 |
Rear body cover (blue) |
1 |
|
| 12 |
181-0527 |
Protection sleeve kit (OBSOLETE) |
1 |
|
| 13 |
272-9208 |
Electric box |
1 |
|
| 14 |
272-9257 |
Tube holder |
1 |
|
| 17 |
272-7197 |
Bag light circuit board |
1 |
|
| 18a |
272-9207 |
18/3 power cord 50 foot |
1 |
(OEM) |
| 18b |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 18c |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
1 |
(NON-OEM) |
| 19 |
272-9209 |
Terminal block |
1 |
(for grounded versions) |
| 21 |
272-8732 |
Handle release button |
1 |
|
| 22 |
272-7287 |
Cord relief kit |
1 |
(12H) |
| 23 |
272-6119 |
Pigtail cord set |
1 |
(12H) |
| 24 |
272-6120 |
Extension cord |
1 |
(12H) |
| 25 |
272-7406 |
Complete handle with cord relief |
1 |
(includes 1, 22) (12H) |
|
|
Filter and Bags Assembly - 172-1111 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
272-9246 |
HEPA filter |
1 |
(OEM) |
| 1b |
991-6032 |
HEPA filter |
1 |
(NON-OEM) |
| 2 |
272-9247 |
Exhaust filter |
1 |
|
| 3a |
572-9232 |
Pre-filter holder kit with 1 pre-filter |
1 |
|
| 4 |
272-9251 |
Dust bag holder kit |
1 |
|
| 5 |
272-9250 |
Pre-filter kit with anti-odor paper |
1 |
|
| 6a |
272-9248 |
Paper vacuum bags (pkg of 10 with 2 prefilters) |
1 |
(OEM) |
| 6b |
991-9019 |
Paper vacuum bags (pkg of 10 with 2 prefilters) |
1 |
(NON-OEM) |
| 6c |
991-9153 |
Paper vacuum bags (pkg of 10 with 2 prefilters) |
1 |
(NON-OEM) |
| 7 |
272-9249 |
Cloth vacuum bag |
1 |
|
|
|

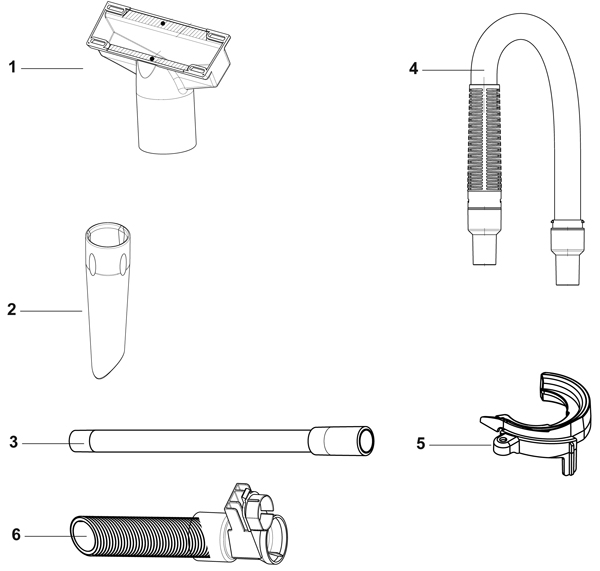

Nozzles and Hose Assembly - 172-1112 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9253 |
Upholstery nozzle |
1 |
|
| 2 |
272-9254 |
Crevice nozzle |
1 |
|
| 3 |
272-9255 |
Extension tube |
1 |
|
| 4 |
272-9256 |
Stretchable hose |
1 |
|
| 5 |
272-9257 |
Tube holder |
1 |
(for 272-9255) |
| 6 |
272-9258 |
Adapter hose assembly |
1 |
(hose to base) |
|
|

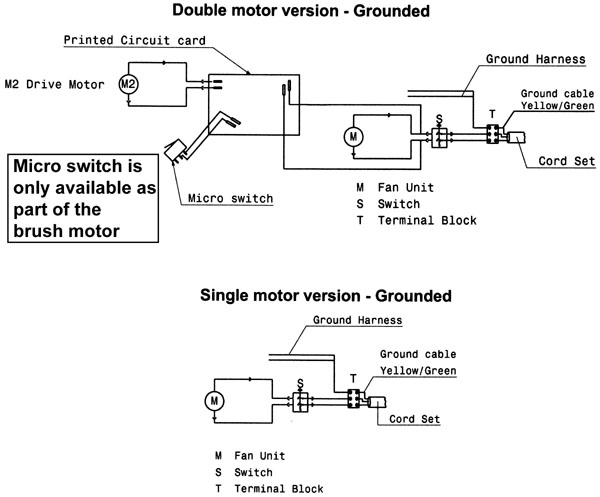

Wiring Diagram - |
|
