Handle Assembly - 172-2036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
272-0592 |
18/3 power cord 50 foot (yellow) |
1 |
(OEM) |
| 001b |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
| 001c |
991-5002 |
16/3 extension cord 50 foot (orange) |
1 |
|
| 001d |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 001e |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
1 |
(NON-OEM) |
| 002 |
182-0140 |
Strain relief |
1 |
|
| 003a |
182-0100 |
Cord hook set |
1 |
|
| 003b |
182-0073 |
Cord retainer |
1 |
(dust cup models) |
| 004 |
181-0297 |
Warning decal |
1 |
|
| 005 |
182-0008 |
Motor mounting screw |
2 |
|
| 006 |
182-0175 |
Handle socket shield |
1 |
|
| 007 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 008 |
182-0079 |
Handle socket assembly |
1 |
|
| 009 |
182-0081 |
Bolt 10-24 x 5/8 carriage head |
2 |
|
| 010a |
272-5187 |
Cloth bag assembly (black) (sold individually) |
1 |
(includes 011, 012, 018) |
| 010b |
182-0097 |
Cloth bag assembly (red) |
1 |
(includes 011, 012, 018) |
| 010c |
272-5193 |
Cloth vacuum bag with zipper (black) |
|
(including paper and bag spring) |
| 010d |
991-9070 |
Cloth bag with full zipper |
1 |
|
| 010e |
991-9092 |
Shake out cloth bag |
1 |
|
| 010f |
991-9035 |
Cloth shake out bag w/liner (red) (S12 and S16) |
1 |
(NON-OEM) |
| 10g |
991-9035 |
Cloth shake out bag w/liner (red) (S12 and S16) |
1 |
(NON-OEM) |
| 012 |
182-0144 |
Bag spring |
1 |
|
| 013 |
182-0082 |
Handle grip |
1 |
|
| 014a |
272-6264 |
Handle assembly |
1 |
(12DC) (includes 003-009, 013, 14c and 016-017) |
| 014b |
182-0074 |
Upper handle assembly |
1 |
(includes 013) |
| 016 |
182-0075 |
Screw and nut assembly |
2 |
|
| 017 |
182-0138 |
Lower handle tube |
1 |
|
| 018a |
182-0148 |
Bag adapter |
1 |
|
| 018b |
182-0145 |
Bag adapter gasket |
1 |
|
| 018d |
182-0147 |
Rivet package |
1 |
|
| 018e |
182-0066 |
Rivet (OBSOLETE) |
1 |
|
| 019 |
182-0034 |
Screw 10-14 x 1/2 pan head plastite |
1 |
|
| 026 |
182-0088 |
Dust cup support and latch assembly |
1 |
|
| 029 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
| 030 |
182-0025 |
Bellows clamp |
1 |
|
| 031 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 032 |
182-0090 |
Steel ring |
1 |
|
| 034a |
182-0092 |
Bag assembly (black) (dust cup) |
1 |
|
| 034b |
182-0191 |
Bag assembly (red) (dust cup) |
1 |
(887 All) |
| 035 |
182-0093 |
Bag gasket |
1 |
|
| 037 |
182-0095 |
Dust cup assembly |
1 |
(includes 023-036) |
| KIT |
272-6262 |
Dust cup bag kit |
1 |
(includes 023, 024, 032, 033, 034 and 035) |
| KIT |
272-6263 |
Dust cup bellows kit |
1 |
(includes 027, 028, 029, 030 and 031) |
| N/S |
182-0749 |
Garter spring |
1 |
Holds the paper bag on the tube |
| N/S |
182-0150 |
Hardware package (OBSOLETE) |
1 |
(includes 1 cord retainer set and 2 handle screw assemblies) |
| N/S |
172-1635 |
Paper vacuum bag (pkg of 10) |
1 |
|
| N/S |
182-0203 |
Paper vacuum bags F & G style (pkg of 5) |
1 |
(OEM) |
| N/S |
991-9039 |
Paper vacuum bags (pkg of 3) |
1 |
(NON-OEM) |
| N/S |
991-9148 |
Paper vacuum bag (pkg of 3) |
1 |
(NON-OEM) |
| N/S |
991-9148 |
Paper vacuum bag (pkg of 3) |
1 |
(NON-OEM) |
| N/S |
991-9013 |
Paper filter bag (pkg of 10) |
1 |
(NON-OEM) |
|
|

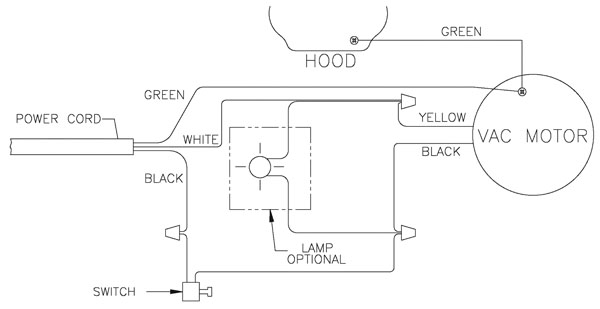

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Base Assembly - 181-2010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0003 |
Shoulder screw |
1 |
|
| 002 |
182-0117 |
Knob assembly (OBSOLETE) |
1 |
|
| 003a |
272-5001 |
Motor hood (gray) |
1 |
(for Reliavac 12 DC) |
| 003b |
182-0127 |
Motor hood and name plate assembly (red) |
1 |
(for Sanitaire) |
| 003c |
N/A |
Not available |
1 |
(Motor hood with light lens) |
| 003d |
183-0430 |
Motor hood (black) |
1 |
(for Tornado) |
| 003e |
182-0151 |
Hood assembly |
1 |
(Model 888 only) |
| 003f |
182-0181 |
Hood assembly |
1 |
(Model SC689) |
| 004 |
272-5225 |
Switch nut |
1 |
|
| 005a |
N/A |
Not available |
1 |
(SelectVac decal) |
| 005b |
182-0120 |
Sanitaire decal (OBSOLETE) |
1 |
|
| 006 |
182-0008 |
Motor mounting screw |
1 |
|
| 007 |
182-0124 |
Hood spring |
2 |
|
| 008 |
182-0009 |
120V vacuum motor assembly |
1 |
(includes 009) |
| 009 |
182-0010 |
Motor seal gasket |
2 |
(attaches to 014) |
| 010 |
182-0012 |
Screw 10-14 x .88 phillips pan plastite |
9 |
|
| 011 |
182-0013 |
Screw and clamp assembly |
2 |
|
| 012 |
182-0014 |
Wheel cover |
2 |
|
| 013a |
272-6258 |
Base assembly (gray) |
1 |
(for Advac and Reliavac 12 DC, fits all gray bases) |
| 013b |
182-0126 |
Base assembly without furniture guard (red) |
1 |
(for Sanitaire) |
| 013c |
183-0431 |
Base assembly (black) |
1 |
(for Tornado) |
| 013d |
182-0184 |
Base assembly |
1 |
(for Eureka model 888H and 888H-1 only) |
| 013e |
272-8561 |
Reliavac 12DC base assembly instruction sheet |
1 |
|
| 014 |
182-0113 |
Fan scroll cover |
1 |
(see reference 009 for gasket) |
| 015 |
182-0012 |
Screw 10-14 x .88 phillips pan plastite |
2 |
|
| 016 |
182-0035 |
Front axle |
1 |
|
| 017 |
991-0026 |
Brush roll belt rubber (black) |
1 |
|
| 018a |
182-0084 |
12 inch disturbulator assembly |
1 |
(SC887A, SC888H, 12, 12 DC, SC886) (OEM) (includes 019-021, 023-025, 028-029, and 058) |
| 018b |
172-8042 |
12 inch disturbulator assembly |
1 |
(12HP- Less expensive version is 182-0084 but it will not move as much air.) (includes 019-021, 065-071) |
| 018c |
182-0098 |
12 inch disturbulator assembly with cap covers |
1 |
(Models SC679J-1, SC679JGS, SC679JGS-1, SC689A, and SC689A-1) (OEM) |
| 018d |
991-9140 |
Brush roll (OBSOLETE) |
1 |
(NON-OEM for 182-0084) |
| 018e |
991-8599 |
12 inch disturbulator assembly with cap covers |
1 |
(NON-OEM for 182-0098) |
| 019 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 021 |
182-0051 |
Disturbulator cap |
2 |
|
| 022 |
182-0017 |
Strain relief bushing |
1 |
|
| 023 |
182-0050 |
Bearing retainer (includes bearing) |
2 |
|
| 026a |
182-0041 |
12 inch bottom plate assembly |
1 |
|
| 026b |
182-0040 |
Foam tape |
1 |
|
| 028 |
182-0036 |
Disturbulator tube |
1 |
|
| 029 |
182-0048 |
Orange bristle strip set |
1 |
|
| 030 |
182-0132 |
Right side air inlet duct |
1 |
|
| 031 |
182-0133 |
Left side air inlet duct |
1 |
|
| 035 |
182-0047 |
Front wheel |
2 |
|
| 036 |
182-0046 |
Axle spring |
1 |
|
| 037 |
182-0034 |
Screw 10-14 x 1/2 pan head plastite |
5 |
|
| 038 |
182-0033 |
Axle clamp |
2 |
|
| 039a |
182-0142 |
Wheel and axle assembly w/ hardware |
1 |
(includes 039b, 040 and 042) |
| 039b |
182-0043 |
Rear axle |
1 |
(040 is included. You will need to order 2 of 043. 043 is NOT included.) |
| 041 |
182-0141 |
12 inch bumper |
1 |
|
| 042 |
182-0045 |
Rear wheel |
2 |
|
| 044 |
182-0129 |
Wire and terminal assembly |
1 |
|
| 045 |
182-0119 |
Bag clip retainer bracket |
1 |
|
| 046 |
182-0011 |
Foot pedal spring |
1 |
|
| 047 |
182-0023 |
Foot pedal |
1 |
|
| 048 |
182-0129 |
Wire and terminal assembly |
1 |
|
| 049 |
182-0072 |
Motor pulley |
1 |
|
| 050 |
182-0070 |
Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) |
2 |
|
| 051b |
272-9477 |
Pulley and fan kit (green) |
1 |
(lifetime warranty) |
| 052 |
N/A |
Not available |
1 |
(Moving parts decal) (included in base assembly) |
| 054 |
991-5101 |
Carbon brush (sold individually) |
2 |
|
| 055 |
998-0062 |
Wire nut (blue) |
3 |
|
| 056 |
182-0118 |
Push switch |
1 |
|
| 057 |
182-0123 |
Washer lock |
1 |
|
| 058 |
182-0049 |
Washer felt |
2 |
|
| 061a |
182-0152 |
Lens and housing assembly |
1 |
(includes 061b) |
| 061b |
182-8102 |
Hood lens (OBSOLETE) |
1 |
|
| 062 |
182-0154 |
Light shield (OBSOLETE) |
1 |
|
| 063 |
182-0153 |
Headlight socket assembly |
1 |
|
| 064 |
992-9513 |
15watt double bulb |
1 |
|
| 065 |
172-8042 |
12 inch disturbulator assembly |
2 |
|
| 066 |
272-5169 |
Retaining ring (OBSOLETE) |
2 |
|
| 067 |
N/A |
Not available |
2 |
(Ball bearing) |
| 069 |
272-6280 |
12 inch beater bar assembly |
1 |
|
| 070 |
182-0362 |
12 inch bristle strip set |
1 |
|
| 071 |
N/A |
Not available |
1 |
(Pulley) |
| 077a |
182-0784 |
12 inch magnet strip |
1 |
|
| 077b |
992-3111 |
12 inch magnet strip |
1 |
|
| 078 |
991-1812 |
Multi torx tool T9 - T40 (OBSOELTE) |
1 |
|
| N/S |
272-6281 |
Light lens kit |
1 |
(Nilfisk OEM) |
| N/S |
272-6256 |
Base hardware kit |
1 |
(Nilfisk OEM) |
| N/S |
182-0029 |
Cam rivet |
2 |
(included in base assembly) |
| N/S |
272-6260 |
Air duct assembly |
1 |
(Nilfisk OEM) |
| N/S |
182-0115 |
Right side cam |
1 |
(included in base assembly) |
| N/S |
272-1682 |
Upright attachment kit (OBSOLETE) |
1 |
|
| N/S |
992-1010 |
16 inch magnet strip |
1 |
|
| N/S |
272-6259 |
Wheel assembly |
1 |
(Nilfisk OEM) |
| N/S |
182-0116 |
Left side cam |
1 |
(included in base assembly) |
|
|
Vacuum Motor Assembly - 181-2011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
182-0009 |
120V vacuum motor assembly |
1 |
(includes 001-017) |
| 001 |
999-0453 |
Screw 8-32 x 1/2 pan head phillips thread forming zinc |
3 |
|
| 002 |
999-0418 |
Screw 6-32 x 1/4 pan head slotted zinc plated |
2 |
|
| 003 |
991-5101 |
Carbon brush (sold individually) |
2 |
|
| 004 |
N/A |
Not available |
1 |
(Motor cover) |
| 005a |
182-0009 |
120V vacuum motor assembly |
1 |
(includes 005b and 005c) |
| 006 |
182-0135 |
Field assembly |
1 |
|
| 007a |
N/A |
Not available |
1 |
(Base) (please use 182-0009) |
| 007c |
182-0066 |
Rivet (OBSOLETE) |
3 |
|
| 007d |
182-0064 |
Bearing and retainer (OBSOLETE) |
1 |
|
| 008 |
182-0068 |
Orlo thread screw |
2 |
|
| 010 |
182-0070 |
Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) |
2 |
|
| 011b |
272-9477 |
Pulley and fan kit (green) |
1 |
(lifetime warranty) |
| 012 |
182-0072 |
Motor pulley |
1 |
|
| 013 |
182-0054 |
Retainer assembly |
1 |
|
| 014 |
999-0308 |
Nut 8-32 plain |
4 |
|
| 015 |
999-0092 |
Washer #8 internal star lock zinc plated |
2 |
|
| 016 |
997-2101 |
6 inch cable tie |
1 |
|
| N/S |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
3 |
|
|
|
|
