Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|

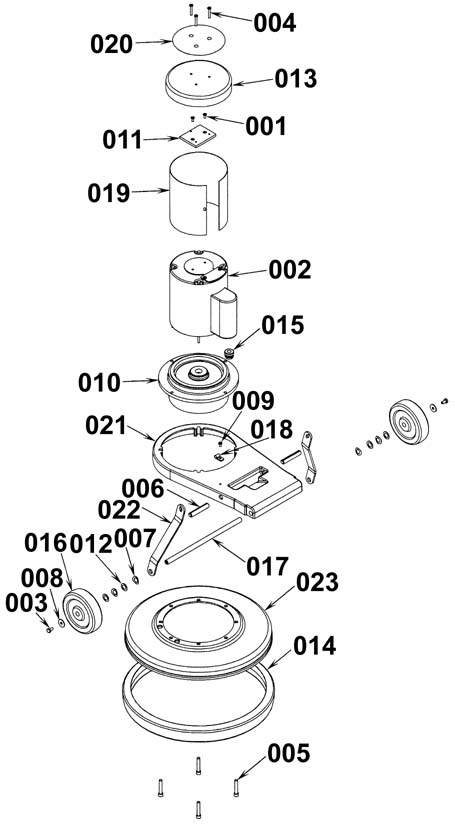

Base Assembly - 181-3005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-4624 |
Screw 10-24 x 1/2 flat head phillips thread forming |
2 |
(pad holders and brushes come complete with indeustry standard NP92 clutch plate) |
| 002 |
181-1134 |
1/2 HP motor (OBSOLETE) |
1 |
|
| 003 |
999-0018 |
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
| 004 |
999-0359 |
Screw 10-32 x 1 1/4 pan head phillips zinc plated |
3 |
|
| 005 |
999-0734 |
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
4 |
|
| 006 |
172-0893 |
Spacer pin 1/2 x 2 3/4 |
2 |
|
| 007 |
172-4550 |
Washer 33/64 x 1/64 bowed |
4 |
|
| 008 |
172-0553 |
Washer 17/64 x 1/16 flat |
2 |
|
| 009 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
| 010 |
N/A |
Not available |
1 |
(Gear unit) |
| 011 |
181-1136 |
Drip cover mounting plate (OBSOLETE) |
1 |
|
| 012 |
181-0109 |
Washer 17/32 x 7/8 x 1/32 flat |
4 |
|
| 013 |
181-1137 |
Dark gray drip cover (OBSOLETE) |
1 |
|
| 014 |
N/A |
Not available |
1 |
(Bumper) |
| 015 |
172-2508 |
Strain relief (OBSOLETE) |
1 |
|
| 016 |
172-3050 |
5 inch wheel |
2 |
|
| 017 |
172-3049 |
Axle (OBSOLETE) |
1 |
|
| 018 |
172-4594 |
Cord clamp |
1 |
|
| 019 |
181-1139 |
Screen black (OBSOLETE) |
1 |
|
| 020 |
181-1140 |
Decals (OBSOLETE) |
1 |
|
| 021 |
172-0913 |
Floor machine frame (OBSOLETE) |
1 |
|
| 022 |
172-0917 |
Connecting leg (OBSOLETE) |
2 |
|
| 023 |
181-0854 |
Brush cover skirt (OBSOLETE) |
1 |
|
|
|
- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|

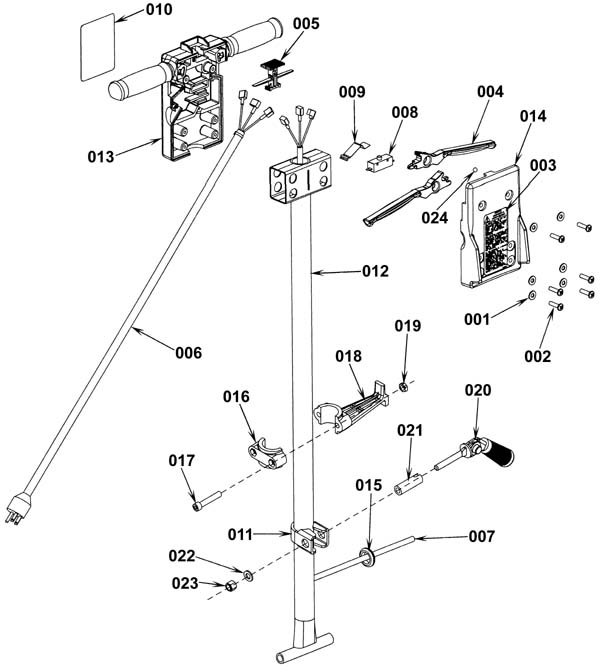

Handle Assembly - 272-0109 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
6 |
|
| 2 |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
6 |
|
| 3 |
172-5020 |
Warning decal (OBSOLETE) |
1 |
|
| 4 |
172-4663 |
Handle lever (OBSOLETE) |
2 |
|
| 5 |
172-3091 |
Locking button |
1 |
|
| 6 |
192-8472 |
14/3 replacement power cord 50 foot |
1 |
|
| 7 |
181-1132 |
Cord assembly 14/3 (OBSOLETE) |
1 |
|
| 9 |
172-3100 |
Spring plate |
1 |
|
| 10 |
172-3102 |
Logo decal (OBSOLETE) |
1 |
|
| 11 |
172-0885 |
Handle lock clamp (OBSOLETE) |
1 |
|
| 12 |
172-0886 |
Handle weldment (OBSOLETE) |
1 |
|
| 13 |
172-0887 |
Front handle |
1 |
|
| 14 |
172-0888 |
Back handle |
1 |
|
| 16 |
172-0890 |
Cord hook cap (OBSOLETE) |
1 |
|
| 17 |
999-0446 |
Screw 5/16-18 x 1 3/4 round head slotted zinc plated |
2 |
|
| 18 |
172-0891 |
Cord hook body (OBSOLETE) |
1 |
|
| 19 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
2 |
|
| 20 |
181-0565 |
Cam lock assembly (OBSOLETE) |
1 |
|
| 21 |
172-0892 |
Spacer guide (OBSOLETE) |
1 |
|
| 22 |
181-0015 |
Washer flat |
1 |
|
| 23 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 24 |
172-3103 |
1/4 ball bearing stainless steel |
1 |
|
|
|
Base Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

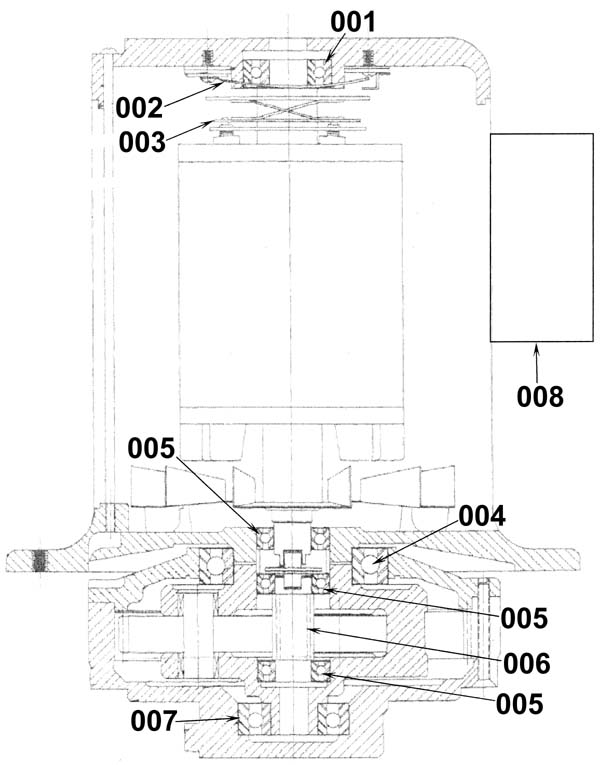

Gearbox Replacement Parts - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Brushes - 272-9993 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
996-0052 |
11 inch heavy grit stripping brush - 80 grit |
1 |
|
| 0.9835 |
996-0008 |
11 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 0.9835 |
996-0026 |
11 inch medium grit scrubbing brush - 180 grit |
|
|
| 0.9835 |
996-0478 |
11 inch polypropelene scrubbing brush |
1 |
|
| 0.9835 |
996-0321 |
12 inch Pad driver |
1 |
|
| 07 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
