- Pads - 14 inch - 255-1400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1440 |
14 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1435 |
14 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1464 |
14 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1442 |
14 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1412 |
14 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1477 |
14 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1438 |
14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1421 |
14 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1450 |
14 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1465 |
14 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1430 |
14 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1487 |
14 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1490 |
14 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1470 |
14 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1492 |
14 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1480 |
14 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1460 |
14 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1452 |
14 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1420 |
14 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1411 |
14 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1495 |
14 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1447 |
14 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1455 |
14 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1423 |
14 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0120 |
14 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0121 |
14 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0122 |
14 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0119 |
14 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 29 |
255-0205 |
14 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 30 |
255-0206 |
14 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 31 |
255-0207 |
14 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0204 |
14 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 33 |
255-1424 |
14 x 20 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 34 |
255-9549 |
14 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 35 |
255-9546 |
14 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 36 |
255-9543 |
14 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 37 |
255-9547 |
14 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 38 |
255-9544 |
14 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 39 |
255-9545 |
14 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 40 |
255-9548 |
14 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 41 |
255-9639 |
14 inch Diamond starter pack (1 of each grit) |
|
|
| 42 |
255-1482 |
14 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 43 |
255-1415 |
14 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1416 |
14 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
- Pads - 16 inch - 255-1600 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1640 |
16 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1635 |
16 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1664 |
16 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1642 |
16 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1612 |
16 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1677 |
16 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1638 |
16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1621 |
16 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1650 |
16 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1665 |
16 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1630 |
16 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1687 |
16 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1690 |
16 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1670 |
16 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1692 |
16 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1680 |
16 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1660 |
16 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1652 |
16 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1620 |
16 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1611 |
16 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1695 |
16 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1647 |
16 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1655 |
16 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1623 |
16 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0132 |
16 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0133 |
16 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0134 |
16 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0135 |
16 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0136 |
16 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0137 |
16 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0130 |
16 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-0131 |
16 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0217 |
16 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0218 |
16 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0219 |
16 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0220 |
16 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0221 |
16 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 38 |
255-0222 |
16 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0215 |
16 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0216 |
16 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1624 |
16 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9563 |
16 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9560 |
16 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9557 |
16 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9561 |
16 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9558 |
16 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9559 |
16 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9562 |
16 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9641 |
16 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1682 |
16 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1615 |
16 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1616 |
16 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads - 17 inch - 255-1700 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|

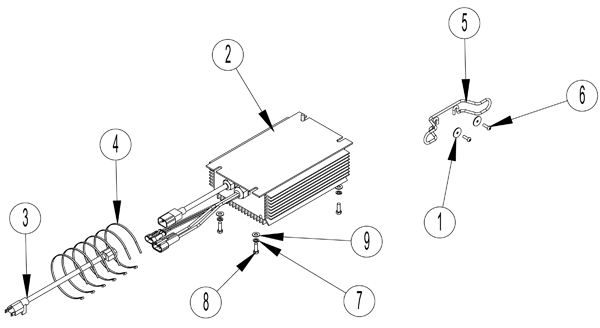

Battery Charger Assembly - 272-3020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
2 |
(washer) |
| 2a |
272-8616 |
120V Onboard charger kit |
1 |
(The onboard battery charger 56112544 has been replaced in production by 56383856. If you need to replace 56112544 please order Onboard Charger Kit 272-8616. This update kit is needed to change the charger over.
You cannot just go from 56112544 to 270-8393.) |
| 2b |
270-8393 |
24V onboard battery charger |
1 |
(Only to be used if you have already purchased the update kit.) |
| 3a |
272-2225 |
Onboard charger cord |
1 |
(OEM) |
| 3b |
991-8566 |
Onboard battery charger power cord |
1 |
(NON-OEM) |
| 4 |
997-2103 |
8 inch cable tie |
6 |
|
| 5 |
272-0659 |
On-board charger cord wrap |
1 |
|
| 6 |
999-1182 |
Screw M5-.8 x 16mm pan head slotted stainless steel |
2 |
|
| 7 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 8 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
4 |
|
| 9 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
|

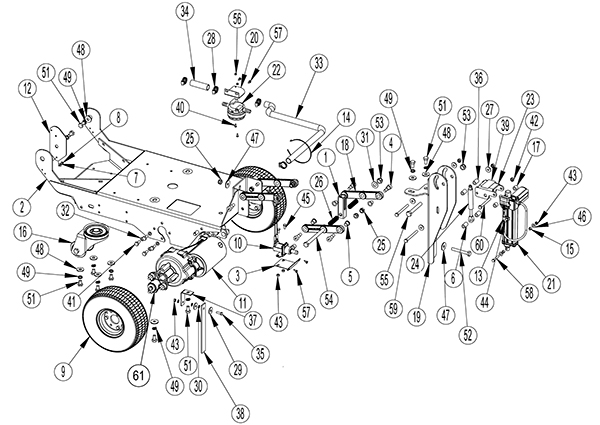

Chassis Assembly - Disk - 272-3021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-9813 |
Chassis weldment |
1 |
|
| 3 |
270-0265 |
Solution valve bracket |
1 |
|
| 4 |
472-3577 |
SCR-SOC SHD M12X16MMX M10-1.50 |
8 |
|
| 5 |
270-0288 |
Flanged bushing |
8 |
|
| 6 |
270-0282 |
Spacer |
2 |
(Disk) |
| 7 |
999-1862 |
Washer #10 flat SAE stainless steel |
1 |
|
| 8 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
| 10 |
272-9815 |
Solenoid valve assembly |
1 |
|
| 11a |
272-9820 |
Flange kit |
2 |
(includes 11b) |
| 11b |
272-9816 |
Transaxle |
1 |
(OEM) |
| 11c |
991-3081 |
Transaxle |
1 |
(NON-OEM) |
| 11d |
272-9970 |
Transaxle motor kit |
1 |
(optional) (includes 11e) |
| 11e |
372-1624 |
Carbon brush |
1 |
(optional) |
| 12 |
272-9817 |
Connector bracket |
1 |
|
| 13 |
172-9530 |
Cable clamp |
1 |
|
| 14 |
997-2103 |
8 inch cable tie |
1 |
|
| 15 |
270-0227 |
Spacer (OBSOLETE) |
2 |
|
| 16 |
272-9818 |
Rear caster |
1 |
|
| 20 |
270-0267 |
Filter bracket |
1 |
|
| 22a |
272-3516 |
Water filter |
1 |
|
| 22b |
272-3516 |
Water filter |
1 |
(optional) (for 22a) |
| 24 |
270-0283 |
Gas spring |
1 |
(Disk) |
| 25 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
9 |
|
| 27 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 28 |
997-2002 |
Hose clamp #6 |
4 |
|
| 29 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 30 |
999-0017 |
Washer 1/4 external star lock |
3 |
|
| 32 |
999-0028 |
Washer 5/16 split lock plain finish |
8 |
|
| 33 |
270-0263 |
25 inch hose (clear) |
1 |
|
| 34 |
270-0270 |
3 inch hose (clear) |
1 |
|
| 35 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
| 36 |
270-0254 |
Spacer |
2 |
(Disk) |
| 37 |
270-0273 |
Strap bracket |
1 |
|
| 38 |
170-7146 |
Static strap |
1 |
|
| 39 |
170-0226 |
Moving warning decal |
1 |
|
| 40 |
270-0269 |
Screw M4-.7 x 10mm |
2 |
|
| 41 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
| 42 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
9 |
|
| 43 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
4 |
|
| 44 |
272-8931 |
Screw M6-1 x 10mm pan head |
1 |
|
| 45 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
| 46 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 47 |
999-0716 |
Washer 3/8 x 1 1/4 fender |
3 |
|
| 48 |
999-0006 |
Washer 3/16 flat zinc plated |
7 |
|
| 49 |
999-0671 |
Washer M10 split lock plain finish |
10 |
|
| 51 |
472-3486 |
SCR-HEX M10-1.5 X 20MM |
10 |
|
| 52 |
999-9115 |
Screw M10-1.5 x 75mm hex head stainless steel |
1 |
|
| 53 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
| 54 |
270-0297 |
Screw M12-1.75 x 160mm hex head |
1 |
|
| 55 |
270-0255 |
Screw M12-1.75 x 90mm hex head |
1 |
|
| 56 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
| 57 |
270-0264 |
Screw M5 x 12mm hex head self-tapping |
4 |
|
| 58 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
1 |
|
| 59 |
272-9819 |
Screw M8-1.25 x 90mm hex head |
2 |
|
| 60 |
270-0257 |
Screw M8-1.25 x 75mm hex head |
1 |
|
|
|

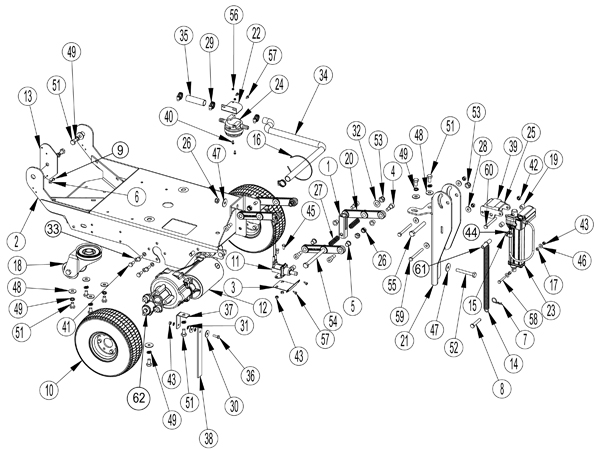

Chassis Assembly - Cylindrical - 272-3022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-9813 |
Chassis weldment |
1 |
|
| 3 |
270-0265 |
Solution valve bracket |
1 |
|
| 4 |
472-3577 |
SCR-SOC SHD M12X16MMX M10-1.50 |
8 |
|
| 5 |
270-0288 |
Flanged bushing |
8 |
|
| 6 |
999-1862 |
Washer #10 flat SAE stainless steel |
1 |
|
| 7 |
172-2001 |
Hair cotter pin |
1 |
|
| 9 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
| 11 |
272-9815 |
Solenoid valve assembly |
1 |
|
| 13 |
272-9817 |
Connector bracket |
2 |
|
| 14 |
272-9821 |
Extension spring |
1 |
|
| 15 |
172-9530 |
Cable clamp |
1 |
|
| 16 |
997-2103 |
8 inch cable tie |
1 |
|
| 17 |
270-0227 |
Spacer (OBSOLETE) |
2 |
|
| 18 |
272-9818 |
Rear caster |
1 |
|
| 22 |
270-0267 |
Filter bracket |
1 |
|
| 24 |
272-3516 |
Water filter |
1 |
|
| 26 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
9 |
|
| 28 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 29 |
997-2002 |
Hose clamp #6 |
4 |
|
| 30 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 31 |
999-0017 |
Washer 1/4 external star lock |
3 |
|
| 33 |
999-0028 |
Washer 5/16 split lock plain finish |
8 |
|
| 34 |
270-0263 |
25 inch hose (clear) |
1 |
|
| 35 |
270-0270 |
3 inch hose (clear) |
1 |
|
| 36 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
| 37 |
270-0273 |
Strap bracket |
1 |
|
| 38 |
170-7146 |
Static strap |
1 |
|
| 39 |
170-0226 |
Moving warning decal |
1 |
|
| 40 |
270-0269 |
Screw M4-.7 x 10mm |
2 |
|
| 41 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
| 42 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
9 |
|
| 43 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
4 |
|
| 44 |
272-8931 |
Screw M6-1 x 10mm pan head |
1 |
|
| 45 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
| 46 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 47 |
999-0716 |
Washer 3/8 x 1 1/4 fender |
3 |
|
| 48 |
999-0006 |
Washer 3/16 flat zinc plated |
7 |
|
| 49 |
999-0671 |
Washer M10 split lock plain finish |
10 |
|
| 51 |
472-3486 |
SCR-HEX M10-1.5 X 20MM |
10 |
|
| 52 |
999-9115 |
Screw M10-1.5 x 75mm hex head stainless steel |
1 |
|
| 53 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
| 54 |
270-0297 |
Screw M12-1.75 x 160mm hex head |
1 |
|
| 55 |
270-0255 |
Screw M12-1.75 x 90mm hex head |
1 |
|
| 56 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
| 57 |
270-0264 |
Screw M5 x 12mm hex head self-tapping |
4 |
|
| 58 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
1 |
|
| 59 |
272-9819 |
Screw M8-1.25 x 90mm hex head |
2 |
|
| 60 |
270-0257 |
Screw M8-1.25 x 75mm hex head |
1 |
|
| N/S |
372-1624 |
Carbon brush |
4 |
(optional) |
|
|

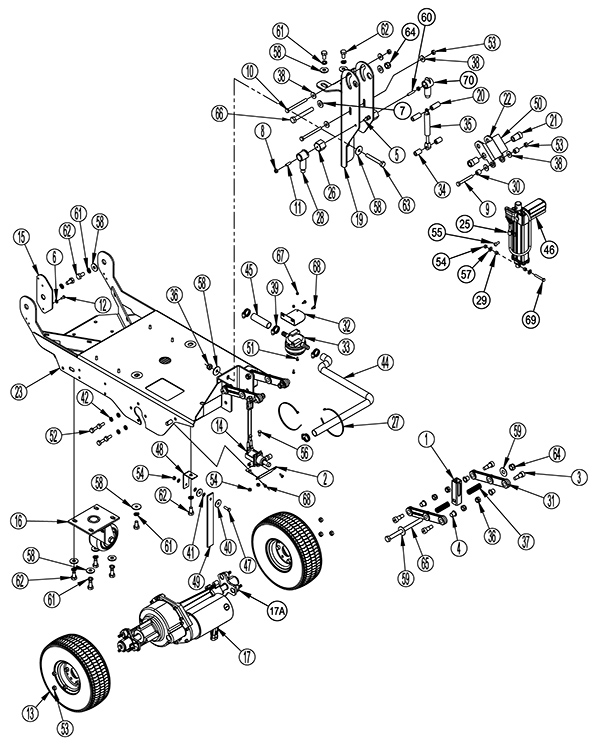

REV Chassis Assembly - 272-3023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
270-0265 |
Solution valve bracket |
1 |
|
| 3 |
472-3577 |
SCR-SOC SHD M12X16MMX M10-1.50 |
8 |
|
| 4 |
270-0288 |
Flanged bushing |
8 |
|
| 5 |
999-0018 |
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
| 6 |
999-1862 |
Washer #10 flat SAE stainless steel |
1 |
|
| 7a |
999-0120 |
Washer 3/8 SAE flat |
2 |
(before March 2018) |
| 7b |
999-0114 |
Washer 1/2 SAE flat |
2 |
(after March 2018) |
| 8 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 9a |
272-9823 |
Screw M8 x 65mm hex head (OBSOLETE) |
1 |
(before March 2018) |
| 9b |
999-6736 |
Bolt M8-1.25 x 75mm hex head stainless steel |
1 |
(after March 2018) |
| 10 |
272-9819 |
Screw M8-1.25 x 90mm hex head |
2 |
|
| 11 |
172-0345 |
Terminal stud |
2 |
|
| 12a |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
(before March 2018) |
| 12b |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
1 |
(after March 2018) |
| 14 |
272-9815 |
Solenoid valve assembly |
1 |
|
| 15a |
272-9817 |
Connector bracket |
1 |
(before March 2018) |
| 15b |
272-9817 |
Connector bracket |
1 |
(after March 2018) |
| 16 |
272-9818 |
Rear caster |
1 |
|
| 17a |
272-9820 |
Flange kit |
2 |
(includes 17b) (after March 2018) |
| 17c |
991-3081 |
Transaxle |
1 |
(before March 2018) |
| 17d |
272-9970 |
Transaxle motor kit |
1 |
(optional) (includes 17e ) (after March 2018) |
| 17e |
372-1624 |
Carbon brush |
4 |
(optional) (for 17a) (after March 2018) |
| 19 |
472-4573 |
LIFTING SUPPORT WELDT |
1 |
|
| 20 |
272-9825 |
Nylon spacer |
2 |
|
| 21 |
272-9826 |
Nylon spacer |
2 |
|
| 23 |
272-9813 |
Chassis weldment |
1 |
|
| 25 |
172-9530 |
Cable clamp |
1 |
|
| 26 |
172-0103 |
Electrical mount |
2 |
|
| 27 |
997-2103 |
8 inch cable tie |
8 |
|
| 28 |
172-8964 |
Terminal insulator |
2 |
|
| 29 |
270-0227 |
Spacer (OBSOLETE) |
2 |
|
| 32 |
270-0267 |
Filter bracket |
1 |
|
| 33a |
272-3516 |
Water filter |
1 |
|
| 33b |
272-3516 |
Water filter |
1 |
(optional) |
| 36 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
9 |
|
| 38 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
| 39 |
997-2002 |
Hose clamp #6 |
4 |
|
| 40 |
999-0160 |
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
| 41 |
999-0017 |
Washer 1/4 external star lock |
3 |
|
| 42 |
999-0028 |
Washer 5/16 split lock plain finish |
8 |
|
| 43 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 44a |
270-0263 |
25 inch hose (clear) |
1 |
(before March 2018) |
| 44b |
272-9541 |
Spiral hose |
1 |
(after March 2018) |
| 45 |
270-0270 |
3 inch hose (clear) |
1 |
|
| 47 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
5 |
|
| 48 |
270-0273 |
Strap bracket |
1 |
|
| 49 |
170-7146 |
Static strap |
1 |
|
| 50 |
170-0226 |
Moving warning decal |
1 |
|
| 51 |
270-0269 |
Screw M4-.7 x 10mm |
2 |
|
| 52 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
| 53 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
9 |
|
| 54 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
4 |
|
| 55 |
272-8931 |
Screw M6-1 x 10mm pan head |
1 |
|
| 56 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
| 57 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
| 58 |
999-0716 |
Washer 3/8 x 1 1/4 fender |
3 |
|
| 59 |
170-6124 |
Washer flat nylon |
2 |
|
| 60 |
172-0346 |
Stud 1/4-20 |
1 |
|
| 61 |
999-0671 |
Washer M10 split lock plain finish |
10 |
|
| 62 |
472-3486 |
SCR-HEX M10-1.5 X 20MM |
10 |
|
| 63 |
999-9115 |
Screw M10-1.5 x 75mm hex head stainless steel |
1 |
|
| 64 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
| 65 |
270-0297 |
Screw M12-1.75 x 160mm hex head |
1 |
|
| 66 |
270-0255 |
Screw M12-1.75 x 90mm hex head |
1 |
|
| 67 |
999-0954 |
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
| 68 |
270-0264 |
Screw M5 x 12mm hex head self-tapping |
4 |
|
| 69 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
1 |
|
| N/S |
272-9970 |
Transaxle motor kit |
1 |
(optional) |
| N/S |
372-1624 |
Carbon brush |
4 |
(optional) |
| N/S |
272-9824 |
24V 25amp onboard battery charger (OBSOLETE) |
1 |
(replaced by part number 272-9824 (56383856) |
| N/S |
272-2225 |
Onboard charger cord |
1 |
|
| N/S |
991-8566 |
Onboard battery charger power cord |
1 |
|
| N/S |
272-8616 |
120V Onboard charger kit |
1 |
(the onboard battery charger part number 272-9824 (56112544) has been replaced in production by part number 270-8393 (56383856). If you need to replace part number 272-9824 (56112544), please order onboard charger kit part number 272-8616 (56383869). |
| N/S |
270-8395 |
AC cord |
1 |
(after March 2018) |
|
|
Control Assembly - 272-3024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
272-9834 |
Paddle assembly |
1 |
(includes 1-22) (before SN 4000068715) |
| 0b |
372-1168 |
Paddle assembly |
1 |
(includes 1-22) (after SN 4000068714) |
| 2 |
991-9022 |
100K Potentiometer (speed control) |
1 |
|
| 3 |
172-2039 |
5K potentiometer |
1 |
|
| 4 |
999-0377 |
Washer 6 SAE flat plain finish |
2 |
|
| 5 |
999-1362 |
Screw 6-18 x 5/8 pan head phillips stainless steel |
7 |
|
| 6 |
172-2035 |
Screw 1/4-10 x 2 pan head phillips |
1 |
|
| 7 |
272-2188 |
Screw 8-10 x 3/4 pan head phillips plastite |
4 |
|
| 8 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
2 |
|
| 9 |
N/A |
Not available |
1 |
(washer) |
| 10 |
172-2037 |
Screw 8 x 2 pan head phillips type B |
1 |
|
| 11 |
272-2189 |
Rear paddle |
1 |
|
| 12a |
272-9835 |
Paddle harness |
1 |
(before SN 4000068715) |
| 12b |
472-7862 |
HARNESS-PADDLE |
1 |
(after SN 4000068714) |
| 13 |
272-2190 |
Front paddle |
1 |
|
| 14 |
272-2191 |
Handle bar weldment |
1 |
|
| 16 |
172-2036 |
Compression spring |
2 |
|
| 17 |
172-2038 |
Cam controller |
1 |
|
| 19 |
172-2045 |
Washer plastic |
3 |
|
| 21 |
997-2101 |
6 inch cable tie |
1 |
|
| 23 |
999-0109 |
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
4 |
|
|
|

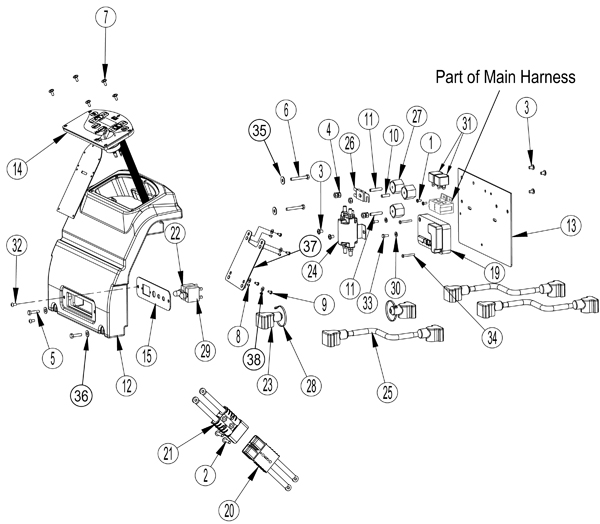

Electrical Assembly - 272-3025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
2 |
|
| 2 |
999-0510 |
Screw 1/4-20 x 1 pan head phillips zinc plated |
2 |
|
| 3 |
999-0509 |
Screw 1/4-20 x 3/8 pan head phillips zinc plated |
5 |
|
| 4 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
5 |
|
| 6 |
999-0781 |
Screw M6-1 x 45mm hex head |
2 |
|
| 7 |
272-9904 |
Screw M5-.8 x 12mm truss head phillips |
5 |
|
| 8 |
372-1625 |
Screw 6-32 x 3/16 pan head phillips (black) |
4 |
|
| 9 |
999-1556 |
Screw M4-.7 x 8mm pan head phillips zinc plated |
4 |
|
| 10 |
172-0345 |
Terminal stud |
1 |
|
| 11 |
172-0346 |
Stud 1/4-20 |
2 |
|
| 12 |
272-9842 |
Control panel |
1 |
|
| 13 |
272-9843 |
Electrical panel |
1 |
|
| 14 |
272-9844 |
AXP control board kit |
1 |
|
| 15 |
272-9845 |
Circuit breaker plate |
1 |
(circuit breaker plate 561121122 has been replaced by 56112540) |
| 19 |
272-9848 |
Speed controller |
1 |
|
| 20 |
272-9850 |
Connector assembly (to battery) |
1 |
|
| 21 |
272-9849 |
Connector assembly (to panel) |
1 |
|
| 22 |
272-2209 |
30amp circuit breaker |
1 |
|
| 23 |
172-0223 |
Battery cable boot |
2 |
|
| 24 |
172-2173 |
24V contactor |
1 |
|
| 25 |
270-0015 |
Battery series cable ring style |
3 |
|
| 26 |
172-8836 |
150amp fuse |
1 |
|
| 27 |
172-0103 |
Electrical mount |
3 |
|
| 28 |
997-2101 |
6 inch cable tie |
2 |
|
| 29 |
272-9374 |
10amp circuit breaker |
1 |
|
| 30 |
999-1416 |
Washer 7/16 flat stainless steel |
1 |
|
| 32 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
2 |
|
| 33 |
999-1220 |
Screw M5-.8 x 12mm hex head stainless steel |
2 |
|
| 34 |
272-8590 |
Screw 8-32 x 1 1/4 pan head |
2 |
|
| 35 |
272-1835 |
Washer flat |
2 |
|
| 36 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 37 |
272-9851 |
PCB mount bracket |
1 |
|
| 38 |
999-0412 |
Washer #8 SAE flat |
4 |
|
| N/S |
272-2195 |
Key switch assembly |
1 |
|
| N/S |
272-2196 |
Keys (pkg of 2) |
1 |
(optional) |
| N/S |
272-9846 |
Jumper cable |
1 |
|
| N/S |
272-9847 |
Main harness (OBSOLETE) |
1 |
before serial number 4000068715 |
| N/S |
272-9852 |
Interface panel kit |
1 |
(optional) |
| N/S |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
| N/S |
999-0869 |
Nut M4-.7 hex coarse thread plain finish |
4 |
|
| N/S |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
2 |
|
| N/S |
372-1992 |
EMC filter brush motor assembly (OBSOLETE) |
2 |
|
| N/S |
372-1993 |
EMC filter transaxle assembly (OBSOLETE) |
1 |
|
| N/S |
372-1994 |
Filter mount weldment (OBSOLETE) |
1 |
|
| N/S |
372-1995 |
Filter mount bracket (OBSOLETE) |
1 |
|
| N/S |
999-0567 |
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
2 |
|
| N/S |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| N/S |
270-0264 |
Screw M5 x 12mm hex head self-tapping |
2 |
|
| N/S |
472-7974 |
HARNESS-MAIN |
1 |
after SN 4000068714 |
|
|

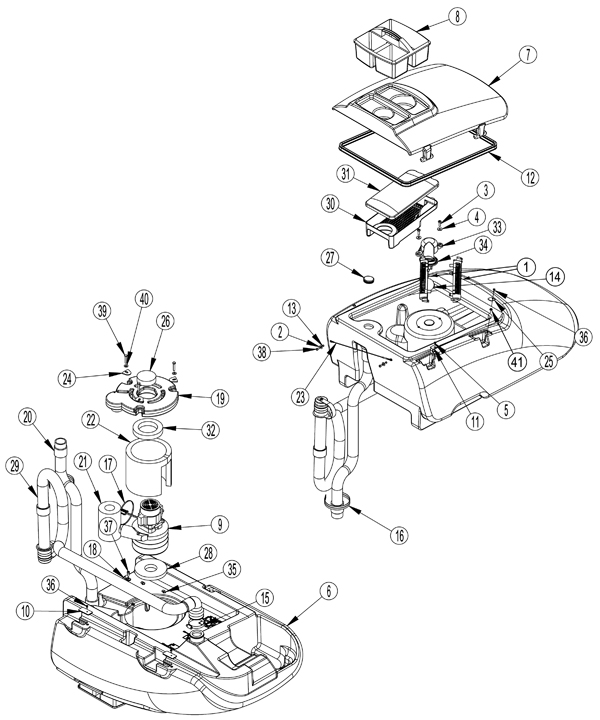

Recovery Tank Assembly - 272-3026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9853 |
Float ball cage kit |
1 |
(included in kit 1) |
| 2a |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
(before August 2017) |
| 2b |
999-1862 |
Washer #10 flat SAE stainless steel |
2 |
(after August 2017) |
| 3a |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
2 |
(before August 2017) |
| 3b |
999-1168 |
Screw M6-1 x 20mm pan head phillips stainless steel |
2 |
(after August 2017) |
| 4a |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
(before August 2017) |
| 4b |
372-1036 |
Washer 6mm |
2 |
(after August 2017) |
| 5 |
272-9902 |
Screw M4-.7 x 8mm flat head phillips stainless steel |
1 |
|
| 6a |
272-9854 |
Recovery tank |
1 |
(SC750 models) |
| 6b |
472-4528 |
RECOVERY TANK |
1 |
(SC800 models) |
| 7a |
272-9855 |
Recovery tank lid |
1 |
(SC750 models) |
| 7b |
272-9901 |
Recovery tank lid |
1 |
(SC800 models) |
| 8 |
272-9856 |
Utility caddy |
1 |
|
| 9a |
272-9857 |
24V 3 stage vacuum motor |
1 |
(before August 2017) |
| 9b |
272-9858 |
Carbon brush (pkg of 2) |
1 |
(before August 2017) |
| 9d |
170-1960 |
Carbon brush set |
1 |
(after August 2017) |
| 10 |
272-9859 |
Retainer plate |
2 |
|
| 11 |
272-9860 |
Retainer plate |
1 |
|
| 12 |
272-9861 |
Recovery tank lid gasket |
1 |
|
| 14 |
N/A |
Not available |
1 |
(ball float) (included in kit 1) |
| 17 |
997-2103 |
8 inch cable tie |
1 |
|
| 18 |
172-9530 |
Cable clamp |
2 |
|
| 19a |
172-4733 |
Vacuum motor cover |
1 |
(before August 2017) |
| 19b |
572-3651 |
COVER-VACUUM MOTOR PKD |
1 |
(after August 2017) |
| 20 |
272-9862 |
Suction hose |
1 |
|
| 21 |
172-4734 |
Acoustic insulation pipe |
1 |
|
| 22 |
172-4731 |
Acoustic insulation panel |
1 |
|
| 24 |
270-0193 |
Plate cover (OBSOLETE) |
3 |
|
| 27a |
172-4719 |
Plug |
1 |
(before August 2017) |
| 27b |
172-4719 |
Plug |
1 |
(after August 2017) |
| 28 |
270-0364 |
Vacuum motor gasket |
1 |
|
| 29 |
272-7272 |
Recovery drain hose |
1 |
|
| 30 |
272-9863 |
Debris tray |
1 |
|
| 31 |
272-9864 |
Debris tray cover |
1 |
|
| 32 |
272-9865 |
Vacuum motor gasket |
1 |
|
| 33 |
272-9866 |
Float support system |
1 |
|
| 34a |
272-9867 |
Float support gasket |
1 |
(before August 2017) |
| 34b |
272-9867 |
Float support gasket |
1 |
(after August 2017) |
| 35 |
272-9903 |
Self driving nut stainless steel |
2 |
|
| 36 |
270-0269 |
Screw M4-.7 x 10mm |
3 |
|
| 37 |
272-8931 |
Screw M6-1 x 10mm pan head |
2 |
|
| 38 |
272-9950 |
Screw M5-.8 x 12mm |
2 |
|
| 39 |
172-4428 |
Screw M6-1.0 x 35mm hex |
3 |
|
| 40 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| KIT 1 |
272-9853 |
Float ball cage kit |
1 |
(includes 1 and 14) |
|
|
Scrub Deck Assembly - Disk - 272-3027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 2 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
| 3 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 4a |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
4 |
(before June 2016) |
| 4b |
472-3627 |
SCR-BUTTON SOC SS M4-0.7X12 |
4 |
(after May 2016) |
| 5a |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
8 |
(before June 2016) |
| 5b |
472-3482 |
SCR SOC SS M6-1X14MM |
8 |
(after May 2016) |
| 6 |
999-0552 |
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
1 |
|
| 7 |
272-9905 |
Screw 5/16-18 x 1 1/4 socket head zinc plated |
2 |
|
| 8 |
472-3611 |
NUT-HEX NYL LOC SS M4-0.7 |
4 |
|
| 10 |
272-1382 |
Counterclockwise brush plate assembly |
1 |
(includes 36-42) |
| 11 |
272-1383 |
Clockwise brush plate assembly |
1 |
(includes 36-42) |
| 12 |
272-9868 |
Button plug |
1 |
|
| 13a |
272-9869 |
26 inch brush plate weldment |
1 |
(before June 2016) (26 inch models) |
| 13b |
272-9870 |
28 inch brush plate weldment |
1 |
(before June 2016) (28 inch models) |
| 13c |
272-9906 |
34 inch brush plate weldment |
1 |
(before June 2016) (34 inch models) |
| 13d |
272-9869 |
26 inch brush plate weldment |
1 |
(after May 2016) (26 inch models) |
| 13e |
272-9870 |
28 inch brush plate weldment |
1 |
(after May 2016) (28 inch models) |
| 13f |
272-9906 |
34 inch brush plate weldment |
1 |
(after May 2016) (34 inch models) (on machines before April 2015, the machines design allowed the motor gearbox assembly to interfere with the recovery tank causing blown/shorted fuses and broken electrical stud connections.) (on machines after March 2015, brush plate weldt 34D 56112759 was modified by rotationg the motor gearbox assembly mounting holes 25 degrees to allow for a non-interfering motor positioning) |
| 14 |
272-9871 |
Linkage bracket |
1 |
|
| 15a |
272-9872 |
Gearbox motor assembly |
2 |
|
| 15b |
272-9873 |
Carbon brush kit |
2 |
|
| 16a |
272-9874 |
26 inch left brush skirt assembly |
1 |
(26 inch models) |
| 16b |
272-9875 |
28 inch left brush skirt assembly |
1 |
(28 inch models) |
| 16c |
272-9907 |
34 inch left brush skirt assembly |
1 |
(34 inch models) |
| 17a |
272-9876 |
26 inch right brush skirt assembly |
1 |
(26 inch models) |
| 17b |
272-9877 |
28 inch right brush skirt assembly |
1 |
(28 inch models) |
| 17c |
272-9908 |
34 inch right brush skirt assembly |
1 |
(34 inch models) |
| 18a |
154-0037 |
Tubing 1/2 x 5/8 (clear) (sold by the foot) |
2 |
(26 inch models) |
| 18b |
272-2630 |
Hose |
2 |
(28 inch models) |
| 18c |
170-7018 |
Hose |
2 |
(34 inch models) |
| 19 |
172-9147 |
Terminal insulator |
2 |
(28 inch and 34 inch models) |
| 22 |
997-2002 |
Hose clamp #6 |
1 |
|
| 24 |
170-0033 |
Solution hose |
1 |
|
| 25 |
170-7013 |
Solution splitter |
1 |
|
| 27 |
997-2002 |
Hose clamp #6 |
1 |
|
| 29 |
170-7019 |
Brush deck latch |
1 |
|
| 30 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
|
| 32 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
3 |
|
| 33 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
| 34 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
4 |
|
| 35a |
270-0294 |
Screw M6-1 x 40mm pan head |
2 |
(before June 2016) |
| 36 |
272-7257 |
6 tab gimbal and collar assembly |
1 |
|
| 38 |
172-0553 |
Washer 17/64 x 1/16 flat |
1 |
|
| 39 |
999-1833 |
Screw 10-14 x 3/8 pan head phillips stainless steel |
3 |
|
| 40 |
272-9883 |
Retainer spring |
1 |
|
| 41 |
272-9884 |
Brush holder spring |
1 |
|
| 42 |
272-9885 |
Brush plate |
1 |
|
| N/S |
272-9878 |
26 inch bristle skirt kit |
1 |
(26 inch models) (includes 2 skirts and mounting hardware) |
| N/S |
272-9879 |
28 inch bristle skirt kit |
1 |
(28 inch models) (includes 2 skirts and mounting hardware) |
| N/S |
272-9909 |
34 inch bristle skirt kit |
1 |
(34 inch models) (includes 2 skirts and mounting hardware) |
|
|

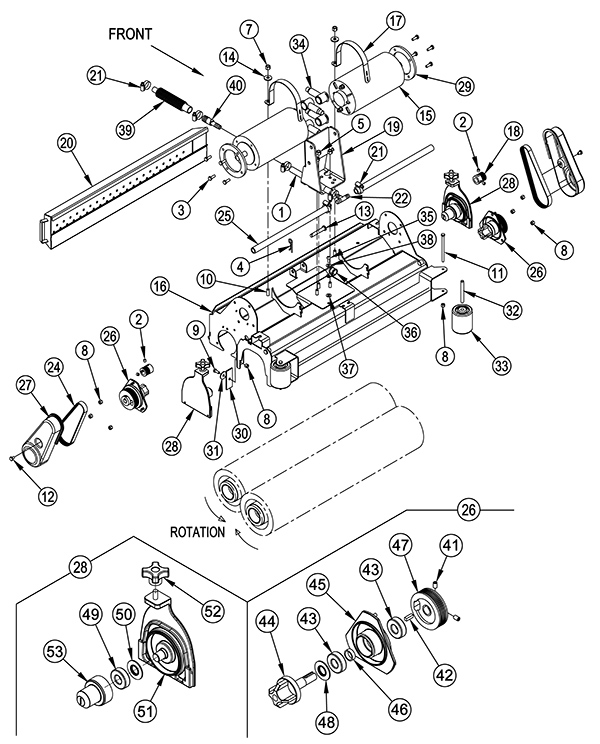

Scrub Deck Assembly - Cylindrical - 272-3028 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
4 |
|
| 3 |
272-1596 |
Bolt 1/4-20 x 3/4 hex head lock |
8 |
|
| 5 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
| 7 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
| 8a |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
2 |
(before October 2016) |
| 8b |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
8 |
(after September 2016) |
| 9 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 10 |
999-0501 |
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
| 11a |
999-1329 |
Screw M6-1 x 100mm hex head |
2 |
(before October 2016) |
| 11b |
372-1626 |
Screw M6-1 x 95mm hex head |
2 |
(after September 2016) |
| 12a |
272-1562 |
Screw 1/4-20 x 3/5 pan head thread forming |
2 |
(before October 2016) |
| 14 |
172-2067 |
Washer 11/32 x 1/8 flat |
2 |
|
| 15a |
272-9886 |
Brush motor |
2 |
|
| 15b |
172-8948 |
Brush cap assembly |
1 |
|
| 16b |
272-9911 |
32 inch brush housing weldment |
1 |
(32 inch models) (before October 2016) |
| 16d |
272-9911 |
32 inch brush housing weldment |
1 |
(32 inch models) (after September 2016) |
| 17 |
272-9888 |
Motor strap |
2 |
|
| 18 |
272-9889 |
Poly-v sheave |
2 |
|
| 19 |
272-9871 |
Linkage bracket |
1 |
|
| 20a |
272-9890 |
28 inch hopper weldment |
1 |
(28 inch models) (before October 2016) |
| 20b |
272-9912 |
32 inch hopper weldment |
1 |
(32 inch models) (before October 2016) |
| 20c |
272-9890 |
28 inch hopper weldment |
1 |
(28 inch models) (after September 2016) |
| 20d |
272-9912 |
32 inch hopper weldment |
1 |
(32 inch models) (after September 2016) |
| 24 |
272-2150 |
Tension belt |
2 |
|
| 25a |
272-2145 |
PVC manifold 28 inch |
2 |
(28 inch models) |
| 25b |
272-2230 |
32 inch manifold |
2 |
(32 inch models) |
| 26a |
172-8933 |
Drive end assembly |
2 |
(before October 2016) |
| 26b |
472-4877 |
DRIVE END ASSY |
2 |
(after September 2016) (includes 41-48) |
| 28 |
172-3373 |
Idler end assembly |
2 |
(includes 49-53) |
| 29 |
272-9415 |
Motor spacer plate |
2 |
|
| 31 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
| 34 |
172-9147 |
Terminal insulator |
2 |
|
| 35 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
1 |
|
| 36 |
270-0336 |
3/8 inch hosebarb |
1 |
|
| 37 |
999-0238 |
Washer 1/4 internal star lock zinc plated |
1 |
|
| 38 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
| 39 |
170-0033 |
Solution hose |
1 |
|
| 40 |
272-2213 |
Coupler 1/2 x 3/4 barb |
1 |
|
| 41 |
272-1454 |
Screw 1/4-20 X 3/8 socket set lock |
2 |
|
| 42 |
172-8956 |
Square keyway |
1 |
|
| 43 |
172-4656 |
Ball bearing |
2 |
|
| 44 |
472-4878 |
SPINDLE-LONG |
1 |
|
| 45 |
272-2169 |
Bearing plate |
1 |
|
| 47 |
472-4875 |
SHEAVE-POLY V |
1 |
|
| 48 |
172-1837 |
Bearing washer |
1 |
|
| 49 |
172-4656 |
Ball bearing |
1 |
|
| 50 |
172-1837 |
Bearing washer |
1 |
|
| 51 |
272-2170 |
Idler bearing plate |
1 |
|
| N/S |
172-8969 |
Nylon soft scrubbing brush - CYLINDRICAL |
2 |
(28 inch models) |
| N/S |
172-9308 |
Soft nylon brush - CYLINDRICAL (yellow) |
2 |
(32 inch models) |
|
|

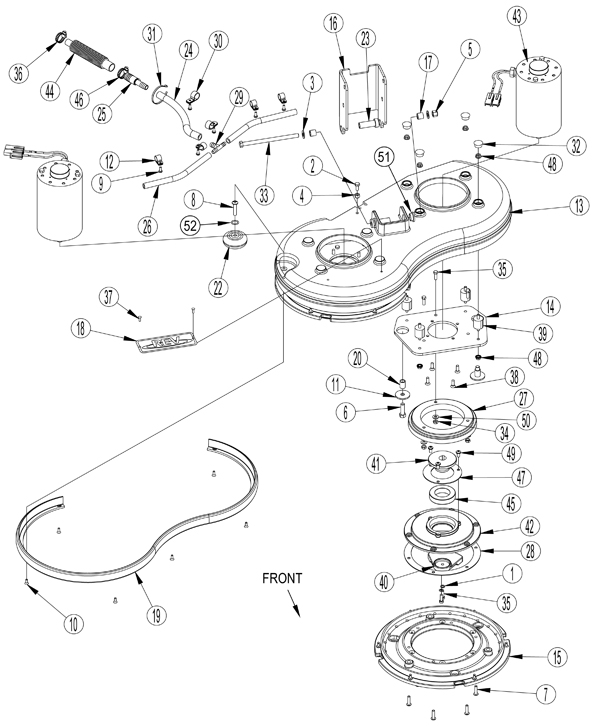

REV Scrub Deck Assembly - 272-3029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9934 |
REV deck hardware kit |
4 |
(Washer 1/4 helical spring lock) |
| 2 |
272-9934 |
REV deck hardware kit |
1 |
(Screw 1/4-20 x .62mm hex head) |
| 3 |
999-0120 |
Washer 3/8 SAE flat |
2 |
(included in REV deck hardware kit) |
| 4 |
999-0190 |
Nut 1/4-20 hex plain finish |
1 |
(included in REV deck hardware kit) |
| 5 |
999-1482 |
Nut 3/8-16 nylon lock stainless steel |
1 |
(included in REV deck hardware kit) |
| 6a |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
4 |
(included in stabilizer stud kit) |
| 6b |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
4 |
(included in REV deck hardware kit) |
| 7a |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
12 |
(included in pad driver kit) |
| 7b |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
12 |
(included in REV deck hardware kit) |
| 8 |
272-9934 |
REV deck hardware kit |
1 |
(Screw 5/16-18 x 1 1/2 pan head phillips SS) |
| 9a |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
6 |
(included in solution hose kit) |
| 9b |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
6 |
(included in REV deck hardware kit) |
| 10a |
999-0421 |
Screw 10-24 x 1/2 flat head phillips zinc plated |
6 |
(included in bumper kit) |
| 10b |
999-0421 |
Screw 10-24 x 1/2 flat head phillips zinc plated |
6 |
(included in REV deck hardware kit) |
| 11a |
272-9929 |
Stabilizer stud kit |
6 |
(Washer flat) |
| 11b |
272-9934 |
REV deck hardware kit |
6 |
(Washer flat) |
| 12 |
272-9930 |
Solution hose kit |
4 |
(P-clamp) |
| 14 |
272-6545 |
Motor plate |
2 |
|
| 15 |
272-9933 |
Pad driver kit |
2 |
(Pad driver assembly) |
| 16 |
472-4584 |
BRACKET-DECK LINKAGE |
1 |
|
| 17 |
272-9941 |
Nylon bushing |
2 |
|
| 19 |
272-9932 |
Bumper kit |
1 |
(Bumper) |
| 20 |
272-9929 |
Stabilizer stud kit |
4 |
(Sleeve) |
| 24 |
272-9930 |
Solution hose kit |
1 |
(PVC hose) |
| 25 |
272-9930 |
Solution hose kit |
1 |
(Coupler barb) |
| 26 |
272-9930 |
Solution hose kit |
2 |
(PVC hose) |
| 27 |
272-9935 |
Splash guard kit |
2 |
(Splash shield) |
| 28 |
272-9936 |
Driver assembly |
2 |
(Gasket driver) |
| 29 |
272-9930 |
Solution hose kit |
1 |
(Tee barb) |
| 30 |
272-9930 |
Solution hose kit |
2 |
(P-clamp) |
| 31 |
272-9930 |
Solution hose kit |
1 |
(Cable tie) |
| 33 |
272-9934 |
REV deck hardware kit |
1 |
(Screw 3/8-16 x 6mm) |
| 34a |
999-0609 |
Nut 1/4-20 hex stainless steel |
6 |
(included in REV deck hardware kit) |
| 34b |
999-0609 |
Nut 1/4-20 hex stainless steel |
6 |
(included in splash guard kit) |
| 35a |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
10 |
(included in REV deck hardware kit) |
| 35b |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
10 |
(included in splash guard kit) |
| 36 |
997-2002 |
Hose clamp #6 |
1 |
|
| 37 |
272-9934 |
REV deck hardware kit |
2 |
(Rivet) |
| 38 |
999-0457 |
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
8 |
(included in REV deck hardware kit) |
| 39 |
272-9928 |
Isolator kit |
8 |
(Isolator) |
| 40 |
272-9946 |
Counter weight |
2 |
|
| 41 |
272-9937 |
Eccentric kit |
2 |
(Eccentric) |
| 42 |
272-9947 |
Motor driver |
2 |
|
| 43a |
272-9948 |
24V brush motor |
2 |
|
| 43b |
172-8951 |
Carbon brush and spring kit |
2 |
|
| 43c |
170-0009 |
Connector housing |
2 |
|
| 43d |
272-9949 |
Connector contact |
2 |
|
| 44 |
170-0033 |
Solution hose |
1 |
|
| 46 |
997-2002 |
Hose clamp #6 |
1 |
|
| 47 |
272-9936 |
Driver assembly |
2 |
(Bearing retainer) |
| 48a |
272-9928 |
Isolator kit |
16 |
(serrated nut) |
| 48b |
272-9934 |
REV deck hardware kit |
16 |
(serrated nut) |
| 49a |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
6 |
(included in REV deck hardware kit) |
| 49b |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
6 |
(included in driver kit) |
| 50a |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
(included in REV deck hardware kit) |
| 50b |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
(included in splash guard kit) |
| 51 |
272-1843 |
Flanged bearing |
2 |
|
| 52 |
272-5215 |
Washer 17/32 |
1 |
|
| KIT |
272-9928 |
Isolator kit |
1 |
(includes 39 and 48a) |
| KIT |
272-9929 |
Stabilizer stud kit |
1 |
(includes 6a, 11a and 20) |
| KIT |
272-9930 |
Solution hose kit |
1 |
(includes 9a, 12, 24-26 and 29-31) |
| KIT |
272-9932 |
Bumper kit |
1 |
(includes 10a and 19) |
| KIT |
272-9933 |
Pad driver kit |
1 |
(includes 7a and 15) |
| KIT |
272-9934 |
REV deck hardware kit |
1 |
(includes 1-5, 6b, 7b, 8, 9b, 10b, 11b, 33, 34a, 35, 37, 38, 48b, 49a and 50a) |
| KIT |
272-9935 |
Splash guard kit |
1 |
(includes 27, 34b, 35b and 50b) |
| KIT |
272-9936 |
Driver assembly |
1 |
(includes 28, 47 and 49b) |
| KIT |
272-9937 |
Eccentric kit |
1 |
(includes 41) |
|
|

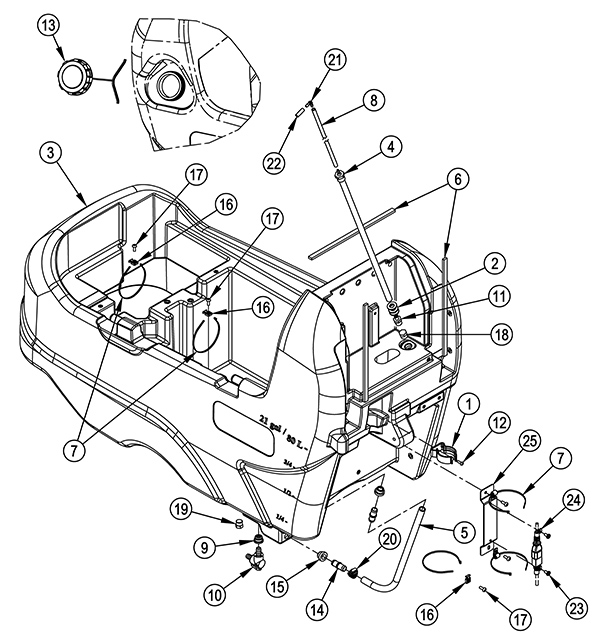

Solution Tank Assembly - 272-3030 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
3 |
(SC750 and SC800) |
| 3a |
272-9891 |
Solution tank |
1 |
(SC750 and SC750 ST) |
| 3b |
272-9913 |
Solution tank |
1 |
(SC800 and SC800 ST) |
| 4 |
272-9892 |
Pressure sensing tube |
1 |
(SC750 and SC800) |
| 5a |
272-9893 |
Drain hose |
1 |
(SC750 and SC750 ST) (before June 2016) |
| 5b |
272-9914 |
Drain hose |
1 |
(SC800 and SC800 ST) (before June 2016) |
| 5c |
472-8020 |
HOSE-PVC-5/8X19 |
1 |
(after May 2016) |
| 6 |
272-9894 |
Gasket |
3 |
(SC750 and SC800) |
| 7 |
997-2103 |
8 inch cable tie |
4 |
(the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014) |
| 8a |
272-9895 |
Hose (OBSOLETE) |
1 |
(before June 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
| 8b |
472-4568 |
HOSE |
1 |
(after May 2016) (SC750, SC800) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
| 10 |
170-5402 |
Manual solution valve |
1 |
|
| 11 |
181-0259 |
Adaptor PP-HS |
1 |
(SC750 and SC800) |
| 12a |
999-1182 |
Screw M5-.8 x 16mm pan head slotted stainless steel |
1 |
(before June 2016) |
| 12b |
999-9109 |
Screw M5-.8 x 12mm pan head phillips stainless steel |
1 |
(after May 2016) |
| 13a |
272-9352 |
Raw cap with tether |
1 |
(before June 2016) |
| 13b |
272-9352 |
Raw cap with tether |
1 |
(after May 2016) |
| 14a |
272-9896 |
Straight connector |
2 |
(before June 2016) |
| 14b |
272-9896 |
Straight connector |
2 |
(after May 2016) |
| 15 |
170-1387 |
Bushing fitting |
2 |
|
| 16 |
170-7388 |
1/4 tab |
4 |
(the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014) |
| 17 |
272-8931 |
Screw M6-1 x 10mm pan head |
4 |
(the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014) |
| 18 |
272-9915 |
Pipe plug |
1 |
(SC750 ST and SC800 ST) |
| 19 |
272-9961 |
Pipe plug |
1 |
(SC800 and SC800 ST) |
| 20a |
997-2005 |
Hose clamp |
1 |
(before June 2016) |
| 20b |
209-0604 |
Hose clamp |
1 |
(after May 2016) |
| 21 |
472-4569 |
ELBOW 3/16 X 3/16 POLY |
1 |
(after May 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
| 22 |
472-4567 |
HOSE |
1 |
(after May 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
| 23 |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
2 |
(after May 2016) |
| 24 |
172-9530 |
Cable clamp |
4 |
(after May 2016) |
| 25 |
472-7868 |
POWER CORD BRACKET |
1 |
(after May 2016) |
|
|

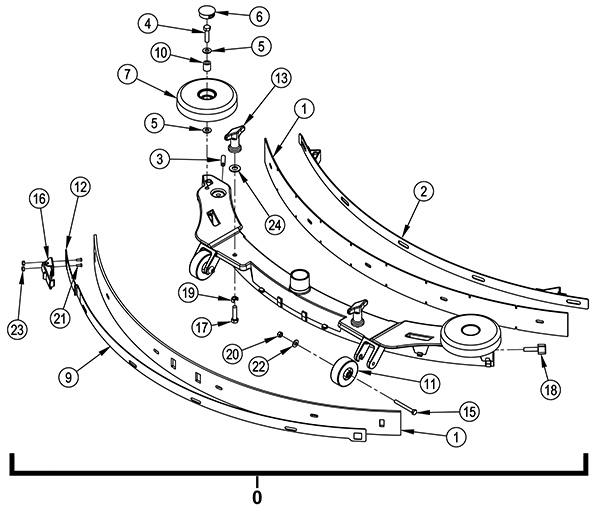

Squeegee Assembly - 272-3031 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
272-7269 |
Squeegee assembly |
1 |
(26 and 28 inch models) |
| 0b |
272-7270 |
Squeegee assembly |
1 |
(32 and 34 inch models) |
| 1a |
272-6575 |
Squeegee blade kit gum rubber |
1 |
(26 and 28 inch models) |
| 1b |
994-0072 |
Squeegee blade kit 35 inch gum rubber |
1 |
(26 and 28 inch models) |
| 1c |
272-9916 |
Squeegee blade kit gum rubber |
1 |
(32 and 34 inch models) |
| 1d |
272-6576 |
Squeegee blade kit linatex |
1 |
(26 and 28 inch models) |
| 1e |
372-1167 |
Squeegee blade kit linatex |
1 |
(32 and 34 inch models) |
| 1f |
270-0803 |
Squeegee blade kit 35 inch urethane |
1 |
(26 and 28 inch models) |
| 1g |
994-0074 |
Squeegee blade kit 35 inch urethane |
1 |
(26 and 28 inch models) |
| 1h |
272-7419 |
Squeegee blade kit urethane |
1 |
(32 and 34 inch models) |
| 1i |
991-3125 |
BLADE KIT- RED 32-34 |
1 |
(NON-OEM) |
| 2a |
270-0248 |
35 inch squeegee band front (BOOST 28) |
1 |
(26 and 28 inch models) |
| 2b |
270-0249 |
41 inch squeegee band front |
1 |
(32 and 34 inch models) |
| 3 |
999-9112 |
Screw M8-1.25 x 30mm set stainless steel |
1 |
|
| 4 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
| 5 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 9a |
272-9897 |
Rear squeegee strap |
1 |
(26 and 28 inch models) |
| 9b |
272-9917 |
Rear squeegee strap |
1 |
(32 and 34 inch models) (before August 2017) |
| 9c |
272-9917 |
Rear squeegee strap |
1 |
(32 and 34 inch models) (after July 2017) |
| 11 |
172-4793 |
Squeegee wheel kit |
2 |
|
| 12 |
272-9898 |
Rear latch strap |
1 |
|
| 13 |
172-4099 |
Nut 5/16-18 thumb |
2 |
|
| 15 |
999-9093 |
Screw M6-1 x 55mm hex head stainless steel |
2 |
|
| 16 |
272-7124 |
Squeegee latch |
1 |
|
| 17 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
| 20 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 21 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
| 22 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 23 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
| 24 |
472-8250 |
WASHER-POLYURETHANE-1.25 |
2 |
|
|
|
Squeegee Lift Assembly - 272-3032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-0223 |
Support plate |
1 |
|
| 4a |
272-7269 |
Squeegee assembly |
1 |
(26 and 28 inch) |
| 4b |
272-7270 |
Squeegee assembly |
1 |
(32 and 34 inch) |
| 5 |
172-3668 |
Spacer 6 1/2 X 10 X 4 1/2 |
1 |
|
| 7 |
272-7000 |
Squeegee mounting bracket kit |
1 |
|
| 8 |
270-0114 |
Spring support |
1 |
|
| 9 |
172-4807 |
Bolt M10 x 16mm shoulder |
2 |
|
| 10 |
270-0395 |
Squeegee pin |
1 |
|
| 11 |
172-4776 |
Right hand squeegee torsion spring |
1 |
|
| 14 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
| 17 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 18 |
170-0213 |
Nylon washer |
2 |
|
| 19 |
170-7402 |
Squeegee lift knob |
1 |
|
| 21 |
270-0228 |
Squeegee lift lever |
1 |
|
| 22 |
999-1424 |
Nut M8-1.25 hex stainless steel |
1 |
|
| 23 |
999-1308 |
Nut M6-1 hex stainless steel |
1 |
|
| 24 |
270-0195 |
Screw M6 x 15mm pan head phillips stainless steel |
1 |
|
| 25 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
| 26 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 27 |
272-9900 |
Washer flat |
2 |
|
| 28 |
999-0587 |
Screw 3/8-16 x 5/8 round head slotted zinc |
1 |
|
| 29 |
999-0016 |
Washer 1/4 flat plain finish |
2 |
|
| 30 |
170-1397 |
Washer nylon |
2 |
|
| 31 |
999-0673 |
Nut M6-1 acorn zinc plated |
1 |
|
| 32 |
172-4784 |
Wire tie holder |
2 |
|
|
|

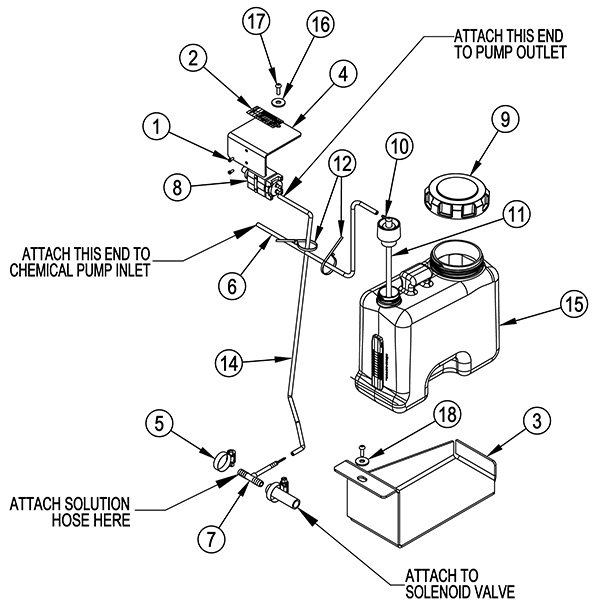

Detergent Injection Assembly - EcoFlex - 272-3033 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0100 |
Screw 6-32 x 5/16 round head slotted zinc plated |
2 |
|
| 2 |
272-9827 |
Chemical ratio decal |
1 |
|
| 3 |
272-9828 |
Support bracket |
1 |
|
| 4 |
272-9829 |
Pump mount bracket |
1 |
|
| 5 |
997-2002 |
Hose clamp #6 |
2 |
|
| 7 |
272-8135 |
Tee assembly |
1 |
|
| 8 |
272-2175 |
Chemical pump |
1 |
|
| 9a |
272-2180 |
Solution fill cap |
1 |
(before August 2017) |
| 9b |
272-2180 |
Solution fill cap |
1 |
(after August 2017) |
| 10 |
272-2182 |
Dry break cap |
1 |
|
| 11 |
272-2184 |
Dry break insert |
1 |
|
| 13 |
172-7747 |
Insulated tubing |
1 |
(before August 2017) |
| 15a |
272-9833 |
Chemical bottle assembly |
1 |
|
| 15b |
272-9832 |
Chemical bottle assembly |
1 |
(optional) (includes 9, 11 and 15b) (EcoFlex) |
| 16 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
|
| 17 |
999-1257 |
Screw M6-1 x 16mm pan head Phillips |
2 |
|
| 18 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
1 |
|
|
|

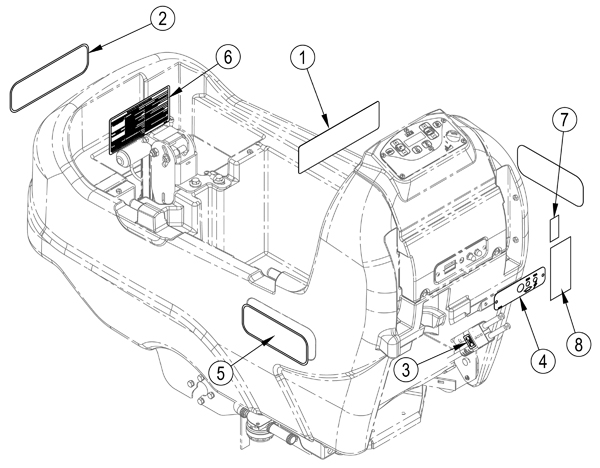

Decal Assembly - 272-3034 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-5000 |
Caution decal |
1 |
|
| 2 |
272-2292 |
Advance decal |
1 |
|
| 3 |
172-5010 |
Charger decal |
1 |
|
| 4 |
272-9836 |
Circuit breaker decal |
1 |
|
| 5a |
272-9837 |
SC750 decal |
2 |
|
| 5b |
272-9838 |
SC750 EcoFlex decal |
2 |
|
| 5c |
272-9918 |
SC800 decal |
2 |
|
| 5d |
272-9919 |
SC750 ST decal |
2 |
|
| 5e |
472-4563 |
DECAL-SC800 ST |
2 |
|
| 5f |
272-9920 |
SC800 EcoFlex decal |
2 |
|
| 6 |
272-9839 |
Error codes decal |
1 |
|
| 8 |
272-9841 |
Warning/wiring decal |
1 |
|
|
|

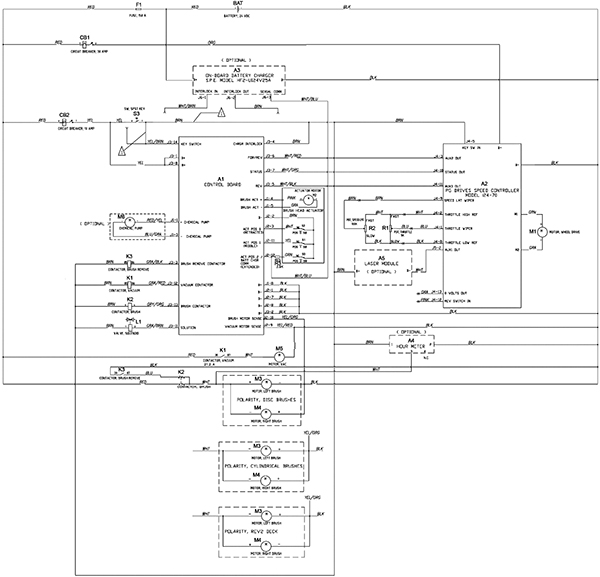

Wiring Diagram - 272-3035 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A1 |
272-9844 |
AXP control board kit |
1 |
|
| A2 |
272-9848 |
Speed controller |
1 |
|
| A3 |
272-8616 |
120V Onboard charger kit |
1 |
(optional) |
| A4 |
172-2162 |
Hour meter |
1 |
(optional) |
| A5 |
472-4530 |
LASER |
1 |
(optional) |
| F1 |
172-8836 |
150amp fuse |
1 |
|
| CB1 |
272-2209 |
30amp circuit breaker |
1 |
|
| CB2 |
272-9374 |
10amp circuit breaker |
1 |
|
| K2 |
172-2173 |
24V contactor |
1 |
|
| L1 |
272-9815 |
Solenoid valve assembly |
1 |
|
| M1 |
272-9970 |
Transaxle motor kit |
1 |
|
| M2 |
272-3543 |
Actuator |
1 |
(includes S0, S1 and S2) |
| M3a |
272-9872 |
Gearbox motor assembly |
1 |
(disk) |
| M3b |
272-9886 |
Brush motor |
1 |
(cylindrical) |
| M3c |
272-6547 |
Motor |
1 |
(REV) |
| M4a |
272-9872 |
Gearbox motor assembly |
1 |
(disk) |
| M4b |
272-9886 |
Brush motor |
1 |
(cylindrical) |
| M4c |
272-6547 |
Motor |
1 |
(REV) |
| M5 |
272-9857 |
24V 3 stage vacuum motor |
1 |
|
| M6 |
272-2175 |
Chemical pump |
1 |
(optional) |
| R1 |
172-2039 |
5K potentiometer |
1 |
|
| S3 |
272-2195 |
Key switch assembly |
1 |
|
|
|
- Batteries, Brushes and Charger - 28 inch - 272-8934 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
4 |
|
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
4 |
|
| 3 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
4 |
|
| 4 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
4 |
|
| 5a |
162-5061 |
24V 20amp battery charger with SB175 large red plug |
1 |
|
| 5b |
991-0045 |
24V 27amp Summit II battery charger with SB175 red plug |
|
(NON-OEM) |
| 6b |
372-1223 |
24V 25amp battery charger |
1 |
|
| 8a |
272-2225 |
Onboard charger cord |
1 |
|
| 8b |
991-8566 |
Onboard battery charger power cord |
1 |
|
| 9 |
162-5045 |
175amp charger plug with pins (red) SB175 |
1 |
|
| 10 |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 11 |
996-0169 |
13 inch heavy grit stripping brush - 80 grit |
2 |
|
| 12 |
996-0120 |
13 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 13 |
996-0096 |
13 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 14 |
996-3065 |
13 inch value daily cleaning brush assembly (OBSOLETE) |
2 |
|
| 15 |
996-0061 |
13 inch Pad driver |
2 |
|
| 16 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
2 |
|
|
|
- Batteries, Brushes and Charger - 34 inch - 272-8935 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
4 |
|
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
4 |
|
| 3 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
4 |
|
| 4 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
4 |
|
| 5a |
162-5061 |
24V 20amp battery charger with SB175 large red plug |
1 |
|
| 5b |
991-0045 |
24V 27amp Summit II battery charger with SB175 red plug |
|
(NON-OEM) |
| 8a |
272-2225 |
Onboard charger cord |
1 |
|
| 8b |
991-8566 |
Onboard battery charger power cord |
1 |
|
| 9 |
162-5045 |
175amp charger plug with pins (red) SB175 |
1 |
|
| 10 |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 11 |
996-0412 |
16 inch heavy grit stripping brush - 80 grit |
2 |
|
| 12 |
996-0413 |
16 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 13 |
996-0414 |
16 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 14 |
996-3068 |
16 inch value daily cleaning brush assembly (OBSOLETE) |
2 |
|
| 15 |
996-0417 |
16 inch Pad driver |
2 |
|
| 16 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
2 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
