- Pads - 255-2100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2140 |
21 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2135 |
21 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2164 |
21 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2142 |
21 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2112 |
21 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-2177 |
21 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2138 |
21 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2121 |
21 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2150 |
21 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2165 |
21 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2130 |
21 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2167 |
21 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2190 |
21 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-2170 |
21 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-2192 |
21 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-2180 |
21 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-2160 |
21 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-2152 |
21 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-2120 |
21 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-2111 |
21 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-2195 |
21 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-2147 |
21 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-2155 |
21 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 25 |
255-0164 |
21 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 26 |
255-0165 |
21 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 27 |
255-0162 |
21 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 28 |
255-0256 |
21 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0257 |
21 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0258 |
21 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0255 |
21 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-2124 |
21 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 33 |
255-9598 |
21 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 34 |
255-9595 |
21 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 35 |
255-9592 |
21 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 36 |
255-9596 |
21 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 37 |
255-9593 |
21 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 38 |
255-9594 |
21 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 39 |
255-9597 |
21 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 40 |
255-9646 |
21 inch Diamond starter pack (1 of each grit) |
|
|
| 41 |
255-2115 |
21 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 42 |
255-2116 |
21 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Commonly Asked For Parts - 272-9898 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
372-1227 |
Rear wheel (pkg of 2) |
|
|
| 02 |
272-6947 |
Squeegee blade kit 29 inch gum rubber |
|
|
| 03 |
272-6948 |
Squeegee blade kit 29 inch urethane |
|
|
| 04 |
272-6949 |
Squeege blade kit 29 inch linatex? |
|
|
| 05 |
572-3450 |
VACUUM MOTOR 280W 24V PKD |
|
|
| 06 |
272-9993 |
600mm solution hose |
|
(Solution) |
| 07 |
572-3439 |
DRAIN HOSE PKD |
|
(Recovery) |
| 08 |
270-0929 |
Elbow valve with gasket |
|
|
| 10a |
162-0011 |
12V 105Ah wet battery (SNSR) |
|
|
| 10b |
162-0042 |
12V 115Ah AGM battery (Group 31) |
|
|
| 11 |
572-9221 |
Charger harness |
|
|
| 12 |
572-9222 |
Harness adapter with relay |
|
|
| 13 |
572-9223 |
HARNESS LI BAT MACH COMM SIP |
|
|
| 14 |
572-9224 |
24V LI-Ion charger |
|
|
|
|

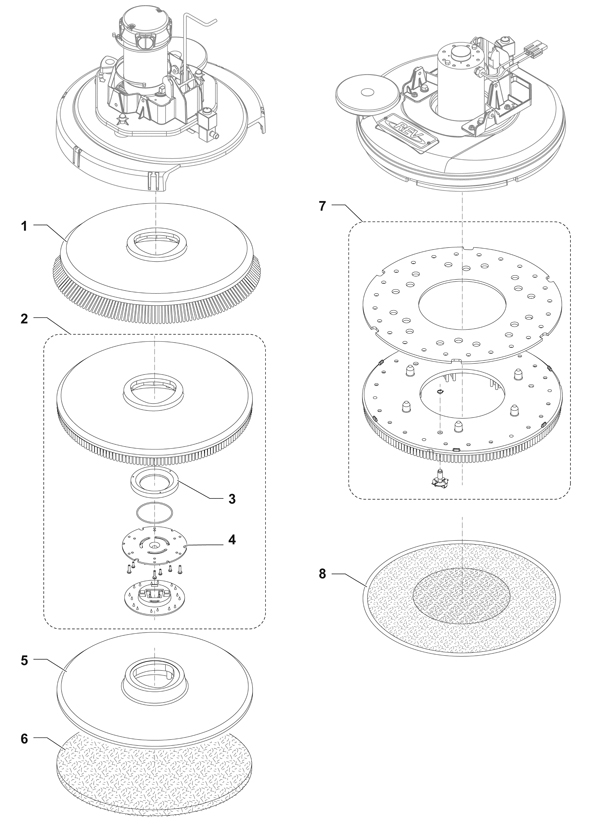

- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|

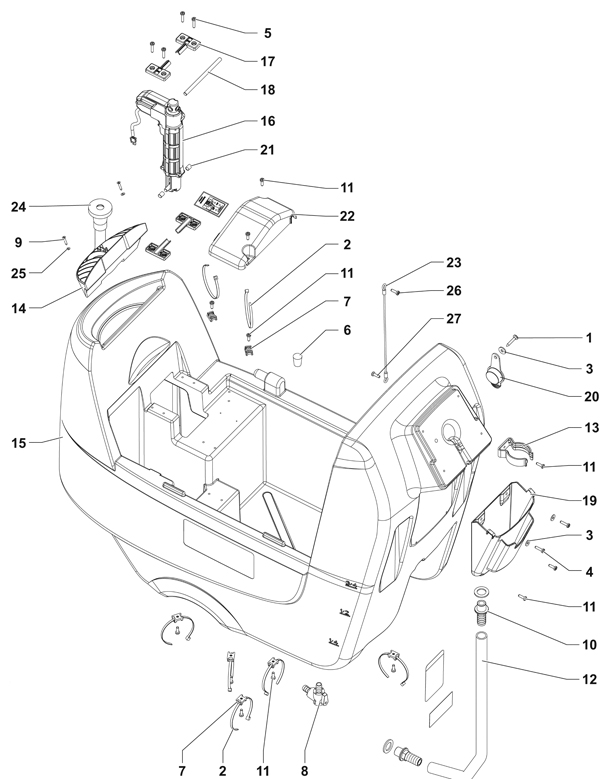

Solution Tank Assembly - 372-0000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
1 |
(only available in kit) (screw) |
| 2 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
8 |
(only available in kit) (cable tie) |
| 3 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
1 |
(only available in kit) (washer) |
| 4 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
2 |
(only available in kit) (screw) |
| 5 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
4 |
(only available in kit) (screw) |
| 6 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
1 |
(only available in kit) (cap) |
| 7 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
8 |
(only available in kit) (tie holder) |
| 8 |
270-0929 |
Elbow valve with gasket |
1 |
|
| 9 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
2 |
(only available in kit) (screw) |
| 10 |
572-3389 |
FITTING STRAIGHT G1/2 D.20 KIT |
2 |
|
| 11 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
13 |
(only available in kit) (screw) |
| 12 |
272-9993 |
600mm solution hose |
1 |
|
| 13 |
164-0101 |
Hose holder |
1 |
|
| 14 |
572-3510 |
FILTER WATER INLET PKD |
1 |
|
| 15 |
572-3433 |
TANK SOLUTION 40 LT GREY PKD |
1 |
(disc deck) |
| 16a |
572-3434 |
JACK MOTOR 24V PKD |
1 |
(rev deck) |
| 16b |
572-3435 |
JACK MOTOR 24V REV PKD |
1 |
|
| 17 |
572-3404 |
ACTUATOR FIXING KIT |
4 |
(only available in kit) (plate) |
| 18 |
572-3404 |
ACTUATOR FIXING KIT |
1 |
(only available in kit) (cylinder) |
| 19 |
572-3436 |
BOX FOR CHARGER CABLE PKD |
1 |
|
| 20 |
572-3437 |
RUBBER SOLUTION CAP PKD |
1 |
|
| 21 |
572-3404 |
ACTUATOR FIXING KIT |
2 |
(only available in kit) (cylindrical bearing) |
| 22 |
572-3438 |
PUMP COVER PKD |
1 |
|
| 23 |
572-3427 |
CABLE SAFETY F TANK KIT |
1 |
(only available in kit) (safety cable) |
| 24 |
272-9646 |
Hose filling |
1 |
|
| 25 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
2 |
(only available in kit) (washer) |
| 26 |
572-3427 |
CABLE SAFETY F TANK KIT |
1 |
(only available in kit) (screw) |
| 27 |
572-3427 |
CABLE SAFETY F TANK KIT |
1 |
(only available in kit) (screw) |
| KIT1 |
572-3404 |
ACTUATOR FIXING KIT |
1 |
(includes 5, 17-18 and 21) |
| KIT2 |
572-3405 |
HARDWARE SOLUTION TANK KIT |
1 |
(includes 1-7, 9, 11 and 25) |
| KIT3 |
572-3427 |
CABLE SAFETY F TANK KIT |
1 |
(includes 23 and 26-27) |
|
|

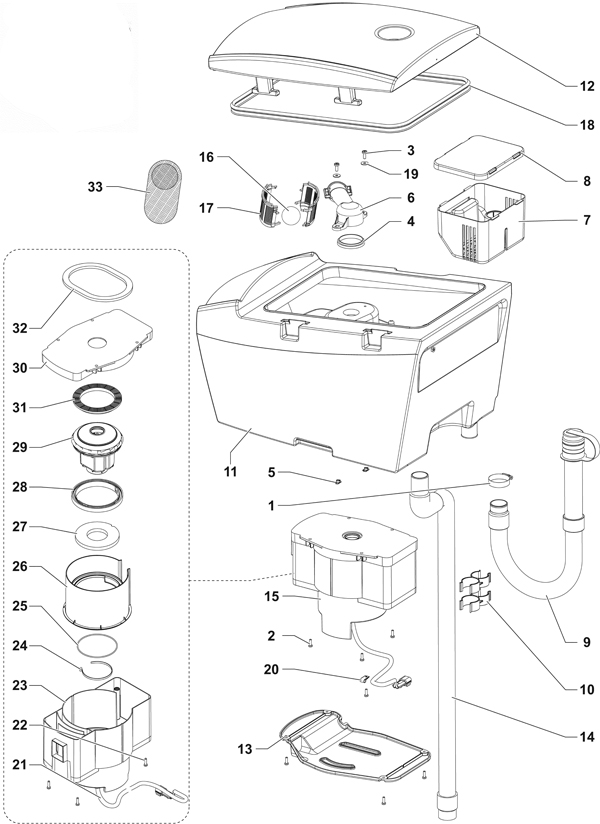

Recovery Tank Assembly - 372-0001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
572-3407 |
HARDWARE RECOVERY TANK KIT |
9 |
(only available in kit) (screw) |
| 3 |
270-8255 |
Float holder cage kit |
2 |
(only available in kit) (screw) |
| 4 |
272-9867 |
Float support gasket |
1 |
|
| 5 |
572-3407 |
HARDWARE RECOVERY TANK KIT |
2 |
(only available in kit) (nut) |
| 6 |
270-8255 |
Float holder cage kit |
1 |
(only available in kit) (cage float) |
| 7 |
372-1222 |
Debris tray |
1 |
(only available in kit) (debris tray) |
| 8 |
372-1222 |
Debris tray |
1 |
(only available in kit) (debris tray cover) |
| 9 |
572-3439 |
DRAIN HOSE PKD |
1 |
|
| 10 |
572-3502 |
CLIP HOSE STOPPING 2 PCS SET |
1 |
|
| 11 |
572-3440 |
TANK RECOVERY 40 LT GREY PKD |
1 |
|
| 12 |
572-3441 |
COVER TANK GREY PKD |
1 |
|
| 13 |
572-3442 |
COVER VAC MOTOR SOUNDPROOFING |
1 |
|
| 14 |
572-3443 |
Suction hose |
1 |
|
| 15a |
572-3381 |
HIGH PWR VAC MTR 24V 450W KIT |
1 |
|
| 15b |
572-3515 |
MOTOR VACUUM 24V 280W CPL KIT |
1 |
|
| 17 |
172-0517 |
Float cage half (2 required for full float cage) |
1 |
|
| 18 |
272-8548 |
Recovery tank lid gasket |
1 |
|
| 19 |
270-8255 |
Float holder cage kit |
2 |
(only available in kit) (washer) |
| 20 |
572-3407 |
HARDWARE RECOVERY TANK KIT |
1 |
(only available in kit) (clamp) |
| 21 |
572-3447 |
VACUUM MOTOR HARNESS PKD |
1 |
|
| 22 |
572-3407 |
HARDWARE RECOVERY TANK KIT |
4 |
(only available in kit) (screw) |
| 23 |
572-3448 |
EXT INSULATION VAC MTR PKD |
1 |
|
| 24 |
572-3407 |
HARDWARE RECOVERY TANK KIT |
1 |
(only available in kit) (cable tie) |
| 25 |
572-3406 |
GASKETS VACUUM MOTOR KIT |
1 |
(only available in kit) (o-ring) |
| 26 |
572-3449 |
INT INSULATION VAC MTR PKD |
1 |
|
| 27 |
572-3406 |
GASKETS VACUUM MOTOR KIT |
1 |
(only available in kit) (gasket collector) |
| 28 |
572-3406 |
GASKETS VACUUM MOTOR KIT |
1 |
(only available in kit) (gasket) |
| 29 |
572-3450 |
VACUUM MOTOR 280W 24V PKD |
1 |
|
| 30 |
572-3451 |
SUPPORT VAC MOTOR CARTRIDGE PK |
1 |
|
| 31 |
572-3406 |
GASKETS VACUUM MOTOR KIT |
1 |
(only available in kit) (lower domel) |
| 32 |
572-3406 |
GASKETS VACUUM MOTOR KIT |
1 |
(only available in kit) (vacuum motor gasket) |
| 33 |
272-7206 |
Antifoaming filter |
1 |
|
| KIT1 |
270-8255 |
Float holder cage kit |
1 |
(includes 4, 6 and 19) |
| KIT2 |
372-1222 |
Debris tray |
1 |
(includes 7 and 8) |
| KIT3 |
572-3406 |
GASKETS VACUUM MOTOR KIT |
1 |
(includes 25, 27-28 and 31-32) |
| KIT4 |
572-3407 |
HARDWARE RECOVERY TANK KIT |
1 |
(includes 1-2, 5, 20, 22 and 24) |
|
|
Motor Drive Assembly - 372-0002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-4750 |
Square keyway |
2 |
|
| 2 |
572-3452 |
LVR EXT DECK LIFTING 2 PCS SET |
1 |
|
| 3 |
572-3453 |
LVR INT DECK LIFTING 2 PCS SET |
1 |
|
| 4 |
572-3409 |
MOTOR DRIVE 200W 24V PKD (OBSOLETE) |
1 |
|
| 5 |
572-3516 |
MOTOR ELECTRIC 200W 24V |
1 |
|
| 6 |
572-3517 |
CARBON BRUSHES KIT 2 PCS |
1 |
|
| 7 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
8 |
(only available in kit) (screw) |
| 8 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
8 |
(only available in kit) (spacer) |
| 9 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
1 |
(only available in kit) (cable tie) |
| 10 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
6 |
(only available in kit) (washer) |
| 11 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
2 |
(only available in kit) (washer) |
| 12 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
4 |
(only available in kit) (washer) |
| 13 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
8 |
(only available in kit) (washer) |
| 14 |
572-3457 |
WHEEL 200X50 GRY-BLK 2 PCS SET |
2 |
|
| 15 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
4 |
(only available in kit) (screw) |
| 16 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
2 |
(only available in kit) (screw) |
| KIT1 |
572-3410 |
HARDWARE DRIVE MOTOR KIT |
1 |
(includes 1, 7-13 and 15-16) |
|
|

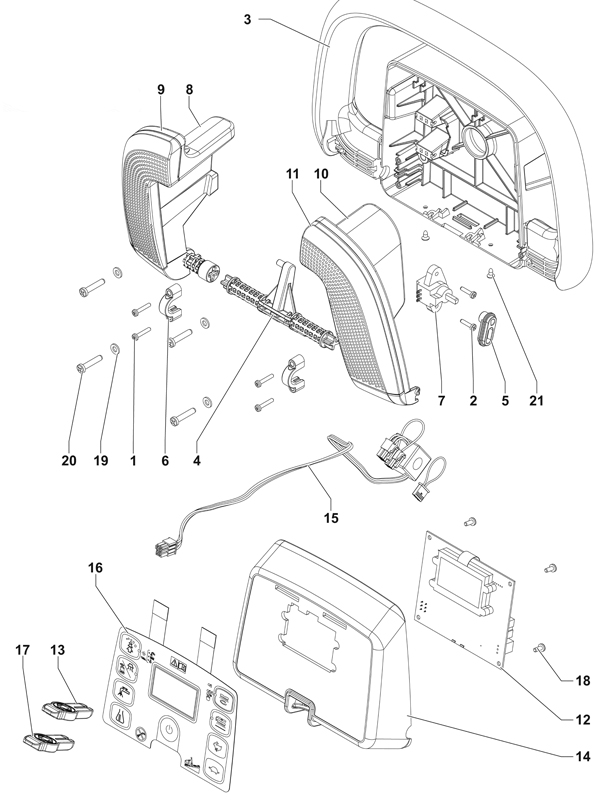

Paddle and Dashboard Assembly - 372-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
4 |
(only available in kit) (screw) |
| 2 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
2 |
(only available in kit) (screw) |
| 3 |
572-3458 |
HANDLE BAR PKD |
1 |
|
| 4 |
572-3459 |
SHAFT LEVERS CONNECTION PKD |
1 |
|
| 5 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
1 |
(only available in kit) (rod potentiometer) |
| 6 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
2 |
(only available in kit) (support) |
| 7 |
572-3460 |
POTENTIOMETER PADDLE PKD |
1 |
|
| 8 |
372-1604 |
Driving assembled lever |
1 |
|
| 9 |
372-1604 |
Driving assembled lever |
1 |
(includes 10) |
| 10 |
372-1604 |
Driving assembled lever |
1 |
(only available in 9) |
| 11 |
N/A |
Not available |
1 |
(Lever) |
| 12 |
572-3462 |
DISPLAY BOARD PKD |
1 |
|
| 13a |
572-3463 |
KEY OPERATOR COMPLETE PKD |
1 |
(fits models 908735202, 9087353020, 9087354020) |
| 13b |
472-5061 |
SMART KEY-USER |
1 |
(model 908745020) |
| 14 |
572-3464 |
COVER HANDLE BAR PKD |
1 |
|
| 15 |
572-3465 |
HARNESS CONTROL PANEL PKD |
1 |
|
| 16a |
572-3466 |
DASHBOARD CONTROL PANEL PKD |
1 |
(disc deck) |
| 16b |
572-3467 |
DASHBOARD CONTROL PANEL PKD |
1 |
(rev deck) |
| 17a |
572-3468 |
KEY SERVICE COMPLETE PKD |
1 |
(fits models 908735202, 9087353020, 9087354020) |
| 17b |
472-5062 |
SMART KEY-SUPERVISOR |
1 |
(model 908745020) |
| 18 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
4 |
(only available in kit) (screw) |
| 19 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
4 |
(only available in kit) (washer) |
| 20 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
4 |
(only available in kit) (screw) |
| 21 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
2 |
(only available in kit) (screw) |
| KIT1 |
572-3411 |
PADDLE AND DASHBOARD FIXING KI |
1 |
(includes 1-2, 5-6 and 18-21) |
|
|

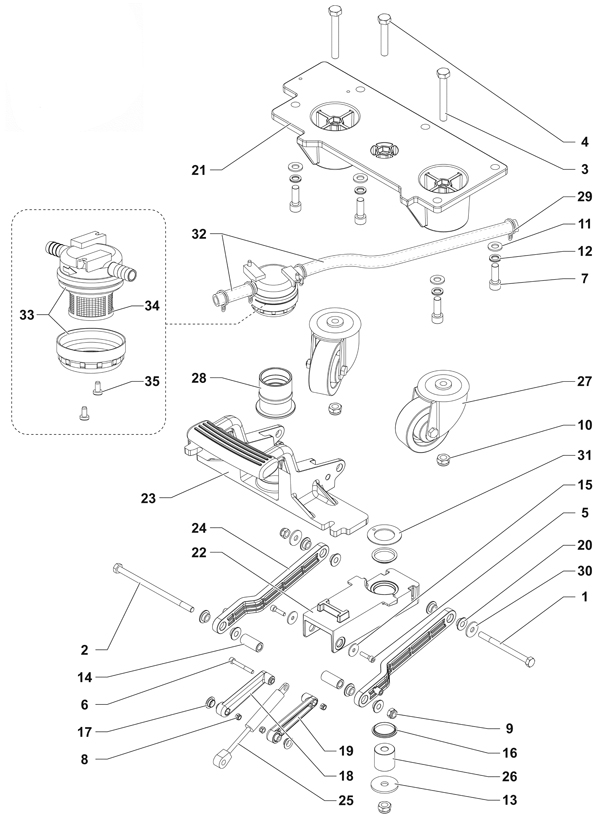

Rear Wheel Assembly - 372-0004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
| 2 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
| 3 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (screw) |
| 4 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
| 5 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (screw) |
| 6 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (screw) |
| 7 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (screw) |
| 8 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
3 |
(only available in kit) (nut) |
| 9 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (nut) |
| 10 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
3 |
(only available in kit) (nut) |
| 11 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (washer) |
| 12 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (washer) |
| 13 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (washer) |
| 14 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (spacer) |
| 15 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (washer) |
| 16 |
572-3513 |
BEARING FLANGE IGLIDUR 2 PCS |
2 |
|
| 17 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (bearing) |
| 18 |
572-3469 |
LEVER GAS SPRING LEFT PKD |
1 |
|
| 19 |
572-3472 |
SQUEEGEE SUPPORT UP PKD |
1 |
|
| 20 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
8 |
(only available in kit) (bushing) |
| 21 |
572-3471 |
REAR WHEELS-SQUEEGEE SUP PKD |
1 |
|
| 22 |
572-3472 |
SQUEEGEE SUPPORT UP PKD |
1 |
|
| 23 |
572-3473 |
SQUEEGEE SUPPORT DOWN PKD |
1 |
|
| 24 |
572-3474 |
LEVER SQUEEGEE LIFT 2 PCS SET |
1 |
|
| 25 |
572-3475 |
SPRING GAS 30 KG PKD |
1 |
|
| 26 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
1 |
(only available in kit) (spacer) |
| 27 |
372-1227 |
Rear wheel (pkg of 2) |
1 |
|
| 28 |
572-3476 |
FITTING PKD |
1 |
|
| 29 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
4 |
(only available in kit) (clamp) |
| 30 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (washer) |
| 31 |
572-3514 |
WASHER THRUST GTM 3254-015 PKD |
1 |
|
| 32 |
572-3428 |
HOSES SOLUTION SYSTEM KIT |
1 |
|
| 33 |
572-3477 |
Water filter |
1 |
|
| 34 |
572-3478 |
NET WATER FLTR REINFORCED PKD |
1 |
|
| 35 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
2 |
(only available in kit) (screw) |
| KIT1 |
572-3412 |
SUPPORT SQUEEGEE FIXING KIT |
1 |
(includes 1-15, 17, 20, 26, 29-30 and 35) |
|
|

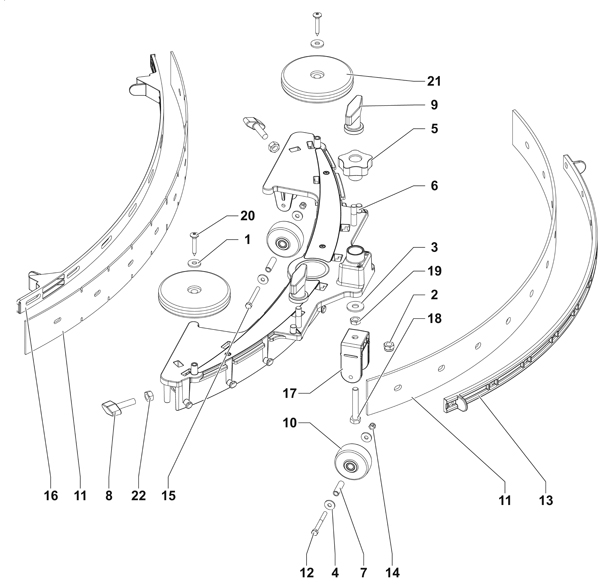

Squeegee Assembly - 372-0005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3414 |
HARDWARE SQUEEGEE KIT |
2 |
(only available in kit) (washer) |
| 2 |
572-3414 |
HARDWARE SQUEEGEE KIT |
1 |
(only available in kit) (nut) |
| 3 |
572-3414 |
HARDWARE SQUEEGEE KIT |
1 |
(only available in kit) (washer) |
| 4 |
572-3414 |
HARDWARE SQUEEGEE KIT |
6 |
(only available in kit) (washer) |
| 5 |
572-3479 |
KNOB LOBES M8 FEMALE PKD |
1 |
|
| 6 |
572-3413 |
SQUEEGEE 29 PRE-ASSEMBLED PKD |
1 |
|
| 7 |
572-3414 |
HARDWARE SQUEEGEE KIT |
3 |
(only available in kit) (spacer) |
| 8 |
272-8529 |
Knob M8 x 30mm stainless steel |
2 |
|
| 9 |
272-6579 |
Squeegee fixing kit |
1 |
|
| 11a |
272-6947 |
Squeegee blade kit 29 inch gum rubber |
1 |
|
| 11b |
272-6948 |
Squeegee blade kit 29 inch urethane |
1 |
|
| 11c |
272-6949 |
Squeege blade kit 29 inch linatex? |
1 |
|
| 12 |
572-3414 |
HARDWARE SQUEEGEE KIT |
1 |
(only available in kit) (screw) |
| 13 |
572-3480 |
REAR STRAP ELASTIC PKD |
1 |
|
| 14 |
572-3414 |
HARDWARE SQUEEGEE KIT |
3 |
(only available in kit) (nut) |
| 15 |
572-3414 |
HARDWARE SQUEEGEE KIT |
2 |
(only available in kit) (screw) |
| 16 |
572-3481 |
FRONT RETAINER BLADE PKD |
1 |
|
| 17 |
572-3482 |
Squeegee wheel support |
1 |
|
| 18 |
572-3414 |
HARDWARE SQUEEGEE KIT |
1 |
(only available in kit) (screw) |
| 19 |
572-3414 |
HARDWARE SQUEEGEE KIT |
1 |
(only available in kit) (nut) |
| 20 |
572-3414 |
HARDWARE SQUEEGEE KIT |
2 |
(only available in kit) (screw) |
| 21 |
572-3483 |
GUIDE WHEEL 2 PCS SET |
1 |
|
| 22 |
572-3414 |
HARDWARE SQUEEGEE KIT |
2 |
(only available in kit) (nut) |
| KIT1 |
572-3414 |
HARDWARE SQUEEGEE KIT |
1 |
(includes 1-4, 7, 12, 14-15 and 18-20) |
|
|

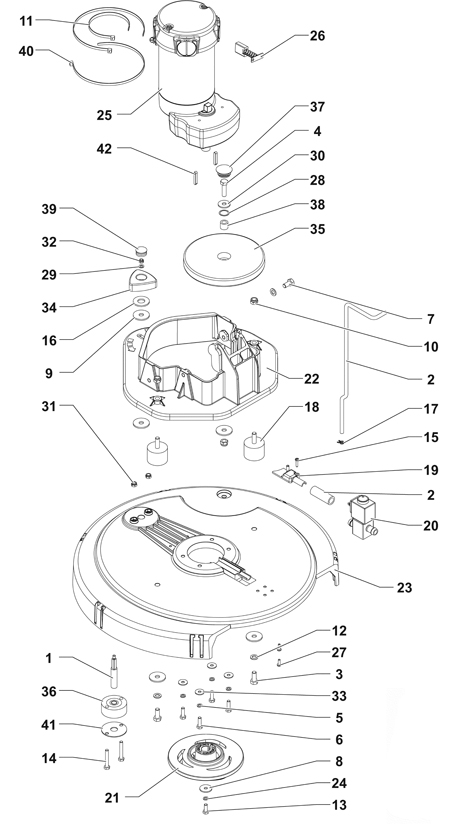

Disc Assembly - 372-0006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(only available in kit) (pin) |
| 2 |
572-3429 |
HOSES BRUSH DECK KIT |
1 |
|
| 3 |
N/A |
Not available |
2 |
(only available in kit) (screw) |
| 4 |
N/A |
Not available |
1 |
(only available in kit) (screw) |
| 5 |
N/A |
Not available |
5 |
(only available in kit) (washer) |
| 6 |
N/A |
Not available |
4 |
(only available in kit) (screw) |
| 7 |
N/A |
Not available |
3 |
(only available in kit) (nut) |
| 8 |
N/A |
Not available |
1 |
(only available in kit) (washer) |
| 9 |
N/A |
Not available |
5 |
(only available in kit) (wahser) |
| 10 |
N/A |
Not available |
1 |
(only available in kit) (screw) |
| 11 |
N/A |
Not available |
1 |
(only available in kit) (cable tie) |
| 12 |
N/A |
Not available |
3 |
(only available in kit) (washer) |
| 13 |
N/A |
Not available |
1 |
(only available in kit) (screw) |
| 14 |
N/A |
Not available |
2 |
(only available in kit) (screw) |
| 15 |
N/A |
Not available |
2 |
(only available in kit) (screw) |
| 16 |
N/A |
Not available |
1 |
(only available in kit) (washer) |
| 17 |
N/A |
Not available |
1 |
(only available in kit) (clamp) |
| 18 |
272-1919 |
Vibration damping M8 (set of 2) |
1 |
|
| 19 |
572-3484 |
COVER SOLUTION HOSE SUPPORT PK |
1 |
|
| 20 |
272-5487 |
24V solenoid valve |
1 |
|
| 21 |
572-3485 |
HUB BRUSH PKD |
1 |
|
| 22 |
572-3486 |
PLATE DECK BRUSH HOLDER PKD |
1 |
|
| 23 |
572-3487 |
DECK BRUSH PKD |
1 |
|
| 24 |
N/A |
Not available |
1 |
(only available in kit) (washer) |
| 25 |
572-3488 |
REDUCTION GEARMTR 450W 24V PKD |
1 |
|
| 26 |
272-6322 |
Carbon brush (4 pcs) |
1 |
|
| 27 |
N/A |
Not available |
2 |
(only available in kit) (screw) |
| 28 |
N/A |
Not available |
1 |
(only available in kit) (washer) |
| 29 |
N/A |
Not available |
1 |
(only available in kit) (washer) |
| 30 |
N/A |
Not available |
1 |
(only available in kit) (washer) |
| 31 |
N/A |
Not available |
2 |
(only available in kit) (nut) |
| 32 |
N/A |
Not available |
1 |
(only available in kit) (nut) |
| 33 |
N/A |
Not available |
4 |
(only available in kit) (washer) |
| 34 |
N/A |
Not available |
1 |
(only available in kit) (knob) |
| 35 |
N/A |
Not available |
1 |
(only available in kit) (roller bumper) |
| 36 |
N/A |
Not available |
1 |
(only available in kit) (buffer) |
| 37 |
N/A |
Not available |
1 |
(only available in kit) (cap) |
| 38 |
N/A |
Not available |
1 |
(only available in kit) (spacer) |
| 39 |
N/A |
Not available |
1 |
(only available in kit) (knob cap) |
| 40 |
N/A |
Not available |
2 |
(only available in kit) (cable tie) |
| 41 |
N/A |
Not available |
1 |
(only available in kit) (plate) |
| 42 |
572-3489 |
KEY 5X5X30 UNI 6604A 2 PCS SET |
1 |
|
| KIT1 |
172-4817 |
Bumper wheel kit |
1 |
(includes 4, 28, 30, 35 and 37-38) |
| KIT2 |
572-3416 |
DECK BRUSH ADJUST. KIT |
1 |
(includes 1, 9, 14, 16, 29, 31-32, 34, 36, 39 and 41) |
| KIT3 |
572-3417 |
HARDWARE BRUSH DECK KIT |
1 |
(includes 3, 5-8, 10-13, 15, 17, 24, 27, 33 and 40) |
|
|

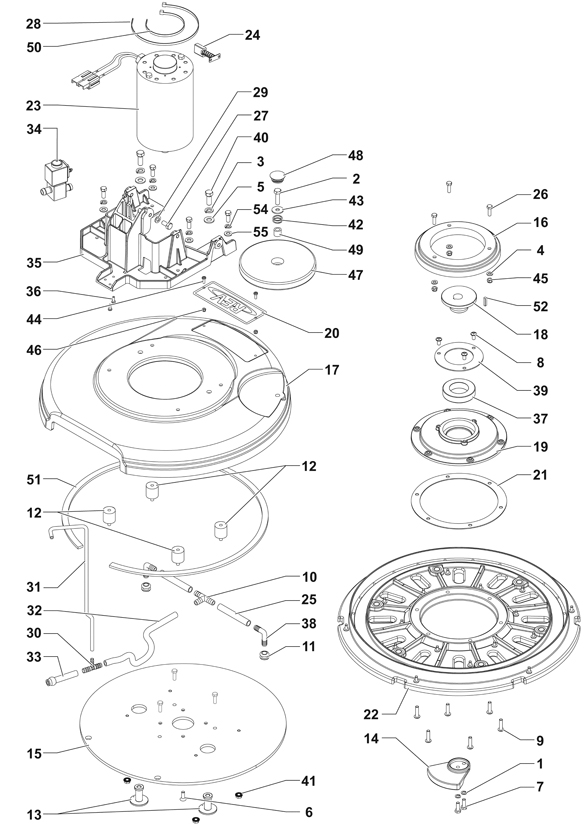

REV Assembly - 372-0007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3418 |
HARDWARE BRUSH DECK KIT |
2 |
(only available in kit) (washer) |
| 2 |
572-3415 |
ROLLER BUMPER D.160 BLACK KIT |
1 |
(only available in kit) (screw) |
| 3 |
572-3418 |
HARDWARE BRUSH DECK KIT |
2 |
(only available in kit) (washer) |
| 4 |
272-9935 |
Splash guard kit |
3 |
(only available in kit) (washer) |
| 5 |
572-3418 |
HARDWARE BRUSH DECK KIT |
2 |
(only available in kit) (washer) |
| 6 |
572-3418 |
HARDWARE BRUSH DECK KIT |
4 |
(only available in kit) (screw) |
| 7 |
572-3418 |
HARDWARE BRUSH DECK KIT |
6 |
(only available in kit) (screw) |
| 8 |
272-9936 |
Driver assembly |
3 |
(only available in kit) (screw) |
| 9 |
572-3418 |
HARDWARE BRUSH DECK KIT |
6 |
(only available in kit) (screw) |
| 10 |
572-3419 |
HOSES BRUSH DECK KIT |
1 |
(only available in kit) (hose tee) |
| 11 |
572-3419 |
HOSES BRUSH DECK KIT |
2 |
(only available in kit) (grommet) |
| 12a |
170-9016 |
Rubber mounting isolator kit |
1 |
|
| 12b |
991-7152 |
Isolator kit (pkg of 8) |
1 |
(NON-EOM) |
| 13 |
272-3763 |
Stablizer stud kit |
1 |
|
| 14 |
272-9946 |
Counter weight |
1 |
|
| 15 |
572-3511 |
PLATE MOTOR PKD |
1 |
|
| 16 |
272-9935 |
Splash guard kit |
1 |
(only available in kit) (splash shield) |
| 17 |
272-3759 |
Brush housing |
1 |
|
| 18 |
272-9937 |
Eccentric kit |
1 |
(only available in kit) (eccentric) |
| 19 |
272-9936 |
Driver assembly |
1 |
(only available in kit) (driver) |
| 21 |
272-9936 |
Driver assembly |
1 |
(only available in kit) (gasket) |
| 22 |
272-7405 |
Pad driver assembly |
1 |
|
| 23 |
272-9948 |
24V brush motor |
1 |
|
| 24 |
172-8951 |
Carbon brush and spring kit |
1 |
|
| 25 |
572-3419 |
HOSES BRUSH DECK KIT |
2 |
(only available in kit) (hose) |
| 26 |
272-9935 |
Splash guard kit |
3 |
(only available in kit) (screw) |
| 27 |
572-3418 |
HARDWARE BRUSH DECK KIT |
1 |
(only available in kit) (screw) |
| 28 |
572-3418 |
HARDWARE BRUSH DECK KIT |
1 |
(only available in kit) (cable tie) |
| 29 |
572-3418 |
HARDWARE BRUSH DECK KIT |
1 |
(only available in kit) (washer) |
| 30 |
572-3419 |
HOSES BRUSH DECK KIT |
1 |
(only available in kit) (holder) |
| 31 |
572-3419 |
HOSES BRUSH DECK KIT |
1 |
(only available in kit) (hose) |
| 32 |
572-3419 |
HOSES BRUSH DECK KIT |
1 |
(only available in kit) (hose) |
| 33 |
572-3419 |
HOSES BRUSH DECK KIT |
1 |
(only available in kit) (hose) |
| 34 |
272-5487 |
24V solenoid valve |
1 |
|
| 35 |
572-3490 |
PLATE DECK BRUSH HOLDER PKD |
1 |
|
| 36 |
572-3418 |
HARDWARE BRUSH DECK KIT |
2 |
(only available in kit) (screw) |
| 37 |
272-9936 |
Driver assembly |
1 |
(only available in kit) (ball bearing) |
| 38 |
572-3419 |
HOSES BRUSH DECK KIT |
2 |
(only available in kit) (hose barb) |
| 39 |
272-9936 |
Driver assembly |
1 |
(only available in kit) (retainer bearing) |
| 40 |
572-3418 |
HARDWARE BRUSH DECK KIT |
2 |
(only available in kit) (screw) |
| 41 |
572-3418 |
HARDWARE BRUSH DECK KIT |
4 |
(only available in kit) (nut) |
| 42 |
572-3415 |
ROLLER BUMPER D.160 BLACK KIT |
2 |
(only available in kit) (washer) |
| 43 |
572-3415 |
ROLLER BUMPER D.160 BLACK KIT |
1 |
(only available in kit) (washer) |
| 44 |
572-3418 |
HARDWARE BRUSH DECK KIT |
2 |
(only available in kit) (screw) |
| 45 |
272-9935 |
Splash guard kit |
3 |
(only available in kit) (nut) |
| 46 |
572-3418 |
HARDWARE BRUSH DECK KIT |
2 |
(only available in kit) (nut) |
| 47 |
572-3415 |
ROLLER BUMPER D.160 BLACK KIT |
1 |
(only available in kit) (roller bumper) |
| 48 |
572-3415 |
ROLLER BUMPER D.160 BLACK KIT |
1 |
(only available in kit) (cap) |
| 49 |
572-3415 |
ROLLER BUMPER D.160 BLACK KIT |
1 |
(only available in kit) (spacer) |
| 50 |
572-3418 |
HARDWARE BRUSH DECK KIT |
1 |
(only available in kit) (cable tie) |
| 51 |
572-3512 |
GASKET DRIVER PKD |
1 |
|
| 52 |
272-9937 |
Eccentric kit |
1 |
(only available in kit) (key) |
| KIT1 |
572-3415 |
ROLLER BUMPER D.160 BLACK KIT |
1 |
(includes 2, 42-43 and 47-49) |
| KIT2 |
572-3418 |
HARDWARE BRUSH DECK KIT |
1 |
(includes 1, 3, 5-7, 9, 27-29, 36, 40-41, 44, 46 and 50) |
| KIT3 |
272-9935 |
Splash guard kit |
1 |
(includes 4, 16, 26 and 45) |
| KIT4 |
272-9937 |
Eccentric kit |
1 |
(includes 18 and 52) |
| KIT5 |
272-9936 |
Driver assembly |
1 |
(includes 8, 19, 21, 37 and 39) |
| KIT6 |
572-3419 |
HOSES BRUSH DECK KIT |
1 |
(includes 10-11, 25, 30-33 and 38) |
|
|
Electrical Assembly - 372-0008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
572-3491 |
FUSE BLADE 3A PKD |
1 |
|
| 3 |
N/A |
Not available |
4 |
(only available in kit) (washer) |
| 4 |
572-3492 |
CARD ELECTRONIC FUNCTIONS PKD |
1 |
|
| 5 |
572-3493 |
COVER BOX ELECTRIC COMP. |
1 |
|
| 6 |
N/A |
Not available |
11 |
(only available in kit) (screw) |
| 7 |
N/A |
Not available |
3 |
(only available in kit) (screw) |
| 8 |
N/A |
Not available |
1 |
(only available in kit) (gasket) |
| 9 |
N/A |
Not available |
2 |
(only available in kit) (gasket) |
| 10 |
572-3494 |
HARNESS MACHINE SC500 20B PKD |
1 |
|
| 11 |
572-3498 |
HANDLE FOR BATTERY CONNECTOR |
1 |
|
| 12 |
N/A |
Not available |
1 |
(only available in kit) (clamp) |
| 13 |
572-3500 |
HARNESS BATTERY US PKD |
1 |
|
| 14 |
572-3497 |
CONNECTOR RED 120A 2 PCS SET |
1 |
|
| N/S |
572-9215 |
Fuse bolt down 30a sip |
1 |
|
| N/S |
372-3069 |
50amp bolt down fuse |
1 |
|
| N/S |
372-3070 |
Fuse holder |
2 |
|
| KIT1 |
572-3430 |
GASKETS COVER KIT |
1 |
(includes 8 and 9) |
| KIT2 |
572-3431 |
HARDWARE ELECT. COMPONENTS KIT |
1 |
(includes 3, 6-7 and 12) |
|
|

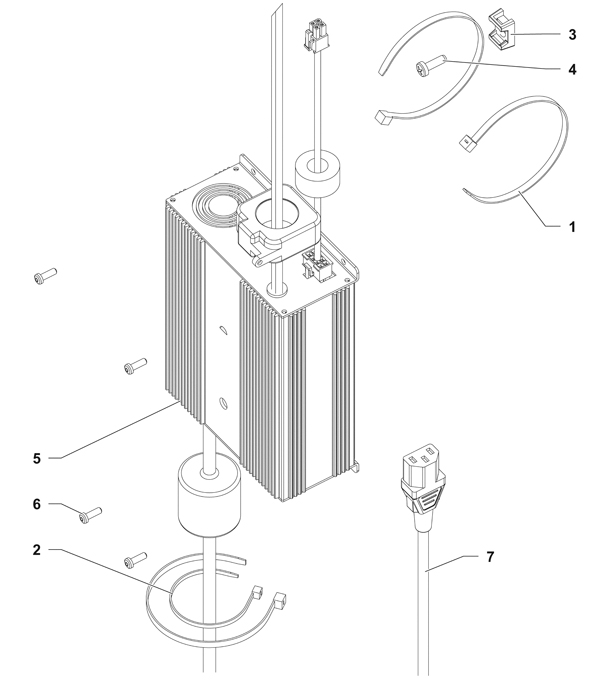

Battery Charger Assembly - 372-0009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
3 |
(Cable tie) |
| 2 |
N/A |
Not available |
1 |
(Cable tie) |
| 3 |
N/A |
Not available |
1 |
(Holder) |
| 4 |
N/A |
Not available |
1 |
(Screw) |
| 5 |
572-3501 |
CHARGER BAT OB 24V 13A 100-230 |
1 |
|
| 6 |
N/A |
Not available |
4 |
(Screw) |
| 7 |
572-3503 |
CABLE EXT US PLUG 2000MM PKD |
1 |
|
|
|

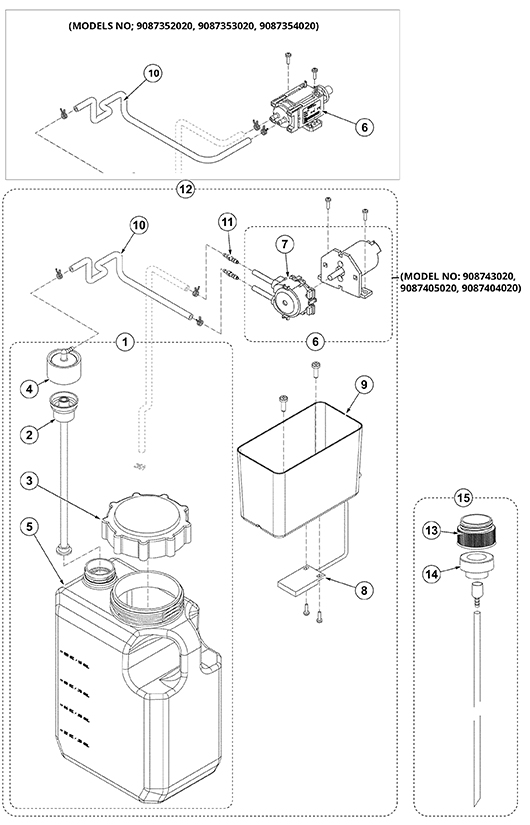

Ecoflex Assembly - 372-0010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-3864 |
ECOFLEX BOTTLE ASSY |
1 |
(includes 2-5) |
| 2 |
272-6752 |
Dry brake insert |
1 |
|
| 3 |
572-9213 |
Chemical tank cap (plastic) |
1 |
|
| 4 |
272-2182 |
Dry break cap |
1 |
|
| 5 |
572-3548 |
CHEMICAL TANK PKD |
1 |
|
| 6a |
172-4771 |
Chemical mix pump |
1 |
(model no 9087352020, 9087353020, 9087354020) |
| 6b |
372-3082 |
24V detergent pump |
1 |
(model no 908743020, 9087405020, 9087404020) (includes 7) |
| 7 |
372-3083 |
Peristaltic detergent pump head |
1 |
(model no 908743020, 9087405020, 9087404020) |
| 8 |
572-3506 |
SENSOR WATER LEVEL PKD |
1 |
|
| 9 |
N/A |
Not available |
1 |
(support water level sensor) |
| 10 |
572-3504 |
SILICONE HOSE L-300 PKD |
1 |
|
| 11 |
372-3084 |
Straight hose barb (pkg of 2) |
1 |
(model no 908743020, 9087405020, 9087404020) |
| 12 |
572-9214 |
Ecoflex detergent kit |
1 |
(model no 908743020, 9087405020, 9087404020) (includes 1-11) |
| 13 |
272-3755 |
Chemical tank adapter |
1 |
|
| 14 |
272-3756 |
Chemical mix level sensor |
1 |
|
| 15 |
272-3754 |
Detergent adapter kit |
1 |
(includes 13 and 15) |
|
|

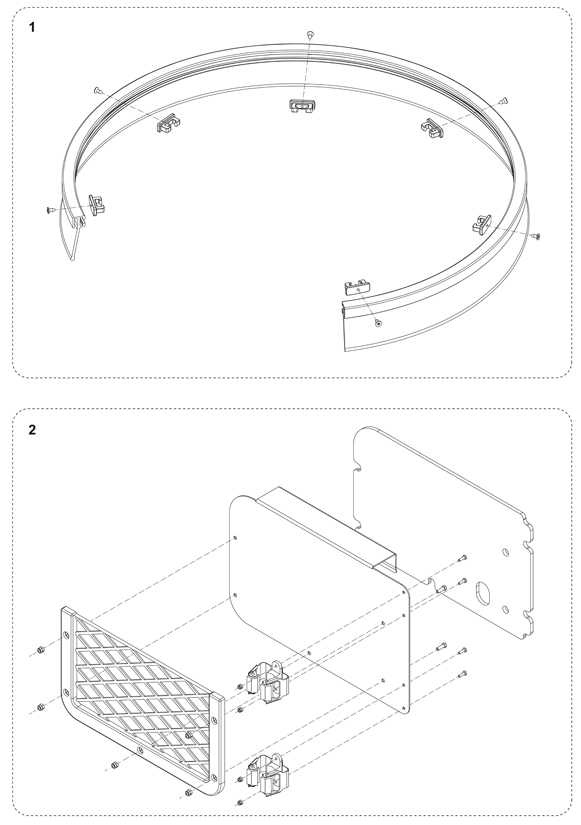

Splash Guard and Trash Bin Assembly - 372-0011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3680 |
SPLASH GUARD CPL F BRUSH PKD |
1 |
|
| 2 |
372-3435 |
Mop and trash kit |
1 |
|
|
|

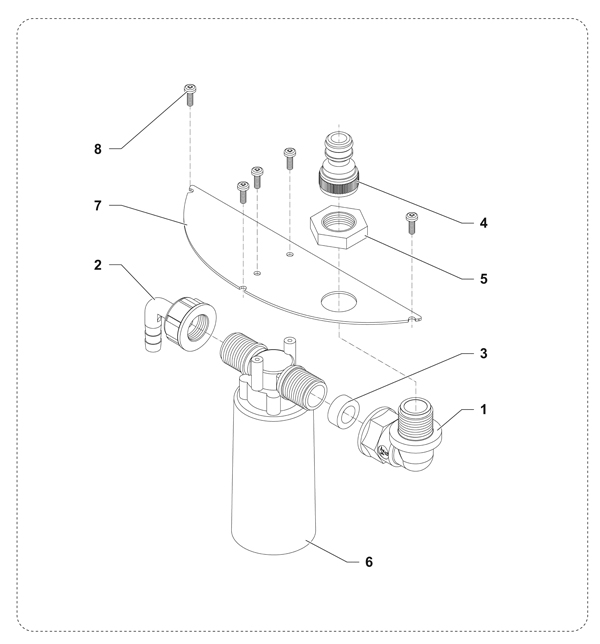

Water Valve Assembly - 372-0012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3507 |
ELBOW CURVED M/F PKD |
1 |
|
| 2 |
172-4773 |
90 degree rubber holder |
1 |
|
| 4 |
572-3357 |
AUTOMATIC WATER FILLING KIT |
1 |
(only available in kit) (fitting) |
| 5 |
572-3357 |
AUTOMATIC WATER FILLING KIT |
1 |
(only available in kit) (nut) |
| 6 |
572-3508 |
VALVE WATER STOP PKD |
1 |
|
| 7 |
572-3509 |
WATER STOP SUPPORT PKD |
1 |
|
| 8 |
572-3357 |
AUTOMATIC WATER FILLING KIT |
5 |
(only available in kit) (screw) |
| KIT1 |
572-3357 |
AUTOMATIC WATER FILLING KIT |
1 |
|
|
|

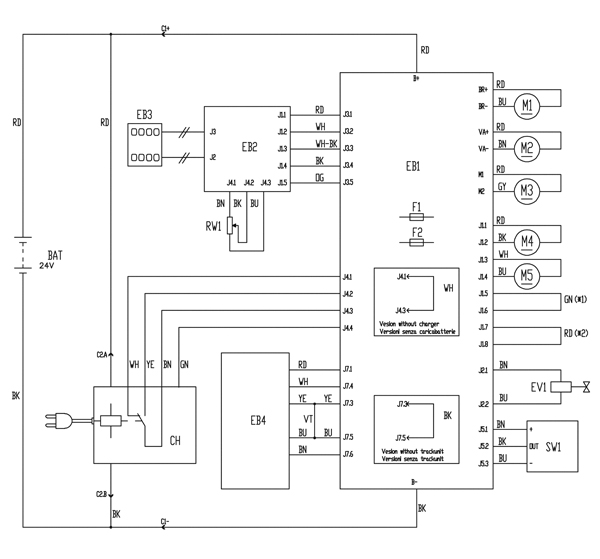

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Brush and Pad Assembly - 372-0014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
996-0664 |
Medium polypropelene scrubbing brush |
1 |
|
| 1b |
996-0705 |
Lite polypropelene scrubbing brush |
1 |
|
| 1c |
996-0841 |
Union mix polypropelene scrubbing brush |
1 |
|
| 1d |
996-0663 |
Medium grit scrubbing brush - 180 grit |
1 |
|
| 1e |
572-3912 |
BRUSH MED GRIT 20 |
1 |
|
| 1f |
572-3913 |
MAGNA GRIT BRUSH |
1 |
|
| 1g |
572-3914 |
DYNA GRIT BRUSH |
1 |
|
| 1h |
996-0665 |
Lite grit scrubbing brush - 500 grit |
1 |
|
| 2a |
996-0666 |
Pad driver assembly |
1 |
|
| 4 |
272-5504 |
Pad retainer |
1 |
|
| 5 |
996-0666 |
Pad driver assembly |
1 |
|
| 6b |
N/A |
Not available |
1 |
(Pad (blue)) |
| 6c |
N/A |
Not available |
1 |
(Pad (brown)) |
| 6d |
N/A |
Not available |
1 |
(Pad (white)) |
| 6e |
372-1355 |
20 inch eco pad (red) (pkg of 2) |
1 |
|
| 6f |
372-1357 |
20 inch eco pad (yellow) (pkg of 2) |
1 |
|
| 6g |
372-1358 |
20 inch eco pad (green) (pkg of 2) |
1 |
|
| 7 |
472-8386 |
BRUSH NYLON REV |
1 |
|
| 8 |
472-8393 |
PAD MICRO FIBER |
1 |
|
|
|
