- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Chassis Assembly - 472-8017 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
3 |
(nylon rivet) |
| 2 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
| 3 |
999-9097 |
Washer M8 flat stainless steel |
2 |
|
| 4 |
N/A |
Not available |
2 |
(clevis pin) |
| 5 |
N/A |
Not available |
2 |
(bow-tie pin) |
| 6 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
1 |
|
| 7 |
999-1326 |
Screw M12-1.75 x 40mm hex head |
2 |
|
| 8 |
N/A |
Not available |
2 |
(bushing) |
| 9 |
N/A |
Not available |
2 |
(flange bearing) |
| 10 |
N/A |
Not available |
1 |
(squeegee lift arm weldment) |
| 11 |
N/A |
Not available |
1 |
(squeegee actuator) |
| 12 |
N/A |
Not available |
1 |
(actuator deck shield) |
| 13 |
572-8146 |
Chassis weldment |
1 |
|
| 14 |
N/A |
Not available |
1 |
(static strap) |
| KIT1 |
572-8011 |
Squeegee actuator kit |
1 |
(includes 4-5, 11) |
| KIT2 |
572-8012 |
Squeegee arm kit |
1 |
(includes 2, 7-10) |
| KIT3 |
572-8013 |
Static strap kit |
1 |
(includes 3, 6, 14) |
| KIT4 |
572-8014 |
Shield actuator kit |
1 |
(includes 1, 12) |
|
|
Steering Control Assembly - 472-8018 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-9215 |
Screw M8-1.25 x 35 hex cap stainless full thread |
4 |
|
| 2 |
999-9216 |
Screw M10 x 25 hex cap stainless full thread |
4 |
|
| 3 |
N/A |
Not available |
4 |
(screw M4 x 10 torx with thread lock) |
| 4 |
999-1317 |
Screw M6-1 x 8mm hex head stainless steel |
4 |
|
| 5 |
999-1319 |
Screw M6-1 x 12mm hex head plain finish |
6 |
|
| 6 |
N/A |
Not available |
3 |
(square key) |
| 7 |
N/A |
Not available |
1 |
(screw M6 x 12 socket set dog) |
| 8 |
272-6704 |
Emergency stop |
1 |
|
| 9 |
N/A |
Not available |
2 |
(shaft collar) |
| 10 |
572-8017 |
Steering column weldment |
1 |
|
| 11 |
N/A |
Not available |
1 |
(lower steering shaft) |
| 12 |
572-8018 |
Front steering shroud |
1 |
|
| 13 |
572-8019 |
Back steering shroud |
1 |
|
| 14 |
572-8020 |
Top steering shroud |
1 |
|
| 15 |
572-9210 |
Wheel-steering |
1 |
|
| 16 |
572-8021 |
Cover plate shroud |
1 |
|
| 17a |
572-8022 |
Offset steering assembly |
1 |
(includes 17b-17l) |
| 17b |
N/A |
Not available |
2 |
(screw m6 x 12 torx with thread lock) |
| 17c |
N/A |
Not available |
2 |
(dowel pin) |
| 17d |
N/A |
Not available |
1 |
(retaining ring) |
| 17e |
N/A |
Not available |
1 |
(belt) |
| 17f |
N/A |
Not available |
1 |
(shaft collar) |
| 17g |
N/A |
Not available |
1 |
(offset steering base) |
| 17h |
N/A |
Not available |
1 |
(offset steering cover) |
| 17i |
N/A |
Not available |
3 |
(sleeve bearing) |
| 17j |
N/A |
Not available |
1 |
(sleeve bearing) |
| 17k |
N/A |
Not available |
1 |
(steering wheel socket) |
| 17l |
N/A |
Not available |
1 |
(u-joint sprocket) |
| 18a |
N/A |
Not available |
1 |
(includes 18b, 18e-k, and N/S) (interface assembly) |
| 18b |
N/A |
Not available |
10 |
(screw M3.5 x 14 torx plastic) |
| 18e |
N/A |
Not available |
1 |
(boost of power paddle) |
| 18f |
N/A |
Not available |
1 |
(solution paddle) |
| 18g |
N/A |
Not available |
2 |
(interface paddle retainer) |
| 18h |
N/A |
Not available |
1 |
(paddle membraine housing assembly) |
| 18i |
N/A |
Not available |
1 |
(reverse paddle) |
| 18j |
N/A |
Not available |
1 |
(paddle horn) |
| 18k |
N/A |
Not available |
1 |
(Oled display assembly) |
| 19 |
572-8023 |
Interface base |
1 |
|
| 20 |
N/A |
Not available |
1 |
(interface mounting weldment) |
| 21 |
N/A |
Not available |
1 |
(double ujoint) |
| 22 |
999-1413 |
Screw M6-1 x 8mm socket cup point set |
2 |
|
| 23 |
572-8024 |
Flange bearing |
2 |
|
| 25 |
N/A |
Not available |
1 |
(10 tooth sprocket) |
| 27 |
572-8026 |
Emergency stop decal |
1 |
|
| 28 |
N/A |
Not available |
1 |
(USB holes cap) |
| KIT1 |
572-8027 |
Interface kit |
1 |
(includes 3, 18a-18b, 18e-18k) |
| KIT2 |
572-8028 |
Interface mount kit |
1 |
(includes 7, 20) |
| KIT3 |
572-8029 |
Universal joint kit |
1 |
(includes 6, 21) |
| KIT4 |
572-8030 |
Lower steering shaft kit |
1 |
(includes 6, 11) |
| KIT5 |
572-8031 |
Shaft collar kit |
1 |
(includes 9, 22) |
| KIT6 |
572-8032 |
Sprocket kit |
1 |
(includes 7, 25) |
|
|
Decal Assembly - 472-8019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-8033 |
SC4000 advance decal |
2 |
|
| 2 |
572-8034 |
Advance decal |
2 |
|
| 3 |
172-5000 |
Caution decal |
1 |
|
| 4 |
N/A |
Not available |
1 |
(battery decal) |
| 5 |
372-1631 |
Prop 65 decal |
1 |
|
|
|
Electrical Assembly-1 - 472-8020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 17 |
472-4932 |
150 amp fuse |
1 |
|
| 18 |
472-4933 |
HOLDER-FUSE |
1 |
|
| 20 |
472-5047 |
IBUTTON-PROBE |
1 |
|
| 21 |
472-5061 |
SMART KEY-USER |
1 |
|
| 25 |
572-8035 |
100V back up alarm |
1 |
|
| 26 |
572-8036 |
Level sensor |
1 |
|
| 28 |
472-5062 |
SMART KEY-SUPERVISOR |
1 |
|
| 30a |
N/A |
Not available |
1 |
(includes 30b-33dd) (electrical panel assembly) |
| 30b |
999-1261 |
Washer M6 flat stainless steel |
7 |
|
| 30c |
272-9523 |
Washer 4 x 9 |
4 |
|
| 30d |
472-3355 |
WASHER M5 UNI6592 10 PCS SET |
2 |
|
| 30e |
472-2741 |
ISOLATOR M8 |
2 |
|
| 30f |
572-9045 |
Screw M6 x 12 with thread lock |
2 |
|
| 30g |
999-9096 |
Screw M5-.8 x 12mm socket head stainless steel |
5 |
|
| 30h |
999-0436 |
Bolt M6-1 x 10mm hex head full thread zinc (350B) |
2 |
|
| 30i |
372-3162 |
Washer 5mm |
5 |
|
| 30j |
181-0774 |
Loop clamp |
1 |
|
| 30k |
472-4961 |
MODULE-HIGH POWER |
1 |
|
| 30l |
999-1117 |
Washer M6 split lock stainless steel |
2 |
|
| 30m |
N/A |
Not available |
1 |
(bus bar plate) |
| 30n |
N/A |
Not available |
1 |
(36v contractor) |
| 30o |
N/A |
Not available |
1 |
(p32 bottom bracket) |
| 30p |
N/A |
Not available |
1 |
(p32 top bracket) |
| 30q |
N/A |
Not available |
1 |
(fuse holder bracket weldment) |
| 30r |
N/A |
Not available |
1 |
(P32 assembly) |
| 30s |
N/A |
Not available |
1 |
(electrical panel assembly) |
| 30t |
N/A |
Not available |
1 |
(electrical panel gasket) |
| 30v |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
| 30w |
172-4790 |
Dowel M8 x 30mm |
2 |
|
| 30x |
172-1779 |
36V relay SPST |
1 |
|
| 30z |
372-3071 |
Washer M8 (set of 10) |
2 |
|
| 30aa |
999-9131 |
Nut M6 x 1 nylon lock stainless steel |
3 |
|
| 30bb |
999-0955 |
Nut M4-.7 hex nylon lock |
4 |
|
| 30cc |
272-0770 |
Nut M5 self-locking (OBSOLETE) |
6 |
|
| 30dd |
272-8282 |
Gasket 500 mm (OBSOLETE) |
1 |
|
| 31 |
572-8037 |
Main harness |
1 |
|
| 32 |
N/A |
Not available |
1 |
(machine power cable) |
| 33 |
N/A |
Not available |
1 |
(battery power harness) |
| 34 |
N/A |
Not available |
1 |
(cable b+ drive module) |
| 35 |
N/A |
Not available |
1 |
(cable b- power module) |
| 37 |
N/A |
Not available |
1 |
(cable b- drive module) |
| 38 |
N/A |
Not available |
1 |
(cable b+ power module) |
| 39 |
N/A |
Not available |
1 |
(column harness) |
| 41 |
N/A |
Not available |
1 |
(uni direction pedal) |
| 43 |
991-1628 |
5amp circuit breaker |
2 |
|
| 47 |
172-2523 |
70amp circuit breaker |
1 |
|
| 48 |
172-0232 |
Clear boot cap |
1 |
|
| 50 |
272-3623 |
Ferrite bead |
1 |
|
| 54 |
272-9417 |
Seat switch |
1 |
|
| KIT1 |
572-8038 |
36V contractor kit |
1 |
(includes 30n, 30aa) |
| KIT2 |
572-8039 |
Controller kit |
1 |
(includes 30r) |
|
|
Electrical Assembly-2 - 472-8021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 30 |
N/A |
Not available |
1 |
(electrical panel assembly) (see electrical assembly-1 for parts breakdown) |
| 32 |
N/A |
Not available |
1 |
(power machine cable) |
| 34 |
N/A |
Not available |
1 |
(B+ drive module cable) |
| 35 |
N/A |
Not available |
1 |
(b- power module cable) |
| 36 |
N/A |
Not available |
1 |
(cable red) |
| 37 |
N/A |
Not available |
1 |
(b-drive module cable) |
| 38 |
N/A |
Not available |
1 |
(b+ power module cable) |
| 43 |
991-1628 |
5amp circuit breaker |
2 |
|
| 47 |
172-2523 |
70amp circuit breaker |
1 |
|
| 48 |
172-0232 |
Clear boot cap |
1 |
|
| 52 |
472-1256 |
TIE CABLE 4.8X200 BLACK 10 PCS |
3 |
|
| 53 |
572-8040 |
Cable tie (10pcs) |
7 |
|
|
|
Electrical Assembly-3 - 472-8022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8621 |
Mounting pad |
1 |
|
| 4 |
372-3071 |
Washer M8 (set of 10) |
1 |
|
| 5 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 8 |
572-9045 |
Screw M6 x 12 with thread lock |
4 |
|
| 9 |
999-0784 |
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
| 11 |
572-8041 |
Washer 28.6 x 22.2 x 1.5 nylon (black) |
1 |
|
| 13 |
572-9047 |
Screw m6 x 16 thread lock |
2 |
|
| 14 |
999-1675 |
Screw M6-1 x 30mm socket head stainless steel |
2 |
|
| 15 |
999-1403 |
Screw M8 x 16mm torx head |
2 |
|
| 17 |
472-4932 |
150 amp fuse |
1 |
|
| 18 |
472-4933 |
HOLDER-FUSE |
1 |
|
| 20 |
472-5047 |
IBUTTON-PROBE |
1 |
|
| 23 |
472-5079 |
CABLE TIE-MOUNT |
2 |
|
| 25 |
572-8035 |
100V back up alarm |
1 |
|
| 26 |
572-8036 |
Level sensor |
1 |
|
| 27 |
N/A |
Not available |
1 |
(flange bushing) |
| 33 |
N/A |
Not available |
1 |
(battery power harness) |
| 44 |
172-9530 |
Cable clamp |
6 |
|
| 53 |
572-8040 |
Cable tie (10pcs) |
7 |
|
| 54 |
272-9417 |
Seat switch |
1 |
|
|
|
Electrical Assembly-4 - 472-8023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
999-6714 |
Washer M6 x 12mm flat stainless steel |
3 |
|
| 3 |
999-1319 |
Screw M6-1 x 12mm hex head plain finish |
2 |
|
| 6 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
3 |
|
| 7 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
3 |
|
| 9 |
999-0784 |
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
| 12 |
999-0781 |
Screw M6-1 x 45mm hex head |
2 |
|
| 29 |
N/A |
Not available |
2 |
(dipped electrical clamp) |
| 41 |
N/A |
Not available |
1 |
(uni direction hall pedal) |
| 42 |
272-0462 |
Cable clamp |
2 |
|
| KIT1 |
572-8038 |
36V contractor kit |
1 |
(includes 2) |
|
|
Electrical Assembly-5 - 472-8024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
999-1319 |
Screw M6-1 x 12mm hex head plain finish |
2 |
|
| 8 |
572-9045 |
Screw M6 x 12 with thread lock |
4 |
|
| 16 |
372-3148 |
Connector clip |
1 |
|
| 24 |
N/A |
Not available |
1 |
(recovery tank harness) |
| 40 |
572-9124 |
Connector clip |
1 |
|
| 44 |
172-9530 |
Cable clamp |
6 |
|
| 50 |
272-3623 |
Ferrite bead |
1 |
|
| 53 |
572-8040 |
Cable tie (10pcs) |
7 |
|
|
|
Electrical Assembly-6 - 472-8025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 23 |
472-5079 |
CABLE TIE-MOUNT |
2 |
|
| 52 |
472-1256 |
TIE CABLE 4.8X200 BLACK 10 PCS |
3 |
|
|
|
Electrical Assembly-7 - 472-8026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-1261 |
Washer M6 flat stainless steel |
1 |
|
| 2 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
1 |
|
| 3 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
1 |
|
| 4 |
999-1644 |
Screw M6-1 x 16mm hex lock |
1 |
|
| 5 |
572-8147 |
Traction harness |
1 |
|
| 6 |
N/A |
Not available |
1 |
(traction harness bracket) |
| 7 |
572-8043 |
Drive brushed controller |
1 |
|
| 10 |
272-3623 |
Ferrite bead |
1 |
|
| 11 |
572-8040 |
Cable tie (10pcs) |
1 |
|
| 12 |
372-3071 |
Washer M8 (set of 10) |
1 |
|
| 13 |
999-9131 |
Nut M6 x 1 nylon lock stainless steel |
1 |
|
| 14 |
999-0955 |
Nut M4-.7 hex nylon lock |
4 |
|
| 15 |
272-5489 |
Washer M6 x 18mm flathead stainless steel |
1 |
|
|
|
Ecoflex Assembly - 472-8027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-8044 |
Pump cover bracket |
1 |
|
| 3 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
1 |
|
| 4 |
272-7679 |
12V detergent pump |
1 |
|
| 5 |
272-7687 |
27 inch chemical resistant hose |
1 |
|
| 6 |
472-5079 |
CABLE TIE-MOUNT |
1 |
|
| 7 |
572-8045 |
Chemical ratio decal |
1 |
|
| 8 |
572-8046 |
Ecoflex decal |
2 |
|
| 9 |
572-8047 |
Ecoflex decal (nilfisk) |
2 |
|
| 10 |
572-8048 |
Detergent bottle bracket |
1 |
|
| 12 |
372-1628 |
Reducer barb |
1 |
|
| 13 |
272-2182 |
Dry break cap |
1 |
|
| 14 |
272-2184 |
Dry break insert |
1 |
|
| 16 |
272-9832 |
Chemical bottle assembly |
1 |
|
| 18 |
272-2180 |
Solution fill cap |
1 |
|
|
|
On-Board Charger Assembly - 472-8028 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0953 |
Nut M5-.8 hex nylon insert lock stainless steel |
2 |
|
| 2 |
999-1322 |
Screw M5-.8 x 20mm hex head stainless steel |
2 |
|
| 3 |
999-1319 |
Screw M6-1 x 12mm hex head plain finish |
5 |
|
| 4 |
572-8050 |
Charger harness |
1 |
|
| 5 |
572-8051 |
Onboard charger mount bracket |
1 |
|
| 6 |
572-8052 |
36V on-board charger |
1 |
|
| 8 |
999-9100 |
Washer M5 flat stainless steel |
2 |
|
| 9 |
999-1308 |
Nut M6-1 hex stainless steel |
4 |
|
| 10 |
272-0659 |
On-board charger cord wrap |
1 |
|
|
|
Recovery System Assembly - 472-8029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(cable tie) |
| 2 |
999-1261 |
Washer M6 flat stainless steel |
2 |
|
| 3 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
| 4 |
N/A |
Not available |
13 |
(screw M6 x 12 torx head with thread lock) |
| 5 |
N/A |
Not available |
4 |
(screw M6 x 20 torx head with thread lock) |
| 6 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 7a |
N/A |
Not available |
1 |
(standard models) (36V vacuum motor) (KIT2 should be ordered if you have the Standard Vacuum Motor on your Recovery System) |
| 7b |
N/A |
Not available |
1 |
(HP models) (36V vacuum motor) (KIT7 should be ordered if you have the High Power Vacuum Motor for your recovery system) |
| 8 |
N/A |
Not available |
1 |
(inlet seal) |
| 9 |
572-9154 |
Screw M6 x 20 |
2 |
|
| 10 |
N/A |
Not available |
1 |
(debris tray) |
| 11 |
N/A |
Not available |
1 |
(debris tray cover) |
| 12 |
N/A |
Not available |
1 |
(vac inlet gasket) |
| 13 |
572-8053 |
Exhaust foam tube |
1 |
|
| 14 |
N/A |
Not available |
1 |
(float cage mount) |
| 15 |
N/A |
Not available |
1 |
(vacuum inlet resonator) |
| 16 |
N/A |
Not available |
1 |
(vacuum motor retainer) |
| 17 |
572-8054 |
Squeegee hose assembly |
1 |
|
| 18 |
N/A |
Not available |
1 |
(float cage gasket) |
| 19 |
N/A |
Not available |
1 |
(vac housing gasket) |
| 20 |
572-8148 |
Drain hose assembly |
1 |
|
| 21 |
N/A |
Not available |
1 |
(filter cover) |
| 22 |
N/A |
Not available |
1 |
(filter cover gasket) |
| 23 |
N/A |
Not available |
1 |
(cover latch plate) |
| 24 |
N/A |
Not available |
1 |
(upper vacuum exhaust panel) |
| 25 |
N/A |
Not available |
1 |
(lower vacuum exhaust panel) |
| 26 |
N/A |
Not available |
1 |
(recovery cover seal) |
| 27 |
N/A |
Not available |
1 |
(recovery tank) |
| 28 |
N/A |
Not available |
1 |
(recovery tank cover) |
| 29 |
N/A |
Not available |
1 |
(vac cover sound foam) |
| 30 |
N/A |
Not available |
1 |
(upper exhaust vac sound foam) |
| 31 |
N/A |
Not available |
1 |
(mid exhaust vac sound foam) |
| 32 |
N/A |
Not available |
1 |
(lower exhaust vac sound foam) |
| 33 |
172-3347 |
Filter screen |
1 |
|
| 35 |
N/A |
Not available |
3 |
(vibration mount) |
| 36 |
N/A |
Not available |
2 |
(float half cage) |
| 37 |
N/A |
Not available |
1 |
(floating ball) |
| 38 |
272-1159 |
Plastic clamp |
3 |
|
| 39 |
272-1317 |
Plastic clamp |
1 |
|
| 40 |
N/A |
Not available |
2 |
(hinge clamp) |
| 41 |
N/A |
Not available |
11 |
(washer M6 x 24 x 2 plain stainless steel) |
| 43 |
N/A |
Not available |
1 |
(latch with fold away) |
| 44 |
999-9131 |
Nut M6 x 1 nylon lock stainless steel |
2 |
|
| KIT1 |
572-8055 |
Float cage kit |
1 |
(includes 4, 14, 18, 36-37) |
| KIT2 |
572-8056 |
Standard vacuum motor kit |
1 |
(includes 7a, 8, 12, 19, 35) |
| KIT3 |
N/A |
Not available |
1 |
(includes 5, 26, 28, 40) (recovery tank lid kit) |
| KIT4 |
N/A |
Not available |
1 |
(includes 21-22, 43) (filter cover kit) |
| KIT5 |
N/A |
Not available |
1 |
(includes 4, 25, 30-32, 41) (lower vacuum exhaust panel kit) |
| KIT6 |
N/A |
Not available |
1 |
(includes 5-6, 24, 29, 41) (upper vacuum exhaust panel kit) |
| KIT7 |
572-8057 |
High power vacuum motor kit |
1 |
(includes 7b) |
|
|

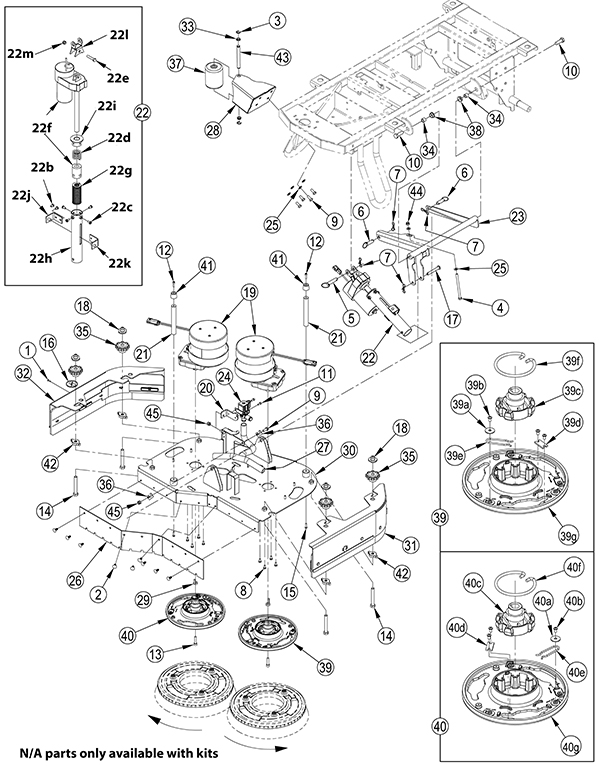

28D Disc Scrub Deck Assembly-1 - 472-8035 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
2 |
(rivet) |
| 2 |
N/A |
Not available |
9 |
(rivet) |
| 3 |
N/A |
Not available |
2 |
(retaining ring) |
| 4 |
999-0782 |
Screw M8-1.25 x 120mm hex head |
1 |
|
| 5 |
N/A |
Not available |
1 |
(ring pin) |
| 6 |
N/A |
Not available |
2 |
(ring pin) |
| 7 |
N/A |
Not available |
4 |
(bow tie cotter pin) |
| 8 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
8 |
|
| 9 |
999-0900 |
Screw M8-1.25 x 18mm hex head stainless steel |
5 |
|
| 10 |
999-0504 |
Bolt M12-1.75 x 35mm hex hd stainless steel full thread |
2 |
|
| 11 |
999-9096 |
Screw M5-.8 x 12mm socket head stainless steel |
2 |
|
| 12 |
999-1664 |
Screw M5-.8 x 20mm socket head stainless steel |
2 |
|
| 13 |
999-9217 |
Screw M8-1.25 x 35 socket head stainless steel |
2 |
|
| 14 |
999-1987 |
Screw M12-1.75 x 90mm hex cap |
4 |
|
| 15 |
999-1322 |
Screw M5-.8 x 20mm hex head stainless steel |
2 |
|
| 16 |
N/A |
Not available |
1 |
(no step decal) |
| 17 |
N/A |
Not available |
1 |
(clevis pin) |
| 18 |
N/A |
Not available |
4 |
(side skirt holder cap) |
| 19 |
N/A |
Not available |
2 |
(36V motor) |
| 20 |
N/A |
Not available |
1 |
(valve plate) |
| 21 |
N/A |
Not available |
2 |
(up stop rod) |
| 22a |
N/A |
Not available |
1 |
(disk deck actuator assembly) |
| 22b |
999-0360 |
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
| 22c |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
| 22d |
N/A |
Not available |
1 |
(compression spring) |
| 22e |
999-0787 |
Bolt M8-1.25 x 40mm hex head full thread stainless steel |
1 |
|
| 22f |
572-8079 |
Deck actuator |
1 |
|
| 22g |
N/A |
Not available |
1 |
(compression spring) |
| 22h |
N/A |
Not available |
1 |
(spring housing weldment) |
| 22i |
N/A |
Not available |
1 |
(spring housing guide) |
| 22j |
N/A |
Not available |
1 |
(nut retainer) |
| 22k |
N/A |
Not available |
1 |
(nut retainer) |
| 22l |
272-3550 |
Actuator yoke |
1 |
|
| 22m |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
| 23 |
N/A |
Not available |
1 |
(deck linkage weldment) |
| 24 |
N/A |
Not available |
1 |
(36V solenoid valve) |
| 25 |
N/A |
Not available |
6 |
(washer M8 x 16 stainless steel) |
| 26 |
N/A |
Not available |
1 |
(28d front blade) |
| 27 |
N/A |
Not available |
1 |
(solution hose feed disk 28) |
| 28 |
N/A |
Not available |
1 |
(28d roller weldment) |
| 29 |
N/A |
Not available |
2 |
(key assembly weldment) |
| 30 |
N/A |
Not available |
1 |
(28d scrub deck weldment) |
| 31 |
N/A |
Not available |
1 |
(28d left side skirt assembly) |
| 32 |
N/A |
Not available |
1 |
(28d right side skirt assembly) |
| 33 |
N/A |
Not available |
2 |
(flange bearing) |
| 34 |
N/A |
Not available |
2 |
(bushing) |
| 35 |
N/A |
Not available |
4 |
(knob) |
| 36 |
N/A |
Not available |
2 |
(tie down mount clip) |
| 37 |
N/A |
Not available |
1 |
(roller wheel) |
| 38 |
N/A |
Not available |
2 |
(flange bearing) |
| 39 |
N/A |
Not available |
1 |
(brush plate assembly) (see diagram for parts included) |
| 40 |
N/A |
Not available |
1 |
(brush plate assembly) (see diagram for parts included) |
| 41 |
N/A |
Not available |
2 |
(up stop mount) |
| 42 |
N/A |
Not available |
4 |
(knob) |
| 43 |
N/A |
Not available |
1 |
(pin) |
| 44 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
| KIT3 |
572-8062 |
Up stop kit |
1 |
(includes 8, 12, 21, 41) |
| KIT4 |
572-8061 |
Solenoid valve kit |
1 |
(includes 11, 20, 24) |
| KIT5 |
572-8094 |
Disc scrub motor kit |
1 |
(includes 8, 13, 19, 29, N/S) |
| KIT6 |
572-8095 |
Disk deck actuator kit |
1 |
(includes 5, 7, 17, 22a) |
| KIT7 |
572-8066 |
Deck linkage kit |
1 |
(includes 6-7, 10, 17, 23, 34, 38) |
| KIT8 |
572-8096 |
Right brush plate kit |
1 |
(includes 13, 29, 40) |
| KIT9 |
572-8097 |
Left brush plate kit |
1 |
(includes 13, 29, 39) |
| KIT10 |
572-8144 |
28 inch disk deck weldment kit |
1 |
(includes 2, 8-9, 13-15, 29-30, 36, 45) |
| KIT11 |
572-8151 |
28D right skirt kit |
1 |
(includes 1, 14, 16, 18, 32, 35, 42) |
| KIT12 |
572-8145 |
28D/28R left skirt kit |
1 |
(includes 14, 18, 31, 35, 42) |
| KIT13 |
N/A |
Not available |
1 |
(28d click on kit) |
| KIT14 |
572-8152 |
Front blade kit linatex |
1 |
(includes 2, 26) |
| KIT15 |
372-4020 |
Roller kit |
1 |
(includes 3, 9, 25, 28, 33, 37, 43) (28d/28r roller kit) |
| KIT16 |
472-5228 |
SPRING HOUSING KIT-ACTUATOR |
1 |
(includes 22b-22d, 22g-22k) |
|
|
Rev/28D Side Skirt Assembly - 472-8038 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
N/A |
Not available |
1 |
(28d right fixed side blade weldment) |
| 1b |
572-8156 |
28D left hand fixed side blade weldment |
1 |
|
| 2a |
N/A |
Not available |
1 |
(34d right strap) |
| 2b |
N/A |
Not available |
1 |
(34d left strap) |
| 3 |
572-8106 |
34D deck blade linatex |
1 |
|
| 4 |
N/A |
Not available |
2 |
(thumb nut) |
| 5 |
272-3519 |
Skirt retainer (screw) |
2 |
|
| KIT1 |
572-8151 |
28D right skirt kit |
1 |
(includes 1a, 2a, 3-5) |
| KIT2 |
572-8145 |
28D/28R left skirt kit |
1 |
(includes 1b, 2b, 3-5) |
| KIT10 |
N/A |
Not available |
1 |
(28r right skirt kit) |
| KIT11 |
572-8104 |
Disk right hand strap kit |
1 |
(includes 2a, 4) |
| KIT12 |
572-8105 |
Disk left hand strap kit |
1 |
(includes 2b, 4) |
|
|
Solution System Assembly - 472-8040 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
| 2 |
999-0909 |
Bolt M8-1.25 x 70mm hex head stainless steel |
2 |
|
| 3 |
999-1268 |
Screw M6-1 x 12mm socket head stainless steel |
6 |
|
| 4 |
999-1320 |
Screw M6-1 x 20mm socket head stainless steel |
4 |
|
| 5 |
999-0784 |
Screw M8-1.25 x 16mm hex head stainless steel |
6 |
|
| 6 |
N/A |
Not available |
4 |
(washer-17 OD x 8 ID) |
| 7 |
999-0773 |
Screw M6-1 x 16mm flat socket head stainless steel |
2 |
|
| 8 |
N/A |
Not available |
1 |
(hose 20 x 26 x 52) |
| 9 |
N/A |
Not available |
1 |
(grommet) |
| 10 |
472-5121 |
SOLUTION CAP ASSEMBLY |
1 |
|
| 11 |
N/A |
Not available |
1 |
(electrical panel cover) |
| 12 |
N/A |
Not available |
1 |
(storage box) |
| 13 |
172-8869 |
Spindle cap |
1 |
|
| 14 |
N/A |
Not available |
2 |
(straight hose barb) |
| 15 |
N/A |
Not available |
2 |
(cross bar gasket) |
| 16 |
N/A |
Not available |
1 |
(electrical cover gasket) |
| 17 |
N/A |
Not available |
4 |
(chassis spacer) |
| 18 |
N/A |
Not available |
1 |
(ball valve barb) |
| 19 |
N/A |
Not available |
1 |
(solution tank) |
| 20 |
N/A |
Not available |
1 |
(seat latch bracket) |
| 21a |
N/A |
Not available |
1 |
(includes 21b-21g) (seat assembly) |
| 21c |
999-1415 |
Screw M8-1.25 x 12mm hex head stainless steel |
4 |
|
| 21d |
472-4339 |
SLIDE KIT NO STUDS |
1 |
|
| 21e |
N/A |
Not available |
1 |
(seat mount weldment) |
| 21f |
N/A |
Not available |
1 |
(button style release latch) |
| 22 |
N/A |
Not available |
1 |
(filler mount bracket) |
| 23 |
N/A |
Not available |
1 |
(manifold hose assembly) |
| 24 |
N/A |
Not available |
4 |
(spring insert hose clamp) |
| 25 |
572-8109 |
Gas strut bracket |
1 |
|
| 26 |
N/A |
Not available |
1 |
(gas spring) |
| 27 |
N/A |
Not available |
1 |
(seat mount bracket) |
| 28 |
N/A |
Not available |
1 |
(filter water) |
| 29 |
N/A |
Not available |
2 |
(o-ring) |
| 30 |
N/A |
Not available |
4 |
(washer M8 x 38 x 3) |
| 31 |
N/A |
Not available |
8 |
(washer M6 x 18) |
| 32 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
| KIT1 |
572-8110 |
Ball valve kit |
1 |
(includes 8, 18, 24) |
| KIT2 |
572-8111 |
Water filter kit |
1 |
(includes 14, 28-29) |
| KIT3 |
572-8112 |
Filter mount kit |
1 |
(includes 1-2, 31) |
| KIT4 |
572-8113 |
Cover gasket kit |
1 |
(includes 4,11, 16) |
| KIT5 |
572-8114 |
Seat mount kit |
1 |
(includes 3, 7, 15, 27, 31) |
| KIT7 |
N/A |
Not available |
1 |
(includes 5, 9, 17, 19, 30) (solution tank kit) |
| KIT8 |
N/A |
Not available |
1 |
(includes 23-24) (manifold hose kit) |
| KIT9 |
572-8115 |
Gas strut kit |
1 |
(includes 26, 32) |
|
|
Squeegee Assembly-1 - 472-8041 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-1316 |
Screw M4-.7 x 10mm flat head stainless steel |
4 |
|
| 3 |
999-1557 |
Bolt M10-1.5 x 45mm hex head stainless steel |
2 |
|
| 4 |
999-1424 |
Nut M8-1.25 hex stainless steel |
2 |
|
| 5 |
N/A |
Not available |
1 |
(rod end) |
| 6 |
572-8116 |
Squeegee tilt pin |
1 |
|
| 7 |
N/A |
Not available |
1 |
(squeegee wear plate) |
| 8 |
572-8117 |
Squeegee tilt spacer |
1 |
|
| 9 |
572-8118 |
Flange bearing |
2 |
|
| 12 |
572-8121 |
Washer bevel 8.2 x 20 x 0.7 x 1.35 mm |
1 |
|
| 13 |
999-9219 |
Screw M20-1.5 x 30mm hex cap |
1 |
|
| 14 |
472-5163 |
SQUEEGEE TILT ADJUSTER KIT |
1 |
|
| 15 |
472-5204 |
Extension spring |
2 |
|
| 16a |
572-8157 |
Large squeegee assembly |
1 |
(L squeegee assembly) (cylindrical model 32c) (disc model 34d) (includes Linard and Linatex rubber blades) |
| 16b |
572-8158 |
28 inch squeegee assembly |
1 |
(M squeegee assembly) (cylindrical model 28c) (disc model 28d) (28REV model) (includes Lindard and Linatex rubber blades) |
| 17 |
572-8122 |
Squeegee knob |
2 |
|
| 18 |
N/A |
Not available |
1 |
(squeegee arm weldment) |
| 19 |
572-8123 |
Squeegee mount |
1 |
|
| 20 |
572-8124 |
Caster assembly |
2 |
|
| 21 |
999-9220 |
Nut M20 x 1.5 hex |
1 |
|
| 22 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
| 23 |
372-3071 |
Washer M8 (set of 10) |
2 |
|
| 24 |
999-6713 |
Washer M10 x 30mm flat stainless steel |
2 |
|
| KIT1 |
572-8125 |
Rod end kit |
1 |
(includes 5, 13, 21) |
| KIT2 |
472-5164 |
SQUEEGEE WEAR PLATE KIT |
1 |
(includes 1, 7) |
|
|
Squeegee Assembly-2 - 472-8042 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0899 |
Screw 5/16-18 x 2 3/4 hex head stainless steel |
2 |
|
| 2 |
999-1424 |
Nut M8-1.25 hex stainless steel |
2 |
|
| 3 |
999-1426 |
Screw M8-1.25 x 45mm hex head stainless steel |
2 |
|
| 6a |
N/A |
Not available |
1 |
(32C, 34D) (squeegee casting) |
| 6b |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (squeegee casting) |
| 7 |
372-2618 |
Squeegee seal |
1 |
|
| 8a |
N/A |
Not available |
1 |
(32C, 34D) (front linard squeegee blade) |
| 8b |
N/A |
Not available |
1 |
(32C, 34D) (front polyurethane blade) (optional) |
| 8c |
N/A |
Not available |
1 |
(32C, 34D) (front gum rubber blade) (optional) |
| 8d |
N/A |
Not available |
1 |
(32C, 34D) (front primo blade) (optional) |
| 8e |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (front linard squeegee blade) |
| 8f |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (front polyurethane blade) (optional) |
| 8g |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (front rubber gum blade) (optional) |
| 8h |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (front primo blade) (optional) |
| 9a |
572-8126 |
34 inch front strap weldment |
1 |
(32C, 34D) |
| 9b |
572-8129 |
28 inch front strap weldment |
1 |
(28C, 28D, 28REV) |
| 10 |
172-4099 |
Nut 5/16-18 thumb |
2 |
|
| 11a |
272-3686 |
Band clamp |
1 |
(32C, 34D) |
| 11b |
272-3679 |
Band clamp |
1 |
(28C, 28D, 28REV) |
| 12a |
N/A |
Not available |
1 |
(32C, 34D) (rear linatex squeegee blade) |
| 12b |
N/A |
Not available |
1 |
(32C, 34D) (rear polyurethane blade) (optional) |
| 12c |
N/A |
Not available |
1 |
(32C, 34D) (rear gum rubber blade) (optional) |
| 12d |
N/A |
Not available |
1 |
(32C, 34D) (rear primo blade) (optional) |
| 12e |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (rear linatex squeegee blade) |
| 12f |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (rear polyurethane blade) (optional) |
| 12g |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (rear gum rubber blade) (optional) |
| 12h |
N/A |
Not available |
1 |
(28C, 28D, 28REV) (rear primo blade) (optional) |
| 13 |
472-1269 |
WASHER 8X24X2 UNI6593 SS 10 PC |
2 |
|
| 14 |
272-8529 |
Knob M8 x 30mm stainless steel |
2 |
|
| 15 |
372-3071 |
Washer M8 (set of 10) |
2 |
|
| 16 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| KIT1a |
272-3682 |
Squeegee blade kit 34 inch gum rubber (red) |
1 |
(32C, 34D) (includes 8a, 12a) |
| KIT1b |
272-3675 |
Squeegee blade kit 28 inch Linatex (red) |
1 |
(28C, 28D, 28REV) (includes 8e, 12e) |
| KIT2a |
572-8127 |
Polyurethane squeegee blade kit (L) |
1 |
(32C, 34D) (includes 8b, 12b) (optional) |
| KIT2b |
272-3673 |
Squeegee blade kit 28 inch urethane |
1 |
(28C, 28D, 28REV) (includes 8f, 12f) (optional) |
| KIT3a |
172-4688 |
Squeegee blade kit 34 inch gum rubber |
1 |
(32C, 34D) (includes 8c, 12c) (optional) |
| KIT3b |
272-3672 |
Squeegee blade kit 28 inch gum rubber |
1 |
(28C, 28D, 28REV) (includes 8g, 12g) (optional) |
| KIT4a |
572-8128 |
Primo squeegee blade kit (L) |
1 |
(32C, 34D) (includes 8d, 12d) (optional) |
| KIT4b |
572-8130 |
Primo squeegee blade kit (M) |
1 |
(28C, 28D, 28REV) (includes 8h, 12h) (optional) |
|
|
Rear and Drive Wheel Assembly - 472-8043 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-1794 |
NUT CASTLE THIN M24X2 |
1 |
|
| 2 |
472-1799 |
SPLIT PIN 3.2X40 |
1 |
|
| 3 |
N/A |
Not available |
1 |
(washer M6 x 12.5 x 1.6 stainless steel) |
| 4 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
| 5 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
| 6 |
999-0775 |
Screw M10-1.5 x 40mm hex head stainless steel |
4 |
|
| 7 |
999-9218 |
Screw M10-1.5 x 16 hex cap stainless steel |
1 |
|
| 8 |
N/A |
Not available |
1 |
(spindle weldment) |
| 9 |
N/A |
Not available |
1 |
(steering plate weldment) |
| 10 |
N/A |
Not available |
1 |
(tie down plate) |
| 11 |
N/A |
Not available |
1 |
(bearing block) |
| 12 |
N/A |
Not available |
1 |
(wire harness tray) |
| 13 |
N/A |
Not available |
1 |
(chain tensioner weldment) |
| 14a |
572-8131 |
36V drive wheel |
1 |
(includes 14b-14n) |
| 14b |
572-8132 |
Aluminum hub screw |
4 |
|
| 14c |
572-8133 |
Wheel screw |
6 |
|
| 14d |
572-8134 |
Aluminum hub |
1 |
|
| 14e |
572-8135 |
Wheel 250 x 90 (red) |
1 |
|
| 14f |
472-5133 |
BEARING-DRIVE WHEEL |
1 |
|
| 14g |
572-8136 |
Ball bearing protection shield |
1 |
|
| 14h |
172-8860 |
Sealing ring |
1 |
|
| 14i |
N/A |
Not available |
1 |
(36v motor with brake) |
| 14j |
N/A |
Not available |
1 |
(electromagnetic brake lever) |
| 14k |
N/A |
Not available |
1 |
(carbon brush kit) |
| 14l |
572-8137 |
Motor cover |
1 |
|
| 14m |
N/A |
Not available |
1 |
(connection box cover) |
| 14n |
272-8604 |
Tire puller kit |
1 |
|
| 15 |
172-3315 |
Bearing cup |
1 |
|
| 16 |
172-3316 |
Bearing cone |
1 |
|
| 18 |
172-0435 |
Top bearing |
1 |
|
| 19 |
N/A |
Not available |
1 |
(roller chain) |
| 20 |
999-1308 |
Nut M6-1 hex stainless steel |
2 |
|
| 21 |
999-9221 |
Washer M24 x 44 |
1 |
|
| 22 |
372-3071 |
Washer M8 (set of 10) |
2 |
|
| 23 |
999-1372 |
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
| 24 |
N/A |
Not available |
2 |
(washer flat .406 x 1.5 x .1875) |
| 25 |
N/A |
Not available |
2 |
(wheel) |
| 26 |
N/A |
Not available |
2 |
(bearing ball) |
| KIT1 |
N/A |
Not available |
1 |
(includes 23-26) (rear wheel kit) |
| KIT2 |
N/A |
Not available |
1 |
(includes 23-24, 26) (rear wheel bearing kit) |
| KIT3 |
572-8138 |
Chain kit |
1 |
(includes 3, 5, 13, 19-20) |
|
|
Ladder Diagram-1 - 472-8044 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A1 |
572-8039 |
Controller kit |
1 |
|
| A7 |
572-8052 |
36V on-board charger |
1 |
|
| A9 |
N/A |
Not available |
1 |
(interface assembly) |
| A17 |
472-5047 |
IBUTTON-PROBE |
1 |
|
| BT3 |
N/A |
Not available |
1 |
(36V battery) |
| CB1 |
991-1628 |
5amp circuit breaker |
1 |
|
| CB3 |
991-1628 |
5amp circuit breaker |
1 |
|
| F1 |
472-4932 |
150 amp fuse |
1 |
|
| K1 |
172-1779 |
36V relay SPST |
1 |
|
| S21 |
272-6704 |
Emergency stop |
1 |
|
| S22 |
272-9417 |
Seat switch |
1 |
|
|
|
Ladder Diagram-2 - 472-8045 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A1 |
572-8039 |
Controller kit |
1 |
|
| A2 |
472-4961 |
MODULE-HIGH POWER |
1 |
|
| A4 |
572-8043 |
Drive brushed controller |
1 |
|
| A8 |
N/A |
Not available |
1 |
(multicon 1) |
| A9 |
N/A |
Not available |
1 |
(interface assembly) |
| CB2 |
172-2523 |
70amp circuit breaker |
1 |
|
| K2 |
572-8038 |
36V contractor kit |
1 |
|
|
|
Ladder Diagram-3 - 472-8046 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A1 |
572-8039 |
Controller kit |
1 |
|
| A8 |
N/A |
Not available |
1 |
(multicon 1) |
| H8 |
572-8035 |
100V back up alarm |
1 |
|
| L7 |
N/A |
Not available |
1 |
(36V solenoid valve) |
| M24 |
272-7679 |
12V detergent pump |
1 |
|
| S1 |
572-8139 |
Proximity sensor |
1 |
|
|
|
Ladder Diagram-4 - 472-8047 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A2 |
472-4961 |
MODULE-HIGH POWER |
1 |
|
| F4 |
N/A |
Not available |
1 |
(30 amp fuse) |
| F5 |
N/A |
Not available |
1 |
(30 amp fuse) |
| F6 |
N/A |
Not available |
1 |
(30 amp fuse) |
| F7 |
N/A |
Not available |
1 |
(5 amp fuse) |
| F8 |
N/A |
Not available |
1 |
(10 amp fuse) |
| F9 |
N/A |
Not available |
1 |
(10 amp fuse) |
| F10 |
N/A |
Not available |
1 |
(10 amp fuse) |
| F11 |
N/A |
Not available |
1 |
(40 amp fuse) |
| F12 |
N/A |
Not available |
1 |
(40 amp fuse) |
| F13 |
N/A |
Not available |
1 |
(40 amp fuse) |
| M25 |
572-8079 |
Deck actuator |
1 |
|
| M26 |
572-8140 |
36V water pump |
1 |
(optional) |
| M27a |
N/A |
Not available |
1 |
(disk deck actuator assembly) |
| M27b |
N/A |
Not available |
1 |
(cylindrical deck actuator assembly) |
| M30a |
N/A |
Not available |
1 |
(vacuum motor-1) |
| M30b |
N/A |
Not available |
1 |
(vacuum motor-2) (optional) |
| M33a |
N/A |
Not available |
1 |
(right brush disc) |
| M33b |
N/A |
Not available |
1 |
(36V motor) (REV) |
| M34 |
N/A |
Not available |
1 |
(rear cylindrical brush motor) |
| M40 |
N/A |
Not available |
1 |
(front cylindrical brush motor) |
| M41a |
N/A |
Not available |
1 |
(left brush disc drive motor) |
| M41b |
N/A |
Not available |
1 |
(36V motor) (REV) |
|
|
Ladder Diagram-5 - 472-8048 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A4 |
572-8043 |
Drive brushed controller |
1 |
|
|
|
Ladder Diagram-6 - 472-8049 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A4 |
572-8043 |
Drive brushed controller |
1 |
|
|
|
Ladder Diagram-7 - 472-8050 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| F2 |
N/A |
Not available |
1 |
(3 amp fuse) |
| N/S |
572-8142 |
Directional light (blue) |
1 |
(optional) |
|
|
Ladder Diagram-8 - 472-8051 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A1 |
572-8039 |
Controller kit |
1 |
|
| A2 |
472-4961 |
MODULE-HIGH POWER |
1 |
|
| A4 |
572-8043 |
Drive brushed controller |
1 |
|
| A7 |
572-8052 |
36V on-board charger |
1 |
|
| A8 |
N/A |
Not available |
1 |
(muliticon 1) |
| A9 |
N/A |
Not available |
1 |
(interface assembly) |
|
|
- Batteries and Chargers - 472-8052 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
572-8052 |
36V on-board charger |
1 |
|
|
572-8143 |
36V onboard charger kit |
1 |
|
|
162-0003 |
6V 225Ah wet battery (SNSR) |
3 |
|
|
162-0045 |
12V 140Ah AGM battery |
3 |
|
|
|
28 inch Disc Model Brushes - 472-8053 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
996-0927 |
Extra heavy grit stripping brush - 46 grit |
2 |
|
|
996-0851 |
Extra heavy grit stripping brush - 46 grit |
2 |
|
|
996-0928 |
Lite grit scrubbing brush - 500 grit |
2 |
|
|
996-0929 |
Polypropelene scrubbing brush |
2 |
|
|
172-8461 |
14 inch union mix brush |
2 |
|
|
996-0931 |
Medium grit scrubbing brush - 180 grit |
2 |
|
|
996-3177 |
Midlite grit brush |
2 |
|
|
|
|
