Solution Tank Assembly - 172-8977 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8245 |
Solution tank hardware kit |
2 |
(clamp) |
| 2 |
270-8245 |
Solution tank hardware kit |
1 |
(screw) |
| 3 |
272-6795 |
Solution tank lid kit |
1 |
(washer) |
| 4 |
172-4695 |
Locking tank cap |
2 |
|
| 5 |
270-8245 |
Solution tank hardware kit |
1 |
(clamp) |
| 6 |
270-8246 |
Battery lever kit |
4 |
(washer) |
| 7 |
270-8246 |
Battery lever kit |
2 |
(screw) |
| 8 |
272-6795 |
Solution tank lid kit |
1 |
(cable) |
| 9 |
270-8245 |
Solution tank hardware kit |
1 |
(screw) |
| 10 |
999-0901 |
Screw M5-.8 x 16mm pan head phillips stainless steel |
1 |
|
| 11 |
572-3689 |
TANK SOLUTION RAL 7016 PKD |
1 |
|
| 12 |
270-8248 |
Electric components cover kit |
1 |
(electronic components cover) |
| 13 |
999-1308 |
Nut M6-1 hex stainless steel |
1 |
|
| 14 |
270-8246 |
Battery lever kit |
2 |
(nut) |
| 15 |
270-8245 |
Solution tank hardware kit |
1 |
(nut) |
| 16 |
270-8246 |
Battery lever kit |
1 |
(battery connector lever) |
| 17a |
270-8248 |
Electric components cover kit |
11 |
(screw) |
| 17b |
272-6795 |
Solution tank lid kit |
11 |
(screw) |
| 17c |
270-8246 |
Battery lever kit |
11 |
(screw) |
| 17d |
270-8245 |
Solution tank hardware kit |
11 |
(screw) |
| 18 |
270-8245 |
Solution tank hardware kit |
2 |
(clamp) |
| 19 |
999-0740 |
Nut M5-.8 hex stainless steel |
1 |
|
| 20 |
270-8245 |
Solution tank hardware kit |
4 |
(nut) |
| 21 |
270-8245 |
Solution tank hardware kit |
8 |
(washer) |
| 22 |
270-8246 |
Battery lever kit |
1 |
(spacer) |
| 23 |
170-9178 |
Curved elbow |
3 |
|
| 24 |
270-8245 |
Solution tank hardware kit |
3 |
(screw) |
| 25 |
270-8245 |
Solution tank hardware kit |
3 |
(flat tie holder) |
| 26 |
270-8245 |
Solution tank hardware kit |
2 |
(washer) |
| 27 |
272-9646 |
Hose filling |
1 |
|
| 28 |
272-6795 |
Solution tank lid kit |
2 |
(screw) |
| 29 |
272-6795 |
Solution tank lid kit |
1 |
(solution tank cap) |
| 30 |
272-6795 |
Solution tank lid kit |
1 |
(support) |
| 31 |
270-8248 |
Electric components cover kit |
1 |
(gasket) |
| 33 |
270-8251 |
Pipe (OBSOLETE) |
1 |
|
| 34 |
270-8252 |
Solution filter |
1 |
|
| 35 |
270-8246 |
Battery lever kit |
1 |
(battery support bracket) |
| 36 |
270-8245 |
Solution tank hardware kit |
2 |
(screw) |
| 37 |
270-8245 |
Solution tank hardware kit |
4 |
(cap) |
| 38 |
270-8245 |
Solution tank hardware kit |
4 |
(screw) |
| 39 |
270-0929 |
Elbow valve with gasket |
1 |
|
| 40 |
270-8245 |
Solution tank hardware kit |
2 |
(clamp) |
| 41 |
272-6795 |
Solution tank lid kit |
1 |
(screw) |
| KIT 1 |
270-8248 |
Electric components cover kit |
1 |
(includes 12, 17 and 31) |
| KIT 2 |
272-6795 |
Solution tank lid kit |
1 |
(includes 3, 8, 10, 17, 19, 27-30 and 41) |
| KIT 3 |
270-8246 |
Battery lever kit |
1 |
(includes 6, 7, 14, 16, 17, 22 and 35) |
| N/S |
270-8245 |
Solution tank hardware kit |
1 |
(includes 1, 2, 5, 9, 13, 15, 17, 18, 20, 21, 24-26, 36-38 and 40) |
|
|
Recovery Tank Assembly - 172-8978 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
172-4729 |
Vacuum motor gasket (OBSOLETE) |
1 |
|
| 3 |
172-4731 |
Acoustic insulation panel |
1 |
|
| 4 |
172-4736 |
Vacuum motor hardware kit |
3 |
(vacuum cover plate) |
| 5 |
270-8253 |
Fixing tank kit |
2 |
(tank cover plate) |
| 6 |
270-8253 |
Fixing tank kit |
1 |
(flanged bushing) |
| 7a |
270-8254 |
Stop bracket kit |
5 |
(washer) |
| 7b |
172-4736 |
Vacuum motor hardware kit |
5 |
(washer) |
| 7c |
270-8253 |
Fixing tank kit |
5 |
(washer) |
| 7d |
270-8256 |
Recovery tank kit |
5 |
(washer) |
| 8 |
270-8254 |
Stop bracket kit |
1 |
(spacer) |
| 9 |
270-8255 |
Float holder cage kit |
2 |
(washer) |
| 10 |
270-8253 |
Fixing tank kit |
2 |
(screw) |
| 11 |
164-0101 |
Hose holder |
1 |
(hose clamp) |
| 12 |
270-8253 |
Fixing tank kit |
2 |
(screw) |
| 13 |
270-8253 |
Fixing tank kit |
2 |
(screw) |
| 14 |
172-4736 |
Vacuum motor hardware kit |
3 |
(screw) |
| 15 |
270-8256 |
Recovery tank kit |
1 |
(screw) |
| 16 |
164-0101 |
Hose holder |
3 |
(screw) |
| 17 |
270-8256 |
Recovery tank kit |
2 |
(screw) |
| 18 |
270-8256 |
Recovery tank kit |
3 |
(screw) |
| 19 |
270-8254 |
Stop bracket kit |
2 |
(nut) |
| 20 |
270-8256 |
Recovery tank kit |
1 |
(nut) |
| 21 |
272-1159 |
Plastic clamp |
1 |
|
| 22 |
270-8256 |
Recovery tank kit |
6 |
(clamp) |
| 24 |
172-4733 |
Vacuum motor cover |
1 |
|
| 25 |
170-9209 |
Microswitch (OBSOLETE) |
1 |
|
| 26 |
270-8256 |
Recovery tank kit |
5 |
(screw) |
| 27 |
172-4734 |
Acoustic insulation pipe |
1 |
|
| 28 |
270-8256 |
Recovery tank kit |
5 |
(flat tie holder) |
| 29 |
270-8255 |
Float holder cage kit |
2 |
(screw) |
| 30 |
272-9865 |
Vacuum motor gasket |
1 |
|
| 31 |
991-1230 |
24V 3 stage vacuum motor tangential with snout |
1 |
|
| 33 |
270-8255 |
Float holder cage kit |
1 |
(cage float gasket) |
| 34 |
270-8256 |
Recovery tank kit |
2 |
(nut) |
| 35 |
272-9278 |
Recovery tank |
1 |
|
| 37 |
270-8254 |
Stop bracket kit |
1 |
(safety bracket support) |
| 40 |
270-8264 |
Suction hose |
1 |
|
| 41 |
272-8548 |
Recovery tank lid gasket |
1 |
|
| 42 |
270-8266 |
Tank stop cable |
1 |
|
| 43 |
270-8254 |
Stop bracket kit |
1 |
(stop tank bracket) |
| 44 |
270-8254 |
Stop bracket kit |
1 |
(cap) |
| 45 |
270-8267 |
Debris tray kit |
1 |
(debrise tray) |
| 46 |
270-8267 |
Debris tray kit |
1 |
(debrise tray cover) |
| 47 |
270-8268 |
Recovery tank harness |
1 |
|
| 48 |
172-0517 |
Float cage half (2 required for full float cage) |
2 |
|
| 50 |
270-8269 |
Carbon brush kit |
1 |
|
| 52 |
272-7206 |
Antifoaming filter |
1 |
|
| 53 |
270-8255 |
Float holder cage kit |
1 |
(float cage) |
| 54 |
272-9296 |
Thickness adhesive |
1 |
|
| KIT 1 |
270-8255 |
Float holder cage kit |
1 |
(includes 9, 29, 33 and 53) |
| KIT 2 |
270-8267 |
Debris tray kit |
1 |
(includes 45 and 46) |
| KIT 3 |
164-0101 |
Hose holder |
1 |
(includes 11 and 16) |
| KIT 4 |
172-4736 |
Vacuum motor hardware kit |
1 |
(includes 4, 7 and 14) |
| KIT 5 |
270-8254 |
Stop bracket kit |
1 |
(includes 7, 8, 12, 13, 19, 37, 43 and 44) |
| KIT 6 |
270-8253 |
Fixing tank kit |
1 |
(includes 5-7 and 10) |
| N/S |
270-8256 |
Recovery tank kit |
1 |
(includes 7, 15, 17, 18, 20, 22, 26, 28 and 34) |
|
|
Steering Column Assembly - 172-8979 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8275 |
Column system kit |
1 |
(clamp) |
| 2 |
270-8275 |
Column system kit |
1 |
(screw) |
| 3 |
270-8275 |
Column system kit |
7 |
(cap) |
| 4 |
270-8275 |
Column system kit |
3 |
(screw) |
| 5 |
270-8275 |
Column system kit |
3 |
(screw) |
| 6 |
270-8275 |
Column system kit |
2 |
(screw) |
| 7 |
270-8275 |
Column system kit |
2 |
(screw) |
| 8 |
270-8275 |
Column system kit |
2 |
(screw) |
| 9 |
270-8275 |
Column system kit |
2 |
(screw) |
| 10 |
270-8275 |
Column system kit |
7 |
(nut) |
| 11 |
270-8275 |
Column system kit |
3 |
(washer) |
| 12 |
270-8275 |
Column system kit |
7 |
(washer) |
| 13 |
270-8275 |
Column system kit |
1 |
(screw) |
| 14 |
270-8275 |
Column system kit |
4 |
(screw cap) |
| 15 |
272-9424 |
Footboard with column |
1 |
|
| 16 |
270-8271 |
Steering protection ring (OBSOLETE) |
1 |
|
| 17 |
270-8272 |
Speed control pedal (OBSOLETE) |
1 |
|
| 18 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
1 |
|
| 19 |
270-8275 |
Column system kit |
1 |
(ring) |
| 20 |
270-8275 |
Column system kit |
4 |
(screw) |
| 22 |
272-9434 |
Footrest spring |
1 |
|
| 23 |
272-9476 |
Decal kit (OBSOLETE) |
1 |
|
| 24 |
270-8279 |
Screw (OBSOLETE) |
1 |
|
| 26 |
N/A |
Not available |
1 |
(Pedal stopper) |
| KIT 1 |
270-8275 |
Column system kit |
1 |
(includes 1-14, 19 and 20) |
|
|

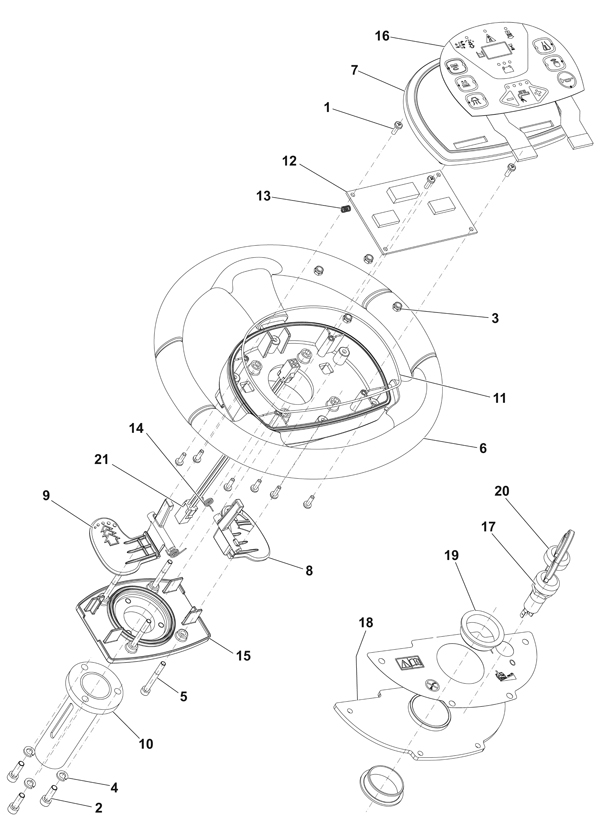

Steering Assembly - 172-8980 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9532 |
Steering assembly kit (OBSOLETE) |
10 |
(screw) |
| 2 |
272-9532 |
Steering assembly kit (OBSOLETE) |
3 |
(screw) |
| 3 |
272-9532 |
Steering assembly kit (OBSOLETE) |
4 |
(nut) |
| 4 |
272-9532 |
Steering assembly kit (OBSOLETE) |
3 |
(washer) |
| 5 |
272-9532 |
Steering assembly kit (OBSOLETE) |
4 |
(screw) |
| 6 |
272-9544 |
Steering wheel |
1 |
|
| 7 |
272-9550 |
Control panel dashboard |
1 |
|
| 8 |
272-9551 |
Right lever (OBSOLETE) |
1 |
|
| 10 |
272-9553 |
Adjusting steering wheel tube (OBSOLETE) |
1 |
|
| 12 |
272-9939 |
Electronic board control panel |
1 |
|
| 13 |
272-9940 |
Moving button spring |
2 |
|
| 14 |
272-9559 |
Torsion spring |
2 |
|
| 15 |
272-9565 |
Lower cover |
1 |
|
| 16 |
272-9573 |
Control panel decal (OBSOLETE) |
1 |
|
| 17 |
172-3785 |
Key switch with two keys |
1 |
(includes 20) |
| 18 |
272-9574 |
Steering wheel fixing plate |
1 |
|
| 19 |
270-8280 |
Flange bushing |
2 |
|
| 20a |
991-1634 |
Key (pkg of 2) |
1 |
|
| 20b |
991-1634 |
Key (pkg of 2) |
1 |
|
| 21 |
272-9596 |
Dashboard cable extension |
1 |
|
| KIT 1 |
272-9532 |
Steering assembly kit (OBSOLETE) |
1 |
(includes 1-5) |
|
|

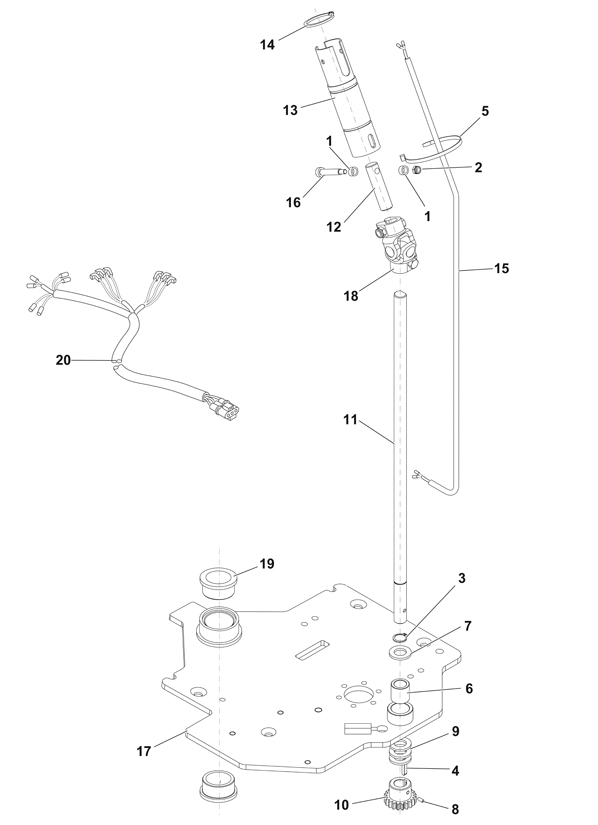

Steering Wheel Support Assembly - 172-8981 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
2 |
(spacer) |
| 2 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(nut) |
| 3 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(ring) |
| 4 |
172-3730 |
Square keyway |
1 |
|
| 5 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(clamp) |
| 6 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(bushing) |
| 7 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(washer) |
| 8 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(screw) |
| 9 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
3 |
(washer) |
| 10 |
170-9111 |
Steeting pinion |
1 |
|
| 11 |
572-3697 |
SHAFT STEERING PHOS. PKD |
1 |
|
| 12 |
272-9528 |
Steering shaft (OBSOLETE) |
1 |
|
| 13 |
572-3684 |
TUBE STEERING KIT |
1 |
|
| 14 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(ring) |
| 15 |
272-9594 |
Steering wheel harness |
1 |
|
| 16 |
270-8286 |
Shoulder screw |
1 |
|
| 17 |
270-8288 |
Steering support plate |
1 |
|
| 19 |
270-8287 |
Flanged bushing |
1 |
|
| 20 |
N/A |
Not available |
1 |
(foot board harness) |
| KIT 1 |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
(includes: 1-3, 5-9 and 14) |
|
|

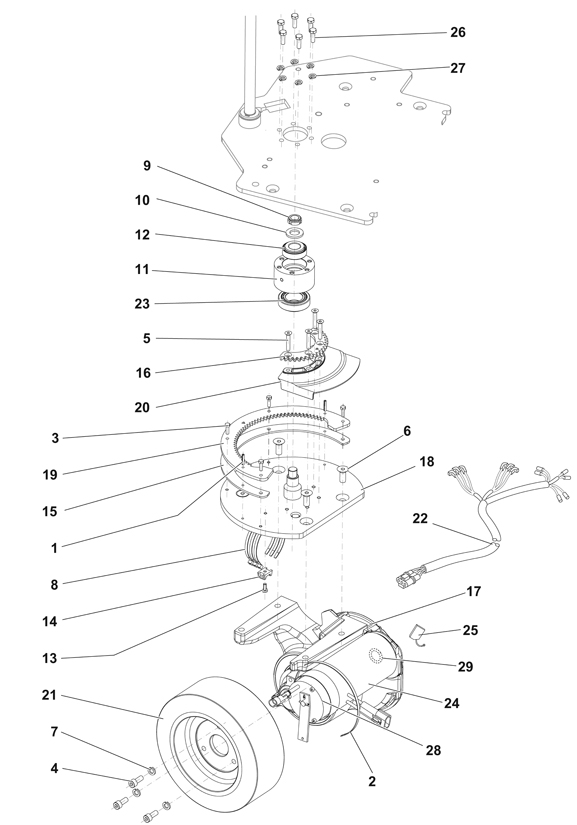

Drive Wheel Assembly - 172-8982 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8290 |
Drive wheel kit |
2 |
(pin) |
| 2 |
270-8290 |
Drive wheel kit |
1 |
(clamp) |
| 3 |
270-8290 |
Drive wheel kit |
4 |
(screw) |
| 4 |
270-8290 |
Drive wheel kit |
3 |
(screw) |
| 5 |
270-8290 |
Drive wheel kit |
4 |
(screw) |
| 6 |
270-8290 |
Drive wheel kit |
4 |
(screw) |
| 7 |
270-8290 |
Drive wheel kit |
3 |
(washer) |
| 8 |
270-8290 |
Drive wheel kit |
3 |
(clamp) |
| 9 |
270-8290 |
Drive wheel kit |
1 |
(nut) |
| 10 |
270-8290 |
Drive wheel kit |
1 |
(washer) |
| 11 |
272-3537 |
Ball bearing support |
1 |
|
| 12 |
272-3535 |
Ball bearing |
1 |
|
| 13 |
270-8290 |
Drive wheel kit |
1 |
(screw) |
| 14 |
270-8290 |
Drive wheel kit |
1 |
(flat tie holder) |
| 15 |
270-8291 |
Crown steering spacer |
1 |
|
| 17 |
270-8293 |
Wheel motor kit |
1 |
|
| 18 |
270-8294 |
Steering bracket |
1 |
|
| 19 |
270-8295 |
Steering crown |
1 |
|
| 20 |
270-8296 |
Drive wheel protection |
1 |
|
| 21 |
270-8297 |
Drive wheel |
1 |
|
| 22 |
270-8298 |
Wheel motor harness |
1 |
|
| 23 |
272-3534 |
Ball bearing |
1 |
|
| 24 |
572-3398 |
MOTOR ELECTRIC 300W 24V PKD |
1 |
|
| 25 |
270-8300 |
Carbon brush kit |
1 |
|
| 26 |
270-8290 |
Drive wheel kit |
6 |
(screw) |
| 27 |
270-8290 |
Drive wheel kit |
6 |
(washer) |
| 28 |
270-8301 |
Electric brake |
1 |
|
| KIT 1 |
270-8290 |
Drive wheel kit |
1 |
(includes: 1-10, 13, 14, 26 and 27) |
|
|

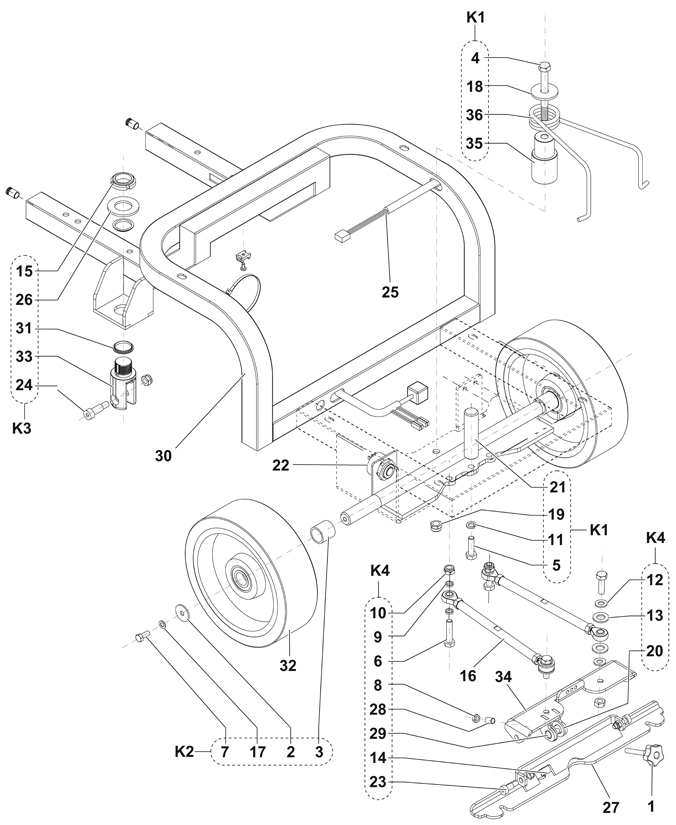

Chassis Assembly - 172-8983 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
270-8304 |
Wheels fixing kit |
2 |
(washer) |
| 3 |
270-8304 |
Wheels fixing kit |
2 |
(spacer) |
| 4 |
270-8305 |
Squeegee centering kit |
1 |
(screw) |
| 5 |
270-8305 |
Squeegee centering kit |
3 |
(screw) |
| 6 |
270-8306 |
Rod eye hardware kit |
2 |
(screw) |
| 7 |
270-8304 |
Wheels fixing kit |
2 |
(screw) |
| 8 |
270-8306 |
Rod eye hardware kit |
1 |
(nut) |
| 9 |
270-8306 |
Rod eye hardware kit |
4 |
(spacer) |
| 10 |
270-8306 |
Rod eye hardware kit |
2 |
(nut) |
| 11 |
270-8305 |
Squeegee centering kit |
1 |
(washer) |
| 12 |
270-8306 |
Rod eye hardware kit |
4 |
(washer) |
| 13 |
270-8306 |
Rod eye hardware kit |
4 |
(washer) |
| 14 |
270-8306 |
Rod eye hardware kit |
1 |
(squeegee adjustment spacer) |
| 15 |
270-8307 |
Turning bracket kit |
1 |
(nut ring) |
| 17 |
270-8304 |
Wheels fixing kit |
2 |
(washer) |
| 18 |
270-8305 |
Squeegee centering kit |
1 |
(washer) |
| 19 |
270-8305 |
Squeegee centering kit |
1 |
(nut) |
| 20 |
270-8306 |
Rod eye hardware kit |
2 |
(washer) |
| 21 |
270-8305 |
Squeegee centering kit |
1 |
(pin) |
| 23 |
270-8306 |
Rod eye hardware kit |
2 |
(shoulder screw) |
| 24 |
270-8307 |
Turning bracket kit |
1 |
(shoulder screw) |
| 25 |
270-8309 |
Rear machine harness |
1 |
|
| 26 |
270-8307 |
Turning bracket kit |
1 |
(washer) |
| 27 |
270-8310 |
Squeegee down support |
1 |
|
| 28 |
270-8306 |
Rod eye hardware kit |
1 |
(spacer) |
| 29 |
270-8306 |
Rod eye hardware kit |
1 |
(spacer with hole) |
| 31 |
270-8307 |
Turning bracket kit |
2 |
(flanged bushing) |
| 33 |
270-8307 |
Turning bracket kit |
1 |
(turning bracket) |
| 34 |
270-8313 |
Upper squeegee support |
1 |
|
| 35 |
270-8305 |
Squeegee centering kit |
1 |
(squeegee spring support pin) |
| 36 |
270-8305 |
Squeegee centering kit |
1 |
(zero setting squeegee spring) |
| KIT 1 |
270-8305 |
Squeegee centering kit |
1 |
(includes 4, 5, 11, 18, 19, 21, 35 and 36) |
| KIT 2 |
270-8304 |
Wheels fixing kit |
1 |
(includes 2, 3, 7 and 17) |
| KIT 3 |
270-8307 |
Turning bracket kit |
1 |
(includes 15, 24, 26, 31, and 33) |
| KIT 4 |
270-8306 |
Rod eye hardware kit |
1 |
(includes 6, 8-10, 12-14, 20, 23, 28 and 29) |
|
|
Solution Assembly - 172-8984 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-4768 |
Solution tank filter |
1 |
|
| 2 |
270-0929 |
Elbow valve with gasket |
1 |
|
| 5 |
170-9178 |
Curved elbow |
1 |
|
| 7 |
270-8316 |
Solution system kit |
2 |
(nut) |
| 8 |
272-8536 |
24V solution solenoid valve |
1 |
|
| 9 |
170-9177 |
Curved elbow |
1 |
|
| 10 |
270-0391 |
Pipe fitting |
1 |
|
| 12 |
270-8316 |
Solution system kit |
2 |
(screw) |
| 13 |
270-8316 |
Solution system kit |
1 |
(clamp) |
| 14 |
270-8319 |
Solution filter gasket |
1 |
|
| 15 |
270-8318 |
Solution filter kit |
1 |
|
| 17 |
270-8316 |
Solution system kit |
3 |
(clamp) |
| N/S |
270-8316 |
Solution system kit |
1 |
(includes: 7, 12, 13 and 17) |
|
|
Ecoflex Assembly - 172-8985 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8400 |
Ecoflex hose system kit |
1 |
|
| 2 |
272-3750 |
Chemical tank kit |
1 |
|
| 3 |
272-9597 |
Ecoflex kit |
1 |
(detergent adjusting decal) |
| 5 |
272-9597 |
Ecoflex kit |
2 |
(washer) |
| 6 |
272-9597 |
Ecoflex kit |
2 |
(washer) |
| 7 |
272-9597 |
Ecoflex kit |
2 |
(screw) |
| 8 |
172-4771 |
Chemical mix pump |
1 |
|
| KIT 1 |
272-9597 |
Ecoflex kit |
1 |
(includes: 1-8) |
|
|

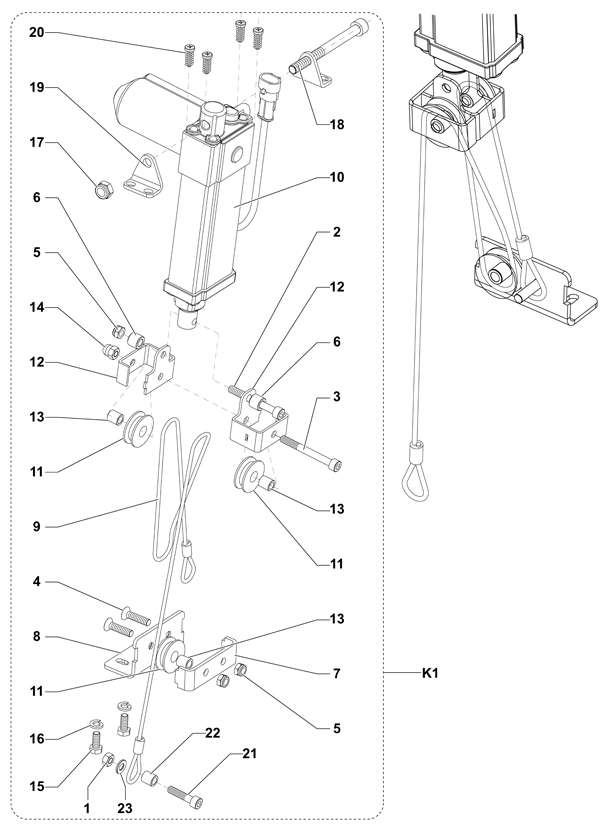

Squeegee Lift Assembly - 172-8986 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8322 |
Squeegee lifting kit |
1 |
(nut) |
| 2 |
270-8322 |
Squeegee lifting kit |
1 |
(screw) |
| 3 |
270-8322 |
Squeegee lifting kit |
1 |
(screw) |
| 4 |
270-8322 |
Squeegee lifting kit |
2 |
(screw) |
| 5 |
270-8322 |
Squeegee lifting kit |
3 |
(nut) |
| 6 |
270-8322 |
Squeegee lifting kit |
2 |
(spacer) |
| 7 |
270-8322 |
Squeegee lifting kit |
1 |
(counter plate) |
| 8 |
270-8322 |
Squeegee lifting kit |
1 |
(counter plate support) |
| 9 |
272-7367 |
Squeegee lift cable |
1 |
|
| 10 |
270-8323 |
Squeegee actuator |
1 |
|
| 12 |
270-8322 |
Squeegee lifting kit |
2 |
(pulley support bracket) |
| 13 |
270-8322 |
Squeegee lifting kit |
3 |
(spacer) |
| 14 |
270-8322 |
Squeegee lifting kit |
1 |
(nut) |
| 15 |
270-8322 |
Squeegee lifting kit |
2 |
screw) |
| 16 |
270-8322 |
Squeegee lifting kit |
2 |
(washer) |
| 17 |
270-8322 |
Squeegee lifting kit |
1 |
(nut) |
| 18 |
270-8322 |
Squeegee lifting kit |
1 |
(screw) |
| 19 |
270-8322 |
Squeegee lifting kit |
1 |
(support bracket) |
| 20 |
270-8322 |
Squeegee lifting kit |
4 |
(screw) |
| 21 |
270-8322 |
Squeegee lifting kit |
1 |
(screw) |
| 22 |
270-8322 |
Squeegee lifting kit |
1 |
(spacer) |
| 23 |
270-8322 |
Squeegee lifting kit |
1 |
(washer) |
| KIT 1 |
270-8322 |
Squeegee lifting kit |
1 |
(includes 1-23) |
|
|
Squeegee Assembly - 172-8987 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-8529 |
Knob M8 x 30mm stainless steel |
1 |
|
| 2 |
172-4817 |
Bumper wheel kit |
2 |
(screw) |
| 3 |
172-4795 |
Squeegee latch kit |
1 |
(latch |
| 4 |
272-6579 |
Squeegee fixing kit |
1 |
(knob) |
| 5 |
172-4795 |
Squeegee latch kit |
2 |
(screw) |
| 6 |
172-4795 |
Squeegee latch kit |
2 |
(nut) |
| 7 |
172-4817 |
Bumper wheel kit |
2 |
(bumper wheel) |
| 8 |
172-4817 |
Bumper wheel kit |
2 |
(cap) |
| 9 |
172-4817 |
Bumper wheel kit |
2 |
(spacer) |
| 10 |
270-8351 |
Squeegee kit |
2 |
(washer) |
| 11 |
172-4817 |
Bumper wheel kit |
2 |
(washer) |
| 12 |
172-4817 |
Bumper wheel kit |
2 |
(washer) |
| 13 |
172-4790 |
Dowel M8 x 30mm |
1 |
|
| 14 |
272-7398 |
Caster wheel |
2 |
|
| 15 |
270-8352 |
Squeegee tool weldment |
1 |
|
| 16 |
270-8353 |
Front squeegee strap |
1 |
|
| 17 |
270-8354 |
Right hand rear skirt strap |
1 |
|
| 18 |
270-8355 |
Left hand rear skirt strap |
1 |
|
| 19 |
272-7368 |
Squeegee blade kit polyurethane |
1 |
|
| KIT 1 |
270-8351 |
Squeegee kit |
1 |
(includes 1-19) |
| KIT 2 |
172-4817 |
Bumper wheel kit |
2 |
(includes 2, 7-9, 11 and 12) |
| KIT 3 |
172-4795 |
Squeegee latch kit |
1 |
(includes 3, 5 and 6) |
|
|

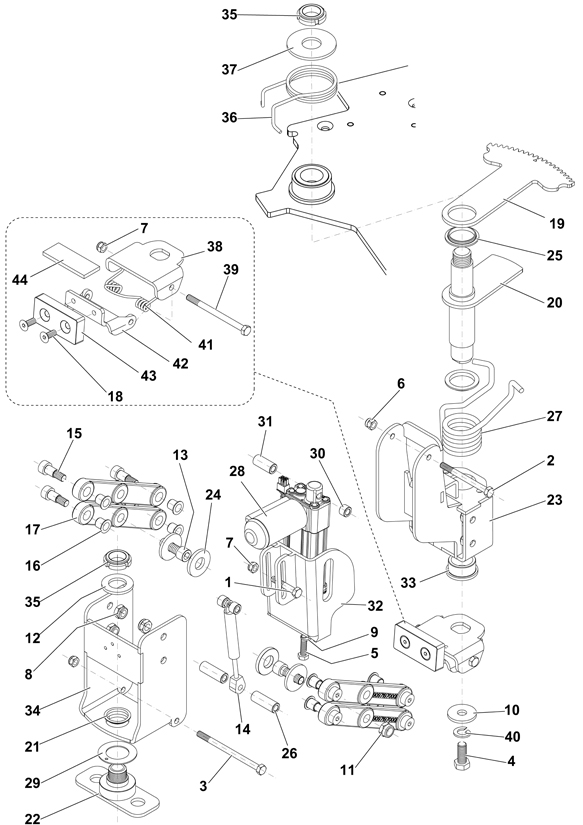

Scrub Deck Lift Assembly - 172-8988 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8325 |
Brush deck support kit |
1 |
(screw) |
| 2 |
270-8325 |
Brush deck support kit |
1 |
(screw) |
| 3 |
270-8325 |
Brush deck support kit |
1 |
(screw) |
| 4 |
270-8325 |
Brush deck support kit |
1 |
(screw) |
| 5 |
270-8325 |
Brush deck support kit |
1 |
(screw) |
| 6 |
270-8325 |
Brush deck support kit |
1 |
(nut) |
| 7 |
270-8325 |
Brush deck support kit |
3 |
(nut) |
| 8 |
270-8325 |
Brush deck support kit |
4 |
(nut) |
| 9 |
270-8325 |
Brush deck support kit |
1 |
(washer) |
| 10 |
270-8325 |
Brush deck support kit |
3 |
(washer) |
| 11 |
270-8325 |
Brush deck support kit |
2 |
(nut) |
| 12 |
270-8325 |
Brush deck support kit |
1 |
(washer) |
| 13 |
270-8325 |
Brush deck support kit |
2 |
(screw) |
| 15 |
270-8326 |
Shoulder screw |
8 |
|
| 17 |
270-0289 |
Lift lever (OBSOLETE) |
4 |
|
| 18 |
270-8325 |
Brush deck support kit |
2 |
(screw) |
| 20 |
270-8329 |
Driven crown pin |
1 |
|
| 21 |
572-3513 |
BEARING FLANGE IGLIDUR 2 PCS |
1 |
|
| 22 |
270-8331 |
Rotating support bracket |
1 |
|
| 23 |
270-8332 |
Actuator support |
1 |
|
| 25 |
270-8334 |
Flanged bushing |
2 |
|
| 2 |
270-8336 |
Dragging deck spring |
1 |
|
| 28 |
270-8337 |
24V actuator motor |
1 |
|
| 29 |
572-3514 |
WASHER THRUST GTM 3254-015 PKD |
1 |
|
| 32 |
270-8341 |
Lower actuator motor bracket |
1 |
|
| 33 |
270-8287 |
Flanged bushing |
1 |
|
| 34 |
270-8342 |
Support deck bracket |
1 |
|
| 36 |
270-8344 |
Zero setting brush spring |
1 |
|
| 37 |
270-8345 |
Flat washer |
1 |
|
| 38 |
270-8346 |
Upper dragging flange |
1 |
|
| 39 |
270-8325 |
Brush deck support kit |
1 |
(screw) |
| 40 |
270-8325 |
Brush deck support kit |
1 |
(washer) |
| 42 |
270-8348 |
Lower dragging flange |
1 |
|
| 43 |
270-8349 |
Dragging deck guide |
1 |
|
| 44 |
572-3695 |
REDUCTION GEARMOTOR 400W 24V K |
1 |
|
| N/S |
270-8325 |
Brush deck support kit |
1 |
(includes 1-13, 18, 39 and 40) |
|
|
Brushes Deck Assembly - 172-8989 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-6797 |
Right hand polygonal holder |
1 |
(right hand polygonal holder) |
| 2 |
272-0731 |
26 inch brush deck |
1 |
|
| 3 |
172-4817 |
Bumper wheel kit |
2 |
(spacer) |
| 4a |
172-4817 |
Bumper wheel kit |
6 |
(washer) |
| 4b |
272-9598 |
Side arm spacer kit |
6 |
(washer) |
| 5 |
172-4817 |
Bumper wheel kit |
2 |
(screw) |
| 6 |
272-0739 |
Splash guard fitting kit |
1 |
(bent plate) |
| 7 |
272-6799 |
Scrub deck water hose (OBSOLETE) |
6 |
(screw) |
| 8 |
172-4817 |
Bumper wheel kit |
2 |
(bumper wheel) |
| 9 |
172-4817 |
Bumper wheel kit |
2 |
(cap) |
| 10 |
172-4817 |
Bumper wheel kit |
2 |
(spacer) |
| 11 |
272-9760 |
Scrub deck fixing kit |
1 |
(screw) |
| 12 |
N/A |
Not available |
8 |
(screw) (only available in KIT5) |
| 13 |
272-9598 |
Side arm spacer kit |
4 |
(screw) |
| 14 |
272-0739 |
Splash guard fitting kit |
1 |
(nut) |
| 15 |
272-9760 |
Scrub deck fixing kit |
1 |
(nut) |
| 16 |
272-9599 |
Side arm kit |
1 |
(nut) |
| 17a |
272-6797 |
Right hand polygonal holder |
2 |
(washer) |
| 17b |
272-6797 |
Right hand polygonal holder |
2 |
(washer) |
| 18a |
272-6797 |
Right hand polygonal holder |
2 |
(screw) |
| 18b |
272-6797 |
Right hand polygonal holder |
2 |
(screw) |
| 19a |
272-6797 |
Right hand polygonal holder |
2 |
(washer) |
| 19b |
272-6797 |
Right hand polygonal holder |
2 |
(washer) |
| 20 |
272-9598 |
Side arm spacer kit |
1 |
(ring nut) |
| 21 |
172-3730 |
Square keyway |
2 |
|
| 22 |
572-3695 |
REDUCTION GEARMOTOR 400W 24V K |
8 |
(washer) |
| 23 |
272-6800 |
Split pins with cable kit |
2 |
(pin) |
| 24 |
272-9599 |
Side arm kit |
4 |
(flanged bushing) |
| 25 |
272-0739 |
Splash guard fitting kit |
2 |
(screw) |
| 26 |
272-0739 |
Splash guard fitting kit |
1 |
(screw) |
| 27 |
272-6797 |
Right hand polygonal holder |
1 |
(left polygonal holder) |
| 28 |
272-6800 |
Split pins with cable kit |
1 |
(stainless steel cable) |
| 30 |
272-6799 |
Scrub deck water hose (OBSOLETE) |
6 |
(clamp) |
| 31 |
572-3695 |
REDUCTION GEARMOTOR 400W 24V K |
2 |
(brush motor) |
| 32 |
272-6799 |
Scrub deck water hose (OBSOLETE) |
1 |
(water pipe) |
| 33 |
272-9598 |
Side arm spacer kit |
2 |
(flanged bushing) |
| 34 |
272-9598 |
Side arm spacer kit |
1 |
(turning bracket) |
| 35 |
272-9599 |
Side arm kit |
1 |
(side arm) |
| 36 |
272-9760 |
Scrub deck fixing kit |
1 |
(threaded spacer) |
| 37 |
272-9599 |
Side arm kit |
1 |
(shoulder screw) |
| 38 |
272-9598 |
Side arm spacer kit |
1 |
(side arm spacer) |
| 39 |
272-9760 |
Scrub deck fixing kit |
1 |
(washer) |
| 40 |
272-6801 |
Brushes deck kit (OBSOLETE) |
1 |
|
| 41 |
270-8361 |
Scrub deck harness |
1 |
|
| 42 |
272-9598 |
Side arm spacer kit |
1 |
(washer) |
| 43 |
172-4817 |
Bumper wheel kit |
6 |
(nut) |
| 44 |
272-0741 |
Carbon brush (pkg of 4) |
2 |
|
| 45a |
272-0722 |
24/26 inch splash guard |
1 |
|
| 45b |
272-9921 |
Splash guard with bristles |
1 |
|
| 46 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| KIT 1 |
272-0739 |
Splash guard fitting kit |
1 |
(includes 6, 14, 25 and 26) |
| KIT 2 |
172-4817 |
Bumper wheel kit |
2 |
(includes 3-5, 8-10 and 43) |
| KIT 3 |
272-9598 |
Side arm spacer kit |
1 |
(includes 4, 13, 20, 33, 34, 38 and 42) |
| KIT 4 |
272-9599 |
Side arm kit |
1 |
(includes 16, 24, 35 and 37) |
| KIT 5 |
572-3695 |
REDUCTION GEARMOTOR 400W 24V K |
2 |
(includes 12, 21, 22, 31 and 44) |
| KIT 6 |
272-6800 |
Split pins with cable kit |
1 |
(includes 23 and 28) |
| KIT 7 |
272-6797 |
Right hand polygonal holder |
1 |
(includes 1, 17-1, and 29) |
| KIT 8 |
272-6797 |
Right hand polygonal holder |
1 |
(includes 17-19, 27 and 29) |
| KIT 9 |
272-6799 |
Scrub deck water hose (OBSOLETE) |
1 |
(includes 7, 30 and 32) |
| KIT 10 |
272-9760 |
Scrub deck fixing kit |
1 |
(includes 11, 15, 36 and 39) |
| N/A |
272-0718 |
13 inch pad driver assembly |
2 |
|
|
|
Electrical Components Assembly - 172-8990 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
270-8391 |
Electrical components kit (OBSOLETE) |
2 |
(screw) |
| 3 |
270-8391 |
Electrical components kit (OBSOLETE) |
4 |
(screw) |
| 4 |
270-8391 |
Electrical components kit (OBSOLETE) |
4 |
(nut) |
| 5 |
270-8391 |
Electrical components kit (OBSOLETE) |
4 |
(washer) |
| 6 |
270-8391 |
Electrical components kit (OBSOLETE) |
2 |
(nut) |
| 7 |
270-8391 |
Electrical components kit (OBSOLETE) |
2 |
(spacer) |
| 8 |
270-8391 |
Electrical components kit (OBSOLETE) |
2 |
(screw) |
| 9 |
272-6327 |
24V electromagnetic switch |
1 |
|
| 10 |
270-8383 |
Electronic traction card kit |
1 |
|
| 11 |
270-8384 |
Electronic plate (OBSOLETE) |
1 |
|
| 12a |
270-8385 |
Component box harness |
1 |
|
| 12b |
270-8386 |
Electrical components harness |
1 |
|
| 13 |
270-8387 |
Pressure sensor kit |
1 |
|
| 14 |
572-3491 |
FUSE BLADE 3A PKD |
1 |
|
| 16 |
270-8388 |
100amp fuse |
1 |
|
| 18 |
270-8389 |
Battery harness |
1 |
|
| 19 |
272-8374 |
120amp connector (red) |
1 |
|
| 20 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 21 |
270-8390 |
3 way connector (OBSOLETE) |
1 |
|
| N/S |
270-8391 |
Electrical components kit (OBSOLETE) |
1 |
(includes 2-8) |
|
|

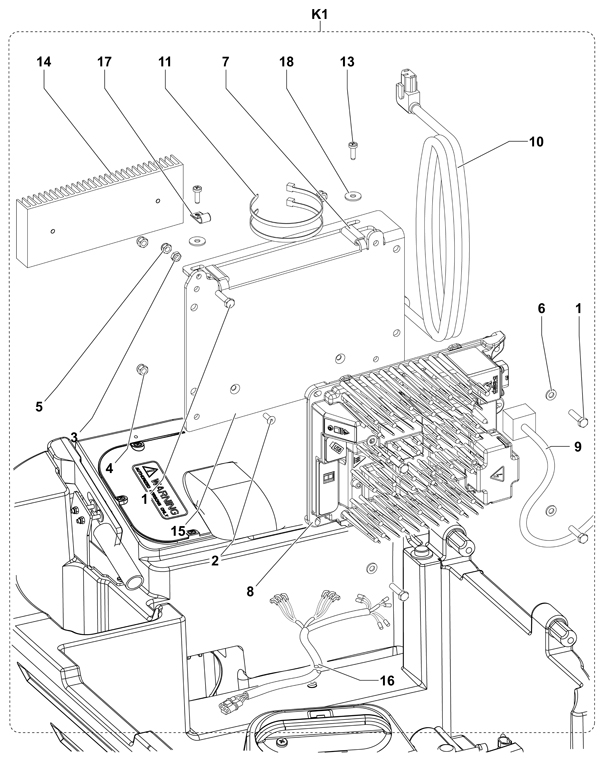

Battery Charger Assembly - 172-8991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
270-8392 |
Battery charger kit |
5 |
(screw) |
| 2 |
270-8392 |
Battery charger kit |
2 |
(screw) |
| 3 |
270-8392 |
Battery charger kit |
1 |
(nut) |
| 4 |
270-8392 |
Battery charger kit |
4 |
(nut) |
| 5 |
270-8392 |
Battery charger kit |
1 |
(nut) |
| 6 |
270-8392 |
Battery charger kit |
4 |
(washer) |
| 7 |
270-8392 |
Battery charger kit |
2 |
(edge protector seal) |
| 8 |
270-8393 |
24V onboard battery charger |
1 |
|
| 9 |
270-8394 |
Temperature sensor |
1 |
|
| 11 |
270-8392 |
Battery charger kit |
2 |
(cable tie) |
| 13 |
270-8392 |
Battery charger kit |
2 |
(screw) |
| 14 |
270-8396 |
Heat sink (OBSOLETE) |
1 |
|
| 15 |
270-8397 |
Battery charger plate |
1 |
|
| 16 |
270-8389 |
Battery harness |
1 |
|
| 17 |
270-8392 |
Battery charger kit |
1 |
(clamp) |
| 18 |
270-8392 |
Battery charger kit |
2 |
(washer) |
| KIT 1 |
270-8392 |
Battery charger kit |
1 |
(includes 1-18 and 270-8392) |
| N/S |
270-8392 |
Battery charger kit |
1 |
(Silicone heat transfer) |
| N/S |
270-8399 |
Extension cable (OBSOLETE) |
1 |
(Cable extension for charger) |
|
|
Mop and Basket Assembly - 172-8992 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
270-8402 |
Mop and trash kit (OBSOLETE) |
5 |
(screw) |
| 3 |
270-8402 |
Mop and trash kit (OBSOLETE) |
4 |
(nut) |
| 4 |
270-8402 |
Mop and trash kit (OBSOLETE) |
5 |
(nut) |
| 5 |
572-3827 |
HOLDER BROOM PKD |
2 |
|
| 6 |
270-8402 |
Mop and trash kit (OBSOLETE) |
1 |
(support sheet kit) |
| 7 |
270-8404 |
Net 6 x 5 inch (OBSOLETE) |
1 |
|
| 8 |
270-8402 |
Mop and trash kit (OBSOLETE) |
1 |
(expander) |
| 9 |
270-8402 |
Mop and trash kit (OBSOLETE) |
1 |
(flange expander) |
| 10 |
270-8402 |
Mop and trash kit (OBSOLETE) |
1 |
(screw) |
| 11 |
270-8402 |
Mop and trash kit (OBSOLETE) |
4 |
(screw) |
| 12 |
270-8402 |
Mop and trash kit (OBSOLETE) |
1 |
(plate) |
| 13 |
270-8402 |
Mop and trash kit (OBSOLETE) |
1 |
(washer) |
| 14 |
270-8405 |
Basket kit |
1 |
(basket support) |
| 15 |
270-8405 |
Basket kit |
4 |
(screw) |
| 16 |
270-8405 |
Basket kit |
7 |
(screw cover) |
| 18 |
270-8405 |
Basket kit |
1 |
(partition) |
| 19 |
270-8405 |
Basket kit |
3 |
(screw) |
| 20 |
270-8405 |
Basket kit |
1 |
(decal template) |
| KIT 1 |
270-8402 |
Mop and trash kit (OBSOLETE) |
1 |
(includes 2-13) |
| KIT 2 |
270-8405 |
Basket kit |
1 |
(includes 14-20) |
|
|
Flashing Light Assembly - 172-8993 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-9931 |
Flashing light kit |
3 |
(nut) |
| 3 |
272-9931 |
Flashing light kit |
2 |
(screw) |
| 4 |
272-9931 |
Flashing light kit |
2 |
(washer) |
| 5 |
272-9931 |
Flashing light kit |
1 |
(warning light) |
| 6 |
272-9931 |
Flashing light kit |
1 |
(screw) |
| 7 |
272-9931 |
Flashing light kit |
1 |
(flashing light support) |
| 8 |
272-9931 |
Flashing light kit |
1 |
(flashinglight wiring) |
| 9 |
272-9931 |
Flashing light kit |
1 |
(clamp) |
| KIT 1 |
272-9931 |
Flashing light kit |
1 |
(includes 2-9) |
| N/S |
270-8409 |
Noise reduction kit (OBSOLETE) |
1 |
|
|
|
Wiring Diagram - 172-8994 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| BE |
372-3057 |
Beacon flashing |
|
|
| BRK |
270-8301 |
Electric brake |
|
|
| C1 |
272-8374 |
120amp connector (red) |
|
|
| C2 |
N/A |
Not available |
|
(main charger connector) |
| C3 |
N/A |
Not available |
|
(secondary charger connector) |
| C4 |
991-2103 |
50amp charger plug SB50 with pins (red) |
|
|
| CH |
270-8393 |
24V onboard battery charger |
|
|
| EB1 |
270-8383 |
Electronic traction card kit |
|
|
| EB2 |
272-9939 |
Electronic board control panel |
|
|
| EB3 |
272-9573 |
Control panel decal (OBSOLETE) |
|
|
| ES1 |
272-6327 |
24V electromagnetic switch |
|
|
| EV1 |
272-8536 |
24V solution solenoid valve |
|
|
| F3 |
572-3491 |
FUSE BLADE 3A PKD |
|
|
| K1 |
172-3785 |
Key switch with two keys |
|
|
| M1.1, 2 |
572-3695 |
REDUCTION GEARMOTOR 400W 24V K |
|
|
| M2 |
991-1230 |
24V 3 stage vacuum motor tangential with snout |
|
|
| M3 |
572-3398 |
MOTOR ELECTRIC 300W 24V PKD |
|
|
| M4 |
172-4771 |
Chemical mix pump |
|
|
| M5 |
270-8337 |
24V actuator motor |
|
|
| m0 |
N/A |
Not available |
|
(microswitch) |
| m1 |
N/A |
Not available |
|
(microswitch) |
| m2 |
N/A |
Not available |
|
(microswitch) |
| M6 |
270-8323 |
Squeegee actuator |
|
|
| PR1 |
270-8387 |
Pressure sensor kit |
|
|
| N/S |
270-8272 |
Speed control pedal (OBSOLETE) |
|
(Speed control pedal) |
|
|
- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
