- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad(OBSOLETE) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|

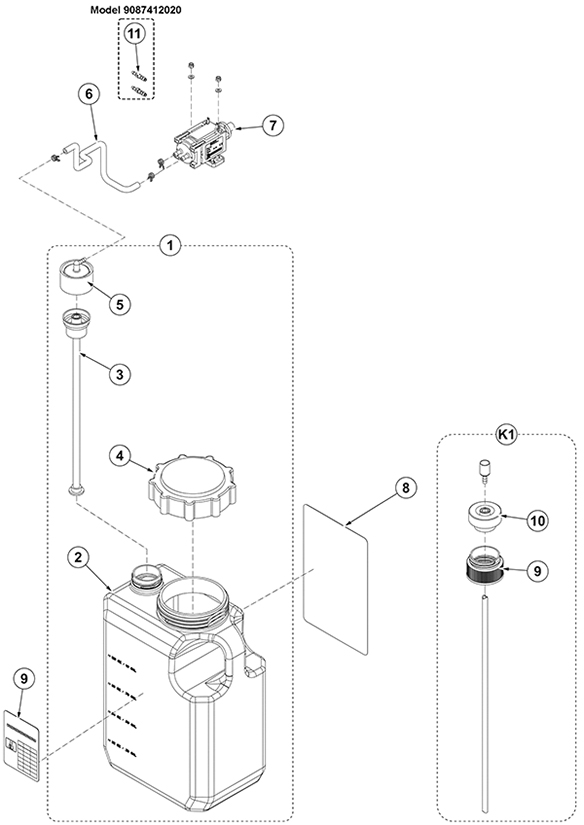

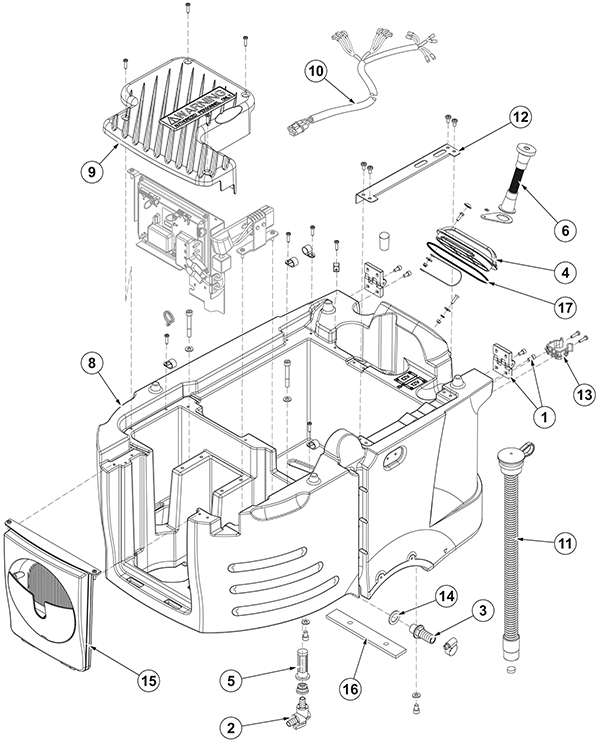

Solution Tank Assembly - 272-1166 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
270-0929 |
Elbow valve with gasket |
1 |
|
| 3 |
572-3389 |
FITTING STRAIGHT G1/2 D.20 KIT |
1 |
|
| 4 |
472-1150 |
CAP SOLUTION TANK KIT |
1 |
|
| 5 |
172-4768 |
Solution tank filter |
1 |
(optional) |
| 6 |
572-3522 |
FILLING HOSE |
1 |
(optional) |
| 8a |
572-3702 |
TANK SOL 70 LT PLAST GREY KIT |
1 |
(before SN 3510161103625) |
| 8b |
572-3701 |
TANK SOL 70 LT PLAST. GREY PKD |
1 |
|
| 9 |
572-3565 |
COVER BATTERY CHARGER PKD |
1 |
|
| 10 |
572-3581 |
HARNESS TANK PKD |
1 |
|
| 11 |
572-3687 |
HOSE FRESH WATER LEVEL KIT |
1 |
|
| 12 |
572-3589 |
SUPPORT F SAFETY BAR PKD |
1 |
|
| 13 |
572-3620 |
CLAMP HOSE D.40 BLACK KIT |
1 |
|
| 14 |
572-3599 |
GASKET RUBBER D.21X33X2.5 BLK |
2 |
|
| 15 |
572-3637 |
COVER FUNCTIONS CARD KIT |
1 |
|
| 16 |
572-3610 |
PROTECTION RUBBER ADHESIVE TNK |
1 |
|
| 17 |
572-3672 |
O-RING F. HEPA/ULPA FILTER PKD |
1 |
|
|
|

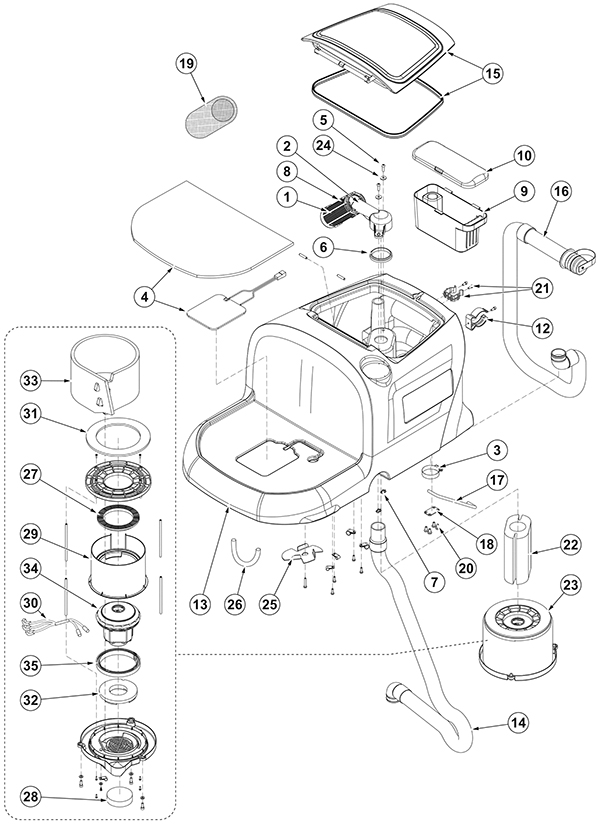

Recovery Tank System Assembly - 272-1167 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
N/A |
Not available |
1 |
(float cage) (only available with KIT1) |
| 3 |
572-3662 |
CLAMP 14/32-52 2 PCS SET |
1 |
|
| 4 |
572-3590 |
CUSHION SEAT W. MICROSWITCH |
1 |
|
| 5 |
N/A |
Not available |
2 |
(screw M6 x 20) (only available with KIT1) |
| 6 |
272-9867 |
Float support gasket |
1 |
(included in KIT1) |
| 7 |
N/A |
Not available |
2 |
(nut jaw M6 x 6) (only available with KIT1) |
| 8 |
172-0517 |
Float cage half (2 required for full float cage) |
1 |
|
| 9 |
572-3554 |
TRAY DEBRISE PKD |
1 |
|
| 10 |
572-3555 |
COVER TRAY DEBRISE PKD |
1 |
|
| 12 |
164-0101 |
Hose holder |
1 |
|
| 13 |
572-3558 |
TANK RECOVERY 70 LT GREY PKD |
1 |
|
| 14 |
572-3569 |
HOSE SUCTION BLACK PKD |
1 |
|
| 15 |
572-3685 |
COVER RECOVERY TANK KIT |
1 |
|
| 16 |
572-3575 |
HOSE DRAIN BLACK PKD |
1 |
|
| 17 |
N/A |
Not available |
1 |
(F tank safety bar) (only available with KIT2) |
| 18 |
N/A |
Not available |
1 |
(safety bar plate) (only available with KIT2) |
| 19 |
272-7206 |
Antifoaming filter |
1 |
(optional) |
| 20 |
N/A |
Not available |
4 |
(screw M6 x 12) (only available with KIT2) |
| 21 |
572-3620 |
CLAMP HOSE D.40 BLACK KIT |
1 |
|
| 22 |
572-3603 |
SOUNDPROOFING UPPER VACUUM |
1 |
|
| 23 |
572-3636 |
MOTOR VACUUM 24V 310W KIT |
1 |
(includes 27-35) |
| 24 |
N/A |
Not available |
2 |
(washer) (only available with KIT1) |
| 25 |
572-3606 |
PLATE HARNESS PROTECTION PKD |
1 |
|
| 26 |
572-3612 |
HOSE COR BLACK D.6 L.150MM |
1 |
|
| 27 |
N/A |
Not available |
1 |
(motor gasket) (only available with KIT3) |
| 28 |
N/A |
Not available |
1 |
(filter) (only available with KIT3) |
| 29 |
572-3449 |
INT INSULATION VAC MTR PKD |
1 |
|
| 30 |
572-3578 |
HARNESS VACUUM MOTOR PKD |
1 |
|
| 31 |
N/A |
Not available |
1 |
(upper cover gasket) (only available with KIT3) |
| 32 |
N/A |
Not available |
1 |
(lower cover gasket) (only available with KIT3) |
| 33 |
572-3602 |
SOUNDPROOFING VACUUM MOTOR PKD |
1 |
|
| 34 |
572-3604 |
MOTOR VACUUM 24V 310W PKD |
1 |
|
| 35 |
N/A |
Not available |
1 |
(rubber sealing) (only available with KIT3) |
| KIT1 |
270-8255 |
Float holder cage kit |
1 |
(includes 2, 5-7, 24) |
| KIT2 |
572-3621 |
BAR SAFETY F TANK KIT |
1 |
(includes 17-18, 20) |
| KIT3 |
572-3622 |
GASKETS VACUUM MOTOR KIT |
1 |
(includes 27-28, 31-32, 35) |
|
|

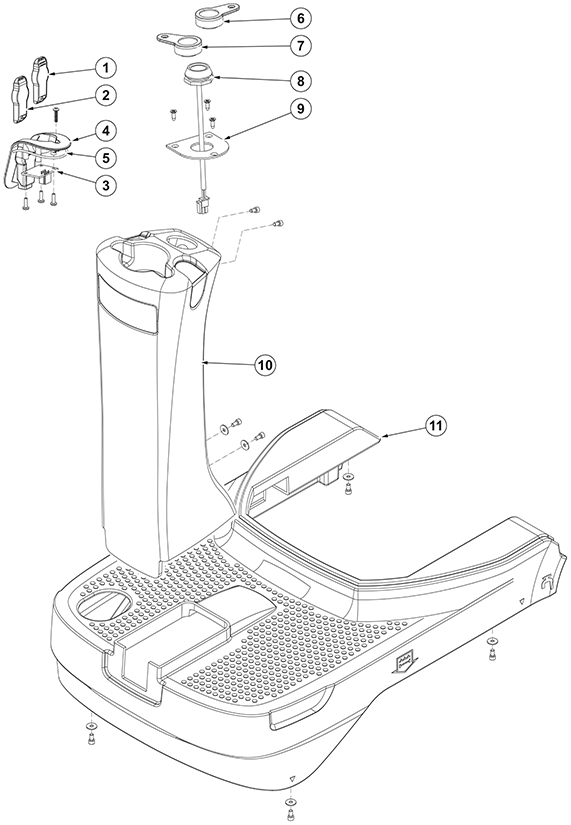

Footboard Assembly - 272-1168 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3463 |
KEY OPERATOR COMPLETE PKD |
1 |
(model 9087361020) |
| 2 |
572-3468 |
KEY SERVICE COMPLETE PKD |
1 |
|
| 3 |
572-3568 |
CARD ELECTRONIC KEY PKD |
1 |
|
| 4 |
572-3588 |
HOUSING OPERATOR KEY PKD |
1 |
|
| 5 |
572-3608 |
GASKET F OPERATOR KEY HOUSING |
1 |
|
| 6 |
472-5061 |
SMART KEY-USER |
1 |
(optional) (model9087412020) |
| 7 |
472-5062 |
SMART KEY-SUPERVISOR |
1 |
(optional) |
| 8 |
472-5047 |
IBUTTON-PROBE |
1 |
|
| 9 |
N/A |
Not available |
1 |
(smart key plate) |
| 10a |
572-3579 |
COLUMN STEERING GREY PKD |
1 |
(model 9087361020) |
| 10b |
N/A |
Not available |
1 |
(steering column) (model 9087412020) |
| 11 |
572-3560 |
FOOTBOARD GREY PKD |
1 |
|
|
|

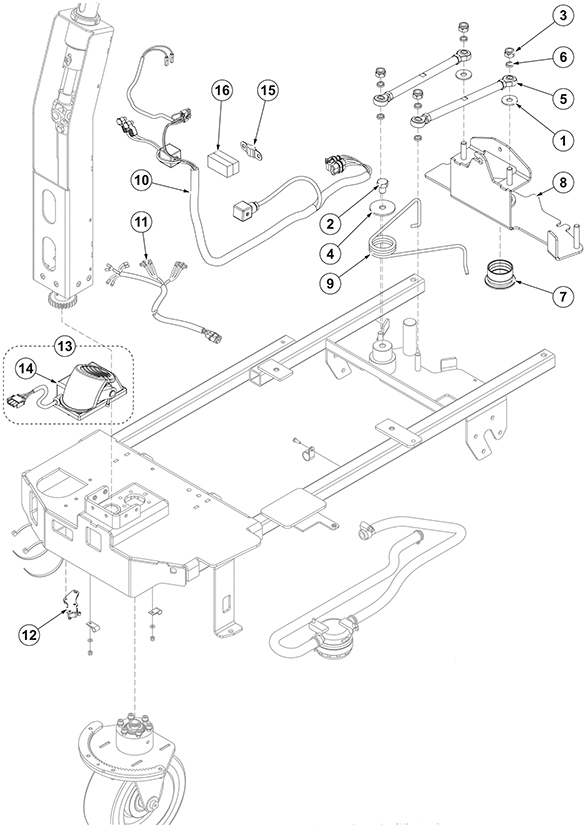

Chassis System Assembly - 272-1169 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
2 |
(washer 10 x 30) (only available with KIT1) |
| 2 |
N/A |
Not available |
1 |
(screw M12 x 16) (only available with KIT2) |
| 3 |
N/A |
Not available |
4 |
(M10 self locking nut) (only available with KIT1) |
| 4 |
N/A |
Not available |
1 |
(washer) (only available with KIT2) |
| 6 |
N/A |
Not available |
6 |
(spacer) (only available with KIT1) |
| 7 |
572-3559 |
SLEEVE SUCTION HOSE PKD |
1 |
|
| 8 |
572-3571 |
SUPPORT SQUEEGEE PKD |
1 |
|
| 9 |
N/A |
Not available |
1 |
(spring) (only available with KIT2) |
| 10 |
572-3580 |
Machine harness |
1 |
|
| 11a |
572-3582 |
HARNESS FOOTBOARD PKD |
1 |
(model 9087361020) |
| 11b |
372-3068 |
Footboard harness (grey line) (OBSOLETE) |
1 |
(model 9087412020) |
| 12 |
572-3638 |
MICROSWITCH KIT |
1 |
|
| 13 |
572-3635 |
THROTTLE KIT |
1 |
(
(includes 14) |
| 14 |
572-3600 |
THROTTLE ELECTRONIC PKD |
1 |
|
| 15 |
372-3069 |
50amp bolt down fuse |
1 |
|
| 16 |
372-3070 |
Fuse holder |
2 |
|
| KIT1 |
572-3623 |
HARDWARE SAFETY BAR KIT |
1 |
(includes 1, 3, 6) |
| KIT2 |
572-3624 |
SPRING ZERO SETTING SQUEEG KIT |
1 |
(includes 2, 4, 9) |
|
|

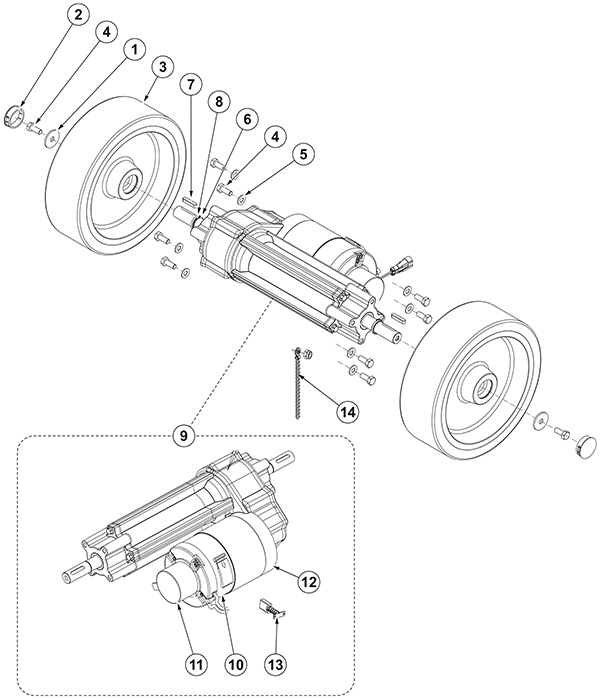

Motor Drive System Assembly - 272-1170 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
2 |
(washer) (only available with KIT1) |
| 2 |
N/A |
Not available |
2 |
(cap) (only available with KIT1) |
| 3 |
572-3618 |
Wheel D.254 X 80 Grey-black (pkg of 2) |
1 |
|
| 4 |
N/A |
Not available |
10 |
(screw M10 x 20) (only available with KIT1) |
| 5 |
372-3071 |
Washer M8 (set of 10) |
1 |
|
| 6 |
372-3051 |
RING D 20 UNI7435 |
1 |
|
| 7 |
572-3614 |
KEY JOINT 6X30 10 PCS SET |
1 |
|
| 8 |
572-3617 |
SPACER 20.5X25X4 10 PCS SET |
1 |
|
| 9 |
572-3562 |
MOTOR DRIVE 400W 24V 125RPM |
1 |
(includes 10-13) |
| 10 |
572-3641 |
BAND METAL ELECTRIC MOTOR FIX |
1 |
|
| 11 |
572-3642 |
ELECTROMAGNETIC BRAKE PKD |
1 |
|
| 12 |
572-3643 |
MOTOR ELECTRIC 400W 24V PKD |
1 |
|
| 13 |
272-8286 |
Carbon brush kit (pkg of 4) |
1 |
|
| 14 |
372-3072 |
Antistatic chain kit |
1 |
|
| KIT |
572-3625 |
HARDWARE WHEEL D.254X80 KIT |
1 |
(includes 1-2, 4) |
|
|
Front Wheel System Assembly - 272-1171 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-3534 |
Ball bearing |
1 |
|
| 3 |
272-3537 |
Ball bearing support |
1 |
|
| 4 |
272-3535 |
Ball bearing |
1 |
|
| 5 |
572-3616 |
SCREW 10X16 M8 12.9 10 PCS |
1 |
|
| 6 |
572-3694 |
SUPPORT FRONT WHEEL ASSMD PKD |
1 |
|
| 8 |
572-3564 |
PIN WHEEL PKD |
1 |
|
|
|

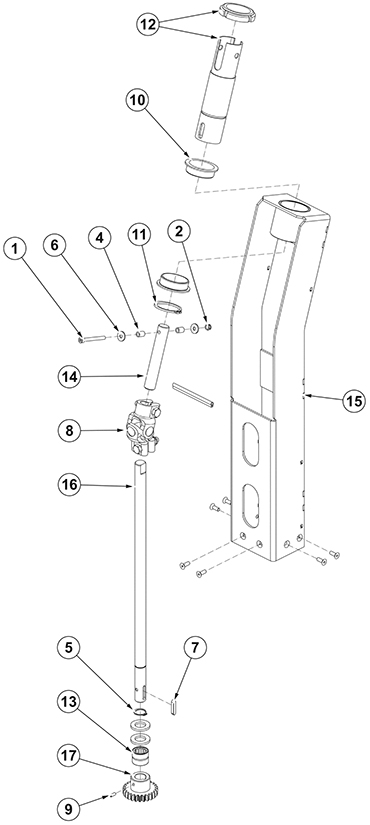

Steering Column Assembly - 272-1172 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(screw M5 x 50) (only available with KIT1) |
| 2 |
N/A |
Not available |
1 |
(M5 self locking nut) (only available with KIT1) |
| 4 |
N/A |
Not available |
2 |
(spacer) (only available with KIT1) |
| 5 |
572-3661 |
RING D 17 UNI7435 10 PCS SET |
1 |
|
| 6 |
N/A |
Not available |
2 |
(washer) (only available with KIT1) |
| 7 |
172-3730 |
Square keyway |
1 |
|
| 9 |
272-9529 |
SCREW M5X10 CUP PT 10 PCS |
1 |
|
| 10 |
270-8280 |
Flange bushing |
2 |
|
| 11 |
572-3552 |
RING D.40 UNI7436 PKD |
1 |
|
| 12 |
572-3684 |
TUBE STEERING KIT |
1 |
|
| 13a |
572-3556 |
BEARING NEEDLE ROLLER 17/20 |
1 |
(before SN 3510163104805) |
| 13b |
572-3683 |
HARDWARE STEERING SUPPORT KIT |
1 |
|
| 13c |
372-3074 |
Bearing ball (OBSOLETE) |
1 |
(after SN 3510163104804) |
| 14 |
572-3570 |
SHAFT STEERING UPPER PKD |
1 |
|
| 15 |
572-3572 |
SUPPORT STEERING COLUMN PKD |
1 |
|
| 16 |
572-3573 |
SHAFT STEERING LOWER PKD |
1 |
|
| 17 |
572-3586 |
PINION Z25 PKD |
1 |
|
| KIT1 |
572-3626 |
HARDWARE STEERING TUBE KIT |
1 |
(includes 1-4, 6) |
|
|

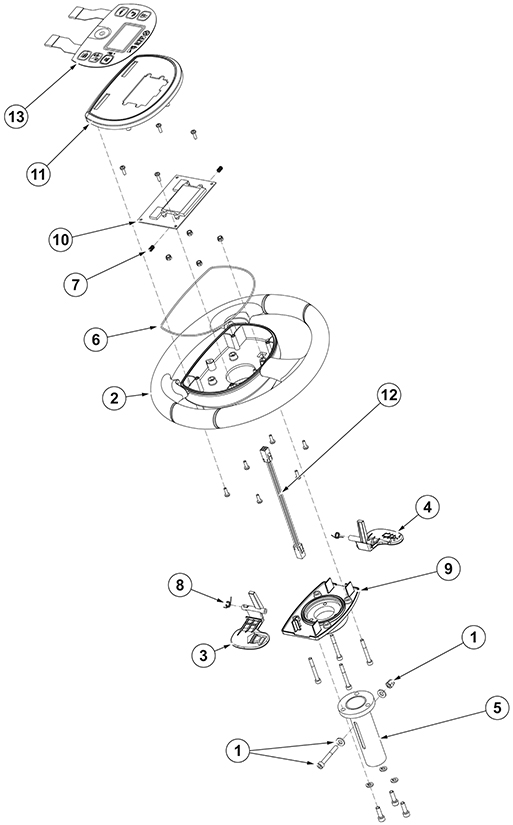

Steering Wheel System Assembly - 272-1173 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3627 |
HARDWARE STEERING WHEEL KIT |
1 |
|
| 2 |
272-9544 |
Steering wheel |
1 |
|
| 3 |
572-3549 |
LEVER RIGHT PA YELLOW PKD |
1 |
|
| 5 |
572-3551 |
TUBE ADJUST.STEERING WHEEL PKD |
1 |
|
| 7 |
272-9940 |
Moving button spring |
1 |
|
| 8 |
272-9559 |
Torsion spring |
1 |
|
| 10a |
572-3567 |
CARD ELECTRONIC DISPLAY PKD |
1 |
(model 9087361020) |
| 10b |
372-3075 |
Controller display (OBSOLETE) |
1 |
(model 9087412020) |
| 11 |
572-3576 |
COVER STEERING WHEEL PKD (OBSOLETE) |
1 |
|
| 12a |
572-3577 |
CABLE DISPLAY CARD EXTENSION |
1 |
(model 9087361020) |
| 12b |
372-3076 |
Controller display extension cable |
1 |
(model 9087412020) |
| 13 |
572-3584 |
DASHBOARD CONTROL PANEL |
1 |
|
|
|
Solution System Assembly - 272-1174 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3477 |
Water filter |
1 |
|
| 2 |
572-3478 |
NET WATER FLTR REINFORCED PKD |
1 |
|
| 3 |
572-3630 |
HOSES SOLUTION KIT |
1 |
|
| 4 |
572-3615 |
CLAMP DOUBLE SPRING |
1 |
|
|
|

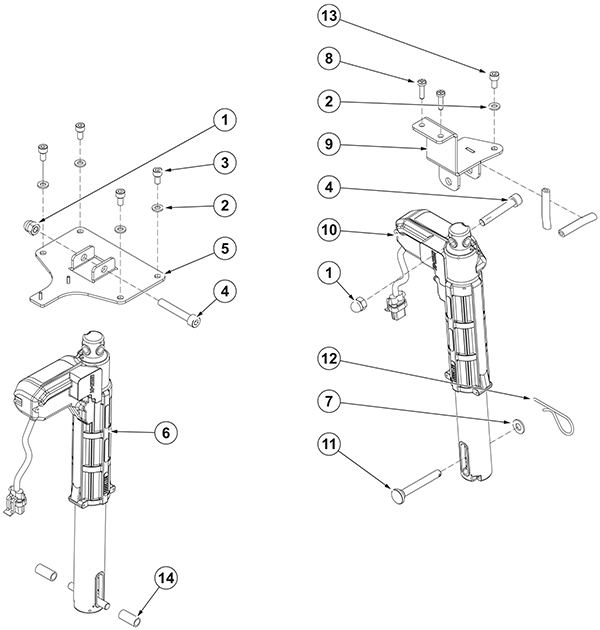

Actuator System Assembly - 272-1175 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
2 |
(M8 nut) (only available with KIT1) |
| 2 |
999-1261 |
Washer M6 flat stainless steel |
5 |
(included in KIT1) |
| 3 |
999-1801 |
Screw M6 X 12mm hex head flange |
5 |
(included in KIT1) |
| 4 |
999-1297 |
Screw M8 x 50mm hex head stainless steel |
2 |
(included in KIT2) |
| 5 |
572-3587 |
SUPPORT DECK ACTUATOR PKD |
1 |
|
| 6 |
572-3591 |
ACTUATOR 24V DC 98MM 16MM |
1 |
|
| 7 |
999-9097 |
Washer M8 flat stainless steel |
1 |
(included in KIT2) |
| 8 |
N/A |
Not available |
2 |
(screw 5 x 20 cylindrical head) ( only available with KIT1) |
| 9a |
572-3566 |
SUPPORT SQUEEGEE ACTUATOR PKD |
1 |
(before SN 3510163404521) |
| 9b |
572-3703 |
SUPPORT SQG ACTUATOR GALV PKD |
1 |
(after SN 3510163404520) |
| 10 |
572-3593 |
ACTUATOR 24V DC STROKE 77.5MM |
1 |
|
| 11 |
N/A |
Not available |
1 |
(squeegee actuator pin) (only available with KIT2) |
| 12 |
N/A |
Not available |
1 |
(split pin) (only available with KIT2) |
| 13 |
999-1801 |
Screw M6 X 12mm hex head flange |
1 |
(included in KIT1) |
| 14 |
572-3825 |
CAP D.9 PASTIC 10 PCS SET |
1 |
|
| KIT1 |
572-3696 |
HARDWARE ACTUATOR SUPPORT KIT |
1 |
(includes 2-3, 8, 13) |
| KIT2 |
572-3629 |
HARDWARE ACTUATOR KIT |
1 |
(includes 1, 4, 7, 11-12) |
|
|

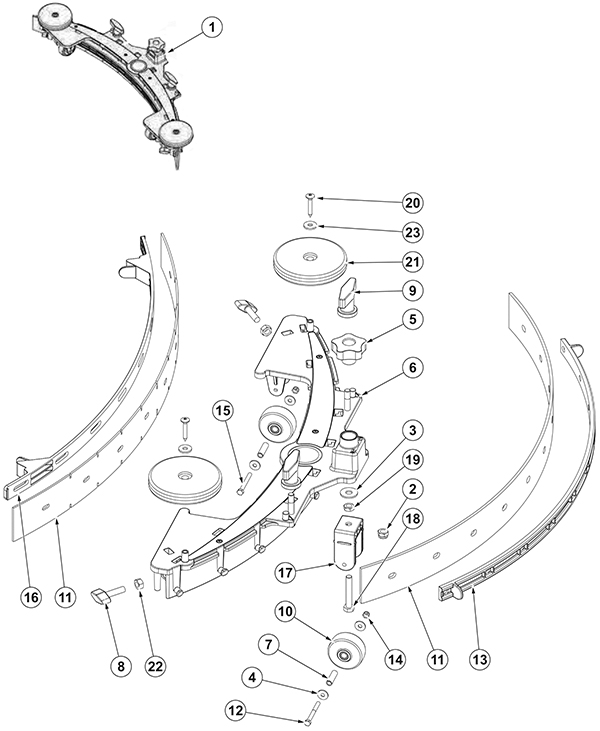

Squeegee System Assembly - 272-1176 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3670 |
SQUEEGEE PU 730MM/29 KIT |
1 |
(optional) |
| 2 |
N/A |
Not available |
1 |
(M8 nut self locking) (only available with KIT1) |
| 3 |
N/A |
Not available |
1 |
(washer 8 x 24) (only available with KIT1) |
| 4 |
N/A |
Not available |
6 |
(washer) (only available with KIT1) |
| 5 |
572-3479 |
KNOB LOBES M8 FEMALE PKD |
1 |
|
| 6 |
572-3413 |
SQUEEGEE 29 PRE-ASSEMBLED PKD |
1 |
|
| 7 |
372-3077 |
Spacer (set of 3) |
1 |
(included in KIT1) |
| 8 |
272-8529 |
Knob M8 x 30mm stainless steel |
2 |
|
| 9 |
272-6579 |
Squeegee fixing kit |
1 |
|
| 11a |
272-6947 |
Squeegee blade kit 29 inch gum rubber |
1 |
(optional) |
| 11b |
272-6948 |
Squeegee blade kit 29 inch urethane |
1 |
(optional) |
| 11c |
272-6949 |
Squeege blade kit 29 inch linatex? |
1 |
(optional) |
| 12 |
N/A |
Not available |
1 |
(screw M5 x 50) (only available with KIT1) |
| 13 |
572-3480 |
REAR STRAP ELASTIC PKD |
1 |
|
| 14 |
N/A |
Not available |
3 |
(M5 nut self locking) (only available with KIT1) |
| 15 |
N/A |
Not available |
2 |
(screw M5 x 45) (only available with KIT1) |
| 16 |
572-3481 |
FRONT RETAINER BLADE PKD |
1 |
|
| 17 |
572-3482 |
Squeegee wheel support |
1 |
|
| 18 |
999-1297 |
Screw M8 x 50mm hex head stainless steel |
1 |
(included in KIT1) |
| 19 |
999-1654 |
P clamp |
1 |
(included in KIT1) |
| 20 |
N/A |
Not available |
2 |
(screw M5 x 35) (only available with KIT1) |
| 21 |
572-3483 |
GUIDE WHEEL 2 PCS SET |
1 |
|
| 22 |
999-1651 |
Nut M8-1 hex stainless steel |
2 |
(included in KIT1) |
| 23 |
N/A |
Not available |
2 |
(washer) (only available with KIT1) |
| KIT1 |
572-3414 |
HARDWARE SQUEEGEE KIT |
1 |
(includes 2-4, 7, 12, 14-15, 18-20, 22-23) |
|
|

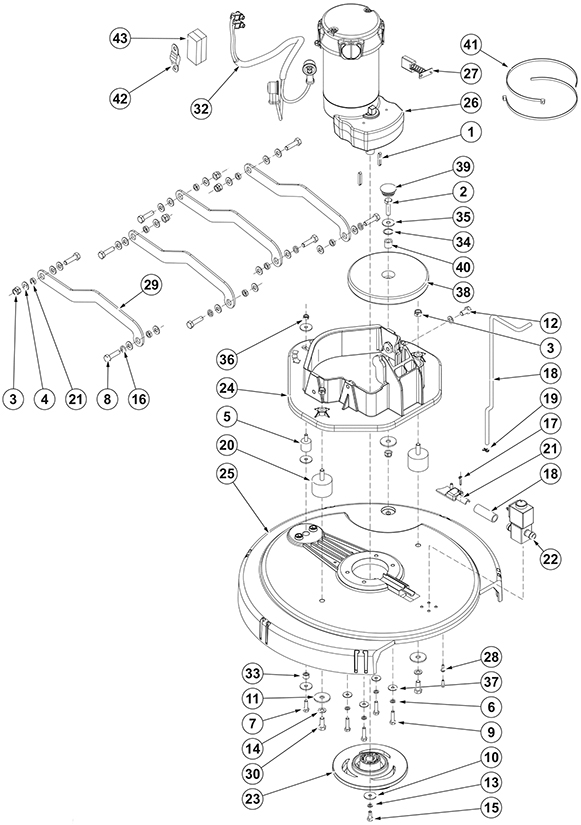

Brush Deck System Assembly - 272-1177 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3489 |
KEY 5X5X30 UNI 6604A 2 PCS SET |
1 |
|
| 2 |
N/A |
Not available |
1 |
(screw M8 x 30) (only available with KIT1) |
| 3 |
N/A |
Not available |
7 |
(M8 nut self locking) (only available with KIT2 and KIT3) |
| 4 |
999-9097 |
Washer M8 flat stainless steel |
20 |
(included in KIT2) |
| 5 |
572-3664 |
VIBRATION-DAMPING M6 60SH PKD |
1 |
|
| 6 |
999-1261 |
Washer M6 flat stainless steel |
5 |
(included in KIT3) |
| 7 |
272-0780 |
Screw M6 x 20 hex head stainless steel (set of 10) |
1 |
|
| 8 |
N/A |
Not available |
8 |
(screw M8 x 25) (only available with KIT2) |
| 9 |
N/A |
Not available |
4 |
(screw M6 x 25) (only available with KIT3) |
| 10 |
N/A |
Not available |
4 |
(washer) (only available with KIT3) |
| 11 |
N/A |
Not available |
3 |
(washer) (only available with KIT3) |
| 12 |
999-1403 |
Screw M8 x 16mm torx head |
1 |
(included in KIT3) |
| 13 |
N/A |
Not available |
1 |
(M6 washer nord lock) (only available with KIT3) |
| 14 |
999-9097 |
Washer M8 flat stainless steel |
3 |
(included in KIT3) |
| 15 |
N/A |
Not available |
1 |
(screw M6 x 16) (only available with KIT3) |
| 16 |
N/A |
Not available |
4 |
(M8 washer nord lock) (only available with KIT2) |
| 17 |
N/A |
Not available |
1 |
(screw) (only available with KIT3) |
| 18 |
572-3429 |
HOSES BRUSH DECK KIT |
1 |
|
| 19 |
N/A |
Not available |
1 |
(clamp) (only available with KIT3) |
| 20 |
272-1919 |
Vibration damping M8 (set of 2) |
1 |
|
| 21 |
572-3484 |
COVER SOLUTION HOSE SUPPORT PK |
1 |
|
| 22 |
272-5487 |
24V solenoid valve |
1 |
|
| 23 |
572-3485 |
HUB BRUSH PKD |
1 |
|
| 24 |
572-3486 |
PLATE DECK BRUSH HOLDER PKD |
1 |
|
| 25 |
572-3487 |
DECK BRUSH PKD |
1 |
|
| 26 |
572-3488 |
REDUCTION GEARMTR 450W 24V PKD |
1 |
|
| 27 |
272-6322 |
Carbon brush (4 pcs) |
1 |
|
| 28 |
N/A |
Not available |
2 |
(screw 4 x 12 pan head) (only available with KIT3) |
| 29 |
572-3619 |
ARM BRUSH DECK LIFTING 4 PCS |
1 |
|
| 30 |
N/A |
Not available |
2 |
(screw M8 x 20) (only available with KIT3) |
| 32 |
270-0003 |
Brush motor harness |
1 |
|
| 33 |
N/A |
Not available |
1 |
(spacer) (only available with KIT3) |
| 34 |
N/A |
Not available |
1 |
(washer) (only available with KIT1) |
| 35 |
N/A |
Not available |
1 |
(flat washer) (only available with KIT1) |
| 36 |
N/A |
Not available |
1 |
(M6 nut self locking) (only available with KIT3) |
| 37 |
N/A |
Not available |
4 |
(washer) (only available with KIT3) |
| 38 |
N/A |
Not available |
1 |
(roller bumper) (only available with KIT1) |
| 39 |
N/A |
Not available |
1 |
(cap) (only available with KIT1) |
| 40 |
N/A |
Not available |
1 |
(spacer) (only available with KIT1) |
| 41 |
N/A |
Not available |
2 |
(cable tie) (only available with KIT3) |
| 42 |
372-3069 |
50amp bolt down fuse |
1 |
|
| 43 |
372-3070 |
Fuse holder |
2 |
|
| N/S |
N/A |
Not available |
1 |
(bushing) (only available with KIT2) |
| KIT1 |
172-4817 |
Bumper wheel kit |
1 |
(includes 2, 34-35, 38-40) |
| KIT2 |
572-3631 |
HDW BRUSH DECK LIFTING ARMS |
1 |
(includes 3-4, 8, 16) |
| KIT3 |
572-3632 |
HARDWARE BRUSH DECK KIT |
1 |
(includes 3, 6, 9-15, 17, 19, 28, 30, 33, 36-37, 41) |
|
|

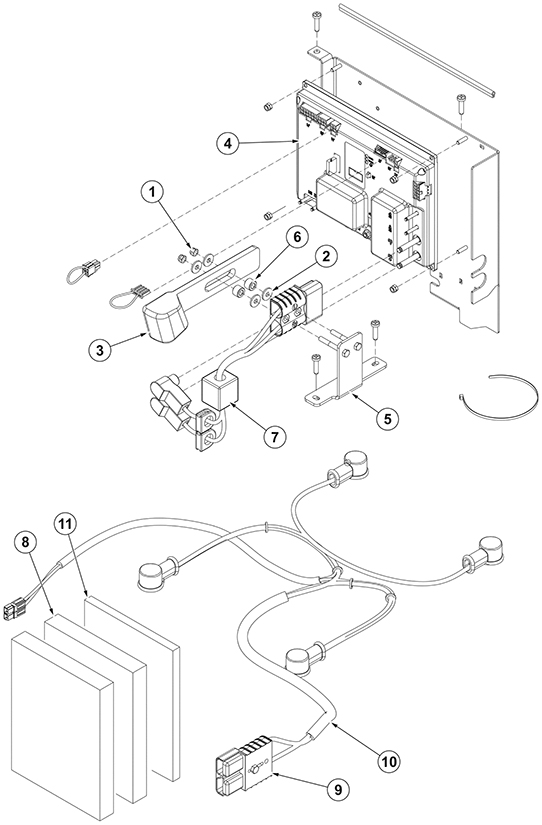

Electrical System Assembly - 272-1178 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
2 |
(M5 nut self locking) (only availalble with KIT2) |
| 2 |
N/A |
Not available |
4 |
(washer) (only available with KIT2) |
| 3 |
N/A |
Not available |
1 |
(battery connector lever) (only available with KIT2) |
| 4a |
572-3583 |
CONTROLLER MAIN MACHINE PKD |
1 |
(model 9087361020) |
| 4b |
372-3078 |
Main machine controller (OBSOLETE) |
1 |
(model 9087412020) |
| 5 |
N/A |
Not available |
1 |
(battery connector support) (only available with KIT2) |
| 6 |
N/A |
Not available |
2 |
(spacer) (only available with KIT2) |
| 7 |
572-3601 |
HARNESS ELECT COMPONENTS BOX |
1 |
|
| 8 |
N/A |
Not available |
2 |
(insulating panel) (only available with KIT1) |
| 9 |
272-8374 |
120amp connector (red) |
1 |
|
| 10 |
572-3542 |
HARNESS BATTERY US PKD |
1 |
|
| 11 |
N/A |
Not available |
1 |
(isolant panel) (only available with KIT1) |
| KIT1 |
572-3633 |
PANELS INSULATING KIT |
1 |
(includes 8 and 11) |
| KIT2 |
572-3634 |
LEVER EMERGENCY KIT |
1 |
(includes 1-3, 5-6) |
|
|

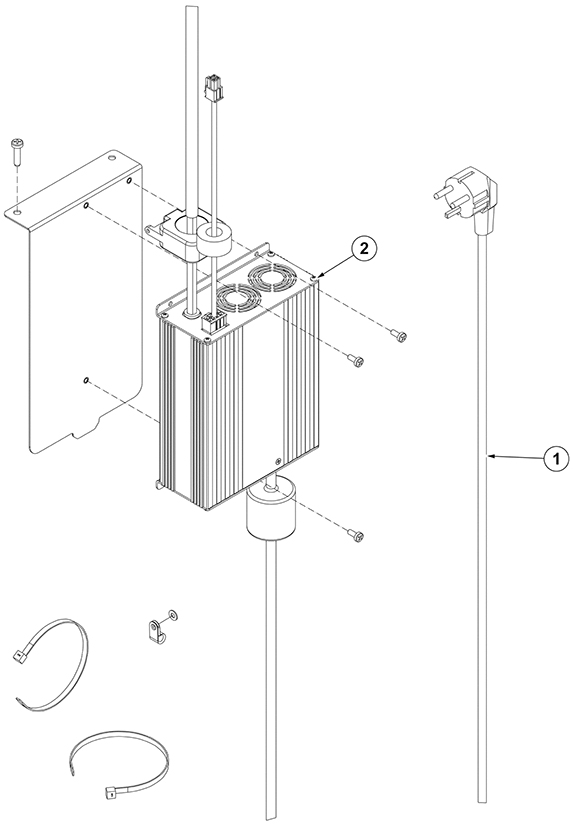

Battery Charger Assembly - 272-1179 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3503 |
CABLE EXT US PLUG 2000MM PKD |
1 |
|
| 2 |
572-3605 |
CHARGER BATT 24V 13A 100 230V |
1 |
|
|
|
Ecoflex System Assembly - 272-1180 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-3864 |
ECOFLEX BOTTLE ASSY |
1 |
(includes 2-5) |
| 2 |
572-3548 |
CHEMICAL TANK PKD |
1 |
|
| 3 |
272-6752 |
Dry brake insert |
1 |
|
| 4 |
272-2180 |
Solution fill cap |
1 |
|
| 5 |
272-2182 |
Dry break cap |
1 |
|
| 6 |
572-3504 |
SILICONE HOSE L-300 PKD |
1 |
|
| 7a |
172-4771 |
Chemical mix pump |
1 |
(model 9087361020) |
| 7b |
372-3082 |
24V detergent pump |
1 |
(model 9087412020) |
| 8a |
372-3081 |
Advance SC2000 decal kit |
1 |
(model 9087361020) |
| 8b |
372-3083 |
Peristaltic detergent pump head |
1 |
(model 9087412020) |
| 9 |
272-3755 |
Chemical tank adapter |
1 |
(included in KIT1) |
| 10 |
272-3756 |
Chemical mix level sensor |
1 |
(included in KIT1) |
| 11 |
372-3084 |
Straight hose barb (pkg of 2) |
1 |
(model 9087412020) |
| KIT1 |
272-3754 |
Detergent adapter kit |
1 |
(includes 9 and 10) |
|
|

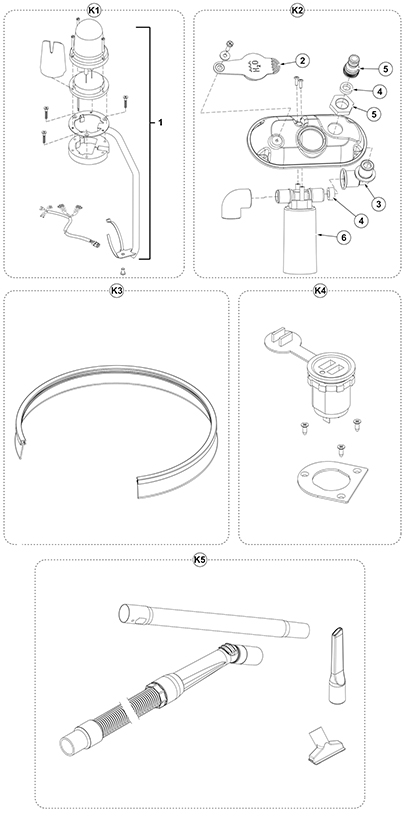

Accessories Assembly - 272-1181 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
372-3057 |
Beacon flashing |
1 |
|
| 2 |
572-3437 |
RUBBER SOLUTION CAP PKD |
1 |
|
| 3 |
572-3507 |
ELBOW CURVED M/F PKD |
1 |
|
| 5 |
572-3339 |
FITTING QUICK KIT |
1 |
|
| 6 |
572-3508 |
VALVE WATER STOP PKD |
1 |
|
| KIT1 |
572-3392 |
BEACON FLASHING KIT |
1 |
(includes 1) (optional) |
| KIT2 |
372-3059 |
Automatic water filling kit |
1 |
(includes 2-6) (optional) |
| KIT3 |
572-3680 |
SPLASH GUARD CPL F BRUSH PKD |
1 |
(optional) |
| KIT4 |
372-3085 |
USB port kit |
1 |
(optional) |
| KIT5 |
372-3086 |
Draining hand tool |
1 |
(optional) |
|
|
- Brushes - 272-1182 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
996-0664 |
Medium polypropelene scrubbing brush |
1 |
|
| 1b |
996-0705 |
Lite polypropelene scrubbing brush |
1 |
|
| 1c |
996-0841 |
Union mix polypropelene scrubbing brush |
1 |
|
| 1d |
996-0663 |
Medium grit scrubbing brush - 180 grit |
1 |
|
| 1e |
572-3912 |
BRUSH MED GRIT 20 |
1 |
|
| 1f |
572-3913 |
MAGNA GRIT BRUSH |
1 |
|
| 1g |
572-3914 |
DYNA GRIT BRUSH |
1 |
|
| 1h |
996-0665 |
Lite grit scrubbing brush - 500 grit |
1 |
|
| 2 |
996-0666 |
Pad driver assembly |
1 |
(includes 3 and 4) |
| 4 |
272-5504 |
Pad retainer |
1 |
|
| 5 |
996-0666 |
Pad driver assembly |
1 |
|
| 6a |
N/A |
Not available |
1 |
(20 inch pad (black) (pkg of 5) |
| 6b |
N/A |
Not available |
1 |
(20 inch pad (blue) (pkg of 5) |
| 6c |
N/A |
Not available |
1 |
(20 inch pad (brown) (pkg of 5) |
| 6d |
N/A |
Not available |
1 |
(20 inch pad (green) (pkg of 5) |
| 6e |
N/A |
Not available |
1 |
(20 inch pad (red) (pkg of 5) |
| 6f |
N/A |
Not available |
1 |
(20 inch pad (white) (pkg of 5) |
| 6g |
372-1355 |
20 inch eco pad (red) (pkg of 2) |
1 |
|
| 6h |
372-1356 |
20 inch eco pad (blue) (pkg of 2) |
1 |
|
| 6i |
372-1357 |
20 inch eco pad (yellow) (pkg of 2) |
1 |
|
| 6j |
372-1358 |
20 inch eco pad (green) (pkg of 2) |
1 |
|
|
|

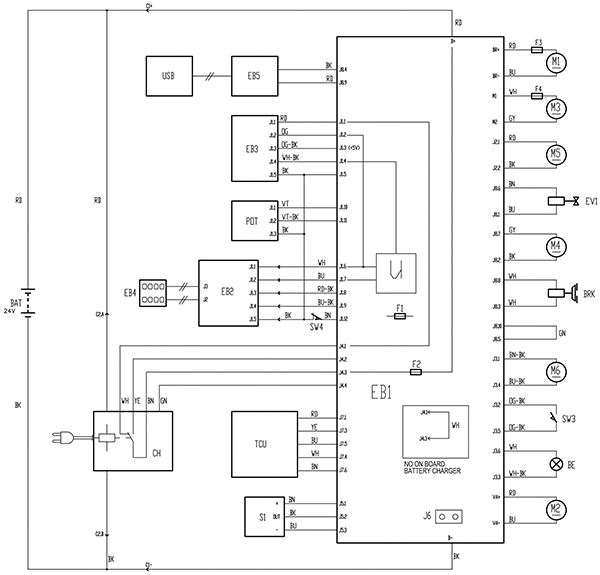

Wiring Diagram - Model 9087361020 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

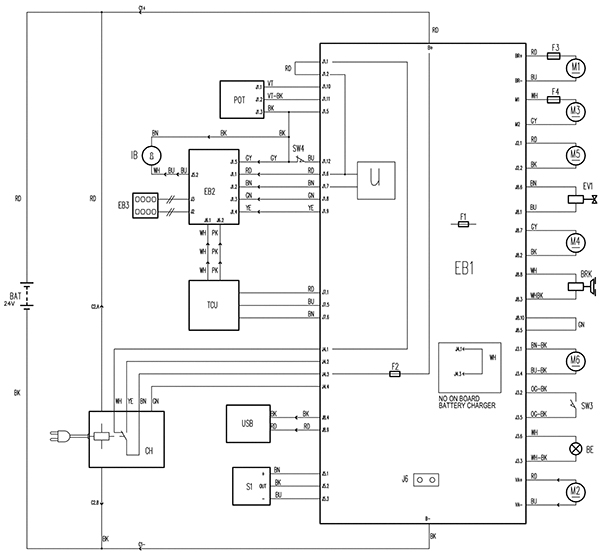

Wiring Diagram - Model 9087412020 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
