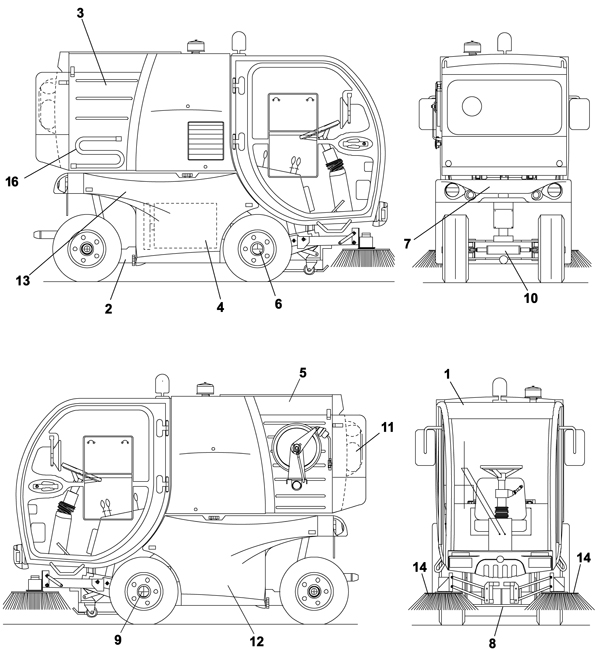

Machine Layout Assembly - 272-9302 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Cabin) |
| 2 |
272-4029 |
Chassis (OBSOLETE) |
1 |
|
| 3 |
272-4030 |
Hopper kit (OBSOLETE) |
1 |
|
| 4 |
272-4031 |
V1505T Kubota engine (OBSOLETE) |
1 |
|
| 6a |
272-4033 |
Right side motor wheel (OBSOLETE) |
1 |
|
| 6b |
272-4034 |
Motor wheel kit (OBSOLETE) |
1 |
|
| 7 |
272-4035 |
Rotomolded bumper |
1 |
|
| 8 |
272-4036 |
Suction head |
1 |
|
| 9 |
272-4037 |
Left side motor wheel (OBSOLETE) |
1 |
|
| 10 |
272-4038 |
Rear axle assembly (OBSOLETE) |
1 |
|
| 11 |
272-4039 |
Suction hose (OBSOLETE) |
1 |
|
| 12 |
272-4040 |
Left side water tank (OBSOLETE) |
1 |
|
| 13 |
272-4041 |
Right side water tank (OBSOLETE) |
1 |
|
| 14 |
272-7289 |
Side broom polypropelene and steel (OBSOLETE) |
1 |
|
| 16 |
272-4042 |
Water drain hose |
1 |
|
|
|

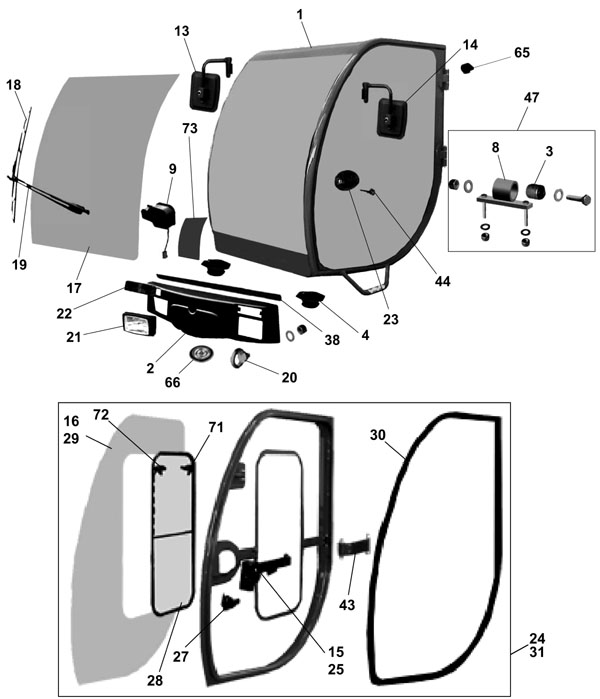

Door and Window Assembly - 272-9303 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Cabin) |
| 2 |
272-4043 |
Headlight housing |
1 |
|
| 3 |
272-4044 |
Cylindrical rubber isolator |
1 |
|
| 4 |
272-4045 |
Rubber isolator (OBSOLETE) |
2 |
|
| 8 |
272-4049 |
Rear cab support (OBSOLETE) |
1 |
|
| 9 |
272-4050 |
Windshield wiper motor (OBSOLETE) |
1 |
|
| 13a |
272-4054 |
Right side cab mirror |
1 |
|
| 13b |
272-4055 |
Right side mirror kit (OBSOLETE) |
1 |
|
| 14a |
272-4056 |
Left side cab mirror |
1 |
|
| 14b |
272-4057 |
Left side mirror kit |
1 |
|
| 15 |
272-4058 |
Left side lock assembly |
1 |
|
| 16 |
272-4059 |
Left side door window |
1 |
|
| 18 |
272-4061 |
Windshield wiper (OBSOLETE) |
1 |
|
| 19 |
272-4062 |
Windshield wiper arm (OBSOLETE) |
1 |
|
| 20 |
272-4063 |
Eyebolt M20 (OBSOLETE) |
1 |
|
| 21 |
272-4064 |
Front headlight assembly |
2 |
|
| 22 |
272-4065 |
Front turn signal |
2 |
|
| 23 |
272-4066 |
External cab door handle (OBSOLETE) |
2 |
|
| 24 |
272-4067 |
Right side cab door (OBSOLETE) |
1 |
(Includes items 25, 27-30, 43, 71 and 72) |
| 25 |
272-4068 |
Right side lock assembly (OBSOLETE) |
1 |
|
| 27 |
272-4070 |
Door lock striker (OBSOLETE) |
2 |
|
| 28 |
272-4071 |
Sliding window (OBSOLETE) |
1 |
|
| 29 |
272-4072 |
Right side cab door window (OBSOLETE) |
1 |
|
| 30 |
272-4073 |
Door gasket (OBSOLETE) |
1 |
|
| 31 |
272-4074 |
Left side cab door (OBSOLETE) |
1 |
(Includes items 15, 16, 27, 28, 30, 43, 71 and 72) |
| 38 |
272-4079 |
Gasket strip |
1 |
|
| 43 |
272-4080 |
Cab door strap |
2 |
|
| 44 |
272-4081 |
Cab door key |
1 |
|
| 47 |
272-4082 |
Rear cab support kit (OBSOLETE) |
1 |
(Includes items 3 and 8) |
| 65 |
272-4083 |
Flashing light socket |
1 |
|
| 71 |
272-4085 |
Right side handle (OBSOLETE) |
1 |
|
| 72 |
272-4086 |
Left side handle (OBSOLETE) |
1 |
|
| 73 |
272-4087 |
Windshield wiper plate (OBSOLETE) |
1 |
|
|
|

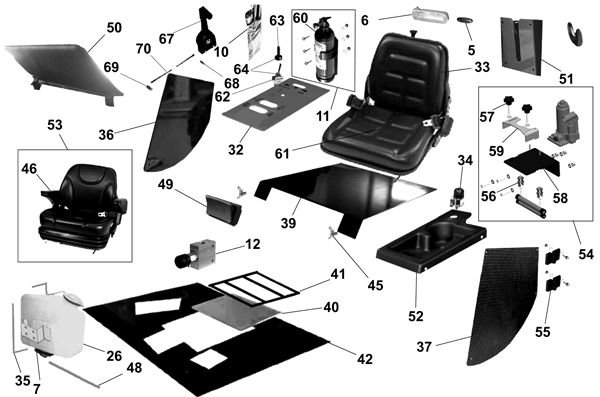

Cabin Assembly - 272-9304 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 5 |
272-4046 |
12V bulb (OBSOLETE) |
1 |
|
| 6 |
272-4047 |
Roof lamp (OBSOLETE) |
1 |
|
| 7 |
272-4048 |
Tank support (OBSOLETE) |
1 |
|
| 10 |
272-4051 |
Tool kit (OBSOLETE) |
1 |
|
| 11 |
272-4052 |
Fire extinguisher kit (OBSOLETE) |
1 |
(Includes item 60) |
| 12 |
272-4053 |
Adjustable broom speed kit (OBSOLETE) |
1 |
|
| 26 |
272-4069 |
Windshield wiper fluid resevoir (OBSOLETE) |
1 |
|
| 32 |
272-4075 |
2-way control panel plate (OBSOLETE) |
1 |
|
| 33 |
272-4076 |
Seat with seatbelt (OBSOLETE) |
1 |
|
| 34 |
272-4077 |
Cigarette lighter (OBSOLETE) |
1 |
|
| 35 |
272-5462 |
Clamp 4.8 x 30 (white) (OBSOLETE) |
2 |
|
| 36 |
272-4078 |
Right side cab panel (OBSOLETE) |
1 |
|
| 37 |
272-4088 |
Left side cab panel (OBSOLETE) |
1 |
|
| 39 |
N/A |
Not available |
1 |
(Seat plate) |
| 40 |
272-4089 |
Cab floor window (OBSOLETE) |
1 |
|
| 41 |
272-4090 |
Window grate (OBSOLETE) |
1 |
|
| 42 |
272-4091 |
Cab floor mat (OBSOLETE) |
1 |
|
| 45 |
272-0772 |
Nut M6 wing (pkg 5) |
2 |
|
| 46 |
272-4093 |
Comfort seat (OBSOLETE) |
1 |
|
| 48 |
272-4094 |
Hose 4 x 6 inch (clear) (OBSOLETE) |
1 |
|
| 49 |
272-4095 |
Ash tray (OBSOLETE) |
1 |
|
| 50 |
272-4096 |
Sun visor (OBSOLETE) |
1 |
|
| 51 |
272-4097 |
Document holder (OBSOLETE) |
1 |
|
| 52 |
272-4098 |
Object holder (OBSOLETE) |
1 |
|
| 53 |
272-4099 |
Comfort seat kit (OBSOLETE) |
1 |
(Includes item 46) |
| 54 |
272-4100 |
Hydraulic jack kit (OBSOLETE) |
1 |
(Includes items 56-59) |
| 56 |
272-4101 |
Spring clip (OBSOLETE) |
2 |
|
| 57 |
272-4102 |
Knob M8 x 45 (OBSOLETE) |
2 |
|
| 58 |
272-4103 |
Hydraulic jack support (OBSOLETE) |
1 |
|
| 59 |
272-4104 |
Hydraulic jack plate (OBSOLETE) |
1 |
|
| 60 |
272-4105 |
Fire extinguisher (OBSOLETE) |
1 |
|
| 61 |
272-4106 |
Seat cushion (OBSOLETE) |
1 |
|
| 62 |
272-4107 |
Flap switch (OBSOLETE) |
1 |
|
| 63 |
272-4108 |
Switch protection cap (OBSOLETE) |
1 |
|
| 64 |
272-4109 |
Switch and cap kit (OBSOLETE) |
1 |
|
| 67 |
272-4110 |
Lever with block (OBSOLETE) |
1 |
|
| 68 |
272-4111 |
Accelerator cable clamp (OBSOLETE) |
1 |
|
| 69 |
272-4112 |
Accelerator cable clamp |
1 |
|
| 70 |
272-4113 |
Accelerator cable |
1 |
|
|
|

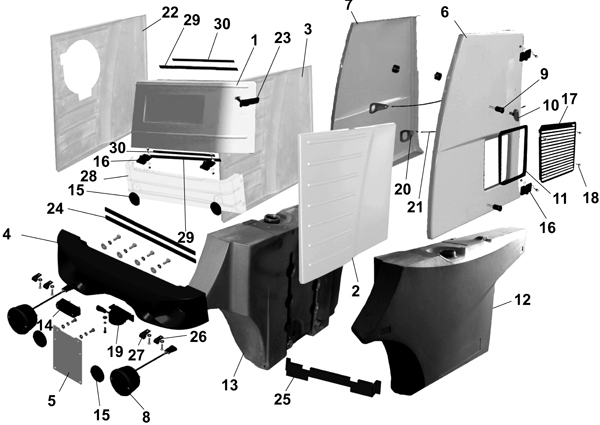

Bonnets Assembly - 272-9305 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4114 |
Upper bonnet |
1 |
|
| 2 |
272-4115 |
Right side panel |
1 |
|
| 3 |
272-4116 |
Left side panel (OBSOLETE) |
1 |
|
| 4 |
272-4035 |
Rotomolded bumper |
1 |
|
| 5 |
272-4117 |
Holder plate (OBSOLETE) |
1 |
|
| 6 |
272-4118 |
Right side door (OBSOLETE) |
1 |
|
| 7 |
272-4119 |
Left side door (OBSOLETE) |
1 |
|
| 8 |
272-4120 |
Tail light with connector |
2 |
|
| 9 |
272-4121 |
Locking compression (OBSOLETE) |
4 |
|
| 12 |
272-4041 |
Right side water tank (OBSOLETE) |
1 |
|
| 13 |
272-4040 |
Left side water tank (OBSOLETE) |
1 |
|
| 14 |
272-4124 |
License plate light (OBSOLETE) |
1 |
|
| 17 |
272-4126 |
Radiator protection grill (OBSOLETE) |
1 |
|
| 18 |
272-4127 |
Rivet (OBSOLETE) |
6 |
|
| 19 |
272-4128 |
12V warning buzzer (OBSOLETE) |
1 |
|
| 20 |
272-4129 |
Cable mounting bracket (OBSOLETE) |
2 |
|
| 22 |
272-4116 |
Left side panel (OBSOLETE) |
1 |
|
| 25 |
272-4134 |
Radiator plate (OBSOLETE) |
1 |
|
| 26 |
372-3331 |
Cable clamp (black) |
3 |
|
| 28 |
272-4135 |
Lower bonnet kit |
1 |
|
| 30 |
272-4137 |
Gasket kit (OBSOLETE) |
1 |
|
|
|

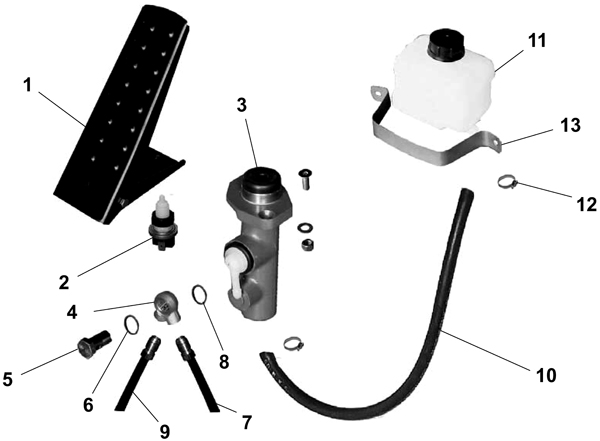

Brake Assembly - 272-9306 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4138 |
Brake pedal (OBSOLETE) |
1 |
|
| 2 |
272-4139 |
Brake light switch |
1 |
|
| 3 |
272-4140 |
Brake pump (OBSOLETE) |
1 |
|
| 4 |
272-4141 |
2-way banjo fitting (OBSOLETE) |
1 |
|
| 5 |
272-4142 |
Bolt M12 x 1.5mm banjo (OBSOLETE) |
1 |
|
| 6 |
272-4143 |
Washer 14-20 copper (OBSOLETE) |
1 |
|
| 7 |
272-4144 |
Right side hydraulic hose (OBSOLETE) |
1 |
|
| 8 |
272-4145 |
Washer 12 copper (OBSOLETE) |
1 |
|
| 9 |
272-4146 |
Left side hydraulic hose (OBSOLETE) |
1 |
|
| 10 |
272-4147 |
Hose (OBSOLETE) |
1 |
|
| 11 |
272-4148 |
Brake fluid reservoir (OBSOLETE) |
1 |
|
| 12 |
170-5169 |
Hose clamp SAE #4 |
2 |
|
| 13 |
272-4149 |
Brake fluid reservoir clamp (OBSOLETE) |
1 |
|
|
|

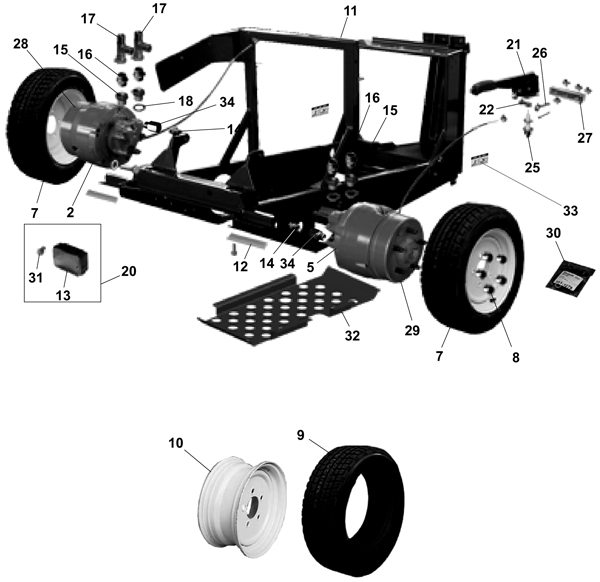

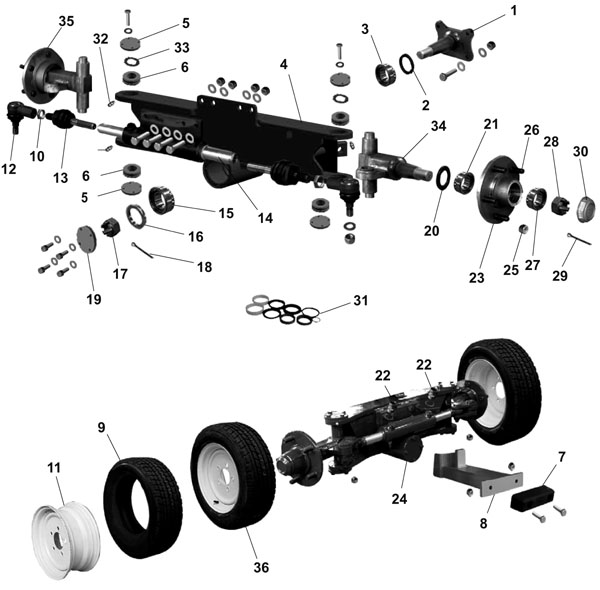

Rear Axle Assembly - 272-9307 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4150 |
Rear axle pin weldment (OBSOLETE) |
1 |
|
| 2 |
272-4151 |
Shaft seal (OBSOLETE) |
1 |
|
| 3 |
272-4152 |
Roller bearing (OBSOLETE) |
1 |
|
| 4 |
272-4153 |
Rear axle weldment (OBSOLETE) |
1 |
|
| 5 |
272-4154 |
Rear axle cover (OBSOLETE) |
4 |
|
| 6 |
272-4155 |
Spherical bearing |
4 |
|
| 7 |
272-4156 |
Rubber bumper (OBSOLETE) |
1 |
|
| 8 |
272-4157 |
Bumper (OBSOLETE) |
1 |
|
| 10 |
272-4159 |
Nut M18 x 1.5 low |
2 |
|
| 13 |
272-4162 |
Ball joint (OBSOLETE) |
2 |
|
| 14 |
272-4163 |
Steering wheel cylinder (OBSOLETE) |
1 |
|
| 15 |
272-4164 |
Roller bearing |
1 |
|
| 16 |
272-4165 |
Flat washer (OBSOLETE) |
1 |
|
| 17 |
272-4166 |
Nut M30 castellated (OBSOLETE) |
1 |
|
| 18 |
272-4167 |
Cotter pin (OBSOLETE) |
1 |
|
| 19 |
272-4168 |
Rear axle pivot cover (OBSOLETE) |
1 |
|
| 20 |
272-4169 |
Shaft seal (OBSOLETE) |
2 |
|
| 21 |
272-4170 |
Roller bearing (OBSOLETE) |
2 |
|
| 23 |
272-4172 |
Wheel hub with studs |
2 |
|
| 24 |
272-4038 |
Rear axle assembly (OBSOLETE) |
1 |
|
| 25 |
272-4173 |
Lug nut (OBSOLETE) |
10 |
|
| 26 |
272-4174 |
Wheel stud (OBSOLETE) |
10 |
|
| 27 |
272-4175 |
Roller bearing |
2 |
|
| 28 |
272-4176 |
Nut M24 x 2 castellated hex (OBSOLETE) |
2 |
|
| 31 |
272-4179 |
Gasket kit (OBSOLETE) |
1 |
|
| 32 |
272-4180 |
45 degree M8 grease fitting (OBSOLETE) |
4 |
|
| 33 |
272-4181 |
Washer 32 x 45 x .1 (OBSOLETE) |
20 |
|
| 34 |
272-4182 |
Right side wheel hub (OBSOLETE) |
1 |
|
| 35 |
272-4183 |
Left side wheel hub (OBSOLETE) |
1 |
|
|
|

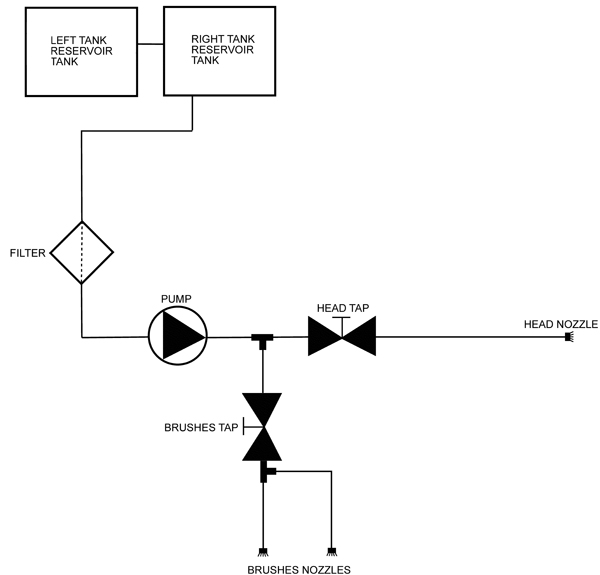

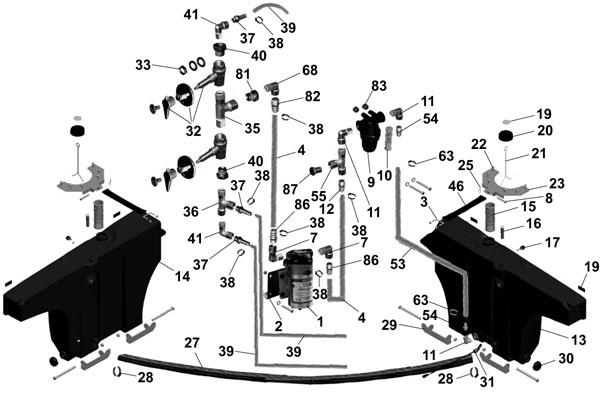

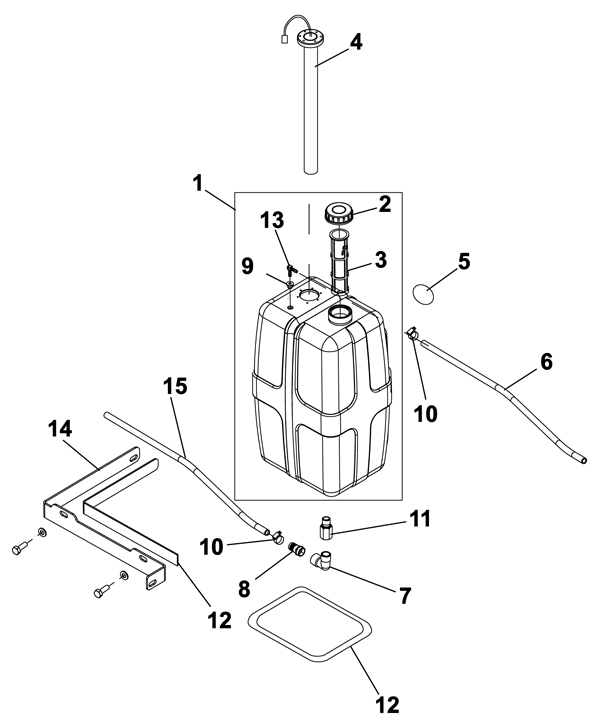

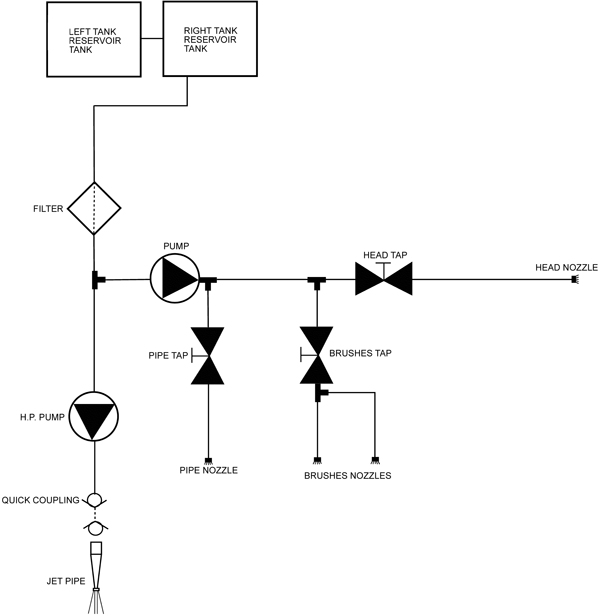

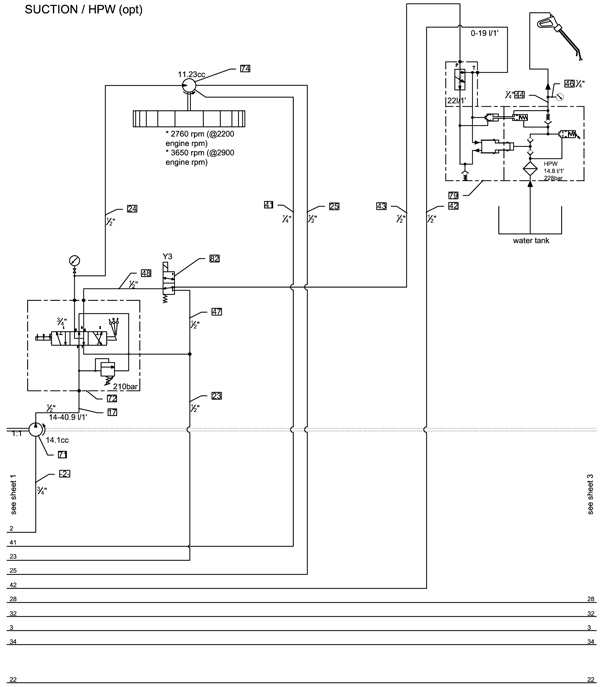

Water Flow Assembly - 272-9308 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4185 |
Water pump with connector |
1 |
|
| 2 |
272-4186 |
Water pump support (OBSOLETE) |
1 |
|
| 3 |
272-4187 |
Strap (OBSOLETE) |
2 |
|
| 4 |
272-4188 |
Hose 12 x 18 (OBSOLETE) |
1 |
|
| 7 |
272-4189 |
3/8 inch elbow fitting (OBSOLETE) |
2 |
|
| 8 |
272-4190 |
Clevis pin (OBSOLETE) |
2 |
|
| 9 |
272-4191 |
Water filter |
1 |
|
| 10 |
272-4192 |
Water filter |
1 |
|
| 11 |
272-4193 |
1/2 inch elbow fitting |
3 |
|
| 12 |
272-4194 |
1/2 inch rubber seal (OBSOLETE) |
1 |
|
| 13 |
272-4041 |
Right side water tank (OBSOLETE) |
1 |
|
| 14 |
272-4040 |
Left side water tank (OBSOLETE) |
1 |
|
| 15 |
272-4195 |
Water filter |
2 |
|
| 16 |
272-4196 |
Safety pin (OBSOLETE) |
2 |
|
| 17 |
272-4197 |
Rubber isolator |
2 |
|
| 19 |
272-4198 |
Decal kit (OBSOLETE) |
1 |
|
| 20 |
272-4199 |
Plug (OBSOLETE) |
2 |
|
| 22 |
272-7337 |
Hose stopper (OBSOLETE) |
1 |
|
| 23 |
272-4201 |
Tank bracket (OBSOLETE) |
2 |
|
| 27 |
272-4202 |
Flex hose (OBSOLETE) |
1 |
|
| 28 |
272-4203 |
Hose clamp (OBSOLETE) |
2 |
|
| 29 |
272-4204 |
Tank support (OBSOLETE) |
4 |
|
| 31 |
272-4206 |
Water level float |
1 |
|
| 33 |
272-4208 |
Nut 3/8 hex (OBSOLETE) |
2 |
|
| 35 |
272-4209 |
1/2 inch tee fitting (OBSOLETE) |
1 |
|
| 36 |
272-4210 |
1/8 inch tee fitting (OBSOLETE) |
1 |
|
| 37 |
272-4211 |
Rubber seal |
3 |
|
| 38 |
170-5169 |
Hose clamp SAE #4 |
7 |
|
| 41 |
272-4214 |
1/8 inch elbow fitting (OBSOLETE) |
2 |
|
| 46 |
272-4215 |
Strap (OBSOLETE) |
2 |
|
| 53 |
272-4216 |
Wire enforced hose (OBSOLETE) |
1 |
|
| 54 |
272-4217 |
1/2 inch rubber seal (OBSOLETE) |
1 |
|
| 55 |
272-4218 |
1/2 inch tee fitting (OBSOLETE) |
1 |
|
| 63 |
272-4219 |
Hose clamp (OBSOLETE) |
2 |
|
| 68 |
272-4220 |
1/4 inch elbow fitting |
1 |
|
| 81 |
272-4221 |
Fitting (OBSOLETE) |
1 |
|
| 82 |
272-4222 |
1/4 inch rubber seal (OBSOLETE) |
1 |
|
| 83 |
272-4223 |
Spacer (OBSOLETE) |
2 |
|
| 86 |
272-4224 |
3/8 inch rubber seal (OBSOLETE) |
2 |
|
| 87 |
272-4225 |
1/2 inch plug (OBSOLETE) |
1 |
|
|
|

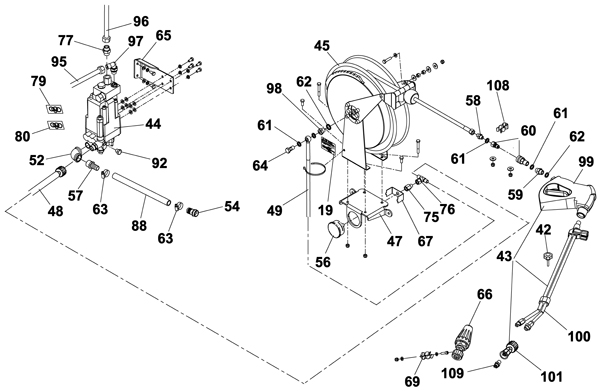

Water Gun and Roller Assembly - 272-9309 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 19 |
272-4198 |
Decal kit (OBSOLETE) |
1 |
|
| 42 |
272-4226 |
Knob M6 x 35 |
1 |
|
| 43 |
272-4227 |
Wand and gun assembly (OBSOLETE) |
1 |
(Includes items 99-101) |
| 44 |
272-6574 |
High pressure pump with regulator |
1 |
|
| 45 |
272-4228 |
Hose reel (OBSOLETE) |
1 |
|
| 47 |
272-4229 |
Roller support (OBSOLETE) |
1 |
|
| 48 |
272-4230 |
Hydraulic hose |
1 |
|
| 49 |
272-4231 |
Hydraulic hose |
1 |
|
| 52 |
272-4232 |
3/4 inch elbow fitting (OBSOLETE) |
1 |
|
| 54 |
272-4217 |
1/2 inch rubber seal (OBSOLETE) |
1 |
|
| 56 |
272-4233 |
Pressure gauge |
1 |
|
| 57 |
272-4234 |
3/4 inch rubber seal (OBSOLETE) |
1 |
|
| 59 |
272-4235 |
Nipple fitting |
1 |
|
| 60 |
272-7333 |
1/4 quick disconnect |
1 |
|
| 61 |
272-7335 |
Sealing washer |
4 |
|
| 62 |
272-4236 |
3/8 inch sealing washer |
2 |
|
| 63 |
272-4219 |
Hose clamp (OBSOLETE) |
2 |
|
| 64 |
272-4237 |
1/4 inch fitting |
1 |
|
| 65 |
272-4238 |
Water pump support (OBSOLETE) |
1 |
|
| 66 |
272-4239 |
Turbo nozzle |
1 |
|
| 67 |
272-4240 |
Manometer bracket (OBSOLETE) |
1 |
|
| 69 |
272-4241 |
Spring rod holder (OBSOLETE) |
1 |
|
| 75 |
272-4242 |
1/4 inch adapter fitting |
1 |
|
| 76 |
272-4243 |
1/4 inch tee fitting (OBSOLETE) |
1 |
|
| 77 |
272-4244 |
1/2 inch nipple |
1 |
|
| 79 |
272-4245 |
Gasket kit (OBSOLETE) |
1 |
|
| 80 |
272-4246 |
Gasket kit (OBSOLETE) |
1 |
|
| 88 |
272-4247 |
Wire enforced hose (OBSOLETE) |
1 |
|
| 92 |
272-4248 |
1/4 inch plug (OBSOLETE) |
1 |
|
| 95 |
272-4249 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 96 |
272-4250 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 97 |
272-4251 |
1/2 inch fitting |
1 |
|
| 98 |
272-4252 |
3/8 inch reduction gear |
1 |
|
| 100 |
272-4254 |
High pressure wand |
1 |
|
| 101 |
272-4255 |
Nozzle assembly (OBSOLETE) |
1 |
|
| 108 |
272-4101 |
Spring clip (OBSOLETE) |
1 |
|
| 109 |
272-4256 |
High pressure nozzle |
1 |
|
|
|

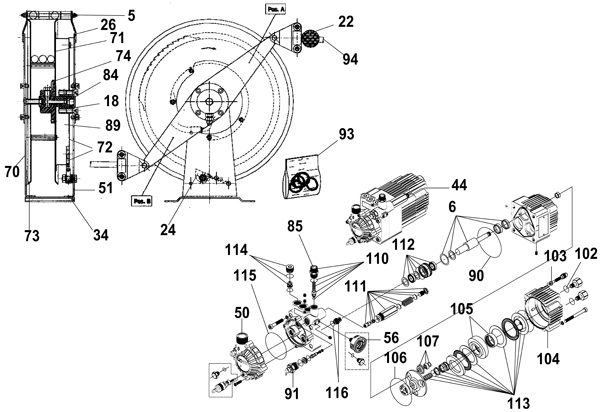

Water Hydraulic Assembly - 272-9310 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 6 |
272-4257 |
Piston kit (OBSOLETE) |
1 |
|
| 18 |
272-4258 |
Retainer spring (OBSOLETE) |
1 |
|
| 22 |
272-7337 |
Hose stopper (OBSOLETE) |
1 |
|
| 24 |
272-4259 |
Latch (OBSOLETE) |
1 |
|
| 26 |
272-4260 |
Upper support (OBSOLETE) |
2 |
|
| 34 |
272-4261 |
Plate (OBSOLETE) |
1 |
|
| 44 |
272-6574 |
High pressure pump with regulator |
1 |
|
| 50 |
272-4262 |
Water inlet cover (OBSOLETE) |
1 |
|
| 51 |
272-4263 |
Inside support (OBSOLETE) |
1 |
|
| 56 |
272-4233 |
Pressure gauge |
1 |
|
| 70 |
272-4264 |
Exterior support (OBSOLETE) |
1 |
|
| 71 |
272-4265 |
Exterior flange (OBSOLETE) |
1 |
|
| 72 |
272-4266 |
Box spring (OBSOLETE) |
1 |
|
| 73 |
272-4267 |
Exterior flange (OBSOLETE) |
1 |
|
| 74 |
272-4268 |
Hub (OBSOLETE) |
1 |
|
| 84 |
272-4269 |
Shaft (OBSOLETE) |
1 |
|
| 85 |
272-4270 |
Nipple (OBSOLETE) |
1 |
|
| 89 |
272-4271 |
Roller spring (OBSOLETE) |
1 |
|
| 90 |
272-4272 |
O-ring gasket |
1 |
|
| 91 |
272-4273 |
Thermal valve |
1 |
|
| 93 |
272-4274 |
Roller gasket kit |
1 |
|
| 94 |
272-7332 |
Hose cleaner assembly |
1 |
|
| 102 |
272-4275 |
O-ring gasket |
1 |
|
| 103 |
272-4276 |
Oil relief valve (OBSOLETE) |
1 |
|
| 104 |
272-4277 |
Breech kit (OBSOLETE) |
1 |
|
| 105 |
272-4278 |
Hydraulic cam motor kit (OBSOLETE) |
1 |
|
| 106 |
272-4279 |
O-ring gasket |
1 |
|
| 107 |
272-4280 |
Piston retaining kit |
1 |
|
| 110 |
272-4281 |
Outlet valve kit (OBSOLETE) |
1 |
|
| 111 |
272-4282 |
Piston kit |
1 |
|
| 112 |
272-4283 |
Seal kit (OBSOLETE) |
1 |
|
| 113 |
272-4284 |
Fifth wheel kit |
1 |
|
| 114 |
272-4285 |
Valve kit (OBSOLETE) |
1 |
|
|
|
Water System - Standard Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

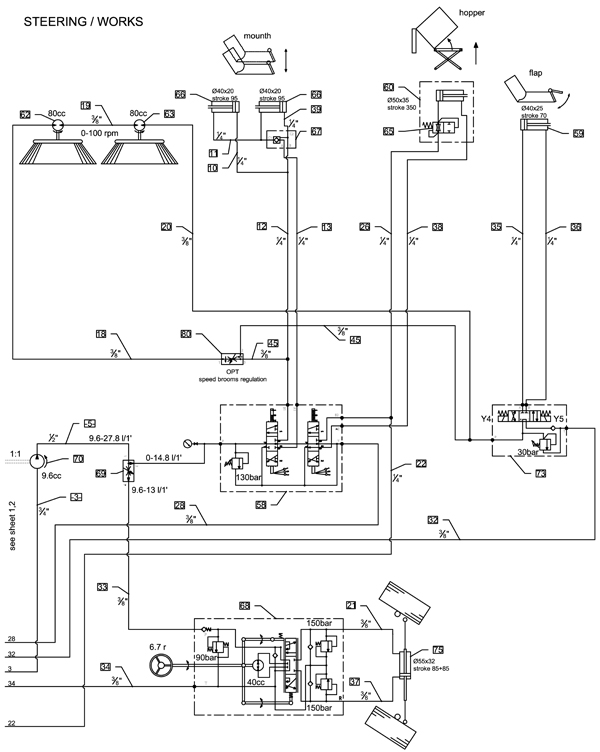

Water System Diagram - Hydrolic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

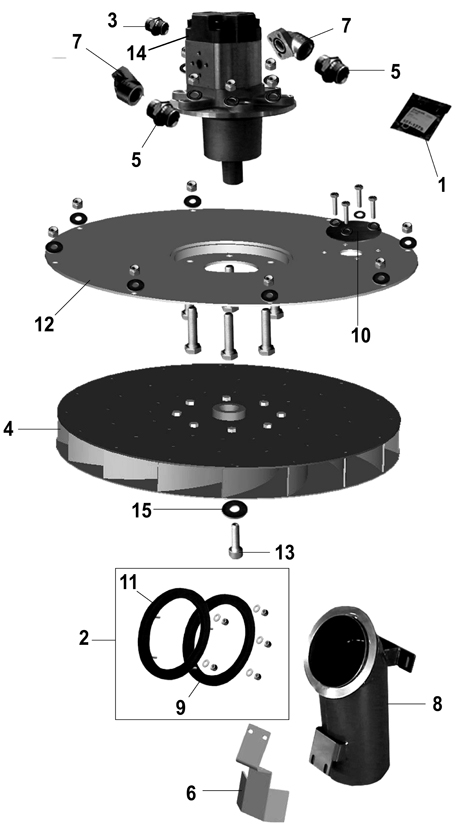

Turbine Assembly - 272-9314 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-4291 |
Container seal kit (OBSOLETE) |
1 |
(Includes items 9 and 11) |
| 3 |
272-4292 |
1/4 inch pipe fitting |
1 |
|
| 5 |
272-4244 |
1/2 inch nipple |
2 |
|
| 6 |
272-4293 |
Upper suction hose support (OBSOLETE) |
1 |
|
| 7 |
272-4294 |
1/2 inch o-ring elbow fitting |
2 |
|
| 8 |
272-4295 |
Suction hose (OBSOLETE) |
1 |
|
| 10 |
272-4297 |
Inspection plug (OBSOLETE) |
1 |
|
| 11 |
272-4298 |
Suction pipe seal (OBSOLETE) |
1 |
|
| 13 |
272-4300 |
Screw M12-1 1/4 x 30 hex head |
1 |
|
| 14 |
272-4301 |
Suction fan replacement kit |
1 |
|
| 15 |
272-4302 |
Washer 50 x 13 x 6 (OBSOLETE) |
1 |
|
|
|

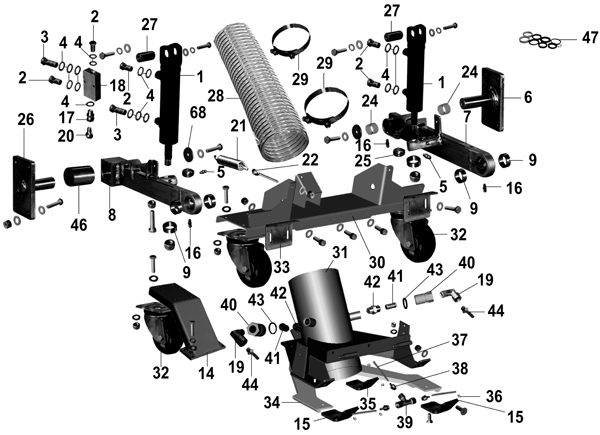

Suction Head - Hydraulic Cylinder Assembly - 272-9315 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4303 |
Hydraulic cylinder |
2 |
|
| 2 |
272-4237 |
1/4 inch fitting |
5 |
|
| 3 |
272-4304 |
1/4 inch fitting (OBSOLETE) |
2 |
|
| 4 |
272-7335 |
Sealing washer |
17 |
|
| 5 |
272-4305 |
Grease fitting |
2 |
|
| 6 |
272-4306 |
Left arm pin weldment (OBSOLETE) |
1 |
|
| 7 |
272-4307 |
Left arm (OBSOLETE) |
1 |
|
| 9 |
272-4309 |
Arm lifting spacer |
6 |
|
| 14 |
272-4310 |
Caster wheel support (OBSOLETE) |
1 |
|
| 16 |
272-4311 |
45 degree grease fitting |
5 |
|
| 17 |
272-4312 |
1/4 inch swivel fitting (OBSOLETE) |
1 |
|
| 18 |
272-4313 |
Hydraulic valve |
1 |
|
| 19 |
272-4220 |
1/4 inch elbow fitting |
2 |
|
| 20 |
272-4314 |
1/4 inch eye (OBSOLETE) |
1 |
|
| 21 |
272-4315 |
Extension spring |
4 |
|
| 22 |
272-4316 |
Eye bolt M10 |
4 |
|
| 24 |
272-4317 |
Bronze bushing |
1 |
|
| 25 |
272-4318 |
Spherical bearing (OBSOLETE) |
4 |
|
| 26 |
272-4319 |
Right arm pin weldment (OBSOLETE) |
1 |
|
| 27 |
272-4320 |
Pin (OBSOLETE) |
2 |
|
| 28 |
272-4321 |
Suction hose (OBSOLETE) |
1 |
|
| 30 |
272-4323 |
Suction head support weldment (OBSOLETE) |
1 |
|
| 31 |
272-4036 |
Suction head |
1 |
|
| 32 |
272-4324 |
Caster wheel |
3 |
|
| 33 |
272-4325 |
Adjustment plate (OBSOLETE) |
2 |
|
| 34 |
272-7349 |
Plastic wear plate (OBSOLETE) |
1 |
|
| 36 |
170-5169 |
Hose clamp SAE #4 |
8 |
|
| 38 |
272-4211 |
Rubber seal |
5 |
|
| 39 |
272-4327 |
1/8 inch tee fitting (OBSOLETE) |
1 |
|
| 40 |
272-4328 |
Nozzle holder |
2 |
|
| 41 |
272-4329 |
Mesh filter |
2 |
|
| 42 |
272-4330 |
1/4 inch nozzle |
2 |
|
| 43 |
272-4331 |
Elastic ring |
2 |
|
| 44 |
272-4332 |
Rubber seal holder |
2 |
|
| 46 |
272-4044 |
Cylindrical rubber isolator |
1 |
|
| 47 |
272-4333 |
Cylinder flap gasket kit (OBSOLETE) |
2 |
|
| 68 |
272-4334 |
Flat washer (OBSOLETE) |
1 |
(After SN 103806748) |
|
|

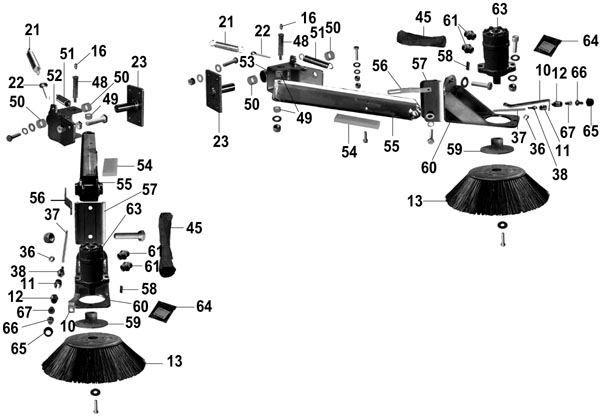

Side Broom Assembly - 272-9316 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 11 |
272-4336 |
1/8 inch sleeve |
2 |
|
| 12 |
272-4337 |
Reduction fitting |
2 |
|
| 13a |
272-4338 |
Side broom (OBSOLETE) |
2 |
|
| 13b |
272-7289 |
Side broom polypropelene and steel (OBSOLETE) |
2 |
|
| 16 |
272-4311 |
45 degree grease fitting |
5 |
|
| 21 |
272-4315 |
Extension spring |
4 |
|
| 22 |
272-4316 |
Eye bolt M10 |
4 |
|
| 23 |
272-4339 |
Side broom weldment (OBSOLETE) |
2 |
|
| 36 |
170-5169 |
Hose clamp SAE #4 |
8 |
|
| 38 |
272-4211 |
Rubber seal |
5 |
|
| 50 |
272-4343 |
Bushing (OBSOLETE) |
4 |
|
| 51 |
272-4344 |
Broom arm spring |
2 |
|
| 52 |
272-4345 |
Right arm mounting bracket (OBSOLETE) |
1 |
|
| 53 |
272-4346 |
Left arm mounting bracket (OBSOLETE) |
1 |
|
| 54 |
272-4347 |
Bumper strip (OBSOLETE) |
2 |
|
| 55 |
272-4348 |
Side broom arm |
2 |
|
| 56 |
272-4349 |
Adjustment link (OBSOLETE) |
2 |
|
| 57 |
272-4350 |
Side broom motor support (OBSOLETE) |
2 |
|
| 58 |
272-4351 |
8 x 32 key (OBSOLETE) |
2 |
|
| 59 |
272-4352 |
Side broom mounting hub (OBSOLETE) |
2 |
|
| 60 |
272-4353 |
Motor support (OBSOLETE) |
2 |
|
| 61 |
272-4354 |
Pipe fitting |
4 |
|
| 63 |
272-4355 |
Hydraulic motor |
2 |
|
| 64 |
272-4356 |
Motor gasket kit (OBSOLETE) |
2 |
|
| 65 |
272-4357 |
Nozzle retaining nut |
2 |
|
| 66 |
272-4358 |
Spray nozzle (OBSOLETE) |
2 |
|
| 67 |
272-4359 |
Mesh filter (OBSOLETE) |
2 |
|
|
|

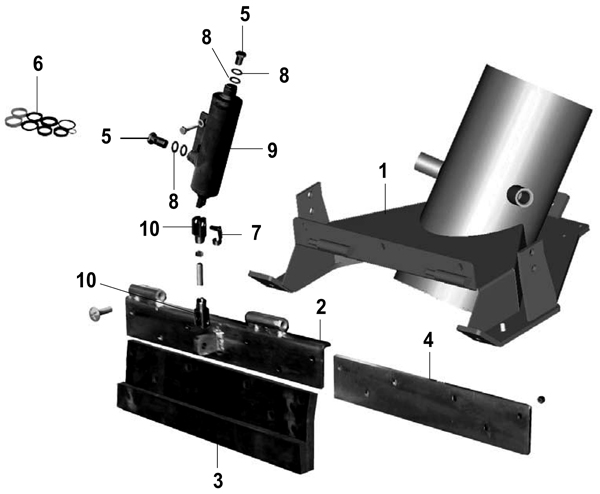

Flap Assembly - 272-9317 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4036 |
Suction head |
1 |
|
| 2 |
272-4360 |
Flap mounting bracket |
1 |
|
| 3 |
272-4361 |
Suction head flap (OBSOLETE) |
1 |
|
| 4 |
272-4362 |
Suction flap strap (OBSOLETE) |
1 |
|
| 5 |
272-4237 |
1/4 inch fitting |
2 |
|
| 7 |
472-1328 |
SPRING PIN M8X16 GALV 5 PCS SE |
2 |
|
| 8 |
272-7335 |
Sealing washer |
4 |
|
| 9 |
272-4365 |
Hydraulic cylinder |
1 |
|
| 10 |
472-1327 |
CLEVIS M8X16 GALV. DIN71752 5 |
2 |
|
|
|

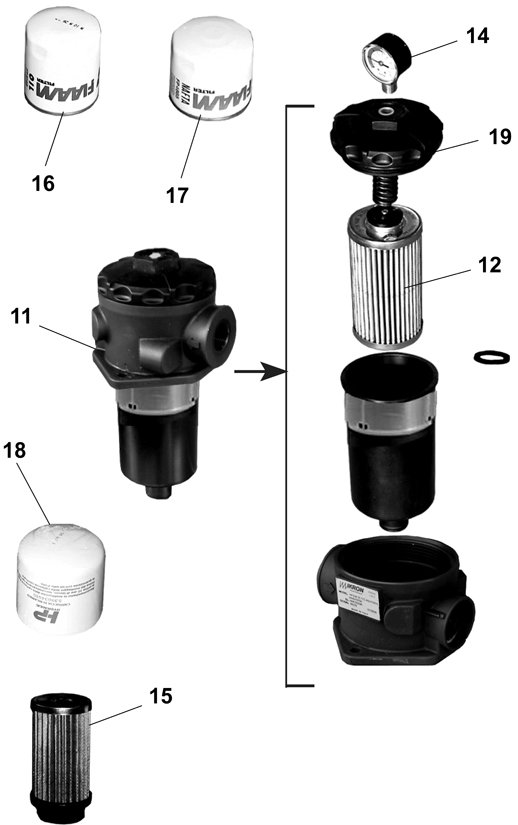

Oil Filter Assembly - 272-9318 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 11 |
272-4367 |
Filter assembly |
1 |
(Includes items 12, 14, and 19) |
| 12 |
272-4368 |
In-line filter cartridge |
1 |
|
| 14 |
272-4369 |
Pressure gauge (OBSOLETE) |
1 |
|
| 15 |
272-4370 |
Hydraulic oil filter |
3 |
|
| 16 |
272-4371 |
Engine oil filter |
1 |
|
| 17 |
272-4372 |
Fuel filter |
1 |
|
| 18 |
272-4373 |
Hydraulic oil filter |
1 |
|
|
|
Air Filter Assembly - 272-9319 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4375 |
Air intake hose (OBSOLETE) |
1 |
|
| 2 |
272-4376 |
Air intake hose weldment (OBSOLETE) |
1 |
|
| 3 |
272-4377 |
Engine air filter (OBSOLETE) |
1 |
|
| 4 |
272-4378 |
Primary air filter |
1 |
|
| 5 |
272-4379 |
Secondary air filter |
1 |
|
| 6 |
272-4380 |
Filter clamp (OBSOLETE) |
2 |
|
| 7 |
272-4381 |
Air intake hose (OBSOLETE) |
1 |
|
| 8 |
272-4382 |
Clamp (OBSOLETE) |
2 |
|
| 10 |
272-6629 |
Cyclone filter |
1 |
|
| 13 |
272-4384 |
Cyclone filter kit |
1 |
(Filter wiht air conditioning) |
| 20 |
272-4385 |
Wire hose clamp (OBSOLETE) |
2 |
(Filter wiht air conditioning) |
| 21 |
272-4386 |
Reinforced rubber hose (OBSOLETE) |
1 |
(Filter wiht air conditioning) |
|
|

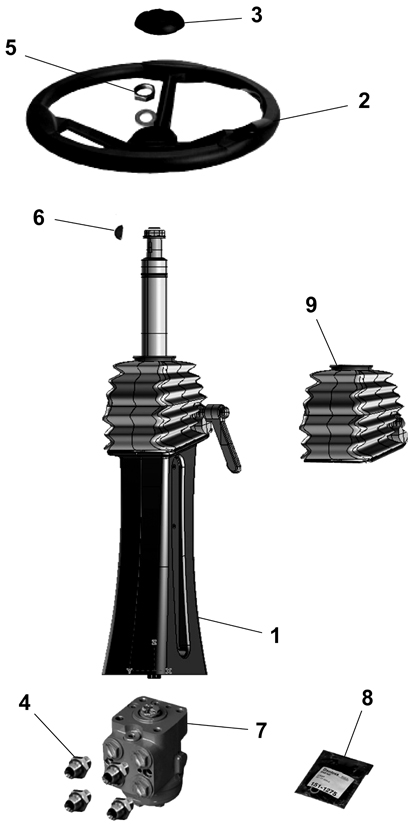

Hydraulic Power Steering Assembly - 272-9320 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4387 |
Power steering sleeve (OBSOLETE) |
1 |
|
| 2 |
272-4388 |
Steering wheel (OBSOLETE) |
1 |
|
| 3 |
272-4389 |
Steering wheel cap (OBSOLETE) |
1 |
|
| 4 |
272-4354 |
Pipe fitting |
4 |
|
| 5 |
272-4159 |
Nut M18 x 1.5 low |
1 |
|
| 6 |
N/A |
Not available |
1 |
(Tang) |
| 7 |
272-4390 |
Power steering (OBSOLETE) |
1 |
|
| 8 |
272-4391 |
Motor gasket kit (OBSOLETE) |
1 |
|
| 9 |
272-4392 |
Tap folder (OBSOLETE) |
1 |
|
|
|

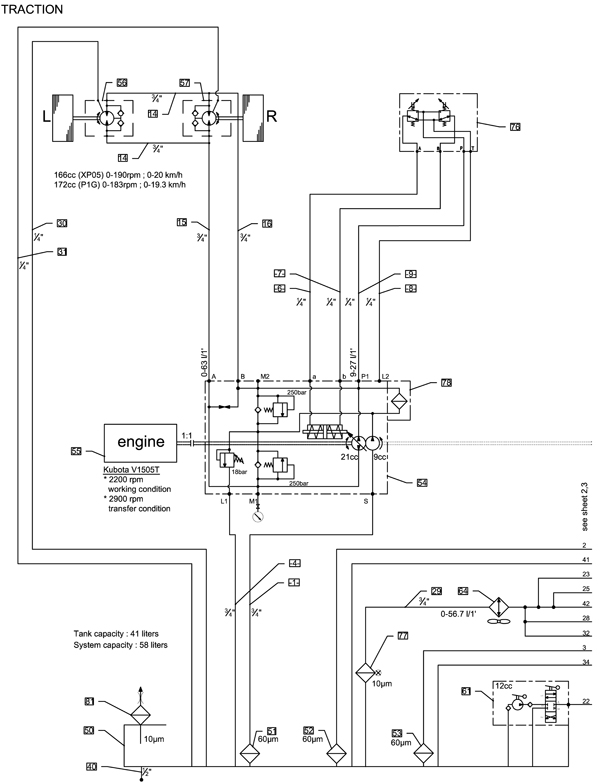

Hydraulic Assembly - Traction - 272-9321 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4393 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 4 |
272-4394 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 6 |
272-4395 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 7 |
272-4396 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 8 |
272-4397 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 9 |
272-4398 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 14 |
272-4399 |
Hydraulic hose (OBSOLETE) |
2 |
|
| 15 |
272-4400 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 16 |
272-4401 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 29 |
272-4402 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 30 |
272-4403 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 31 |
272-4404 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 40 |
272-4405 |
Hydraulic hose |
1 |
|
| 50 |
272-4406 |
Oil tank (OBSOLETE) |
1 |
|
| 51 |
272-4370 |
Hydraulic oil filter |
1 |
|
| 52 |
272-4370 |
Hydraulic oil filter |
1 |
|
| 53 |
272-4370 |
Hydraulic oil filter |
1 |
|
| 54 |
272-4407 |
Pump (OBSOLETE) |
1 |
|
| 55 |
272-4031 |
V1505T Kubota engine (OBSOLETE) |
1 |
|
| 56a |
272-4037 |
Left side motor wheel (OBSOLETE) |
1 |
|
| 56b |
272-4034 |
Motor wheel kit (OBSOLETE) |
1 |
(please verify model on motorwheel before placing order) |
| 57a |
272-4033 |
Right side motor wheel (OBSOLETE) |
1 |
|
| 57b |
272-4034 |
Motor wheel kit (OBSOLETE) |
1 |
(please verify model on motorwheel before placing order) |
| 61 |
272-4408 |
Hydraulic hand pump (OBSOLETE) |
1 |
|
| 64 |
272-4409 |
Hydraulic oil cooler (OBSOLETE) |
1 |
|
| 76 |
272-4410 |
Complete drive pedal assembly (OBSOLETE) |
1 |
|
| 77 |
272-4367 |
Filter assembly |
1 |
|
| 78 |
272-4373 |
Hydraulic oil filter |
1 |
|
| 81 |
272-4411 |
Filling plug |
1 |
|
|
|
Hydraulic Assembly - Suction - 272-9322 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-4412 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 17 |
272-4413 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 23 |
272-4414 |
Hydraulic hose |
1 |
|
| 24 |
272-4415 |
Hydraulic hose |
1 |
|
| 25 |
272-4416 |
Hydraulic hose |
1 |
|
| 41 |
272-4417 |
Hydraulic hose |
1 |
|
| 42 |
272-4250 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 43 |
272-4249 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 44 |
272-4230 |
Hydraulic hose |
2 |
|
| 46 |
272-4231 |
Hydraulic hose |
1 |
|
| 47 |
272-4418 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 48 |
272-4419 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 71 |
272-4420 |
Gear pump (OBSOLETE) |
1 |
|
| 72 |
272-4421 |
Distributor (OBSOLETE) |
1 |
|
| 74 |
272-4301 |
Suction fan replacement kit |
1 |
|
| 79 |
272-6574 |
High pressure pump with regulator |
1 |
|
| 82 |
272-4422 |
Solenoid valve |
1 |
|
|
|
Hydraulic Assembly - Steering Works - 272-9323 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
272-4423 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 5 |
272-4424 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 10 |
272-4425 |
Hydraulic hose assembly (OBSOLETE) |
1 |
|
| 11 |
272-4426 |
Hydraulic hose assembly (OBSOLETE) |
1 |
|
| 12 |
272-4427 |
Hydraulic hose assembly (OBSOLETE) |
1 |
|
| 13 |
272-4428 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 18 |
272-4429 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 19 |
272-4430 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 20 |
272-4431 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 21 |
272-4432 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 22 |
272-4433 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 26 |
272-4434 |
Hydraulic hose |
1 |
|
| 28 |
272-4435 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 32 |
272-4436 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 33 |
272-4437 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 34 |
272-4438 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 35 |
272-4439 |
Hydraulic hose assembly (OBSOLETE) |
1 |
|
| 36 |
272-4440 |
Hydraulic hose assembly (OBSOLETE) |
1 |
|
| 37 |
272-4441 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 38 |
272-4442 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 39 |
272-4443 |
Hydraulic hose assembly (OBSOLETE) |
1 |
|
| 45 |
272-4444 |
Hydraulic hose |
2 |
|
| 58 |
272-4445 |
Two-way distributor (OBSOLETE) |
1 |
|
| 59 |
272-4365 |
Hydraulic cylinder |
1 |
|
| 60 |
272-4446 |
Hopper lifting cylinder (OBSOLETE) |
1 |
|
| 62 |
272-4355 |
Hydraulic motor |
1 |
|
| 63 |
272-4355 |
Hydraulic motor |
1 |
|
| 65 |
272-4447 |
1/4 inch valve (OBSOLETE) |
1 |
|
| 66 |
272-4303 |
Hydraulic cylinder |
2 |
|
| 67 |
272-4313 |
Hydraulic valve |
1 |
|
| 68 |
272-4390 |
Power steering (OBSOLETE) |
1 |
|
| 69 |
272-4448 |
Priority valve (OBSOLETE) |
1 |
|
| 70 |
272-4420 |
Gear pump (OBSOLETE) |
1 |
|
| 73 |
272-4449 |
Valve block (OBSOLETE) |
1 |
|
| 75 |
272-4163 |
Steering wheel cylinder (OBSOLETE) |
1 |
|
| 80 |
272-4450 |
Flow regulator (OBSOLETE) |
1 |
|
|
|

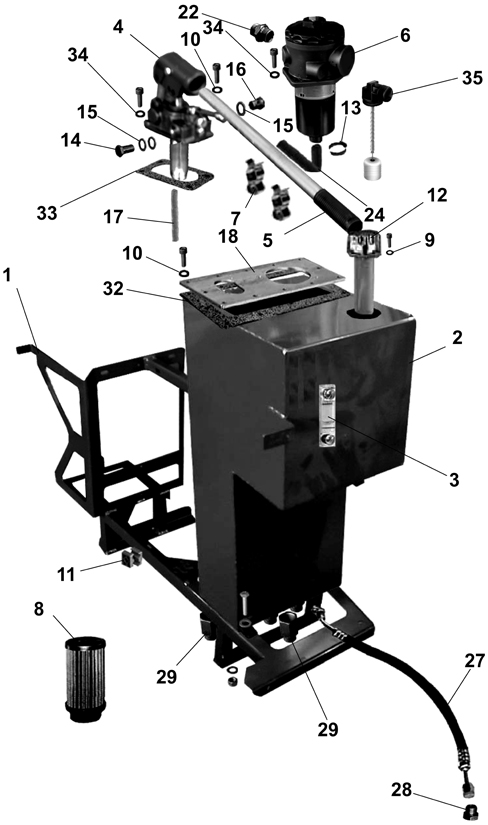

Oil Tank Assembly - 272-9324 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4451 |
Oil reservoir support (OBSOLETE) |
1 |
|
| 2 |
272-4406 |
Oil tank (OBSOLETE) |
1 |
|
| 4a |
272-4453 |
Hand pump kit (OBSOLETE) |
1 |
(before SN 111200068) |
| 4b |
272-4454 |
Hand pump kit (OBSOLETE) |
1 |
(after SN 111200067) |
| 5a |
272-4455 |
Pump lever |
1 |
(before SN 111200068) |
| 5b |
272-4455 |
Pump lever |
1 |
(after SN 111200067) |
| 6 |
272-4367 |
Filter assembly |
1 |
|
| 7 |
272-4241 |
Spring rod holder (OBSOLETE) |
2 |
|
| 8 |
272-4370 |
Hydraulic oil filter |
3 |
|
| 9 |
272-4456 |
Washer (OBSOLETE) |
6 |
|
| 10 |
272-4457 |
Washer (OBSOLETE) |
12 |
|
| 11 |
272-4458 |
Double hose clamp (OBSOLETE) |
1 |
|
| 12 |
272-4411 |
Filling plug |
1 |
|
| 14 |
272-4237 |
1/4 inch fitting |
1 |
|
| 15 |
272-7335 |
Sealing washer |
3 |
|
| 16 |
272-4460 |
1/4 inch plug fitting (OBSOLETE) |
1 |
|
| 17 |
272-4461 |
Hose (OBSOLETE) |
1 |
|
| 18 |
272-4462 |
Cover (OBSOLETE) |
1 |
|
| 24 |
272-4464 |
Pipe (OBSOLETE) |
1 |
|
| 27 |
272-4405 |
Hydraulic hose |
1 |
|
| 28 |
272-4465 |
Plug (OBSOLETE) |
1 |
|
| 29 |
272-4466 |
Stud bolt (OBSOLETE) |
4 |
|
| 32 |
272-4467 |
Cover gasket (OBSOLETE) |
1 |
|
| 33 |
272-4468 |
Pump gasket (OBSOLETE) |
1 |
|
| 34 |
272-4469 |
Washer (OBSOLETE) |
5 |
|
| 35 |
272-4470 |
Level sensor (OBSOLETE) |
1 |
|
|
|

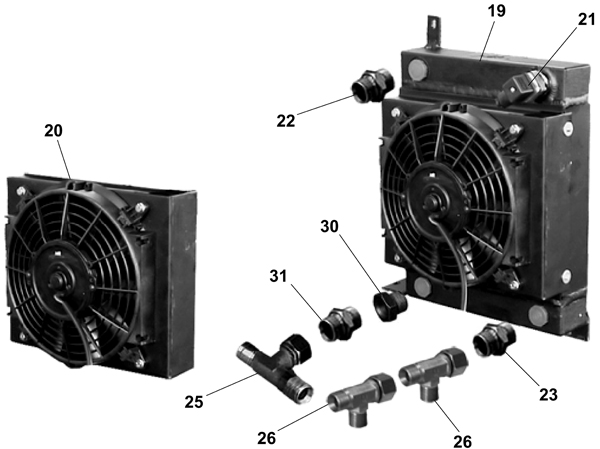

Oil Exchanger Assembly - 272-9325 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 19 |
272-4409 |
Hydraulic oil cooler (OBSOLETE) |
1 |
|
| 20 |
272-4471 |
12V electric fan (OBSOLETE) |
1 |
|
| 21 |
272-4472 |
Oil temperature sensor kit |
1 |
|
| 25 |
272-4474 |
Tee fitting |
1 |
|
| 26 |
272-4475 |
Tee fitting (OBSOLETE) |
2 |
|
| 30 |
272-4476 |
Reduction fitting (OBSOLETE) |
1 |
|
| 31 |
272-4354 |
Pipe fitting |
1 |
|
|
|

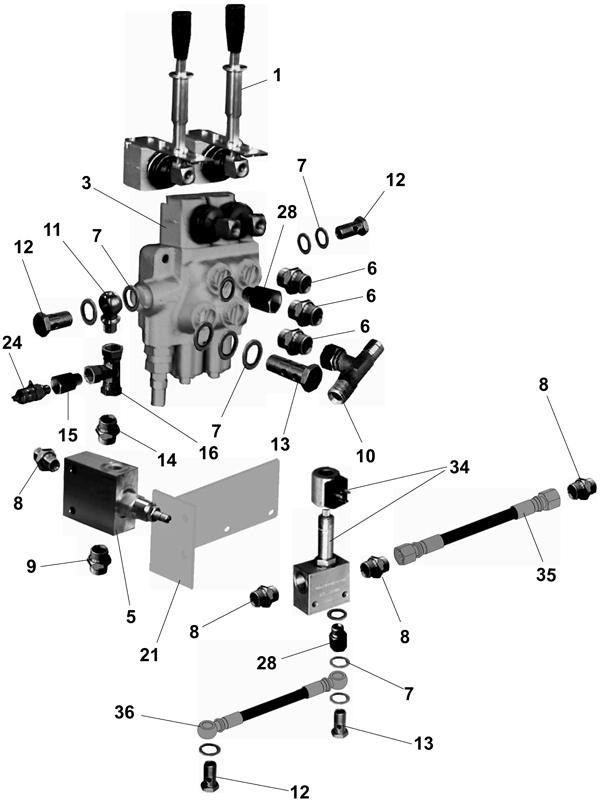

Hydraulic Assembly - 2 Elements Distributor - 272-9326 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4477 |
Distributor lever with lock |
2 |
|
| 3 |
272-4445 |
Two-way distributor (OBSOLETE) |
1 |
|
| 5 |
272-4448 |
Priority valve (OBSOLETE) |
1 |
|
| 6 |
272-4478 |
Pipe fitting |
3 |
|
| 7 |
272-4236 |
3/8 inch sealing washer |
14 |
|
| 9 |
272-4480 |
Pipe fitting (OBSOLETE) |
2 |
|
| 10 |
272-4481 |
Tee fitting |
1 |
|
| 11 |
272-4482 |
3/8 inch eye (OBSOLETE) |
1 |
|
| 12 |
272-4483 |
Bolt 3/8 inch single banjo (OBSOLETE) |
4 |
|
| 13 |
272-4484 |
Bolt 3/8 inch double banjo (OBSOLETE) |
2 |
|
| 14 |
272-4485 |
3/8 inch nipple fitting (OBSOLETE) |
2 |
|
| 15 |
272-4486 |
Bolt stud 3/8-1/4 inch (OBSOLETE) |
2 |
|
| 16 |
272-4487 |
3/8 inch tee fitting (OBSOLETE) |
2 |
|
| 21 |
272-4449 |
Valve block (OBSOLETE) |
1 |
|
| 24 |
272-4488 |
1/4 inch test port fitting |
2 |
|
| 28 |
272-4489 |
Adapter fitting (OBSOLETE) |
3 |
|
| 34 |
272-4490 |
Solenoid valve (OBSOLETE) |
1 |
|
| 35 |
272-4419 |
Hydraulic hose (OBSOLETE) |
1 |
|
| 36 |
272-4418 |
Hydraulic hose (OBSOLETE) |
1 |
|
|
|

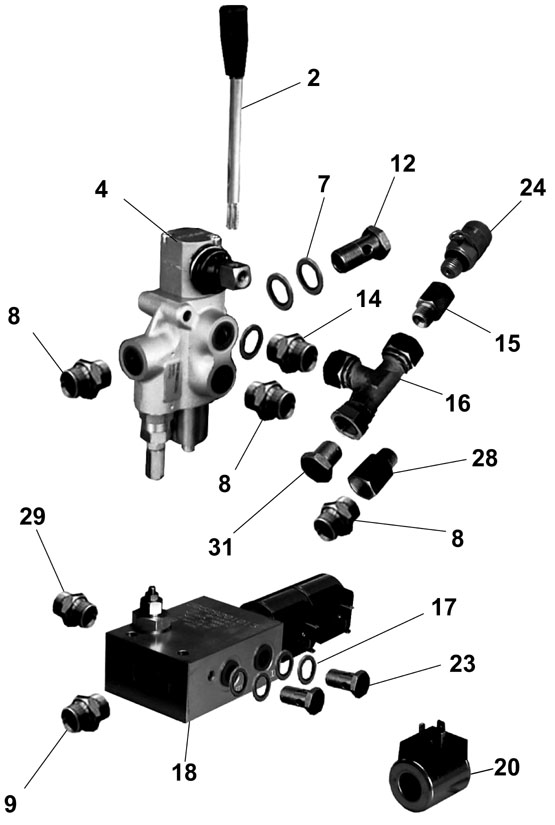

Hydraulic Assembly - 1 Element Distributor - 272-9327 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-4491 |
Distributor lever (OBSOLETE) |
1 |
|
| 4 |
272-4421 |
Distributor (OBSOLETE) |
1 |
|
| 7 |
272-4236 |
3/8 inch sealing washer |
14 |
|
| 9 |
272-4480 |
Pipe fitting (OBSOLETE) |
2 |
|
| 12 |
272-4483 |
Bolt 3/8 inch single banjo (OBSOLETE) |
4 |
|
| 14 |
272-4485 |
3/8 inch nipple fitting (OBSOLETE) |
2 |
|
| 15 |
272-4486 |
Bolt stud 3/8-1/4 inch (OBSOLETE) |
2 |
|
| 16 |
272-4487 |
3/8 inch tee fitting (OBSOLETE) |
2 |
|
| 17 |
272-7335 |
Sealing washer |
12 |
|
| 18 |
272-4449 |
Valve block (OBSOLETE) |
1 |
|
| 20 |
272-4492 |
Pressure release valve (OBSOLETE) |
1 |
|
| 23 |
272-4237 |
1/4 inch fitting |
4 |
|
| 24 |
272-4488 |
1/4 inch test port fitting |
2 |
|
| 28 |
272-4489 |
Adapter fitting (OBSOLETE) |
3 |
|
| 29 |
272-4235 |
Nipple fitting |
1 |
|
| 31 |
272-4493 |
Plug (OBSOLETE) |
1 |
|
|
|

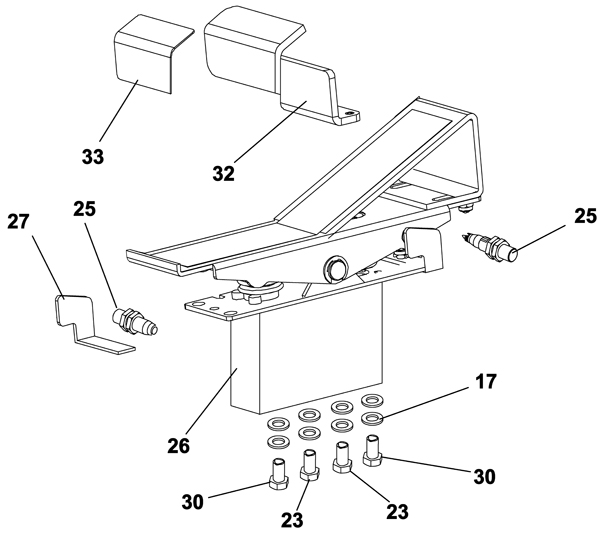

Hydraulic Assembly - Pedal - 272-9328 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 17 |
272-7335 |
Sealing washer |
12 |
|
| 23 |
272-4237 |
1/4 inch fitting |
4 |
|
| 26 |
272-4410 |
Complete drive pedal assembly (OBSOLETE) |
1 |
|
| 27a |
272-4495 |
Sensor plate (OBSOLETE) |
1 |
(before SN 094019724) |
| 27b |
272-4495 |
Sensor plate (OBSOLETE) |
1 |
(after SN 094019723) |
| 30 |
272-4496 |
Bolt 1/4 inch single banjo (OBSOLETE) |
2 |
|
| 32 |
272-4497 |
Pedal extension (OBSOLETE) |
1 |
|
| 33 |
272-4498 |
Antislip pad (OBSOLETE) |
1 |
|
|
|

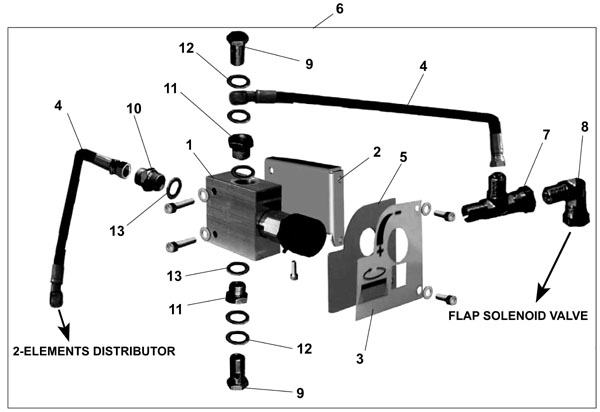

Broom Speed Adjustment Assembly - 272-9329 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4450 |
Flow regulator (OBSOLETE) |
1 |
|
| 2 |
272-4499 |
Flow regulator support (OBSOLETE) |
1 |
|
| 3 |
272-4500 |
Adjustment decal |
1 |
|
| 4 |
272-4444 |
Hydraulic hose |
2 |
|
| 5 |
272-4501 |
Support decal (OBSOLETE) |
1 |
|
| 6 |
272-4053 |
Adjustable broom speed kit (OBSOLETE) |
1 |
(Includes items 1-5 and 7-13) |
| 7 |
272-4502 |
3/8 inch tee fitting (OBSOLETE) |
1 |
|
| 8 |
272-4503 |
3/8 inch fitting (OBSOLETE) |
1 |
|
| 9 |
272-4483 |
Bolt 3/8 inch single banjo (OBSOLETE) |
2 |
|
| 10 |
272-4504 |
Nipple (OBSOLETE) |
1 |
|
| 11 |
272-4505 |
Reduction fitting (OBSOLETE) |
2 |
|
|
|
Motor Wheel Chassis Assembly - 272-9330 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2a |
272-4033 |
Right side motor wheel (OBSOLETE) |
1 |
|
| 2b |
272-4034 |
Motor wheel kit (OBSOLETE) |
1 |
(before placing an order, verify model on motor wheel) |
| 5a |
272-4037 |
Left side motor wheel (OBSOLETE) |
1 |
|
| 5b |
272-4034 |
Motor wheel kit (OBSOLETE) |
1 |
(before placing an order, verify model on motor wheel) |
| 8 |
272-4173 |
Lug nut (OBSOLETE) |
10 |
|
| 11 |
272-4029 |
Chassis (OBSOLETE) |
1 |
|
| 12 |
272-4347 |
Bumper strip (OBSOLETE) |
2 |
|
| 14 |
272-4292 |
1/4 inch pipe fitting |
2 |
|
| 15 |
272-4509 |
Bolt stud 1 3/4 inch (OBSOLETE) |
4 |
|
| 16 |
272-4510 |
Nipple (OBSOLETE) |
4 |
|
| 17 |
272-4511 |
Tee fitting (OBSOLETE) |
2 |
|
| 18 |
272-4512 |
Sealing washer |
4 |
|
| 20 |
272-4513 |
Working light kit (OBSOLETE) |
1 |
(optional) (Includes items 13 and 31) |
| 21 |
272-4514 |
Handbrake lever |
1 |
|
| 22 |
272-4515 |
Handbrake pin |
1 |
|
| 25 |
272-4516 |
Handbrake switch |
1 |
|
| 27 |
272-4518 |
Cable brake plate |
1 |
|
| 28 |
272-4519 |
Right brake assembly (OBSOLETE) |
1 |
|
| 29 |
272-4520 |
Left brake assembly (OBSOLETE) |
1 |
|
| 30 |
272-4521 |
Gasket kit (OBSOLETE) |
1 |
|
| 31 |
272-4522 |
12V lamp (OBSOLETE) |
1 |
|
| 32 |
272-4523 |
Engine protection (OBSOLETE) |
1 |
|
| 33 |
272-4198 |
Decal kit (OBSOLETE) |
1 |
|
| 34 |
272-4524 |
Stud bolt 1/4 inch (OBSOLETE) |
2 |
|
|
|

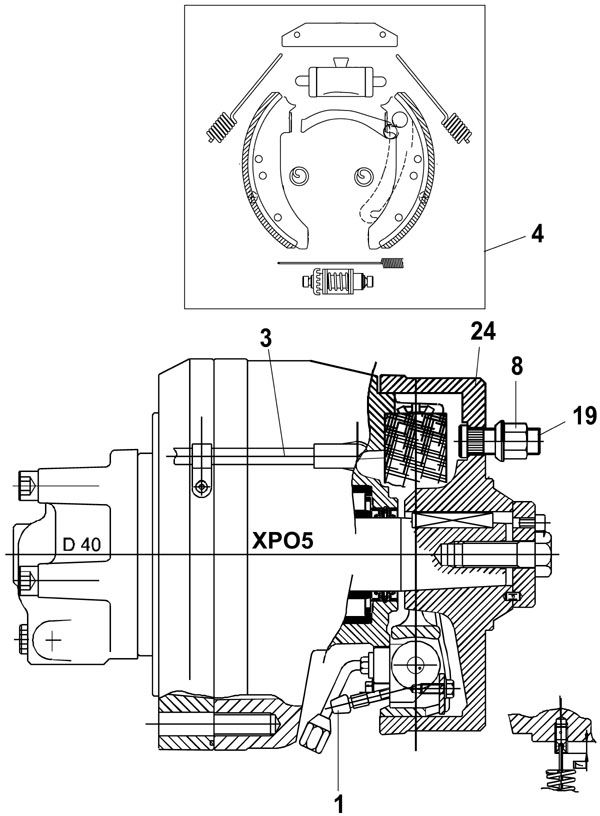

Motor Wheel Brake Assembly - 272-9331 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4525 |
Brake bleed valve (OBSOLETE) |
2 |
|
| 3a |
472-8422 |
BLADE KIT-CYL PU |
1 |
|
| 3b |
272-4528 |
Left brake cable |
1 |
|
| 4a |
272-4527 |
Left brake kit (OBSOLETE) |
1 |
|
| 4b |
272-4530 |
Right brake kit (OBSOLETE) |
1 |
|
| 8 |
272-4173 |
Lug nut (OBSOLETE) |
10 |
|
| 19 |
272-4529 |
Hardware brake (OBSOLETE) |
10 |
|
| 24 |
272-4531 |
Wheel hub (OBSOLETE) |
2 |
|
|
|

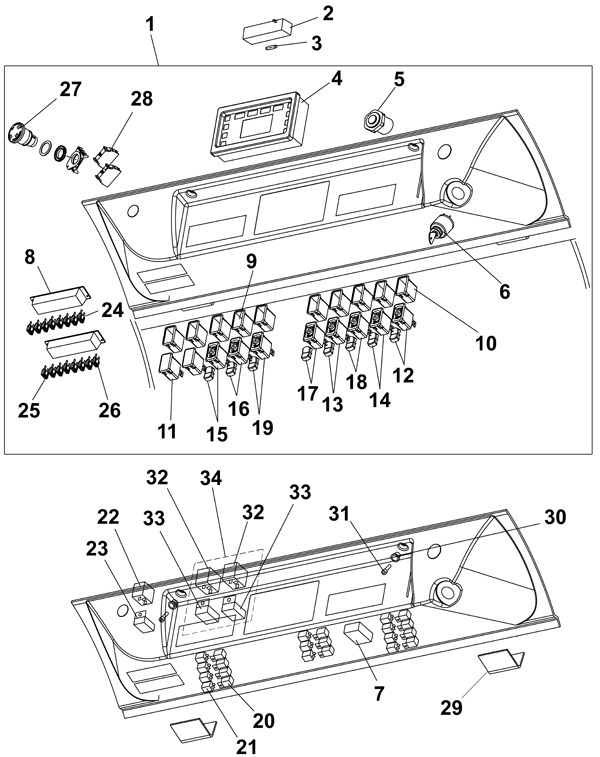

Control Panel Assembly - 272-9332 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4532 |
Complete dashboard kit (OBSOLETE) |
1 |
(Includes items 4-6, 8-19 and 24-28) |
| 2 |
272-4047 |
Roof lamp (OBSOLETE) |
1 |
|
| 3 |
272-4046 |
12V bulb (OBSOLETE) |
1 |
|
| 6 |
272-4534 |
Key switch (OBSOLETE) |
1 |
|
| 7 |
272-4535 |
Electronic box (OBSOLETE) |
1 |
|
| 8 |
272-4536 |
8-way fuse holder (OBSOLETE) |
2 |
|
| 9 |
272-4537 |
Center switch holder (OBSOLETE) |
6 |
|
| 10 |
272-4538 |
End switch holder (OBSOLETE) |
4 |
|
| 11 |
272-4539 |
Plug (OBSOLETE) |
2 |
|
| 12 |
272-4540 |
Open door switch kit (OBSOLETE) |
1 |
|
| 13 |
272-4541 |
Water pump switch kit |
1 |
|
| 14 |
272-4542 |
Air conditioning switch kit (OBSOLETE) |
1 |
|
| 15 |
272-4543 |
Emergency lights switch kit (OBSOLETE) |
1 |
|
| 16 |
272-4544 |
Working lights switch kit (OBSOLETE) |
1 |
|
| 17 |
272-4545 |
Windshield wiper switch kit (OBSOLETE) |
1 |
|
| 18 |
272-4546 |
Fan switch kit |
1 |
|
| 20 |
272-4548 |
Relay holder (OBSOLETE) |
11 |
|
| 23 |
272-4551 |
Relay holder (OBSOLETE) |
1 |
|
| 25 |
272-4552 |
15amp fuse (OBSOLETE) |
8 |
|
| 26 |
272-4553 |
20amp fuse (OBSOLETE) |
3 |
|
| 27 |
272-8340 |
Emergency switch |
1 |
|
| 29 |
272-4554 |
Brass hinge (OBSOLETE) |
2 |
|
| 30 |
272-4555 |
Dashboard bushing (OBSOLETE) |
2 |
|
| 31 |
272-4556 |
Screw M6-1 x 35mm socket head |
2 |
|
| 32 |
272-4557 |
12V relay |
2 |
(After SN 101303137) |
| 33 |
272-4559 |
Relay (OBSOLETE) |
2 |
(After SN 101303137) |
| 34 |
272-4558 |
Relay kit (OBSOLETE) |
1 |
(install on machine before SN 101303137) |
|
|

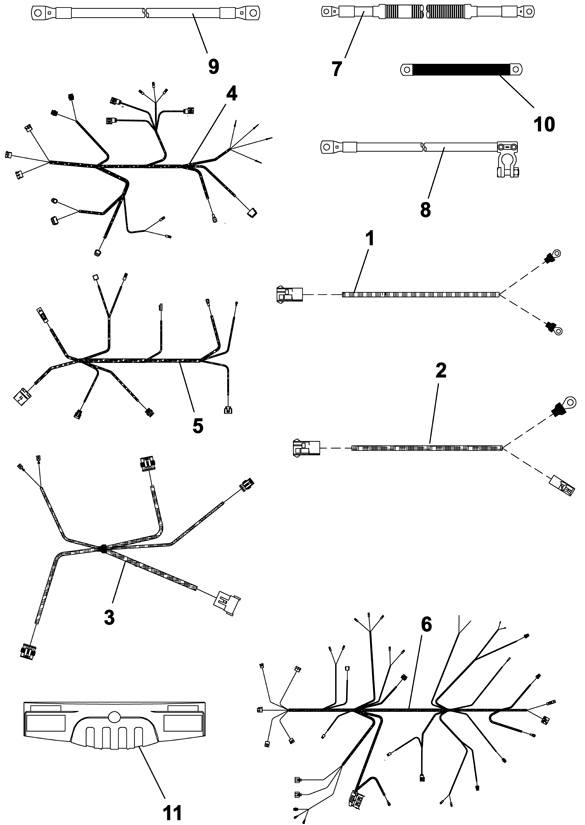

Harness Assembly - 272-9333 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4560 |
Flashing beacon harness (OBSOLETE) |
1 |
|
| 2 |
272-4561 |
Horn harness (OBSOLETE) |
1 |
|
| 3 |
272-4562 |
Rear lights harness (OBSOLETE) |
1 |
|
| 4 |
272-4563 |
Main harness (OBSOLETE) |
1 |
|
| 5 |
272-4564 |
Engine harness (OBSOLETE) |
1 |
|
| 6 |
272-4565 |
Wagon harness (OBSOLETE) |
1 |
|
| 7 |
272-4566 |
Positive battery wire (OBSOLETE) |
1 |
|
| 8 |
272-4567 |
Negative battery wire (OBSOLETE) |
1 |
|
| 9 |
272-4568 |
Battery disconnection wire (OBSOLETE) |
1 |
|
| 10 |
272-4569 |
Ground cable (OBSOLETE) |
1 |
|
| 11 |
272-4570 |
Complete cone nose (OBSOLETE) |
1 |
|
|
|

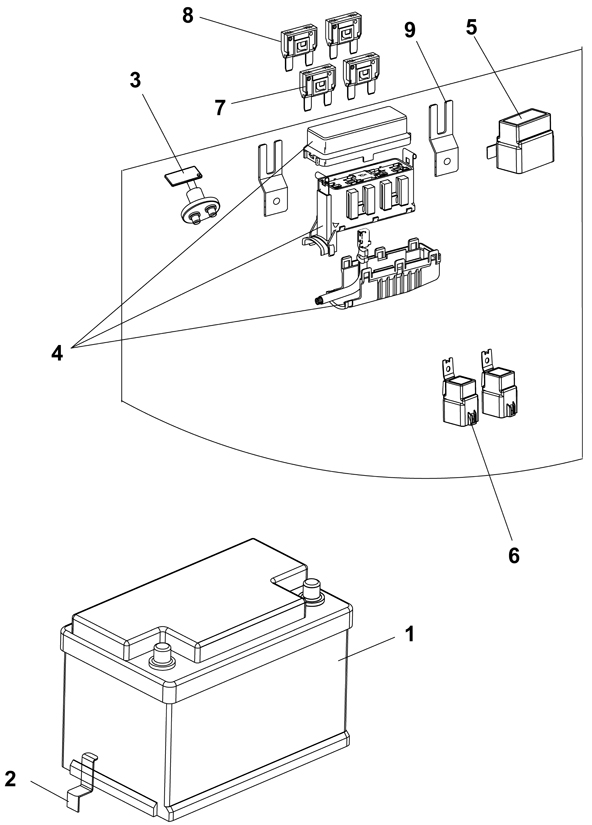

Battery Location Assembly - 272-9334 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
1 |
(See Batteries, Brushes and Chargers page) |
| 2 |
272-4571 |
Battery stop bracket (OBSOLETE) |
1 |
|
| 3 |
272-4572 |
Battery stop key |
1 |
|
| 4 |
272-4573 |
4-way fuse holder (OBSOLETE) |
1 |
|
| 5 |
272-4574 |
12V relay (OBSOLETE) |
1 |
|
| 7 |
272-4576 |
40amp fuse (OBSOLETE) |
2 |
|
| 9 |
272-4577 |
Fuse holder bracket (OBSOLETE) |
2 |
|
|
|

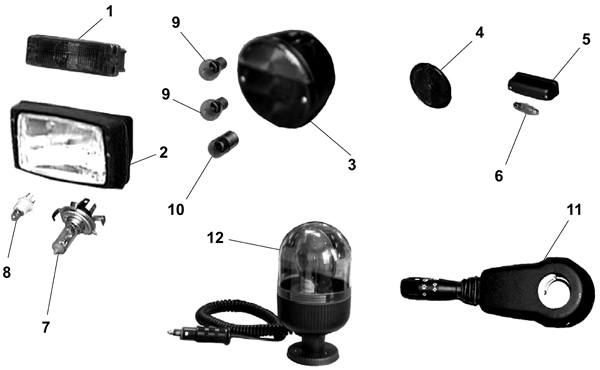

Lighting Assembly - 272-9335 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4065 |
Front turn signal |
2 |
|
| 2 |
272-4064 |
Front headlight assembly |
2 |
|
| 3 |
272-4120 |
Tail light with connector |
2 |
|
| 5 |
272-4124 |
License plate light (OBSOLETE) |
1 |
|
| 6 |
272-4578 |
12V light bulb |
1 |
|
| 7 |
272-4579 |
12V light bulb |
2 |
|
| 9 |
272-4522 |
12V lamp (OBSOLETE) |
4 |
|
| 10 |
272-4581 |
12V light bulb (OBSOLETE) |
2 |
|
| 11 |
272-4582 |
Turn signal switch (OBSOLETE) |
1 |
|
| 12 |
272-4583 |
Flashing light |
1 |
|
|
|

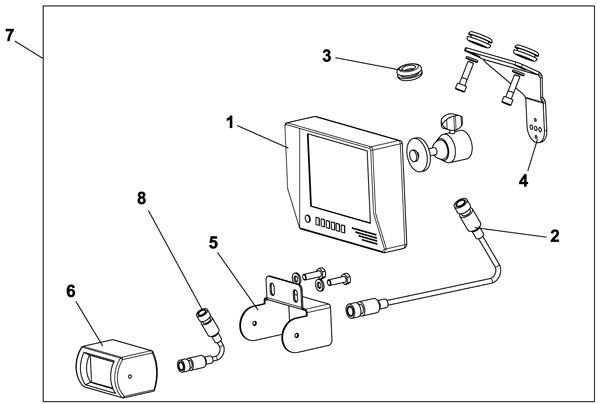

Video Camera Assembly - 272-9336 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4584 |
Monitor (OBSOLETE) |
1 |
|
| 2 |
272-4585 |
Cable (OBSOLETE) |
1 |
|
| 4 |
272-4587 |
Monitor support (OBSOLETE) |
1 |
|
| 5 |
272-4588 |
Video camera support (OBSOLETE) |
1 |
|
| 6a |
272-4589 |
Rear video camera kit (OBSOLETE) |
1 |
(before SN 101303135) |
| 6b |
272-4590 |
Rear video camera (OBSOLETE) |
1 |
(after SN 101303134) |
| 7 |
272-4591 |
Camera kit (OBSOLETE) |
1 |
|
| 8 |
272-4592 |
Camera cable adapter |
1 |
(after SN 101303134) |
|
|

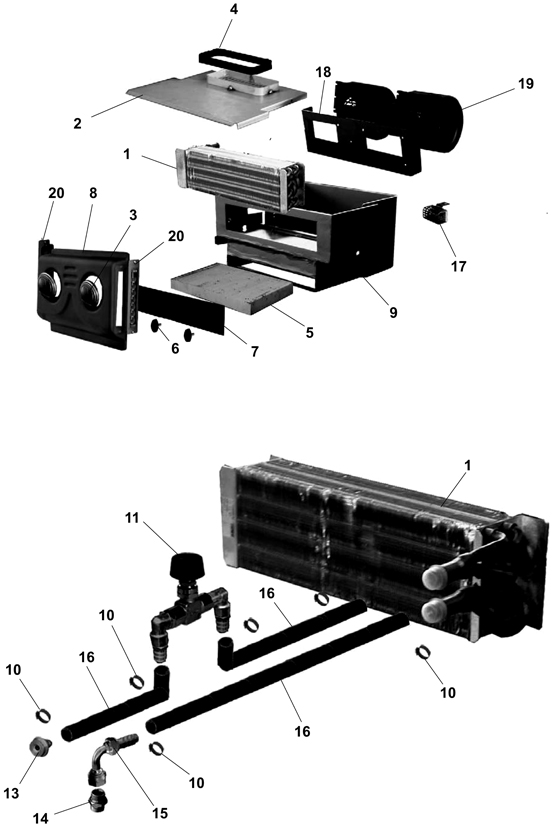

Heating Assembly - 272-9337 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4593 |
Heater core (OBSOLETE) |
1 |
|
| 2 |
272-4594 |
A/C unit cover (OBSOLETE) |
1 |
|
| 5 |
272-4596 |
A/C air filter |
1 |
|
| 6 |
272-4597 |
Knob M6 x 16 (OBSOLETE) |
2 |
|
| 7 |
272-4598 |
A/C filter cover (OBSOLETE) |
1 |
|
| 8 |
272-4599 |
A/C vent mounting panel (OBSOLETE) |
1 |
|
| 9 |
272-4600 |
A/C unit housing (OBSOLETE) |
1 |
|
| 10 |
272-4219 |
Hose clamp (OBSOLETE) |
6 |
|
| 11 |
272-4601 |
Heating tap |
1 |
|
| 13 |
272-4602 |
Rubber seal holder (OBSOLETE) |
1 |
|
| 14 |
272-4603 |
Nipple fitting (OBSOLETE) |
1 |
|
| 15 |
272-4604 |
Elbow fitting (OBSOLETE) |
1 |
|
| 16 |
272-4605 |
Hose (OBSOLETE) |
1 |
|
| 18 |
272-4607 |
Fan mounting bracket (OBSOLETE) |
1 |
|
| 19 |
272-4608 |
12V electric fan (OBSOLETE) |
1 |
|
| 20 |
272-4609 |
Rectangular vent (OBSOLETE) |
2 |
|
|
|
Air Conditioning Assembly - Radiator - 272-9338 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4593 |
Heater core (OBSOLETE) |
1 |
|
| 2 |
272-4594 |
A/C unit cover (OBSOLETE) |
1 |
|
| 5 |
272-4596 |
A/C air filter |
1 |
|
| 6 |
272-4597 |
Knob M6 x 16 (OBSOLETE) |
2 |
|
| 7 |
272-4598 |
A/C filter cover (OBSOLETE) |
1 |
|
| 8 |
272-4599 |
A/C vent mounting panel (OBSOLETE) |
1 |
|
| 9 |
272-4600 |
A/C unit housing (OBSOLETE) |
1 |
|
| 10 |
272-4219 |
Hose clamp (OBSOLETE) |
6 |
|
| 11 |
272-4601 |
Heating tap |
1 |
|
| 13 |
272-4602 |
Rubber seal holder (OBSOLETE) |
1 |
|
| 14 |
272-4603 |
Nipple fitting (OBSOLETE) |
1 |
|
| 15 |
272-4604 |
Elbow fitting (OBSOLETE) |
1 |
|
| 16 |
272-4605 |
Hose (OBSOLETE) |
1 |
|
| 17 |
272-4610 |
Air conditioner core (OBSOLETE) |
1 |
|
| 18 |
272-4607 |
Fan mounting bracket (OBSOLETE) |
1 |
|
| 19 |
272-4608 |
12V electric fan (OBSOLETE) |
1 |
|
| 20 |
272-4611 |
A/C condenser (OBSOLETE) |
1 |
|
| 21 |
272-4612 |
12V electric fan |
1 |
|
| 22 |
272-4613 |
Condensor support bracket |
2 |
|
| 23 |
272-4614 |
A/C filter (OBSOLETE) |
1 |
|
| 24 |
272-4615 |
A/C filter support bracket (OBSOLETE) |
1 |
|
| 25 |
272-4616 |
2-level pressure switch (OBSOLETE) |
1 |
|
| 31 |
272-4617 |
Filter hose |
1 |
|
| 32 |
272-4618 |
Filter condensor hose |
1 |
|
| 33 |
272-4619 |
Compressor hose |
1 |
|
| 34 |
272-4620 |
Compressor evaporation hose |
1 |
|
| 38 |
272-4621 |
A/C thermostat |
1 |
|
| 39 |
272-4622 |
A/C fan support |
1 |
|
| 41 |
272-4609 |
Rectangular vent (OBSOLETE) |
2 |
|
| 42 |
272-4623 |
Expansion valve kit (OBSOLETE) |
1 |
|
|
|

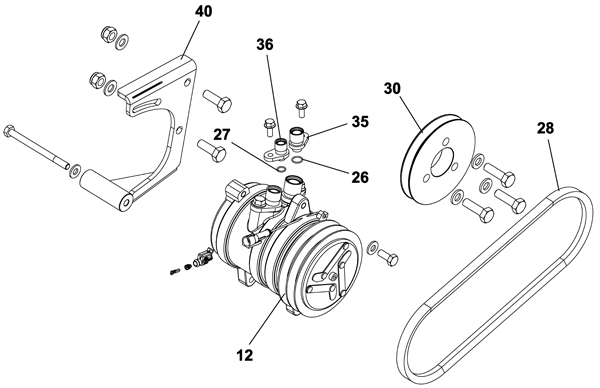

Air Conditioning Assembly - Compressor - 272-9339 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 12 |
272-4624 |
Compressor (OBSOLETE) |
1 |
|
| 26 |
272-4625 |
O-ring seal (OBSOLETE) |
1 |
|
| 27 |
272-4626 |
O-ring seal (OBSOLETE) |
1 |
|
| 28 |
272-4627 |
Belt (OBSOLETE) |
1 |
|
| 30 |
272-4628 |
Compressor pulley (OBSOLETE) |
1 |
|
| 35 |
272-4629 |
Adapter (OBSOLETE) |
1 |
|
| 36 |
272-4630 |
Adapter (OBSOLETE) |
1 |
|
| 40 |
272-4631 |
Tie rod compressor (OBSOLETE) |
1 |
|
|
|

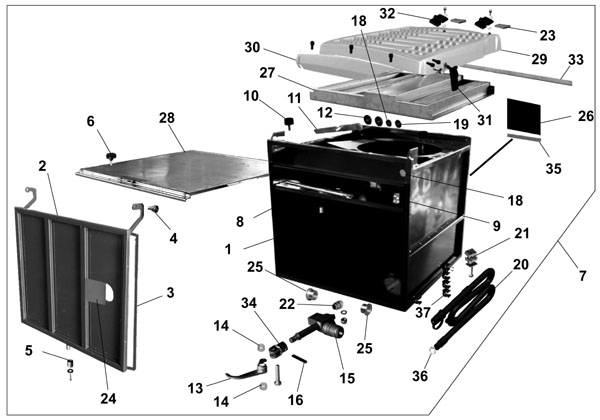

Hopper Assembly - 272-9340 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4030 |
Hopper kit (OBSOLETE) |
1 |
|
| 2 |
272-4632 |
Hopper door (OBSOLETE) |
1 |
|
| 3 |
272-4633 |
Gasket (OBSOLETE) |
1 |
|
| 4 |
272-4634 |
Hopper door pin |
2 |
|
| 5 |
272-4635 |
Roller (OBSOLETE) |
1 |
|
| 6 |
272-4102 |
Knob M8 x 45 (OBSOLETE) |
1 |
|
| 7a |
272-4636 |
Standard hopper kit (OBSOLETE) |
1 |
(Standard) |
| 7b |
272-4643 |
Hopper kit (OBSOLETE) |
1 |
(Optional) |
| 8 |
272-4637 |
Hopper door prop rod |
1 |
|
| 9 |
272-4101 |
Spring clip (OBSOLETE) |
1 |
|
| 10 |
272-4197 |
Rubber isolator |
2 |
|
| 11 |
272-4638 |
Hopper cover prop rod (OBSOLETE) |
1 |
|
| 12 |
272-4639 |
Rubber grommet (OBSOLETE) |
2 |
|
| 13 |
272-4640 |
Hopper door latch (OBSOLETE) |
1 |
|
| 15 |
272-4641 |
12V electric actuator |
1 |
|
| 16 |
272-4642 |
10 x 40 spring pin |
1 |
|
| 20 |
272-4042 |
Water drain hose |
1 |
|
| 21 |
272-4458 |
Double hose clamp (OBSOLETE) |
3 |
|
| 22 |
272-4645 |
Strain relief (OBSOLETE) |
1 |
|
| 24 |
272-4647 |
Hopper door plate (OBSOLETE) |
1 |
|
| 25 |
272-4648 |
Flanged bushing |
2 |
|
| 26 |
272-4649 |
Suction tube flap |
1 |
|
| 27 |
272-4650 |
Secondary filter (OBSOLETE) |
1 |
|
| 28 |
272-4651 |
Internal filter |
1 |
|
| 29 |
272-4652 |
Upper bonnet |
1 |
|
| 30 |
272-4653 |
Upper panel |
1 |
|
| 33 |
272-4654 |
Reinforcement plate (OBSOLETE) |
1 |
|
| 34 |
272-4655 |
Electric actuator yoke |
1 |
|
| 35 |
272-4656 |
Hinge (OBSOLETE) |
1 |
|
| 37 |
272-1159 |
Plastic clamp |
6 |
|
|
|

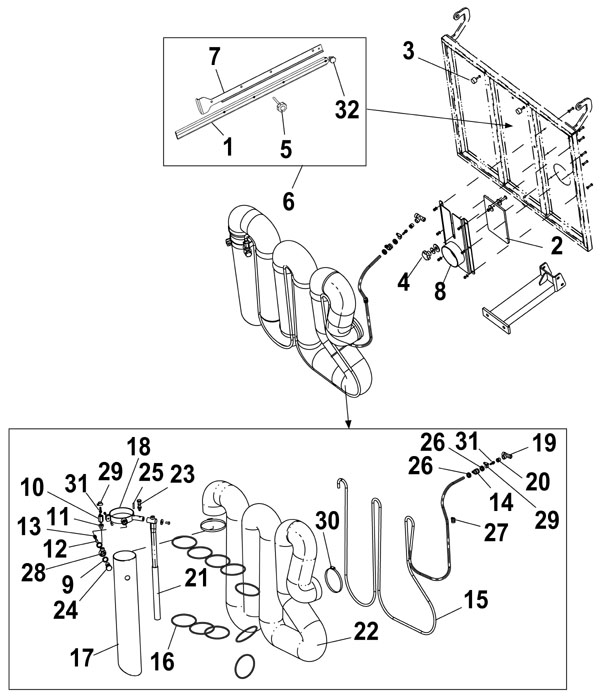

Suction Pipe Assembly - 272-9341 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4658 |
Handle (OBSOLETE) |
1 |
|
| 2 |
272-4659 |
Rear suction tube flap |
1 |
|
| 3 |
272-4197 |
Rubber isolator |
2 |
|
| 6 |
272-4662 |
Unclogging device kit (OBSOLETE) |
1 |
|
| 7 |
272-4663 |
Shovel (OBSOLETE) |
1 |
|
| 8 |
272-4664 |
Hose mounting plate |
1 |
|
| 10 |
272-4665 |
1/8 inch ball valve |
1 |
|
| 11 |
272-4666 |
Reduction gear |
1 |
|
| 12 |
272-4329 |
Mesh filter |
1 |
|
| 13 |
272-4667 |
Spray nozzle |
1 |
|
| 14 |
272-4668 |
Hose clamp (OBSOLETE) |
1 |
|
| 17 |
272-4670 |
Suction hose |
1 |
|
| 18 |
272-4671 |
Collar (OBSOLETE) |
1 |
|
| 19 |
272-4672 |
3/8 inch tee fitting (OBSOLETE) |
1 |
|
| 20 |
272-4673 |
Reducer fitting (OBSOLETE) |
1 |
|
| 22 |
272-4675 |
Polyurethane hose |
1 |
|
| 23 |
272-4676 |
Indexing plunger |
1 |
|
| 24 |
272-4677 |
Bolt single thread banjo |
1 |
|
| 28 |
272-4679 |
Banjo fitting |
1 |
|
| 29 |
170-5169 |
Hose clamp SAE #4 |
2 |
|
| 31 |
272-4211 |
Rubber seal |
2 |
|
| 32 |
472-1227 |
KNOB LOBED M6X15 PKD |
1 |
|
|
|

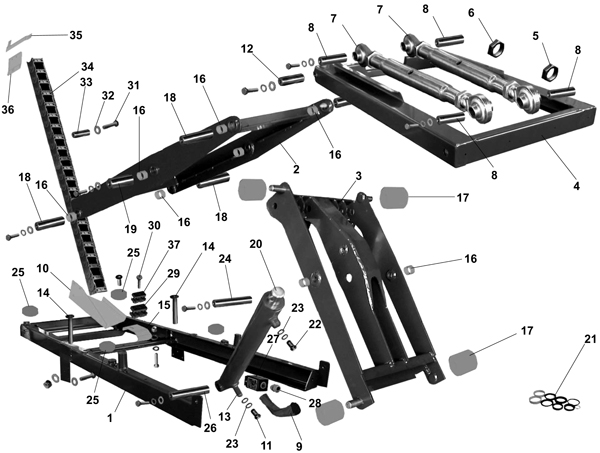

Autolift Assembly - 272-9342 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-4681 |
Base (OBSOLETE) |
1 |
|
| 2 |
272-4682 |
Hopper lift frame (OBSOLETE) |
1 |
|
| 3 |
272-4683 |
Hopper lift frame (OBSOLETE) |
1 |
|
| 4 |
272-4684 |
Hopper lift base |
1 |
|
| 5 |
272-4685 |
Left nut 27 x 3 (OBSOLETE) |
2 |
|
| 6 |
272-4686 |
Nut M27 x 3 hex thin (OBSOLETE) |
2 |
|
| 7 |
272-4687 |
Turnbuckle assembly (OBSOLETE) |
2 |
|
| 8 |
272-4688 |
Hopper hinge pin |
4 |
|
| 9 |
272-4689 |
Sheath (OBSOLETE) |
1 |
|
| 10 |
272-4690 |
Chain support (OBSOLETE) |
1 |
|
| 11 |
272-4496 |
Bolt 1/4 inch single banjo (OBSOLETE) |
1 |
|
| 12 |
272-4691 |
Hopper hinge pin (OBSOLETE) |
2 |
|
| 13 |
272-4447 |
1/4 inch valve (OBSOLETE) |
1 |
|
| 14 |
272-4196 |
Safety pin (OBSOLETE) |
2 |
|
| 15 |
272-4692 |
Hose case (OBSOLETE) |
1 |
|
| 17 |
272-4693 |
Plastic wheel |
4 |
|
| 18 |
272-4694 |
Hopper hinge pin (OBSOLETE) |
4 |
|
| 19 |
272-4695 |
Hopper hinge pin |
2 |
|
| 20 |
272-4446 |
Hopper lifting cylinder (OBSOLETE) |
1 |
|
| 21 |
272-4696 |
Gasket kit (OBSOLETE) |
1 |
|
| 22 |
272-4237 |
1/4 inch fitting |
1 |
|
| 23 |
272-7335 |
Sealing washer |
4 |
|
| 24 |
272-4697 |
Hopper hinge pin |
1 |
|
| 25 |
272-4698 |
Plastic bumper (OBSOLETE) |
4 |
|
| 26 |
272-4699 |
Hopper hinge pin (OBSOLETE) |
1 |
|
| 27 |
272-4700 |
Microswitch (OBSOLETE) |
1 |
|
| 28 |
270-8228 |
Cable clamp |
1 |
|
| 29 |
272-4701 |
Double collar (OBSOLETE) |
1 |
|
| 30 |
272-4702 |
Screw 8 x 70 hex head (OBSOLETE) |
1 |
|
| 31 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
1 |
|
| 32 |
272-4703 |
Lock washer |
1 |
|
| 33 |
272-4704 |
Chain support (OBSOLETE) |
1 |
|
| 34 |
272-4705 |
Hose holder chain |
1 |
|
| 35 |
272-4706 |
Plate (OBSOLETE) |
1 |
|
| 36 |
272-4707 |
Chain fixing plate (OBSOLETE) |
1 |
|
| 37 |
272-4708 |
Double hose clamp (OBSOLETE) |
1 |
|
| N/S |
272-4709 |
Hose holder chain kit |
1 |
|
|
|
Tank Assembly - 272-9343 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
272-4734 |
Water filter (OBSOLETE) |
1 |
|
| 5 |
272-4736 |
Decal (OBSOLETE) |
1 |
|
| 6 |
272-4737 |
Pipe (OBSOLETE) |
1 |
|
| 7 |
272-4220 |
1/4 inch elbow fitting |
1 |
|
| 8 |
272-4332 |
Rubber seal holder |
1 |
|
| 10 |
170-5169 |
Hose clamp SAE #4 |
4 |
|
| 11 |
272-4739 |
Bolt M12 x 1.5 |
1 |
|
| 12 |
272-4740 |
Gasket (OBSOLETE) |
1 |
|
| 13 |
172-0660 |
L-connection |
1 |
|
| 14 |
272-4741 |
Bracket (OBSOLETE) |
1 |
|
| 15 |
272-4742 |
Pipe (OBSOLETE) |
1 |
|
|
|

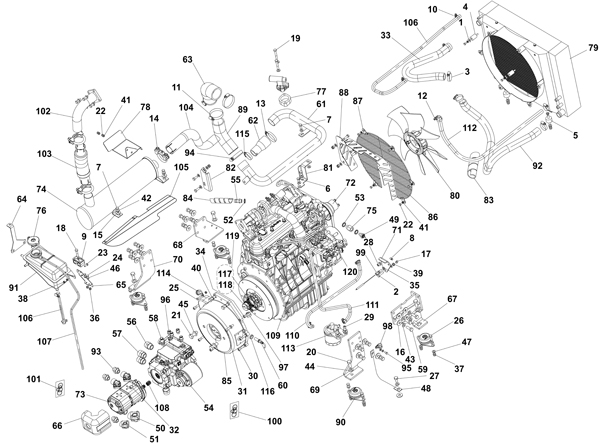

V1505 T Engine Assembly - 272-9344 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Washer M7 thick rubber) |
| 3 |
N/A |
Not available |
4 |
(clamp) |
| 4 |
272-4744 |
Rubber isolator |
2 |
|
| 5 |
272-4745 |
Vibration dampener |
2 |
|
| 7 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
| 8 |
272-4112 |
Accelerator cable clamp |
1 |
|
| 9 |
272-4458 |
Double hose clamp (OBSOLETE) |
1 |
|
| 10 |
170-5169 |
Hose clamp SAE #4 |
8 |
|
| 11 |
272-4382 |
Clamp (OBSOLETE) |
2 |
|
| 12 |
272-4746 |
Clamp (OBSOLETE) |
2 |
|
| 13 |
N/A |
Not available |
1 |
(clamp) |
| 14 |
272-4747 |
Muffler clamp |
1 |
|
| 17 |
999-9100 |
Washer M5 flat stainless steel |
1 |
|
| 18 |
272-4750 |
Screw (OBSOLETE) |
1 |
|
| 19 |
272-4751 |
Screw (OBSOLETE) |
2 |
|
| 20 |
272-4752 |
Screw (OBSOLETE) |
4 |
|
| 21 |
N/A |
Not available |
2 |
(screw) |
| 22 |
172-3665 |
Screw 6 x 12 hex head |
10 |
|
| 23 |
172-4823 |
Screw M6 x 16mm hex head |
1 |
|
| 24 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
2 |
|
| 25 |
N/A |
Not available |
1 |
(screw) |
| 26 |
999-0581 |
Bolt M8-1.25 x 25mm hex head full thread zinc |
15 |
|
| 27 |
272-7077 |
Screw M10 x 20mm |
1 |
|
| 28 |
170-9269 |
Screw M8 x 16mm |
1 |
|
| 29 |
272-9506 |
Screw M8-1.25 x 20mm socket head |
2 |
|
| 30 |
272-4753 |
Screw 8 x 30 (OBSOLETE) |
6 |
|
| 31 |
272-4754 |
Screw 8 x 45 |
1 |
|
| 32 |
272-4755 |
Screw 10 x 30 (OBSOLETE) |
2 |
|
| 33 |
N/A |
Not available |
1 |
(hose) |
| 34 |
999-0579 |
Nut M8-1.25 hex coarse thread zinc |
3 |
|
| 36 |
172-3667 |
Nut M6 self locking (OBSOLETE) |
2 |
|
| 37 |
472-3360 |
NUT SELF L. M8 UNI7473 10 PCS |
12 |
|
| 38 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 39 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
| 40 |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
|
| 41 |
272-4757 |
Washer (OBSOLETE) |
11 |
|
| 42 |
272-4703 |
Lock washer |
17 |
|
| 43 |
272-4758 |
Washer (OBSOLETE) |
19 |
|
| 44 |
272-4759 |
Washer (OBSOLETE) |
4 |
|
| 45 |
272-4760 |
Washer (OBSOLETE) |
2 |
|
| 46 |
172-3762 |
Washer 6 X 12 1/2 flat (OBSOLETE) |
2 |
|
| 47 |
999-1267 |
Washer M8 flat zinc |
25 |
|
| 48 |
272-4569 |
Ground cable (OBSOLETE) |
1 |
|
| 49 |
272-4761 |
Thermistor (OBSOLETE) |
1 |
|
| 50 |
272-4762 |
Elbow fitting (OBSOLETE) |
1 |
|
| 51 |
272-4294 |
1/2 inch o-ring elbow fitting |
3 |
|
| 52 |
272-4763 |
Washer (OBSOLETE) |
1 |
|
| 53 |
272-4236 |
3/8 inch sealing washer |
2 |
|
| 54 |
272-4407 |
Pump (OBSOLETE) |
1 |
|
| 55 |
272-4764 |
Rubber seal holder (OBSOLETE) |
1 |
|
| 57 |
272-4510 |
Nipple (OBSOLETE) |
2 |
|
| 58 |
272-4765 |
Quick fitting (OBSOLETE) |
1 |
|
| 59 |
272-4766 |
Screw M10 x 1.25 x 30mm (OBSOLETE) |
18 |
|
| 60 |
272-4767 |
Sensor turns |
1 |
|
| 61 |
272-4768 |
Suction pipe (OBSOLETE) |
1 |
|
| 62 |
272-4769 |
Reduction coupling (OBSOLETE) |
1 |
|
| 63 |
272-4381 |
Air intake hose (OBSOLETE) |
1 |
|
| 64 |
272-4770 |
Upper support (OBSOLETE) |
1 |
|
| 65 |
272-4771 |
Lower support (OBSOLETE) |
1 |
|
| 66 |
272-4772 |
Cover (OBSOLETE) |
1 |
|
| 67 |
272-4773 |
Left hand rear support (OBSOLETE) |
1 |
|
| 68 |
272-4774 |
Right hand rear support (OBSOLETE) |
1 |
|
| 69 |
272-4775 |
Left hand front support (OBSOLETE) |
1 |
|
| 70 |
272-4776 |
Right hand front support (OBSOLETE) |
1 |
|
| 71 |
272-4777 |
Support cable (OBSOLETE) |
1 |
|
| 72 |
272-4031 |
V1505T Kubota engine (OBSOLETE) |
1 |
|
| 73 |
272-4420 |
Gear pump (OBSOLETE) |
1 |
|
| 74 |
272-4778 |
Muffler (OBSOLETE) |
1 |
|
| 75 |
272-4779 |
Reducer fitting (OBSOLETE) |
1 |
|
| 76 |
172-9006 |
Plug (OBSOLETE) |
1 |
|
| 77 |
272-4821 |
Shim (OBSOLETE) |
1 |
|
| 78 |
272-4780 |
Case (OBSOLETE) |
1 |
|
| 79 |
272-4781 |
Water radiator (OBSOLETE) |
1 |
|
| 80 |
272-4782 |
Fan (OBSOLETE) |
1 |
|
| 81 |
272-4783 |
Support (OBSOLETE) |
1 |
|
| 82 |
272-4784 |
Support (OBSOLETE) |
1 |
|
| 83 |
272-4785 |
Spiral (OBSOLETE) |
1 |
|
| 84 |
272-4786 |
Spiral (OBSOLETE) |
1 |
|
| 85 |
272-4787 |
Engine bell kit (OBSOLETE) |
1 |
|
| 86 |
272-4788 |
Protection (OBSOLETE) |
1 |
|
| 87 |
272-4789 |
Protection grating (OBSOLETE) |
1 |
|
| 88 |
272-4790 |
Case (OBSOLETE) |
1 |
|
| 89 |
N/A |
Not available |
1 |
(Hose) |
| 90 |
272-4791 |
Vibration damping (OBSOLETE) |
4 |
|
| 91 |
272-4792 |
Expansion tank |
1 |
|
| 92 |
272-4793 |
Hose (OBSOLETE) |
1 |
|
| 93 |
272-4244 |
1/2 inch nipple |
3 |
|
| 95 |
999-0978 |
Bolt M6-1 x 14mm hex head stainless steel |
1 |
|
| 96 |
272-4292 |
1/4 inch pipe fitting |
4 |
|
| 97 |
272-4794 |
Clamp (OBSOLETE) |
1 |
|
| 99 |
172-3777 |
Adjuster (OBSOLETE) |
1 |
|
| 100 |
272-4795 |
Gasket kit |
1 |
|
| 101 |
272-4796 |
Gasket kit (OBSOLETE) |
1 |
|
| 102 |
272-4797 |
Exhaust pipe (OBSOLETE) |
1 |
|
| 103 |
272-4798 |
Flexible hose |
1 |
|
| 104 |
272-4799 |
Muffler terminal (OBSOLETE) |
1 |
|
| 105 |
272-4800 |
Protection (OBSOLETE) |
1 |
|
| 106 |
272-4801 |
Hose (OBSOLETE) |
1 |
|
| 107 |
272-4802 |
Crystal hose (OBSOLETE) |
1 |
|
| 108 |
272-4803 |
Keyed joint (OBSOLETE) |
1 |
|
| 109 |
272-4804 |
Solenoid valve stop |
1 |
|
| 110 |
272-4805 |
Hose (OBSOLETE) |
1 |
|
| 111 |
272-4742 |
Pipe (OBSOLETE) |
1 |
|
| 112 |
272-4806 |
Hose (OBSOLETE) |
1 |
|
| 113 |
272-4807 |
Diesel filter |
1 |
|
| 115 |
272-4657 |
Hose clamp |
1 |
|
| 116 |
272-4808 |
Spacer (OBSOLETE) |
1 |
(after SN 103806748) |
| 117 |
N/A |
Not available |
1 |
(flange) |
| 118 |
N/A |
Not available |
1 |
(hub) |
| 119 |
272-4809 |
Coupling kit |
1 |
|
| 120 |
272-4810 |
Sensor plug kit (OBSOLETE) |
1 |
|
| N/S |
272-4371 |
Engine oil filter |
1 |
|
| N/S |
272-4372 |
Fuel filter |
1 |
|
| N/S |
272-4812 |
Oil pressure switch (OBSOLETE) |
1 |
|
| N/S |
272-4813 |
Thermostate valve |
1 |
|
| N/S |
272-4814 |
Injection pump (OBSOLETE) |
1 |
|
| N/S |
272-4815 |
Diesel pump |
1 |
|
| N/S |
272-4816 |
Glow plug (OBSOLETE) |
4 |
|
| N/S |
272-4817 |
Engine seals kit (OBSOLETE) |
1 |
|
| N/S |
272-4818 |
Alternator (OBSOLETE) |
1 |
|
| N/S |
272-4819 |
Alternator belt (OBSOLETE) |
1 |
|
| N/S |
272-4820 |
Valve cover gasket (OBSOLETE) |
1 |
|
|
|
- Commonly Asked For Parts - 272-9975 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
172-9006 |
Plug (OBSOLETE) |
|
|
| 03 |
272-7349 |
Plastic wear plate (OBSOLETE) |
1 |
|
| 04 |
272-6629 |
Cyclone filter |
|
Includes butterfly nut |
| 05 |
272-7289 |
Side broom polypropelene and steel (OBSOLETE) |
|
|
|
|
