Parts List Complete for NILFISK RETRIEVER 2060

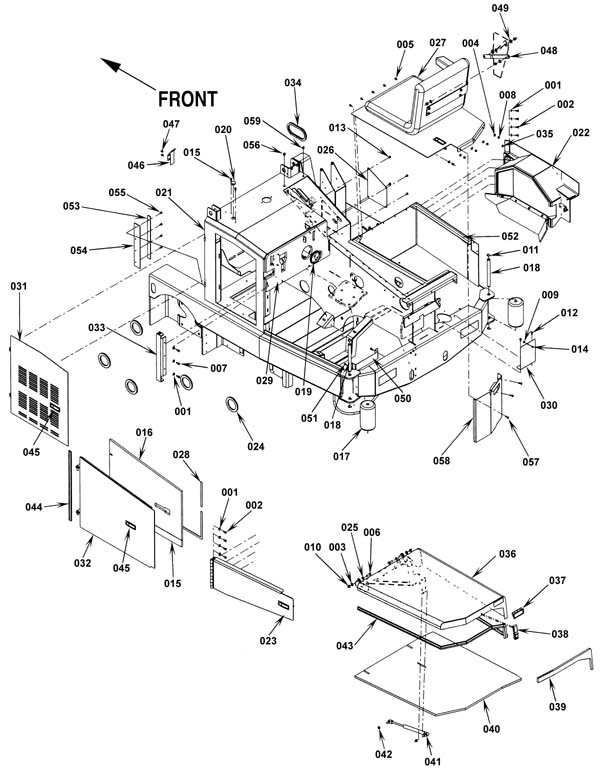

Chassis Sytsem - 172-7001
RefNbr Part Number Description Req Notes
001 999-0024 Washer 5/16 flat stainless steel 11
002 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 8
003 999-0120 Washer 3/8 SAE flat 2
004 999-0123 Washer 1/4 SAE flat zinc plated 5
005 175-5925 COVER, GAS (Tennant Industrial) 7
006 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
007 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 3
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
009 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
010 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
011 172-9513 Retaining ring 4
012 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
013 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
014 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 1
015 272-2897 Engine door insulation (OBSOLETE) 1
016 272-2898 Engine door insulation (OBSOLETE) 1
017 172-9509 Roller bumper 2
018 172-9508 Pin 2
019 172-3251 Grommet 1
020 272-2899 Button plug 1
021 272-2900 Chassis weldment (OBSOLETE) 1
022 272-2901 Right door assembly (OBSOLETE) 1
023 272-2902 Left door assembly (OBSOLETE) 1
024 272-2903 Grommet (OBSOLETE) 5
025 172-9375 Bushing (OBSOLETE) 2
026 272-2904 Access cover 1
027 272-2905 Seal plate assembly (OBSOLETE) 1
028 272-2906 Engine door gasket (OBSOLETE) 1
029 272-2907 Tower rear insulation (OBSOLETE) 1
030 272-2908 Fuel opening cover (OBSOLETE) 1
031a 272-2909 Tower door assembly (OBSOLETE) 1
031b 272-2910 Left door weldment (OBSOLETE) 1
032a 272-2911 Left door weldment (OBSOLETE) 1
032b 272-2912 Left door assembly (OBSOLETE) 1
033a 272-2913 Hinge assembly (OBSOLETE) 1
033b 272-2914 Hinge weldment (OBSOLETE) 1
034 N/A Not available 1
035a 272-2915 Self adhesive bumper 2
035b N/A Not available 1
036 272-2916 Engine cover weldment (OBSOLETE) 1
038 172-0049 Latch 1
039 N/A Not available 1
040 272-2918 Engine cover insulation (OBSOLETE) 1
041 172-0320 Hood cylinder 1
042 999-0430 Nut 5/16-18 hex jam plain finish 2
043 272-2919 Engine cover gasket (OBSOLETE) 1
044 272-2920 Engine door gasket 1
045 172-9788 Door latch 2
046 272-2921 Deflector (OBSOLETE) 1
047 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2
048 272-2922 Lift link weldment (OBSOLETE) 1
049 272-1835 Washer flat 1
050 N/A Not available 2
051 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
052 272-2923 Seat plate gasket 1
053 272-2924 Strap (OBSOLETE) 2
054 272-2925 Squeegee blade (OBSOLETE) 2
055 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 8
056 272-2926 Cap plug (OBSOLETE) 3
057 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 3
058 272-2927 Rear panel (OBSOLETE) 1
059 272-2928 Button plug 1

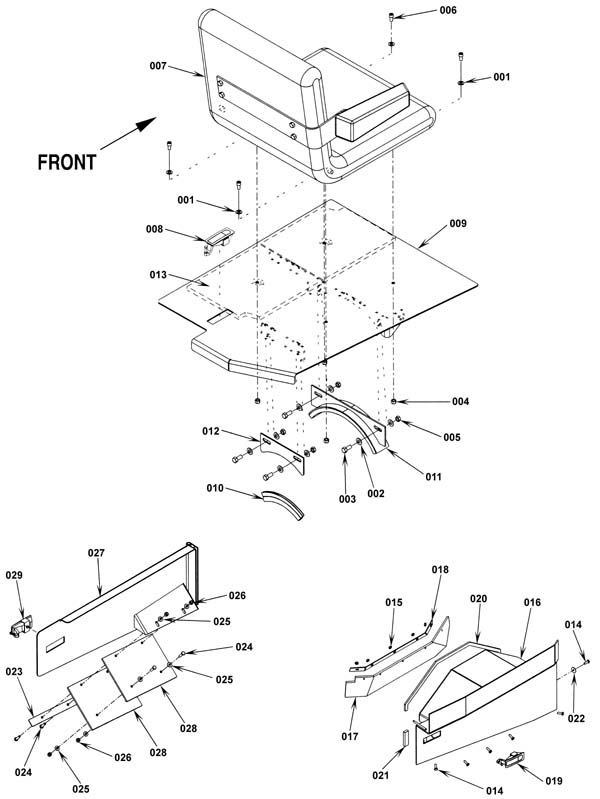

Chassis System - 172-7002
RefNbr Part Number Description Req Notes
000 272-2905 Seal plate assembly (OBSOLETE) 1
001 999-0024 Washer 5/16 flat stainless steel 4
002 999-0120 Washer 3/8 SAE flat 6
003 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 4
005 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
006 272-1644 Bolt 5/16-18 x 5/8 socket head 4
007a 272-2929 Seat 1
007b 272-2930 Left armrest kit (OBSOLETE) 1
008 172-9788 Door latch 1
009 272-2931 Seat panel weldment (OBSOLETE) 1
010 272-2932 Bulb gasket 1
011 272-2933 LP clamp assembly (OBSOLETE) 1
012 272-2934 LP clamp plate (OBSOLETE) 1
013 272-2935 Seat plate insulation (OBSOLETE) 2

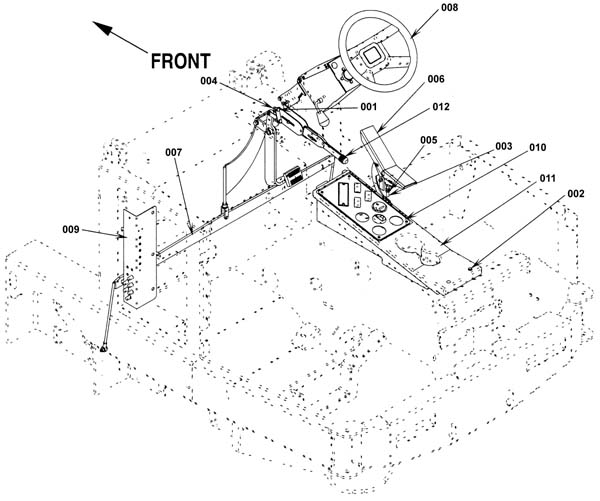

Control System - 172-7004
RefNbr Part Number Description Req Notes
001 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated 4
002 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
003 N/A Not available 2
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
005 999-0118 Nut 1/2-13 nylon insert lock zinc plated 4
006 272-2936 Throttle pedal assembly (OBSOLETE) 1
007 272-2937 Brake lever assembly (OBSOLETE) 1
008 272-2938 Tilt steering assembly (OBSOLETE) 1
009 272-2939 Circuit breaker assembly (OBSOLETE) 1
010a 272-2940 Control panel assembly (OBSOLETE) 1
010b 272-2941 Control panel wiring harness (OBSOLETE) 1
011 272-2942 Finished console 1
012 272-2943 Brake lever assembly (OBSOLETE) 1

Control Panel Assembly -

RefNbr Part Number Description Req Notes

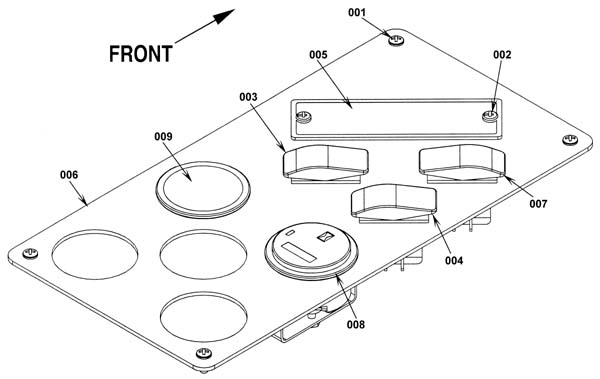

Control Panel Assembly - 172-7006
RefNbr Part Number Description Req Notes
000 272-2940 Control panel assembly (OBSOLETE) 1
001 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 4
002 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
003 172-2157 Rocker switch DPDT 1
004 172-0219 Rocker switch 1
005 272-2944 Light display (OBSOLETE) 1
006 272-2945 Control panel 1
007 272-2946 Rocker switch (OBSOLETE) 1
008 272-2947 Hour meter 1
009 270-0644 Fuel gauge 1

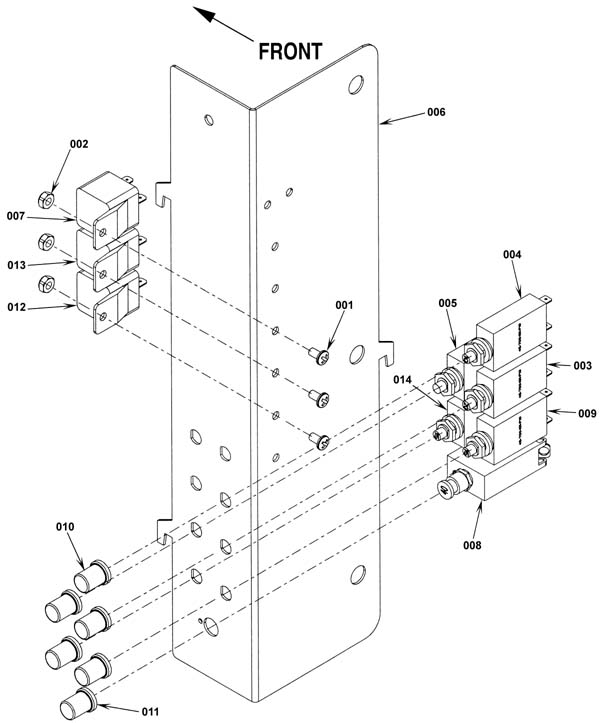

Circuit Breaker Assembly -

RefNbr Part Number Description Req Notes

Circuit Breaker Assembly - 172-7008
RefNbr Part Number Description Req Notes
000 272-2939 Circuit breaker assembly (OBSOLETE) 1
001 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 3
002 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
003 272-2952 8 Amp circuit breaker (OBSOLETE) 1
004 172-2160 10amp circuit breaker 1
005 172-0227 20amp circuit breaker (OBSOLETE) 1
006 272-2949 Circuit breaker panel 1
007 272-2950 Hopper door relay 1
008 172-9823 40 Amp circuit breaker 1
009a 172-9572 15amp circuit breaker 1
009b 991-8539 15amp circuit breaker 1 (NON-OEM)
010 172-0231 Reset button boot 5
011 172-8848 Reset button boot 1
012 272-2951 Shaker motor relay 1
013 272-2950 Hopper door relay 1
014a 172-9572 15amp circuit breaker 1
014b 991-8539 15amp circuit breaker 1 (NON-OEM)

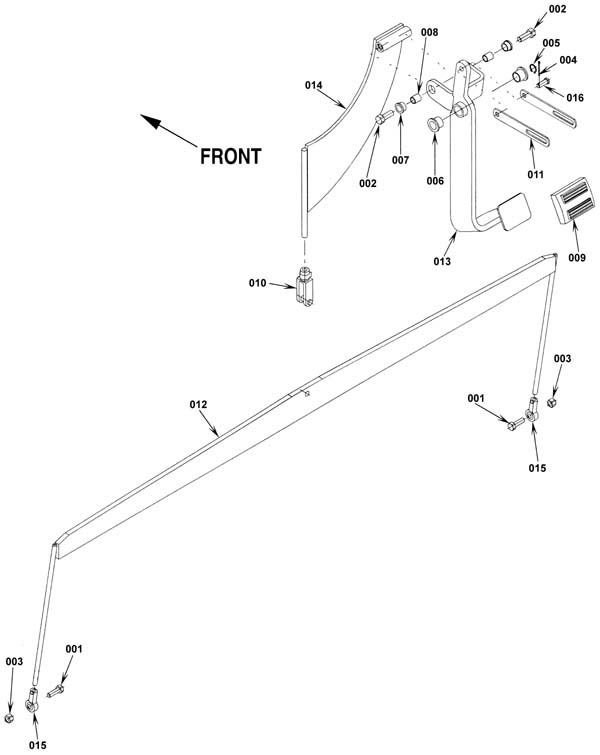

Brake Lever Assembly - 172-7009
RefNbr Part Number Description Req Notes
000 272-2937 Brake lever assembly (OBSOLETE) 1
001 N/A Not available 2
002 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
003 999-0340 Nut 5/16-24 nylon insert lock zinc plated 2
004 172-4387 Pin cot .06 x .50 1
005 172-1730 Retaining ring 1
006 172-4037 Flanged bearing (OBSOLETE) 2
007 172-9497 Flanged bearing 2
008 N/A Not available 2 (Bushing)
009 272-1983 Rubber pedal pad 1
010 272-2954 Clevis assembly (OBSOLETE) 1
011 272-2955 Hand brake linkage (OBSOLETE) 2
012 272-2956 Brake yoke weldment (OBSOLETE) 1
013 272-2957 Brake lever weldment (OBSOLETE) 1
014 272-2958 Link weldment 1
015 272-2959 Rod end 2
016 272-2960 Pin (OBSOLETE) 1

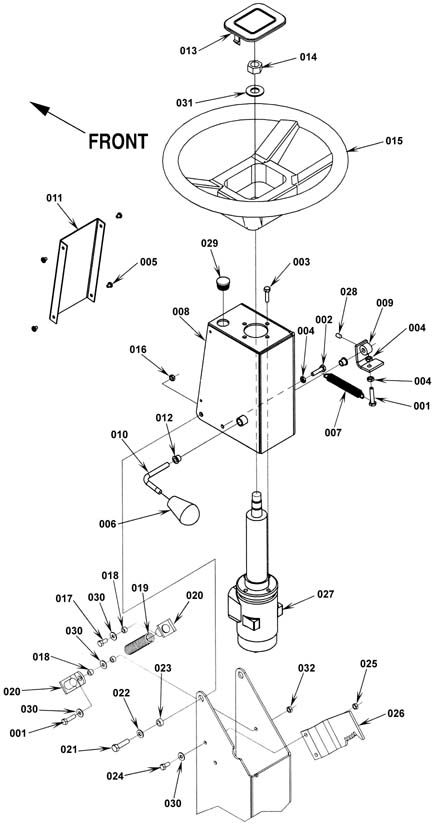

Tilt Steering Assembly - 172-7010
RefNbr Part Number Description Req Notes
001 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
002 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
003 999-0518 Bolt M6-1 x 25mm hex head full thread zinc 4
004 999-0181 Nut 1/4-20 hex jam plain finish 3
005 999-0340 Nut 5/16-24 nylon insert lock zinc plated 4
006 172-0021 Knob 1
007 999-9089 Washer M4 flat stainless steel 1
008 272-2962 Steering bracket weldment (OBSOLETE) 1
009 272-2963 Pawl weldment 1
010 272-2964 Steering lock lever 1
011 272-2965 Steering hoses cover (OBSOLETE) 1
012 272-2966 Flange bearing 2
013 272-7657 Steering wheel cover 1
014 172-4431 Nut M16-1 x 1.5mm hex 1
015 272-2969 Steering wheel 1
016 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
018 172-0379 Bushing 3
019 172-0136 Spring 1
020 272-2970 Spring bracket weldment (OBSOLETE) 2
021 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
022 999-0024 Washer 5/16 flat stainless steel 2
023 172-4008 Bushing 2
024 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
025 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
026 272-2971 Adjustable steering latch (OBSOLETE) 1
027 272-2972 Steering unit assembly (OBSOLETE) 1
028 181-0079 Screw 5/16-18 x 5/8 socket set lock 1
029 272-2973 Plastic plug (OBSOLETE) 1
030 999-0123 Washer 1/4 SAE flat zinc plated 5
031 999-0349 Washer 5/8 SAE flat 1
032 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1

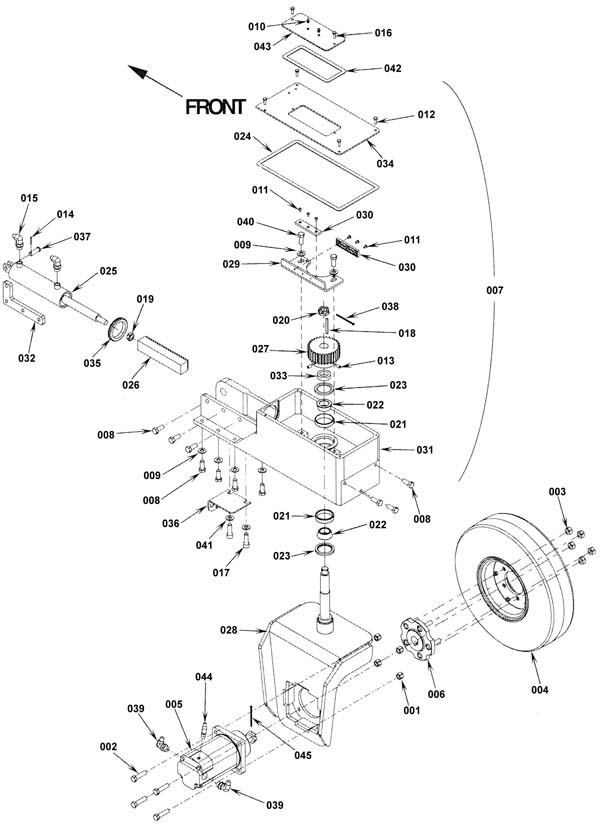

Drive Wheel System - 172-7011
RefNbr Part Number Description Req Notes
001 999-0118 Nut 1/2-13 nylon insert lock zinc plated 4
002 996-0261 11 inch medium grit scrubbing brush - 180 grit 4
003 272-1653 Nut 1/2-20 lug 5
004a 272-2968 Tire assembly (OBSOLETE) 1
004b 272-2977 Cushion tire (OBSOLETE) 1
004c 272-2978 Non-marking tire (OBSOLETE) 1
005a 272-2979 Motor wheel 1
005b 272-2980 Seal kit 1
007a N/A Not available 1 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
007b 272-2982 Steering assembly (OBSOLETE) 1 After SN 1365891
008a 999-0200 Bolt 1/2-13 x 1 1/4 hex head 10 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
008b 999-0200 Bolt 1/2-13 x 1 1/4 hex head 10 After SN 1365891
009 999-0114 Washer 1/2 SAE flat 6
010 172-0363 Grease fitting 2
011 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 6
012 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
013 181-0079 Screw 5/16-18 x 5/8 socket set lock 2
014 997-2503 Cotter pin 1/8 x 1 1
015 272-2983 90 degree elbow 2
016 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 2
017 272-2984 Screw 1/2 - 13 x 1 1/2, socket head 2
018 172-2588 Key 1
019 181-0988 Nut 5/8-18 hex jam lock 1
020 272-1603 Nut 7/8-14 castle 1
021a 172-3315 Bearing cup 2 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
021b 272-2985 Cup bearing 2 After SN 13655891
022a 172-3316 Bearing cone 2 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
022b 272-2986 Cone bearing 2 After SN 13655891
023a 172-3317 Seal 2 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
023b 272-2987 Shaft seal 2 After SN 13655891
024 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) 4 ft
025 272-2988 Hydraulic cylinder (OBSOLETE) 1
026 272-2989 Rack (OBSOLETE) 1
027 272-2990 Spur gear 1
028a N/A Not available 1 (Before SN 1365892) (Spindle weldment) (Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320)
028b 272-2992 Spindle weldment (OBSOLETE) 1 After SN 13655891
029 272-2993 Adjuster angle 1
030 272-2994 Wear plate 2
031a N/A Not available 1 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
031b 272-2995 Casting, steering (OBSOLETE) 1 After SN 13655891
032 272-2996 Cylinder bracket 1
033a 272-2997 Gear spacer (OBSOLETE) 1 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
033b 272-2998 Gear spacer 1 After SN 13655891
034 272-2999 Cover plate (OBSOLETE) 1
035 272-3000 Grommet 1
036 272-3001 Bulkhead bracket (OBSOLETE) 1
037 272-3002 Clevis pin 1
038 172-4328 Cotter pin 1
039 272-3003 90 degree elbow o-ring 2
040a 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2 (Before SN 1365892)Machine before SN 1365891 can be updated from 1.25" spindle to a 1.75" spindle by ordering kit # 56419320
040b 272-1659 Bolt 1/2-13 X 1 lock 2 After SN 13655891
041 999-0114 Washer 1/2 SAE flat 2 Used only after SN 1365891
042 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) 2 ft

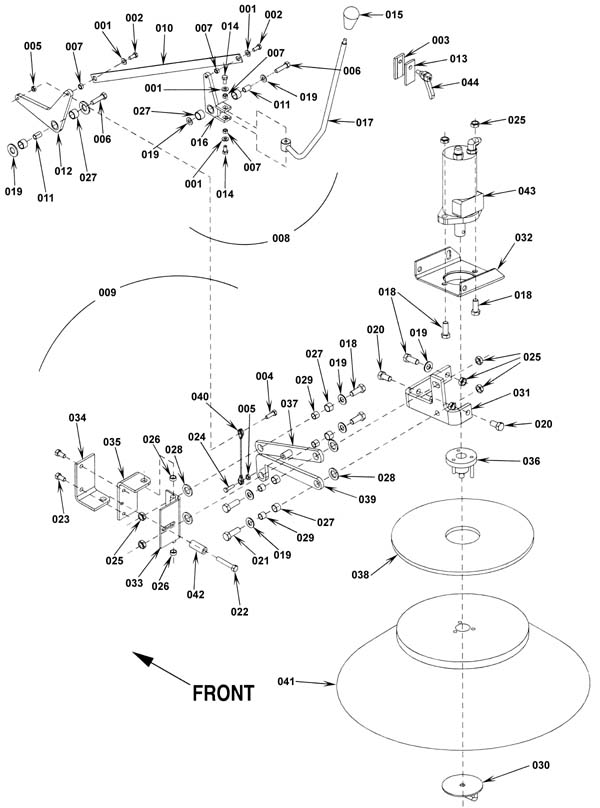

Side Broom System - 172-7012
RefNbr Part Number Description Req Notes
001 999-0024 Washer 5/16 flat stainless steel 4
002 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
003 272-3004 Broom stop 1
004 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 1
006 999-0261 Bolt 1/2-13 x 2 hex head grade 5 2
007 172-4008 Bushing 4
008 272-3005 Side broom lift lever assembly 1
009 272-3006 Side broom assembly (OBSOLETE) 1
010 272-3007 Linkage (OBSOLETE) 1
011 272-3008 Bushing 3/8 x 1/2 x 25/32 2
012 N/A Not available 1
013 272-3009 Broom stop 1
014 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
015 172-0021 Knob 1
016 272-3010 Lever weldment 1
017 272-3011 Lever weldment 1
018 999-0200 Bolt 1/2-13 x 1 1/4 hex head 5
019 999-0114 Washer 1/2 SAE flat 9
020 999-0837 Bolt 1/2-13 x 1 hex head low carbon plain finish 2
021 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
022 999-0834 Screw 3/8-16 x 2 1/4 hex head plain finish 1
023 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
024 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
025 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 9
026 172-2742 Bushing 2
027 172-0023 Sleeve bearing 8
028 999-1134 Washer 1 1/4 flat stainless steel 4
029 172-0024 Bushing 4
030 272-3012 Thumb nut weldment 1
031 272-3013 Side broom bracket (OBSOLETE) 1
032 272-3014 Bracket weldment (OBSOLETE) 1
033 272-3015 Side broom pivot weldment (OBSOLETE) 1
034 272-3016 Side broom lower bracket 1
035 272-3017 Side broom upper bracket (OBSOLETE) 1
036 272-3018 Side broom hub assembly 1
037 272-3020 Side broom arm weldment 1
038 272-3021 Side broom guard 1
039 272-3022 Lower side broom arm 1
040 272-3023 Side broom cable (OBSOLETE) 1
041a 272-3024 Heavy duty side broom 1
041b 272-3025 Nylon side broom 1
041c 272-3026 Wire side broom (OBSOLETE) 1
042 272-3027 Spring 1
043 272-3028 Side broom motor assembly (OBSOLETE) 1
044 272-3030 Adjustable handle 1

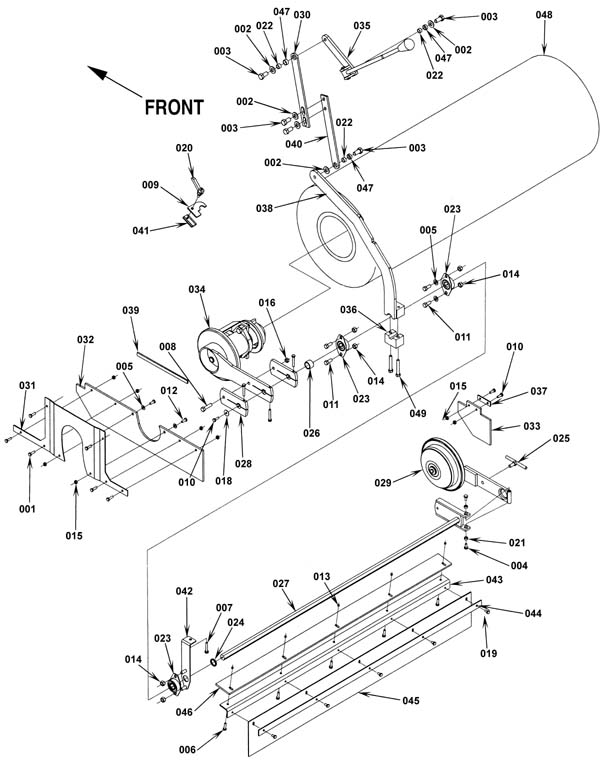

Main Broom System - 172-7013
RefNbr Part Number Description Req Notes
001 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 6
002 999-0114 Washer 1/2 SAE flat 5
003 999-0281 Bolt 1/2-13 x 3/4 hex head grade 5 zinc plated 5
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
005 999-0120 Washer 3/8 SAE flat 4
006 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 5
007 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 1
008 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
009 272-3031 Broom stop 1
010 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 3
011 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 4
012 172-4335 Screw 1/4-20 x 7/8 flat phillips head 2
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
014 999-0188 Nut 3/8-16 nylon insert lock zinc plated 6
015 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
016 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
017 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated 2
018 172-0548 Washer 17/64 x 47/64 flat stainless steel 1
019 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 5
020 272-3030 Adjustable handle 1
021 172-4008 Bushing 2
022 172-0139 Bushing 3
023 272-3032 Bearing, hex flange (OBSOLETE) 3
024 272-3033 Shaft spacer (OBSOLETE) 1
025 272-3034 Broom arm nut weldment 1
026 272-3035 Spacer shaft (OBSOLETE) 1
027 272-3036 Right hex arm weldment (OBSOLETE) 1
028 272-3037 Hex broom arm (OBSOLETE) 2
029 272-3038 Idler hub assembly 1
030 272-3039 Lift link (OBSOLETE) 1
031 272-3040 Left access plate (OBSOLETE) 1
032 272-3041 Left skirt 1
033 272-3042 Broom housing skirt 1
034 272-3043 Drive lug assembly (OBSOLETE) 1
035 272-3044 Lift lever assembly (OBSOLETE) 1
036 272-3045 Hex clamp block (OBSOLETE) 1
037 272-3046 Right broom housing strap 1
038 272-3047 Lift link weldment (OBSOLETE) 1
039 272-3048 RS strip gasket (OBSOLETE) 1
040 N/A Not available 1
041 272-3004 Broom stop 1
042 272-3049 Broom adjuster weldment (OBSOLETE) 1
043 272-3050 Support blade (OBSOLETE) 1
044 272-3051 Squeegee blade strap (OBSOLETE) 1
045 272-3052 Broom housing blade 1
046 272-3053 Internal broom housing blade 1
047 172-0079 Sleeve bearing (OBSOLETE) 3
048 272-3054 Main broom 8 row polypropylene 1
049 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated 2

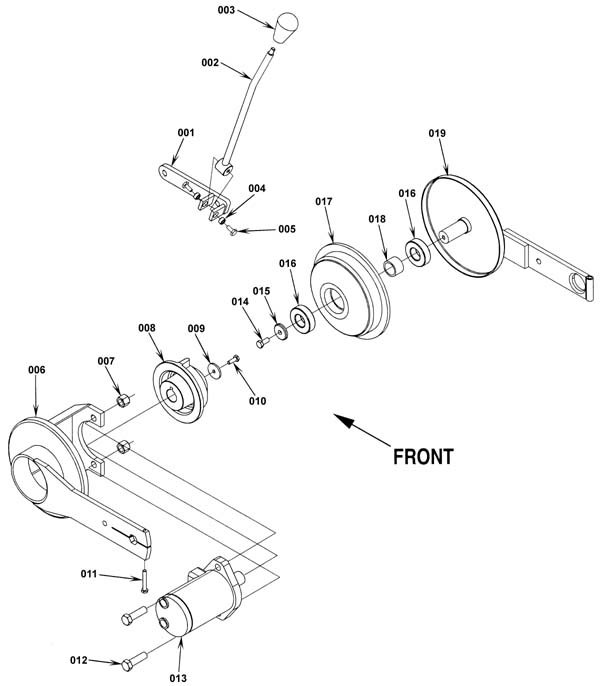

Main Broom System - 172-7014
RefNbr Part Number Description Req Notes
000 272-3044 Lift lever assembly (OBSOLETE) 1
001 272-3055 Lever weldment (OBSOLETE) 1
002 272-3056 Lever weldment (OBSOLETE) 1
003 172-0021 Knob 1
004 172-4008 Bushing 2
005a 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
005b 272-3043 Drive lug assembly (OBSOLETE) 1
006 272-3057 Left side arm weldment 1
007 999-0118 Nut 1/2-13 nylon insert lock zinc plated 2
008 272-3058 Driver hub 1
009 172-3610 Washer flat brass 1
010 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
011 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated 1
012 999-0372 Bolt 1/2-13 x 1 3/4 hex head 2
013a 272-3059 Main broom motor 1
013b 272-3060 Seal kit 1
013c 272-3038 Idler hub assembly 1
014 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 1
015 272-1523 Washer flat 1
016 172-9411 Ball bearing 2
017 272-3934 Idler hub 1
018 272-3062 Bushing 1
019 272-3063 Idler arm weldment 1

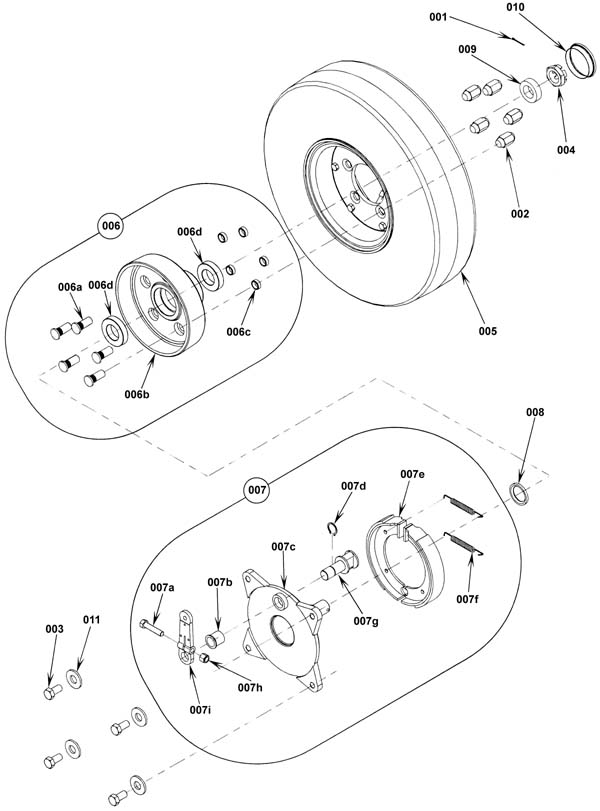

Front Wheel System - 172-7015
RefNbr Part Number Description Req Notes
001 172-5116 Cotter pin .19 x 1.75 1
002 272-1610 Nut lug 5
003 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish 4
004 272-3064 Nut 1-14 hex castle thin 1
005 272-3065 Tire assembly (OBSOLETE) 1
006a 272-3068 Front hub assembly (OBSOLETE) 1
006b 272-3069 Stud M14 - 1 1/2 x 35.3 5
006c 272-3070 Front hub (OBSOLETE) 1
006d 272-3071 Bushing 3/4 x 9/16 x 19/64 5
006e 272-3072 Ball bearing 2
007a 272-3073 Brake assembly 1
007b 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 1
007c N/A Not available 1
007d N/A Not available 1
007e 172-9756 Retainer ring 1
007f 272-3074 Brake shoe 2
007g 272-3075 Spring 2
007h N/A Not available 1
007i 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
007j 272-3076 Lever 1
008 272-3077 Washer adapter 1
009 272-3078 Washer thick 1
010 272-3079 Hub cap 1
011 999-0114 Washer 1/2 SAE flat 4

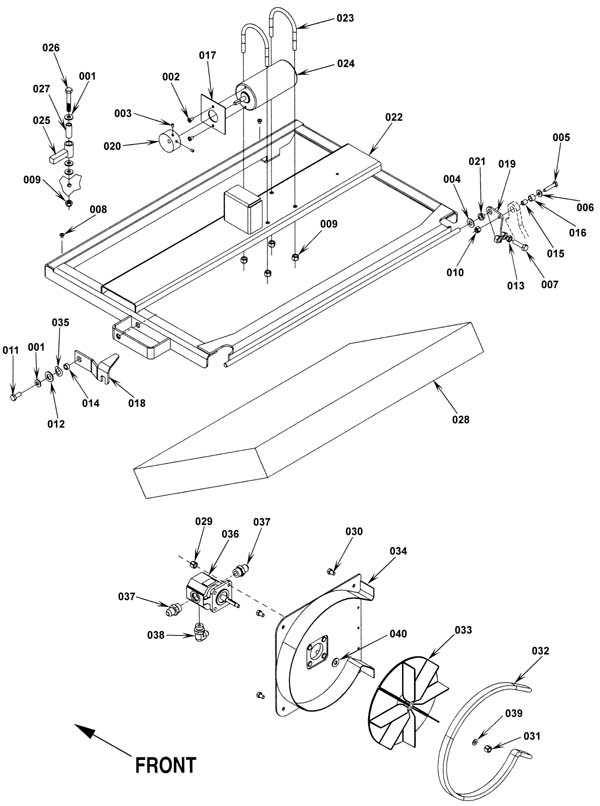

Dust Control System - 172-7016
RefNbr Part Number Description Req Notes
000b 272-3081 Impeller assembly 1
001 999-0024 Washer 5/16 flat stainless steel 7
002 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated 2
003 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish 2
004 999-0120 Washer 3/8 SAE flat 2
005 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
006 999-0123 Washer 1/4 SAE flat zinc plated 2
007 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 2
008 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 2
009 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
010 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
011 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 1
012 172-4548 Washer 33/64 x 15/16 x 1/16 flat 1
013 999-0430 Nut 5/16-18 hex jam plain finish 2
014 172-4008 Bushing 1
015 172-0400 Bushing 2
016 172-7014 Bushing 2
017 272-3082 Shaker shield (OBSOLETE) 1
018 272-3083 Shaker latch 1
019 272-3084 Shaker hinge weldment 2
020 272-3085 Eccentric 1
021 272-3086 Bushing flange 2
022 272-3087 Shaker weldment (OBSOLETE) 1
023 272-3089 U-bolt 2
024 272-3088 Motor 12 VDC 1
025 272-3092 Filter clamp weldment 2
026 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 2
027 272-3093 Bushing 2
028 272-3094 Filter 1
029 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
030 272-1810 Screw 5/16-18 x 1/2 hex lock 4
031 999-0340 Nut 5/16-24 nylon insert lock zinc plated 1
032 272-3095 Seal trim 1
033 272-3096 Impeller 1
034 272-3097 Impeller bracket weldment 1
035 172-4550 Washer 33/64 x 1/64 bowed 1
036 272-3098 Motor (OBSOLETE) 1
037 272-3100 Connector 2
039 999-0024 Washer 5/16 flat stainless steel 1
040 272-1835 Washer flat 1

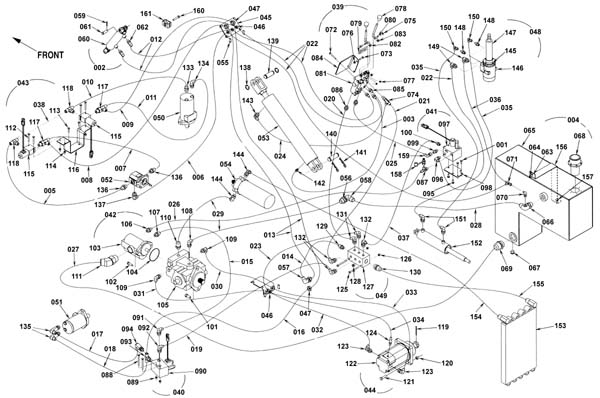

Hydraulic System - 172-7017
RefNbr Part Number Description Req Notes
001 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
002 272-3101 Hopper door cylinder assembly 1
003 272-3102 Hose (OBSOLETE) 1
004 N/A Not available 1
005 N/A Not available 1
006 272-3103 Hose (OBSOLETE) 1
007 N/A Not available 1
008 272-3104 Hose (OBSOLETE) 1
009 N/A Not available 1
010 272-3105 Hose (OBSOLETE) 1
011 272-3106 Hose (OBSOLETE) 1
012 272-3107 Hose (OBSOLETE) 2
013 272-3108 Hose (OBSOLETE) 2
014 272-3109 Hose (OBSOLETE) 1
015 272-3110 Hose (OBSOLETE) 1
017 272-3113 Hose (OBSOLETE) 1
018 272-3114 Hose (OBSOLETE) 1
019 N/A Not available 1
020 272-3115 Hose (OBSOLETE) 1
021 272-3116 Hose (OBSOLETE) 1
022 272-3117 Hose (OBSOLETE) 4
023 272-3118 Hose (OBSOLETE) 1
024 272-3119 Hose (OBSOLETE) 1
025 272-3120 Hose (OBSOLETE) 1
026 272-3121 Hose (OBSOLETE) 1
027 272-3122 Hose 1
028 N/A Not available 1
029 272-3123 Hose (OBSOLETE) 2
030 272-3124 Hose 1
031 272-3125 Hose (OBSOLETE) 1
032 272-3126 Hose 1
033 272-3127 Hose 1
034 272-3128 Hose (OBSOLETE) 1
035 272-3129 Hose (OBSOLETE) 2
036 272-3130 Hose (OBSOLETE) 1
037 272-3131 Hose (OBSOLETE) 1
038 272-3132 Hose (OBSOLETE) 1
039 272-3133 Directional control valve assembly (OBSOLETE) 1
040 272-3134 Broom valve assembly (OBSOLETE) 1
041 N/A Not available 1
042 N/A Not available 1
043 N/A Not available 1
044 272-3135 Wheel motor assembly (OBSOLETE) 1
045 272-3136 Bulkhead plate (OBSOLETE) 1
046 272-3137 Bulkhead locknut 4
047 272-3138 Bulkhead locknut 6
048 272-2972 Steering unit assembly (OBSOLETE) 1
049 N/A Not available 1
050a 272-3028 Side broom motor assembly (OBSOLETE) 1
050b 272-3139 Side broom motor (OBSOLETE) 1
051a 272-3140 Main broom motor assembly (OBSOLETE) 1
051b 272-3059 Main broom motor 1
052a 272-3141 Impeller motor assembly (OBSOLETE) 1
052b 272-3098 Motor (OBSOLETE) 1
053a 272-3142 Lift cylinder assembly (OBSOLETE) 1
053b 272-3143 Hopper cylinder (OBSOLETE) 1
054a 272-3145 Filter assembly (OBSOLETE) 1
054b 272-3146 Oil filter 1
055 272-3147 Sleeve 2
056 272-3148 Bulkhead locknut (OBSOLETE) 1
057 272-3149 Union #8 elbow 1
058 N/A Not available 1
059 997-2503 Cotter pin 1/8 x 1 2
060 272-3150 Hydraulic cylinder 1
061 272-3002 Clevis pin 2
062 272-3151 90 degree elbow 2
063 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 1
064 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
065 N/A Not available 1
066 N/A Not available 1
067 272-3152 O-ring hex plug 1
069 175-1643 Foam exhaust filter 1
070 272-2983 90 degree elbow 1
071 272-3154 Tee 1
072 999-1892 Screw 1/4-20 x 2 hex cap stainless steel 2
073 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
074 272-3155 Run o-ring tee 1
075 999-1178 Bolt 10-24 x 3/4 hex head stainless steel 2
076 999-0152 Nut 1/4-20 nylon insert lock zinc plated 5
077 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
078 172-0208 Knob (OBSOLETE) 2
079 272-3156 Valve u-clip 1
080 272-3157 Bushing (OBSOLETE) 2
081 272-3158 Directional control valve (OBSOLETE) 1
082 272-3160 Left lever weldment (OBSOLETE) 1
083 272-3161 Right lever weldment (OBSOLETE) 1
084 272-3162 Valve bracket (OBSOLETE) 1
085 272-3163 Connector 3
087 272-3155 Run o-ring tee 1
088 999-0607 Screw 1/4-20 x 3 carriage head stainless steel 2
089 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
090 272-3164 Solenoid valve (OBSOLETE) 1
091 175-1532 Cloth filter bag 1
092 N/A Not available 1
093 272-3166 Branch o-ring tee 1
094 272-3167 90 degree long o-ring elbow 1
095 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
096 272-3151 90 degree elbow 1
097 272-3168 Cartridge valve (OBSOLETE) 1
098 N/A Not available 1
099 272-3170 Connector 1
100 272-3163 Connector 1
101 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
102 272-4307 Left arm (OBSOLETE) 2
103 272-3171 Dual gear pump (OBSOLETE) 1
104 272-3172 Seal kit (OBSOLETE) 1
105 272-3173 O-ring 1
106 272-3174 Piston pump 1
107 272-3175 Seal kit 1
108a 272-3176 O-ring connector 1
108b 272-3100 Connector 1
109 272-3177 90 degree elbow 2
110 272-3178 90 degree elbow o-ring (OBSOLETE) 1
111 272-3003 90 degree elbow o-ring 1
112 N/A Not available 4
113 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
114 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
115 272-3180 Solenoid valve (OBSOLETE) 2
116 N/A Not available 1
117 272-3182 Connector tee 1
118 272-3166 Branch o-ring tee 2
119 172-4328 Cotter pin 2
120 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
121 999-0261 Bolt 1/2-13 x 2 hex head grade 5 4
122 272-2979 Motor wheel 4
123 272-3003 90 degree elbow o-ring 1
124 272-3183 45 o-ring elbow 1
125 999-0607 Screw 1/4-20 x 3 carriage head stainless steel 2
126 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
127 272-3184 Hydraulic manifold (OBSOLETE) 1
128 272-3185 O-ring hex plug 1
129 272-3186 Connector 1
130 272-3187 O-ring connector 1
131 272-3188 90 degree elbow 2
132 272-3151 90 degree elbow 3
133 272-3189 Check valve 1
134 175-1532 Cloth filter bag 1
135 272-3167 90 degree long o-ring elbow 2
136 272-3100 Connector 2
137 272-2983 90 degree elbow 1
138 172-4405 Ring ret ext 2
139 272-3190 Cylinder short pin 1
140 272-3191 Pin (OBSOLETE) 1
141 172-3483 Cotter pin 2
142 272-3192 Connector 1
143 272-2983 90 degree elbow 1
144 272-3177 90 degree elbow 2
145 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
146 272-3194 Steering control unit (OBSOLETE) 1
147 272-3195 Steering column 1
148 272-3163 Connector 2
149 272-3151 90 degree elbow 2
150 272-3196 90 degree elbow 2
151 272-2983 90 degree elbow 2
152 272-2988 Hydraulic cylinder (OBSOLETE) 1
153 N/A Not available 1 (Hydraulic oil cooler)
154 272-3198 Hose (OBSOLETE) 1
155 272-3199 Hose (OBSOLETE) 1
156 272-3200 Hydraulic reservior strap (OBSOLETE) 1
157 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated 1
158 272-3201 #6 test port coupling 1
159 272-3202 90 degree elbow with nut 1
160 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated 1
161 272-3203 Twin clamp 1

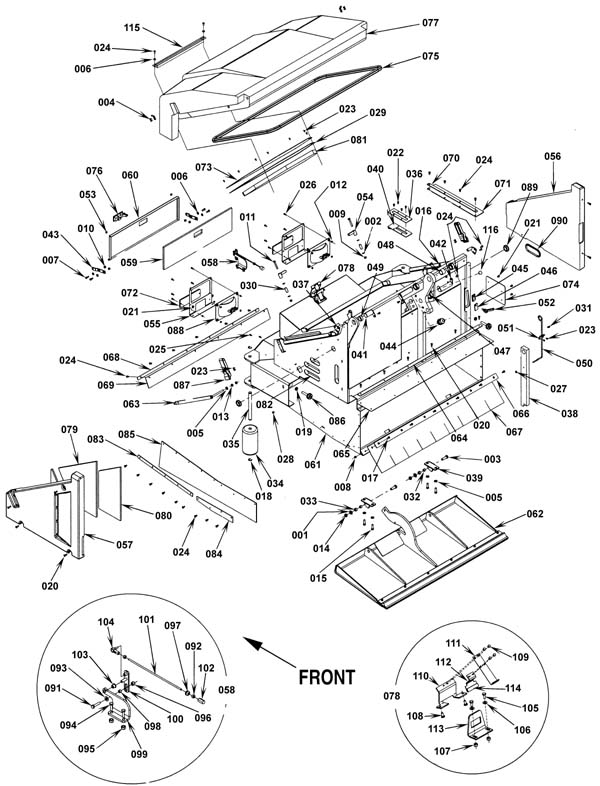

Hopper System - 172-7018
RefNbr Part Number Description Req Notes
001 999-0114 Washer 1/2 SAE flat 2
002 999-0024 Washer 5/16 flat stainless steel 4
003 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
004 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 4
005 999-0120 Washer 3/8 SAE flat 5
006 999-0123 Washer 1/4 SAE flat zinc plated 6
007 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
008 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
009 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
010 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
011 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 2
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 12
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
014 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 2
015 172-4373 Screw 3/8-16 x 1.25 4
016 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel 4
017 172-4335 Screw 1/4-20 x 7/8 flat phillips head 6
018 172-9513 Retaining ring 4
019 999-0118 Nut 1/2-13 nylon insert lock zinc plated 2
020 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 15
021 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 6
022 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 4
023 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 14
024 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 28
025 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 2
026 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc 12
027 272-5254 Nut 1/4 push cap 1
028 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) 1
029 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) 7 ft Cut to 6.5 foot
030 272-3093 Bushing 2
031 172-8919 Flanged bearing 1
032 172-0072 Bushing 2
033 N/A Not available 2 (Sleeved bearing) (please order 172-0069)
034 172-9509 Roller bumper 2
035 172-9508 Pin 2
036 272-3204 Boot plate (OBSOLETE) 2
037 272-3205 Hopper cover hinge weldment 2
038 272-3206 Hopper prop (OBSOLETE) 1
039 272-3207 Hinge weldment 2
040 272-3208 Hopper boot 1
041 272-3209 Left hinge pin weldment 1
042 272-3210 Right hinge pin weldment 2
043 272-3211 Hinge plate (OBSOLETE) 2
044 172-1221 Strain relief (OBSOLETE) 1
045 272-3004 Broom stop 1
046 272-3009 Broom stop 1
047 272-3212 Hopper hinge collar 3
048 272-3213 Sleeve bearing (OBSOLETE) 1
049 272-3214 Sleeve bearing (OBSOLETE) 1
050 272-3215 Pull rod (OBSOLETE) 1
051 272-3216 Pull rod guide (OBSOLETE) 1
052 272-3030 Adjustable handle 1
053 272-2915 Self adhesive bumper 2
054 272-3092 Filter clamp weldment 2
055 272-3217 Headlight bracket (OBSOLETE) 1
056 272-3218 Right hopper panel (OBSOLETE) 1
057 272-3219 Left hopper panel (OBSOLETE) 1
058 272-3220 Switch actuator assembly (OBSOLETE) 1
059 272-3221 Litter door gasket 1
060 272-3222 Litter door weldment (OBSOLETE) 1
061 272-3223 Hopper weldment (OBSOLETE) 1
062 272-3224 Dump door assembly (OBSOLETE) 1
063 272-3227 Hood prop weldment (OBSOLETE) 1
064 272-3238 Cover (OBSOLETE) 1
065 272-3239 Gasket 1
066 272-3230 Threshold strap (OBSOLETE) 1
067 272-3231 Threshold skirt 1
068 272-3232 Inside squeegee blade strap 1
070 272-3234 Dust shield strap (OBSOLETE) 1
071 272-3235 Dust shield 1
072 272-3236 Amber lens (OBSOLETE) 2
073 272-3237 Access panel (OBSOLETE) 1
074 272-3238 Cover (OBSOLETE) 1
075 272-3239 Gasket 1
076 272-3240 Lift and turn latch 1
077 272-3241 Hopper cover (OBSOLETE) 1
078 272-3242 Latch assembly (OBSOLETE) 1
079 272-3243 Foam (OBSOLETE) 1
080 272-3244 Foam (OBSOLETE) 1
081 272-3245 Foam (OBSOLETE) 1
082 272-3246 Foam (OBSOLETE) 1
083 272-3247 Squegee blade side strap (OBSOLETE) 1
084 272-3248 Squegee blade side strap (OBSOLETE) 1
085 272-3249 Litter shield blade 1
086 172-9507 Leveler 2
087 172-3697 Rubber hook 2
088 272-3250 Headlight (OBSOLETE) 2
089 172-8310 Grommet 2
090 272-3251 Rubber edge trim (OBSOLETE) 1
091 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 1
092 999-0086 Nut 10-32 nylon insert lock zinc plated 2
093 999-0123 Washer 1/4 SAE flat zinc plated 1
094 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
095 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
096 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
097 172-2847 Grommet (OBSOLETE) 1
098 172-0379 Bushing 1
099 272-3252 Bracket 1
100 272-3253 Lever weldment 1
101 272-3254 Rod 1
102 272-3255 Nut 1
103 272-2966 Flange bearing 1
104 172-0207 Rod end #10 1
105 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
106 999-0123 Washer 1/4 SAE flat zinc plated 2
107 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
108 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
109 172-4627 Screw 10-24 x 1/4 hex washer head thread form 4
110 272-3256 Latch bracket (OBSOLETE) 1
111 272-3257 Latch (OBSOLETE) 1
112 272-3258 Latch pull (OBSOLETE) 1
113 272-3259 Latch strike (OBSOLETE) 1
114 172-2209 Raw trim 2
115 272-3260 Grille weldment (OBSOLETE) 1 in
116 172-1803 Plug 1

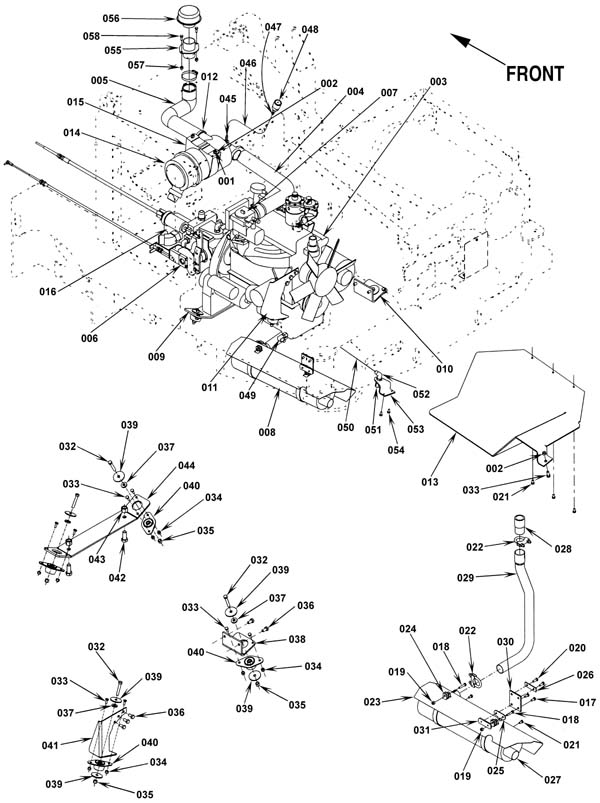

Engine Assembly - 172-7019
RefNbr Part Number Description Req Notes
001 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 2
002 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
003 272-3261 Engine (OBSOLETE) 1
004 272-3262 Air inlet hose (OBSOLETE) 1
005 272-3263 Flexible air inlet hose 1
006 272-3264 Linkage assembly (OBSOLETE) 1
007a 272-3265 Propane assembly (OBSOLETE) 1
007b N/A Not available 1
007c 272-3266 Gasoline assembly (OBSOLETE) 1
008 N/A Not available 1
009 N/A Not available 1
010 272-3267 Left engine mount assembly 1
011 272-3268 Right engine mount assembly (OBSOLETE) 1
012 997-2003 Hose clamp 1
013 272-3269 Fuel tank guard weldment (OBSOLETE) 1
014 272-3270 Air cleaner 1
015 272-3273 Band assembly 1
016 N/A Not available 1
017 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
018 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
019 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
020 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 2
021 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 5
022 272-3274 Muffler clamp 2
023 272-3275 Heat shield 1
024 272-3276 Clamp weldment 2
025 272-3277 Muffler hanging plate (OBSOLETE) 1
026 272-3046 Right broom housing strap 1
027 N/A Not available 1 (Muffler)
028 N/A Not available 1
029 272-3279 Exhaust pipe weldment (OBSOLETE) 1
030 272-3280 Mount 1
031 272-3281 Nut plate (OBSOLETE) 1
032 999-0834 Screw 3/8-16 x 2 1/4 hex head plain finish 4
033 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 9
034 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
035 999-0188 Nut 3/8-16 nylon insert lock zinc plated 9
036 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 8
037 999-0617 Washer 3/8 x 1 flat stainless steel 4
038 272-3282 Left engine mount bracket (OBSOLETE) 5
039 999-0328 Washer 7/16 USS flat 4
040 272-3283 Isolator mount 1
041 272-3284 Right engine mount bracket 6
042 272-1650 Bolt 5/8-11 X 1 1/2 hex lock (OBSOLETE) 4
043 272-0516 Nut 5/8-11 hex nylock thin 1
044 N/A Not available 2
045 272-3285 Adapter 5/16 - 18 NPT barb (OBSOLETE) 2
046 272-3286 Hose 1
047 272-3287 Hose female barb (OBSOLETE) 1
048 272-3288 Service indicator 1
049 272-3289 90 degree flare elbow (OBSOLETE) 1
050 272-3290 Hose (OBSOLETE) 1
051 272-3291 Flare tube end cap 1
052 272-3292 Union #6 elbow (OBSOLETE) 1
053 272-3293 Oil drain bracket (OBSOLETE) 1
054a 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
054b 272-3294 Inlet hood assembly (OBSOLETE) 1
055 272-3295 Flange weldment (OBSOLETE) 1
056 272-3296 Inlet hood 1
057 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
058 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2

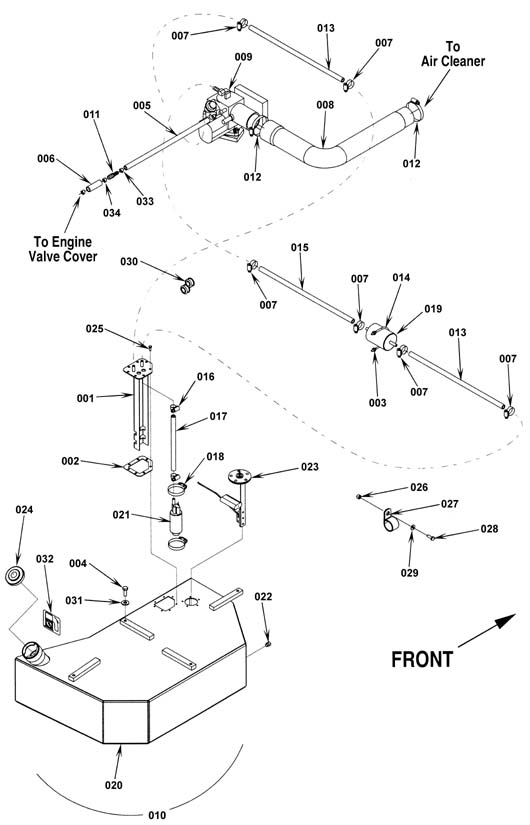

Gasoline Assembly - 172-7020
RefNbr Part Number Description Req Notes
000 272-3266 Gasoline assembly (OBSOLETE) 1
001 272-3311 Fuel pump bracket (OBSOLETE) 1
002 272-3312 Gasket 1
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
005 172-0212 Hose tube (sold by the foot) 14 in
006 N/A Not available 2 in
007 997-2002 Hose clamp #6 6
008 272-3262 Air inlet hose (OBSOLETE) 1
009a 272-3313 Gasoline injection assembly (OBSOLETE) 1
009b 275-4074 VR, SEAL KIT, VALVE, HYD [CEC] (Tennant Industrial)
010 272-3316 Fuel tank assembly (OBSOLETE) 1
011 272-2172 Reducer barb 1
012 997-2003 Hose clamp 2
013 272-3317 Fuel line hose 2
014 272-3318 U-bolt 1
015 272-3319 Fuel line hose 1
017 272-3286 Hose 1
018 997-2000 Hose clamp 2
019 272-3320 Fuel filter (OBSOLETE) 1
020 272-3321 Fuel tank weldment (OBSOLETE) 1
021a 272-3322 Fuel pump 1
021b 272-3323 Fuel pump assembly (OBSOLETE) 1
022 272-3324 Hex pipe plug 1
023 272-3325 Fuel level sender 1
024 272-3326 Fuel tank cap vented 1
025 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 7
026 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
027 172-9261 P clamp 1
028 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
029 999-0123 Washer 1/4 SAE flat zinc plated 1
030 272-3328 Grommet 2
031 999-0024 Washer 5/16 flat stainless steel 4
032 172-5459 Unleaded fuel decal 1
033 272-3330 Hose band clamp 2
034 272-3331 Hose band clamp (OBSOLETE) 2

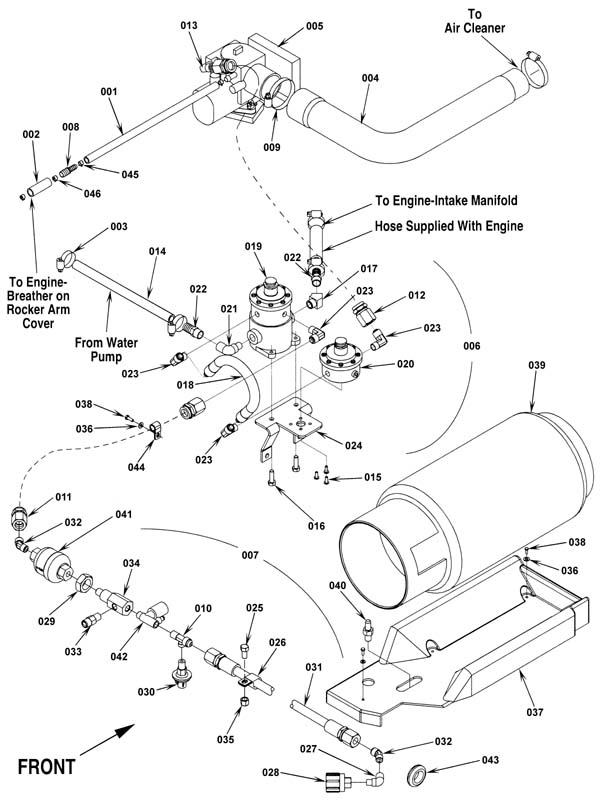

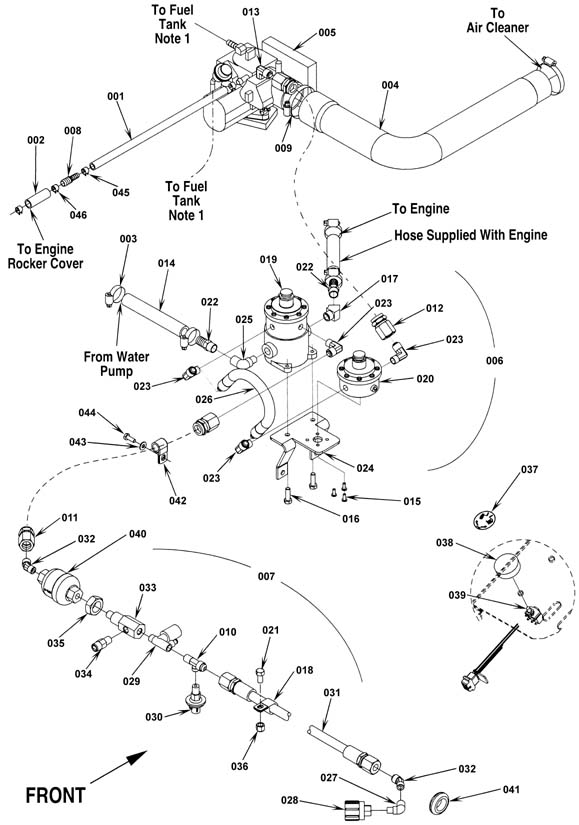

Propane Assembly - 172-7021
RefNbr Part Number Description Req Notes
000 272-3265 Propane assembly (OBSOLETE) 1
001 172-0212 Hose tube (sold by the foot) 14 in
002 N/A Not available 2 in
003 997-2005 Hose clamp 4
004 272-3263 Flexible air inlet hose 1
005 N/A Not available 1 (Propane injector assembly) (includes 041 and 042) (Before SN 1359052)
006a N/A Not available 1 (After SN 1359051)
006b 272-3335 Regulator assembly 24 psi (OBSOLETE) 1 (Before SN 1359052)
007 272-3336 Filter assembly 1
008 272-2172 Reducer barb 1
009 997-2003 Hose clamp 2
010 272-3337 Tee 1
011 272-3338 LPG hose assembly 1
012 272-3339 LPG hose assembly 1
013 272-3340 Male elbow 1
014 272-3341 Heater hose 1
015 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
016 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 3
017 172-2326 Elbow 2
018 272-3342 Hose (OBSOLETE) 1
019a 272-3343 Primary LPG regulator assembly 12 psi (OBSOLETE) 1 (After SN 1359051)
019b 272-3344 Primary regulator (OBSOLETE) 1 (Before SN 1359052)
020a 272-3345 Secondary LPG regulator assembly (OBSOLETE) 1 (After SN 1359051)
020b 272-3346 Secondary regulator (OBSOLETE) 1 (Before SN 1359052)
021 172-4075 90 degree street elbow 1
022 272-3348 Adapter 5/8 x 3/8 NPT barb 2
023 272-3340 Male elbow 4
024 272-3350 Regulator bracket (OBSOLETE) 1
025 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 1
026 272-3351 P clamp 1
027 172-0299 Brass elbow 1
029 172-4330 Nut 7/8-14 hex jam 1
030 272-3353 Switch N C Pressure 1
031 272-3338 LPG hose assembly 1
032 272-3355 45 degree elbow, male 2
033 272-3356 1/4 NPT vent 1
034 272-3357 Bulkhead fitting 1
035 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
036 999-0123 Washer 1/4 SAE flat zinc plated 6
037 272-3358 LP tank cradle (OBSOLETE) 1
038 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 6
039 272-3359 LP tank 1
040 272-3360 Locator pin (OBSOLETE) 1
041 N/A Not available 1 (Lpfilter)
042 272-3362 LP fuel lock-off (OBSOLETE) 1
043 172-8310 Grommet 1
044 272-3351 P clamp 1
045 272-3330 Hose band clamp 2
046 272-3331 Hose band clamp (OBSOLETE) 2

Dual Fuel Assembly -

RefNbr Part Number Description Req Notes

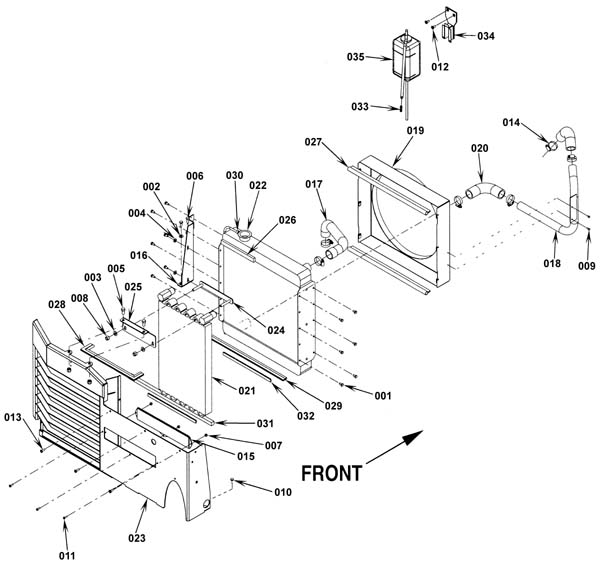

Radiator Assembly(before July 2000) - 172-7023
RefNbr Part Number Description Req Notes
000 N/A Not available 1
001 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 12
002 999-0024 Washer 5/16 flat stainless steel 2
003 999-0120 Washer 3/8 SAE flat 2
004 999-0123 Washer 1/4 SAE flat zinc plated 2
005 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
006 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
007 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 3
008 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
009 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2
010 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 1
011 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc 3
012 999-1255 Screw 1/4-20 x 5/8 flat head phillips thread forming 2
013 N/A Not available 3 (Screw)
014 997-2008 Hose clamp 6
015 272-3434 Tail light lens 1
016 272-3435 Radiator mount bracket (OBSOLETE) 1
017 272-3436 Radiator hose (OBSOLETE) 1
018 272-3437 Tube weldment (OBSOLETE) 1
019 272-3438 Shroud weldment (OBSOLETE) 1
020 272-3439 Lower radiator hose 2
021 N/A Not available 1 (Hydraulic oil cooler)
022 N/A Not available 1
023 N/A Not available 1
024 N/A Not available 1
025 N/A Not available 1
026 N/A Not available 1
027 272-3441 Gasket bulb (OBSOLETE) 2
028 N/A Not available 1
029 272-3442 Gasket bulb 1
030 272-3443 Hose band clamp 2
031 272-3444 Gasket (OBSOLETE) 1
032 272-3445 Strip gasket (OBSOLETE) 2
033 272-3446 Connector barb (OBSOLETE) 1
034 N/A Not available 1
035 N/A Not available 1

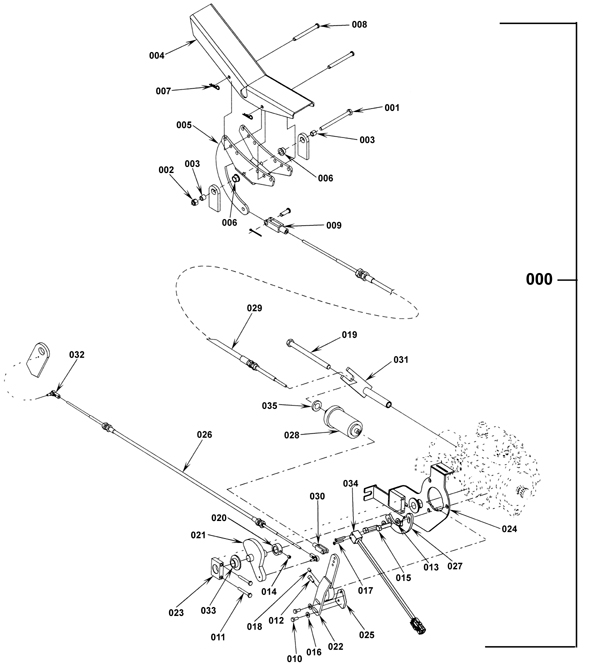

Pedal Drive Linkage - 172-7024
RefNbr Part Number Description Req Notes
000a 272-2936 Throttle pedal assembly (OBSOLETE) 1
000b 272-3264 Linkage assembly (OBSOLETE) 1
001 999-0362 Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated 1
002 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
003 N/A Not available 2
004 272-3447 Pedal weldment (OBSOLETE) 1
005 272-3448 Pedal weldment 1
006 272-3449 Flange bearing 2
007 172-4443 Pin .059 x .375 cot hair 2
008 172-4922 Clevis pin 1/4 x 2 3/4 2
009 272-3451 Clevis assembly 2
010 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
011 999-1892 Screw 1/4-20 x 2 hex cap stainless steel 2
012 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish 1
013 999-0120 Washer 3/8 SAE flat 2
014 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
015 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 2
016 999-0123 Washer 1/4 SAE flat zinc plated 2
017 999-0852 Screw 8-32 x 1 1/4 truss head slotted stainless steel 2
018 272-1454 Screw 1/4-20 X 3/8 socket set lock 1
019 272-1531 Bolt 3/8-16 X 6-1/2 1
020 172-0115 Shaft collar 1
021 N/A Not available 1
022 272-3452 Arm weldment 1
023 N/A Not available 1
024 N/A Not available 1
025 272-3453 Cam plate 1
026 272-3454 Push/pull cable 1
027 272-3455 Neutral safety switch mount 1
028 272-3456 Hydroback 1
029 272-3457 Control cable (OBSOLETE) 1
030 272-3451 Clevis assembly 1
031 272-3459 Bracket weldment (OBSOLETE) 1
032 172-0207 Rod end #10 2
033 172-2294 Flanged bearing (OBSOLETE) 2
034 272-3460 Sealed ball switch 1
035 999-0349 Washer 5/8 SAE flat 1

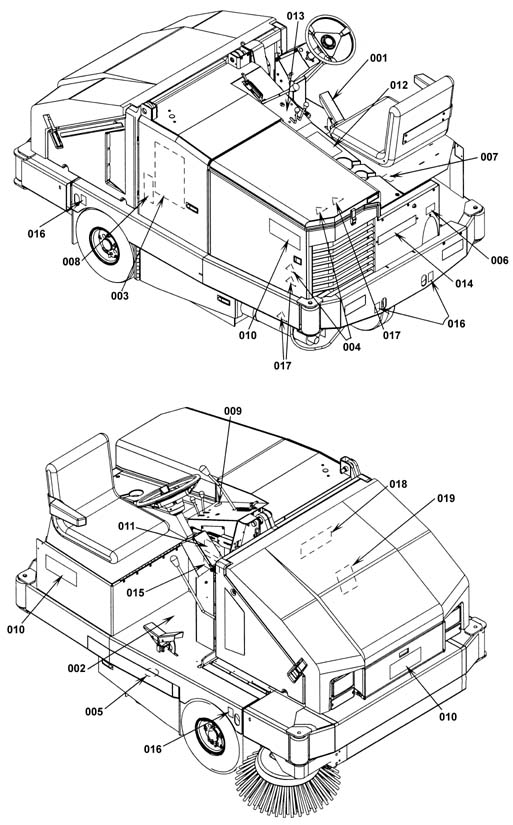

Decal System -

RefNbr Part Number Description Req Notes

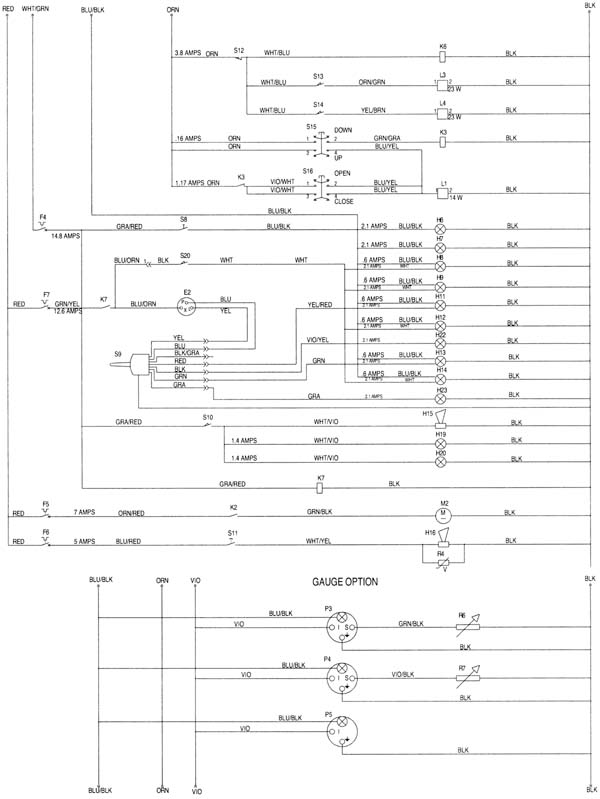

Wiring Diagram -

RefNbr Part Number Description Req Notes

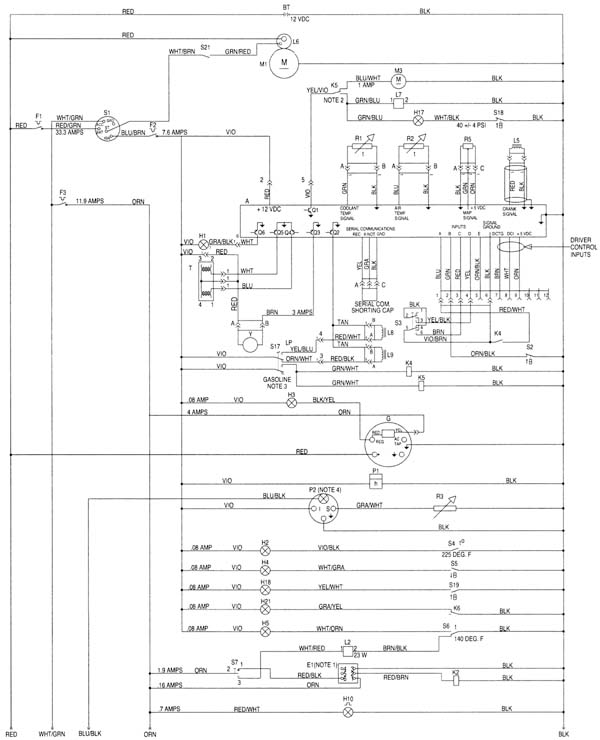

Wiring Diagram -

RefNbr Part Number Description Req Notes

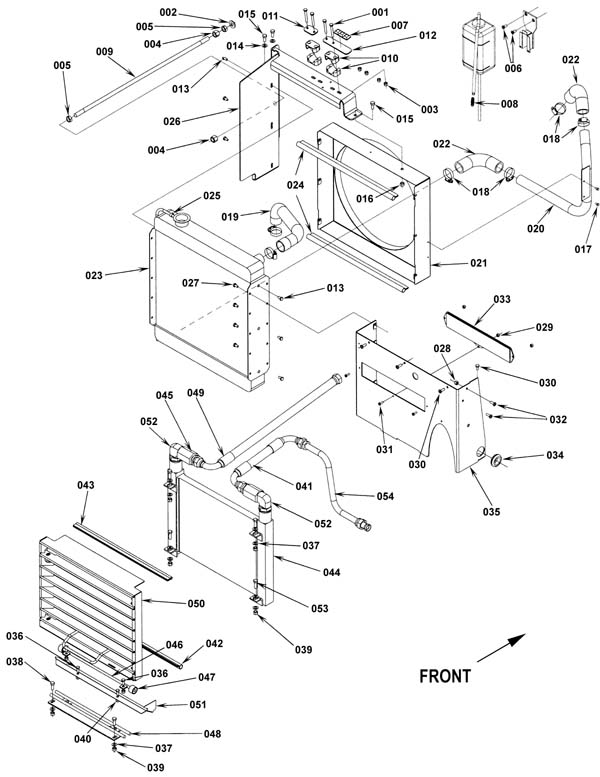

Radiator Assembly(after June 2000) -

RefNbr Part Number Description Req Notes

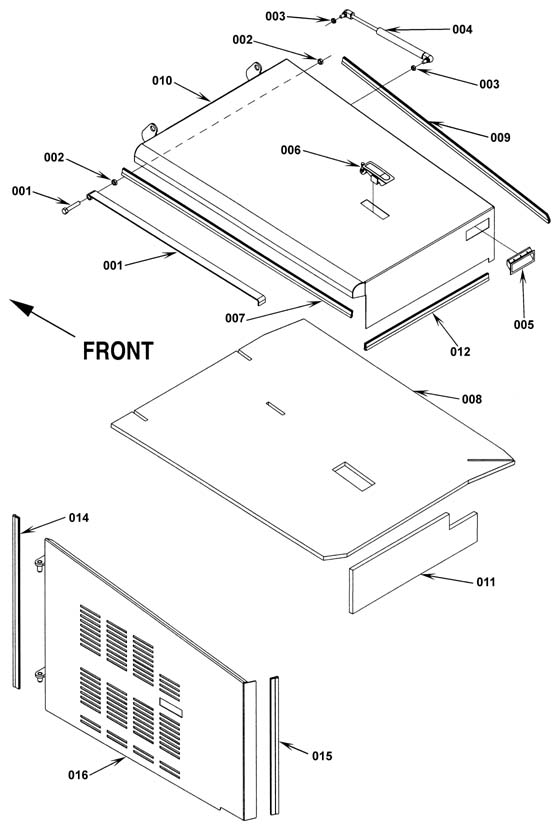

Door/Hood Assembly -

RefNbr Part Number Description Req Notes
Webpage Problem Reporting
