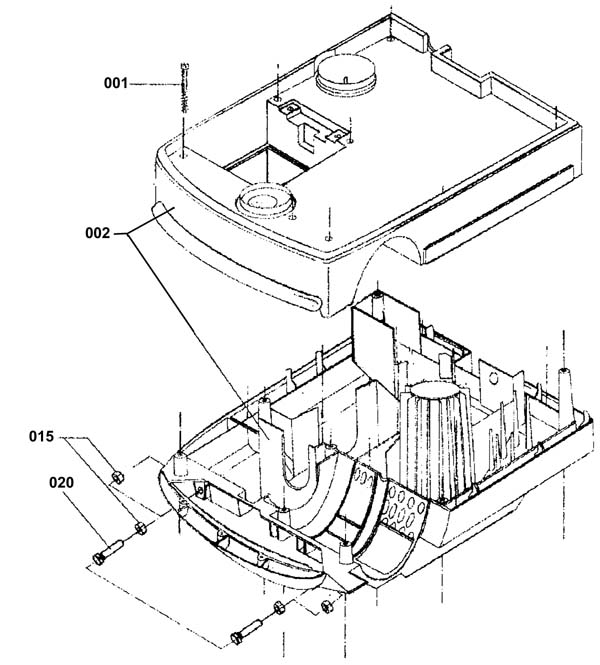

Model 340000 Chassis System - 172-0291 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-0641 |
Screw 6 x 60 pan head phillips thread form |
8 |
|
| 002 |
172-0642 |
Chassis kit (OBSOLETE) |
1 |
|
| 015 |
999-1424 |
Nut M8-1.25 hex stainless steel |
4 |
|
| 020 |
172-0643 |
Screw 8 x 35 full thread hex head |
2 |
|
|
|

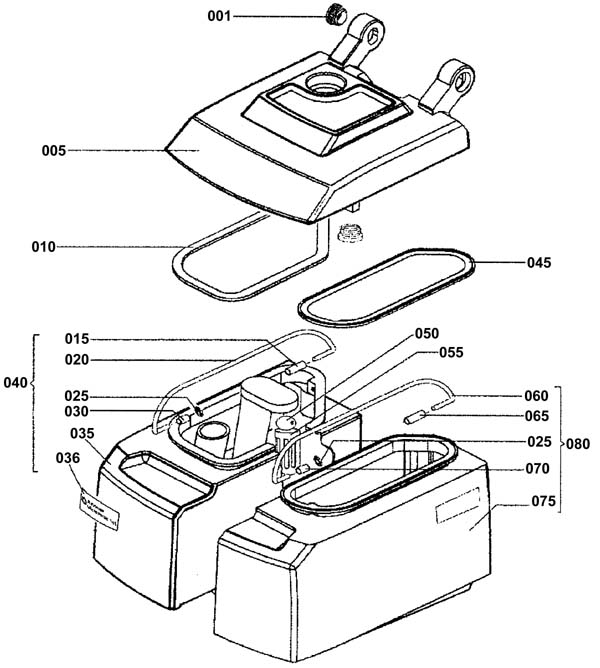

Model 340000 Two-Tank Version - 172-0292 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
Plug |
| 005 |
272-5307 |
Recovery tank lid with gaskets (OBSOLETE) |
1 |
|
| 010 |
181-2002 |
Recovery tank lid gasket |
1 |
|
| 015 |
172-0645 |
32 mm sleeve (OBSOLETE) |
1 |
|
| 020 |
172-0646 |
Recovery tank grip kit (OBSOLETE) |
1 |
|
| 025 |
172-0647 |
Washer sproket (OBSOLETE) |
4 |
|
| 030 |
172-0648 |
14mm sleeve |
1 |
|
| 035 |
572-3859 |
RECOVERY TANK |
1 |
|
| 036 |
572-3902 |
DECAL ADVANCE MICROMATIC |
1 |
|
| 040 |
172-0651 |
Recovery tank complete (OBSOLETE) |
1 |
|
| 045 |
172-0652 |
Solution tank gasket |
1 |
|
| 050 |
172-0693 |
Float bal (OBSOLETE) |
1 |
|
| 055 |
572-3673 |
CAGE FLOAT PKD |
1 |
|
| 060 |
172-0655 |
Grip (OBSOLETE) |
1 |
|
| 070 |
172-0648 |
14mm sleeve |
1 |
|
| 075 |
172-0657 |
Fresh water tank |
1 |
|
| 080 |
172-0658 |
Solution tank complete (OBSOLETE) |
1 |
|
|
|

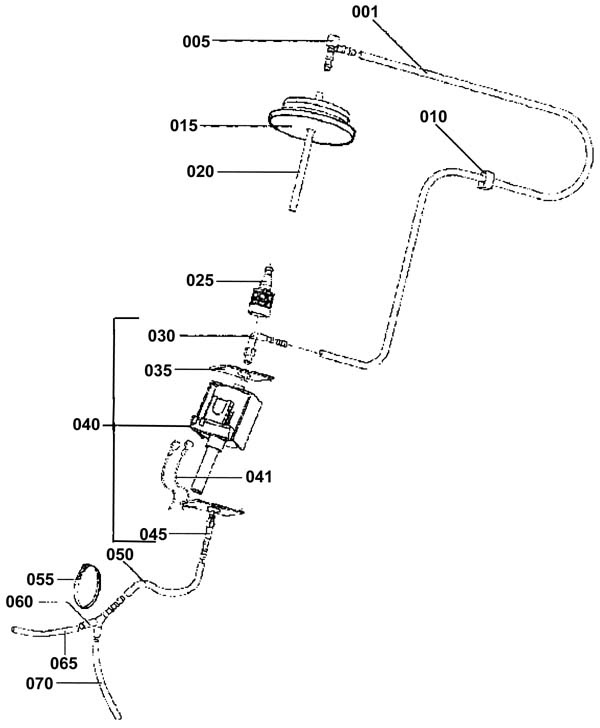

Model 340000 Solution System - 172-0293 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 005 |
172-0660 |
L-connection |
1 |
|
| 010 |
172-0661 |
Rubber socket |
1 |
|
| 015 |
172-0662 |
Plug with hole |
1 |
|
| 025 |
172-0664 |
Solution filter |
1 |
|
| 030 |
172-0665 |
L-connection |
1 |
|
| 035 |
172-0666 |
Insulation board |
2 |
|
| 040 |
172-0667 |
Pump kit (OBSOLETE) |
1 |
(includes 30, 35, 41, 45) |
| 045 |
172-0669 |
Tube (OBSOLETE) |
1 |
|
| 055 |
N/A |
Not available |
1 |
(clamp) |
| 070 |
172-0666 |
Insulation board |
1 |
|
| N/S |
572-3908 |
Pump assembly without resistor (OBSOLETE) |
1 |
|
|
|

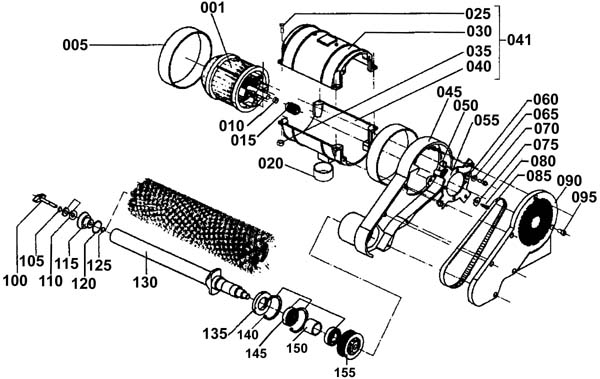

Model 340000 Brush Drive System - 172-0294 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
572-3355 |
MOTOR BRUSH 115V 60HZ KIT |
1 |
|
| 001b |
172-0674 |
Brush motor 230v (OBSOLETE) |
1 |
|
| 005 |
N/A |
Not available |
2 |
(rubber band) |
| 010 |
472-3363 |
WASHER M10 UNI6592 10 PCS SET |
1 |
|
| 015 |
172-4213 |
Aluminum alloy pulley complete |
1 |
|
| 020 |
N/A |
Not available |
1 |
(rubber band) |
| 025 |
999-0546 |
Screw 5/16-18 x 1 socket head alloy plain finish |
4 |
|
| 030 |
N/A |
Not available |
1 |
(Top motor cover) |
| 035 |
999-0743 |
Nut M5-.8 hex coarse thread |
4 |
|
| 040 |
N/A |
Not available |
1 |
(Bottom motor cover) |
| 041 |
172-0678 |
Motor cover complete (OBSOLETE) |
1 |
(includes 25, 30, 35, 40) |
| 045 |
172-0679 |
Gear case (OBSOLETE) |
1 |
|
| 050 |
N/A |
Not available |
4 |
(Spacer) |
| 055 |
N/A |
Not available |
1 |
(Motor flange) |
| 060 |
N/A |
Not available |
4 |
(Insulation covering) |
| 070 |
N/A |
Not available |
4 |
(Screw) |
| 075 |
N/A |
Not available |
4 |
(Washer) |
| 080 |
172-0698 |
Screw M6 x 20 socket head |
4 |
|
| 085 |
172-0683 |
Drive belt |
1 |
|
| 090 |
172-0684 |
Gear cover |
1 |
|
| 095 |
172-0768 |
Screw 6 x 12 socket thread to head |
6 |
|
| 100 |
172-0685 |
Bolt wing (OBSOLETE) |
1 |
|
| 105 |
N/A |
Not available |
1 |
(Washer) |
| 110 |
572-3832 |
WASHER FLAT 6 X 18 |
2 |
|
| 115 |
172-0687 |
Compression ring (OBSOLETE) |
1 |
|
| 120 |
172-4470 |
O-ring (OBSOLETE) |
1 |
|
| 125 |
172-0689 |
Washer locking (OBSOLETE) |
1 |
|
| 135 |
172-0691 |
Shaft seal |
1 |
|
| 140 |
172-0692 |
Locking ring (OBSOLETE) |
2 |
|
| 145 |
172-0693 |
Float bal (OBSOLETE) |
2 |
|
| 150 |
172-0694 |
Spacer sleeve |
1 |
|
| 155a |
172-0695 |
Pulley drive shaft (OBSOLETE) |
1 |
|
| 155c |
996-0842 |
Lite grit scrubbing brush - 500 grit - CYLINDRICAL (OBSOLETE |
1 |
|
| 155d |
N/A |
Not available |
1 |
(320 grit brush) |
| N/S |
572-3333 |
WEAR PACK KIT |
1 |
|
| N/S |
572-3906 |
SCREEN BRUSH MOTOR |
1 |
|
| N/S |
572-3328 |
HARDWARE BRUSH FIXING KIT |
1 |
(includes 100, 105, 110, 115, 120, 125) |
| N/S |
572-3334 |
WEAR PACK SICA BRUSH KIT |
1 |
|
|
|

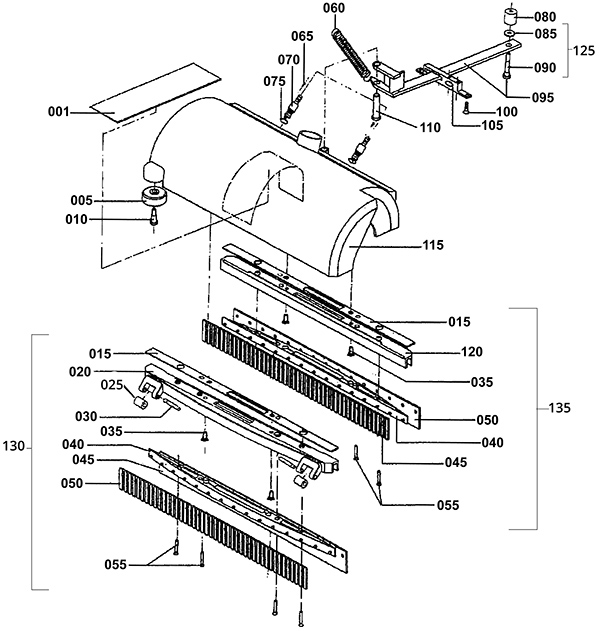

Model 340000 Squeegee Assembly - 172-0295 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-0699 |
Suction channel cover (OBSOLETE) |
1 |
|
| 005 |
172-0700 |
Bumper roller |
2 |
|
| 010 |
172-0701 |
Screw M6 x 16 (OBSOLETE) |
2 |
|
| 015 |
172-0702 |
Squeegee housing seal |
2 |
|
| 020 |
172-0703 |
Squeegee housing front |
1 |
|
| 030 |
172-0704 |
Pin spring m6.3 x 40 |
2 |
|
| 035 |
572-3899 |
SCREW PAN HD M5 X 16 SS |
4 |
|
| 040 |
172-0706 |
Retaining strip |
2 |
|
| 045 |
372-1621 |
Squeegee blade kit |
2 |
|
| 050 |
372-1621 |
Squeegee blade kit |
2 |
|
| 055 |
999-1425 |
Screw M5-.8 x 25mm pan head stainless steel |
8 |
|
| 060 |
572-3849 |
TENSION SPRING |
1 |
|
| 065 |
172-0711 |
Screw M4.2 x 9 phillips pan head thread forming |
2 |
|
| 080 |
572-4222 |
Lever brush fixing kit |
1 |
|
| 085 |
572-3898 |
SPACER 6.5 X 18 X 3.5 (OBSOLETE) |
1 |
(replaced by 572-4222) |
| 090 |
572-4222 |
Lever brush fixing kit |
1 |
(replaced by 572-4222) |
| 095 |
172-0716 |
Linkage arm |
1 |
|
| 100 |
172-0717 |
Screw M4 x 20 pan head phillips thread forming (OBSOLETE) |
2 |
|
| 110 |
172-0719 |
Pin m10 x 48 |
1 |
|
| 115 |
172-0720 |
Squeegee head |
1 |
(includes 65, 70, 75, 572-3831, 572-3894,172-4211) |
| 120 |
572-3850 |
SQUEEGEE HOUSING REAR |
1 |
|
| 125 |
572-4222 |
Lever brush fixing kit |
1 |
|
| 130 |
572-3329 |
BLADE FRONT KIT (OBSOELTE) |
1 |
(includes 15, 20, 30, 35, 40, 45, 50, 55) |
| 135 |
572-3330 |
BLADE REAR KIT (OBSOLETE) |
1 |
(includes 15, 35, 40, 45, 50, 55, 120) |
| N/S |
172-4211 |
Screw M4 x 40 cylinder head stainless steel |
2 |
|
| N/S |
999-0955 |
Nut M4-.7 hex nylon lock |
2 |
|
| N/S |
172-4246 |
Squeegee head complete |
1 |
(includes 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 120) |
|
|

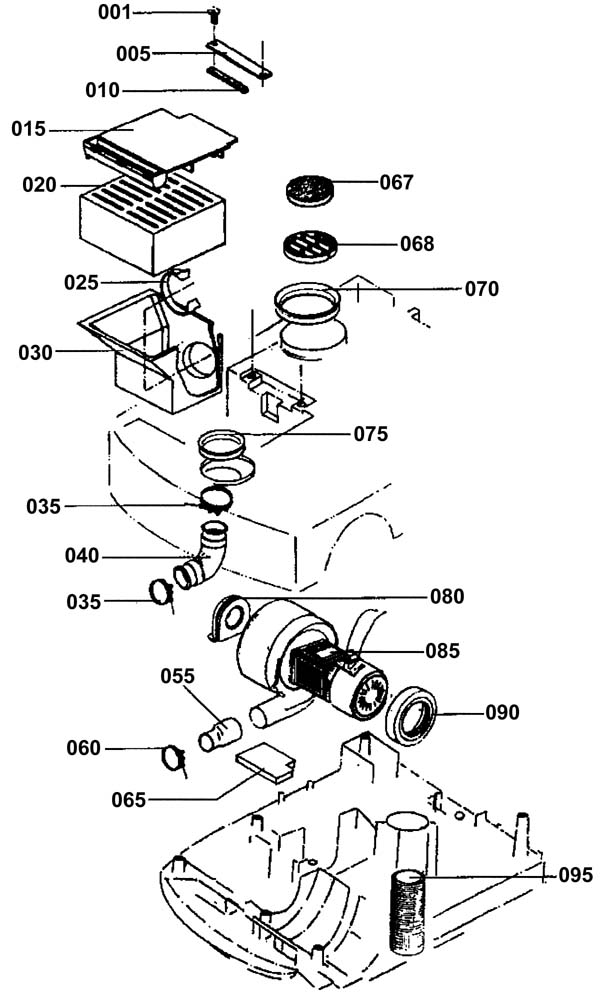

Model 340000 Vacuum System - 172-0296 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
2 |
(Screw M5 x 20 flat thread forming phillips head) |
| 015 |
172-0724 |
Filter cover (OBSOLETE) |
1 |
|
| 020 |
172-0725 |
Sound insulation top |
1 |
|
| 025 |
N/A |
Not available |
1 |
(Clamp collar) |
| 030 |
172-0726 |
Exhaust sound insulation |
1 |
|
| 035 |
172-0727 |
Hose clamp (OBSOLETE) |
2 |
|
| 040 |
172-0728 |
Squeegee vacuum hose |
1 |
|
| 055 |
172-0729 |
Exhaust hose |
1 |
|
| 065 |
172-0731 |
Bottom insulation |
1 |
|
| 067 |
172-0732 |
Turbine pre-fillter |
1 |
|
| 068 |
172-0733 |
Grate suction |
1 |
|
| 070 |
172-0734 |
Turbine inlet seal |
1 |
|
| 075 |
172-0735 |
Recovery tank inlet seal (OBSOLETE) |
1 |
|
| 083 |
N/A |
Not available |
1 |
Strand wire |
| 085 |
172-0737 |
120V vacuum motor |
1 |
|
| 095 |
172-0738 |
Motor pre-filter |
1 |
|
|
|

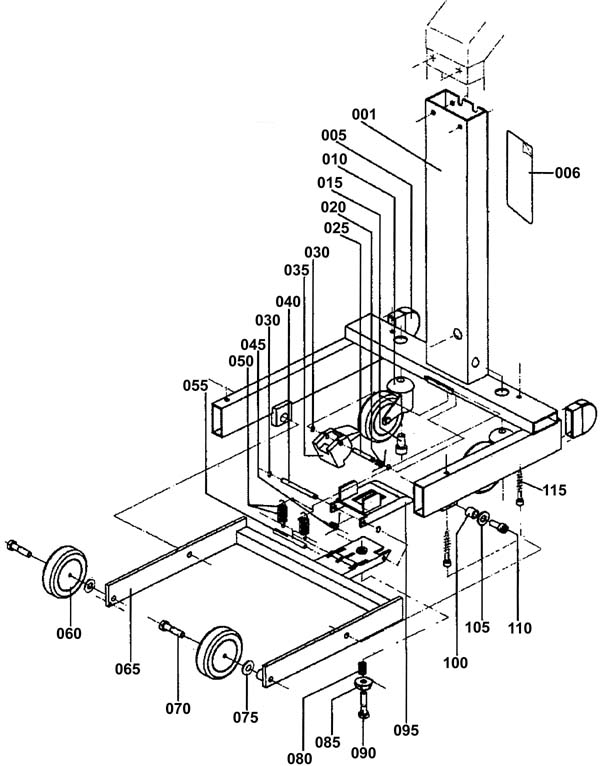

Model 340000 Frame System - 172-0297 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
572-3854 |
FRAME (OBSOLETE) |
1 |
|
| 006 |
172-5020 |
Warning decal (OBSOLETE) |
1 |
|
| 010 |
172-0741 |
Wheel guide |
2 |
|
| 015 |
N/A |
Not available |
2 |
(Screw M10 x 20mm socket head) |
| 020 |
172-0743 |
Spring (OBSOLETE) |
1 |
|
| 025 |
172-0744 |
Bolt 55 mm (OBSOLETE) |
1 |
|
| 030 |
172-0745 |
Washer lock lifting |
4 |
|
| 035 |
172-0746 |
Lift pedal |
1 |
|
| 040 |
172-0747 |
Bolt 68mm (OBSOLETE) |
1 |
|
| 050 |
172-0749 |
Tension spring (OBSOLETE) |
2 |
|
| 060a |
572-3399 |
WHEEL D.75X28 GREY KIT |
2 |
|
| 060b |
572-3399 |
WHEEL D.75X28 GREY KIT |
2 |
(replaced 060a) |
| 065 |
172-0752 |
Lifting frame (OBSOLETE) |
1 |
|
| 070 |
999-0786 |
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
| 075 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 080 |
172-0753 |
Compression spring |
1 |
|
| 085 |
172-0754 |
Adjustment nut |
1 |
|
| 090 |
172-0755 |
Screw hex head |
1 |
|
| 095 |
472-7076 |
PEDAL LOWERING (OBSOLETE) |
1 |
|
| 100 |
172-0756 |
Sleeve (OBSOLETE) |
2 |
|
| 105 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 110 |
N/A |
Not available |
2 |
(Screw) |
| 115 |
999-1303 |
Screw M6-1 x 25mm flat head phillips stainless steel |
4 |
|
| N/S |
572-3332 |
PEDAL BRUSH LIFTING KIT (OBSOLETE) |
1 |
( includes 1, 90, 95) |
| N/S |
172-4212 |
Plastic cap |
1 |
(after SN 1532711) |
|
|

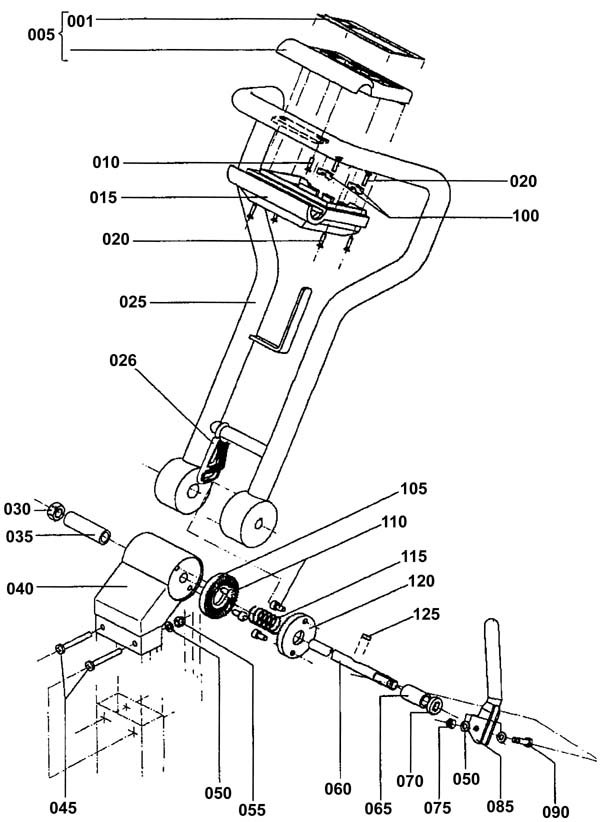

Model 340000 Handle Bar - 172-0298 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-0758 |
Control panel decal (OBSOLETE) |
1 |
|
| 005 |
272-5472 |
Upper housing switch (OBSOLETE) |
1 |
(includes 001) |
| 010 |
999-0521 |
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
| 015 |
272-5471 |
Lower housing switch |
1 |
|
| 020 |
999-1180 |
Screw M3-.5 x 16mm pan head stainless steel |
8 |
|
| 025 |
572-3863 |
HANDLE BAR |
1 |
|
| 026 |
572-3843 |
HOLDER CABLE |
1 |
|
| 030 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
| 035 |
172-0762 |
Distance sleeve |
1 |
|
| 040 |
172-0763 |
Housing (OBSOLETE) |
1 |
|
| 045 |
172-0764 |
Screw 6 x 45 pan phillips |
2 |
|
| 050 |
372-1036 |
Washer 6mm |
4 |
|
| 055 |
N/A |
Not available |
2 |
(Nut) |
| 065 |
572-3870 |
SPACER 13X18X32 |
1 |
|
| 070 |
572-3862 |
SPACER HANDLE ADJUSTMENT LEVER |
1 |
|
| 075 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
|
| 085 |
472-7073 |
LEVER (OBSOLETE) |
1 |
|
| 090 |
999-0779 |
Screw M6-1 x 25mm hex head plain finish |
1 |
|
| 100 |
272-2693 |
Clamp (OBSOLETE) |
2 |
|
| 105 |
172-0767 |
Ratchet Disc |
1 |
|
| 110 |
172-0768 |
Screw 6 x 12 socket thread to head |
4 |
|
| 115 |
172-0769 |
Compression spring |
1 |
|
| 120 |
172-0770 |
Ratchet disc |
1 |
|
|
|

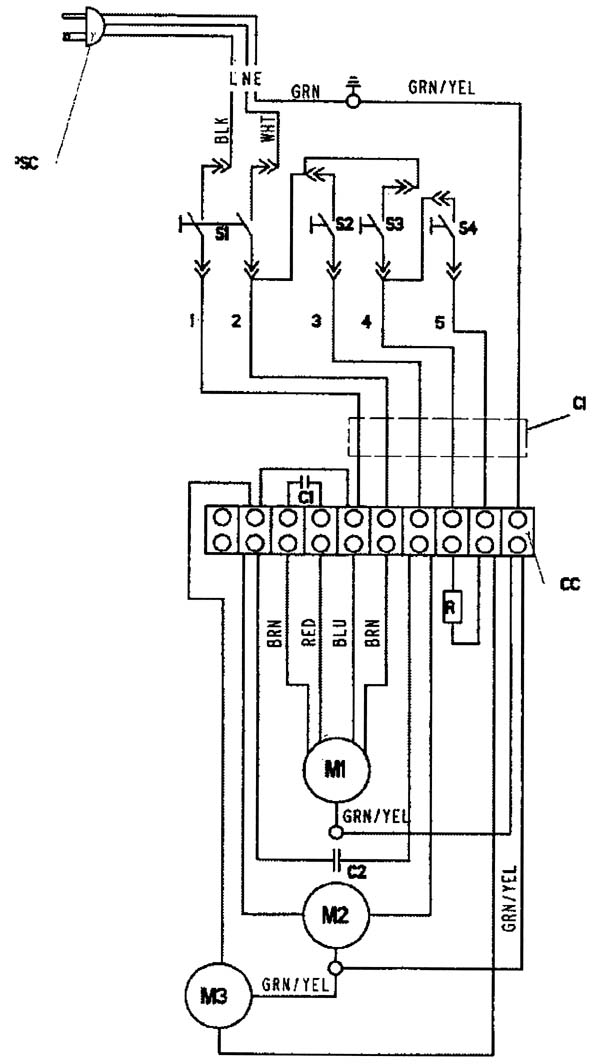

Model 340000 Wiring System-120V/60Hz - 172-0299 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
272-8642 |
Protection cap |
1 |
|
| 005 |
272-7561 |
Pump switch (OBSOLETE) |
1 |
|
| 010 |
N/A |
Not available |
1 |
(not available) Socket |
| 015 |
172-0774 |
Internal cable (OBSOLETE) |
1 |
|
| 020 |
172-0775 |
Capacitor 40 mf |
1 |
|
| 025 |
N/A |
Not available |
1 |
(not available) Strand wire |
| 040 |
N/A |
Not available |
1 |
(not available) 230mm strand wire |
| 045 |
N/A |
Not available |
1 |
(not available) Clamp |
| 050 |
N/A |
Not available |
1 |
(not available) 450mm strand wire |
| 055 |
172-0777 |
Screw 4 x 5 cheese head (OBSOLETE) |
1 |
|
| 060 |
272-2708 |
Switch kit |
2 |
|
| 065 |
172-0805 |
Switch boots with seal |
3 |
|
| 075 |
272-5306 |
Switch assembly |
1 |
|
| 085 |
172-0661 |
Rubber socket |
2 |
|
| 090 |
172-0808 |
Screw M2.9x16 pan phillips head thread form (OBSOLETE) |
1 |
|
| 095 |
N/A |
Not available |
1 |
(not available) Resistor 33 OHM |
| 100 |
172-0810 |
Resistor CPL. |
1 |
|
| 105 |
172-0811 |
Power supply cable, CPL. (OBSOLETE) |
1 |
|
| 115 |
172-0812 |
Screw M4 x 16 cheese head (OBSOLETE) |
1 |
|
| 120 |
172-0813 |
Nut M4 hex stainless steel (OBSOLETE) |
1 |
|
|
|

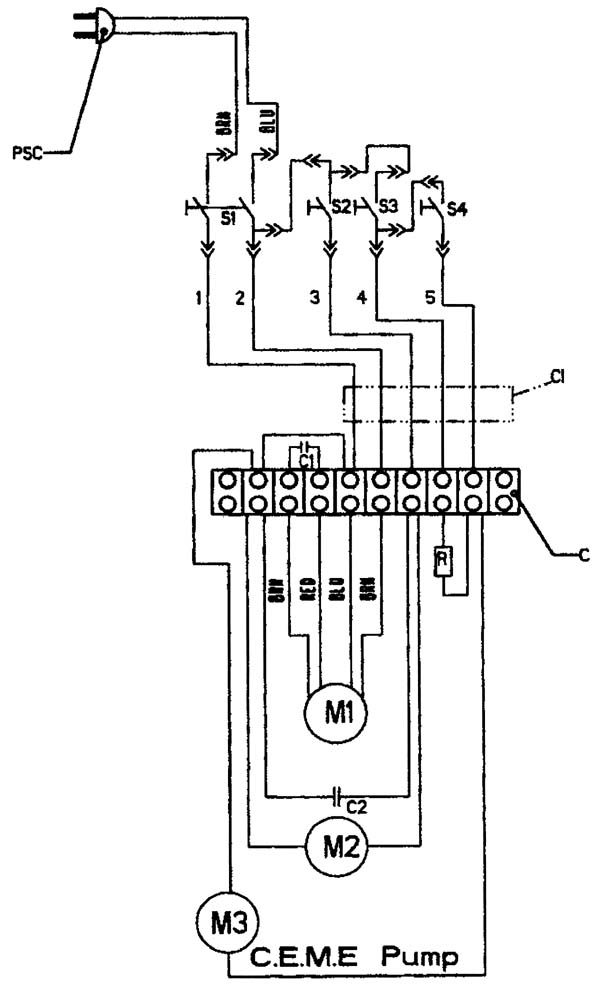

Model 340000 Wiring Diagram 120V-60Hz - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Model 340000 Wiring Diagram 120V-50Hz - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Commonly Asked For Parts - 172-9967 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 02 |
172-0728 |
Squeegee vacuum hose |
|
|
| 03 |
172-0662 |
Plug with hole |
|
|
| 05a |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
|
|
| 05b |
991-5007 |
18/3 replacement power cord 50 foot (black) |
|
|
| 06 |
172-0692 |
Locking ring (OBSOLETE) |
|
|
| 07 |
272-5306 |
Switch assembly |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-9877 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
272-5305 |
Pigtail cord and extension cord |
|
|
| 02 |
272-5306 |
Switch assembly |
|
(power) |
| 03 |
272-2708 |
Switch kit |
|
(vacuum and brush) |
| 04 |
172-0667 |
Pump kit (OBSOLETE) |
|
|
| 05 |
372-1621 |
Squeegee blade kit |
|
|
| 06 |
372-1621 |
Squeegee blade kit |
|
|
| 07 |
172-0728 |
Squeegee vacuum hose |
|
|
| 08 |
272-5307 |
Recovery tank lid with gaskets (OBSOLETE) |
|
|
| 09 |
181-2002 |
Recovery tank lid gasket |
|
|
| 10 |
172-0652 |
Solution tank gasket |
|
|
| 11 |
172-0737 |
120V vacuum motor |
|
(OEM) |
| 12 |
991-9278 |
120V 2 stage vacuum motor dual ball tangential |
|
(NON-OEM) |
| 14 |
996-0842 |
Lite grit scrubbing brush - 500 grit - CYLINDRICAL (OBSOLETE |
|
|
|
|
