Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Brushes - 172-9969 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0.9835 |
996-0348 |
18 inch nylon carpet scrubbing brush |
|
|
| 08 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
1 |
|
| 09 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
1 |
|
| 1 |
172-4624 |
Screw 10-24 x 1/2 flat head phillips thread forming |
6 |
|
| 2 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
1 |
|
| 3 |
172-4625 |
Screw 1/4-14 x 1 |
3 |
|
| 6 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
| 7 |
172-4604 |
20 inch plate |
1 |
|
| 10 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 11 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
| 12 |
172-4609 |
Caution decal |
1 |
|
| 17 |
172-4626 |
Screw 14 x 2 1/2 hex head type A |
4 |
|
| 18 |
N/A |
Not available |
6 |
(Screw) |
| 19 |
172-4618 |
Outer ring (OBSOLETE) |
1 |
|
| 20 |
172-4619 |
Rubber shock mount (OBSOLETE) |
1 |
|
| 21 |
172-4620 |
Inner ring (OBSOLETE) |
1 |
|
| N/S |
996-0047 |
18 inch heavy grit stripping brush - 80 grit |
1 |
|
| N/S |
996-0020 |
18 inch medium grit scrubbing brush - 180 grit |
1 |
|
| N/S |
996-0377 |
18 inch lite grit scrubbing brush - 500 grit |
1 |
|
| N/S |
996-0375 |
18 inch polypropylene scrubbing brush |
1 |
|
| N/S |
996-0071 |
19 inch pad driver |
1 |
|
| N/S |
996-0240 |
Carpet brush for 20 inch swing |
1 |
|
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|

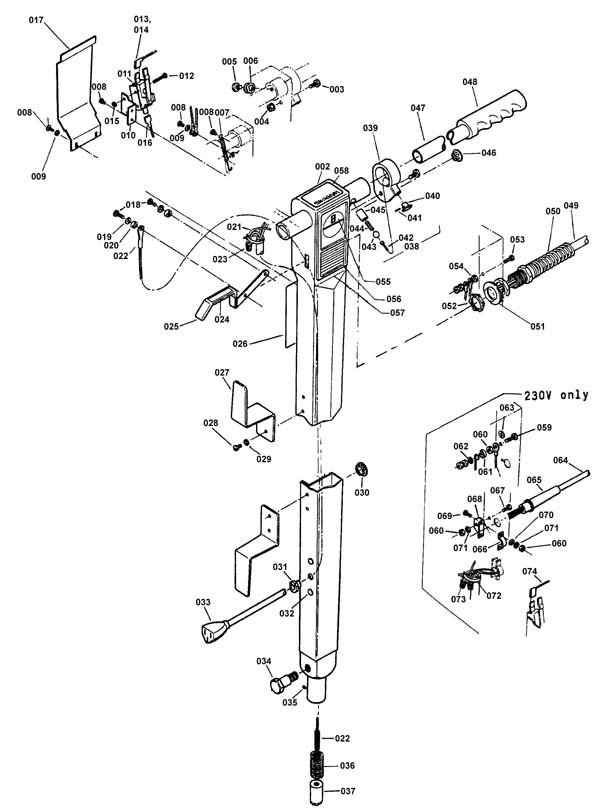

Handle Assembly - 272-1000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-4501 |
Handle assembly (OBSOLETE) |
1 |
|
| 002 |
172-4503 |
Handle replacement kit (OBSOLETE) |
1 |
|
| 003 |
999-0018 |
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
1 |
|
| 004 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 006 |
999-0861 |
Screw 8 x 1/2 flat head phillips zinc |
2 |
|
| 007 |
172-4506 |
Extension spring (OBSOLETE) |
1 |
|
| 008 |
999-0317 |
Screw 8-32 x 1/4 pan head slotted zinc plated |
5 |
|
| 009 |
999-0150 |
Washer #8 medium split lock |
2 |
|
| 011 |
172-0270 |
Snap switch (OBSOLETE) |
1 |
|
| 012 |
999-0407 |
Screw 4-40 x 7/8 pan head slotted zinc plated |
2 |
|
| 013 |
172-4508 |
Tab receptacle |
1 |
|
| 014 |
172-4509 |
Insulator flag |
1 |
|
| 015 |
999-0408 |
Nut 4-40 plain machine screw |
2 |
|
| 016 |
172-4510 |
Insulator flag (OBSOLETE) |
1 |
|
| 018 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
| 019 |
172-4512 |
Washer 17/64 x 1/2 bowed |
1 |
|
| 021 |
997-2101 |
6 inch cable tie |
1 |
|
| 022 |
172-4504 |
Wire rope assembly |
1 |
|
| 023 |
172-4513 |
Wire connector |
1 |
|
| 024 |
172-5019 |
Handle decal |
1 |
|
| 025 |
172-4514 |
Lever (OBSOLETE) |
1 |
|
| 026 |
172-5020 |
Warning decal (OBSOLETE) |
1 |
|
| 028 |
999-0321 |
Screw 10-32 x 3/8 pan head slotted zinc plated |
4 |
|
| 029 |
999-0053 |
Washer #10 split lock plain finish |
4 |
|
| 030 |
172-4516 |
Plug button .656 (OBSOLETE) |
1 |
|
| 031 |
172-4517 |
Strain relief (OBSOLETE) |
1 |
|
| 032 |
172-4518 |
Button plug |
3 |
|
| 034 |
172-4520 |
Shoulder bolt |
2 |
|
| 035 |
N/A |
Not available |
1 |
Screw 4 x 1/4 |
| 036 |
172-4521 |
Spring com .75 x 1.68 |
1 |
|
| 038 |
172-4523 |
Saftey lock assembly |
1 |
|
| 039 |
172-4524 |
Collar assembly |
1 |
|
| 042 |
172-4527 |
Spring pin |
1 |
|
| 043 |
172-4523 |
Saftey lock assembly |
1 |
|
| 046 |
172-4530 |
Plug button (OBSOLETE) |
1 |
|
| 047 |
172-4531 |
Handle tube (silver) |
1 |
|
| 048 |
172-4532 |
Handle grip (OBSOLETE) |
2 |
|
| 049 |
172-4533 |
14/3 power cord 50 foot |
1 |
|
| 050 |
172-4534 |
Strain relief |
1 |
|
| 051 |
172-4535 |
Washer flat steel |
1 |
|
| 052 |
172-4536 |
Nut 1/2-14 conduit lock |
1 |
|
| 053 |
999-0410 |
Screw 8-32 x 5/8 pan head slotted zinc plated |
1 |
|
| 054 |
999-0308 |
Nut 8-32 plain |
3 |
|
| 055 |
170-5021 |
Circuit breaker vacuum motor 230v (OBSOLETE) |
1 |
|
| 056 |
172-3040 |
Logo decal (OBSOLETE) |
1 |
|
| 057 |
N/A |
Not available |
1 |
Decal plate |
| 058 |
172-5023 |
Warning decal (OBSOLETE) |
1 |
|
|
|

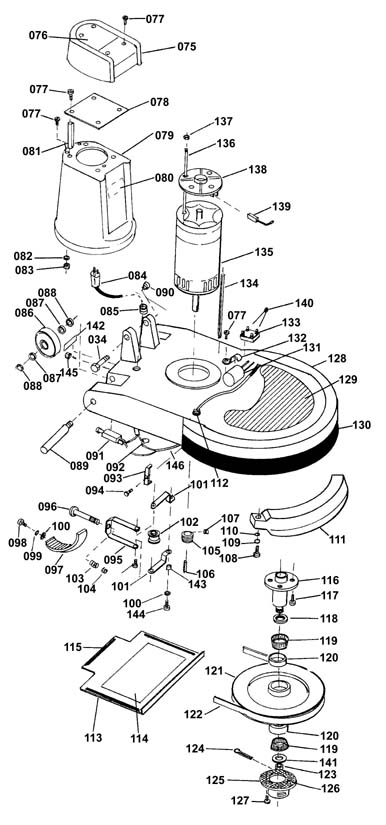

Base Assembly - 272-1001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 075 |
N/A |
Not available |
1 |
Motor cover assembly |
| 076 |
N/A |
Not available |
1 |
Matador decal |
| 077 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
12 |
|
| 078 |
172-3577 |
Bracket (OBSOLETE) |
1 |
|
| 079a |
N/A |
Not available |
1 |
Shroud assembly with 17 inch decal |
| 079b |
N/A |
Not available |
1 |
Shroud assembly with 20 inch decal |
| 080 |
N/A |
Not available |
1 |
Advance decal |
| 081 |
172-3575 |
Spacer (OBSOLETE) |
4 |
|
| 082 |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
|
| 083 |
999-0062 |
Nut 10-24 hex |
2 |
|
| 085 |
N/A |
Not available |
1 |
(Strain relief) |
| 086 |
172-4549 |
5 inch wheel (OBSOLETE) |
2 |
|
| 087 |
172-4548 |
Washer 33/64 x 15/16 x 1/16 flat |
4 |
|
| 088 |
172-4550 |
Washer 33/64 x 1/64 bowed |
2 |
|
| 090 |
172-4037 |
Flanged bearing (OBSOLETE) |
2 |
|
| 091 |
N/A |
Not available |
1 |
Circuit breaker 16 amp, 115 volt |
| 092 |
172-4513 |
Wire connector |
1 |
|
| 094 |
999-1189 |
Screw 10-32 x 3/4 flat head phillips stainless steel |
2 |
|
| 096 |
N/A |
Not available |
1 |
Screw 1/4 x 20 x 3 flat head |
| 097 |
172-4553 |
Ratchet casting |
1 |
|
| 098 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
3 |
|
| 099 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 100 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
| 101 |
172-3590 |
Idler bracket |
2 |
|
| 102 |
172-4556 |
Idler assembly (OBSOLETE) |
1 |
|
| 104 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 105a |
172-4559 |
Sheave Poly-V 230V |
1 |
|
| 105b |
172-4558 |
Poly-v sheave |
1 |
|
| 106 |
172-4579 |
Square keyway |
1 |
|
| 107 |
999-0096 |
Screw 1/4-20 x 1/4 cup point socket set plain finish |
2 |
|
| 108 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
3 |
|
| 109 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
3 |
|
| 110 |
999-0024 |
Washer 5/16 flat stainless steel |
3 |
|
| 111a |
172-3587 |
Weight casting 17 (OBSOLETE) |
1 |
|
| 111b |
172-3588 |
Weight casting fin (OBSOLETE) |
1 |
|
| 112 |
N/A |
Not available |
1 |
Grommet |
| 113a |
172-4564 |
17 inch cover |
1 |
|
| 113b |
172-4565 |
20 inch cover (OBSOLETE) |
1 |
|
| 114 |
172-3589 |
Instruction decal (OBSOLETE) |
1 |
|
| 115 |
172-4593 |
Gasket 1/8 x 38 (OBSOLETE) |
1 |
|
| 116 |
172-4573 |
Stud shaft |
1 |
|
| 117 |
999-0419 |
Screw 1/4-20 x 5/8 flat head slotted zinc plated |
4 |
|
| 118 |
172-4572 |
Seal shaft |
1 |
|
| 120 |
172-4571 |
Bearing cup |
2 |
|
| 121 |
172-4598 |
Pulley assembly |
1 |
|
| 122 |
172-4563 |
Poly-v belt (OBSOLETE) |
1 |
|
| 123 |
999-0425 |
Nut 9/16-12 hex slotted plain finish |
1 |
|
| 124 |
N/A |
Not available |
1 |
Cotter pin 1/16 x 1 |
| 125 |
172-4566 |
Drive cap (silver) (OBSOLETE) |
1 |
|
| 126 |
172-4567 |
Gasket (OBSOLETE) |
1 |
|
| 127 |
999-0420 |
Screw 12-24 x 5/8 flat head slotted zinc plated |
6 |
|
| 128a |
N/A |
Not available |
1 |
17 Inch skirt assembly |
| 128b |
172-8326 |
Skirt housing (OBSOLETE) |
1 |
|
| 129 |
N/A |
Not available |
1 |
Insert decal |
| 130a |
N/A |
Not available |
1 |
17 Inch bumper |
| 130b |
172-4575 |
20 inch bumper (OBSOLETE) |
1 |
|
| 132 |
172-3581 |
Capacitor clamp |
1 |
|
| 133 |
172-4139 |
35amp rectifier |
1 |
|
| 135 |
172-3595 |
115V 1.5HP brush motor |
1 |
|
| 138 |
172-3598 |
End bell assembly (OBSOLETE) |
1 |
|
| 139 |
172-3596 |
Carbon brush (pkg of 2) (OBSOLETE) |
1 |
|
| 141 |
172-4569 |
Washer 19/32 x 1 3/8 x 1/8 flat hardened |
1 |
|
| 142 |
172-3592 |
Circuit breaker decal (OBSOLETE) |
1 |
|
| 144 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
3 |
|
| 145 |
172-3593 |
Nut 3/8-27 hex |
1 |
|
|
|

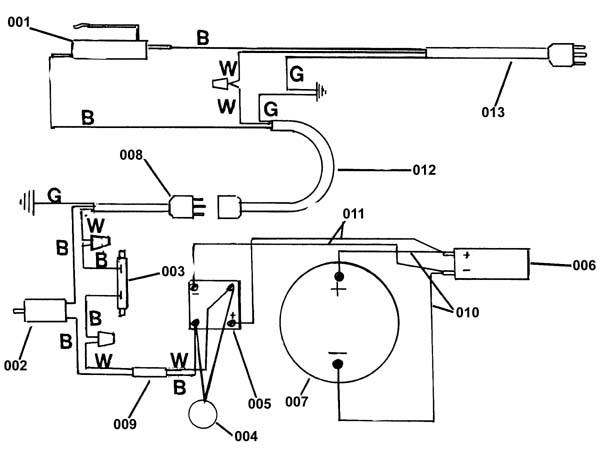

Wiring Diagram - 272-1002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-0270 |
Snap switch (OBSOLETE) |
1 |
|
| 002 |
N/A |
Not available |
1 |
Circuit breaker 115 volt 16amp |
| 005 |
172-4139 |
35amp rectifier |
1 |
|
| 007 |
N/A |
Not available |
1 |
Motor 1 1/2 horse power 115 volt |
| 009 |
N/A |
Not available |
1 |
Cord assembly 14/3 x 19 |
| 010 |
N/A |
Not available |
1 |
Wire assembly 14/3 x 15 |
| 011 |
N/A |
Not available |
2 |
Wire assembly 14/3 x 4 |
| 013 |
172-4533 |
14/3 power cord 50 foot |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
