- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|

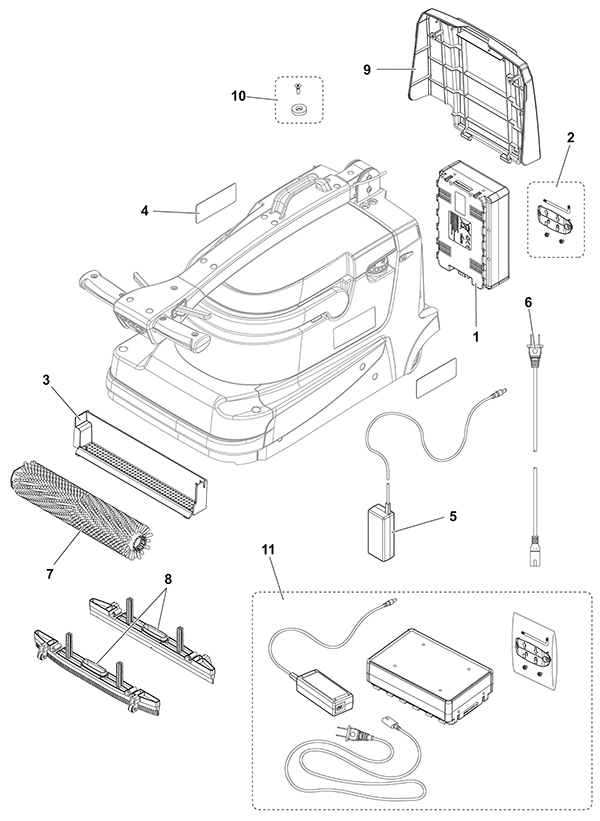

Main Assembly - 270-0122 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3823 |
BATTERY LI 36V 10S4P |
1 |
|
| 2 |
572-3817 |
HANDLE BATTERY LI |
1 |
|
| 3 |
572-3733 |
MINI CONTAINER PKD |
1 |
|
| 4 |
572-3790 |
DECALS CLARKE MA30 KIT |
1 |
|
| 5 |
572-3816 |
CHARGER BATTERY LI 100-240V 1. |
1 |
|
| 6 |
572-3775 |
CABLE PWR SUPPLY US 1000MM PKD |
1 |
|
| 7a |
572-3819 |
BRUSH CYL 340M MEDNYLON WHITE |
1 |
|
| 7b |
572-3820 |
BRUSH CYL 340MM GRIT 320 GREY |
1 |
|
| 7c |
572-3821 |
BRUSH CYL 340MM MICRO |
1 |
|
| 7d |
572-3822 |
BRUSH CYL 340MM NYLON BLACK |
1 |
|
| 8a |
572-3818 |
SQUEEGEE 360MM PU 2 PCS SET |
1 |
|
| 8b |
572-3818 |
SQUEEGEE 360MM PU 2 PCS SET |
1 |
|
| 9 |
572-3792 |
COVER REAR BLACK KIT |
1 |
|
| 10 |
572-3793 |
MAGNET ROUND KIT |
1 |
|
| 11 |
572-3815 |
BATTERY LI KIT W CHARGER US |
1 |
|
|
|

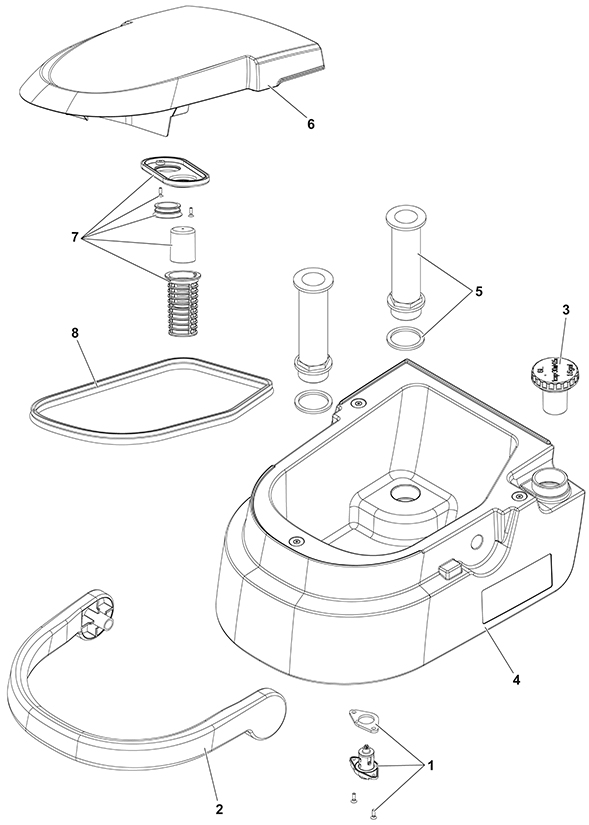

Solution and Recovery Tank Assembly - 270-0123 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3794 |
VALVE F SOLUTION TANK KIT |
1 |
|
| 2 |
572-3779 |
HANDLE PLAST. BLACK TANK PKD |
1 |
|
| 3 |
572-3759 |
CAP PLAST. F TANK PKD |
1 |
|
| 4 |
572-3796 |
TANK WATER 6 LT BLUE KIT |
1 |
|
| 5 |
572-3797 |
PIPE PLAST. F TANK KIT |
2 |
|
| 6 |
572-3799 |
COVER TANK PLAST. BLUE KIT |
1 |
|
| 7 |
572-3800 |
CAGE FLOAT BLACK KIT |
1 |
|
| 8 |
572-3762 |
GASKET BULB REINFORCED PKD |
1 |
|
|
|

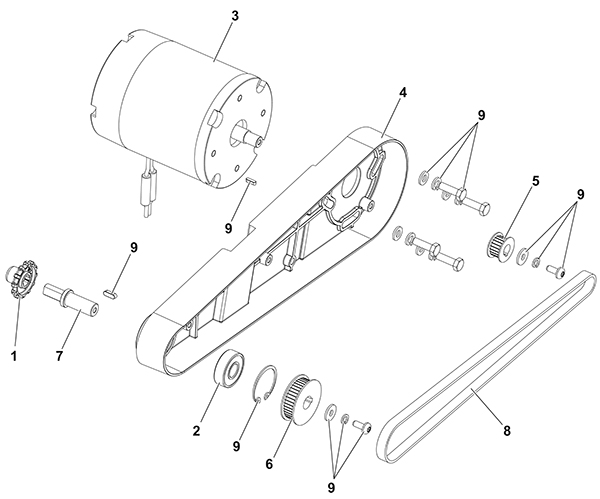

Brush Motor Assembly - 270-0124 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3726 |
HUB TRACTION BRUSH PKD |
1 |
|
| 2 |
572-3785 |
BEARING BALL 6201 PKD |
1 |
|
| 3 |
572-3735 |
MOTOR BRUSH 180W 36V PKD |
1 |
|
| 4 |
572-3736 |
SUPPORT ALU F BRUSH MOTOR PKD |
1 |
|
| 5 |
572-3737 |
PULLEY TIMING BELT HTD PKD |
1 |
|
| 6 |
572-3738 |
PULLEY TIMING BELT PKD |
1 |
|
| 7 |
572-3739 |
SHAFT GALV. F BRUSH PKD |
1 |
|
| 8 |
572-3740 |
BELT TIMING HTD/OMEGA PKD |
1 |
|
| 9 |
572-3801 |
HARDWARE BRUSH MOTOR KIT |
1 |
|
|
|

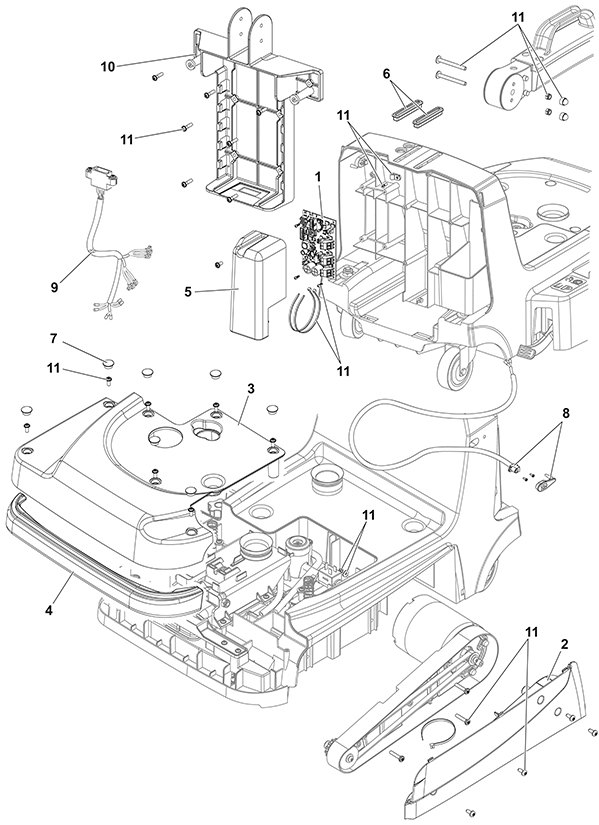

Fixing and Cover Chassis Assembly - 270-0125 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3729 |
CONTROLLER MAIN PROGR.PKD |
1 |
|
| 2 |
572-3778 |
CASING BELT PROTEC BLACK PKD |
1 |
|
| 3 |
572-3777 |
CASING UPPER BLACK CHAS PKD |
1 |
|
| 4 |
572-3757 |
BUMPER FRONT PLAST. PKD |
1 |
|
| 5 |
572-3760 |
COVER CONTROLLER MACH.PKD |
1 |
|
| 6 |
572-3763 |
GASKET RUBBER HANDLE PKD |
2 |
|
| 7 |
572-3786 |
CAP PLAST BLACK 10 PCS SET |
1 |
|
| 8 |
572-3802 |
HARNESS BATT CHARGER KIT (OBSOLETE) |
1 |
|
| 9 |
572-3803 |
HARNESS BATTERY KIT |
1 |
|
| 10 |
572-3804 |
HANDLE FIXING KIT |
1 |
|
| 11 |
572-3805 |
HARDWARE CHASSIS KIT |
1 |
|
|
|

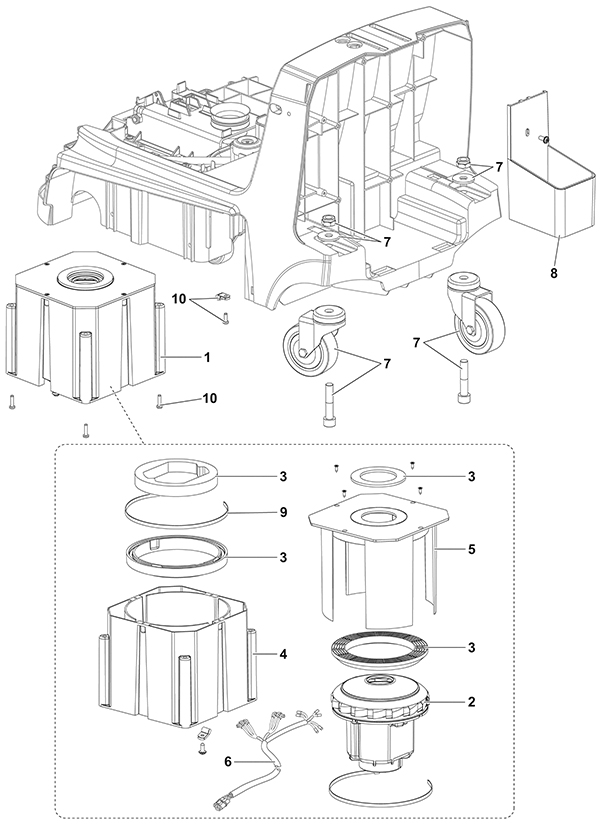

Vacuum and Rear Wheel Chassis Assembly - 270-0126 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3806 |
MOTOR VACUUM 36V 200W KIT |
1 |
(includes 1-6, 9) |
| 2 |
572-3756 |
MOTOR VACUUM 36V 200W PKD |
1 |
|
| 3 |
572-3807 |
SEALINGS MOTOR VACUUM KIT |
1 |
|
| 4 |
572-3752 |
SUPPORT EXT. VAC. MOTOR PKD |
1 |
|
| 5 |
572-3758 |
SUPPORT INT. VAC. MOTOR PKD |
1 |
|
| 6 |
572-3765 |
HARNESS VACUUM MOTOR PKD |
1 |
|
| 7 |
572-3810 |
WHEELS CASTOR KIT |
1 |
|
| 8 |
572-3761 |
CONTAINER BATTERY CHARGER PKD |
1 |
|
| 9 |
472-1255 |
TIE CABLE 4.8X430 WHITE 2 PCS |
1 |
|
| 10 |
572-3811 |
HARDWARE VAC REAR WHEEL KIT |
1 |
|
|
|

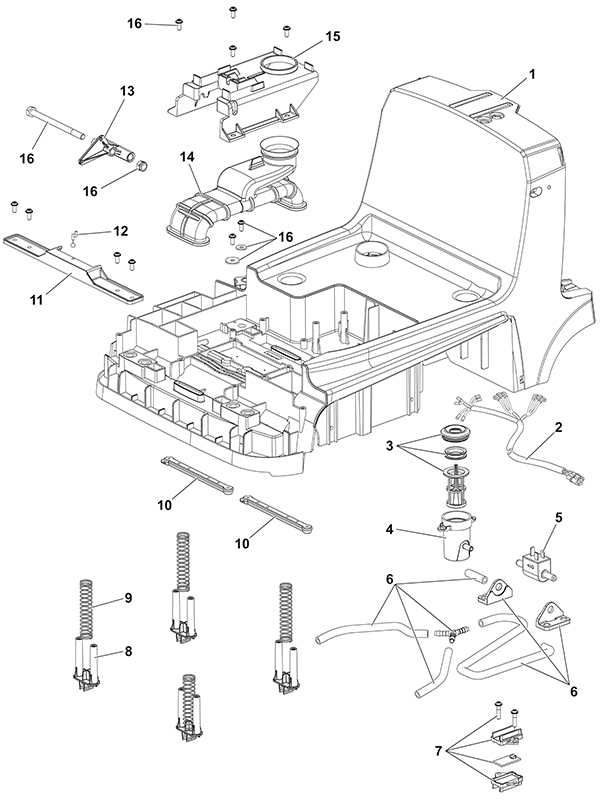

Solution and Vacuum Chamber Chassis Assembly - 270-0127 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
572-3776 |
CHASSIS PLAST. BLACK PKD |
1 |
|
| 2 |
572-3764 |
HARNESS WATER PUMP PKD |
1 |
|
| 3 |
572-3812 |
FILTER WATER PUMP KIT |
1 |
|
| 4 |
572-3766 |
SUPPORT PLAST WATER FILTER PKD |
1 |
|
| 5 |
572-3750 |
PUMP WATER 24V 18W PKD |
1 |
|
| 7 |
572-3814 |
SENSOR CAPAC WATER FLOW KIT |
1 |
|
| 8 |
572-3746 |
HOLDER SQUEEGEE PKD |
4 |
|
| 9 |
572-3753 |
SPRING COMPRESS WIRE D.1.2 PKD |
4 |
|
| 10 |
572-3744 |
DISPENSER WATER SPRAY PKD |
2 |
|
| 11 |
572-3747 |
PLATE SQUEEGEE LIFTER PKD |
1 |
|
| 12 |
572-3749 |
HOOK FRONT SQUEEGEE LIFT PKD |
1 |
|
| 13 |
572-3748 |
ROD LIFTING SQUEEGEE PKD |
1 |
|
| 14 |
572-3743 |
CHAMBER VAC RUBBER PKD |
1 |
|
| 15 |
572-3745 |
SUPPORT VAC. CHAMBER PKD |
1 |
|
| 16 |
572-3809 |
HARDWARE SOL VAC CHAMBER KIT |
1 |
|
|
|

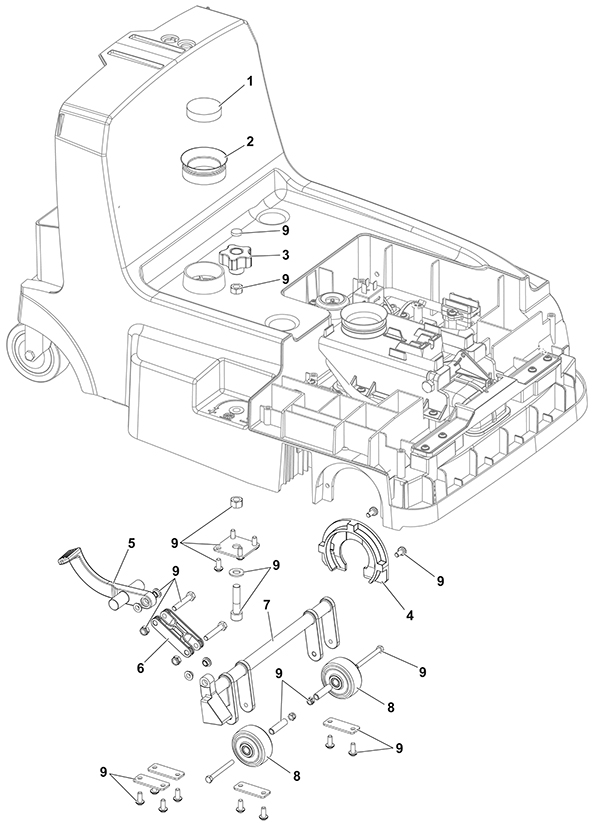

Pedal Wheels Chassis Assembly - 270-0128 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
372-1233 |
Vacuum motor filter |
1 |
|
| 4 |
572-3742 |
SUPPORT BRUSH HOOKING PKD |
1 |
|
| 5 |
572-3751 |
LEVER PLAST. F PEDAL PKD |
1 |
|
| 6 |
572-3731 |
PEDAL MACHINE PARKING PKD |
1 |
|
| 7 |
572-3730 |
SUPPORT FIXED WHEELS PKD |
1 |
|
| 9 |
572-3808 |
HARDWARE PEDAL WHEELS KIT |
1 |
|
|
|

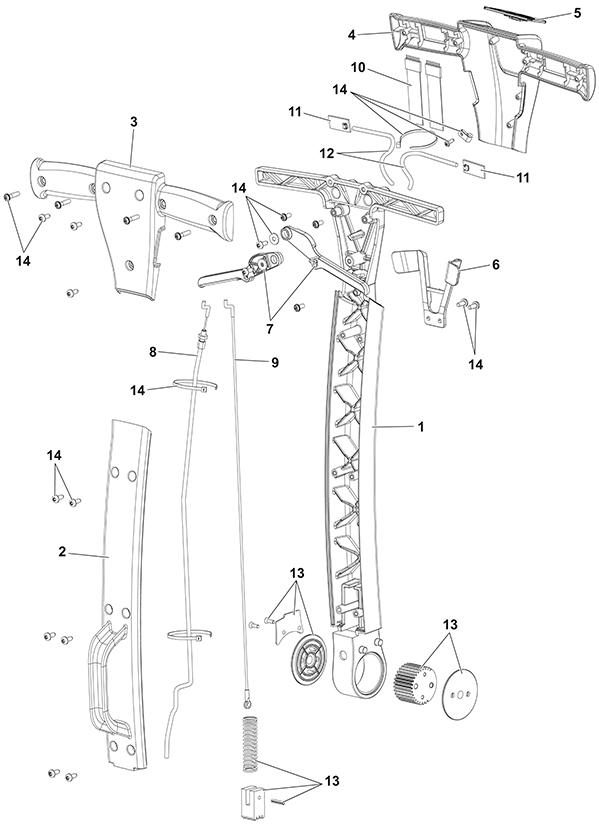

Handle Bar Assembly - 270-0129 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
572-3782 |
COVER BLUE HANDLE PKD |
1 |
|
| 3 |
572-3781 |
COVER LOWER BLUE HANDLE PKD |
1 |
|
| 4 |
572-3780 |
COVER UPPER BLUE HANDLE PKD |
1 |
|
| 5 |
572-3754 |
CONTROLLER USER INTERF PKD |
1 |
|
| 6 |
572-3773 |
LOCK LEVER PLAST. PKD |
1 |
|
| 7 |
572-3771 |
LEVER HANDLE ADJUST. PKD |
2 |
|
| 8 |
572-3770 |
CABLE LIFTING SQUEEGEE PKD |
1 |
|
| 9 |
572-3767 |
CABLE HADLE ADJUSTING PKD |
1 |
|
| 10 |
572-3755 |
HARNESS HANDLE BAR PKD |
1 |
|
| 11 |
572-3783 |
SENSOR CAPACITIVE PKD |
2 |
|
| 12 |
572-3774 |
HARNESS HANDLE BAR SEN PKD |
2 |
|
| 13 |
572-3787 |
LOCK HANDLE KIT |
1 |
|
| 14 |
572-3788 |
HARDWARE HANDLE BAR KIT |
1 |
|
|
|

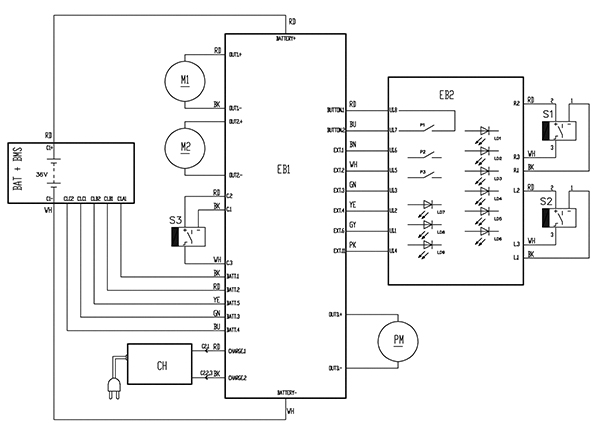

Wiring Diagram - 270-0130 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| BAT |
572-3823 |
BATTERY LI 36V 10S4P |
1 |
|
| BMS |
572-3823 |
BATTERY LI 36V 10S4P |
1 |
|
| C1 |
572-3803 |
HARNESS BATTERY KIT |
1 |
|
| CH |
572-3816 |
CHARGER BATTERY LI 100-240V 1. |
1 |
|
| EB1 |
572-3729 |
CONTROLLER MAIN PROGR.PKD |
1 |
|
| EB2 |
572-3754 |
CONTROLLER USER INTERF PKD |
1 |
|
| M1 |
572-3735 |
MOTOR BRUSH 180W 36V PKD |
1 |
|
| M2 |
572-3756 |
MOTOR VACUUM 36V 200W PKD |
1 |
|
| PM |
572-3750 |
PUMP WATER 24V 18W PKD |
1 |
|
| S1 |
572-3783 |
SENSOR CAPACITIVE PKD |
1 |
|
| S2 |
572-3783 |
SENSOR CAPACITIVE PKD |
1 |
|
| S3 |
572-3814 |
SENSOR CAPAC WATER FLOW KIT |
1 |
|
|
|
- Batteries, Brushes, and Chargers - 270-0131 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
572-3823 |
BATTERY LI 36V 10S4P |
1 |
|
|
572-3815 |
BATTERY LI KIT W CHARGER US |
1 |
|
|
572-3803 |
HARNESS BATTERY KIT |
1 |
|
|
572-3816 |
CHARGER BATTERY LI 100-240V 1. |
1 |
|
|
572-3802 |
HARNESS BATT CHARGER KIT (OBSOLETE) |
1 |
|
|
572-3819 |
BRUSH CYL 340M MEDNYLON WHITE |
1 |
|
|
572-3820 |
BRUSH CYL 340MM GRIT 320 GREY |
1 |
|
|
572-3821 |
BRUSH CYL 340MM MICRO |
1 |
|
|
572-3822 |
BRUSH CYL 340MM NYLON BLACK |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
