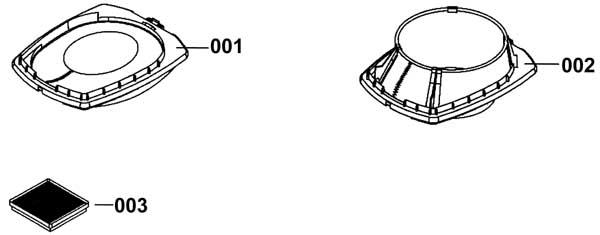

Filters - 172-9031 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
272-0394 |
Filter unit (OBSOLETE) |
1 |
|
| 002 |
172-4260 |
Filter unit |
1 |
|
| 003 |
272-0396 |
HEPA filter |
1 |
|
| N/S |
172-1271 |
Paper vacuum bags (pkg of 5) |
1 |
|
|
|

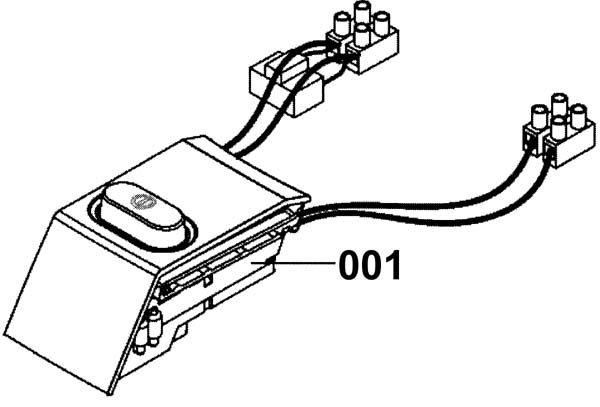

Electrical Switches Service Kits - 172-9032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
272-0397 |
Electrical unit |
1 |
(power switch not available alone.) |
|
|

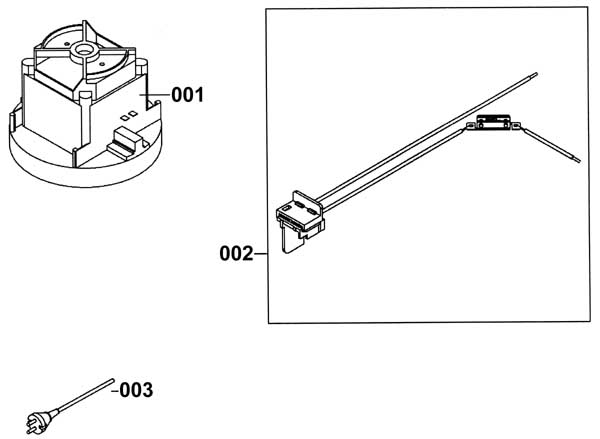

Motor Service Kit - 172-9034 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
(Motor/fan unit) |
| 002 |
999-1128 |
Bolt M12-1.75 x 35mm hex hd stainless steel part thread |
1 |
|
| 003a |
181-1399 |
18/3 power cord 2 wire 50 foot |
1 |
|
| 003b |
991-5007 |
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
|

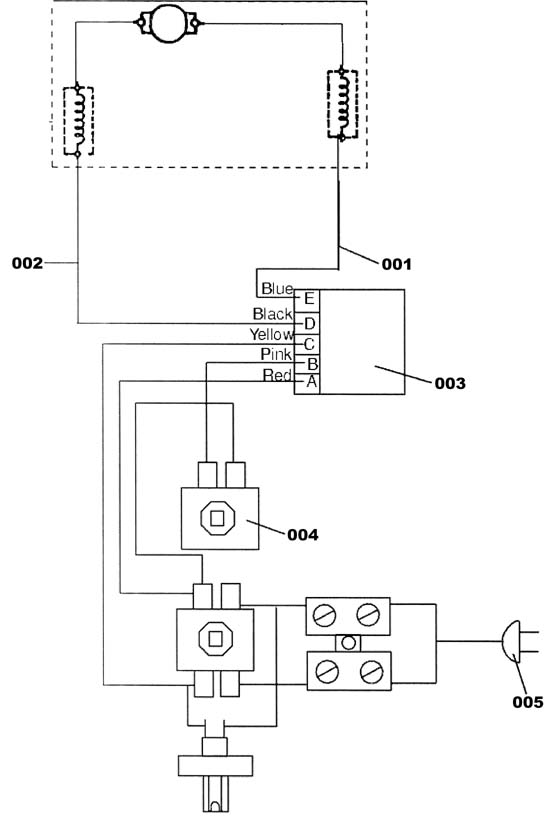

Electrical Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
