Parts List Complete for NILFISK Carpetwin 16XP


100V Wiring Diagram -

RefNbr Part Number Description Req Notes

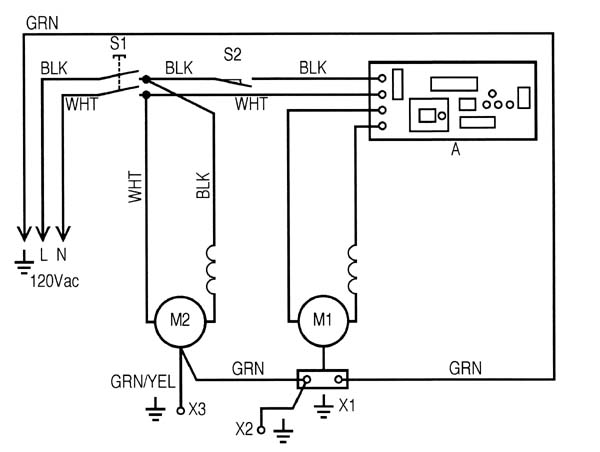

120V Wiring Diagram -

RefNbr Part Number Description Req Notes

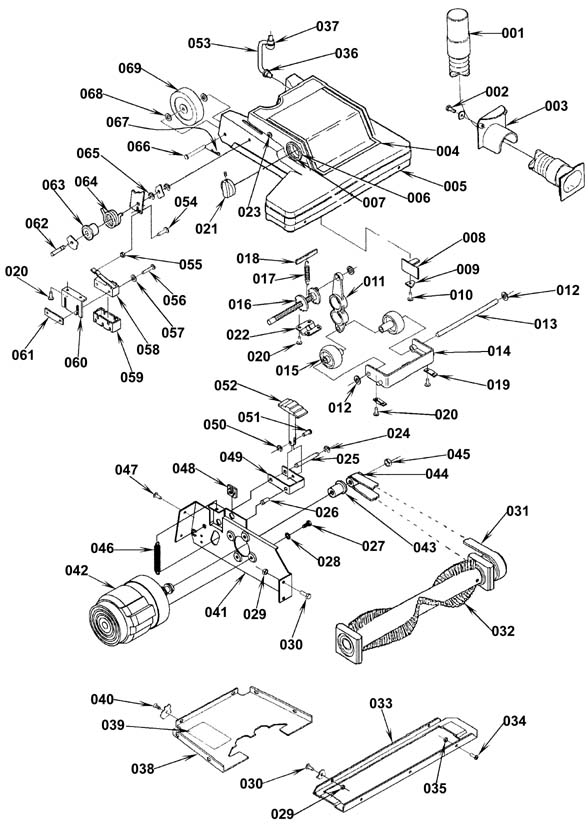

120V Base Assembly - 172-2351
RefNbr Part Number Description Req Notes
000 272-2635 Base assembly 16XP (OBSOLETE) 1
001 172-0240 Hose assembly with 2 cuffs 1
002 172-6241 Screw 1/4-14 x 5/8 pan phillips stainless steel 2
003 172-6131 Housing assembly (baffle) 1
004 172-5496 Carpetwin 16 decal (OBSOLETE) 1
005 272-7046 Routed base housing (OBSOLETE) 1
006 172-6055 Knob (OBSOLETE) 1
007 172-5070 Knob decal (OBSOLETE) 1
008 172-6155 Circuit board (OBSOLETE) 1
009 172-6156 Retainer Circ Bd 1
011 172-6056 Link 1
012 172-6058 Nut stud (OBSOLETE) 3
013 172-6059 Pin 1
014 172-6060 Yoke adjusting 1
015 172-6057 Wheel (OBSOLETE) 2
016 172-6082 Ratchet height & catch nest 1
017 172-6083 Spring 1
018 172-6082 Ratchet height & catch nest 1
020 172-4973 Screw 6 x 3/8 pan head phillips type B 10
021 172-6088 Knob (OBSOLETE) 1
022 272-7048 Ratchet retainer 1
023a 272-7049 Bushing stop 2
023b 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish 2
023c 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
024 172-0392 Retaining ring 2
027 999-0807 Screw M6-1 x 10mm flat head phillips 4
028 999-1261 Washer M6 flat stainless steel 4
029 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
030 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 5
031 172-6160 Timing belt (Black) 1
032a 172-0243 Brush assembly 1
032b 272-7050 Brush 1
032c 172-0244 Retaining ring 1
032d 172-6065 Bearing block 2
032e 172-6161 Pulleys & spacer nest 1
032f 172-0249 Bottom bearing 2
033 172-6067 Shoe weldment 1
034 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated 3
035 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 4
036 172-6091 Strain relief (OBSOLETE) 1
037 172-6162 Strain relief 1
038a 172-6137 Base cover bottom (OBSOLETE) 1
038b 172-6130 Wire assembly 2
039 N/A Not available 1 (Wiring decal)
040 172-4624 Screw 10-24 x 1/2 flat head phillips thread forming 1
041 272-2637 Motor mount 5
042a 172-6260 Brush motor assembly 120V 1
042b 272-6296 Carbon brush (pkg of 2) 1
043 N/A Not available 1
044 N/A Not available 1
045 999-0388 Nut 7/16-14 flange lock serrated zinc plated 1
046 172-6077 Spring (OBSOLETE) 1
047 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 2
048 172-2207 Nut 1/4-20 clamp 1
049 172-6078 Latch assembly 1
050 172-6079 Retaining ring 1
051 172-6080 Pin 1
052 172-6081 Foot pedal 1
053a 272-6240 Cord assembly 120V 1
053b 997-2101 6 inch cable tie 6
055 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 1
056 172-4425 Screw 6-32 x 1.25 hex head 2
057 999-0377 Washer 6 SAE flat plain finish 2
058a 172-6168 Brush motor switch 1
058b 272-7054 Wire ring (OBSOLETE) 1
058c 272-6241 Wire assembly (OBSOLETE) 1
059 172-6169 Terminal cover (OBSOLETE) 1
060 N/A Not available 1 (Switch bracket)
061 172-6084 Nut plate 1
062 172-6086 Pivot pin (OBSOLETE) 2
063 172-6140 Bushing (OBSOLETE) 1
065 172-4033 3/8 inch retaining ring 4
066 172-6089 Clevis pin 2
068 172-6237 Washer 3/8 bowed (OBSOLETE) 4
069 172-6090 Wheel 2
070 172-6157 Ratchet assembly (OBSOLETE) 1

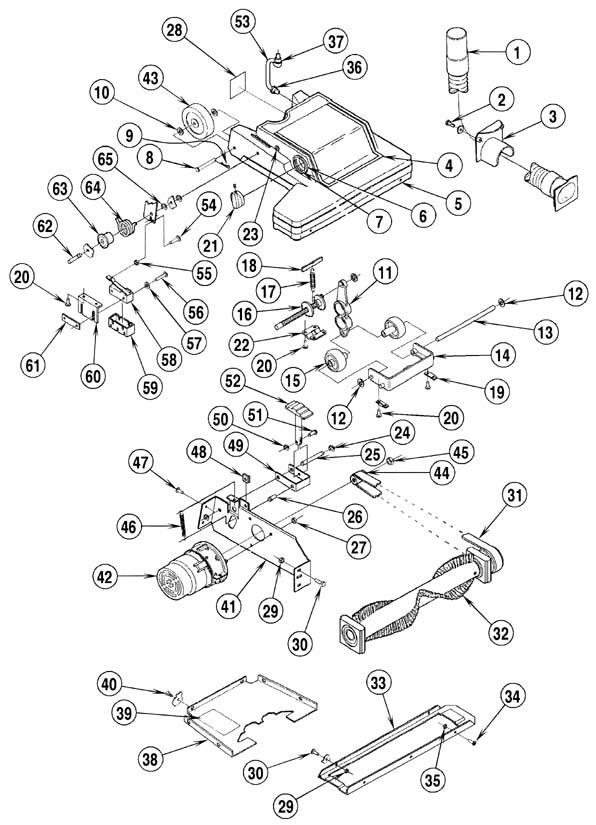

100V Base Assembly - 172-2352
RefNbr Part Number Description Req Notes
000 N/A Not available 1 Base assembly 16XP
001 172-0240 Hose assembly with 2 cuffs 1
002 172-6241 Screw 1/4-14 x 5/8 pan phillips stainless steel 2
003 N/A Not available 1 (Wire rope assembly)
004 172-5496 Carpetwin 16 decal (OBSOLETE) 1
005 272-7046 Routed base housing (OBSOLETE) 1
006 172-6055 Knob (OBSOLETE) 1
007 172-5070 Knob decal (OBSOLETE) 1
008 172-6089 Clevis pin 2
009 997-2518 Hitch pin 2
010 172-6237 Washer 3/8 bowed (OBSOLETE) 4
011 172-6056 Link 1
012 172-6058 Nut stud (OBSOLETE) 3
013 172-6059 Pin 1
014 172-6060 Yoke adjusting 1
015 172-6057 Wheel (OBSOLETE) 2
016 172-6082 Ratchet height & catch nest 1 This part is no longer available separately. You must purchase this kit.
017 172-6083 Spring 1
018 172-6082 Ratchet height & catch nest 1 This part is no longer available separately. You must purchase this kit.
019 272-7047 Axle clamp 2
020 999-0459 Screw 6-32 x 3/8 pan head thread-cutting type 23 zinc 10
021 172-6088 Knob (OBSOLETE) 1
022 272-7048 Ratchet retainer 1
023 272-7049 Bushing stop 2
024 172-0392 Retaining ring 2
025 172-6058 Nut stud (OBSOLETE) 1
027 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 3
029 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
030 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 4
031 172-0010 Drive belt (green) 1
032a 172-0011 Brush assembly 1 Includes 032b-032f
032b 272-7050 Brush 1
032c 172-0244 Retaining ring 1
032d 172-6065 Bearing block 1
032e 172-6066 Pulley brush 1
032f 172-0249 Bottom bearing 1
033 172-6067 Shoe weldment 1
034 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated 3
035 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 4
036 172-6091 Strain relief (OBSOLETE) 1
037 172-6162 Strain relief 1
038 172-6137 Base cover bottom (OBSOLETE) 1
039 N/A Not available 1 (Wiring decal)
040 172-4624 Screw 10-24 x 1/2 flat head phillips thread forming 5
041 172-6139 Motor mount bracket (OBSOLETE) 1
042a 172-6260 Brush motor assembly 120V 1
042b 170-4741 Carbon brush set of 2 1
043 172-6090 Wheel 2
044 172-6135 Motor pulley 1
045 N/A Not available 1 Hex nut
046 172-6077 Spring (OBSOLETE) 1
047 272-1152 Torsion bar weldment (OBSOLETE) 2
048 172-2207 Nut 1/4-20 clamp 1
049 172-6078 Latch assembly 1
050 172-6079 Retaining ring 1
051 172-6080 Pin 1
052 172-6081 Foot pedal 1
053a N/A Not available 1 100V cord
053b 997-2101 6 inch cable tie 6
054 999-0438 Screw 8-32 x 5/8 pan head phillips zinc plated 1
055 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 1
056 172-4425 Screw 6-32 x 1.25 hex head 2
057 999-0377 Washer 6 SAE flat plain finish 2
058 172-6168 Brush motor switch 1
059 172-6169 Terminal cover (OBSOLETE) 1
060 N/A Not available 1 (Switch bracket)
061 172-6084 Nut plate 1
062 172-6086 Pivot pin (OBSOLETE) 2
063 272-6014 Hand squeegee handle 1
064 172-6141 Torsion spring (OBSOLETE) 1
065 172-4033 3/8 inch retaining ring 4
066 172-6157 Ratchet assembly (OBSOLETE) 1 Includes 011-018
N/S 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish 2
N/S 999-1178 Bolt 10-24 x 3/4 hex head stainless steel 1
N/S 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
N/S N/A Not available 1 (Wire ring with tab)
N/S 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
N/S 172-6138 Screen (OBSOLETE) 1
N/S 272-7054 Wire ring (OBSOLETE) 1

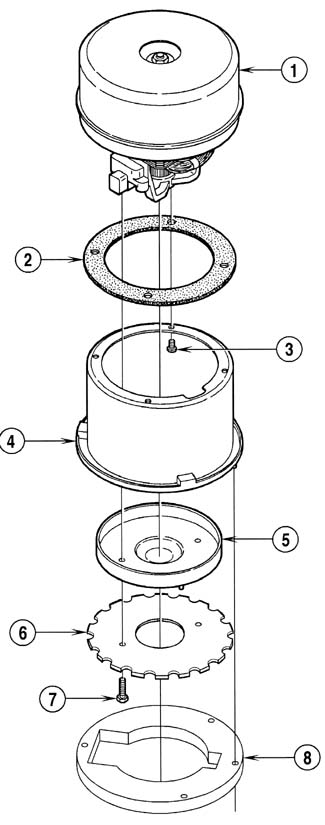

Vacuum Motor Assembly - 172-2353
RefNbr Part Number Description Req Notes
000a N/A Not available 1 (Vacuum motor assembly)
000b 272-7028 Vacuum motor assembly 1
000c N/A Not available (Vacuum motor assembly) (Model 20XP)
001a 991-1205 120V 2 stage vacuum motor peripheral 1
001b 172-6012 Carbon brush (pkg of 2) 1
002 172-0351 Vacuum motor gasket 1
003 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 4
004a 272-7044 Vacuum motor cup 1
005 172-6018 Inner baffle 1
006 172-6019 Outer baffle 1 Install the lip on outer baffle turned away from the motor.
007a 172-6243 Screw 10-24 x 7/8 hex thread form 2
007b 999-0006 Washer 3/16 flat zinc plated 2
008 172-6020 Cup gasket 1
N/S 999-0053 Washer #10 split lock plain finish 2
N/S 272-7045 Grommet 5/8 1
N/S 997-2101 6 inch cable tie 2
N/S 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2

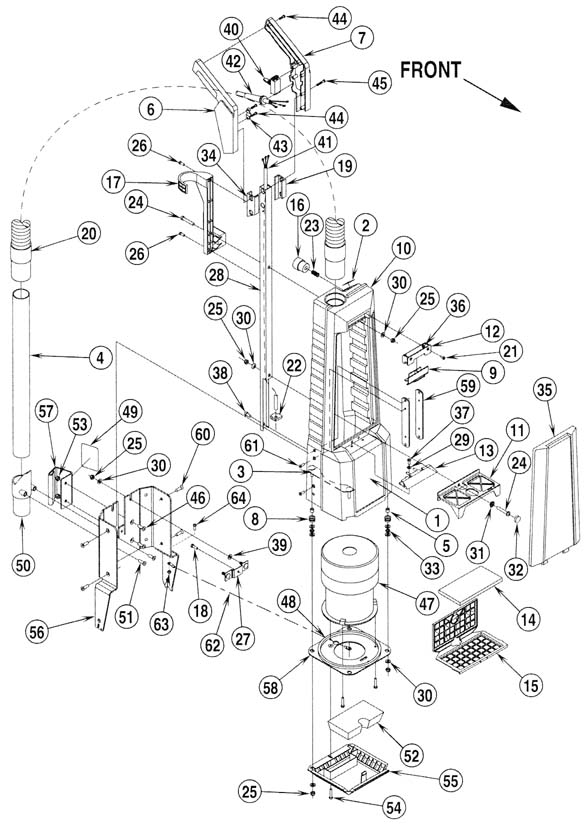

Upper Housing - Only After SN 1490096 - 172-2354
RefNbr Part Number Description Req Notes
000 272-7035 Upper housing assembly (OBSOLETE) 1
001 172-5475 Carpetwin 16 decal (OBSOLETE) 1
002 172-5064 Full bag decal                                             ( 1
003 172-6125 Strap weldment (OBSOLETE) 2
004 172-6119 Wand 1
005 272-7017 Bushing 4
006 172-8289 Handle, right (OBSOLETE) 1
007 172-8290 Left handle (OBSOLETE) 1
008 172-1228 Grommet 4
009 272-7018 Latch 1
010 172-6262 Tank replacement kit 1
011 172-6153 Standoff bag (OBSOLETE) 1
012 172-6149 Latch housing (OBSOLETE) 1
013 172-6110 Stop (OBSOLETE) 1
014 172-6104 Internal filter 1
015 172-6105 Internal filter housing 1
016 172-6097 Full bag indicator 1
017 272-7019 Hose bracket 1
018 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc 1
019 N/A Not available 1 (Left hand bracket)
020 172-6000 Vacuum hose assembly (OBSOLETE) 1
021 181-0673 Screw 8 x 3/8 pan head phillips type b 2
022 272-7021 Square grommet (OBSOLETE) 1
023 172-6102 Nipple 1
024 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated 2
025 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
026 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
027 272-4022 Snubbing washer 1
028 272-4023 Rear lamp 1
029 999-0412 Washer #8 SAE flat 2
030 999-0123 Washer 1/4 SAE flat zinc plated 17
031 172-6151 Screw base 1
032 172-6150 Screw cover (OBSOLETE) 1
033 999-0181 Nut 1/4-20 hex jam plain finish 4
034 272-7034 Right bracket 1
035 172-6106 Cover assembly (OBSOLETE) 1
036 999-0412 Washer #8 SAE flat 2
037 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
038 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 1
039 172-6117 Gasket set 2
040 172-1734 Toggle switch dpst (OBSOLETE) 1
041 272-7025 Cord set 1
042 272-7026 Power cord 1
043 272-7027 Cord clamp 1
044 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 3
045 172-4396 Screw 8-18 x 1.0 pan phillips plastite 6
046 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 2
047 272-7028 Vacuum motor assembly 1
048 172-6117 Gasket set 1
049 172-5063 Warning decal (OBSOLETE) 1
050 172-6116 Wand holder 1
051 172-4396 Screw 8-18 x 1.0 pan phillips plastite 2
052 172-6114 Exhaust filter 1
053 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
054 172-4372 Screw 10-24 x 1 hex industrial lock 1
055 172-6113 Filter retainer 1
056 272-7029 Yoke 1
057 272-7030 Cork hook 1
058 172-6282 Motor support 1
059 272-7031 Backing plate 2
060 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 4
061 172-4624 Screw 10-24 x 1/2 flat head phillips thread forming 4
062 272-7032 Wire ring 1
063 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
064 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
N/S 172-6101 Bio-bag (pkg of 6) 1
N/S 172-6099 Cloth bag (OBSOLETE) 1
N/S 172-6100 Clip for cloth bag (OBSOLETE) 1
N/S 172-6109 Gasket (OBSOLETE) 1
N/S 272-7024 Carpetwin decal (OBSOLETE) 1
N/S 172-6107 Cover (OBSOLETE) 1
N/S 172-6098 Paper filter bag (6 pk) 1

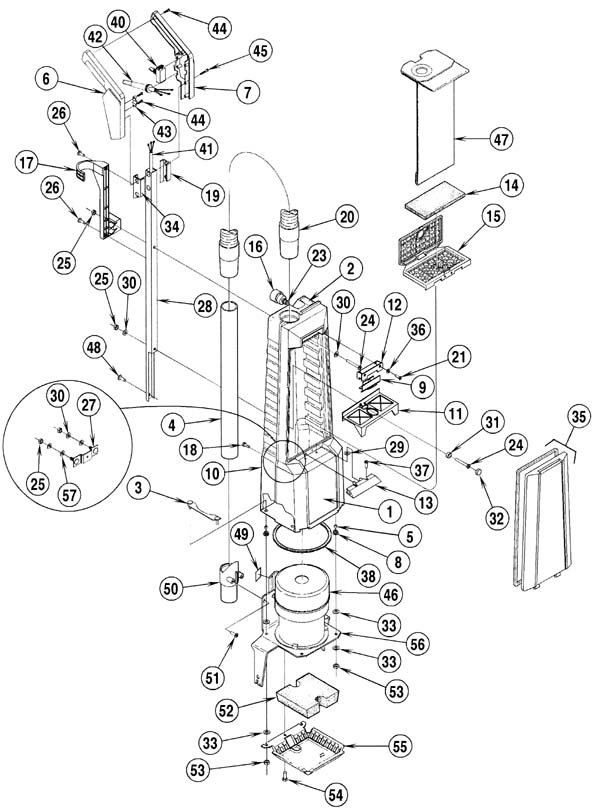

Upper Housing - 172-2355
RefNbr Part Number Description Req Notes
000 272-4053 Adjustable broom speed kit (OBSOLETE) 1 Model 16XP 120 V
001 172-5475 Carpetwin 16 decal (OBSOLETE) 1
002 172-5064 Full bag decal                                             ( 1
003 172-6125 Strap weldment (OBSOLETE) 2
005 272-7017 Bushing 4
006 172-8289 Handle, right (OBSOLETE) 1
007 172-8290 Left handle (OBSOLETE) 1
008 172-1228 Grommet 4
009 272-7018 Latch 1
010 172-6262 Tank replacement kit 1
011 172-6153 Standoff bag (OBSOLETE) 1
012 172-6149 Latch housing (OBSOLETE) 1
013 172-6110 Stop (OBSOLETE) 1
014 172-6104 Internal filter 1
015 172-6105 Internal filter housing 1
016 172-6097 Full bag indicator 1
017 272-7019 Hose bracket 1
018 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc 1
019 272-7038 Left bracket 1
020 172-6000 Vacuum hose assembly (OBSOLETE) 1
021 181-0673 Screw 8 x 3/8 pan head phillips type b 2
023 172-6102 Nipple 1
024 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated 2
025 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
026 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping 2
027 272-7022 Support bracket (OBSOLETE) 1
028 272-4023 Rear lamp 1
029 999-0412 Washer #8 SAE flat 2
030 999-0123 Washer 1/4 SAE flat zinc plated 5
031 172-6151 Screw base 1
032 172-6150 Screw cover (OBSOLETE) 1
033 999-0123 Washer 1/4 SAE flat zinc plated 8
034 272-7034 Right bracket 1
035 172-6106 Cover assembly (OBSOLETE) 1
036 999-0412 Washer #8 SAE flat 2
037 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
038 172-6117 Gasket set 1
040 172-1734 Toggle switch dpst (OBSOLETE) 1
041a 272-7025 Cord set 1 120V
041b 272-7039 Cord assembly (OBSOLETE) 1 100V
042 272-7026 Power cord 1
043 272-7027 Cord clamp 1
044 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 3
045 172-4396 Screw 8-18 x 1.0 pan phillips plastite 6
046a 272-7028 Vacuum motor assembly 1 Model 16XP 120V
046b N/A Not available 1 (Vacuum motor assembly) (Model 16XP)
047a 172-6098 Paper filter bag (6 pk) 1 Pkg. of 6 (OEM)
047b 172-6099 Cloth bag (OBSOLETE) 1
047c 172-6100 Clip for cloth bag (OBSOLETE) 1
047d 172-6101 Bio-bag (pkg of 6) 1 Pkg.of 6
047e 991-9028 Paper vacuum bags (pkg of 10) (OBSOLETE) 1 (NON-OEM)
048 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 1
049 172-5063 Warning decal (OBSOLETE) 1 120V
050 172-6166 Brush motor assembly (OBSOLETE) 1
052 172-6114 Exhaust filter 1
053 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
054 172-4381 Ring ret ext type c (OBSOLETE) 1
055 172-6113 Filter retainer 1
056a 172-6262 Tank replacement kit 1 Model 16XP
057 172-6117 Gasket set 2
N/S 272-7024 Carpetwin decal (OBSOLETE) 1
N/S 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
N/S 272-7042 Decal (OBSOLETE) 1 Model 20XP
N/S N/A Not available 1 (Model 16XP decal)
N/S 172-6107 Cover (OBSOLETE) 1
N/S 172-6109 Gasket (OBSOLETE) 1
Webpage Problem Reporting
