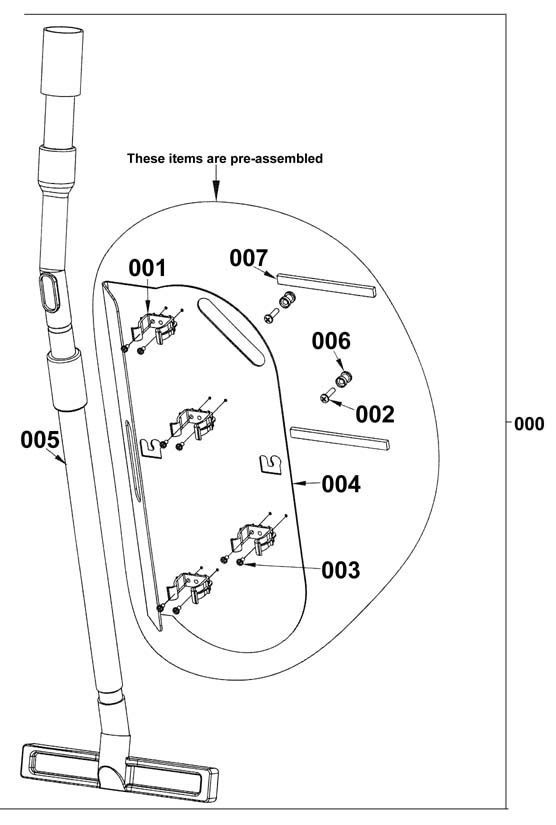

Squeegee Wand Kit - 172-0758 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-7432 |
Vac wand kit |
1 |
(includes 001-007) |
| 001 |
272-1159 |
Plastic clamp |
4 |
|
| 002 |
999-0510 |
Screw 1/4-20 x 1 pan head phillips zinc plated |
2 |
|
| 003 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
8 |
|
| 004 |
272-2251 |
Wand bracket |
1 |
|
| 005 |
272-2252 |
Wand and hose |
1 |
|
| 007 |
272-2254 |
Gasket 1/4 x 6 inch |
2 |
|
|
|

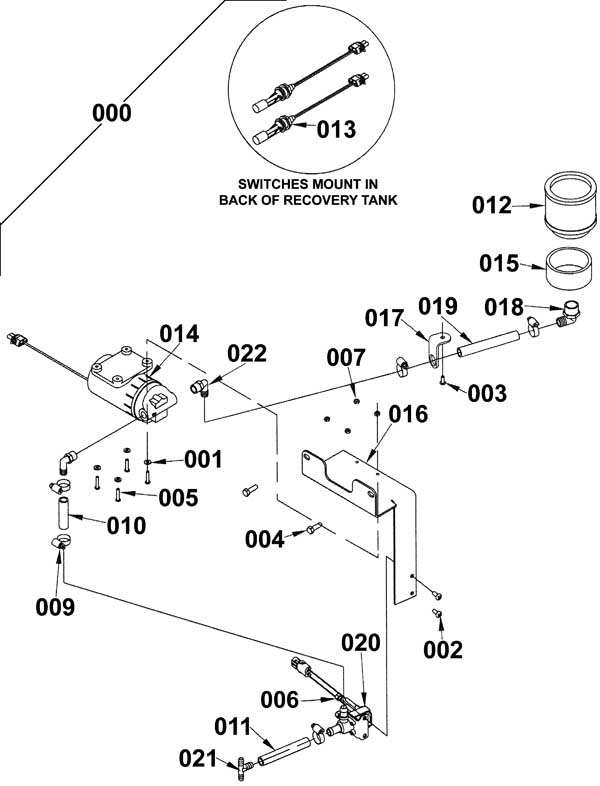

Extended Scrub Kit - 172-0759 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
N/A |
Not available |
1 |
(Extended scrub kit - includes 001-022) |
| 001 |
999-0006 |
Washer 3/16 flat zinc plated |
1 |
|
| 002 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
4 |
|
| 003 |
999-0508 |
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
2 |
|
| 004 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
| 005 |
999-0400 |
Screw 10-24 x 1 pan head phillips zinc plated |
2 |
|
| 006 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 007 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 009 |
997-2002 |
Hose clamp #6 |
4 |
|
| 010 |
172-2327 |
Wire reinforced clear hose (OBSOLETE) |
1 |
|
| 011 |
154-0037 |
Tubing 1/2 x 5/8 (clear) (sold by the foot) |
1 |
|
| 013 |
272-2104 |
Float switch |
1 |
|
| 014 |
272-2357 |
Recycle pump (OBSOLETE) |
2 |
|
| 015 |
272-2303 |
PVC tubing |
1 |
|
| 016 |
272-2304 |
Extended scrub bracket |
1 |
|
| 017 |
272-2361 |
Bracket (OBSOLETE) |
1 |
|
| 019 |
172-2738 |
Solution hose |
1 |
|
| 020 |
172-1767 |
Solution valve assembly |
1 |
|
| 022 |
172-4056 |
90 degree barbed elbow |
2 |
|
|
|

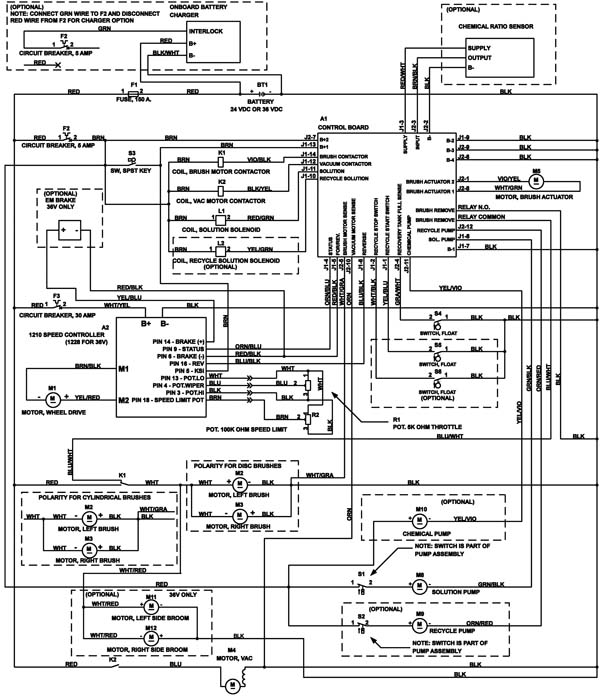

Wiring Diagram - 172-0760 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A1a |
272-2328 |
Control panel assembly (OBSOLETE) |
1 |
(before 06.23.05) |
| A1b |
272-2329 |
Control panel assembly |
1 |
(after 06.23.05) |
| A2 |
272-2332 |
Speed control (OBSOLETE) |
1 |
|
| BT1 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
4 |
|
| F1a |
172-8836 |
150amp fuse |
1 |
|
| F1b |
991-3061 |
150amp fuse |
1 |
|
| F2 |
991-1628 |
5amp circuit breaker |
1 |
|
| F3 |
272-2209 |
30amp circuit breaker |
1 |
|
| K1 |
172-2173 |
24V contactor |
1 |
(brush motor) |
| K2a |
172-2163 |
24V solenoid 4 post (2 large 2 small) |
1 |
(vacuum motor) |
| K2b |
991-1226 |
24V solenoid 4 post (2 large 2 small) |
1 |
(NON-OEM) |
| L1 |
172-1767 |
Solution valve assembly |
1 |
|
| L2 |
172-1767 |
Solution valve assembly |
1 |
(recycle system option) |
| M1a |
272-2335 |
24V transaxle |
1 |
|
| M1b |
991-3082 |
24V transaxle |
1 |
|
| M1c |
N/A |
Not available |
1 |
(Motor) |
| M1d |
272-2337 |
Carbon brush assembly |
4 |
|
| M1e |
272-2338 |
Neoprene mounting sleeve |
2 |
|
| M2a |
272-2356 |
24V brush motor assembly |
1 |
(disk) (left) |
| M2b |
272-2122 |
Carbon brush |
4 |
|
| M2c |
172-2054 |
Brush spring |
4 |
|
| M3a |
272-2356 |
24V brush motor assembly |
1 |
(disk) (right) |
| M3b |
272-2122 |
Carbon brush |
4 |
|
| M3c |
172-2054 |
Brush spring |
4 |
|
| M4a1 |
172-9139 |
24V 3 stage vacuum motor |
1 |
(OEM) |
| M4a2 |
991-1210-P |
24V 3 stage vacuum motor tangential with Packard plug |
1 |
(NON-OEM) |
| M4b |
991-1221 |
Carbon brush without plastic cover (pkg of 2) |
1 |
(NON-OEM) |
| M6 |
272-2175 |
Chemical pump |
1 |
(optional) |
| M7a |
272-2315 |
Solution pump |
1 |
|
| M7b |
991-3096 |
24V pump |
1 |
(NON-OEM) |
| M8 |
272-2357 |
Recycle pump (OBSOLETE) |
1 |
(optional) |
| R1 |
172-2039 |
5K potentiometer |
1 |
|
| R2 |
991-9022 |
100K Potentiometer (speed control) |
1 |
(speed control) |
| S1 |
N/A |
Not available |
1 |
(Switch) (part of M8 solution pump) |
| S2 |
N/A |
Not available |
1 |
(Switch) (part of M9 recycle pump) |
| S3a |
272-2195 |
Key switch assembly |
1 |
|
| S3b |
272-2196 |
Keys (pkg of 2) |
|
|
| S4 |
272-2104 |
Float switch |
1 |
|
| S5 |
272-2104 |
Float switch |
1 |
(optional) (recycle start) |
| S6 |
272-2104 |
Float switch |
1 |
(optional) (recycle stop) |
| N/S |
997-2101 |
6 inch cable tie |
9 |
|
| N/S |
272-2148 |
24V brush motor |
1 |
(cylindrical) |
| N/S |
272-2358 |
24V onboard battery charger |
1 |
(onboard charger models only) |
| N/S |
172-3451 |
Battery spacer |
1 |
|
| N/S |
172-8951 |
Carbon brush and spring kit |
1 |
|
| N/S |
272-2176 |
Chemical sensor assembly |
1 |
(chemical models only) |
| N/S |
997-2103 |
8 inch cable tie |
2 |
|
| N/S |
172-0223 |
Battery cable boot |
8 |
|
| N/S |
272-2359 |
Main harness |
1 |
|
| N/S |
164-7292 |
Replacement AC cord and panel assembly (Delta Q) (OBSOLETE) |
1 |
|
| N/S |
172-2164 |
Cable assembly - ring terminal type |
3 |
(battery cables) |
|
|

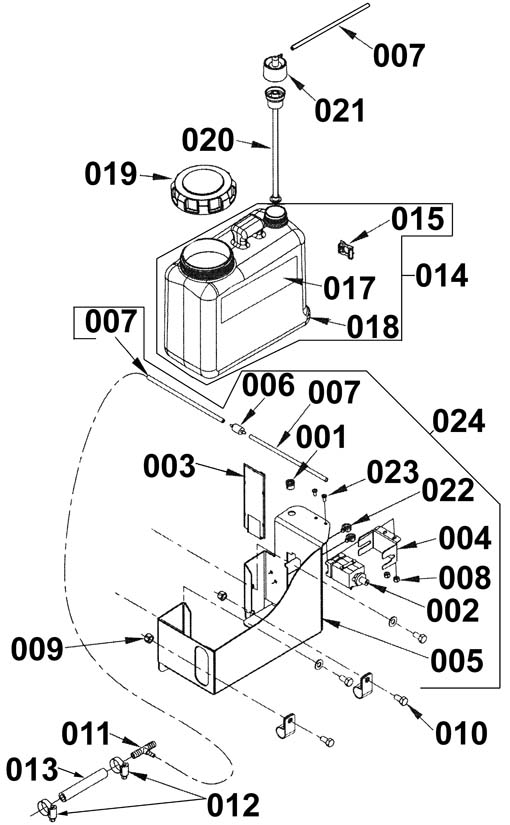

Chemical Assembly (AXP Models Only) - 172-0763 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
272-2174 |
Snub bushing |
1 |
|
| 002 |
272-2175 |
Chemical pump |
1 |
|
| 003 |
272-2176 |
Chemical sensor assembly |
1 |
|
| 004 |
272-2178 |
Chemical pump bracket |
1 |
|
| 005 |
272-2345 |
Tank mounting bracket |
1 |
|
| 006 |
272-2181 |
Check valve |
1 |
|
| 007 |
272-2183 |
7 inch chemical resistant hose |
3 |
|
| 008 |
999-1036 |
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
2 |
|
| 009 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 010 |
999-0030 |
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
2 |
|
| 012 |
997-2002 |
Hose clamp #6 |
2 |
|
| 013 |
172-9010 |
Solution drain hose |
1 |
|
| 014 |
272-2179 |
Chemical bottle assembly |
1 |
(includes 015-018) |
| 015 |
272-2346 |
Indicator assembly |
1 |
|
| 017 |
272-2347 |
Blank decal |
1 |
|
| 018 |
272-2179 |
Chemical bottle assembly |
1 |
|
| 019 |
272-2180 |
Solution fill cap |
1 |
|
| 020 |
272-2184 |
Dry break insert |
1 |
|
| 021 |
272-2182 |
Dry break cap |
1 |
|
| 022 |
272-2177 |
Conduit clip |
2 |
|
| 023 |
999-0452 |
Screw 8-32 x 3/8 pan head phillips zinc plated |
2 |
|
| 024 |
272-2344 |
Chemical tank assembly |
1 |
(includes 001-008 and 022-023) |
|
|
- Batteries, Brushes and Chargers - 172-9983 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
4 |
|
| 2 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
4 |
|
| 3 |
272-2358 |
24V onboard battery charger |
1 |
|
| 4 |
162-5061 |
24V 20amp battery charger with SB175 large red plug |
1 |
(configured for wet batteries; can be changed to support AGM batteries) |
| 6 |
162-5045 |
175amp charger plug with pins (red) SB175 |
1 |
|
| 7 |
996-0158 |
12 inch heavy grit stripping brush - 80 grit |
2 |
|
| 8 |
996-0024 |
12 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 9 |
996-0094 |
12 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 10 |
996-3064 |
12 inch value daily cleaning brush assembly (OBSOLETE) |
2 |
|
| 11 |
996-0591 |
12 inch Pad driver |
2 |
|
| 12 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
2 |
|
| 13 |
991-2206 |
Center-Lok 3 pad holder |
2 |
|
| 14a |
998-0010 |
Battery jumper cable - ring type (red) |
|
|
| 14b |
991-6025 |
Wire 4 x14.5, 3/8 ring x 3/8 ring |
|
(NON-OEM) |
|
|
- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|

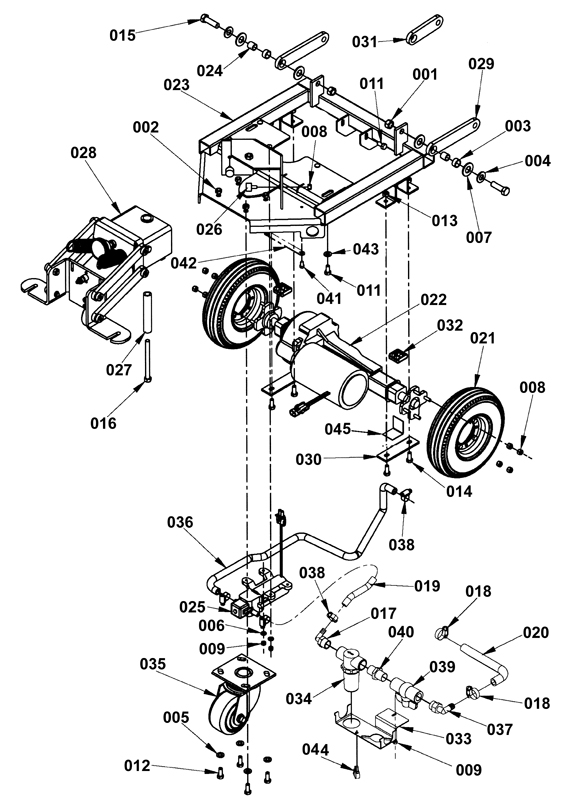

Chassis Assembly - 272-1005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
| 002 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
| 003 |
N/A |
Not available |
2 |
(Sleeved bearing) (please order 172-0069) |
| 004 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 005 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 006 |
999-0006 |
Washer 3/16 flat zinc plated |
2 |
|
| 007 |
999-0349 |
Washer 5/8 SAE flat |
4 |
|
| 008 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
10 |
|
| 009 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
| 011 |
999-0030 |
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
3 |
|
| 012 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
4 |
|
| 013 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
| 014 |
999-0499 |
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
| 015 |
999-1326 |
Screw M12-1.75 x 40mm hex head |
2 |
|
| 016 |
999-1327 |
Screw 3/8-16 x 4 1/4 hex head |
1 |
|
| 017 |
172-2115 |
Elbow barb |
1 |
|
| 018 |
997-2002 |
Hose clamp #6 |
6 |
|
| 019 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 020 |
172-2327 |
Wire reinforced clear hose (OBSOLETE) |
1 |
|
| 021 |
272-7059 |
Pneumatic wheel |
2 |
|
| 022a |
272-2335 |
24V transaxle |
1 |
(OEM) |
| 022b |
991-3082 |
24V transaxle |
1 |
(NON-OEM) |
| 022c |
N/A |
Not available |
1 |
(Motor) |
| 022d |
272-2337 |
Carbon brush assembly |
4 |
|
| 022e |
272-2338 |
Neoprene mounting sleeve |
2 |
|
| 022f |
272-5579 |
Coupling kit |
1 |
|
| 022g |
272-9300 |
24V transaxle hub kit |
2 |
|
| 023 |
272-2339 |
Chassis weldment |
1 |
|
| 025 |
272-2315 |
Solution pump |
1 |
|
| 026 |
272-2276 |
Cylindrical mount |
2 |
|
| 028 |
272-2133 |
Squeegee linkage assembly |
1 |
|
| 029 |
272-2278 |
Linkage arm |
2 |
|
| 031 |
N/A |
Not available |
1 |
(before 05.2007) (Linkage arm - must purchase pivot weldment kit 172-0069) |
| 033 |
N/A |
Not available |
1 |
(Filter mount bracket)(order 272-2281) |
| 034 |
272-2342 |
Solution filter |
1 |
|
| 035a |
172-0001 |
Swivel caster wheel |
1 |
(OEM) |
| 035b |
991-2006 |
Caster wheel assembly (red) |
1 |
(NON-OEM) |
| 036 |
172-2733 |
Solution hose |
1 |
|
| 037 |
172-2103 |
Elbow barb |
1 |
|
| 038 |
997-2001 |
Hose clamp |
4 |
|
| 039 |
N/A |
Not available |
1 |
(Ball Valve) (order 272-2281) |
| 040 |
N/A |
Not available |
1 |
(Nipple) (order 272-2281) |
| 041 |
999-1131 |
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
1 |
|
| 042 |
272-2343 |
Chain assembly |
1 |
|
| 043 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 045 |
272-6602 |
Angle shim |
2 |
(between SN 2059972 and 2063621) |
|
|

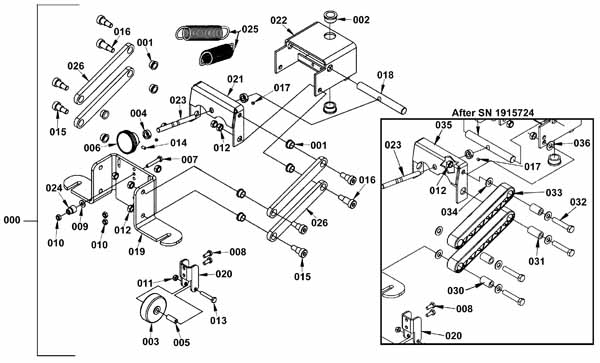

Squeegee Linkage Assembly - 272-1006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-2133 |
Squeegee linkage assembly |
1 |
(includes 001-026) |
| 001 |
172-9497 |
Flanged bearing |
8 |
|
| 002 |
172-9388 |
Flanged bearing |
2 |
|
| 003a |
172-0045 |
Guide wheel |
1 |
(OEM) |
| 003b |
991-3051 |
Guide wheel |
1 |
(NON-OEM) |
| 005a |
172-0095 |
Bushing |
1 |
(before SN 1915723) |
| 005b |
272-5366 |
Bushing |
1 |
(after SN 1915724) |
| 007 |
999-0344 |
Bolt 1/4-20 x 1 1/2 hex head plain finish |
1 |
|
| 008 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
2 |
|
| 009 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
1 |
|
| 010 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
| 011 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
| 012 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
8 |
|
| 013 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
1 |
|
| 014 |
999-1121 |
Screw 10-24 x 3/8 set cup point socket black oxide |
1 |
|
| 015 |
999-0590 |
Screw 3/8-16 x 1/2 socket head shoulder |
6 |
|
| 016 |
999-1361 |
Screw 3/8-16 x 3/4 socket shoulder |
2 |
(before SN 1915723) |
| 017 |
999-0284 |
Screw 10-24 x 3/16 cup point socket set alloy plain finish |
2 |
|
| 019 |
272-2134 |
Squeegee mounting bracket |
1 |
|
| 020 |
272-2136 |
Wheel bracket |
1 |
|
| 021 |
272-2137 |
Squeegee leveling bracket |
1 |
(before SN 1915723) |
| 022 |
272-2138 |
Squeegee lift weldment |
1 |
|
| 023 |
272-2139 |
Adjustment rod |
1 |
|
| 025 |
272-2141 |
Extension spring |
2 |
|
| 026 |
272-2142 |
Linkage arm |
4 |
(before SN 1915723) |
| 030 |
272-9957 |
Phenolic spacer |
6 |
(after SN 1915724) |
| 031 |
272-8022 |
Phenolic spacer |
2 |
(after SN 1915724) |
| 032 |
999-0107 |
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
8 |
(after SN 1915724) |
| 033 |
272-8163 |
Molded linkage arm |
4 |
(after SN 1915724) |
| 034 |
999-0120 |
Washer 3/8 SAE flat |
14 |
(after SN 1915724) |
| 035 |
272-2137 |
Squeegee leveling bracket |
1 |
(after SN 1915724) |
| 036 |
999-0349 |
Washer 5/8 SAE flat |
2 |
(after SN 1915724) |
|
|

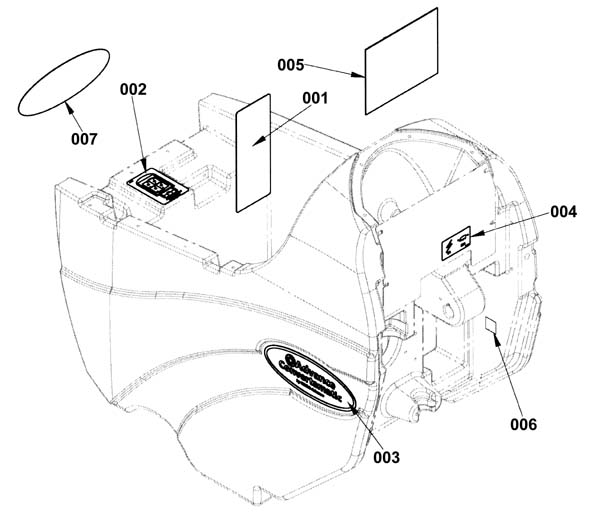

Decal Assembly - 272-1008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-5000 |
Caution decal |
1 |
|
| 002 |
272-9958 |
Battery wiring decal |
1 |
|
| 003 |
372-1265 |
Convertamatic decal |
2 |
|
| 004 |
272-2285 |
Circuit breaker decal |
1 |
|
| 005 |
N/A |
Not available |
1 |
(Ladder diagram decal) |
| 006 |
172-5010 |
Charger decal |
1 |
|
|
|

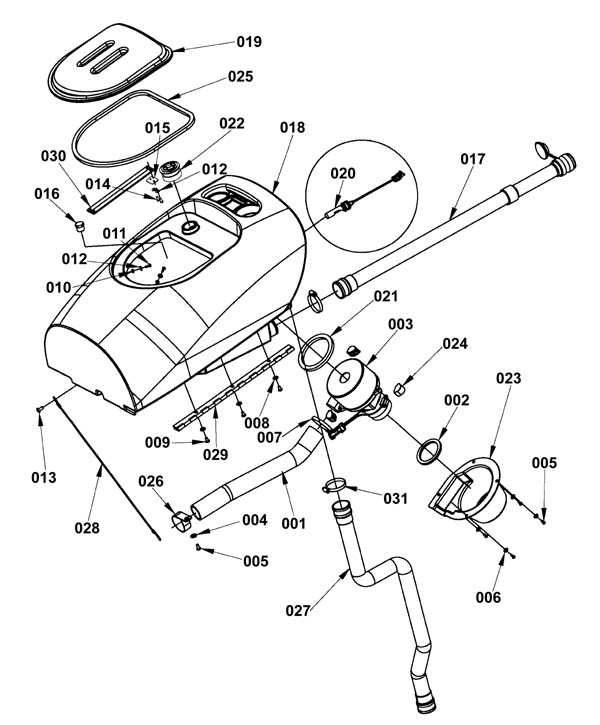

Recovery Tank Assembly - 272-1009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
272-2308 |
Acoustic hose |
1 |
|
| 002a |
172-8889 |
Vacuum duct gasket |
1 |
(OEM) |
| 002b |
991-3059 |
Vacuum duct gasket |
1 |
(NON-OEM) |
| 003a |
172-9139 |
24V 3 stage vacuum motor |
1 |
(OEM) |
| 003b |
991-1210-P |
24V 3 stage vacuum motor tangential with Packard plug |
1 |
(NON-OEM) |
| 003c |
991-1221 |
Carbon brush without plastic cover (pkg of 2) |
2 |
(no cover) |
| 004 |
999-0016 |
Washer 1/4 flat plain finish |
1 |
|
| 005 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
5 |
|
| 006 |
999-0006 |
Washer 3/16 flat zinc plated |
4 |
|
| 008 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
3 |
|
| 009 |
999-0508 |
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
3 |
|
| 010 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 011 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
2 |
|
| 012 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 013 |
999-0601 |
Screw 5/16-18 x 5/8 pan head phillips zinc plated |
1 |
|
| 014 |
999-0898 |
Screw 10-16 x 3/4 pan head phillips stainless steel type B |
2 |
|
| 016 |
272-2101 |
Plug |
1 |
(before 03.2008) |
| 017a |
272-7362 |
Drain hose kit |
1 |
|
| 017b |
272-9273 |
Drain hose extension |
1 |
(used with 272-7362) |
| 017c |
272-8537 |
Drain hose cap assembly |
1 |
|
| 017d |
272-7362 |
Drain hose kit |
1 |
(when replacing order 272-7362 also) |
| 018 |
272-2102 |
Recovery tank |
1 |
|
| 019 |
272-2103 |
Recovery tank lid |
1 |
|
| 020 |
272-2104 |
Float switch |
1 |
|
| 021a |
164-0881 |
Vacuum motor gasket |
1 |
|
| 021b |
991-3029 |
Vacuum motor gasket |
1 |
(NON-OEM) |
| 022 |
272-2106 |
Inlet screen |
1 |
|
| 023 |
272-2107 |
Vacuum motor shroud |
1 |
|
| 024 |
272-2108 |
Vibration mount |
3 |
|
| 025a |
272-2109 |
Recovery tank lid gasket |
1 |
(OEM) |
| 025b |
991-3053 |
Recovery tank lid gasket |
1 |
(NON-OEM) |
| 027a |
272-2111 |
Vacuum hose assembly |
1 |
(OEM) |
| 027b |
991-5143 |
Vacuum hose assembly |
1 |
(NON-OEM) |
| 028 |
272-2112 |
Cable assembly |
1 |
|
| 030 |
272-2114 |
Retaining strap |
2 |
|
| 031 |
997-2003 |
Hose clamp |
2 |
|
|
|

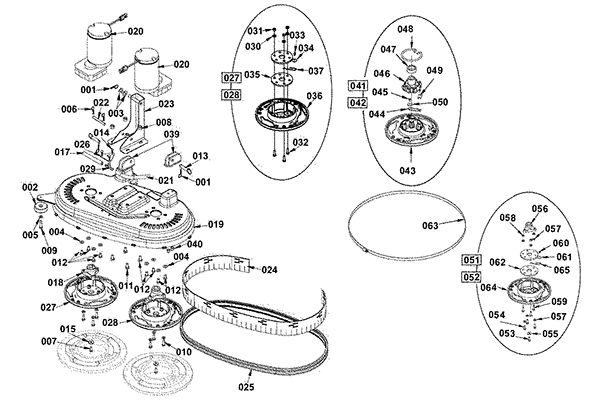

Scrub Assembly - Disk - 272-1010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
997-2509 |
Cotter pin 1/8 x 3/4 stainless steel |
3 |
(after 04.2007 quantity is 2) |
| 002a |
172-0045 |
Guide wheel |
1 |
(OEM) |
| 002b |
991-3051 |
Guide wheel |
1 |
(NON-OEM) |
| 003 |
999-0114 |
Washer 1/2 SAE flat |
2 |
(not needed after 04.2007) |
| 004 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
| 005 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
7 |
|
| 006 |
997-2511 |
Cotter pin |
2 |
|
| 007 |
999-0494 |
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
| 008 |
999-1120 |
Nut M10-1.5 nylon insert lock stainless steel |
4 |
|
| 009 |
999-1256 |
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
1 |
|
| 010 |
999-0501 |
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
| 011 |
999-1170 |
Bolt M10-1.5 x 20mm hex head stainless steel |
4 |
|
| 012 |
272-2116 |
Bolt 3/8-24 x 5/8 hex head lock stainless steel |
8 |
|
| 013 |
272-2115 |
Clevis pin |
2 |
|
| 014 |
272-2117 |
Nylon tree push-in rivet |
3 |
|
| 015 |
999-0120 |
Washer 3/8 SAE flat |
2 |
|
| 018 |
172-2088 |
Drive hub (OBSOLETE) |
2 |
|
| 019a |
272-2746 |
24 inch scrub deck weldment |
1 |
|
| 019b |
272-2753 |
24 inch scrub deck weldment kit |
1 |
|
| 019c |
272-2745 |
26 inch scrub deck weldment (OBSOLETE) |
1 |
|
| 019d |
272-2119 |
26 inch scrub deck weldment kit |
1 |
|
| 019e |
272-2744 |
Scrub deck disc 28 inch |
1 |
|
| 019h |
272-2746 |
24 inch scrub deck weldment |
1 |
(019 has been redesigned. The old style castings are no longer available. If you have a machine built prior to this change (old deck style deck assembly DOES NOT include items 38 & 39) and need to replace one of these deck castings you need to order one of the kits.) |
| 020a |
272-2356 |
24V brush motor assembly |
2 |
|
| 020b |
272-2122 |
Carbon brush |
4 |
|
| 020c |
172-2054 |
Brush spring |
4 |
|
| 021 |
272-2123 |
3/4 inch PVC hose |
1 |
|
| 022 |
272-2124 |
Clevis pin |
1 |
|
| 023 |
272-2747 |
Deck actuator weldment 24/26 inch |
1 |
|
| 024a |
272-2126 |
26 inch fabric skirt |
1 |
(26 inch) (OEM) |
| 024b |
272-2127 |
24 inch rubber skirt |
1 |
|
| 024c |
991-5144 |
26 inch rubber skirt |
1 |
(26 inch) (NON-OEM) |
| 025a |
272-2130 |
Extruded bumper 24 inch with metal band (OBSOLETE) |
1 |
|
| 025b |
272-2129 |
Extruded bumper 26 inch with metal band |
1 |
|
| 025c |
272-9072 |
28 inch extruded bumper |
1 |
|
| 027 |
272-1382 |
Counterclockwise brush plate assembly |
1 |
(includes 30-37) |
| 028 |
272-1383 |
Clockwise brush plate assembly |
1 |
(includes 30-37) |
| 030 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
3 |
|
| 031 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
| 032 |
999-0501 |
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
3 |
|
| 033 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
| 034 |
999-0588 |
Washer 7/8 flat stainless steel |
1 |
|
| 035 |
172-2070 |
Thermoid disk |
2 |
|
| 036 |
172-2089 |
Drive plate |
1 |
|
| 037 |
172-2087 |
Spring retainer |
1 |
|
| 039 |
N/A |
Not available |
1 |
(Deck mount weldment) (replaces L and R brackets) |
| 040 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
| 041 |
272-1382 |
Counterclockwise brush plate assembly |
1 |
(includes 43-50) |
| 042 |
272-1383 |
Clockwise brush plate assembly |
1 |
(includes 43-50) |
| 043 |
272-9885 |
Brush plate |
1 |
|
| 044 |
272-9883 |
Retainer spring |
1 |
|
| 045 |
999-1833 |
Screw 10-14 x 3/8 pan head phillips stainless steel |
3 |
|
| 046 |
272-7257 |
6 tab gimbal and collar assembly |
1 |
|
| 047 |
170-0233 |
Brush driver collar - See pop-up (OBSOLETE) |
1 |
|
| 048 |
272-9884 |
Brush holder spring |
1 |
|
| 049 |
172-0155 |
Stop plate |
1 |
|
| 050 |
172-0553 |
Washer 17/64 x 1/16 flat |
1 |
(Counterclockwise lug) (includes 53-65) (parts only sold individually) |
| 051 |
272-1382 |
Counterclockwise brush plate assembly |
1 |
(Clockwise lug) (includes 53-62, 64-65) (parts only sold individually) |
| 052 |
272-1383 |
Clockwise brush plate assembly |
1 |
(includes 53-62, 64-65) |
| 053 |
999-0494 |
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
| 054 |
272-5780 |
Screw M8-1 x 25mm hex head lock SS |
6 |
|
| 056 |
172-2088 |
Drive hub (OBSOLETE) |
2 |
|
| 057 |
999-9004 |
Washer 5/16 SAE flat stainless steel |
6 |
|
| 058 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
| 059 |
999-0785 |
Screw M8-1.25 x 30mm hex head stainless steel |
3 |
|
| 060 |
999-1152 |
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
1 |
|
| 061 |
999-0588 |
Washer 7/8 flat stainless steel |
1 |
|
| 062 |
172-2070 |
Thermoid disk |
2 |
|
| 063 |
272-3523 |
Adjustable band clamp |
1 |
|
| 064 |
172-2089 |
Drive plate |
1 |
|
| 065 |
172-2087 |
Spring retainer |
1 |
|
| N/S |
272-3523 |
Adjustable band clamp |
1 |
24 and 26 inch |
| N/S |
272-8454 |
Adjustable band clamp |
1 |
32 inch |
| N/S |
272-8605 |
Adjustable band clamp |
1 |
28 inch |
|
|

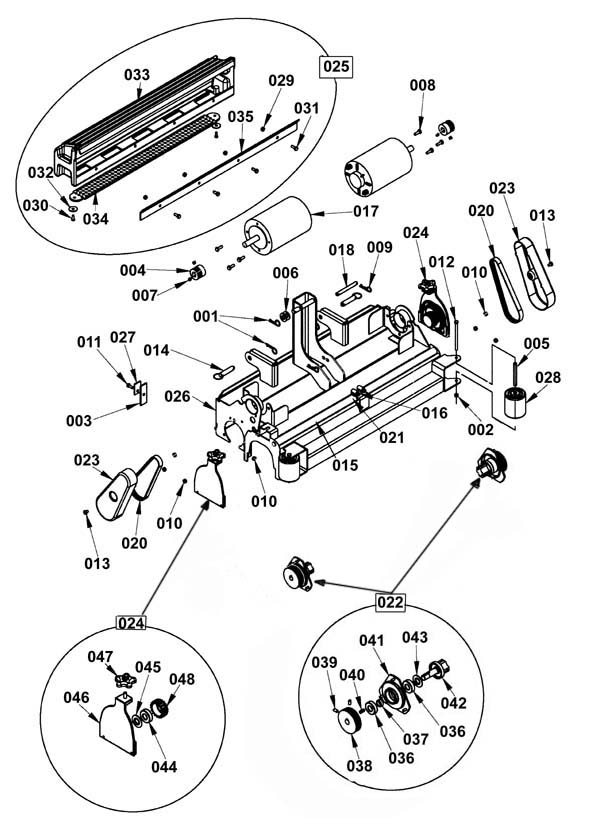

Scrub Assembly - Cylindrical - 272-1011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
997-2509 |
Cotter pin 1/8 x 3/4 stainless steel |
3 |
(after 04.2007 quantity needed is 2) |
| 002 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
2 |
|
| 004 |
172-8928 |
Poly-v sheave |
2 |
|
| 006 |
999-0114 |
Washer 1/2 SAE flat |
6 |
|
| 007 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
4 |
|
| 008 |
272-1596 |
Bolt 1/4-20 x 3/4 hex head lock |
6 |
|
| 009 |
997-2511 |
Cotter pin |
2 |
|
| 010 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
8 |
|
| 011 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
| 012 |
999-1329 |
Screw M6-1 x 100mm hex head |
2 |
|
| 013 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
2 |
|
| 014 |
272-2115 |
Clevis pin |
2 |
|
| 015a |
272-2146 |
26 inch manifold |
2 |
|
| 015b |
272-2147 |
24 inch manifold (OBSOLETE) |
2 |
|
| 016 |
997-2004 |
Hose clamp |
2 |
|
| 017a |
272-2148 |
24V brush motor |
2 |
|
| 017b |
172-8951 |
Carbon brush and spring kit |
1 |
|
| 018 |
272-2124 |
Clevis pin |
1 |
|
| 020 |
272-2150 |
Tension belt |
2 |
|
| 022 |
172-8933 |
Drive end assembly |
2 |
(includes 036-043) |
| 023 |
272-2152 |
Belt cover |
2 |
|
| 024 |
172-3373 |
Idler end assembly |
2 |
(includes 044-048) |
| 025b |
272-2155 |
Hopper assembly 26 inch (OBSOLETE) |
1 |
(includes 029-035) |
| 026a |
272-2159 |
Housing weldment 24 inch |
2 |
|
| 026b |
272-2158 |
Housing weldment 26 inch (OBSOLETE) |
1 |
(redesigned in 04.2007 and is backwards compatible to previous design) |
| 027 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
| 029 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 030 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
|
| 031 |
999-0507 |
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
| 032 |
192-0548 |
Screw KA 35 x 10 |
1 |
|
| 033a |
272-2161 |
Hopper 26 inch |
1 |
|
| 033b |
272-2162 |
Hopper 24 inch |
1 |
|
| 034a |
272-2164 |
Hopper screen 26 inch |
1 |
|
| 034b |
272-2165 |
Hopper screen 24 inch |
1 |
|
| 035a |
272-2167 |
Hopper bracket 26 inch |
1 |
|
| 035b |
272-2168 |
Hopper bracket 24 inch |
2 |
|
| 036 |
172-4656 |
Ball bearing |
1 |
|
| 038 |
172-8959 |
Poly-v sheave |
1 |
|
| 039 |
181-0003 |
Screw 1/4-20 x 1/2 socket set lock |
2 |
|
| 040 |
172-8956 |
Square keyway |
1 |
|
| 041 |
272-2169 |
Bearing plate |
1 |
|
| 043 |
172-1837 |
Bearing washer |
1 |
|
| 044 |
172-4656 |
Ball bearing |
1 |
|
| 045 |
172-1837 |
Bearing washer |
1 |
|
| 046 |
272-2170 |
Idler bearing plate |
1 |
|
| N/S |
172-8951 |
Carbon brush and spring kit |
1 |
|
| N/S |
272-2149 |
Brush harness |
2 |
|
| N/S |
272-2155 |
Hopper assembly 26 inch (OBSOLETE) |
1 |
|
|
|

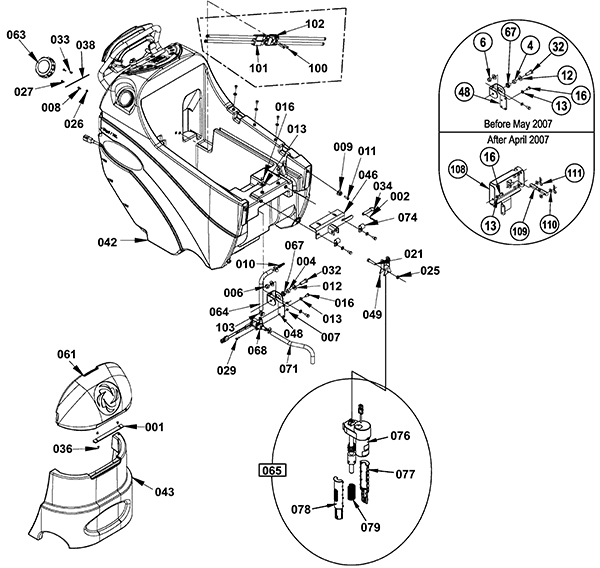

Solution Assembly / Electrical 1 - 272-1012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
997-2509 |
Cotter pin 1/8 x 3/4 stainless steel |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Sleeved bearing) (please order 172-0069) |
| 006 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
1 |
(before 05.2007) |
| 007 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
2 |
|
| 008 |
N/A |
Not available |
2 |
Chain coupler |
| 010 |
272-2172 |
Reducer barb |
1 |
|
| 011 |
999-0348 |
Screw 1/4-20 x 1 flat head phillips zinc plated |
4 |
|
| 012 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 013 |
999-0024 |
Washer 5/16 flat stainless steel |
6 |
(quantity of 5 after 04.2007) |
| 016 |
999-0030 |
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
6 |
(quantity of 7 after 04.2007) |
| 021 |
999-0542 |
Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated |
1 |
|
| 025 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 026 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 027 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
| 029 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
| 032 |
999-1326 |
Screw M12-1.75 x 40mm hex head |
1 |
(before 05.2007) |
| 033 |
999-0110 |
Screw 10-16 x 1/2 pan head phillips self-drilling |
1 |
(before 01.2011) |
| 034 |
272-2115 |
Clevis pin |
1 |
|
| 036 |
999-0477 |
Screw 10-24 x 5/16 truss head phillips zinc |
4 |
|
| 038 |
172-1084 |
Wire rope assembly |
1 |
|
| 042 |
272-2320 |
Solution tank |
1 |
|
| 046 |
272-2322 |
Actuator mounting weldment |
1 |
|
| 048 |
272-2323 |
Pivot weldment |
1 |
|
| 049 |
272-2202 |
Actuator yoke |
1 |
|
| 061 |
272-2324 |
Chemical bottle cover |
1 |
|
| 063 |
272-2180 |
Solution fill cap |
1 |
|
| 064 |
272-0070 |
Wire reinforced hose |
1 |
|
| 067 |
N/A |
Not available |
1 |
(Bushing) (please order 172-0069) |
| 068 |
172-1767 |
Solution valve assembly |
1 |
|
| 071 |
172-2327 |
Wire reinforced clear hose (OBSOLETE) |
1 |
|
| 077 |
272-6570 |
Spring housing |
4 |
|
| 078 |
272-6571 |
Spring housing |
1 |
|
| 079 |
172-8953 |
Compression spring |
1 |
|
| 100 |
999-0398 |
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
2 |
|
| 101 |
172-2183 |
Connector assembly |
1 |
(connected to batteries) (onboard only) |
| 102 |
172-2182 |
Connector assembly |
1 |
(connected to machine) (onboard only) |
| 103 |
997-2002 |
Hose clamp #6 |
3 |
|
| N/S |
999-0120 |
Washer 3/8 SAE flat |
3 |
(after 04.2007) |
| N/S |
172-8941 |
Compression spring |
1 |
|
| N/S |
172-0003 |
Turnbuckle |
1 |
(after 04.2007) |
| N/S |
997-2511 |
Cotter pin |
2 |
(after 04.2007) |
| N/S |
372-1138 |
Bracket weldment |
1 |
(after 04.2007) |
|
|

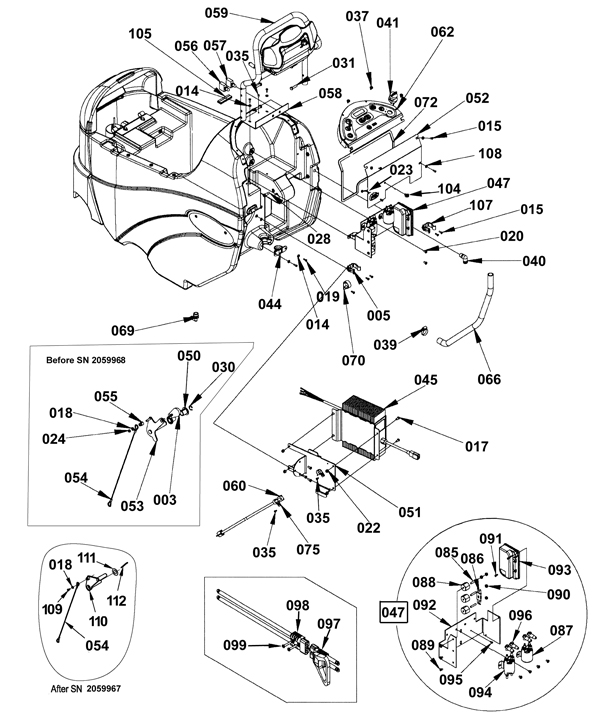

Solution Assembly / Electrical 2 - 272-1013 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 003 |
172-0021 |
Knob |
1 |
(before SN 2059968) |
| 005 |
272-1159 |
Plastic clamp |
2 |
|
| 014 |
999-0006 |
Washer 3/16 flat zinc plated |
8 |
|
| 015 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
4 |
|
| 017 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
7 |
|
| 018 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 019 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
12 |
|
| 020 |
999-0508 |
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
5 |
|
| 022 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 023 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 024 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
(before SN 2059968) |
| 028 |
999-0402 |
Screw 5/16-18 x 5/8 socket head shoulder |
1 |
(before SN 2059968) |
| 030 |
172-9513 |
Retaining ring |
1 |
(before SN 2059968) |
| 031 |
999-0109 |
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
4 |
|
| 035 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
3 |
|
| 037 |
999-0454 |
Screw 10-24 x 1/2 truss head phillips zinc plated |
4 |
|
| 039 |
997-2005 |
Hose clamp |
1 |
|
| 040 |
172-2100 |
90 degree barbed elbow 3/4 x 3/8 |
1 |
|
| 041a |
272-2195 |
Key switch assembly |
1 |
|
| 041b |
272-2196 |
Keys (pkg of 2) |
1 |
|
| 044 |
272-2200 |
Cable guide |
1 |
|
| 045a |
272-2358 |
24V onboard battery charger |
1 |
|
| 045b |
164-7292 |
Replacement AC cord and panel assembly (Delta Q) (OBSOLETE) |
1 |
|
| 047 |
272-2327 |
Electrical box assembly |
1 |
(includes 085-096) |
| 050 |
272-2203 |
Flanged bushing (OBSOLETE) |
2 |
(before SN 2059968) |
| 051 |
272-2226 |
Charger bracket |
1 |
|
| 052 |
272-9350 |
Electrical panel |
1 |
|
| 053 |
272-2206 |
Squeegee lift weldment |
1 |
(before SN 2059968) |
| 054 |
272-2207 |
Cable assembly |
1 |
|
| 055 |
272-2140 |
Bushing |
1 |
(before SN 2059968) |
| 056 |
991-1628 |
5amp circuit breaker |
1 |
(main) |
| 057 |
272-2209 |
30amp circuit breaker |
1 |
(drive motor) |
| 058 |
272-9351 |
Circuit breaker plate |
1 |
|
| 059 |
272-2186 |
Handle assembly |
1 |
|
| 060a |
272-2225 |
Onboard charger cord |
1 |
|
| 060b |
991-8566 |
Onboard battery charger power cord |
1 |
|
| 062a |
272-2328 |
Control panel assembly (OBSOLETE) |
1 |
(before 06.23.05) |
| 062b |
272-2329 |
Control panel assembly |
1 |
(after 06.23.05) |
| 066 |
172-1920 |
Solution drain hose |
1 |
|
| 069 |
172-2103 |
Elbow barb |
1 |
|
| 072 |
272-9350 |
Electrical panel |
1 |
|
| 085 |
172-0346 |
Stud 1/4-20 |
3 |
|
| 086a |
172-8836 |
150amp fuse |
1 |
|
| 086b |
991-3061 |
150amp fuse |
1 |
|
| 087 |
172-2163 |
24V solenoid 4 post (2 large 2 small) |
1 |
(vacuum motor) |
| 088 |
172-0103 |
Electrical mount |
3 |
|
| 089 |
999-0509 |
Screw 1/4-20 x 3/8 pan head phillips zinc plated |
7 |
|
| 090 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
4 |
|
| 091 |
999-0453 |
Screw 8-32 x 1/2 pan head phillips thread forming zinc |
2 |
|
| 092 |
272-2331 |
Electrical panel |
1 |
|
| 093 |
272-2332 |
Speed control (OBSOLETE) |
1 |
|
| 094 |
172-2173 |
24V contactor |
1 |
(brush motor) |
| 095 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
1 |
|
| 096 |
172-9147 |
Terminal insulator |
4 |
|
| 097 |
272-2333 |
Connector assembly |
1 |
(connected to batteries) (off board only) |
| 098 |
172-2182 |
Connector assembly |
1 |
(connected to machine) (off board only) |
| 099 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
| 104 |
272-2177 |
Conduit clip |
1 |
|
| 105 |
N/A |
Not available |
1 |
(Gasket) |
| 107 |
172-3169 |
Plastic clamp |
1 |
|
| 108 |
999-0998 |
Washer #10 flat stainless steel |
6 |
|
| 109 |
999-1532 |
Screw 1/4-20 x 1/2 hex head stainless steel |
1 |
(after SN 2059967) |
| 110 |
272-8453 |
Squeegee lift lever |
1 |
(after SN 2059967) |
| 111 |
172-4968 |
Washer 1.031 x 1.859 x .048 flat |
1 |
(after SN 2059967) |
| 112 |
172-3483 |
Cotter pin |
1 |
(after SN 2059967) |
| N/S |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
|
|

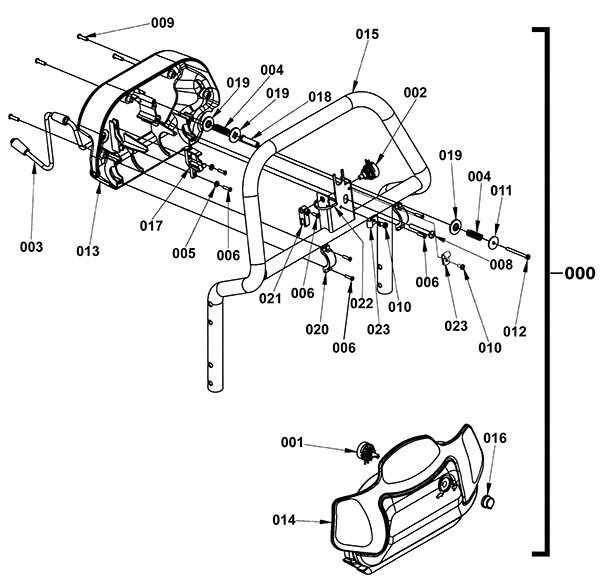

Paddle Assembly - 272-1015 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-2186 |
Handle assembly |
1 |
(includes 001-023) |
| 001 |
991-9022 |
100K Potentiometer (speed control) |
1 |
|
| 002 |
172-2039 |
5K potentiometer |
1 |
|
| 003 |
272-2187 |
Paddle harness |
1 |
(potentiometer to machine) |
| 004 |
172-2036 |
Compression spring |
2 |
|
| 005 |
999-0377 |
Washer 6 SAE flat plain finish |
2 |
|
| 006 |
999-1362 |
Screw 6-18 x 5/8 pan head phillips stainless steel |
6 |
|
| 008 |
172-2035 |
Screw 1/4-10 x 2 pan head phillips |
1 |
|
| 009 |
272-2188 |
Screw 8-10 x 3/4 pan head phillips plastite |
4 |
|
| 010 |
999-0409 |
Screw 10-24 x 3/8 pan head slotted zinc plated |
2 |
|
| 011 |
999-0588 |
Washer 7/8 flat stainless steel |
1 |
|
| 012 |
172-2037 |
Screw 8 x 2 pan head phillips type B |
1 |
|
| 013 |
272-2189 |
Rear paddle |
1 |
|
| 014 |
272-2190 |
Front paddle |
1 |
|
| 015 |
272-2191 |
Handle bar weldment |
1 |
|
| 017 |
172-2038 |
Cam controller |
1 |
|
| 019 |
172-2045 |
Washer plastic |
3 |
|
| 022 |
997-2101 |
6 inch cable tie |
1 |
|
|
|

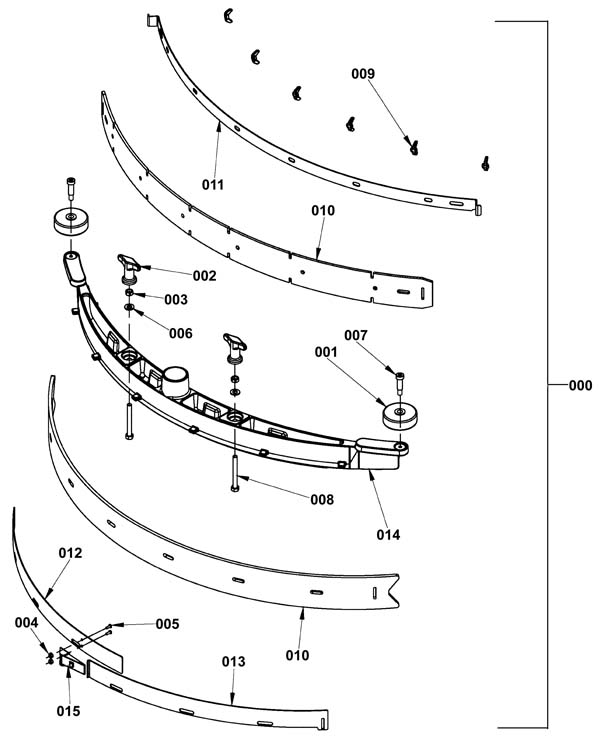

Squeegee Assembly - 272-1016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
272-2349 |
24 inch squeegee assembly |
1 |
(includes 001-015) |
| 000b |
272-2350 |
26 inch squeegee assembly |
1 |
(includes 001-015) |
| 001a |
172-0045 |
Guide wheel |
2 |
(OEM) |
| 001b |
991-3051 |
Guide wheel |
2 |
(NON-OEM) |
| 002 |
172-4099 |
Nut 5/16-18 thumb |
2 |
|
| 003 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 004 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
| 005 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
| 006 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 007 |
999-1256 |
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
2 |
|
| 008 |
272-2754 |
Screw 5/16-18 x 3 hex head full thread |
2 |
|
| 009 |
999-0603 |
Nut 1/4-20 wing stainless steel |
6 |
|
| 010a |
272-2352 |
Squeegee blade kit 24 inch gum rubber |
1 |
|
| 010b |
272-2353 |
Squeegee blade kit 24 inch linatex |
1 |
|
| 010c |
172-3479 |
Squeegee blade kit 24 inch neoprene |
1 |
|
| 010d |
272-2354 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
1 |
(OEM) |
| 010e |
994-0057 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
1 |
(NON-OEM) |
| 010f |
272-2355 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
1 |
(OEM) |
| 010g |
994-0058 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
1 |
(NON-OEM) |
| 010h |
172-3482 |
Squeegee blade kit 26 and 28 inch neoprene |
1 |
|
| 011a |
172-3463 |
Front strap |
1 |
(24 inch) |
| 011b |
172-3464 |
Front strap |
1 |
(26 inch) |
| 012a |
172-3457 |
Left rear strap |
1 |
(24 inch) |
| 012b |
172-3458 |
Left rear strap |
1 |
(26 inch) |
| 013a |
172-3460 |
Right rear strap |
1 |
(24 inch) |
| 013b |
172-3461 |
Right rear strap |
1 |
(26 inch) |
| 014a |
172-3472 |
Squeegee weldment |
1 |
(24 inch) |
| 014b |
172-3473 |
Squeegee weldment |
1 |
(26 inch) |
|
|
- Simplified Electrical System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
-Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Simplified Recovery System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Simplified Solution System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Batteries - 999-5047 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
4 |
|
| 2 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
4 |
|
|
|
- Chargers - 999-5071 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-5061 |
24V 20amp battery charger with SB175 large red plug |
1 |
|
| 2 |
993-2470 |
CHARGER 24V 20A SCR, SEALED (175A RED) |
1 |
|
| 3 |
272-2358 |
24V onboard battery charger |
1 |
|
| 4 |
162-5045 |
175amp charger plug with pins (red) SB175 |
1 |
|
| 5a |
162-5079 |
SCR assembly kit |
1 |
|
| 5b |
372-1254 |
Fuse assembly |
1 |
|
| 6 |
162-5087 |
AC cord set kit |
1 |
|
| 7 |
162-5081 |
Control board assembly |
1 |
|
| N/S |
372-1623 |
24V 25amp battery charger |
1 |
|
|
|
- Frequently Replaced Parts - 999-9624 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0003 |
6V 225Ah wet battery (SNSR) |
|
(4) |
|
162-0043 |
6V 224Ah AGM battery (Group GC2) |
|
(4) |
|
272-2358 |
24V onboard battery charger |
|
|
|
162-5061 |
24V 20amp battery charger with SB175 large red plug |
|
|
|
162-5045 |
175amp charger plug with pins (red) SB175 |
|
|
|
998-0016 |
12-10 vinyl butt connection |
|
|
|
272-2195 |
Key switch assembly |
|
(power) |
|
272-2328 |
Control panel assembly (OBSOLETE) |
|
(before 6.23.05) (vacuum and brush) |
|
272-2329 |
Control panel assembly |
|
(after 6.23.05) (vacuum and brush) |
|
172-1767 |
Solution valve assembly |
|
|
|
272-2354 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
|
(OEM) |
|
994-0057 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
|
(NON-OEM) |
|
272-2355 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
|
(OEM) |
|
994-0058 |
Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) |
|
(NON-OEM) |
|
272-2111 |
Vacuum hose assembly |
|
(OEM) |
|
991-5143 |
Vacuum hose assembly |
|
(NON-OEM) |
|
272-2103 |
Recovery tank lid |
|
|
|
272-2109 |
Recovery tank lid gasket |
|
|
|
991-3053 |
Recovery tank lid gasket |
|
|
|
172-9139 |
24V 3 stage vacuum motor |
|
(OEM) |
|
991-1210-P |
24V 3 stage vacuum motor tangential with Packard plug |
|
(NON-OEM) |
|
991-2206 |
Center-Lok 3 pad holder |
|
|
|
996-0158 |
12 inch heavy grit stripping brush - 80 grit |
|
|
|
996-0024 |
12 inch medium grit scrubbing brush - 180 grit |
|
|
|
996-0094 |
12 inch lite grit scrubbing brush - 500 grit |
|
|
|
996-3064 |
12 inch value daily cleaning brush assembly (OBSOLETE) |
|
|
|
996-0591 |
12 inch Pad driver |
|
|
|
996-0341 |
Drive lugs - plastic (pkg of 3) |
|
|
|
|
