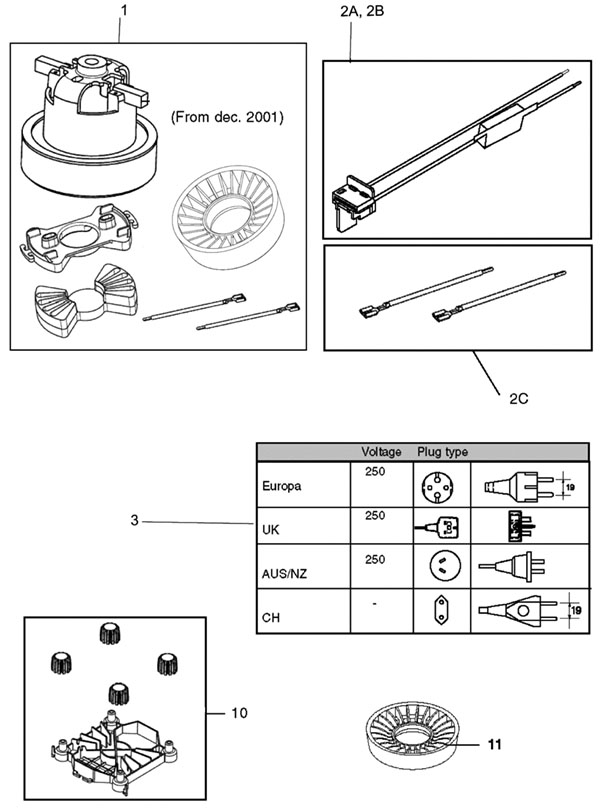

Motor Assembly - 272-0509 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-1480 |
MOTOR 230V KIT KING/GD 1000 |
1 |
(Ametek fan unit) |
| 2a |
N/A |
Not available |
1 |
(Phillips fan unit) (Wiring) |
| 2b |
472-0354 |
INTERNAL WIRE KIT |
1 |
(Phillips fan unit) |
| 2c |
472-1483 |
WIRE KIT FAN UNIT-AMETEK |
1 |
(Ametek fan unit) |
| 3a |
472-0356 |
CORD 10M EURO |
1 |
|
| 3b |
N/A |
Not available |
1 |
(Cord) |
| 3c |
N/A |
Not available |
1 |
(Cord) |
| 3d |
N/A |
Not available |
1 |
(Cord) |
| 10a |
472-1480 |
MOTOR 230V KIT KING/GD 1000 |
1 |
|
| 10b |
172-4266 |
Motor service kit (OBSOLETE) |
1 |
|
| 11 |
N/A |
Not available |
1 |
(Gasket) |
|
|

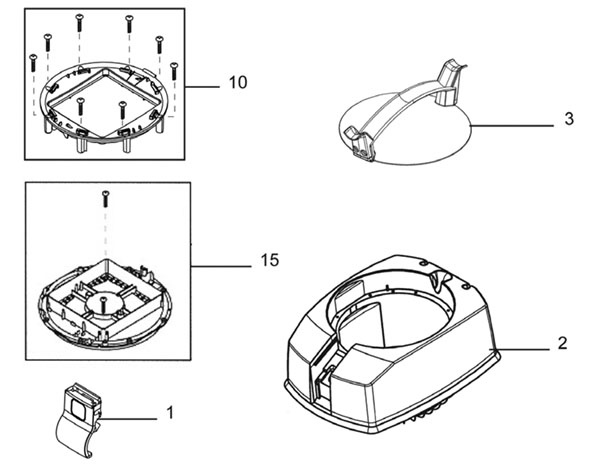

Upper Tank Assembly - 272-0510 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Clip) |
| 2a |
472-0351 |
UPPER PART GD 1000 LIGHT GREY |
1 |
(GD 1010) |
| 2b |
N/A |
Not available |
1 |
(CDF 2010) (Upper tank) |
| 2c |
N/A |
Not available |
1 |
(CDF 2040) (Upper tank) |
| 3 |
N/A |
Not available |
1 |
(Tank lid) |
| 10 |
N/A |
Not available |
1 |
(Tank lid) |
| 15a |
N/A |
Not available |
1 |
(Tank lid) |
| 15b |
N/A |
Not available |
1 |
(Tank lid) |
|
|

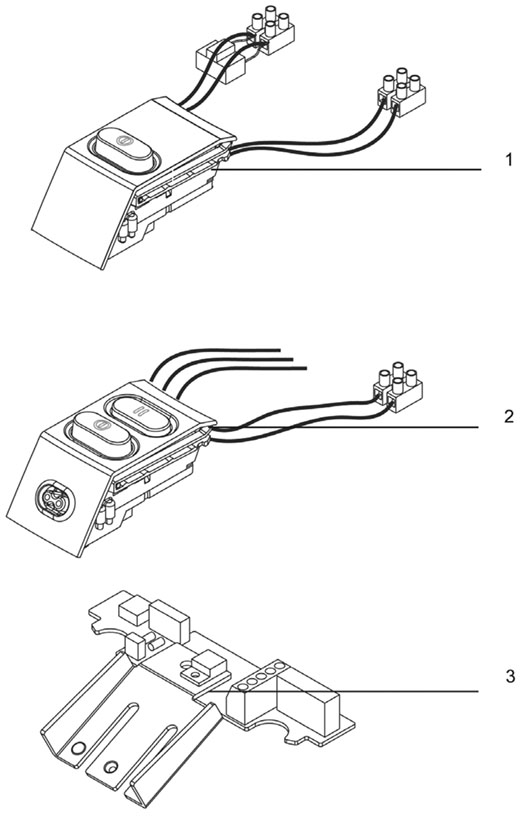

Switch Assembly - 272-0511 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
N/A |
Not available |
1 |
(CDB 3000) (Switch) |
| 1b |
272-0397 |
Electrical unit |
1 |
(GD 1005 and GD 1010) |
| 1c |
N/A |
Not available |
1 |
(CDB 3020) (Switch) |
| 1d |
N/A |
Not available |
1 |
(Switch) |
| 2a |
N/A |
Not available |
1 |
(HDS 1005) (Switch) |
| 2b |
N/A |
Not available |
1 |
(CDB 3050) (Switch) |
| 2c |
N/A |
Not available |
1 |
(CDF 2050) (Switch) |
| 2d |
N/A |
Not available |
1 |
(Switch) |
| 3 |
N/A |
Not available |
1 |
(GD 1000) (circuit board) |
|
|

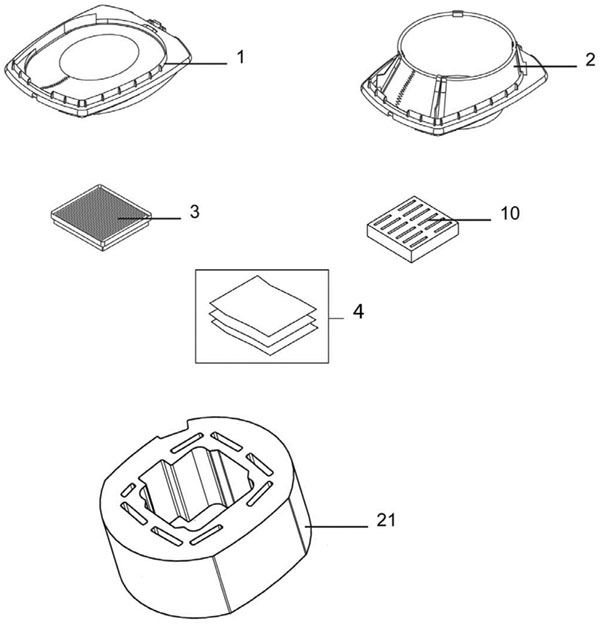

Filter Assembly - 272-0512 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Cover) |
| 4 |
N/A |
Not available |
1 |
(filter) |
| 10 |
N/A |
Not available |
1 |
(Cover) |
| 21 |
N/A |
Not available |
1 |
(Filter cover) |
|
|

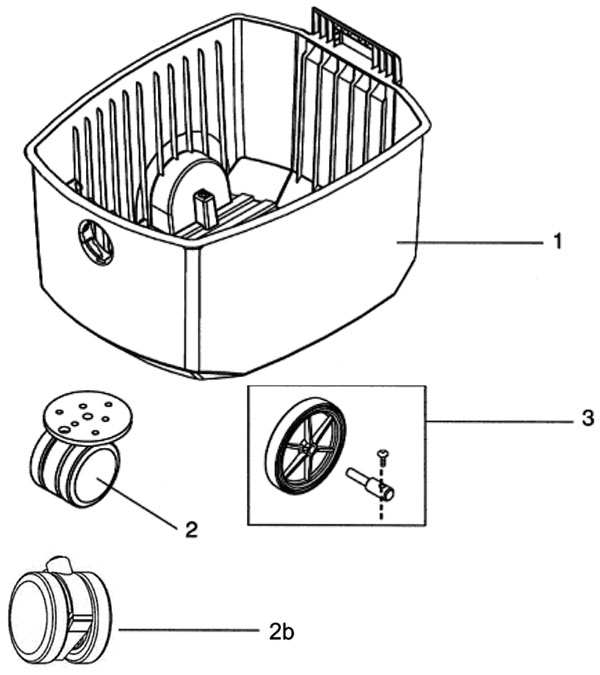

Lower Assembly - 272-0513 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
272-0390 |
Conatiner 8.75 liter |
1 |
|
| 1b |
272-0391 |
Container 16 litre |
1 |
|
| 2a |
272-0392 |
Front wheel with internal plate and screws |
1 |
|
| 3 |
272-0393 |
Rear wheel kit (pkg of 2) |
1 |
|
|
|

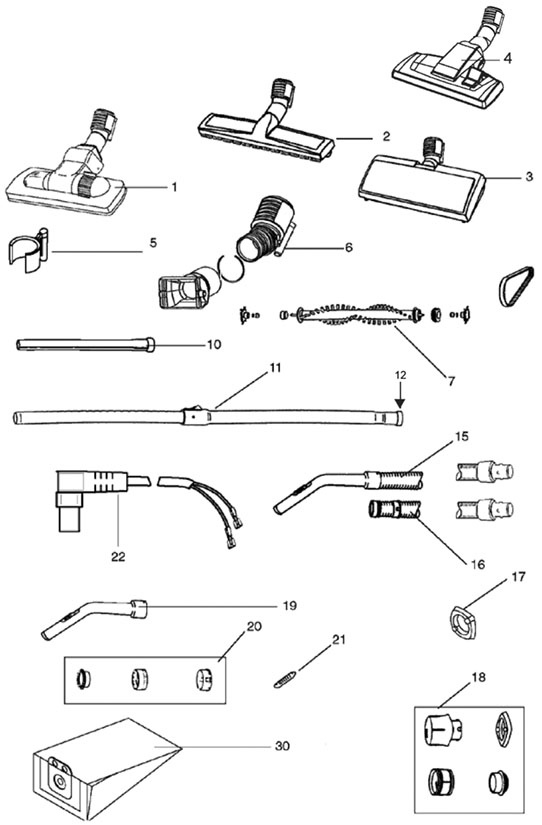

Accessories - Part 1 - 272-0514 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
N/A |
Not available |
1 |
(Nozzle assembly) |
| 3 |
181-1437 |
Electro nozzle w/ parking clip (grey 2832) (OBSOLETE) |
1 |
|
| 4a |
172-1984 |
Rug/floor combo tool |
1 |
|
| 4b |
991-8010 |
1 1/4 inch pedal style rug/floor combo tool |
1 |
(NON-OEM) |
| 4c |
991-8020 |
1 1/4 x 24 to 40 inch chrome telescoping wand |
1 |
(NON-OEM) |
| 5 |
181-1443 |
Parking clip (OBSOLETE) |
1 |
|
| 6 |
181-1440 |
Coupling for tube (OBSOLETE) |
1 |
|
| 10 |
181-1444 |
Extension wand |
1 |
|
| 11 |
172-1989 |
Telescopic wand |
1 |
|
| 12a |
572-3008 |
FRICTION RING 3 TAB |
1 |
|
| 12b |
172-1989 |
Telescopic wand |
1 |
|
| 15 |
181-1446 |
32mm tapered hose with curved plastic tube (silver) |
1 |
|
| 16 |
181-1447 |
Hose/coupling assembly |
1 |
|
| 17 |
181-1448 |
Gasket - black |
1 |
|
| 18 |
181-1455 |
Hose coupling to inlet |
1 |
|
| 19 |
272-0389 |
Curved plastic tube |
1 |
|
| 20 |
181-1456 |
Hose coupling to inlet - kit for tapered hose |
1 |
|
| 21 |
172-1991 |
Atmos valve |
1 |
|
| 22 |
181-1442 |
Cord for electro nozzle (OBSOLETE) |
1 |
|
| 30 |
372-1154 |
Vacuum bags (pkg of 5) |
1 |
|
|
|

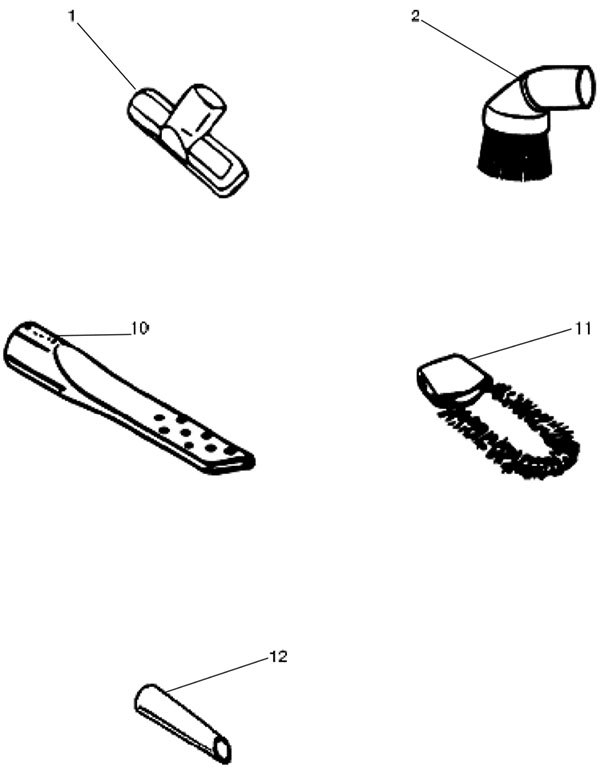

Accessories - Part 2 - 272-0515 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-1985 |
Upholstery tool |
1 |
|
| 2a |
172-1986 |
Dusting tool |
1 |
|
| 2b |
181-1458 |
Round brush (blue polyester bristles) |
1 |
|
| 2c |
N/A |
Not available |
1 |
(Nozzle) |
| 10 |
172-1987 |
Crevice nozzle |
1 |
|
| 11 |
472-1482 |
HIGH TECH CLEANING TOOL |
1 |
|
| 12 |
172-1988 |
Flexible nozzle |
1 |
|
|
|
