Parts List Complete for NILFISK BA 855X

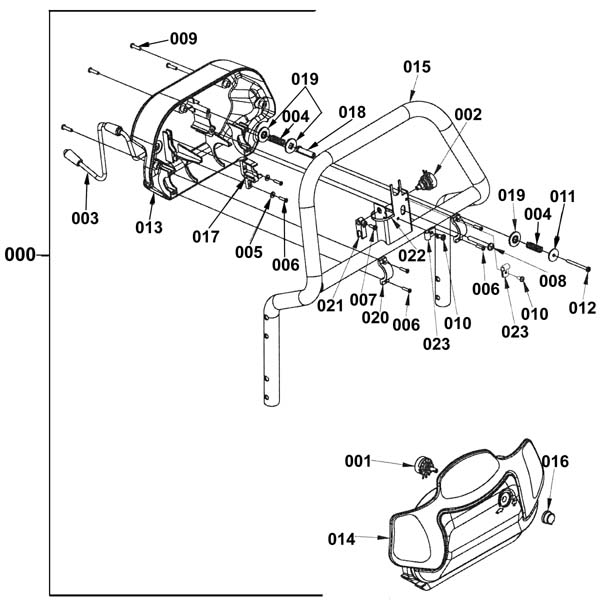

Paddle Assembly - 172-0772
RefNbr Part Number Description Req Notes
000 272-2186 Handle assembly 1 (includes 001-023)
001 991-9022 100K Potentiometer (speed control) 1
002 172-2039 5K potentiometer 1
003 272-2187 Paddle harness 1 (goes from the 5 & 20K potentiometer to the machine, one end is wires and the other end is a connector- swivel end)
004 172-2036 Compression spring 2
005 999-0377 Washer 6 SAE flat plain finish 2
006 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel 6
007 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 1
008 172-2035 Screw 1/4-10 x 2 pan head phillips 1
009 272-2188 Screw 8-10 x 3/4 pan head phillips plastite 4
010 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
011 999-0721 Washer 7/8 USS flat zinc plated 1
012 172-2037 Screw 8 x 2 pan head phillips type B 1
013 272-2189 Rear paddle 1
014 272-2190 Front paddle 1
015 272-2191 Handle bar weldment 1
016 272-2192 Knob 1
017 172-2038 Cam controller 1
018 172-2043 Sleeve 1
019 172-2045 Washer plastic 3
020 272-1353 Clamp 2
021 172-2047 U clamp 1
022 997-2101 6 inch cable tie 1
023 172-4063 P clamp 2

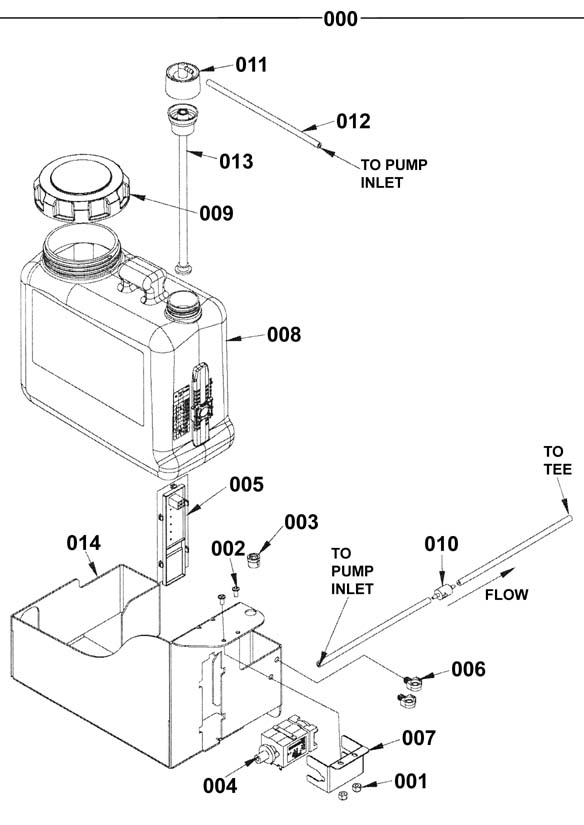

Chemical Tank Assembly - 172-0773
RefNbr Part Number Description Req Notes
000 272-2173 Chemical tank assembly 1
001 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 2
002 999-0794 Screw 8-32 x 5/16 pan head phillips stainless steel 2
003 272-2174 Snub bushing 1
004 272-2175 Chemical pump 1
005 272-2176 Chemical sensor assembly 1
006 272-2177 Conduit clip 2
007 272-2178 Chemical pump bracket 1
008 272-2179 Chemical bottle assembly 1
009 272-2180 Solution fill cap 1
010 272-2181 Check valve 1
011 272-2182 Dry break cap 1
012 272-2183 7 inch chemical resistant hose 3
013 272-2184 Dry break insert 1
014 272-2185 Tank mounting bracket 1

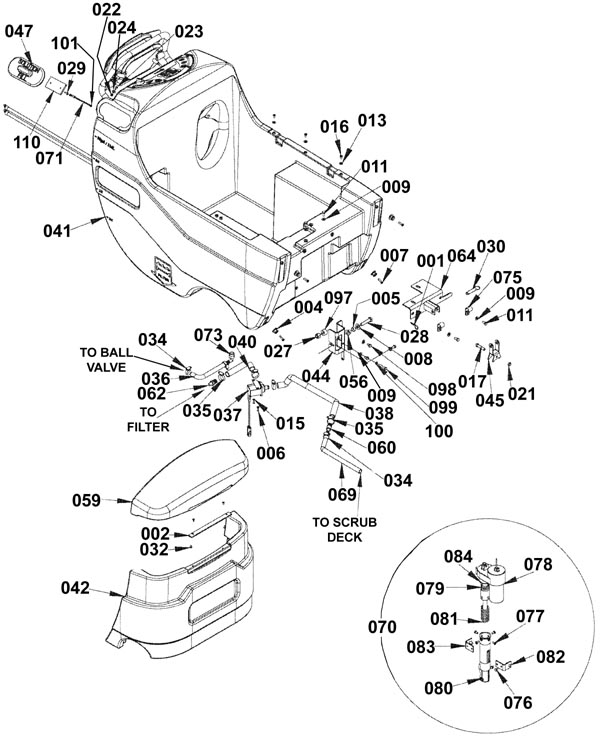

Standard Solution and Electrical System - 2 -

RefNbr Part Number Description Req Notes

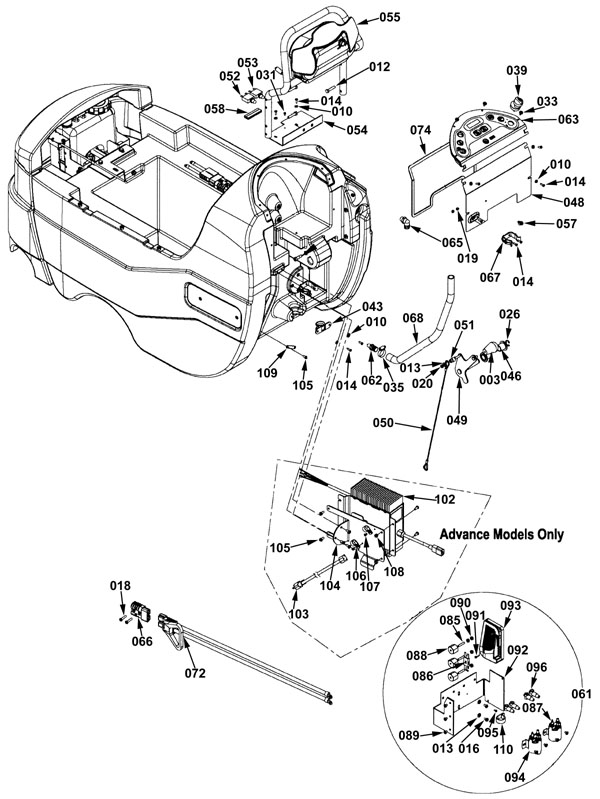

Standard Solution and Electrical System - 1 -

RefNbr Part Number Description Req Notes

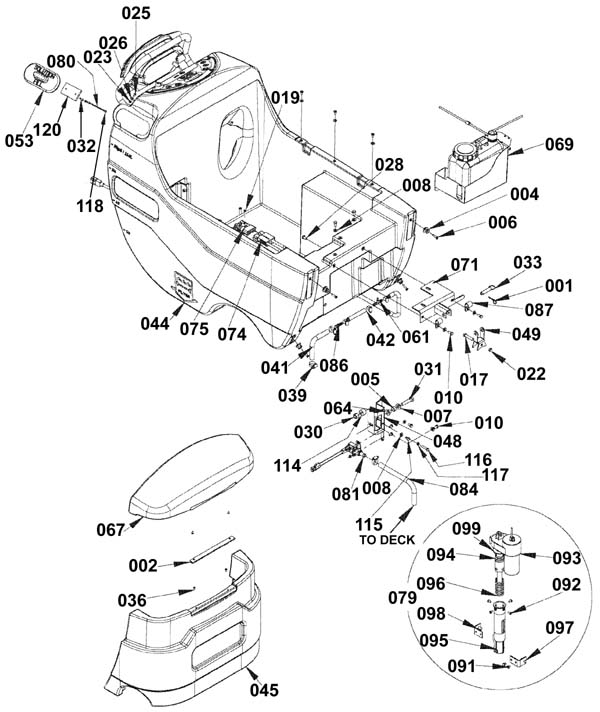

AXP / ECO + Solution - Solution and Electrical System - 2 -

RefNbr Part Number Description Req Notes

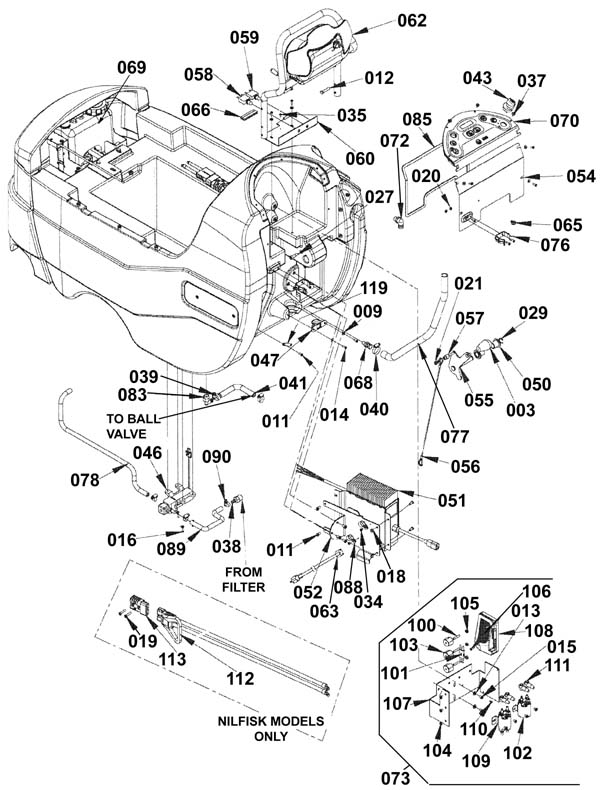

AXP / EC0 + Solution - Solution and Electrical System - 1 -

RefNbr Part Number Description Req Notes

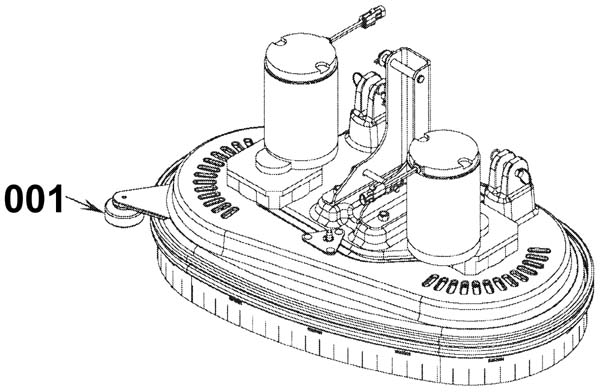

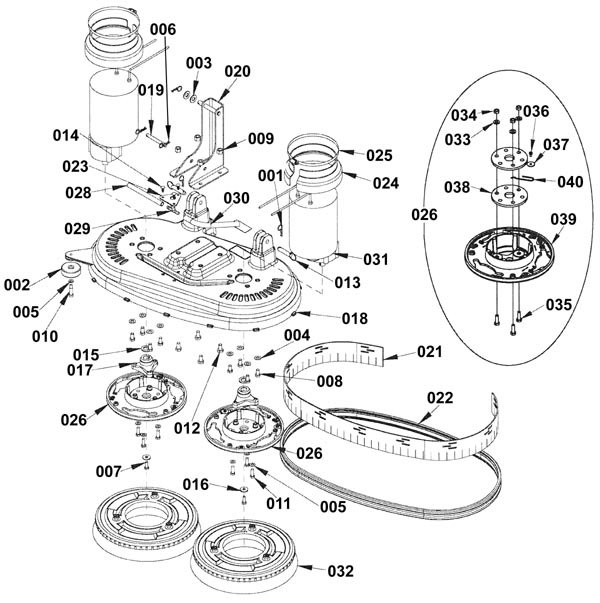

Scrub System - Disk - 172-0779
RefNbr Part Number Description Req Notes
001 997-2509 Cotter pin 1/8 x 3/4 stainless steel 3
002a 172-0045 Guide wheel 1
002b 991-3051 Guide wheel 1
003 999-0114 Washer 1/2 SAE flat 2
004 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
005 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 7
006 997-2511 Cotter pin 2
007 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel 2
008 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 8
009 999-1120 Nut M10-1.5 nylon insert lock stainless steel 4
010 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 1
011 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 6
012 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel 4
013 272-2115 Clevis pin 2
014 272-2117 Nylon tree push-in rivet 3
015 999-1134 Washer 1 1/4 flat stainless steel 2
016 999-0120 Washer 3/8 SAE flat 2
017 172-2088 Drive hub (OBSOLETE) 2
018a 272-2751 28 inch scrub deck kit 1
018b 272-9071 32 inch scrub deck kit (OBSOLETE) 1
019 272-2124 Clevis pin 1
020 N/A Not available 1 (Actuator bracket weldment)
021a 272-2127 24 inch rubber skirt 1 (for 28 inch machines)
021b 272-2311 32 inch rubber skirt 1 (OEM)
021c 991-5155 32 inch rubber skirt 1 (NON-OEM)
022a 272-2128 28 inch extruded bumber with metal band 1
022b 272-2312 32 inch extruded bumper with metal band 1
023 272-2131 Bracket 1
024 272-2313 Motor shroud 2
025 997-2010 Hose clamp 2
026a 272-1382 Counterclockwise brush plate assembly 1 (includes 033-040)
026b 272-1383 Clockwise brush plate assembly 1 (includes 033-040)
028 172-1909 PVC hose 3/8 x 6 inch 1
029 272-1384 Tee barb 1
030 272-1385 PVC hose 1
031a 272-1344 36V brush gear motor assembly 2 (OEM)
031b 991-2122 36V .75HP brush motor assembly with gear box 2 (NON-OEM) (you will also need to order 999-0130)
031c 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2 (for NON-OEM brush motor)
032 SEE NOTE Please See Brushes Page
033 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 3
034 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
035 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 3
036 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1
037 999-0721 Washer 7/8 USS flat zinc plated 1
038 172-2070 Thermoid disk 2
039 172-2089 Drive plate 1
040 172-2087 Spring retainer 1

Squeegee Linkage Assembly - 172-0781
RefNbr Part Number Description Req Notes
0 272-2294 Squeegee linkage assembly 1 (includes 1-26)
1a 172-0045 Guide wheel 2 (OEM)
1b 991-3051 Guide wheel 2 (NON-OEM)
2 172-0071 Collar 2
3 272-5366 Bushing 2
4 172-0078 Knob 1
5 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel 1
6 999-0120 Washer 3/8 SAE flat 14
7 999-0550 Bolt 3/8-16 x 2 hex head stainless steel 8
8 999-0123 Washer 1/4 SAE flat zinc plated 1
9 999-0190 Nut 1/4-20 hex plain finish 1
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
11 999-1482 Nut 3/8-16 nylon lock stainless steel 8
12 272-5247 Screw 1/4-20 X 1 3/4 hex lock stainless steel 2
13 999-1121 Screw 10-24 x 3/8 set cup point socket black oxide 1
14 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish 2
15 172-9388 Flanged bearing 2
16 272-8163 Molded linkage arm 4
17 272-9957 Phenolic spacer 6
18 272-8022 Phenolic spacer 2
19 272-2135 Pin 1
20 272-2295 Squeegee weldment 1
21 272-2139 Adjustment rod 1
22 272-2140 Bushing 1
23 272-2141 Extension spring 2
24 272-2296 Squeegee mount weldment 1
25 272-2137 Squeegee leveling bracket 1
26 999-9127 Washer 5/8 SAE flat stainless steel 2

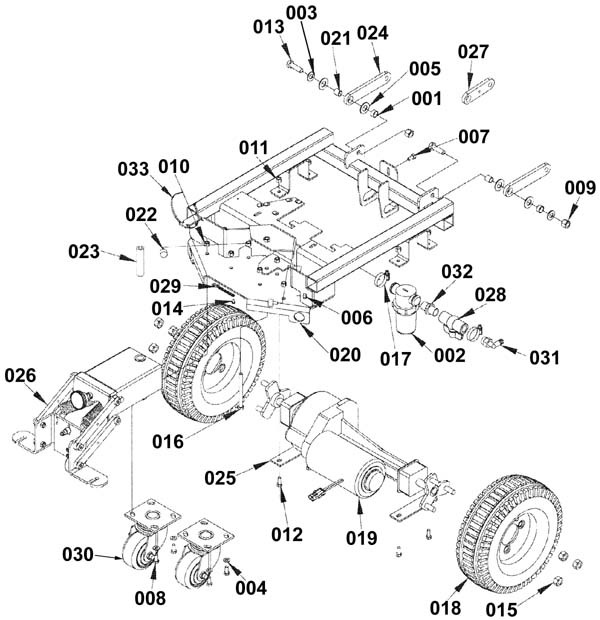

Chassis System - 172-0782
RefNbr Part Number Description Req Notes
001 N/A Not available 2 (Sleeved bearing) (please order 172-0069)
002a 172-9025 Solution filter 1
002b 991-3055 Solution filter 1 (NON-OEM)
003 999-0114 Washer 1/2 SAE flat 2
004 999-0024 Washer 5/16 flat stainless steel 10
005 999-0349 Washer 5/8 SAE flat 4
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
007 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 3
008 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 8
009 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
010 999-0471 Nut M8-1.25 nylon insert lock zinc plated 8
011 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
012 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
013 999-1326 Screw M12-1.75 x 40mm hex head 2
014 999-1131 Screw 8-32 x 3/8 pan head phillips thread rolling SS 1
015 272-1653 Nut 1/2-20 lug 6
016 999-1327 Screw 3/8-16 x 4 1/4 hex head 1
017 997-2008 Hose clamp 1
018a 272-2268 Foam filled wheel (black) (pkg of 2 wheels and 2 brackets) 1
018b 272-2269 Polyurethane-traction wheel 2 Optional
018c 991-5127 Foam tire assembly with 3 holes 1 (NON-OEM)
019a 272-2270 36V transaxle 1 Cannot purchase parts separately except 019b
019b 991-3052 36V transaxle 1
019c 272-2271 Motor 1
019d 170-3568 Carbon brush (pkg of 4) 1
019e 272-2273 Neoprene mounting sleeve 4
020 272-2274 Chassis weldment 2
021 272-2275 Bushing 1
022 272-2276 Cylindrical mount 2
023 272-2277 Bushing 2
024 272-2278 Linkage arm 1
025 272-2279 Transaxle mount plate 2
026 272-2294 Squeegee linkage assembly 2
027 N/A Not available 1 (Linkage arm - must purchase pivot weldment kit 172-0069)
028 272-2281 Ball valve bracket kit 1
029 N/A Not available 1 Ground chain
030a 172-0001 Swivel caster wheel 1 (OEM)
030b 991-2006 Caster wheel assembly (red) 1 (NON-OEM)
031 172-2103 Elbow barb 2
032 172-2099 Nipple 1
033 997-2103 8 inch cable tie 1

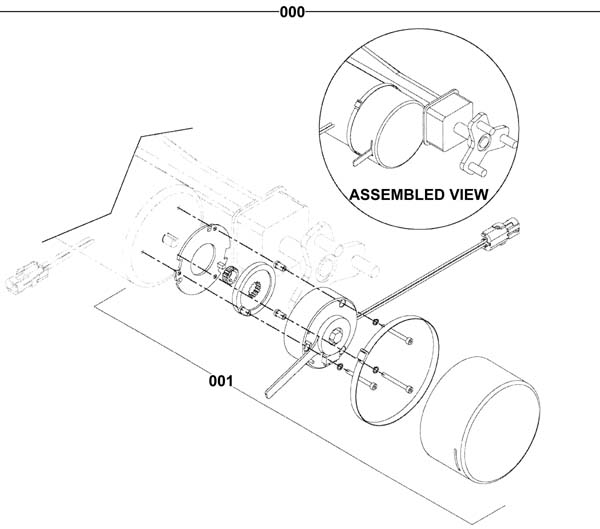

Electromagnetic Brake Kit - 172-0783
RefNbr Part Number Description Req Notes
000 N/A Not available 1 (Electromagnetic brake kit)
001 272-2238 Electromagnetic brake 1

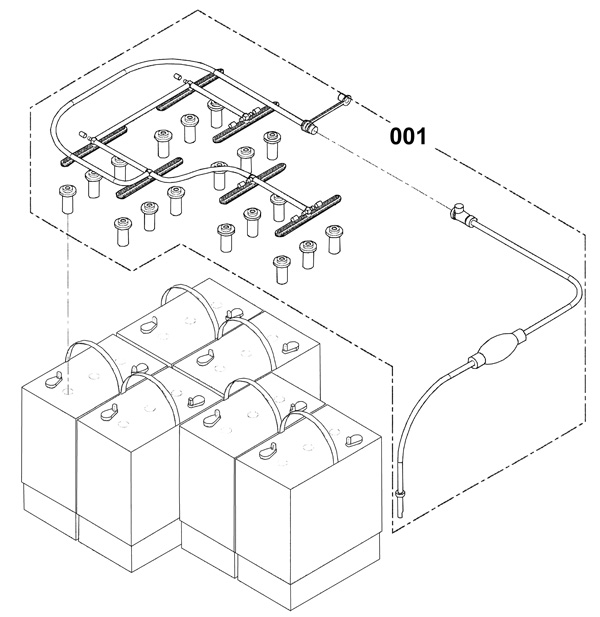

Battery Watering Kit - 172-0784
RefNbr Part Number Description Req Notes
001 272-2248 Battery watering kit 1

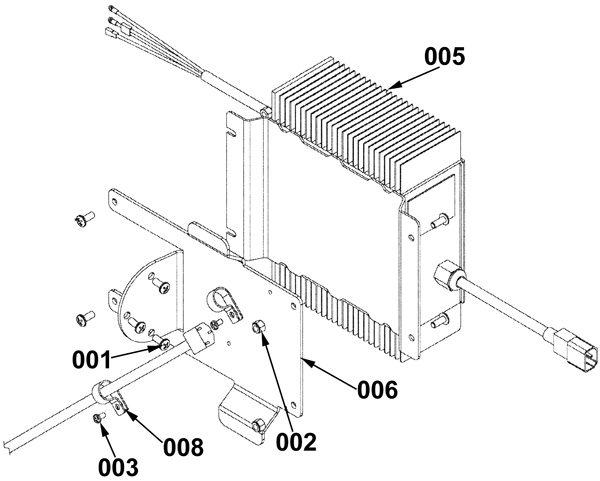

Onboard Battery Charger Kit - 172-0785
RefNbr Part Number Description Req Notes
001 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 7
002 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
003 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
005 272-2224 36V onboard battery charger 1
006 272-2226 Charger bracket 1
008 172-2122 P clamp 2

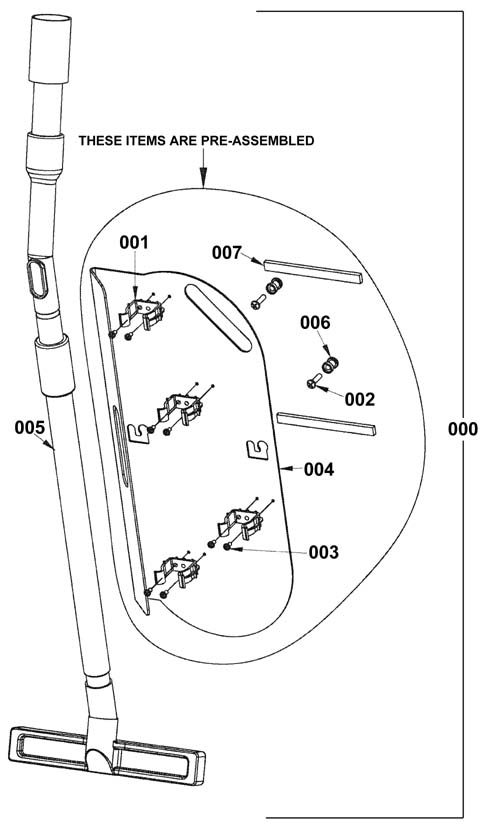

Squeegee Wand Kit - 172-0786
RefNbr Part Number Description Req Notes
000 272-7432 Vac wand kit 1 (includes 001 - 007)
001 272-1159 Plastic clamp 4
002 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 2
003 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 8
004 272-2251 Wand bracket 1
005 272-2252 Wand and hose 1
006 272-2253 Spacer 2
007 272-2254 Gasket 1/4 x 6 inch 2

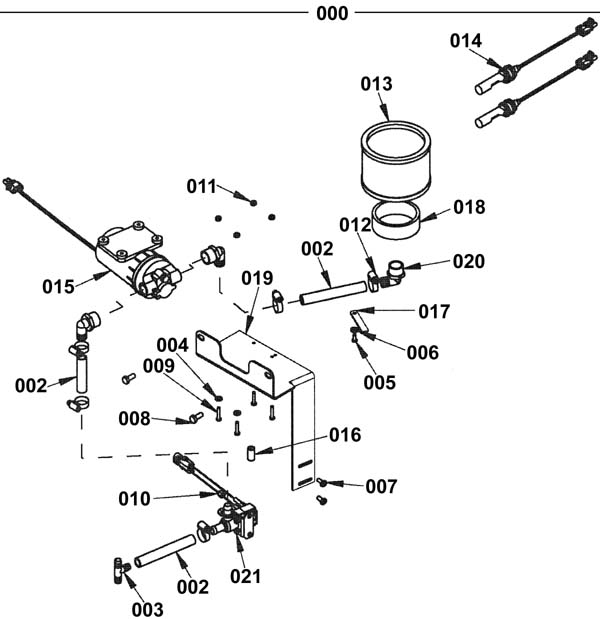

Extended Scrub Kit - 172-0787
RefNbr Part Number Description Req Notes
000 N/A Not available 1 (Extended scrub kit)
002 272-2298 Nylon braid hose 1
003 172-4114 Tee barb 4
004 999-0006 Washer 3/16 flat zinc plated 1
005 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
006 999-0006 Washer 3/16 flat zinc plated 2
007 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
008 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 4
009 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 2
010 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
011 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 5
012 997-2000 Hose clamp 1
013 272-2299 Filter 2
014 272-2104 Float switch 1
015 272-2300 Pump 36vdc 1
016 N/A Not available 1 (Extended scrub orifice)
017 N/A Not available 1 Hose bracket
018 272-2303 PVC tubing 1
019 272-2304 Extended scrub bracket 1
020 172-8083 Elbow 3
021 272-2586 36V solenoid valve 1

Wiring Diagram - 172-0788
RefNbr Part Number Description Req Notes
A1 272-2317 Control panel assembly (OBSOLETE)

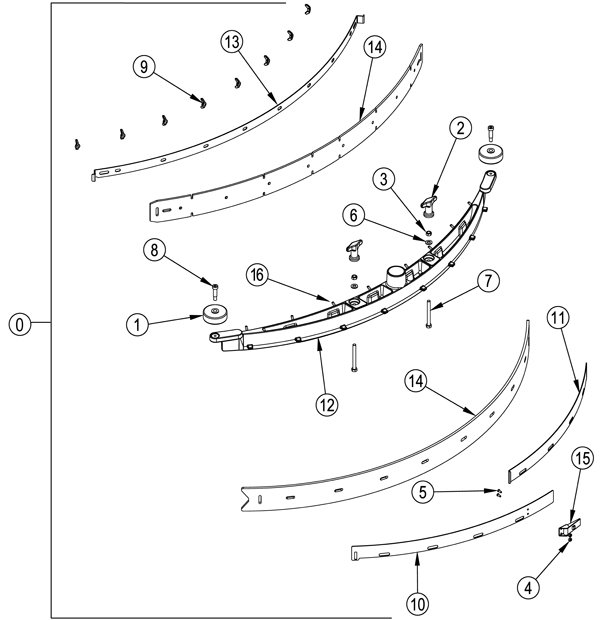

Squeegee Assembly - 172-0789
RefNbr Part Number Description Req Notes
0a 272-2239 32 inch squeegee assembly 1 (disc models) (includes 1-10a, 11a, 12a, 13a, 14a, and 15)
0b 272-2350 26 inch squeegee assembly 1 (cylindrical models) (includes 1-9, 10b, 11b, 12b, 13b , 14b, and 15)
1a 172-0045 Guide wheel 2 (OEM)
1b 991-3051 Guide wheel 2 (NON-OEM)
2 172-4099 Nut 5/16-18 thumb 2
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
4 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
5 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
6 999-9004 Washer 5/16 SAE flat stainless steel 2
7 272-2754 Screw 5/16-18 x 3 hex head full thread 2
8 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 2
9 999-0603 Nut 1/4-20 wing stainless steel 8
10a 272-2241 Left rear strap 1 (disc models)
10b 172-3458 Left rear strap 1 (cylindrical models)
11a 272-2247 Right rear strap 1 (disc models)
11b 172-3461 Right rear strap 1 (cylindrical models)
12a 272-2242 Squeegee weldment 1 (disc models)
12b 172-3473 Squeegee weldment 1 (cylindrical models)
13a 272-2243 Front strap 1 (disc models)
13b 172-3464 Front strap 1 (cylindrical models)
14a 272-2244 Squeegee blade 32 inch gum rubber kit 1 (disc models)
14b 272-2245 Squeegee blade 35 inch linatex kit 1 (disc models) (optional)
14c 272-2246 Squeegee blade 32 inch neoprene kit 1 (disc models) (optional)
14d 272-2354 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) 1 (cylindrical models)
14e 272-2355 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) 1 (cylindrical models) (optional)
14f 172-3482 Squeegee blade kit 26 and 28 inch neoprene 1 (cylindrical models) (optional)
15 172-0094 Latch 1
16 999-1926 Screw 1/4-20 x 1 socket set cup point stainless steel 8
N/S 272-8036 Squeegee blade front gum rubber 1
N/S 272-8037 Squeegee blade rear gum rubber 1

28 Inch Disk Deck Kit - 172-0790
RefNbr Part Number Description Req Notes
001a N/A Not available 1 (28 inch disk deck assembly)
001b N/A Not available 1 (32 inch disk deck kit)
01 272-2127 24 inch rubber skirt 1
02 272-2128 28 inch extruded bumber with metal band 1
03 SEE NOTE Please See Brushes Page Brushes

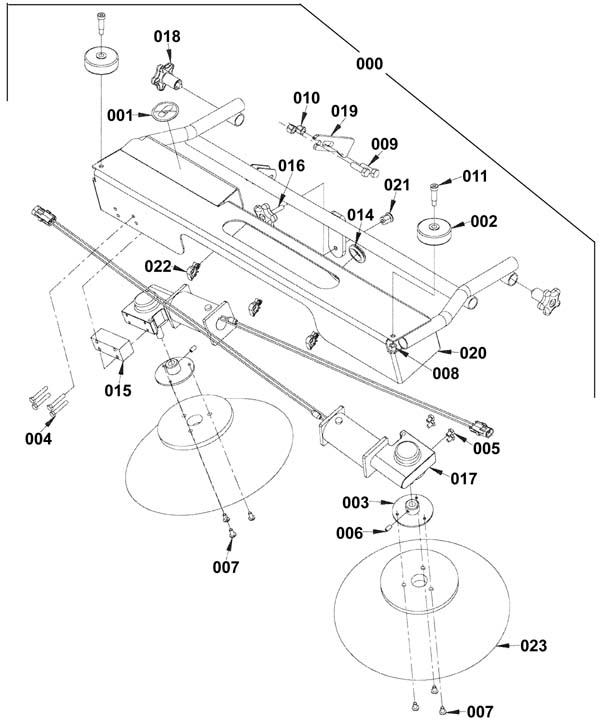

Side Broom Assembly - 172-0794
RefNbr Part Number Description Req Notes
000a N/A Not available 1 (28 inch side broom kit)
000b N/A Not available 1 (32 inch side broom kit)
001 172-3428 No step decal 1
002a 172-0045 Guide wheel 2
002b 991-3051 Guide wheel 2
003 172-9745 Brush holder 2
004 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 4
005 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 4
006 181-0003 Screw 1/4-20 x 1/2 socket set lock 2
007 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 6
008 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
009 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 2
010 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
011 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 2
014 181-0202 Grommet 1
015 272-2259 Spacer 1
016 272-2260 Knob 5/16 1
017 272-2261 24V motor and gear unit (OBSOLETE) 2
018 272-2262 Knob with threaded bushing 2
019 272-2263 Transport bracket 1
020a 272-2264 Side broom weldment 1 (28 inch)
020b 272-2265 Side broom weldment 1 (32 inch)
021 272-2266 Swivel pad 1
022 172-1793 Clip 3
023 172-7053 Side broom 2 (13 inch)
N/S 272-2258 Yellow decal (OBSOLETE) 2
N/S 272-2256 Red decal (OBSOLETE) 2

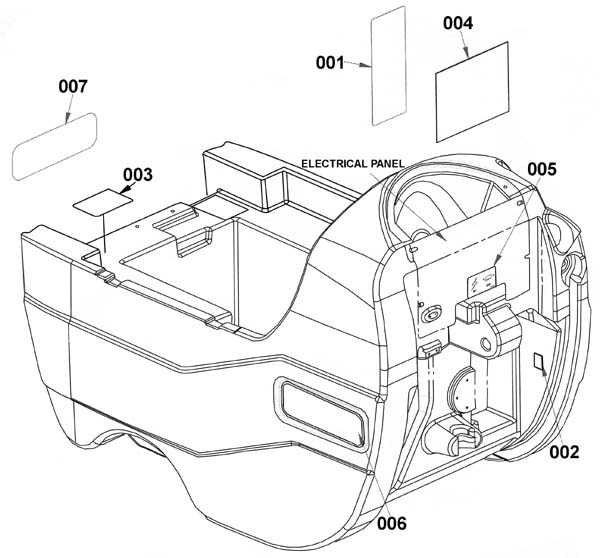

Decal Diagram - 172-0795
RefNbr Part Number Description Req Notes
001 172-5000 Caution decal 1
002 172-9198 Charger decal 1
003 272-2283 Battery wiring decal 1
004 N/A Not available 1 (Ladder diagram decal)
005 272-2285 Circuit breaker decal 1
006a 272-2286 Warrior AXP decal 2
006b 272-2287 Warrior ST decal 2
006c 272-2288 BA 755 decal (OBSOLETE) 2
006d 272-2289 BA 855 decal (OBSOLETE) 2
006e 272-2290 BA 755 X decal 2
006f 272-2291 BA 855 X decal 2
007a 272-2292 Advance decal 1
007b 272-2293 Nilfisk decal 1

Optional Kits and Accessories - 172-9847
RefNbr Part Number Description Req Notes
01 N/A Not available 1 (28 inch cylindrical deck assembly)
02 N/A Not available (28 inch disk deck assembly)
03 272-2244 Squeegee blade 32 inch gum rubber kit (OEM) (for disk squeegee assembly)
04 272-2245 Squeegee blade 35 inch linatex kit For Disk Squeegee blade kit
05 272-2246 Squeegee blade 32 inch neoprene kit For Disk Squeegee blade kit
06 172-3477 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene (For Narrow Isle option) (OEM)
07 172-3478 Squeegee blade kit 26 and 28 inch linatex (pkg of 2) For Narrow Isle Option
08 172-3479 Squeegee blade kit 24 inch neoprene For Narrow Isle Option
09 172-8852 1307 User optional programmer
10 172-8853 Programmer cable
11 272-2366 36V 36amp battery charger (OBSOLETE)
12 N/A Not available (Extended scrub kit)
13 272-7432 Vac wand kit
14 N/A Not available (Electromagnetic brake kit)
15 272-2309 Sound reduction kit
16 272-1378 Blade retainer
17 272-2268 Foam filled wheel (black) (pkg of 2 wheels and 2 brackets) 1
18 272-2268 Foam filled wheel (black) (pkg of 2 wheels and 2 brackets) 1
19 272-2269 Polyurethane-traction wheel
20 994-0026 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene (For Narrow Isle option) (NON-OEM)
21 994-0056 Squeegee blade kit 42 1/4 inch gum rubber (NON-OEM) (for disk squeegee assembly)

- Batteries, Brushes and Chargers - 172-9848
RefNbr Part Number Description Req Notes
1 162-0003 6V 225Ah wet battery (SNSR) 6
2 162-0005 6V 305Ah wet battery (SNSR) 6
3 162-0043 6V 224Ah AGM battery (Group GC2) 6
4 162-0046 6V 335Ah AGM battery (Group J305) 6
5 272-2365 36V 20amp onboard battery charger (OBSOLETE) 1
6 272-2366 36V 36amp battery charger (OBSOLETE) 1
7a 162-5063 36V 20amp battery charger with SB175 large gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
7b 162-5063 36V 20amp battery charger with SB175 large gray plug 1
10 996-0169 13 inch heavy grit stripping brush - 80 grit 2
11 996-0120 13 inch medium grit scrubbing brush - 180 grit 2
12 996-0096 13 inch lite grit scrubbing brush - 500 grit 2
13 996-0282 13 inch polypropelene scrubbing brush 2
14 996-0061 13 inch Pad driver 2
15 996-0341 Drive lugs - plastic (pkg of 3) 2

- Pads - 255-1400
RefNbr Part Number Description Req Notes
01 255-1440 14 inch aqua plus burnishing pad (pkg of 5)
02 255-1435 14 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1464 14 inch Blue ace pad (pkg of 5)
04 255-1442 14 inch Blue Jay burnishing pad (pkg of 5)
05 255-1412 14 inch Cure white pad (pkg of 5)
06 255-1477 14 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1438 14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1421 14 inch gorilla lite burnishing pad (pkg of 5)
09 255-1450 14 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1465 14 inch Heat concrete bonding pad (pkg of 5)
11 255-1430 14 inch jaguar burnishing pad (pkg of 5)
12 255-1487 14 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1490 14 inch premium black stripping pad (pkg of 5)
14 255-1470 14 inch premium blue cleaning pad (pkg of 5)
15 255-1492 14 inch premium brown stripping pad (pkg of 5)
16 255-1480 14 inch premium green scrubbing pad (pkg of 5)
17 255-1460 14 inch premium red scrubbing pad (pkg of 5)
18 255-1452 14 inch premium tan polishing pad (pkg of 5)
19 255-1420 14 inch premium white polishing pad (pkg of 5)
20 255-1411 14 inch superspeed rubberized pad (pkg of 5)
21 255-1495 14 inch razorback stripping pad (pkg of 5)
22 255-1447 14 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1455 14 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1423 14 inch sand screen driver pad (pkg of 2)
25 255-0120 14 inch Professional sand screen 100 grit (pkg of 10)
26 255-0121 14 inch Professional sand screen 120 grit (pkg of 10)
27 255-0122 14 inch Professional sand screen 180 grit (pkg of 10)
28 255-0119 14 inch Professional sand screen 60 grit (pkg of 10)
29 255-0205 14 inch Superscreen sand screen 100 grit (pkg of 10)
30 255-0206 14 inch Superscreen sand screen 120 grit (pkg of 10)
31 255-0207 14 inch Superscreen sand screen 180 grit (pkg of 10)
32 255-0204 14 inch Superscreen sand screen 60 grit (pkg of 10)
33 255-1424 14 x 20 inch Tiger carpet bonnet (pkg of 2)
34 255-9549 14 inch Diamond by Gorilla 11000 Grit (pkg of 2)
35 255-9546 14 inch Diamond by Gorilla 1500 Grit (pkg of 2)
36 255-9543 14 inch Diamond by Gorilla 200 Grit (pkg of 2)
37 255-9547 14 inch Diamond by Gorilla 3000 Grit (pkg of 2)
38 255-9544 14 inch Diamond by Gorilla 400 Grit (pkg of 2)
39 255-9545 14 inch Diamond by Gorilla 800 Grit (pkg of 2)
40 255-9548 14 inch Diamond by Gorilla 8000 Grit (pkg of 2)
41 255-9639 14 inch Diamond starter pack (1 of each grit)
42 255-1482 14 inch Turbostrip segmented rotary pad (pkg of 4)
43 255-1415 14 inch Duala clean and shine pad - low speed (pkg of 5)
44 255-1416 14 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

Squeegee Assembly - Narrow Isle Option - 272-0550
RefNbr Part Number Description Req Notes
000 172-3453 Squeegee assembly 1 (includes 001 - 015)
001a 172-0045 Guide wheel 2 (OEM)
001b 991-3051 Guide wheel 2 (NON-OEM)
002 172-4099 Nut 5/16-18 thumb 2
003 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
004 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
005 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
006 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
007 999-1132 Bolt 5/16-18 x 3 hex head stainless steel 2
008 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 2
009 999-0603 Nut 1/4-20 wing stainless steel 8
010 172-3457 Left rear strap 1
011 172-3460 Right rear strap 1
012 172-3472 Squeegee weldment 1
013 172-3463 Front strap 1
014a 172-3477 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene 1 (includes both front and rear blade) (OEM)
014b 994-0026 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene 1 (includes both front and rear blade) (NON-OEM)
014c 172-3478 Squeegee blade kit 26 and 28 inch linatex (pkg of 2) 1 (includes both front and rear blade)
014d 172-3479 Squeegee blade kit 24 inch neoprene 1 (includes both front and rear blade)
015 172-0094 Latch 1

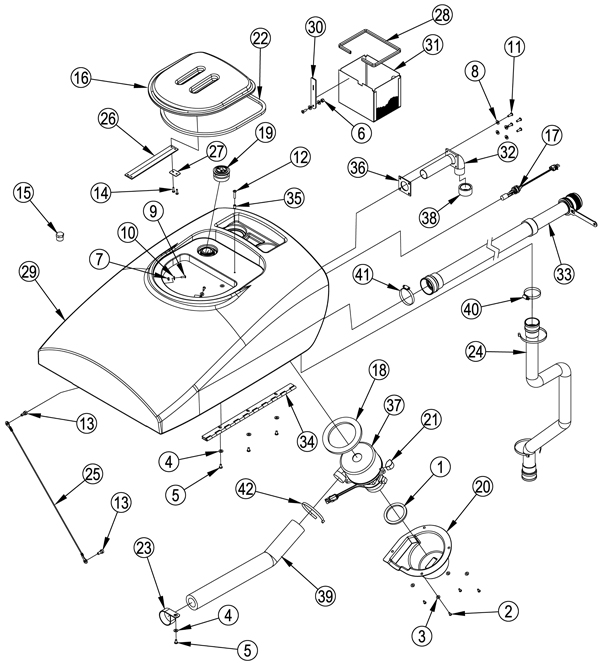

Recovery Tank Assembly - 272-6023
RefNbr Part Number Description Req Notes
1a 172-8889 Vacuum duct gasket 1 (OEM)
1b 991-3059 Vacuum duct gasket 1 (NON-OEM)
2 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 4
3 999-0998 Washer #10 flat stainless steel 4
4 999-0123 Washer 1/4 SAE flat zinc plated 4
5 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 4
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2 (for model 56315902 with the recovery tank strainer)
7 999-0442 Nut 10-24 nylon insert lock stainless steel 2
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 7 (for model 56315902 with the recovery tank strainer)
9 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
10 999-0998 Washer #10 flat stainless steel 2
11 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 5 (for model 56315902 with the recovery tank strainer)
12 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 1 (for model 56315902 with the recovery tank strainer)
13 999-0646 Screw 5/16-18 x 3/8 socket head shoulder 2
14 272-2761 Screw 10-14 x 3/5 pan phillips stainless steel 2
15 272-2101 Plug 1 (not used after March 2008)
16 272-2103 Recovery tank lid 1
17 272-2104 Float switch 1
18a 164-0881 Vacuum motor gasket 1
18b 991-3029 Vacuum motor gasket 1 (NON-OEM)
19 272-2106 Inlet screen 1
20 272-2107 Vacuum motor shroud 1
21 272-2108 Vibration mount 3
22 272-2109 Recovery tank lid gasket 1
23 272-2110 P clamp 1
24 272-2111 Vacuum hose assembly 1
25 272-2112 Cable assembly 1
26 272-2114 Retaining strap 2
27 272-2100 Plate 1
28 272-8166 Edge trim 1 (for model 56315902 with the recovery tank strainer)
29a 272-8167 Recovery tank 1 (standard models)
29b 272-8168 Recovery tank (OBSOLETE) 1 (for model 56315902 with the recovery tank strainer)
30 272-8169 linatex strap 1 (for model 56315902 with the recovery tank strainer)
31 272-8170 Strainer basket 1 (for model 56315902 with the recovery tank strainer)
32 272-8171 Hose weldment adaptor 1 (for model 56315902 with the recovery tank strainer)
33a 272-2307 Drain hose 1
33b 272-8537 Drain hose cap assembly 1
33c 272-8538 Drain hose with clamp 1
33d 272-9273 Drain hose extension 1
34 272-2305 Hinge 1
35 172-0400 Bushing 1 (for model 56315902 with the recovery tank strainer)
36 272-8457 Gasket 1 (for model 56315902 with the recovery tank strainer)
37a 172-8007 36V 3 stage vacuum motor assembly 1
37b 172-8488 Carbon brush set (pkg of 2) 1
37c 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug 1
38 272-0444 Adapter 1 (for model 56315902 with the recovery tank strainer)
39a 272-2308 Acoustic hose 1
39b 272-2309 Sound reduction kit 1
40 272-9976 #32 hose clamp SAE 1
41 272-9977 #36 hose clamp SAE 1
42 997-2102 Cable tie 3

- Batteries, Brushes, and Chargers - 272-9023
RefNbr Part Number Description Req Notes
0.9835 996-1723 15 inch medium grit scrubbing brush - 180 grit 2
0.9835 996-1724 15 inch lite grit scrubbing brush - 500 grit 2
0.9835 996-1726 Pad driver 2
0.9835 996-1714 15 inch heavy grit stripping brush - 80 grit 2
0.9835 996-1725 15 inch polypropelene scrubbing brush 2
0.9835 996-0338 Clutch plate 2

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
