Parts List Complete for NILFISK Advenger 2600C


Steering Column Assembly - 172-0717
RefNbr Part Number Description Req Notes
001 999-0024 Washer 5/16 flat stainless steel 2
002 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel 2
003 999-0120 Washer 3/8 SAE flat 4
004 172-2674 Knob 1
005 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 2
006 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
007 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling 2
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
009 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
010 272-1454 Screw 1/4-20 X 3/8 socket set lock 2
011 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 2
012 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 4
013 172-9387 Woodruff key 4
014 172-0392 Retaining ring 2
015 999-1363 Washer 7/8 flat stainless steel 1
016 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
017 999-0469 Nut M6-1 nylon insert lock zinc plated 1
018 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 8
019 999-0114 Washer 1/2 SAE flat 1
020 172-9056 Extension spring 1
021 172-8919 Flanged bearing 2
022 172-4008 Bushing 2
023 172-0115 Shaft collar 2
025 172-9068 Roller chain 1
026 172-9071 Solution control cable 1
027 172-9072 Upper steering shaft 1
028 172-9074 Universal joint 1
029 172-8093 Sprocket 1
030 172-9075 Steering wheel 1
031 172-9078 Steering wheel adapter 1
032 172-9076 Cup 1
033 172-9077 Cap 1
034 999-9116 Screw M6-1 x 12mm hex head stainless steel 1
035a 272-1229 Lower column 1 (before SN 1797187)
035b 272-1229 Lower column 1 (after SN 1797186)
036 172-3487 Upper column 1
037 172-3488 Locking rod 1
038 172-3489 Bearing nyliner 3 (qty of 1 after SN 1797186)
039 172-3490 Lower steering shaft 1
040 172-3491 Lower column shroud 1
041 172-3492 Upper column shroud 1
042 172-1803 Plug 1
043 172-9388 Flanged bearing 2
044 272-9484 Upper column 1 (SN after 1942863)
045 472-8232 STEERING UPGRADE KIT 1
046 272-9479 Extension spring 1 (SN after 1942863)
047 272-9480 Steering column ratchet 1 (SN after 1942863)
048 999-0830 Screw 1/4-20 x 1 hex head plain finish 1 (SN after 1942863)
049 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
050 272-9727 Screw 1/4-20 x 1/2 hex head lock 2 (SN after 1942863)
051 999-0971 Nut 1/4-20 jam stainless steel 2 (SN after 1942863)
052 172-0294 Retaining ring 1 (SN after 1942863)
053 272-9481 Flanged bearing 2 (SN after 1942863)
054 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 2 (SN after 1942863)
055 272-9482 Rod 1 (SN after 1942863)
056 272-9483 Steering weldment 1 (SN after 1942863)
N/S 172-9123 Logo decal (OBSOLETE) 1

Squeegee System - 172-0718
RefNbr Part Number Description Req Notes
001 999-0340 Nut 5/16-24 nylon insert lock zinc plated 2
002 272-1574 Spring pin 3/16 x 1 inch 1
003 999-0340 Nut 5/16-24 nylon insert lock zinc plated 6
004 172-4033 3/8 inch retaining ring 2
005 999-1163 Nut 5/16-24 wing stainless steel 1
006 172-9084 Connecting rod 1
007 172-2365 Pin 1
008 172-9050 Wheel 1
009 172-9093 Roller 1
010 172-9090 Extension spring 2
011 172-9092 Spacer 4
012 172-9091 Squeegee adjustment knob 1
013 172-9095 Connecting rod 2
014 997-2518 Hitch pin 2
015 172-3483 Cotter pin 1
016 172-3484 Clevis pin 4
017 172-3485 Squeegee mount 1
018a 172-3452 Squeegee assembly (OBSOLETE) 1 (Advenger 2410, Advenger 2610, BR 600s and BR 650S) (before SN 1819567)
018b 172-3453 Squeegee assembly 1 (Advenger 2410, Advenger 2610, BR 600s and BR 650S) (after SN 1819568)
018c 172-3453 Squeegee assembly 1 (Advenger 2810, Advenger 3210, BR 700s and BR 800s) (before SN 1819567)
018d 172-3454 Squeegee assembly 1 (Advenger 2810, Advenger 3210, BR 700s and BR 800s) (after SN 1819568)
019 172-2620 Rod end 1
020a 272-1421 36V motor actuator 1 (machines built before 8.2003 and shipped after 3.2004)
020b 272-8001 36V control and actuator update kit 1 (machines built between 8.2003 and 3.2004)
021 172-9096 Right side rod end 2
022 172-9094 Left side rod end 2
023 172-9088 Cable assembly 1
024 172-2679 Rod end 1

Squeegee Assembly - 172-0719
RefNbr Part Number Description Req Notes
000a 172-3452 Squeegee assembly (OBSOLETE) 1 (24 inch, BR 600S) (includes 001-015)
000b 172-3453 Squeegee assembly 1 (26 and 28 inch, BR 650S and BR 700S) (includes 001-015)
000c 172-3453 Squeegee assembly 1 (32 inch and BR 800S) (includes 001-015)
001 272-2754 Screw 5/16-18 x 3 hex head full thread 2
002 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
003 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
004 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
005 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
006 999-0603 Nut 1/4-20 wing stainless steel 4
007a 172-0045 Guide wheel 2 (OEM)
007b 991-3051 Guide wheel 2 (NON-OEM)
008a 172-4099 Nut 5/16-18 thumb 2 (OEM)
008b 991-3056 Nut 5/16-18 thumb 2 (NON-OEM)
009 172-0094 Latch 1
010 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder 2
011a 172-3456 Left rear strap 1 (24 inch and BR 600S)
011b 172-3457 Left rear strap 1 (26 and 28 inch, BR 650S and BR 700S)
011c 172-3458 Left rear strap 1 (32 inch and BR 800S)
012a 172-3459 Right rear strap 1 (24 inch and BR 600S)
012b 172-3460 Right rear strap 1 (26 and 28 inch, BR 650S and BR 700S)
012c 172-3461 Right rear strap 1 (32 inch and BR 800S)
013a 172-3462 Front strap 1 (24 inch and BR 600S)
013b 172-3463 Front strap 1 (26 and 28 inch, BR 650S and BR 700S)
013c 172-3464 Front strap 1 (32 inch and BR 800S)
014a 172-3474 Squeegee blade kit 24 inch gum rubber (pkg of 2) 1 (24 inch and BR 600S)
014b 172-3477 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene 1 (26 and 28 inch, BR 650S and BR 700S) (OEM)
014c 994-0026 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene 1 (26 and 28 inch, BR 650S and BR 700S) (NON-OEM)
014d 172-3480 Squeegee blade kit 32 inch gum rubber (pkg of 2) 1 (32 inch and BR 800S)
014e 172-3475 Squeegee blade kit 24 inch gum rubber (pkg of 2) 1 (24 inch and BR 600S)
014f 172-3476 Squeegee blade kit neoprene 1 (24 inch and BR 600S)
014g 172-3478 Squeegee blade kit 26 and 28 inch linatex (pkg of 2) 1 (26 and 28 inch, BR 650S and BR 700S)
014h 172-3479 Squeegee blade kit 24 inch neoprene 1 (26 and 28 inch, BR 650S and BR 700S)
014i 172-3481 Squeegee blade kit 32 inch Linatex (red) (pkg of 2) 1 (32 inch and BR 800S)
014j 172-3482 Squeegee blade kit 26 and 28 inch neoprene 1 (32 inch and BR 800S)
014k 172-3470 Squeegee blade rear 1 (32 inch)
014l 172-3467 Front blade 1 (32 inch)
014m 991-7115 squeegee blade kit front and rear 1 (NON-OEM)
015a 172-3471 Squeegee weldment 1 (24 inch and BR 600S)
015b 172-3472 Squeegee weldment 1 (26 and 28 inch, BR 650S and BR 700S)
015c 172-3473 Squeegee weldment 1 (32 inch and BR 800S)
N/S 172-3465 Squeegee blade front 1 (52 inch front blade for 24 inch model)
N/S 172-3468 Squeegee blade rear 1 (52 inch rear blade for 24 inch model)

Solution Assembly - 172-0720
RefNbr Part Number Description Req Notes
001 999-0024 Washer 5/16 flat stainless steel 4
002 999-0006 Washer 3/16 flat zinc plated 3
003 999-0256 Screw 10-32 x 1/2 truss head slotted zinc plated 4
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 4
005 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 3
006 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 3
007 999-0123 Washer 1/4 SAE flat zinc plated 11
008 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel 1
009 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
010 999-1376 Screw 6-32 x 1/2 hex head stainless steel 1
011 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 5
012 999-1106 Screw 10-24 x 2 pan head phillips zinc plated 4
013 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated 2
014 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated 1
015 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 1
016 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
017 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 5
018 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel 3
019 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel 4
020 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 3
021 172-0392 Retaining ring 3
022 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
023 172-0553 Washer 17/64 x 1/16 flat 2
024 172-2067 Washer 11/32 x 1/8 flat 4
025 999-0998 Washer #10 flat stainless steel 4
026 997-2002 Hose clamp #6 4
027 172-0254 Nylon pipe cap 1
028 172-9023 Cable clamp 1
029 172-0197 Rubber washer 1
030 172-0223 Battery cable boot 2
031a 172-2103 Elbow barb 1 (before SN 1757999)
031b 272-1448 90 degree elbow barb 1 (after SN 1758000)
032a 172-8806 Hinge (OBSOLETE) 1
032b 272-2589 Hinge 1
033a 172-9033 Adapter barb 1/2 x 3/4 1 (before SN 1757999)
033b 170-0264 Hose barb 1 (after SN 1758000)
034 172-3429 Bushing 1
035 172-8870 P clamp 1
036 997-2101 6 inch cable tie 2
037 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated 1
038 181-0421 Spacer 2
039 181-0176 Phenolic spacer 1
040 172-2105 Manual solution valve 1
041 172-2327 Wire reinforced clear hose (OBSOLETE) 7 in
042a 172-3430 Seat kit 1
042b 172-8800 Seat switch 1
043 272-2590 Solution tank (OBSOLETE) 1
044 172-3432 Solution tank cover (OBSOLETE) 1
045 172-3433 Gasket 1
046a 172-3434 Control panel assembly 1
046b 272-9259 Control panel assembly 1
046c 272-8156 Panel assembly 1
046d 272-1316 Key switch assembly 1
046e 172-8098 Replacement key 1
047a 172-3435 Tee barb 1 (before SN 1757999)
047b 272-1451 Tee barb 1 (after SN 1758000)
048a 172-3446 Flow control kit 1 (updates machines before SN 1797186)
048b 272-1459 Valve bracket 1 (after SN 1797186)
049 172-3437 Cable clamp 5
050 272-0462 Cable clamp 4
051 172-3438 Actuator cover 1
052 172-3439 Disconnect bar 1
053 172-3344 Tank mount bracket 1
054a 172-3440 Seat mount weldment (OBSOLETE) 1 (before SN 1726172)
054b 272-2592 Seat mount weldment (OBSOLETE) 1 (after SN 1726172)
055 172-3441 Prop rod 1
057 172-3443 Charger connector assembly 1 (plug to batteries)
058 172-3444 Hinge bracket 1
059 172-3445 Quick disconnect female coupling 1
060a 172-3446 Flow control kit 1 (before SN 1797186)
060b 272-1460 Water valve bracket 1 (after SN 1797186)
061 172-3447 Battery box panel 1
062a 172-3448 Strainer 1 (before SN 1757999)
062b 272-1461 Strainer 1 (after SN 1758000)
063 272-1038 Hose 1
064 172-2155 Spacer 1
065 272-2586 36V solenoid valve 1
066 172-1770 Connector assembly 1
067a 172-2327 Wire reinforced clear hose (OBSOLETE) 1 (before SN 1757999)
067b 272-1462 Clear hose 3/4 inches 1 (after SN 1758000)
068 172-2071 P clamp 1
069a 172-3449 Battery connector kit 1 (kit includes 070-073) (For Advance models Battery connector kit (172-3449) is included with machine. For Nilifisk models battery cables are not included, but (272-1470) can be ordered separately if battery connectors are desired)
070 272-1144 Cable assembly 4
071 997-2101 6 inch cable tie 10
072 172-0223 Battery cable boot 10
073 172-3450 Battery cable assembly- ring type 4x15 1/2 1
074 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2 (after SN 1758000)
075 272-1469 Solution valve 1 (after SN 1758000)
076a 997-2004 Hose clamp 4 (after SN 1758000)
076b 997-2002 Hose clamp #6 4 (before SN 1757999)
077a 172-1062 7 inch spiral hose 1 (after SN 1758000)
077b 172-2327 Wire reinforced clear hose (OBSOLETE) 7 in (before SN 1757999)
N/S 998-0010 Battery jumper cable - ring type (red) 1
N/S 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring 1 (NON-OEM)
N/S 172-3451 Battery spacer 1 (for Advance models only)
N/S 272-2593 Main harness (OBSOLETE) 1
N/S 272-8194 Pump 1
N/S 272-2248 Battery watering kit 1

Skirt Assembly - Cylindrical - 172-0723
RefNbr Part Number Description Req Notes
000a 172-3371 Left skirt assembly 1 (Includes 001-015)
000b 172-3372 Right skirt assembly 1 (Includes 001-015)
001 999-0024 Washer 5/16 flat stainless steel 2
002 999-0783 Screw M8-1.25 x 16mm hex head 1
003 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
004 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
005 999-0497 Nut M6-1 nylon insert lock stainless steel 5
006 999-1383 Screw M6-1 x 16mm hex head stainless steel 6
007 272-1599 Bolt M6 x 15mm hex head nylok 1
008 172-2742 Bushing 2
009 172-4008 Bushing 2
010 172-8874 Gum rubber skirt 1
011 172-2344 Extension spring 1
012 172-3418 Mount arm 1
013 272-6089 Skirt retainer 1
014a 272-6090 Left hand skirt bracket weldment 1
014b 272-6091 Right hand skirt bracket weldment 1
015a 272-6092 Left hand mount bracket 1
015b 272-6093 Right hand mount bracket 1
N/S 172-3417 linatex skirt 1 Optional
N/S 172-8875 Oil resistant skirt 1 Optional

Scrub Assembly - Cylindrical - 172-0725
RefNbr Part Number Description Req Notes
1 272-5720 Screw 1/4-20 x 1/4 socket lock 2
2 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 2
3 999-0114 Washer 1/2 SAE flat 2
4 999-0120 Washer 3/8 SAE flat 4
5 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 4
6 272-1595 Screw 1/2-13 X 4-1/2 hex head 2
7 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
8 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 4
9 172-3369 Quick disconnect male coupling 1 (before TSBUS2005-888)
10 272-1596 Bolt 1/4-20 x 3/4 hex head lock 6
11 172-2001 Hair cotter pin 4
12 997-2004 Hose clamp 2
13 999-0469 Nut M6-1 nylon insert lock zinc plated 1
14 272-4936 Nut 2
15 999-0497 Nut M6-1 nylon insert lock stainless steel 8
16 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
17 272-1624 Bolt M10-1.5 x 40mm hex 2
18 999-1329 Screw M6-1 x 100mm hex head 1
19 172-3360 Ring pin 1/2 x 1-1/4 2
20 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 2
21 172-0345 Terminal stud 2
22 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
23 999-0430 Nut 5/16-18 hex jam plain finish 4
24 172-8967 Collar 2
25 172-4114 Tee barb 1
26a 472-6988 MANIFOLD PVC 24 ADVENGER (OBSOLETE) 2 (BR 600S)
26b 472-6987 MANIFOLD PVC 26 ADVENGER 2 (BR 650S)
26c 272-5415 28 inch manifold 2 (BR 700S)
26d 272-5416 32 inch manifold 2 (BR 800S)
27 172-9013 12 inch wire rope 2
28 172-8921 Actuator 1
29 172-2503 Tank leveler 2
30 172-8926 Blade 2
31 172-9300 36V motor 2
32 172-8927 Belt idler 2
33 172-8928 Poly-v sheave 1
34 172-8929 Right belt guard 1
35 172-8930 Left belt guard 1
36 172-8931 Poly V belt 1
37 172-8932 Poly-V belt 1
38 172-8941 Compression spring 1
39 172-8944 Bushing 1
40 172-8952 Spring housing 1
41 172-8953 Compression spring 1
42 172-8954 Nut retainer 1
43 172-8955 Nut retainer 1
44 172-0103 Electrical mount 2
45 172-8964 Terminal insulator 2
47 272-1562 Screw 1/4-20 x 3/5 pan head thread forming 8
48 N/A Not available 1 (Serial number plate)
49 172-2815 Main solution hose 1
50a 472-6990 HOUSING WELDMENT 24 (OBSOLETE) 1 (BR 600S)
50b N/A Not available 1 (BR 650S) (26 inch housing weldment)
50c 272-5417 28 inch housing weldment (OBSOLETE) 1 (BR 700S)
50d 272-6060 32 inch housing weldment 1 (BR 800S)
51a 172-3365 Hopper weldment 24inch (OBSOLETE) 1 (BR 600S)
51b 172-3366 Hopper weldment 26inch (OBSOLETE) 1 (BR 650S)
51c 272-3588 Hopper weldment 1 (BR 700S)
51d 272-6061 32 inch hopper weldment 1 (BR 800S)
53 172-3368 Cotterless hitch pin 1
55 172-0548 Washer 17/64 x 47/64 flat stainless steel 2
56 172-3371 Left skirt assembly 1
57 172-3372 Right skirt assembly 1
58 172-3373 Idler end assembly 2 (includes 61-65)
59 172-8933 Drive end assembly 2 (includes 66-73)
60 172-9040 Wheel 1
61 172-4656 Ball bearing 1
62 172-2150 Knob 1
63 272-2170 Idler bearing plate 1
64 172-1838 Hub 1
65 172-1837 Bearing washer 1
66 181-0003 Screw 1/4-20 x 1/2 socket set lock 2
67 172-8956 Square keyway 1
68 172-4656 Ball bearing 2
69 172-8957 Spacer 1
70 172-8959 Poly-v sheave 1
71 272-2169 Bearing plate 1
72 272-9347 Spindle 1
73 172-1837 Bearing washer 1
N/S 172-8922 Plastic drive nut 1
N/S 172-9301 Armature 1
N/S 172-1033 F.E. Bearing 1
N/S 172-9303 Brush cap assembly (OBSOLETE) 1
N/S 172-9304 Carbon brush (sold individually) 4
N/S 172-1816 Brush cover cap (OBSOLETE) 4
N/S 172-3367 Brush motor harness 1

Recovery Assembly - 172-0726
RefNbr Part Number Description Req Notes
1 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 8
2 999-0123 Washer 1/4 SAE flat zinc plated 7
3 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel 6
4 999-9006 Screw 5/16-18 x 3/4 pan head phillips stainless steel 1
5 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 5
6 172-3333 Cover pivot pin 1
7 172-0517 Float cage half (2 required for full float cage) 2
8 272-1233 Gasket 1
9 172-0192 Float ball 1
10 272-1159 Plastic clamp 1
11 272-0430 Vacuum duct gasket 1
12 272-9976 #32 hose clamp SAE 3
13 172-3169 Plastic clamp 1
14 172-3334 Recovery tank (OBSOLETE) 1
15 172-3335 Foam cylinder 2
16 272-0430 Vacuum duct gasket 1
17 172-3337 Top panel muffler 1
18 172-3338 Bottom panel muffler 1
19 272-6565 Gasket strip 1
20 272-8999 Exhaust cover 1
21 172-0126 Acoustical foam 1 (after SN see chart)
22 272-9000 Vacuum motor cover 1
23 272-9139 Recovery tank lid 1
24a 172-3344 Tank mount bracket 2
24b 272-6102 Tank mount bracket 1 (new style)
25 272-1252 Sound foam 1 (after SN see chart)
26 172-3346 Recovery tank lid gasket 1
27 172-3347 Filter screen 1
28 172-3348 Filter 1
29 172-3349 Separator plate 1
30 272-5303 Recovery tank lid and gasket 1
31 172-3351 Vibration mount 3
32a 172-3352 Drain hose 1
32b 272-8537 Drain hose cap assembly 1
32c 272-9273 Drain hose extension 1
33 172-3353 Vacuum muffler 1
35a 172-3355 Vacuum hose assembly (OBSOLETE) 1
35b 991-5152 Vacuum hose assembly 1 (NON-OEM)
36 272-1253 Vacuum hose 2 x 6 1 (after SN see chart)
37a 272-5681 Carbon brush (pkg of 2) 1
37b 172-1071 36V vacuum motor assembly 1
37c 272-5681 Carbon brush (pkg of 2) 1
37d 991-1237 36V 3 stage vacuum motor bypass dual ball tangential 1
38 172-3357 9 inch wire rope 1
39 272-9978 Screw 10-14 x 1/2 pan head phillips plastite 2
40 172-3358 Spring 1
41 181-0269 P clamp 1
42 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 4
43 272-1254 Sound foam 1 (after SN see chart)
44 997-2102 Cable tie 1 (after SN see chart)
45 999-1862 Washer #10 flat SAE stainless steel 9
N/S 172-3359 Vacuum harness 1

Front Wheel Assembly - 172-0727
RefNbr Part Number Description Req Notes
001 999-0005 Screw 5/16-18 x 7/8 socket head 1
002 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
003 272-1652 Bolt 3/8-16 x 5/6 lock 4
004 999-1379 Screw M8-1.25 x 70mm socket head stainless steel 4
005 999-1828 Screw M8-1.25 x 55mm socket head stainless steel 4
006 172-2067 Washer 11/32 x 1/8 flat 1
007 172-3315 Bearing cup 1
008 172-3316 Bearing cone 1
009 172-3317 Seal 1
010 172-0435 Top bearing 1
011 172-1384 Spring 1
012 172-0951 Nut 1-14 hex thin nylock UNF 1
013 991-5122 1/4 nylon tree push-in rivet 3
014 172-3319 Bearing block 1
015 172-3320 Steering plate 1
016 172-3321 Brake rod 1
017a 172-3494 Drive wheel motor assembly 1 (includes 017b-017i)
017b 172-3323 Brake lever weldment 1
017c 172-3324 Brake band 1
017d 172-8859 Brush cover kit 1 (contains 4 seal rings and 4 brush covers)
017e 172-8860 Sealing ring 1
017f 172-8861 Gearbox ball bearing 1
017g 172-8862 Brush side ball bearing 1
017h 172-8864 Carbon brush kit (includes 6 brushes and hardware) 1
017i 172-3326 Drive wheel with bolts 1
017j 272-1255 Brake bar (OBSOLETE) 1
018 172-3327 Splash guard plate 1
019 172-3328 Splash guard 1
020 172-3329 Spindle weldment 1
021 172-3330 P clamp 1
022 999-1556 Screw M4-.7 x 8mm pan head phillips zinc plated 1
023 999-0014 Screw 10-24 x 3/4 button head socket stainless steel 1
024 999-0960 Nut 10-24 hex stainless steel 1
025 999-0377 Washer 6 SAE flat plain finish 1
N/S 272-8000 Drive wheel harness kit 1

Electrical Panel Assembly - 172-0728
RefNbr Part Number Description Req Notes
1 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 2
2 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 6
3 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 7
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
5 172-0345 Terminal stud 3
6 999-0123 Washer 1/4 SAE flat zinc plated 6
7 172-2160 10amp circuit breaker 1
8 272-8184 36V 100amp contactor 1
9 172-8826 Gasket 1
10a 172-8836 150amp fuse 1
10b 991-3061 150amp fuse 1 (NON-OEM)
11 172-8839 Backup alarm 1
12 172-0231 Reset button boot 1
13 172-0232 Clear boot cap 1
14 172-0103 Electrical mount 1
15 172-3310 Electrical cover 3
16 172-3311 Controller 1
17 172-3312 Electrical panel (OBSOLETE) 1
18 272-2581 45amp circuit breaker 1
20 272-8183 36V 200amp contactor 1
21 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 1
22 272-5409 Harness guide weldment 1

Drive and Pedal Assembly - 172-0729
RefNbr Part Number Description Req Notes
1 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 1
2 999-0199 Nut 10-24 nylon insert lock zinc plated 1
3 999-0779 Screw M6-1 x 25mm hex head plain finish 1
4 999-0469 Nut M6-1 nylon insert lock zinc plated 6
5 272-5835 Screw M6-1 x 75mm hex head 4
6 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 2
7 172-0548 Washer 17/64 x 47/64 flat stainless steel 3
8 172-8815 Flanged bearing 1
9 272-9410 Bushing M6 1
10 272-9419 Spring spacer 1
11 172-8818 Throttle lever 1
12 172-8819 Weldment link 1
13 172-8821 Potentiometer housing 1
14 172-2039 5K potentiometer 1
15 172-3301 Torsion spring 1
16 N/A Not available 1 (Foot pedal Bracket) (available in 031)
17 N/A Not available 1 (Foot pedal) (available in 031)
18a N/A Not available 1 (Brake bracket) (before SN 2062592) (available in 022a)
18b 272-6049 Brake bracket 1 (after SN 2062591)
19 272-6048 Brake lock 1
20 172-3306 Pedal mat 1
21 172-3307 Pedal pad 1
22a 172-3308 Pedal weldment 1 (includes 018a and 022b) (before SN 2062592)
22b 272-6050 Pedal weldment 1 (after SN 2062591)
23 172-8825 Wire assembly 1
24 172-4120 Flanged bearing 2
25 999-0123 Washer 1/4 SAE flat zinc plated 6
26 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 7
27 272-9963 Bushing 1
28 999-1383 Screw M6-1 x 16mm hex head stainless steel 1
29 172-0392 Retaining ring 1
30 172-0369 Washer 17/64 x 3/4 x 23/64 flat 1
31 272-5405 Pedal assembly 1 (includes 1-17, 21, 23-27, 29 and 30)

Decal Assembly - 172-0730
RefNbr Part Number Description Req Notes
001 172-5000 Caution decal 1
002 172-5037 Logo decal 1
003 172-3289 Emergency decal 1
004 172-3290 Battery wiring decal 1
005 172-3291 Parking brake decal 1
006a N/A Not available 1 (Before TSBUS2004-814) (Solution flow decal)
006b 272-1256 Solution flow decal 1 (After TSBUS2004-814)
007 172-3293 Circuit breaker decal 1
008a 172-3294 Advenger decal 2
008b 272-1257 Nilfisk BR600S decal (OBSOLETE) 2
008c 172-3295 Nilfisk BR600S decal (OBSOLETE) 1
008d 272-1262 Nilifisk BR650S decal (OBSOLETE) 2
008e N/A Not available 2 (BR650S decal)
008f 272-1264 Nilifisk BR700S decal (OBSOLETE) 2
008g 172-3297 Nilfisk BR700S decal (OBSOLETE) 2
008h 272-1271 Nilfisk BR800S decal 2
008i 172-3298 Nilfisk BR800S decal (OBSOLETE) 2
009 172-9124 2 inch logo decal 1
010 172-3299 Ladder diagram decal (OBSOLETE) 1
011 172-3300 Patent decal 1
012a 272-1275 Smart solutions decal 1
012b 272-1278 ECO solutions decal 1
013 272-1279 Floor mat 1

Chassis Assembly - 172-0731
RefNbr Part Number Description Req Notes
1 999-0114 Washer 1/2 SAE flat 2
2 172-2001 Hair cotter pin 1
3 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread 2
4 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock 2
5 272-1606 Washer flat 2
6 172-0024 Bushing 2
7 172-8803 Edge trim 4
8 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
9 272-1843 Flanged bearing 2
10a 172-3283 Wheel and bearing assembly 2 (includes 010b)
10b 172-8810 Ball bearing 2
11 172-3285 Chassis weldment (OBSOLETE) 1
12 172-3286 Actuator pin 1
13 272-0404 Arm weldment linkage 1
14 999-1948 Nut 1/4-20 wing lock 1
15 172-3288 Squeegee stop bracket 1
16 272-5393 Screw 5/16-18 x 4 hex head full thread 1
17 172-2067 Washer 11/32 x 1/8 flat 1
18 999-0430 Nut 5/16-18 hex jam plain finish 1
19 997-2101 6 inch cable tie 6
N/S 997-2102 Cable tie 9

Warning Beacon Assembly - 172-0732
RefNbr Part Number Description Req Notes
000 172-3495 Warning beacon kit 1 (Includes 001-007 and Instruction sheet)
001 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 1
002 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc 2
003 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
004 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
005 N/A Not available 1 (Strobe)
006 172-3496 Plate weldment 1
007 172-3497 Tube weldment 1

Headlight Kit - 172-0733
RefNbr Part Number Description Req Notes
000 172-3498 Headlight kit 1 (includes 001-004 and instruction sheet)
001 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 4
002 172-9115 Terminal insulator 2
003 N/A Not available 1 (Headlight-LED)
004 172-9113 Headlight guard 1
N/S N/A Not available 1 (Instruction sheet)

Dual Vac Motor Kit - 172-0734
RefNbr Part Number Description Req Notes
000 172-3499 Dual vacuum motor kit 1 (includes 001-012 and instruction sheet)
001 272-1233 Gasket 1
002 272-0430 Vacuum duct gasket 2
003 997-2003 Hose clamp 1
004 172-3347 Filter screen 1
005 172-3348 Filter 1
006 172-3500 Separator plate 1
007 172-3351 Vibration mount 1
008 272-1481 Foam spacer 3
009 172-3502 Vacuum hose assembly 1
010a 272-9272 36V 3 stage vacuum motor 1 (Nilfisk-Advance)
010b 991-1237 36V 3 stage vacuum motor bypass dual ball tangential 1 (Ametek-Lamb)
011 172-8884 Vacuum hose 1
012 272-0436 Hose gasket 1

Scrub and Vac Tool Kit - 172-0735
RefNbr Part Number Description Req Notes
0 172-3503 Scrub-n-vac kit 1 (includes 1-32 and Instruction sheet)
1 181-1102 Solution and vacuum hose assembly 1
2 172-3504 Coupler 1
3 172-9099 Stepped bushing 3
4 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 3
5 172-1238 Bumper 2
6 999-0998 Washer #10 flat stainless steel 2
7 172-3505 Wand assembly 1
8 172-3506 Caddy 1
9 272-1159 Plastic clamp 6
10 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 12
11 172-3507 Pump assembly 1 (includes 012-030)
12 272-0405 Nipple 1/4 to 1/8 1
13 272-0406 Adapter bulk head 1/4 1
14 999-1862 Washer #10 flat SAE stainless steel 6
15 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 2
16 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 2 (See SN note)
17 999-0199 Nut 10-24 nylon insert lock zinc plated 4
18 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 2
19 181-0397 Grommet 2
20 172-0298 Barb fitting 1/4 x 3/8 1
21 172-1855 36V pump 1
22 172-8494 #6 hose clamp SAE 7
23 170-9289 Quick disconnect coupling 1
24 172-3509 Spiral hose 3/8 x 63 inches 1
25 272-0458 Transient voltage suppressor assembly 1
26 172-1475 3 prong circuit board 120V 1
27 272-2132 Barb tee 1
28 472-6989 PLATE PUMP 1
29 172-1868 PVC hose 1
30 272-7413 Cable tie 6
31 272-0215 Vinyl tube 1
32 172-2734 Elbow barb 27/64 x 3/8 2

Vacuum Wand Caddy Kit - 172-0736
RefNbr Part Number Description Req Notes
000 172-9097 Vacuum wand caddy kit 1 Kit inlcudes 001-010 and Instruction sheet
001 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 2
002 172-9099 Stepped bushing 2
003 172-9100 14 inch squeegee tool (for wand with button lock) (OBSOLETE) 1
004 172-6224 Coupler (OBSOELTE) 1
005 172-9101 Vacuum hose 1-1/2 x 15 feet long (OBSOLETE) 1
006 172-1238 Bumper 2
007 172-9103 2 piece wand 1
008 172-9104 Caddy weldment 1
009 172-6236 Coupler extension 1
010 172-3504 Coupler 1

Onboard Charger Kit - 172-0737
RefNbr Part Number Description Req Notes
000 272-0479 36V onboard charger kit 1 (includes 001 thru 008 and instruction sheet)
001 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 6
002 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
003 172-9099 Stepped bushing 3
004 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 6
005 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 3
006 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 2
007a 993-0438 36V 25 AMPS SMART CHARGER,50A GRAY PLUG 1
007b 162-5002 Diode assembly 1 diode for 36v Battery Charger 1
008 272-0482 Charger weldment 1

Side Broom Kit - 172-0738
RefNbr Part Number Description Req Notes
000 272-0465 Right side broom kit 1 Kit includes 001-029 and not shown parts listed
001 999-0024 Washer 5/16 flat stainless steel 6
002 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
003 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 4
004 999-0123 Washer 1/4 SAE flat zinc plated 4
005 181-0003 Screw 1/4-20 x 1/2 socket set lock 1
006 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
007 272-0467 Bolt 5/16-18 x 5 1/2 hex head 1
008 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
009 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
010 272-1538 Bolt 1/4-20 X 3/8 hex head lock 4
011 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
012 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
013 172-4427 Bolt M8-1-1/4 x 30mm hex 6
014 272-1615 Bolt 12mm-1 3/4 x 30mm hex head 1
015 999-0660 Nut 3/8-16 wing stainless steel 1
016 172-9497 Flanged bearing 3
017 272-0468 Bushing 2
018 172-2158 Nut plate 1
019 172-0217 Waterproof switch 1
020 172-0208 Knob (OBSOLETE) 1
021 272-0469 Brush holder weldment 1
022 272-0470 Sidebroom arm weldment 1
023 272-0471 Pivot weldment 1
024 272-0472 Bracket weldment 1
025 272-0473 Lift bracket 1
026 272-0474 Lift bar 1
027 272-0475 Lift rod 1
028 172-9740 Motor assembly 1 24v
029 172-3669 Polypropelene side broom 1
N/S 997-2101 6 inch cable tie 1
N/S 272-0476 Sidebroom harness 1

Wiring Diagram- Before SN -

RefNbr Part Number Description Req Notes

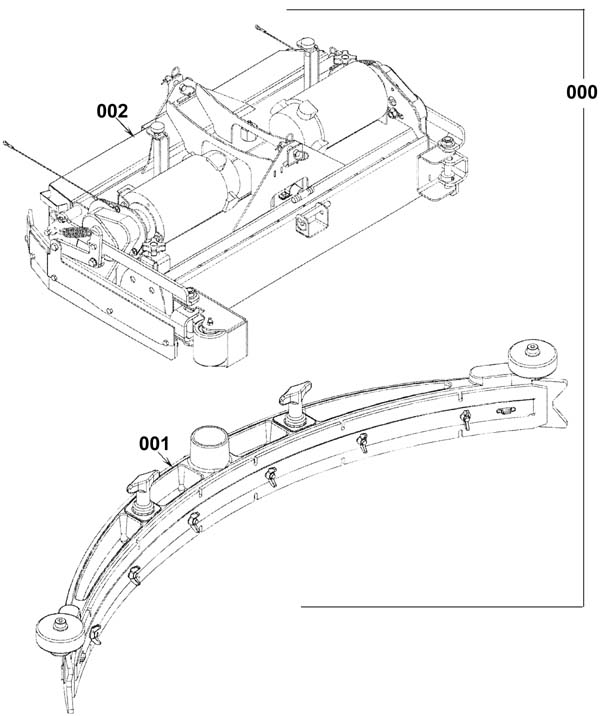

Cylindrical Deck Assembly - 172-0745
RefNbr Part Number Description Req Notes
000 272-1485 Deck kit 2600C (OBSOLETE)
001 172-3453 Squeegee assembly 1
002 272-1486 26 inch Cylindrical deck assembly (OBSOLETE) 1
01 172-8874 Gum rubber skirt Cylindrical Skirts
02 172-8875 Oil resistant skirt Cylindrical Skirts
03 172-3417 linatex skirt Cylindrical Skirts
04 172-3477 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene 26 and 28 inch Squeegee blade kits (OEM)
05 172-3478 Squeegee blade kit 26 and 28 inch linatex (pkg of 2) 26 and 28 inch Squeegee blade kits
06 172-3479 Squeegee blade kit 24 inch neoprene 26 and 28 inch Squeegee blade kits
07 272-1485 Deck kit 2600C (OBSOLETE) 1
08 272-1490 26 inch soft nylon brush (OBSOLETE) Compatible brushes
09 272-1491 26 inch hard nylon brush (OBSOLETE) Compatible brushes
10 272-1498 26 inch prolene brush Compatible brushes
11 272-1499 26 inch 180 grit brush (OBSOLETE) Compatible brushes
12 272-1500 26 inch 80 grit brush (OBSOELTE) Compatible brushes
13 272-1501 26 inch 46 grit brush (OBSOLETE) Compatible brushes
14 994-0026 Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene 26 and 28 inch squeegee blade kits (NON-OEM)
N/S N/A Not available 1 (Instruction sheet)

- Pads - 255-1300
RefNbr Part Number Description Req Notes
01 255-1340 13 inch aqua plus burnishing pad (pkg of 5)
02 255-1335 13 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1364 13 inch Blue ace pad (pkg of 5)
04 255-1342 13 inch Blue Jay burnishing pad (pkg of 5)
05 255-1312 13 inch Cure white pad (pkg of 5)
06 255-1377 13 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1338 13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1321 13 inch gorilla lite burnishing pad (pkg of 5)
09 255-1350 13 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1365 13 inch Heat concrete bonding pad (pkg of 5)
11 255-1330 13 inch jaguar burnishing pad (pkg of 5)
12 255-1387 13 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1390 13 inch premium black stripping pad (pkg of 5)
14 255-1370 13 inch premium blue cleaning pad (pkg of 5)
15 255-1392 13 inch premium brown stripping pad (pkg of 5)
16 255-1380 13 inch premium green scrubbing pad (pkg of 5)
17 255-1360 13 inch premium red scrubbing pad (pkg of 5)
18 255-1352 13 inch premium tan polishing pad (pkg of 5)
19 255-1320 13 inch premium white polishing pad (pkg of 5)
20 255-1311 13 inch superspeed rubberized pad (pkg of 5)
21 255-1395 13 inch razorback stripping pad (pkg of 5)
22 255-1347 13 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1355 13 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1323 13 inch sand screen driver pad (pkg of 2)
25 255-0198 13 inch Superscreen sand screen 100 grit (pkg of 10)
26 255-0199 13 inch Superscreen sand screen 120 grit (pkg of 10)
27 255-0200 13 inch Superscreen sand screen 150 grit (pkg of 10)
28 255-0201 13 inch Superscreen sand screen 180 grit (pkg of 10)
29 255-0202 13 inch Superscreen sand screen 220 grit (pkg of 10)
30 255-0203 13 inch Superscreen sand screen 400 grit (pkg of 10)
31 255-0196 13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE
32 255-0197 13 inch Superscreen sand screen 80 grit (pkg of 10)
33 255-0113 13 inch Professional sand screen 100 grit (pkg of 10)
34 255-0114 13 inch Professional sand screen 120 grit (pkg of 10)
35 255-0115 13 inch Professional sand screen 150 grit (pkg of 10)
36 255-0116 13 inch Professional sand screen 180 grit (pkg of 10)
37 255-0117 13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE)
38 255-0118 13 inch Professional sand screen 400 grit (pkg of 10)
39 255-0111 13 inch Professional sand screen 60 grit (pkg of 10)
40 255-0112 13 inch Professional sand screen 80 grit (pkg of 10)
41 255-1324 13 inch Tiger carpet bonnet (pkg of 2)
42 255-9542 13 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9539 13 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9536 13 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9540 13 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9537 13 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9538 13 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9541 13 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9638 13 inch Diamond starter pack (1 of each grit)
50 255-1382 13 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1315 13 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1316 13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE)

Detergent Injection System - 272-0402
RefNbr Part Number Description Req Notes
000 272-9954 Detergent injection assembly 1 (includes 1-21)
001 172-0369 Washer 17/64 x 3/4 x 23/64 flat 1
002 272-7413 Cable tie 3
003 999-0442 Nut 10-24 nylon insert lock stainless steel 2
004 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
005 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
006 172-4451 Screw 1/4-20 x 3/8 pan phillips stainless steel 3
007 272-2174 Snub bushing 5
008 172-0032 Gasket 1/16 x 1/2 x 120 (OBSOLETE) 1
009 272-9955 Control assembly 1
010 272-5397 Control decal 1
011 272-5398 Detergent tray 1
012 272-5399 Detergent box weldment 1
013 272-5400 Detergent cover 1
014 272-6045 Pump cover 1
015 272-6046 Detergent pad 1
016 272-5403 Detergent pump 1
017 272-5404 Chemical resistant hose 1
018 272-2179 Chemical bottle assembly 1
019 272-2180 Solution fill cap 1
020 272-2182 Dry break cap 1
021 272-2184 Dry break insert 1
N/S 272-9375 Chemical bottle assembly 1 (includes 18-21)
N/S 272-2346 Indicator assembly 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
