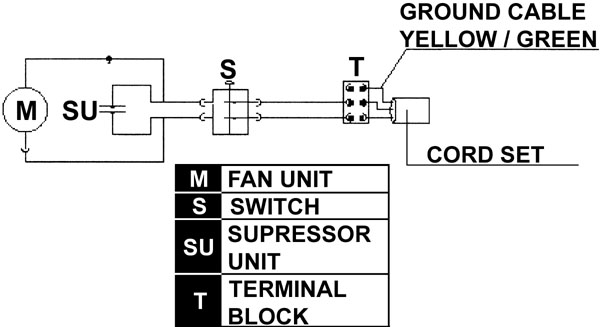

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

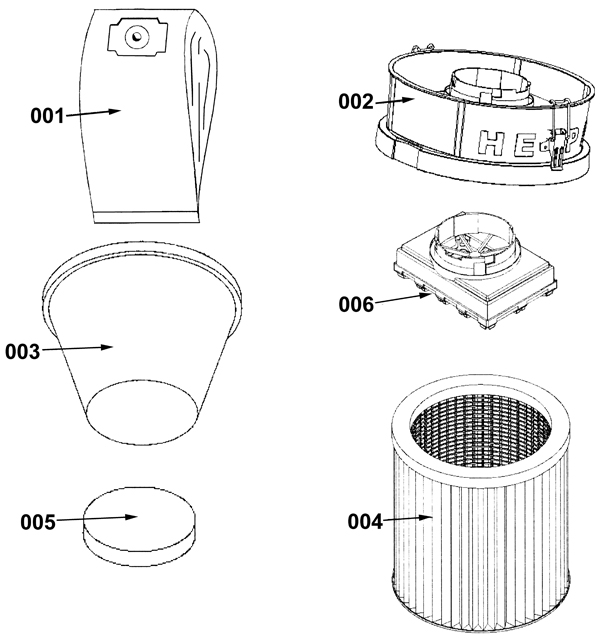

Filter and Dust Bag Assembly - 172-2339 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
272-0900 |
Dust bag (pkg of 3) |
1 |
|
| 002 |
272-0882 |
HEPA protection ring (OBSOLETE) |
1 |
|
| 003 |
272-0901 |
Washable filter and basket assembly |
1 |
|
| 004 |
272-9959 |
Cartridge filter (OBSOLETE) |
1 |
|
| 005 |
272-0903 |
Motor filter |
1 |
|
| 006 |
272-0883 |
HEPA filter |
1 |
|
|
|

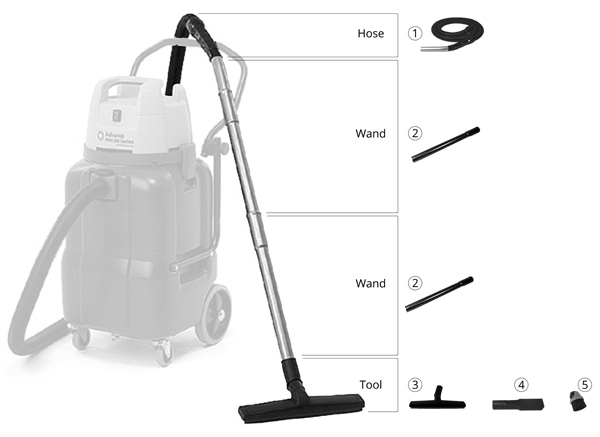

Nozzles and Hose - 172-2340 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-3908 |
9 1/2 foot hose assembly with handle |
1 |
|
| 2 |
172-3912 |
19 inch extension tube (pkg of 2) |
2 |
|
| 3a |
172-3915 |
14 inch plastic wet tool |
1 |
(rubber strip) |
| 3b |
172-3916 |
14 inch plastic dry tool (OBSOLETE) |
1 |
(brush strip) |
| 4 |
172-3923 |
1 1/2 inch crevice nozzle |
1 |
|
| 5 |
272-0898 |
1 1/2 inch adjustable dust brush nozzle |
1 |
|
|
|

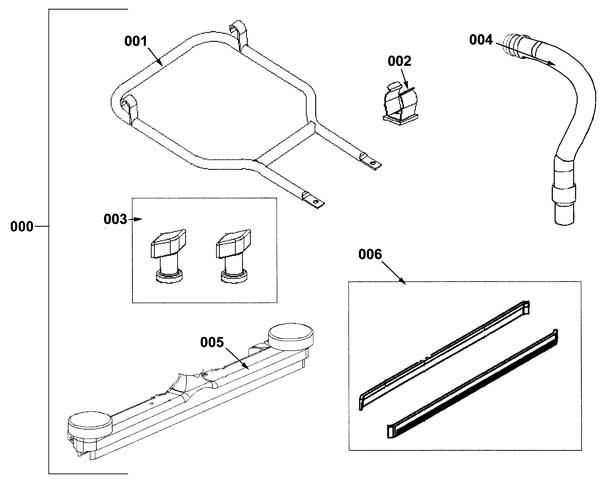

Front Nozzle Assembly - 172-2341 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-7036 |
24 inch squeegee assembly |
1 |
(includes 001-006) |
| 001 |
272-2055 |
Front nozzle frame |
1 |
|
| 002 |
N/A |
Not available |
1 |
(Clamp) |
| 003 |
272-2056 |
Nut 5/16 thumb |
2 |
|
| 004 |
272-0899 |
1 1/2 inch hose (OBSOLETE) |
1 |
|
| 005 |
272-5111 |
24 inch squeegee assembly |
1 |
|
| 006 |
172-0454 |
Squeegee blade 24 inch (blue) |
2 |
|
|
|

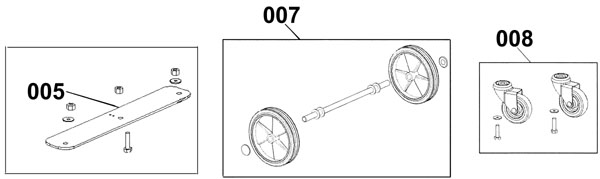

Trolleys - 172-2342 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 005 |
272-0895 |
Bracket plate for caster wheels |
1 |
(hardware included) |
| 007 |
272-0896 |
8 inch wheel (pkg of 2) |
2 |
(axle included) |
| 008 |
272-0897 |
Caster wheel with nut (pkg of 2) (OBSOLETE) |
2 |
(hardware included) |
|
|

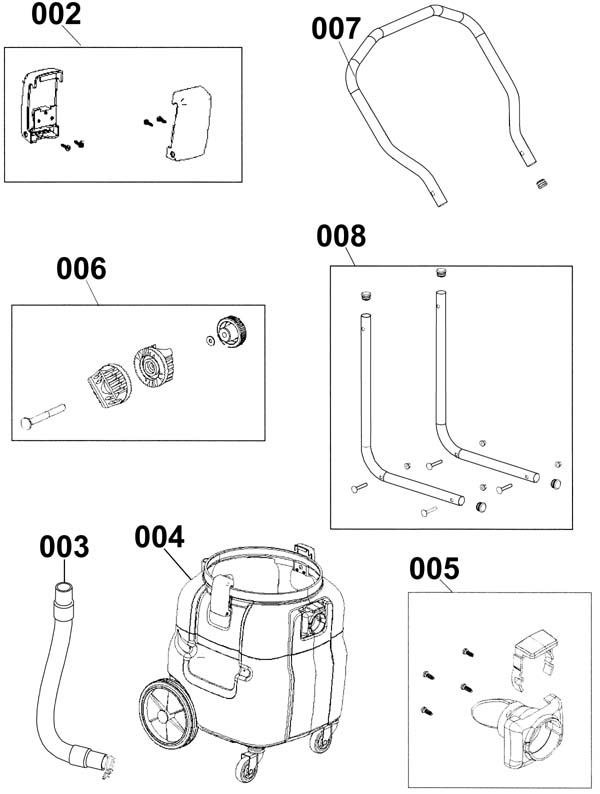

Handle and Tank Assembly - 172-2343 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
272-0890 |
Latch |
2 |
(includes screws) |
| 004a |
272-0893 |
16 gallon tank (315) |
1 |
(includes wheels) |
| 004b |
272-0894 |
16 gallon tank (320) |
1 |
(includes wheels) |
| 005 |
272-0892 |
Inlet kit with screws (OBSOLETE) |
1 |
(includes screws and trigger) |
| 006 |
272-2052 |
Handle adjustment assembly |
2 |
(includes ratchets, screws and washers) |
| 007 |
272-2053 |
Upper handle |
1 |
(includes end plugs) |
| 008 |
272-2054 |
Lower handle with hardware (OBSOLETE) |
2 |
|
|
|

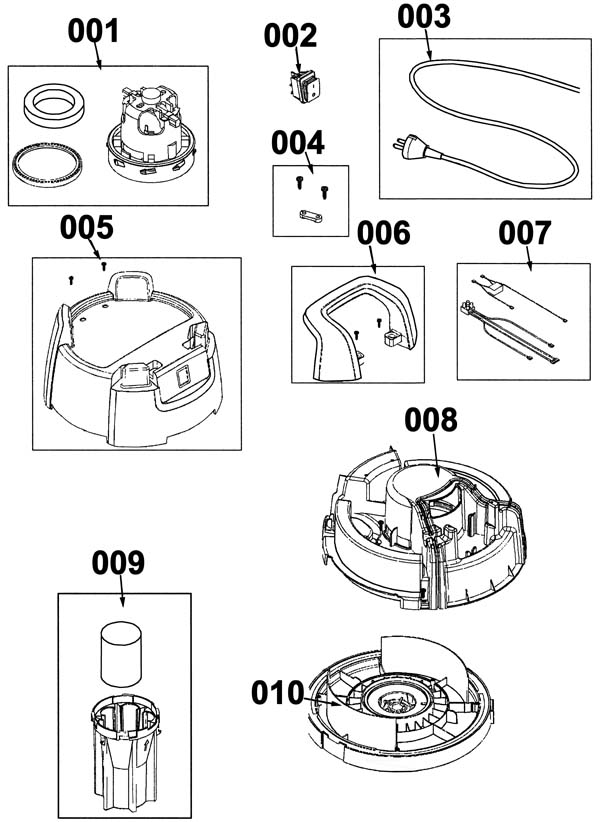

Upper Motor Assembly - 172-2344 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
272-0001 |
120V 1 stage vacuum motor assembly (includes gaskets) |
1 |
(includes gaskets) |
| 002 |
272-0112 |
Rocker switch |
2 |
|
| 003a |
272-0113 |
16/3 power cord 50 foot |
1 |
(OEM) |
| 003b |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 003c |
991-5002 |
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
| 004 |
272-0115 |
Anti strain clip |
1 |
(includes screws) |
| 005 |
272-2050 |
Upper cover |
1 |
(includes screws) |
| 006 |
272-2051 |
Handle (OBSOLETE) |
1 |
(includes screws) |
| 007 |
272-0135 |
Internal wires (OBSOLETE) |
1 |
|
| 008 |
272-1230 |
Vacuum motor cover (OBSOLETE) |
1 |
|
| 009 |
272-1231 |
Float cage assembly |
1 |
|
| 010 |
272-1232 |
Fan unit bottom chassis |
1 |
(Order this part if you need the gasket that goes between the head and the tank. The gasket is not available alone.) |
|
|
- Frequently Replaced Parts - 999-9887 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
272-0113 |
16/3 power cord 50 foot |
|
(OEM) |
| 02 |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) |
| 03 |
272-0112 |
Rocker switch |
|
|
| 04a |
272-0001 |
120V 1 stage vacuum motor assembly (includes gaskets) |
|
|
| 05 |
272-1231 |
Float cage assembly |
|
|
| 06 |
272-0897 |
Caster wheel with nut (pkg of 2) (OBSOLETE) |
|
(pkg of 2) |
| 07 |
272-0896 |
8 inch wheel (pkg of 2) |
|
(pkg of 2) |
| 08 |
172-3914 |
Rear rubber strip kit |
|
|
|
|
