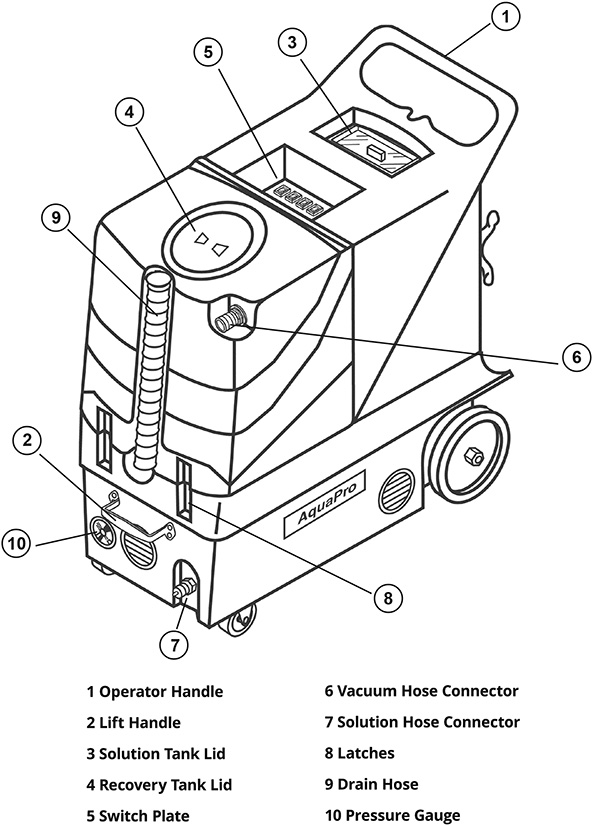

- Know Your Machine - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

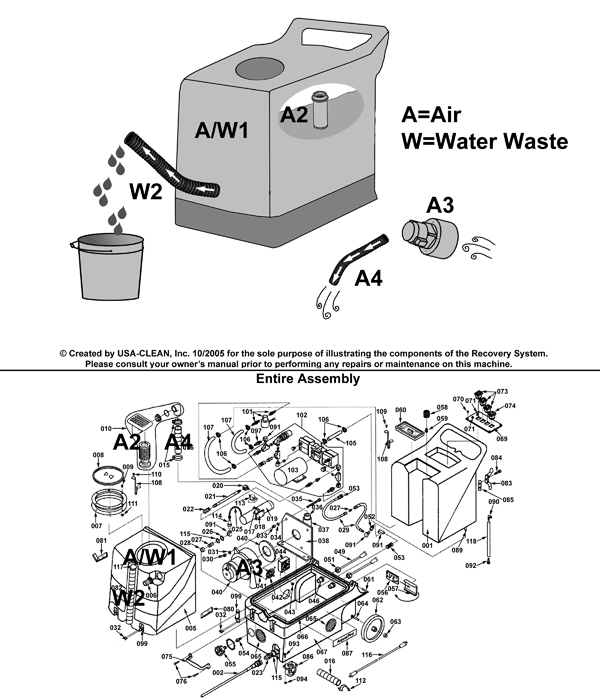

- Simplified Recovery System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

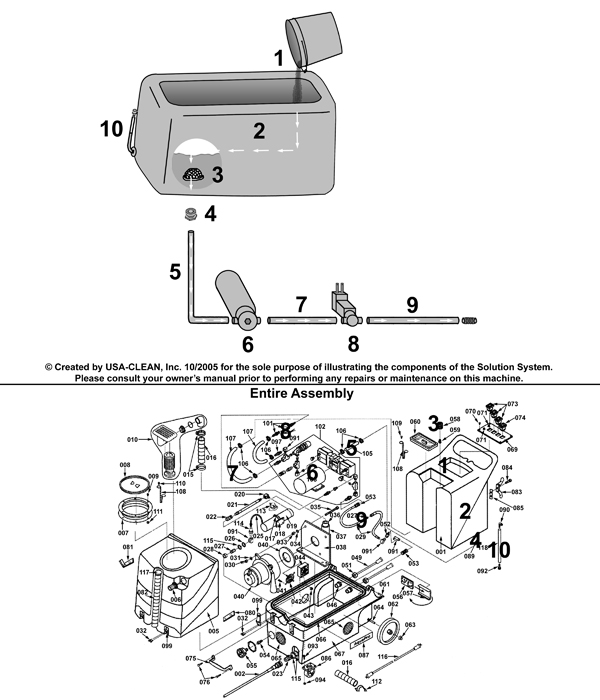

- Simplified Solution System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

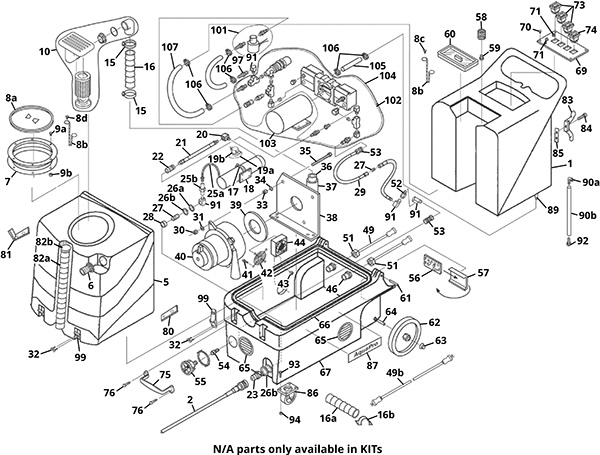

Entire Assembly - 272-6020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-3531 |
Solution tank gray |
1 |
|
| 2 |
172-2906 |
Priming hose with quick disconnect |
1 |
|
| 5 |
172-3513 |
Recovery tank gray (OBSOLETE) |
1 |
|
| 7 |
N/A |
Not available |
1 |
(gasket) (only available in KIT4 |
| 8a |
172-2475 |
6 inch lid with clear center and ring |
1 |
|
| 8b |
172-2474 |
8 inch chain |
2 |
|
| 8c |
999-1276 |
Screw 10-32 x 3/8 hex head stainless steel |
1 |
|
| 8d |
999-9148 |
Screw 10-32 x 5/8 flat head phillips stainless steel |
1 |
|
| 9a |
999-1396 |
Screw 8-32 x 7/8 flat head phillips stainless steel |
6 |
|
| 9b |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
6 |
|
| 10 |
209-0071 |
Complete ball float assembly (OBSOLETE) |
1 |
|
| 15 |
N/A |
Not available |
2 |
(hose clamp) (only available in KIT5) |
| 16a |
172-3516 |
Vacuum hose 2 x 41 (OBSOLETE) |
1 |
|
| 16b |
272-8040 |
Exhaust hose bracket (OBSOLETE) |
1 |
|
| 17 |
N/A |
Not available |
1 |
(hose clamp) (only available in KIT5) |
| 18 |
209-0621 |
Heat exchanger mount |
1 |
|
| 19a |
N/A |
Not available |
1 |
(complete heat exchanger) (only available in KIT9) |
| 19b |
N/A |
Not available |
1 |
(heat control switch) (only available in KIT9, KIT10) |
| 20 |
N/A |
Not available |
1 |
(brass elbow) (only available in KIT20) |
| 21 |
N/A |
Not available |
1 |
(high pressure hose) (only available in KIT20) |
| 22 |
N/A |
Not available |
1 |
(quick disconnect) (only available in KIT20) |
| 23 |
N/A |
Not available |
1 |
(quick disconnect) (only available in KIT7, KIT9) |
| 25a |
N/A |
Not available |
1 |
(braided hose) (only available in KIT9) |
| 25b |
N/A |
Not available |
1 |
(brass coupling) (only available in KIT9) |
| 26a |
N/A |
Not available |
3 |
(brass washer) (only available in KIT9) |
| 26b |
N/A |
Not available |
3 |
(fiber washer) (only available in KIT7, KIT9) |
| 27 |
N/A |
Not available |
2 |
(nipple) (only available in KIT9, KIT18) |
| 28 |
N/A |
Not available |
1 |
(fiber bushing) (only available in KIT9) |
| 29 |
272-8046 |
Complete hose (OBSOLETE) |
1 |
|
| 30 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
3 |
|
| 31 |
999-0024 |
Washer 5/16 flat stainless steel |
3 |
|
| 32 |
999-0437 |
Screw 8-32 x 1/2 flat head phillips zinc plated |
8 |
|
| 33 |
999-0069 |
Nut 5/16-18 hex |
3 |
|
| 34 |
999-0028 |
Washer 5/16 split lock plain finish |
3 |
|
| 35 |
N/A |
Not available |
3 |
(bolt 5/16 x 4 fully threaded) (only available in KIT4) |
| 36 |
N/A |
Not available |
1 |
(3 inch pvc pipe) (only available in KIT21) |
| 37 |
N/A |
Not available |
1 |
(pvc elbow) (only available in KIT21) |
| 38 |
209-0400 |
Vacuum motor mount manifold |
1 |
|
| 40a |
272-8045 |
Vac motor kit - 3 stage |
1 |
(120V vacuum motor) (only available in KIT6) |
| 40b |
N/A |
Not available |
1 |
(vacuum motor gasket) (only available in KIT6) |
| 41 |
272-8038 |
Hardware kit |
4 |
(screw 6-32 x 2) (only available in KIT 4) |
| 42 |
N/A |
Not available |
1 |
(fan guard) (only available in KIT1) |
| 43 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
4 |
|
| 44 |
N/A |
Not available |
1 |
(120V fan) (only availble in KIT1) |
| 46 |
N/A |
Not available |
2 |
(pvc reducer) (only available in KIT13) |
| 49a |
N/A |
Not available |
2 |
(12/3 24 inch pigtail cord) (only available in KIT13) |
| 49b |
209-0097 |
12/3 extension cord 25 foot |
2 |
|
| 51 |
N/A |
Not available |
2 |
(cord retainer) (only available in KIT13) |
| 52 |
N/A |
Not available |
1 |
(pulsation snubber) (only available in KIT18) |
| 53 |
N/A |
Not available |
2 |
(female quick disconnect) (only available in KIT18) |
| 54 |
N/A |
Not available |
1 |
(male quick disconnect) (only available in KIT19) |
| 55 |
N/A |
Not available |
1 |
(pressure gauge) (only available in KIT19) |
| 56 |
209-0115 |
Dual cord sensor board circuit |
1 |
|
| 59 |
209-0603 |
Nipple 1/2 NPT |
1 |
|
| 60 |
N/A |
Not available |
1 |
(solution tank lid) (only available in KIT3) |
| 62 |
N/A |
Not available |
2 |
(10 inch wheel) (only availble in KIT2) |
| 63 |
N/A |
Not available |
2 |
(axle cap) (only available in KIT2) |
| 64 |
172-3526 |
Plated axle rod 18 1/4inch |
1 |
|
| 66 |
270-8078 |
Base gasket poron 7/8 x 7 inch |
1 |
|
| 67a |
372-0688 |
Base compartment gray (OBSOLETE) |
1 |
(before SN 1889310) |
| 67b |
372-0689 |
Base compartment gray |
1 |
(after SN 1889390) |
| 69 |
272-8049 |
Switch plate (OBSOLETE) |
1 |
|
| 70 |
999-1993 |
Screw #4-40 x 3/8 flat head phillips |
5 |
|
| 71 |
172-3551 |
Light (green) |
2 |
|
| 73 |
172-3539 |
Switch with cover (OBSOLETE) |
3 |
|
| 74 |
172-3539 |
Switch with cover (OBSOLETE) |
1 |
|
| 75 |
209-0461 |
Chrome manifold |
1 |
|
| 76 |
999-0457 |
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
4 |
|
| 80 |
N/A |
Not available |
1 |
(mating bracket) (only available in KIT8) |
| 81 |
N/A |
Not available |
1 |
(mating bracket) (only available in KIT8) |
| 82a |
N/A |
Not available |
1 |
(drain hose) (only available in KIT11) |
| 82b |
N/A |
Not available |
1 |
(drain hose plug) (only available in KIT11) |
| 84 |
999-0830 |
Screw 1/4-20 x 1 hex head plain finish |
4 |
|
| 85 |
172-3518 |
Bracket kit |
2 |
(caddy bag bracket) (only availble in KIT8) |
| 86 |
209-0480 |
Caster wheel (gray) |
2 |
|
| 89 |
272-8050 |
Hose barb kit |
1 |
(straight nylon hose barb) (only available in KIT14) |
| 90a |
N/A |
Not available |
1 |
(elbow hose barb) (only available in KIT12) |
| 90b |
N/A |
Not available |
1 |
(site hose) (only available in KIT12) |
| 91 |
N/A |
Not available |
4 |
(brass elbow) (only available in KIT9, KIT14, KIT18) |
| 92 |
172-2901 |
Solution hose kit |
1 |
|
| 93 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
8 |
|
| 94 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
| 97 |
N/A |
Not available |
1 |
(brass hose barb) (only available in KIT14) |
| 99 |
172-2487 |
Black rubber latch with strike |
2 |
|
| 101 |
272-8051 |
120V complete solenoid |
1 |
|
| 102 |
272-8052 |
Complete pump - NO MOTOR |
1 |
|
| 103 |
172-2452 |
1/3HP motor for 300 PSI pump |
1 |
|
| 104 |
209-0328 |
Pump and motor assembly with solenoid |
1 |
|
| 105 |
272-8054 |
Hose 1/2 x 16 inch |
1 |
|
| 106 |
N/A |
Not available |
6 |
(hose clamp) (only available in KIT5) |
| 107 |
172-3534 |
Hose 3/8 x 76ft (OBSOLETE) |
1 |
|
| N/S |
172-2492 |
Warning decal |
1 |
|
| N/S |
172-3541 |
Single bend wand assembly |
1 |
|
| N/S |
172-3542 |
Double bend wand assembly |
1 |
|
| N/S |
172-3543 |
Extractor hand tool |
1 |
|
| N/S |
272-6489 |
25 foot vacuum/solution hose |
1 |
|
| N/S |
172-3545 |
Vac hose-Pressure line 15ft |
1 |
|
| KIT1 |
172-2463 |
Fan kit |
1 |
(includes 42, 44) |
| KIT2 |
172-3527 |
Wheel kit |
1 |
(includes qty 1 of 62, 63) |
| KIT3 |
172-3514 |
Solution lid kit (OBSOLETE) |
1 |
(includes 8b, 8c, 60) |
| KIT4 |
272-8038 |
Hardware kit |
1 |
(includes 7, 8d-9b, 30-35, 41, 43, 70, 76, 84, 93-94) |
| KIT5 |
272-8039 |
Hose clamp kit |
1 |
(includes 15, 17, 106) |
| KIT6 |
272-8045 |
Vac motor kit - 3 stage |
1 |
(includes 39-40) |
| KIT7 |
181-1385 |
Quick disconnect kit - hot |
1 |
(includes 23, 26b) |
| KIT8 |
172-3518 |
Bracket kit |
1 |
(includes 80-81, 85) |
| KIT9 |
272-8041 |
Heat exchanger complete - 300PSI |
1 |
(includes 19a-19b, 23, 25-28, 91) |
| KIT10 |
209-0333 |
Bi-metallic heat repair kit |
1 |
(includes 19b) |
| KIT11 |
172-2490 |
Dump hose kit |
1 |
(includes 82a-82b) |
| KIT12 |
172-2901 |
Solution hose kit |
1 |
(includes 90a-90b) |
| KIT13 |
172-3524 |
Cord outlet kit |
1 |
(includes 46, 49, 51) |
| KIT14 |
272-8050 |
Hose barb kit |
1 |
(includes 89, 91, 97) |
| KIT17 |
372-0690 |
Bypass rebuild kit (OBSOLETE) |
1 |
|
| KIT18 |
272-8046 |
Complete hose (OBSOLETE) |
1 |
(includes 27, 52-53, 91) |
| KIT19 |
272-8048 |
Pressure gauge kit |
1 |
(includes 54-55) |
| KIT20 |
272-8042 |
High pressure hose kit |
1 |
(includes 20-22) |
| KIT21 |
272-8043 |
PVC pipe kit |
1 |
(includes 36-37) |
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Frequently Replaced Parts - 272-6103 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
209-0097 |
12/3 extension cord 25 foot |
2 |
|
|
272-8051 |
120V complete solenoid |
1 |
|
|
172-3516 |
Vacuum hose 2 x 41 (OBSOLETE) |
1 |
|
|
172-2475 |
6 inch lid with clear center and ring |
1 |
|
|
272-8052 |
Complete pump - NO MOTOR |
1 |
|
|
172-2452 |
1/3HP motor for 300 PSI pump |
1 |
|
|
209-0071 |
Complete ball float assembly (OBSOLETE) |
1 |
|
|
|
- Simplified Electrical System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
