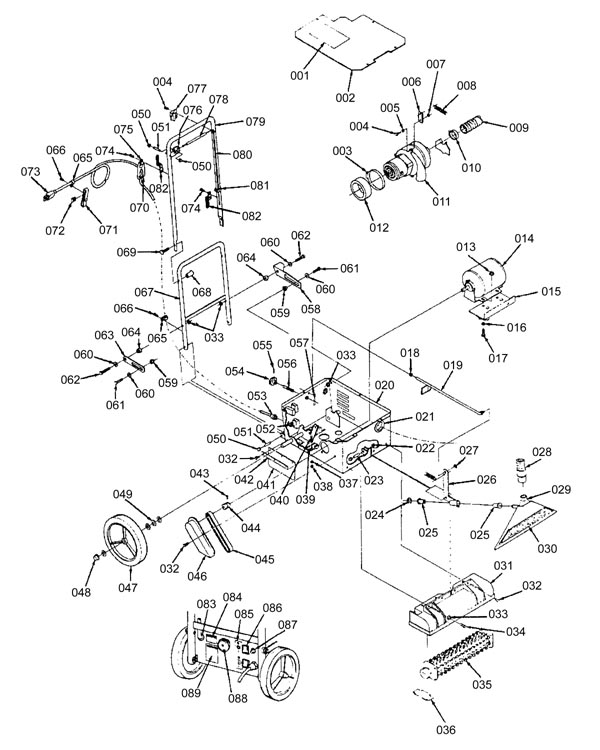

Base Assembly - 172-6105 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
N/A |
Not available |
1 |
(Wiring decal) |
| 002 |
N/A |
Not available |
1 |
(Weldment cover plate) |
| 003 |
997-2009 |
Hose clamp |
1 |
|
| 004 |
999-0694 |
Screw 1/4-20 x 1/2 flat head phillips zinc plated |
4 |
|
| 005 |
N/A |
Not available |
2 |
(1/4 shakeproof washer) |
| 006 |
N/A |
Not available |
1 |
(Strap) |
| 007 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 008 |
172-4025 |
Extension spring 1/2 x 6 1/4 (OBSOLETE) |
1 |
|
| 009 |
172-4026 |
Vacuum hose assembly |
1 |
|
| 010 |
997-2000 |
Hose clamp |
1 |
|
| 011a |
991-1204 |
120V 3 stage vacuum motor tangential with snout |
1 |
|
| 011b |
172-4028 |
Carbon brush set for motor ( set of 2 ) |
1 |
|
| 011c |
N/A |
Not available |
1 |
(Carbon brush set) |
| 012 |
N/A |
Not available |
1 |
(Foam gasket) |
| 013 |
N/A |
Not available |
2 |
(5/16-18 whiz nut) |
| 014 |
N/A |
Not available |
1 |
(Brush motor) |
| 015 |
N/A |
Not available |
1 |
(Bracket) |
| 017 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
| 018 |
172-4031 |
Nylon bushing |
1 |
|
| 019 |
N/A |
Not available |
1 |
(Rod weldment) |
| 020 |
N/A |
Not available |
1 |
(Base weldment) |
| 022 |
172-4142 |
Nut 3/8 push cap |
2 |
|
| 023 |
N/A |
Not available |
1 |
(Pin stud) |
| 024 |
172-0269 |
Retaining ring |
1 |
|
| 025 |
172-4090 |
Flanged bearing |
2 |
|
| 026 |
N/A |
Not available |
1 |
(Arm weldment) |
| 027 |
172-4033 |
3/8 inch retaining ring |
1 |
|
| 028 |
172-4035 |
Recovery hose assembly |
1 |
|
| 029 |
N/A |
Not available |
1 |
(Shoe weldment) |
| 031 |
172-4039 |
Drilled brush housing (OBSOLETE) |
1 |
|
| 032 |
N/A |
Not available |
8 |
(#10-24x1/2 HP-5 screw) |
| 033 |
999-0069 |
Nut 5/16-18 hex |
6 |
|
| 034 |
999-0109 |
Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated |
2 |
|
| 035a |
N/A |
Not available |
1 |
(Brush kit) (includes 35b-35k) (individual components still available) |
| 035b |
172-4046 |
Poly-V sheave |
1 |
|
| 035c |
172-0244 |
Retaining ring |
1 |
|
| 035d |
172-4043 |
Ball bearing |
1 |
|
| 035e |
172-4041 |
Right bearing block |
1 |
|
| 035f |
181-0214 |
Screw flat phil SS |
1 |
|
| 035g |
172-4042 |
Plug bearing |
1 |
|
| 035j |
172-0249 |
Bottom bearing |
1 |
|
| 035k |
172-4045 |
Left bearing block |
1 |
|
| 036 |
172-4047 |
Guard (OBSOLETE) |
1 |
|
| 037 |
N/A |
Not available |
1 |
(#8 shakeproof washer) |
| 038 |
999-0308 |
Nut 8-32 plain |
1 |
|
| 039 |
172-4012 |
Terminal block |
1 |
|
| 040 |
999-0055 |
Screw 8-32 x 3/4 round head slotted zinc plated |
1 |
|
| 041 |
N/A |
Not available |
1 |
(Blade) |
| 042 |
N/A |
Not available |
1 |
(Strap) |
| 043 |
999-0096 |
Screw 1/4-20 x 1/4 cup point socket set plain finish |
1 |
|
| 045 |
172-4049 |
Poly-v belt |
1 |
|
| 046 |
172-4050 |
Belt guard |
1 |
|
| 047 |
172-4016 |
10 inch wheel |
2 |
|
| 048 |
172-4017 |
1/2 inch push cap |
2 |
|
| 050 |
272-5254 |
Nut 1/4 push cap |
6 |
|
| 051 |
172-4014 |
Roll pin stud 1/8x1 (OBSOLETE) |
3 |
|
| 052 |
172-4536 |
Nut 1/2-14 conduit lock |
1 |
|
| 053 |
172-4018 |
Strain relief |
1 |
|
| 054 |
172-4096 |
Knob 1.50 x .377 (OBSOLETE) |
1 |
|
| 055 |
N/A |
Not available |
1 |
(1/8 x 1 pin) |
| 056 |
172-4052 |
Knob assembly (OBSOLETE) |
1 |
|
| 058 |
N/A |
Not available |
1 |
(Catch) |
| 059 |
172-4097 |
Flange bushing |
2 |
|
| 060 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 061 |
999-0401 |
Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated |
2 |
|
| 062 |
999-0108 |
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
2 |
|
| 063 |
N/A |
Not available |
1 |
(Strap) |
| 064 |
N/A |
Not available |
1 |
(Spacer) |
| 065 |
181-0978 |
Cable clamp |
2 |
|
| 066 |
999-0100 |
Screw 6-32 x 5/16 round head slotted zinc plated |
2 |
|
| 067 |
N/A |
Not available |
1 |
(Handle weldment) |
| 068 |
172-4099 |
Nut 5/16-18 thumb |
2 |
|
| 069 |
999-0252 |
Screw 5/16-18 x 1 carriage head grade 5 zinc |
2 |
|
| 070 |
172-4023 |
Strain relief |
1 |
|
| 071 |
N/A |
Not available |
1 |
(Belt clip) |
| 072 |
N/A |
Not available |
1 |
(Nut 6-32 spring) |
| 073 |
172-4000 |
120V power cord |
1 |
|
| 074 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
4 |
|
| 076 |
N/A |
Not available |
1 |
(Clevis pin) |
| 077 |
172-4002 |
Cable guide support |
1 |
|
| 078 |
N/A |
Not available |
1 |
(Tube) |
| 079 |
N/A |
Not available |
1 |
(Handle) |
| 080 |
172-4005 |
Cable (OBSOLETE) |
1 |
|
| 081 |
181-0974 |
Handle clamp |
3 |
|
| 083 |
172-4105 |
Grommet (OBSOLETE) |
1 |
|
| 084 |
N/A |
Not available |
1 |
(Wiring dept. advance nameplate) |
| 085 |
N/A |
Not available |
1 |
(Instruction decal) |
| 086a |
172-4013 |
Rocker switch |
2 |
|
| 086b |
172-4106 |
Rocker switch DPST (OBSOLETE) |
2 |
|
| 087a |
172-4010 |
Circuit breaker 9amp |
1 |
|
| 087b |
991-1626 |
3amp circuit breaker |
1 |
|
| 088 |
N/A |
Not available |
1 |
(Instruction decal) |
| 089 |
172-5015 |
Warning decal (OBSOLETE) |
1 |
|
| N/S |
172-4087 |
Nut cage (OBSOLETE) |
2 |
|
| N/S |
172-0249 |
Bottom bearing |
1 |
|
| N/S |
172-4046 |
Poly-V sheave |
1 |
|
| N/S |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
|
|

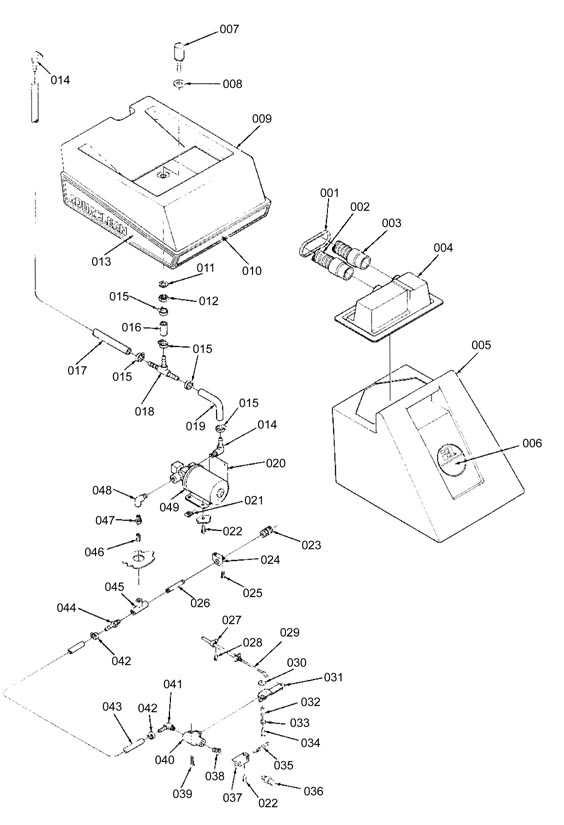

Tanks and Pump - 172-6106 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
172-4026 |
Vacuum hose assembly |
1 |
(creates vacuum in the tank) |
| 003 |
172-4035 |
Recovery hose assembly |
1 |
(picks up the dirty water) |
| 004a |
172-4054 |
Dome cover assembly with gasket |
1 |
|
| 004b |
172-4111 |
Tank cover (OBSOLETE) |
1 |
|
| 004c |
172-0190 |
Recovery tank lid gasket |
1 |
|
| 005 |
172-4055 |
Routed recovery tank |
1 |
|
| 006 |
N/A |
Not available |
1 |
(Advance decal) |
| 007 |
172-4053 |
Screen filter |
1 |
|
| 008 |
172-0197 |
Rubber washer |
1 |
|
| 009a |
N/A |
Not available |
1 |
(Solution tank assembly) |
| 009b |
N/A |
Not available |
1 |
(Solution tank assembly) |
| 012 |
999-0374 |
Nut 5/8-18 hex plain finish |
1 |
|
| 014 |
172-4056 |
90 degree barbed elbow |
2 |
|
| 015 |
997-2002 |
Hose clamp #6 |
5 |
|
| 016 |
172-0259 |
Hose 1/2 x 2 inches nylon braided |
1 |
|
| 019 |
154-0037 |
Tubing 1/2 x 5/8 (clear) (sold by the foot) |
1 |
|
| 021 |
172-4074 |
Spring nut |
2 |
|
| 022 |
999-0071 |
Screw 10-24 x 1/2 flat head slotted zinc plated |
3 |
|
| 023 |
172-4060 |
Quick disconnect |
1 |
|
| 024 |
N/A |
Not available |
1 |
(Support) |
| 025 |
999-0417 |
Screw 10-24 x 3/4 flat head slotted zinc plated |
2 |
|
| 026 |
N/A |
Not available |
1 |
(Nipple) |
| 028 |
999-0175 |
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
1 |
|
| 029 |
172-4005 |
Cable (OBSOLETE) |
1 |
|
| 030 |
172-4118 |
Thrust bearing E00 (OBSOLETE) |
1 |
|
| 031 |
172-4119 |
Lever support (OBSOLETE) |
1 |
|
| 033 |
172-4120 |
Flanged bearing |
1 |
|
| 034 |
999-0437 |
Screw 8-32 x 1/2 flat head phillips zinc plated |
1 |
|
| 035 |
172-4065 |
Spring 1/4 x 1.1 |
2 |
|
| 038a |
172-4068 |
Adapter |
1 |
(OEM) |
| 038b |
172-4123 |
Reducer bushing |
1 |
|
| 038c |
991-3084 |
Brass adapter |
1 |
(NON-OEM) |
| 039 |
999-0692 |
Screw 1/4-20 x 7/8 flat head phillips zinc plated |
1 |
|
| 040 |
172-4069 |
Hydraulic valve |
1 |
|
| 041 |
172-4071 |
Elbow barb |
1 |
|
| 042 |
997-2001 |
Hose clamp |
2 |
|
| 043 |
172-4072 |
Solution hose |
1 |
|
| 044 |
172-4124 |
Brass barb 1/4 x 1/4 |
1 |
|
| 045b |
172-0266 |
Tee branch |
1 |
|
| 047 |
172-4127 |
Bushing 3/8 x 1/4 |
1 |
|
| 048 |
172-4075 |
90 degree street elbow |
1 |
|
| 049 |
172-4057 |
Pump motor |
1 |
|
|
|

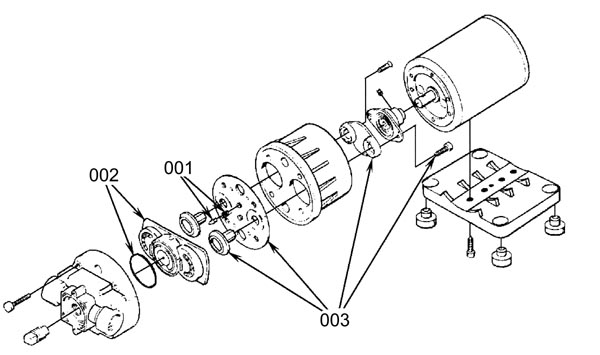

Replacement Parts for 115V Pump (262117) - 172-6107 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-4162 |
By-Pass kit |
1 |
|
| 002 |
172-4163 |
Check valve kit |
1 |
|
| 003 |
172-4059 |
Diaphragm assembly |
1 |
|
|
|

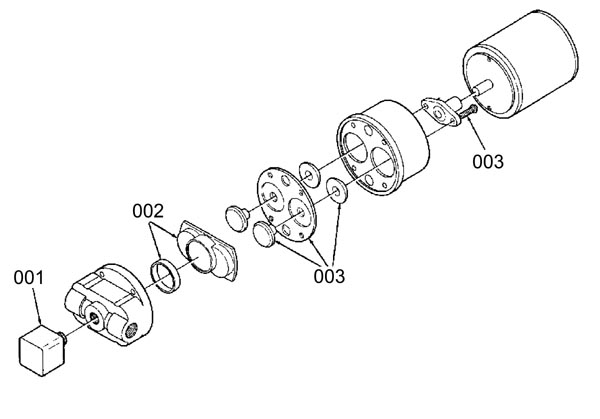

Replacement Parts for 115V Pump (262593) - 172-6108 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-4131 |
Pressure switch (OBSOLETE) |
1 |
|
| 002 |
172-4058 |
Check valve assembly kit |
1 |
|
| 003 |
172-4059 |
Diaphragm assembly |
1 |
|
|
|

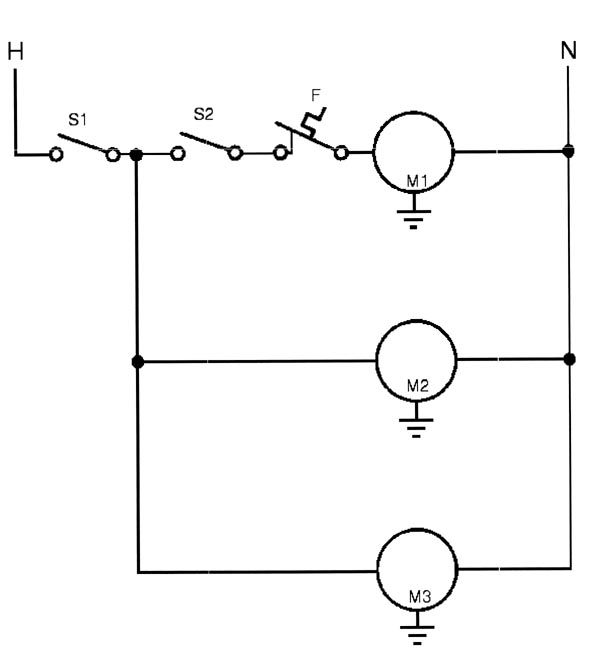

Wiring Diagram - 172-6109 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| F |
172-4010 |
Circuit breaker 9amp |
1 |
|
| M1 |
N/A |
Not available |
1 |
(Brush motor) |
| M2 |
991-1204 |
120V 3 stage vacuum motor tangential with snout |
1 |
|
| N/S |
172-4012 |
Terminal block |
1 |
|
| S1 |
172-4013 |
Rocker switch |
1 |
|
| S2 |
172-4013 |
Rocker switch |
1 |
|
|
|
Available Accessories - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
- Frequently Replaced Parts - 999-9680 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
172-4000 |
120V power cord |
|
(OEM) |
| 02 |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 03 |
172-4013 |
Rocker switch |
|
(power, vacuum, and brush) |
| 04 |
172-4069 |
Hydraulic valve |
|
|
| 05 |
172-4026 |
Vacuum hose assembly |
|
|
| 06 |
172-4111 |
Tank cover (OBSOLETE) |
|
|
| 07 |
172-0190 |
Recovery tank lid gasket |
|
|
| 08 |
172-4035 |
Recovery hose assembly |
|
|
| 09 |
172-9008 |
120V 3 stage vacuum motor (OBSOLETE) |
|
(Nilfisk-Advance) |
| 10 |
991-1213 |
120V 3 stage vacuum motor tangential |
|
(Ametek-Lamb) |
| 13 |
172-4053 |
Screen filter |
|
|
|
|
|
