- Pads - 255-1400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1440 |
14 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1435 |
14 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1464 |
14 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1442 |
14 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1412 |
14 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1477 |
14 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1438 |
14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1421 |
14 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1450 |
14 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1465 |
14 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1430 |
14 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1487 |
14 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1490 |
14 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1470 |
14 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1492 |
14 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1480 |
14 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1460 |
14 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1452 |
14 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1420 |
14 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1411 |
14 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1495 |
14 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1447 |
14 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1455 |
14 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1423 |
14 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0120 |
14 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0121 |
14 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0122 |
14 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0119 |
14 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 29 |
255-0205 |
14 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 30 |
255-0206 |
14 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 31 |
255-0207 |
14 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0204 |
14 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 33 |
255-1424 |
14 x 20 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 34 |
255-9549 |
14 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 35 |
255-9546 |
14 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 36 |
255-9543 |
14 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 37 |
255-9547 |
14 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 38 |
255-9544 |
14 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 39 |
255-9545 |
14 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 40 |
255-9548 |
14 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 41 |
255-9639 |
14 inch Diamond starter pack (1 of each grit) |
|
|
| 42 |
255-1482 |
14 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 43 |
255-1415 |
14 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1416 |
14 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|

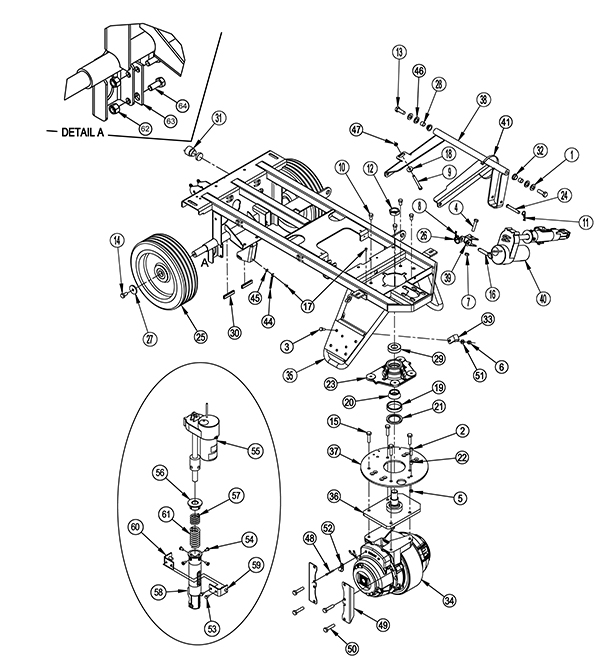

Chassis Assembly - Standard, Ecoflex and REV - 272-7580 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 2a |
999-0546 |
Screw 5/16-18 x 1 socket head alloy plain finish |
1 |
(Standard and Ecoflex) |
| 2b |
999-0546 |
Screw 5/16-18 x 1 socket head alloy plain finish |
2 |
(REV) |
| 3a |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
1 |
|
| 3b |
999-1232 |
Screw 5/16-18 x 3/4 hex head stainless steel |
1 |
(after 3/2018) |
| 4a |
999-0542 |
Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated |
1 |
|
| 5a |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
(Standard and Ecoflex) |
| 5b |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
(REV) |
| 6a |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 7 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
| 8 |
172-2001 |
Hair cotter pin |
1 |
|
| 9 |
172-4367 |
Screw 5/16 x 18 x 3 1/2 thread to head hex |
1 |
|
| 10 |
272-1652 |
Bolt 3/8-16 x 5/6 lock |
4 |
|
| 12 |
172-0951 |
Nut 1-14 hex thin nylock UNF |
1 |
|
| 13 |
999-1128 |
Bolt M12-1.75 x 35mm hex hd stainless steel part thread |
2 |
|
| 14 |
272-1605 |
Bolt M10-1.5 x 20mm hex head nylon lock |
2 |
|
| 15 |
272-1624 |
Bolt M10-1.5 x 40mm hex |
4 |
|
| 17 |
999-0793 |
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
2 |
|
| 18 |
172-2067 |
Washer 11/32 x 1/8 flat |
1 |
|
| 19 |
172-3315 |
Bearing cup |
1 |
|
| 20 |
172-3316 |
Bearing cone |
1 |
|
| 22a |
172-0068 |
Bushing |
1 |
(Standard and Ecoflex) |
| 22b |
172-0068 |
Bushing |
2 |
(REV) |
| 23 |
172-3319 |
Bearing block |
1 |
|
| 25 |
172-3283 |
Wheel and bearing assembly |
2 |
(TSB-FC-2015-033, TSB-FC-2017-059) |
| 27 |
272-1606 |
Washer flat |
2 |
|
| 29 |
172-0435 |
Top bearing |
1 |
|
| 31 |
172-8839 |
Backup alarm |
1 |
|
| 32 |
272-1843 |
Flanged bearing |
2 |
|
| 34a |
272-8807 |
Drive wheel motor |
1 |
(includes 34b-34j) |
| 34b |
272-5562 |
Tire with hub |
1 |
|
| 34d |
272-8810 |
Carbon brush kit |
1 |
|
| 34f |
272-8811 |
Parking brake |
1 |
|
| 34g |
272-8604 |
Tire puller kit |
1 |
|
| 34h |
272-8598 |
Drive motor cover |
1 |
|
| 34i |
272-8597 |
Gearbox motor cover |
1 |
|
| 34j |
272-8813 |
Brake lever kit |
1 |
|
| 35a |
272-6330 |
Chassis weldment |
1 |
(Standard and Ecoflex) |
| 35b |
272-6331 |
Chassis weldment |
1 |
(REV) |
| 36 |
272-8814 |
Spindle weldment |
1 |
|
| 37 |
172-3320 |
Steering plate |
1 |
|
| 38a |
272-3549 |
Linkage weldment |
1 |
(Standard and Ecoflex) |
| 38b |
272-6332 |
Linkage weldment |
1 |
(REV) |
| 39 |
272-3550 |
Actuator yoke |
1 |
|
| 40a |
272-3551 |
Lift actuator assembly |
1 |
(Standard and Ecoflex) (M4) |
| 40b |
272-6333 |
Lift actuator assembly |
1 |
(M4/REV) |
| 44 |
272-8757 |
Ground chain |
1 |
|
| 45 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 46 |
172-0263 |
Washer flat rubber |
2 |
(REV only) |
| 47a |
999-0430 |
Nut 5/16-18 hex jam plain finish |
1 |
(Standard and Ecoflex) |
| 47b |
999-0430 |
Nut 5/16-18 hex jam plain finish |
2 |
(REV) |
| 48 |
172-4211 |
Screw M4 x 40 cylinder head stainless steel |
1 |
|
| 49 |
272-6334 |
Wheel bracket |
2 |
|
| 50 |
272-1612 |
Bolt 10mm-1.50 x 45mm hex nylon locking |
4 |
|
| 51a |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 51b |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 53 |
999-0360 |
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
| 54 |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
| 55a |
172-8921 |
Actuator |
1 |
(Standard and Ecoflex) |
| 55b |
172-8921 |
Actuator |
2 |
(REV) |
| 56 |
272-8539 |
Spring housing guide |
1 |
|
| 57 |
172-8941 |
Compression spring |
1 |
|
| 58 |
172-8952 |
Spring housing |
1 |
|
| 59 |
172-8954 |
Nut retainer |
1 |
|
| 60 |
172-8955 |
Nut retainer |
1 |
|
| 61 |
272-3552 |
Compression spring |
1 |
|
| 62 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 64 |
999-1232 |
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
|
Chassis Assembly - ST - 272-7581 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 2 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 3 |
181-0983 |
Screw 5/16-18 x 7/8 hex head |
1 |
|
| 4 |
999-0120 |
Washer 3/8 SAE flat |
2 |
|
| 5 |
999-0546 |
Screw 5/16-18 x 1 socket head alloy plain finish |
1 |
|
| 7 |
272-0567 |
Screw 5/16-18 x 3/4 flat phillips |
1 |
|
| 8 |
997-2503 |
Cotter pin 1/8 x 1 |
1 |
|
| 9 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 11 |
172-4367 |
Screw 5/16 x 18 x 3 1/2 thread to head hex |
1 |
|
| 12 |
272-1652 |
Bolt 3/8-16 x 5/6 lock |
4 |
|
| 14 |
172-0951 |
Nut 1-14 hex thin nylock UNF |
1 |
|
| 15 |
999-1128 |
Bolt M12-1.75 x 35mm hex hd stainless steel part thread |
2 |
|
| 16 |
272-1605 |
Bolt M10-1.5 x 20mm hex head nylon lock |
2 |
|
| 17 |
272-1624 |
Bolt M10-1.5 x 40mm hex |
4 |
|
| 19 |
272-2116 |
Bolt 3/8-24 x 5/8 hex head lock stainless steel |
1 |
|
| 20 |
999-0793 |
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
2 |
|
| 21 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
1 |
|
| 22 |
172-2067 |
Washer 11/32 x 1/8 flat |
1 |
|
| 23 |
172-3315 |
Bearing cup |
1 |
|
| 24 |
172-3316 |
Bearing cone |
1 |
|
| 27 |
172-3319 |
Bearing block |
1 |
|
| 28 |
172-3283 |
Wheel and bearing assembly |
2 |
(TSB-FC-2015-033, TSB-FC-2017-059) |
| 31 |
272-1606 |
Washer flat |
2 |
|
| 33 |
172-0435 |
Top bearing |
1 |
|
| 34 |
172-2140 |
Squeegee pivot kit |
1 |
|
| 36 |
172-8839 |
Backup alarm |
1 |
|
| 37 |
272-1843 |
Flanged bearing |
2 |
|
| 39a |
272-8807 |
Drive wheel motor |
1 |
(includes 39b-39j) |
| 39b |
272-5562 |
Tire with hub |
1 |
|
| 39c |
272-8808 |
Replacement drive motor |
1 |
|
| 39d |
272-8810 |
Carbon brush kit |
1 |
|
| 39f |
272-8811 |
Parking brake |
1 |
|
| 39g |
272-8604 |
Tire puller kit |
1 |
|
| 39h |
272-8598 |
Drive motor cover |
1 |
|
| 39i |
272-8597 |
Gearbox motor cover |
1 |
|
| 39j |
272-8813 |
Brake lever kit |
1 |
|
| 40 |
272-6330 |
Chassis weldment |
1 |
|
| 41 |
272-8814 |
Spindle weldment |
1 |
|
| 42 |
172-3320 |
Steering plate |
1 |
|
| 43 |
272-3553 |
Compression spring |
1 |
|
| 45 |
272-3555 |
Linkage weldment |
1 |
|
| 46 |
272-3556 |
Connecting rod |
1 |
|
| 47 |
272-3557 |
Connecting rod weldment |
1 |
|
| 48 |
272-8755 |
Lift lever weldment |
1 |
|
| 52 |
272-8757 |
Ground chain |
1 |
|
| 53 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 54 |
999-0201 |
Washer 3/8 internal star lock |
1 |
|
| 55 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
1 |
|
| 56 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 57a |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
1 |
|
| 57b |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
(after 3/2018) |
| 58a |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
1 |
|
| 58b |
999-1232 |
Screw 5/16-18 x 3/4 hex head stainless steel |
1 |
(after 3/2018) |
| 59 |
272-1612 |
Bolt 10mm-1.50 x 45mm hex nylon locking |
4 |
|
| 60 |
272-6334 |
Wheel bracket |
2 |
|
| 62 |
172-4211 |
Screw M4 x 40 cylinder head stainless steel |
1 |
|
| 64 |
999-1232 |
Screw 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 65 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
|
Control Assembly - 272-7582 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-6335 |
Seat (OBSOLETE) |
1 |
(272-9962 has been replaced by 272-6335 in production. Please order 172-3430 when replacing 272-9962 or 272-3359) |
| 2 |
999-0114 |
Washer 1/2 SAE flat |
1 |
|
| 3 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 4 |
999-0120 |
Washer 3/8 SAE flat |
4 |
|
| 5 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
2 |
|
| 6 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
(included in Kit1) |
| 7 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
3 |
(included in Kit1) |
| 8 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
3 |
|
| 9 |
999-0262 |
Nut 1/2-13 nylon insert jam lock zinc plated |
1 |
|
| 10 |
272-1538 |
Bolt 1/4-20 X 3/8 hex head lock |
3 |
|
| 11 |
999-1373 |
Screw 3/8-16 x 3/8 socket set lock stainless steel |
2 |
|
| 12 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
| 13 |
999-1372 |
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
| 14 |
172-2573 |
Woodruff key |
1 |
|
| 15 |
172-9387 |
Woodruff key |
3 |
|
| 16 |
172-0294 |
Retaining ring |
1 |
|
| 17 |
172-0392 |
Retaining ring |
3 |
|
| 18 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
| 19 |
999-0829 |
Screw 5/16-18 x 1 1/4 hex head plain finish |
3 |
(included in Kit1) |
| 20a |
999-1131 |
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
2 |
|
| 20b |
999-0363 |
Screw 8-32 x 3/8 hex head unslotted thread rolling |
2 |
(after 7/2019) |
| 21 |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
| 23 |
172-9388 |
Flanged bearing |
2 |
|
| 25 |
172-3176 |
Knob 1 1/4 x 1/4 - 28 |
1 |
|
| 26 |
172-0115 |
Shaft collar |
2 |
|
| 27 |
172-9068 |
Roller chain |
1 |
|
| 28 |
272-9481 |
Flanged bearing |
2 |
|
| 29 |
272-9480 |
Steering column ratchet |
1 |
|
| 30 |
172-9074 |
Universal joint |
1 |
|
| 33 |
272-8880 |
Foot pedal assembly |
1 |
|
| 34 |
272-8887 |
Steering wheel |
1 |
|
| 35 |
272-6336 |
Lower column weldment |
1 |
|
| 36 |
272-8889 |
Upper column weldment |
1 |
|
| 37 |
272-8890 |
Lower steering shaft |
1 |
|
| 38 |
272-8891 |
Upper steering shaft |
1 |
|
| 40 |
272-3517 |
Steering pawl weldment |
1 |
|
| 42 |
272-3558 |
Seat panel weldment |
1 |
|
| 43 |
272-8893 |
Lower column shroud |
1 |
|
| 44 |
272-8894 |
Steering boot |
1 |
|
| 45 |
272-9417 |
Seat switch |
1 |
|
| 46 |
272-8774 |
Cap plug |
1 |
(Standard, Ecoflex and REV) |
| 47 |
272-2177 |
Conduit clip |
1 |
|
| 48 |
997-2101 |
6 inch cable tie |
1 |
(ST) |
| 51 |
272-8882 |
Foot pedal plate |
1 |
|
| 52 |
172-0048 |
Bearing |
2 |
(ST) |
| 53 |
272-6337 |
Flanged bushing |
3 |
(included in Kit1) |
|
|

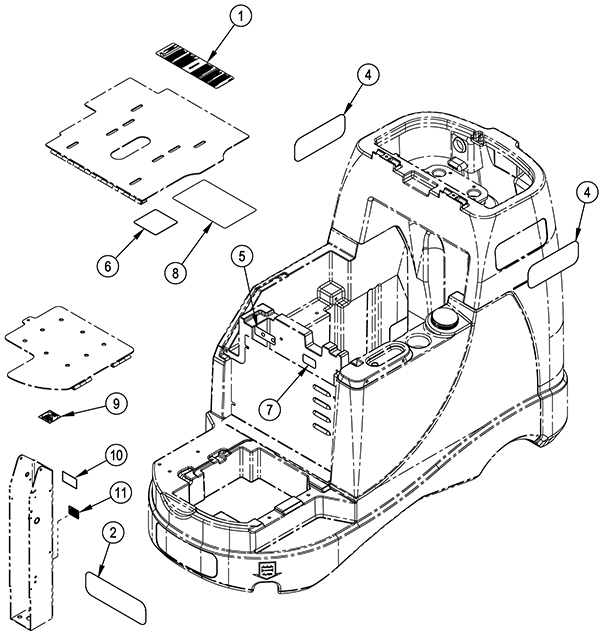

Decal Assembly - 272-7583 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-5000 |
Caution decal |
1 |
|
| 2 |
272-2292 |
Advance decal |
1 |
|
| 4a |
272-3560 |
2800ST decal |
2 |
(ST) |
| 4b |
272-3561 |
3400ST decal |
2 |
(ST) |
| 4c |
272-3562 |
Advenger decal |
2 |
(Standard) |
| 4d |
272-3563 |
Advenger EcoFlex decal |
2 |
(EcoFlex and REV) |
| 5 |
272-8766 |
Circuit breaker decal |
1 |
|
| 6 |
272-8767 |
Battery wiring decal |
1 |
|
| 8 |
272-3564 |
Error codes decal |
1 |
(Standard, EcoFlex and REV) |
| 9 |
272-3565 |
Open when charging decal |
1 |
|
| 11 |
372-1631 |
Prop 65 decal |
1 |
|
|
|

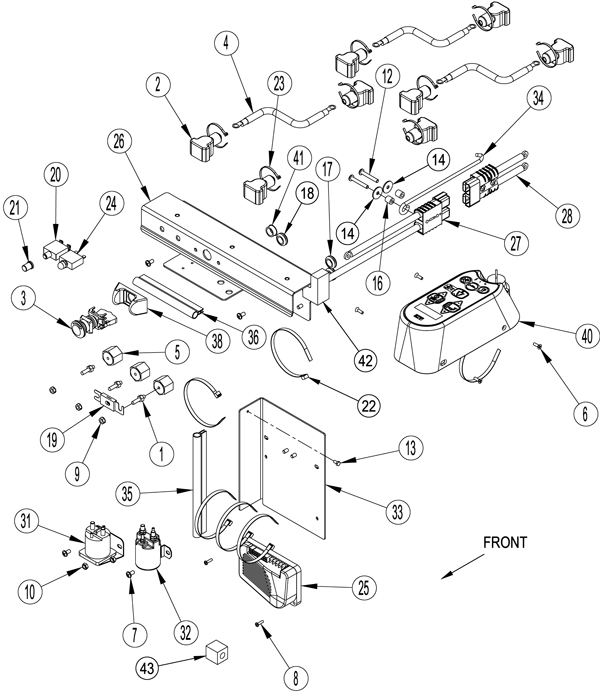

Electrical Assembly - 272-7584 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
172-0223 |
Battery cable boot |
8 |
|
| 3 |
172-9233 |
Emergency stop button |
1 |
|
| 4 |
172-8828 |
Battery cable |
3 |
|
| 5 |
172-0103 |
Electrical mount |
3 |
|
| 6 |
181-0214 |
Screw flat phil SS |
4 |
|
| 7a |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
4 |
|
| 7b |
999-0567 |
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
4 |
(after 7/2019) |
| 8 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
2 |
|
| 9 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
| 10 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 12a |
999-1030 |
Screw 1/4-20 x 2 pan head phillips stainless steel |
2 |
|
| 12b |
999-0599 |
Screw 1/4-20 x 1 3/4 pan head phillips stainless steel |
2 |
(after 7/2019) |
| 13 |
999-0793 |
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
1 |
|
| 14 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
| 18a |
172-1228 |
Grommet |
1 |
(Standard, EcoFlex and REV) |
| 18b |
172-0343 |
Grommet |
1 |
(ST) |
| 19a |
172-8836 |
150amp fuse |
1 |
|
| 19b |
991-3061 |
150amp fuse |
1 |
|
| 20 |
172-2523 |
70amp circuit breaker |
1 |
|
| 21 |
172-0232 |
Clear boot cap |
1 |
|
| 23 |
997-2101 |
6 inch cable tie |
9 |
|
| 24 |
272-9374 |
10amp circuit breaker |
1 |
|
| 25a |
272-3514 |
Speed control |
1 |
|
| 25b |
272-6348 |
Speed control |
1 |
(REV) |
| 26a |
272-6349 |
Panel |
1 |
(Standard, EcoFlex and REV) |
| 26b |
272-3567 |
Panel |
1 |
(ST) |
| 27 |
272-8791 |
Connector assembly |
1 |
|
| 28 |
272-8792 |
Connector assembly |
1 |
|
| 31 |
272-8794 |
24V contactor |
1 |
|
| 32 |
172-2163 |
24V solenoid 4 post (2 large 2 small) |
1 |
|
| 38 |
272-8799 |
Emergency button guard |
1 |
|
| 40a |
272-3571 |
Interface panel assembly (OBSOLETE) |
1 |
(includes 40d, 40g and 40h) (Standard and EcoFlex) |
| 40b |
272-7195 |
Interface panel assembly |
1 |
(includes 40e, 40g and 40h) (ST) |
| 40c |
272-6350 |
Interface panel assembly (OBSOLETE) |
1 |
(includes 40f, 40g and 40h) (REV) |
| 40d |
272-3572 |
Interface panel kit |
1 |
(Standard and EcoFlex) |
| 40e |
272-3573 |
Interface panel kit |
1 |
(ST) |
| 40f |
272-6351 |
Interface panel kit |
1 |
(REV) |
| 40g |
272-2195 |
Key switch assembly |
1 |
|
| 40h |
272-2196 |
Keys (pkg of 2) |
1 |
|
| 40i |
372-1633 |
Interface panel assembly |
1 |
(REV) (includes 40f, 40g and 40h) (after 7/2019) |
| 42 |
272-8800 |
Foam insert |
1 |
|
| 43 |
272-3574 |
Suppressor split |
1 |
|
| N/S |
272-3568 |
Main harness |
1 |
(Standard and EcoFlex) |
| N/S |
272-3569 |
Main harness |
1 |
(ST) |
| N/S |
272-6625 |
Traction harness |
1 |
|
| N/S |
272-8798 |
Cable assembly |
1 |
|
|
|

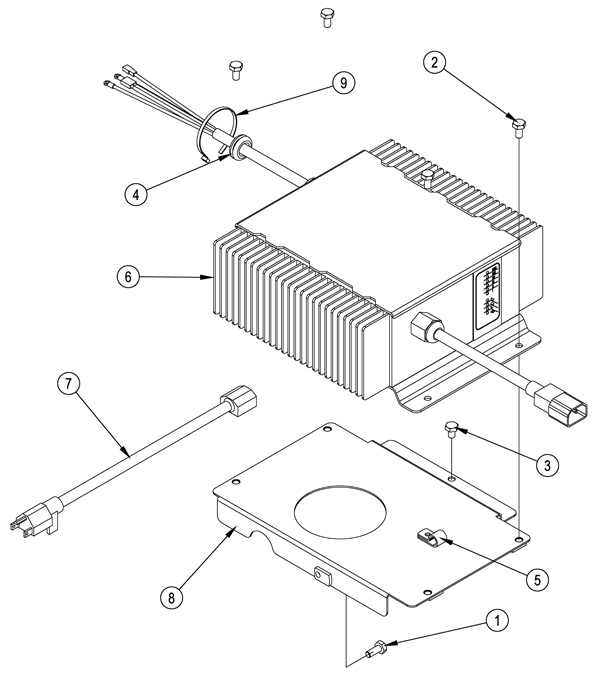

Onboard Charger Assembly - 272-7585 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0019 |
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
1 |
|
| 2 |
999-0018 |
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
4 |
|
| 3 |
999-0360 |
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
1 |
|
| 6 |
272-2358 |
24V onboard battery charger |
1 |
|
| 7a |
272-2225 |
Onboard charger cord |
1 |
|
| 7b |
991-8566 |
Onboard battery charger power cord |
1 |
|
| 8 |
272-8817 |
Charger mounting bracket |
1 |
|
| 9 |
997-2101 |
6 inch cable tie |
1 |
|
|
|

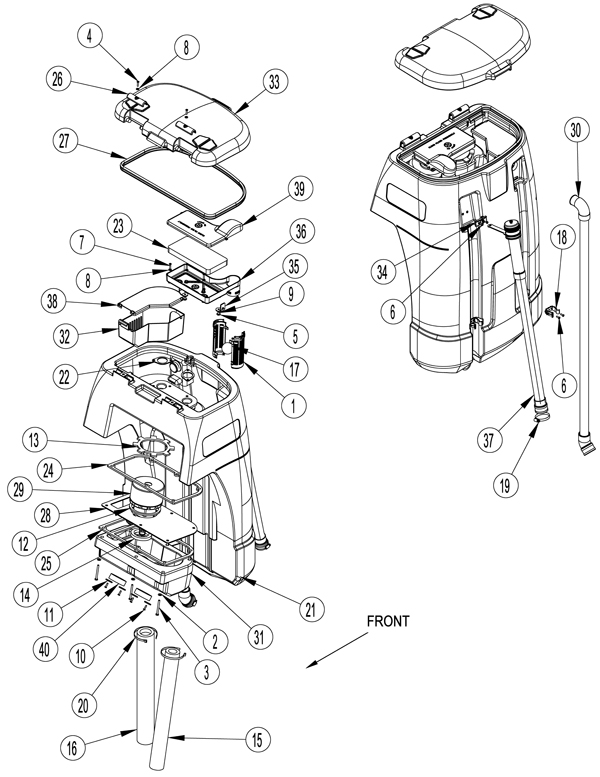

Recovery Tank Assembly - 272-7586 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-0517 |
Float cage half (2 required for full float cage) |
2 |
|
| 2 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
6 |
|
| 3 |
999-1096 |
Bolt 1/4-20 x 3 hex head stainless steel |
6 |
|
| 4 |
272-6339 |
Screw 10-24 x 8/9 pan head phillips |
2 |
|
| 5 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 6 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
6 |
|
| 7 |
999-0400 |
Screw 10-24 x 1 pan head phillips zinc plated |
4 |
|
| 8 |
999-0006 |
Washer 3/16 flat zinc plated |
6 |
|
| 9 |
272-3575 |
Screw 1/4-10 x 1/2 pan head phillips plastite SS |
2 |
|
| 10 |
999-0898 |
Screw 10-16 x 3/4 pan head phillips stainless steel type B |
4 |
(Standard, EcoFlex and REV) |
| 11 |
272-6340 |
Washer 1 1/4 flat stainless steel |
4 |
(Standard, EcoFlex and REV) |
| 12 |
172-3263 |
Vacuum duct gasket |
1 |
|
| 13 |
172-1356 |
Vac motor gasket |
1 |
|
| 14 |
272-0430 |
Vacuum duct gasket |
1 |
|
| 15 |
272-2308 |
Acoustic hose |
1 |
|
| 16 |
272-3577 |
Foam tube assembly |
1 |
(Standard, EcoFlex and REV) |
| 18 |
272-1159 |
Plastic clamp |
2 |
|
| 21 |
272-3578 |
Recovery tank |
1 |
|
| 22 |
272-3579 |
Vacuum filter gasket |
2 |
|
| 24 |
272-6341 |
Exhaust gasket |
1 |
|
| 25 |
272-6342 |
Vacuum gasket |
1 |
|
| 26 |
272-7242 |
Hinge clamp |
2 |
|
| 27 |
272-6343 |
Recovery tank gasket |
1 |
|
| 28 |
272-3580 |
Vacuum plate |
1 |
|
| 29a |
272-9271 |
Vacuum motor |
1 |
|
| 29b |
991-1221 |
Carbon brush without plastic cover (pkg of 2) |
1 |
|
| 30 |
272-9268 |
Squeegee vacuum hose |
1 |
|
| 31 |
272-3581 |
Vacuum motor cover |
1 |
|
| 32 |
272-3582 |
Strainer basket |
1 |
(Standard, EcoFlex and REV) |
| 33 |
272-9269 |
Recovery tank lid |
1 |
|
| 34 |
272-3583 |
Drain hose hook |
1 |
|
| 35 |
272-7254 |
Filter cover strap |
2 |
|
| 37 |
172-3352 |
Drain hose |
1 |
(recovery drain hose) |
| 38 |
272-3585 |
Debris cover |
1 |
(Standard, EcoFlex and REV) |
| 39 |
272-3576 |
Filter box cover with gasket |
1 |
|
| 40 |
272-6344 |
Filter |
2 |
(Standard, EcoFlex and REV) |
|
|

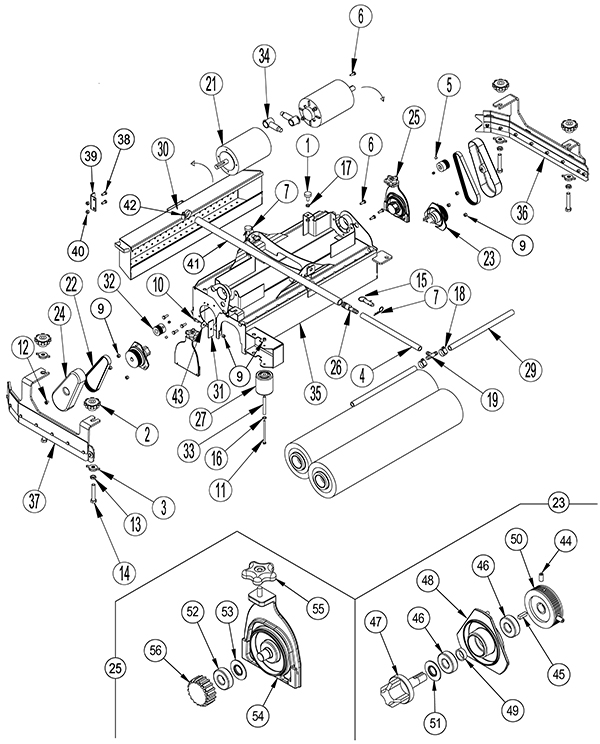

Scrub Deck Assembly - Cylindrical - 272-7587 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-2503 |
Tank leveler |
2 |
|
| 4 |
172-2815 |
Main solution hose |
1 |
|
| 5 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
4 |
|
| 6 |
272-1596 |
Bolt 1/4-20 x 3/4 hex head lock |
6 |
|
| 9 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
9 |
|
| 10 |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
| 11 |
372-1626 |
Screw M6-1 x 95mm hex head |
1 |
|
| 12a |
272-1562 |
Screw 1/4-20 x 3/5 pan head thread forming |
2 |
|
| 12b |
999-0360 |
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
(after 7/2019) |
| 13 |
999-1377 |
Nut M12-1.75 hex jam |
4 |
|
| 14 |
999-1349 |
Screw M12-1.75 x 70mm full thread hex head stainless steel |
4 |
|
| 15a |
172-3360 |
Ring pin 1/2 x 1-1/4 |
2 |
|
| 15b |
272-7255 |
Ring pin |
2 |
(after 7/2019) |
| 16 |
272-1670 |
Washer 3/8 bowed |
2 |
|
| 17 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
4 |
|
| 21a |
272-2148 |
24V brush motor |
2 |
(includes 21b-21d) |
| 21b |
172-8951 |
Carbon brush and spring kit |
1 |
|
| 22 |
272-2150 |
Tension belt |
2 |
|
| 23a |
172-8933 |
Drive end assembly |
2 |
(includes 44-51) |
| 23b |
472-4877 |
DRIVE END ASSY |
2 |
(includes 44-51) (after 7/2019) |
| 25 |
172-3373 |
Idler end assembly |
2 |
(includes 52-56) |
| 26 |
272-2213 |
Coupler 1/2 x 3/4 barb |
1 |
|
| 28 |
272-5438 |
Motor spacer plate (OBSOLETE) |
2 |
(Motor spacer plate) |
| 29 |
272-5415 |
28 inch manifold |
2 |
|
| 30 |
272-3588 |
Hopper weldment |
1 |
|
| 32 |
172-8928 |
Poly-v sheave |
2 |
|
| 34 |
172-8964 |
Terminal insulator |
2 |
|
| 35 |
272-6346 |
Housing weldment |
1 |
|
| 36 |
272-3590 |
Left side skirt assembly |
1 |
|
| 37 |
272-3591 |
Right side skirt assembly |
1 |
|
| 38 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 40 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 41a |
991-1405 |
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
1 |
|
| 41b |
172-8496 |
PVC hose |
1 |
(after 7/2019) |
| 43 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
| 44a |
181-0003 |
Screw 1/4-20 x 1/2 socket set lock |
2 |
|
| 44b |
272-1454 |
Screw 1/4-20 X 3/8 socket set lock |
2 |
(after 7/2019) |
| 45 |
172-8956 |
Square keyway |
1 |
|
| 46 |
172-4656 |
Ball bearing |
2 |
|
| 47b |
472-4878 |
SPINDLE-LONG |
1 |
(after 7/2019) |
| 48 |
272-2169 |
Bearing plate |
1 |
|
| 50a |
172-8959 |
Poly-v sheave |
1 |
|
| 50b |
472-4875 |
SHEAVE-POLY V |
1 |
(after 7/2019) |
| 51 |
172-1837 |
Bearing washer |
1 |
|
| 52 |
172-4656 |
Ball bearing |
1 |
|
| 53 |
172-1837 |
Bearing washer |
1 |
|
| 54 |
272-2170 |
Idler bearing plate |
1 |
|
| N/S |
272-3587 |
Brush motor harness |
2 |
|
|
|

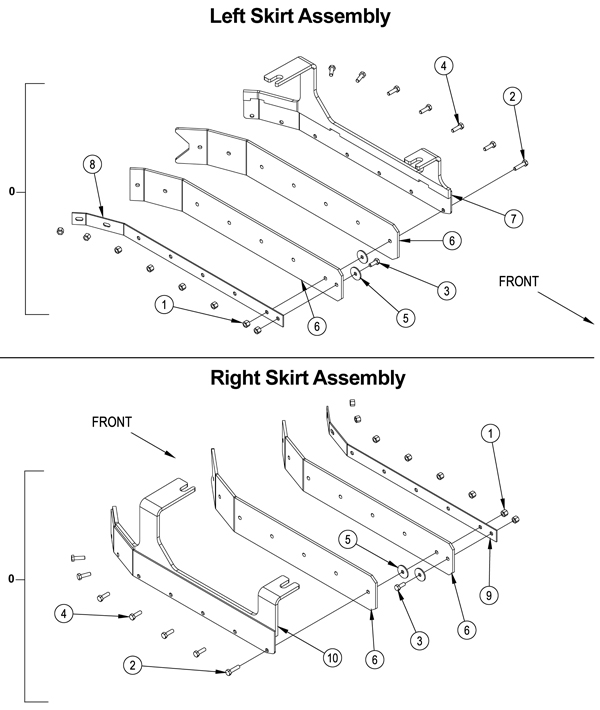

Scrub Skirt Assembly- Cylindrical - 272-7588 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
272-3590 |
Left side skirt assembly |
1 |
|
| 0b |
272-3591 |
Right side skirt assembly |
1 |
|
| 1 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
8 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) |
| 3 |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
1 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) |
| 4 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
6 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) |
| 8 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) |
| 6a |
272-3593 |
Skirt blade gum rubber (set of 4) |
1 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) |
| 6b |
272-3594 |
Skirt blade urethane |
1 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) (optional) |
| 6c |
272-3595 |
Skirt blade linatex |
1 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) (optional) |
| 7 |
272-6352 |
Left skirt weldment bracket |
1 |
(Quantity shown is for one skirt assembly. There are two skirt assemblies on the machine.) |
| 8 |
272-6353 |
Left skirt retainer |
1 |
|
| 9 |
272-6354 |
Right skirt retainer |
1 |
|
| 10 |
272-6355 |
Right skirt weldment bracket |
1 |
|
|
|

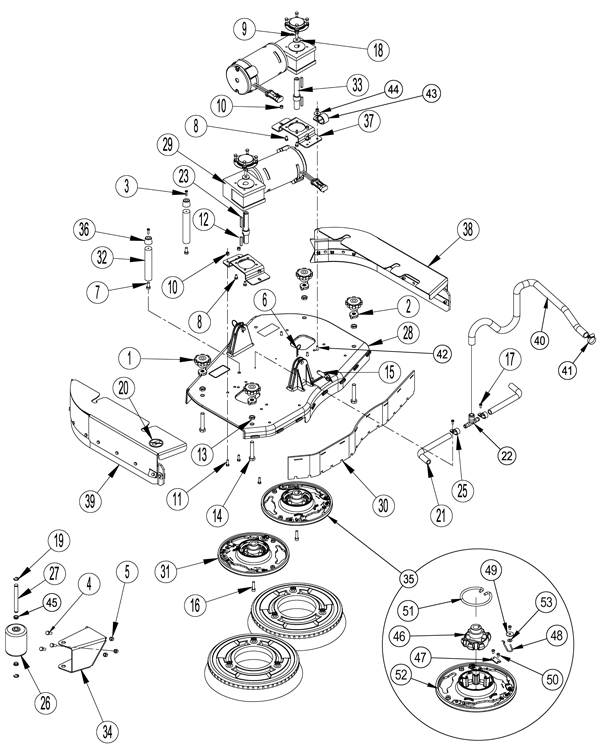

Scrub Deck Assembly - Disk - 28 inch - 272-7589 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-9281 |
Knob |
4 |
(TSBUS2010-1060) |
| 3 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
| 4 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
3 |
|
| 5 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
| 6a |
172-2001 |
Hair cotter pin |
2 |
|
| 7 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 8 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
8 |
|
| 9 |
999-0494 |
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
| 10 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
6 |
|
| 11 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
5 |
|
| 13 |
999-1377 |
Nut M12-1.75 hex jam |
4 |
|
| 14 |
999-1349 |
Screw M12-1.75 x 70mm full thread hex head stainless steel |
4 |
|
| 16 |
272-9905 |
Screw 5/16-18 x 1 1/4 socket head zinc plated |
2 |
|
| 17 |
999-0545 |
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
| 18 |
172-3047 |
Washer 11/32 x 1/8 flat |
2 |
|
| 19 |
172-0269 |
Retaining ring |
2 |
|
| 20 |
172-3428 |
No step decal |
1 |
|
| 21 |
172-9351 |
Spiral hose |
2 |
|
| 23 |
172-3388 |
Square keyway |
2 |
|
| 26 |
172-9157 |
Roller wheel |
1 |
|
| 28 |
272-3604 |
Scrub deck weldment |
1 |
|
| 29a |
272-3605 |
Motor gearbox assembly |
2 |
(includes 29b-29h) |
| 29e |
272-3608 |
Carbon brush (sold individually) |
2 |
|
| 29f |
272-3609 |
Square keyway |
1 |
|
| 29g |
272-3610 |
Brush motor cover |
1 |
|
| 30a |
272-8733 |
Squeegee blade 28 inch gum rubber front |
1 |
|
| 30b |
272-3600 |
Squeegee blade 28 inch urethane front |
1 |
(optional) |
| 31 |
272-3613 |
Right brush plate assembly |
1 |
(includes 46-53) |
| 35 |
272-3618 |
Left brush plate assembly |
1 |
(includes 46-53) |
| 37 |
272-3619 |
Motor bracket |
2 |
|
| 38a |
272-3602 |
Left skirt assembly |
1 |
|
| 38b |
472-7892 |
SKIRT ASSY-LEFT-28D |
1 |
|
| 38c |
472-7889 |
SKIRT ASSY KIT-28 IN |
1 |
(the original skirt assemblies are no longer available. if you have a machine built prior to January 20, 2014 and you need to replace either skirt assembly, order this kit and replace as a matched pair) |
| 39a |
272-8603 |
Right skirt assembly |
1 |
|
| 39b |
472-7891 |
SKIRT ASSY-RIGHT-28-34D |
1 |
|
| 42 |
999-0518 |
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
| 44 |
272-1288 |
Washer 21/64-1 x 1/16 flat stainless steel |
1 |
|
| 45 |
172-8919 |
Flanged bearing |
2 |
|
| 46 |
272-7257 |
6 tab gimbal and collar assembly |
1 |
|
| 48 |
272-9883 |
Retainer spring |
2 |
|
| 49 |
172-0553 |
Washer 17/64 x 1/16 flat |
2 |
|
| 50 |
999-1833 |
Screw 10-14 x 3/8 pan head phillips stainless steel |
3 |
|
| 51 |
272-9884 |
Brush holder spring |
1 |
|
| 52 |
272-9885 |
Brush plate |
1 |
|
| 53a |
999-0006 |
Washer 3/16 flat zinc plated |
1 |
|
| 53b |
999-1862 |
Washer #10 flat SAE stainless steel |
1 |
|
|
|

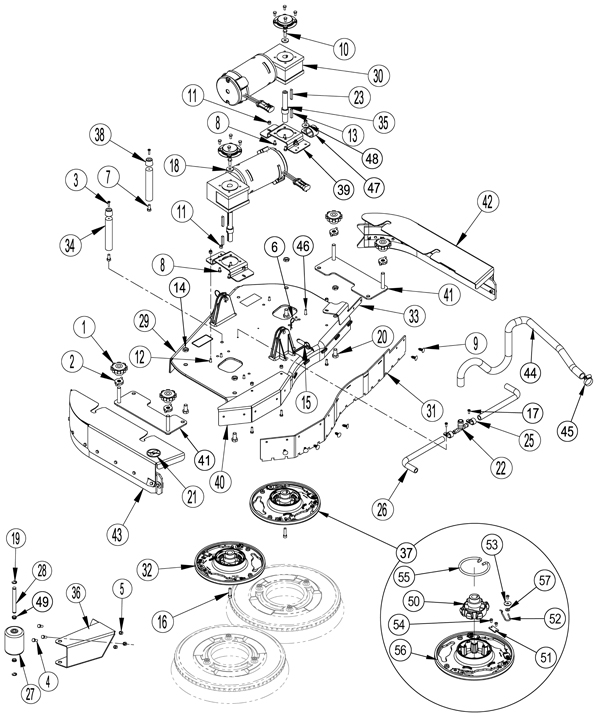

Scrub Deck Assembly - Disk - 34 inch - 272-7590 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
172-9281 |
Knob |
4 |
(TSBUS2010-1060) |
| 3 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
| 4 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
3 |
|
| 5 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
| 6a |
172-2001 |
Hair cotter pin |
2 |
|
| 7 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 8 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
8 |
|
| 9 |
991-5122 |
1/4 nylon tree push-in rivet |
7 |
|
| 10 |
999-0494 |
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
| 11 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
9 |
|
| 12 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
8 |
|
| 14 |
999-1377 |
Nut M12-1.75 hex jam |
4 |
|
| 16 |
272-9905 |
Screw 5/16-18 x 1 1/4 socket head zinc plated |
2 |
|
| 17 |
999-0545 |
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
| 18 |
172-3047 |
Washer 11/32 x 1/8 flat |
2 |
|
| 19 |
172-0269 |
Retaining ring |
2 |
|
| 20 |
272-1654 |
Bolt 12mm-1 3/4 x 25mm |
4 |
|
| 21 |
172-3428 |
No step decal |
1 |
|
| 23 |
172-3388 |
Square keyway |
2 |
|
| 26 |
272-0070 |
Wire reinforced hose |
2 |
|
| 27 |
172-9157 |
Roller wheel |
1 |
|
| 29 |
272-3604 |
Scrub deck weldment |
1 |
|
| 30a |
272-3605 |
Motor gearbox assembly |
2 |
(includes 30b-30h) |
| 30e |
272-3608 |
Carbon brush (sold individually) |
2 |
|
| 30f |
272-3609 |
Square keyway |
1 |
|
| 30g |
272-3610 |
Brush motor cover |
1 |
|
| 31a |
272-3612 |
Squeegee blade 34 inch gum rubber front |
1 |
|
| 31b |
272-3625 |
Squeegee blade 34 inch urethane front |
1 |
(optional) |
| 32 |
272-3613 |
Right brush plate assembly |
1 |
(includes 50-57) |
| 33 |
272-3614 |
Skirt bracket |
1 |
|
| 36 |
272-6538 |
Roller bracket |
1 |
|
| 37 |
272-3618 |
Left brush plate assembly |
1 |
(includes 50-57) |
| 39 |
272-3619 |
Motor bracket |
2 |
|
| 40 |
272-3620 |
Brush cover |
1 |
|
| 41a |
270-8583 |
Side skirt weldment |
2 |
|
| 41b |
270-8583 |
Side skirt weldment |
2 |
(after 7/2019) |
| 42a |
272-8602 |
Left skirt assembly |
1 |
|
| 42b |
472-7893 |
SKIRT ASSY-LEFT-34D |
1 |
(after 7/2019) |
| 42c |
472-7890 |
SKIRT ASSY KIT-34 IN |
1 |
(original skirt assemblies are no longer available. If you have a machine built prior to January 20, 2014, you should ordeer this assembly to replace them as a matched pair.) |
| 43a |
272-8603 |
Right skirt assembly |
1 |
|
| 43b |
472-7891 |
SKIRT ASSY-RIGHT-28-34D |
1 |
(after 7/2019) |
| 46 |
999-0518 |
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
| 48 |
272-1288 |
Washer 21/64-1 x 1/16 flat stainless steel |
1 |
|
| 49 |
172-8919 |
Flanged bearing |
2 |
|
| 50 |
272-7257 |
6 tab gimbal and collar assembly |
1 |
|
| 52 |
272-9883 |
Retainer spring |
2 |
|
| 53 |
172-0553 |
Washer 17/64 x 1/16 flat |
1 |
|
| 54 |
999-1833 |
Screw 10-14 x 3/8 pan head phillips stainless steel |
4 |
|
| 55 |
272-9884 |
Brush holder spring |
1 |
|
| 56 |
272-9885 |
Brush plate |
1 |
|
| 57 |
999-0006 |
Washer 3/16 flat zinc plated |
1 |
|
| N/S |
272-3622 |
Ferrite bead |
1 |
(installed on main harness) |
| N/S |
272-3623 |
Ferrite bead |
2 |
(installed on each brush drive motor) |
|
|

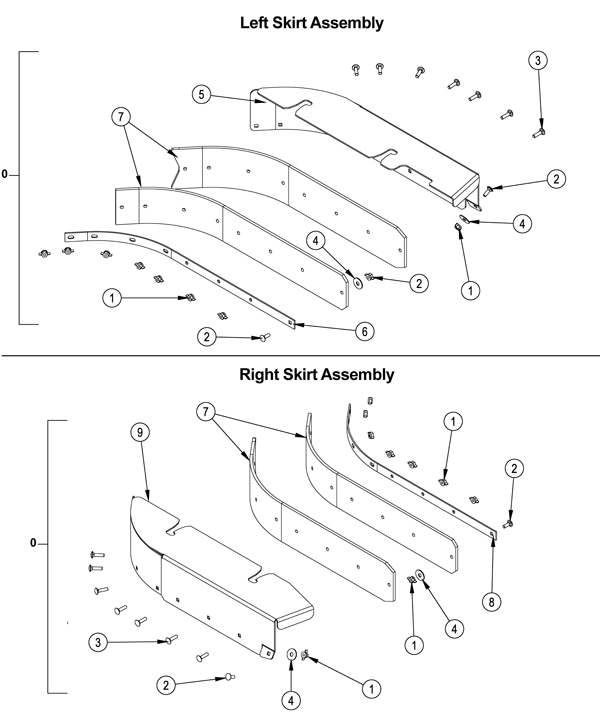

Scrub Skirt Assembly - Disk - 272-7591 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
272-3602 |
Left skirt assembly |
1 |
(28 inch models) |
| 0b |
272-8602 |
Left skirt assembly |
1 |
(34 inch models) |
| 0c |
272-8603 |
Right skirt assembly |
1 |
(all models) |
| 1a |
999-1948 |
Nut 1/4-20 wing lock |
9 |
(OEM) (Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
| 1b |
999-1948 |
Nut 1/4-20 wing lock |
9 |
(NON-OEM) |
| 2 |
272-3627 |
Screw 1/4-20 x 3/4 carriage head stainless steel |
2 |
(Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
| 3 |
272-3628 |
Screw 1/4-20 x 1 carriage head stainless steel |
7 |
(Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
| 4 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
(Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
| 5a |
N/A |
Not available |
1 |
(28 inch left skirt frame) |
| 5b |
N/A |
Not available |
1 |
(34 inch left skirt frame) |
| 6a |
272-6385 |
28 inch skirt retainer |
1 |
( 28 inch models) |
| 6b |
272-6386 |
34 inch skirt retainer |
1 |
(34 inch models) |
| 7a |
172-4687 |
Skirt blade kit gum rubber (tan) (set of 2) |
1 |
(Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine,) |
| 7b |
272-6387 |
Skirt blade kit polyurethane |
1 |
(optional) (Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
| 7c |
272-6388 |
Skirt blade kit gum rubber red (pkg of 4) |
1 |
(optional) (Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
| 8 |
272-6385 |
28 inch skirt retainer |
1 |
(all models) (Quantities shown are for one skirt assembly. There are two skirt assemblies on the machine.) |
| 9 |
N/A |
Not available |
1 |
(Right skirt frame) |
|
|

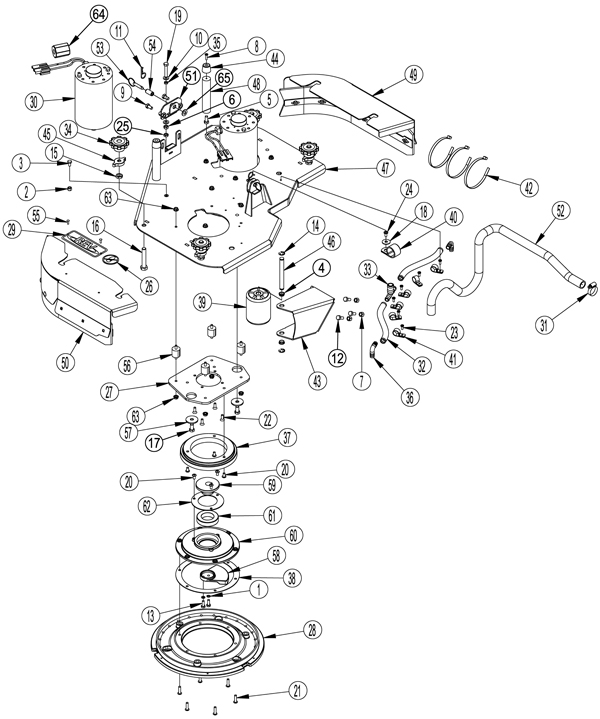

Scrub Deck Assembly - REV - 272-7592 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
4 |
(Washer) (included in Kit 2) |
| 2 |
N/A |
Not available |
1 |
(Nut) (included in Kit 2) |
| 3 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
1 |
(included in Kit 2) |
| 4 |
172-8919 |
Flanged bearing |
2 |
|
| 5 |
N/A |
Not available |
2 |
(Screw) (included in Kit 2) |
| 6 |
N/A |
Not available |
1 |
(Nut) (included in Kit 2) |
| 7 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
| 8 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
(included in Kit 2) |
| 9 |
N/A |
Not available |
2 |
(Screw) (included in Kit 2) |
| 10 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
(included in Kit 2) |
| 11a |
172-2001 |
Hair cotter pin |
2 |
|
| 11b |
272-9987 |
Cotter pin |
2 |
(after 7/2019) |
| 12 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
3 |
|
| 13 |
N/A |
Not available |
4 |
(Screw) (included in Kit 2) |
| 14 |
172-0269 |
Retaining ring |
2 |
|
| 15 |
999-1377 |
Nut M12-1.75 hex jam |
4 |
|
| 16 |
999-1349 |
Screw M12-1.75 x 70mm full thread hex head stainless steel |
4 |
|
| 17 |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
4 |
|
| 18 |
272-1288 |
Washer 21/64-1 x 1/16 flat stainless steel |
1 |
(included in Kit 1) |
| 19 |
N/A |
Not available |
1 |
(Screw) (included in Kit 2) |
| 20 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
12 |
(included in Kit 2) |
| 21 |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
12 |
(included in Kit 2) |
| 22 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
8 |
(included in Kit 2) |
| 23 |
999-0545 |
Screw 10-24 x 1/2 pan head phillips self-tapping |
6 |
(included in Kit 1) |
| 24 |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
1 |
(included in Kit 1) |
| 25 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
(included in Kit 2) |
| 26 |
172-3428 |
No step decal |
1 |
|
| 27 |
272-6545 |
Motor plate |
2 |
|
| 28a |
272-9933 |
Pad driver kit |
2 |
|
| 28b |
272-6546 |
Pad driver hook kit |
2 |
|
| 30a |
272-6547 |
Motor |
2 |
(includes 30b-30d) |
| 30b |
172-8951 |
Carbon brush and spring kit |
2 |
|
| 30c |
170-0009 |
Connector housing |
2 |
|
| 30d |
272-9949 |
Connector contact |
2 |
|
| 30e |
272-3688 |
Brush and spring kit |
2 |
(after 7/2019) |
| 32 |
154-0037 |
Tubing 1/2 x 5/8 (clear) (sold by the foot) |
2 |
(included in Kit 1) |
| 33 |
272-3603 |
Barbed tee |
1 |
(included in Kit 1) |
| 35 |
N/A |
Not available |
1 |
(Bushing) (included in Kit 2) |
| 36 |
170-2963 |
90 degree barbed elbow |
2 |
(included in Kit 1) |
| 37 |
272-6548 |
Splash shield |
2 |
|
| 38 |
272-6368 |
Driver gasket |
2 |
|
| 39 |
172-9157 |
Roller wheel |
1 |
|
| 40 |
172-9261 |
P clamp |
1 |
(included in Kit 1) |
| 41 |
172-2071 |
P clamp |
1 |
(included in Kit 1) |
| 47 |
272-6358 |
Scrub deck weldment |
1 |
|
| 49 |
272-6360 |
REV left skirt assembly |
1 |
|
| 50 |
272-6361 |
REV right skirt assembly |
1 |
(Rivet) |
| 51 |
272-6362 |
Bracket weldment |
1 |
|
| 52 |
272-6357 |
Hose |
1 |
(included in Kit 1) |
| 55 |
N/A |
Not available |
2 |
(rivet) (included in Kit 2) |
| 56a |
170-9016 |
Rubber mounting isolator kit |
1 |
|
| 56b |
372-1634 |
Isolator |
8 |
(after 7/2019) |
| 57 |
272-1513 |
Washer 13/32 x 1 1/2 x 1/8 flat |
4 |
|
| 58 |
272-9946 |
Counter weight |
2 |
(Nut) |
| 60 |
272-9947 |
Motor driver |
2 |
|
| 62 |
270-0126 |
Bearing retainer |
2 |
|
| 63 |
N/A |
Not available |
16 |
(nut serrated flange) (included in Kit 2) |
| 64 |
272-3623 |
Ferrite bead |
2 |
|
| 65a |
272-6367 |
Washer nylon flat |
2 |
|
| 65b |
170-5613 |
Bushing Link Arm |
2 |
(after 7/2019) |
| Kit 1 |
272-6543 |
Solution hose kit |
1 |
(Kit 1) (includes 18, 23-24, 32-33, 36, 40-41, 52) |
| Kit 2 |
272-6544 |
REV deck hardware kit |
1 |
(Kit 2) (includes 1-3, 5-6, 8-10, 13, 19-22, 25, 35, 55, 63) |
|
|

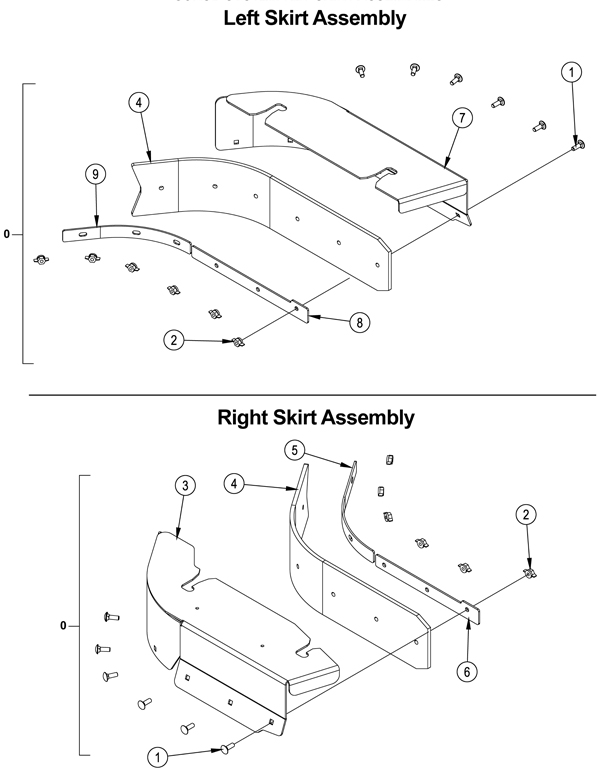

Scrub Skirt Assembly - REV - 272-7593 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
272-6360 |
REV left skirt assembly |
1 |
(includes 1, 2, 4, and 7-9) (left hand side) |
| 0b |
272-6361 |
REV right skirt assembly |
1 |
(includes 1-6) (right hand side) |
| 1 |
272-3627 |
Screw 1/4-20 x 3/4 carriage head stainless steel |
12 |
|
| 2a |
999-1948 |
Nut 1/4-20 wing lock |
12 |
(OEM) |
| 2b |
999-1948 |
Nut 1/4-20 wing lock |
12 |
(NON-OEM) |
| 3 |
372-1257 |
Frame skirt |
1 |
(right hand side) |
| 4 |
272-6370 |
Skirt blade kit gum rubber |
1 |
|
| 5 |
372-1258 |
Retainer skirt |
1 |
|
| 6 |
372-1635 |
Skirt retainer |
1 |
|
| 7 |
N/A |
Not available |
1 |
(frame skirt) (left hand side) |
| 8 |
372-1259 |
Retainer skirt |
1 |
|
| 9 |
372-1260 |
Retainer skirt |
1 |
|
|
|

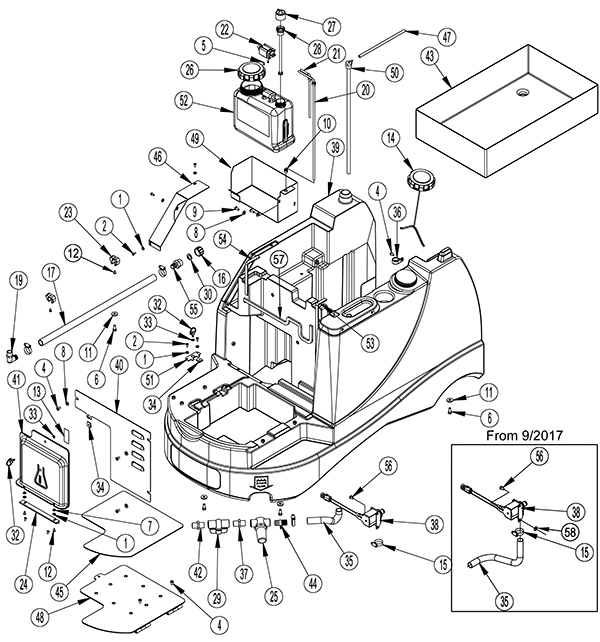

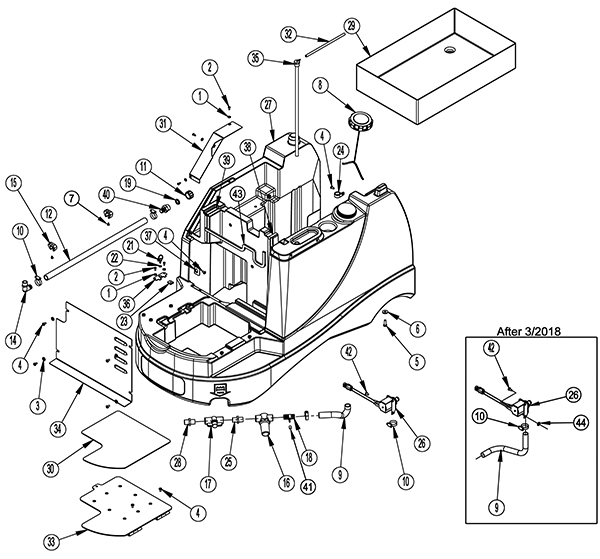

Solution Assembly - Ecoflex and REV - 272-7594 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0998 |
Washer #10 flat stainless steel |
7 |
|
| 2 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
5 |
|
| 4 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
8 |
|
| 5 |
999-1865 |
Screw 6-32 x 5/16 pan head phillips thread cutting ss |
2 |
|
| 6 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 7 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 8 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
| 9 |
999-0567 |
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
2 |
|
| 10 |
272-2174 |
Snub bushing |
3 |
|
| 11 |
172-2067 |
Washer 11/32 x 1/8 flat |
4 |
|
| 12 |
272-6384 |
Screw 10-24 x .38 pan head phillips loc SS |
6 |
|
| 13 |
272-9827 |
Chemical ratio decal |
1 |
|
| 14 |
272-9352 |
Raw cap with tether |
1 |
|
| 16 |
172-0254 |
Nylon pipe cap |
1 |
|
| 19 |
272-1448 |
90 degree elbow barb |
1 |
|
| 20 |
272-3637 |
Chemical resistant hose |
1 |
|
| 21 |
272-5404 |
Chemical resistant hose |
1 |
|
| 22 |
272-2175 |
Chemical pump |
1 |
|
| 25a |
272-2342 |
Solution filter |
1 |
|
| 25b |
272-3639 |
Solution filter kit |
1 |
(optional) |
| 26 |
272-2180 |
Solution fill cap |
1 |
|
| 27 |
272-2182 |
Dry break cap |
1 |
|
| 28 |
272-2184 |
Dry break insert |
1 |
|
| 30 |
172-0197 |
Rubber washer |
1 |
|
| 35 |
170-7102 |
Solution hose |
1 |
|
| 38 |
272-9265 |
Solenoid valve |
1 |
|
| 39 |
272-3641 |
Solution tank |
1 |
|
| 41 |
272-3643 |
Chemical bottle cover |
1 |
|
| 42 |
272-3644 |
Reducer nipple |
1 |
(272-3644 is only used on machines built before December 16, 2013. After that date it is replaced by 172-2099) |
| 43 |
272-8863 |
Battery box |
1 |
|
| 48 |
272-8865 |
Charger cover weldment |
1 |
|
| 50 |
272-3648 |
Pressure sensing tube with elbow |
1 |
|
| 52a |
272-9832 |
Chemical bottle assembly |
1 |
|
| 52b |
272-9833 |
Chemical bottle assembly |
1 |
(optional) (includes 26, 28 and 52) |
| 56 |
272-6383 |
Screw 1/4-20 x 3/4 hex loc stainless steel |
1 |
|
|
|
Solution Assembly - Standard - 272-7595 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0998 |
Washer #10 flat stainless steel |
5 |
|
| 2 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
5 |
|
| 3 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 4 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
10 |
|
| 5 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 6 |
172-2067 |
Washer 11/32 x 1/8 flat |
4 |
|
| 7 |
272-6384 |
Screw 10-24 x .38 pan head phillips loc SS |
2 |
|
| 8 |
272-9352 |
Raw cap with tether |
1 |
|
| 9 |
170-7102 |
Solution hose |
1 |
|
| 11 |
172-0254 |
Nylon pipe cap |
1 |
|
| 12 |
272-1410 |
Hose |
1 |
(solution drain hose) |
| 14 |
272-1448 |
90 degree elbow barb |
1 |
|
| 16a |
272-2342 |
Solution filter |
1 |
|
| 16b |
272-3639 |
Solution filter kit |
1 |
(optional) |
| 19 |
172-0197 |
Rubber washer |
1 |
|
| 26 |
272-9265 |
Solenoid valve |
1 |
|
| 27 |
272-3641 |
Solution tank |
1 |
|
| 28 |
272-3644 |
Reducer nipple |
1 |
(272-3644 is only used on machines built before December 16, 2013. After that date it is replaced with 172-2099.) |
| 29 |
272-8863 |
Battery box |
1 |
|
| 33 |
272-8865 |
Charger cover weldment |
1 |
|
| 34 |
272-6379 |
Electrical cover panel |
1 |
|
| 35 |
272-3648 |
Pressure sensing tube with elbow |
1 |
|
| 42 |
272-6383 |
Screw 1/4-20 x 3/4 hex loc stainless steel |
1 |
|
|
|

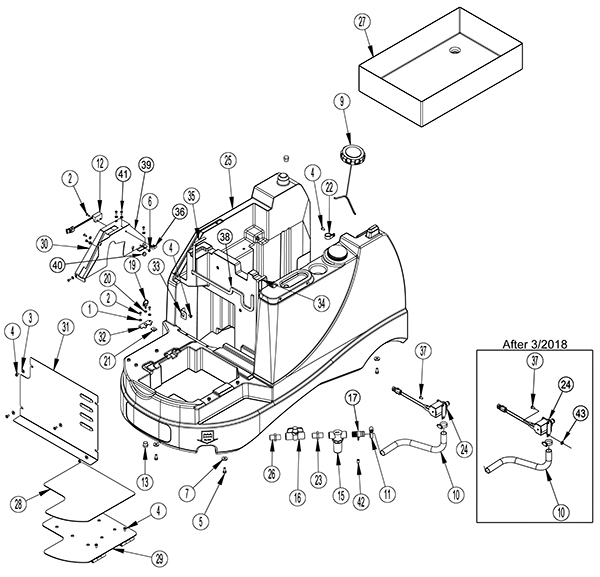

Solution Assembly - ST - 272-7596 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0998 |
Washer #10 flat stainless steel |
8 |
|
| 2 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
7 |
|
| 3 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 4 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
10 |
|
| 5 |
999-0132 |
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
| 6 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 7 |
172-2067 |
Washer 11/32 x 1/8 flat |
4 |
|
| 9 |
272-9352 |
Raw cap with tether |
1 |
|
| 10 |
170-7102 |
Solution hose |
1 |
|
| 12 |
272-8850 |
Proximity sensor |
1 |
|
| 15a |
272-2342 |
Solution filter |
1 |
|
| 15b |
272-3639 |
Solution filter kit |
1 |
(optional) |
| 24 |
272-9265 |
Solenoid valve |
1 |
|
| 25 |
272-3641 |
Solution tank |
1 |
|
| 26 |
272-3644 |
Reducer nipple |
1 |
(272-3644 is only used on machines built before December 16, 2013. After that date it is replaced with 172-2099.) |
| 27 |
272-8863 |
Battery box |
1 |
|
| 29 |
272-8865 |
Charger cover weldment |
1 |
|
| 30 |
272-6380 |
Top panel handle cover |
1 |
|
| 31 |
272-6379 |
Electrical cover panel |
1 |
|
| 33 |
272-8870 |
L bracket |
1 |
(Bracket) |
| 36 |
272-8754 |
Conduit clip |
1 |
|
| 37 |
272-6383 |
Screw 1/4-20 x 3/4 hex loc stainless steel |
1 |
|
| 39 |
272-8872 |
Handle cover weldment |
1 |
|
| 41 |
999-0545 |
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
|
|

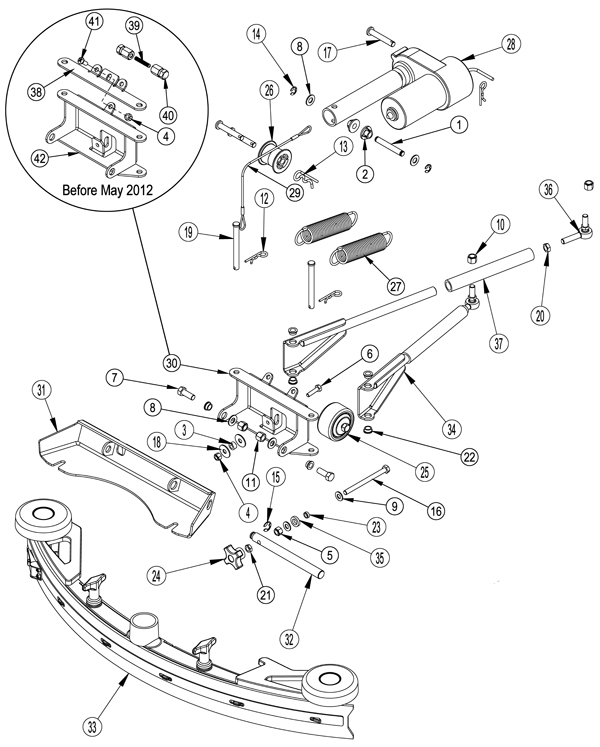

Squeegee System - Standard, Ecoflex and REV - 272-7597 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 4 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 5 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 6 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 7 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
| 8 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
| 9 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 10 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
2 |
|
| 11 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
| 14 |
172-4033 |
3/8 inch retaining ring |
2 |
|
| 15 |
172-0269 |
Retaining ring |
1 |
|
| 18 |
272-1288 |
Washer 21/64-1 x 1/16 flat stainless steel |
2 |
|
| 20 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
2 |
|
| 21 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 22 |
172-8815 |
Flanged bearing |
6 |
|
| 27 |
172-9090 |
Extension spring |
2 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 29 |
272-3652 |
Cable assembly |
1 |
|
| 30 |
272-6381 |
Squeegee pivot weldment |
1 |
(After April 2012) |
| 31 |
272-7364 |
Squeegee mount weldment |
1 |
|
| 33a |
272-3656 |
28 inch squeegee assembly |
1 |
|
| 33b |
272-7245 |
34 inch squeegee assembly |
1 |
|
| 34 |
272-3657 |
Bar weldment |
2 |
|
| 35 |
272-3658 |
Polyurethane washer |
1 |
|
| 38 |
272-3661 |
Spring bracket |
1 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 39 |
272-3662 |
Threaded rod |
1 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 40 |
272-6382 |
Spring nut |
2 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 41 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
1 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 42 |
272-3664 |
Squeegee pivot weldment |
1 |
(Before May 2012) |
|
|

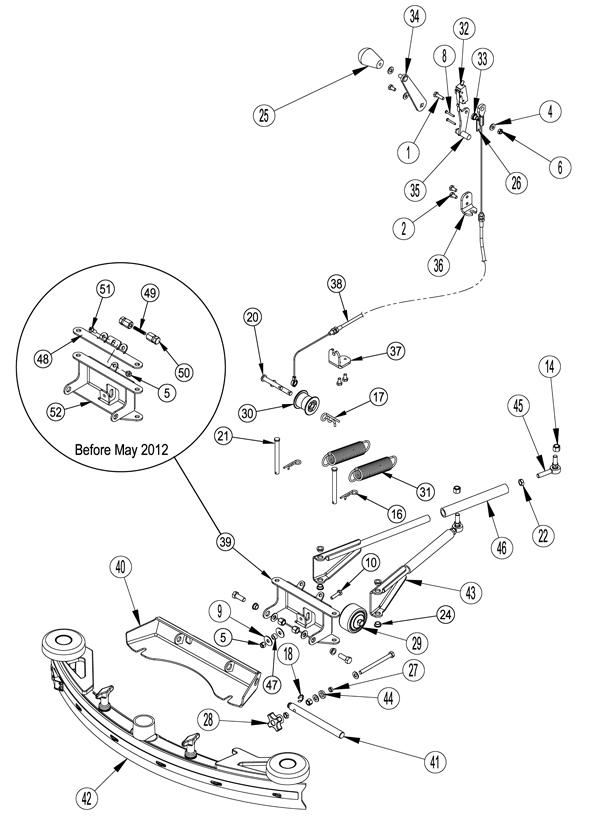

Squeegee System - ST - 272-7598 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0822 |
Screw 1/4-20 x 7/8 hex head plain finish |
1 |
|
| 2 |
999-0018 |
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
5 |
|
| 3 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 4 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 5 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 6 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 7 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 8 |
999-0511 |
Screw 6-32 x 1 pan head phillips zinc plated |
2 |
|
| 9 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 10 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 11 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
2 |
|
| 12 |
999-0355 |
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
| 13 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 14 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
2 |
|
| 15 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
2 |
|
| 18 |
172-0269 |
Retaining ring |
1 |
|
| 22 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
2 |
|
| 23 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 24 |
172-8815 |
Flanged bearing |
6 |
|
| 31 |
172-9090 |
Extension spring |
2 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 33 |
272-3663 |
Cable bushing |
1 |
|
| 34 |
272-3666 |
Linkage arm |
1 |
|
| 35 |
272-3667 |
Linkage weldment |
1 |
|
| 36 |
272-3668 |
Cable bracket |
1 |
|
| 37 |
272-3669 |
Cable bracket |
1 |
|
| 39 |
272-6381 |
Squeegee pivot weldment |
1 |
(after April 2012) |
| 40 |
272-7364 |
Squeegee mount weldment |
1 |
|
| 42a |
272-3656 |
28 inch squeegee assembly |
1 |
|
| 42b |
272-7245 |
34 inch squeegee assembly |
1 |
|
| 43 |
272-3657 |
Bar weldment |
2 |
|
| 44 |
272-3658 |
Polyurethane washer |
1 |
|
| 48 |
272-3661 |
Spring bracket |
1 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 49 |
272-3662 |
Threaded rod |
1 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 50 |
272-6382 |
Spring nut |
2 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 51 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
1 |
(These parts were implemented in production as of November 2011 to increase squeegee down pressure. Order 272-3665 to upgrade your machine to include this improvement. Only used before May 2012.) |
| 52 |
272-3664 |
Squeegee pivot weldment |
1 |
(before May 2012) |
| N/S |
272-9727 |
Screw 1/4-20 x 1/2 hex head lock |
1 |
(after 8/2016) |
|
|

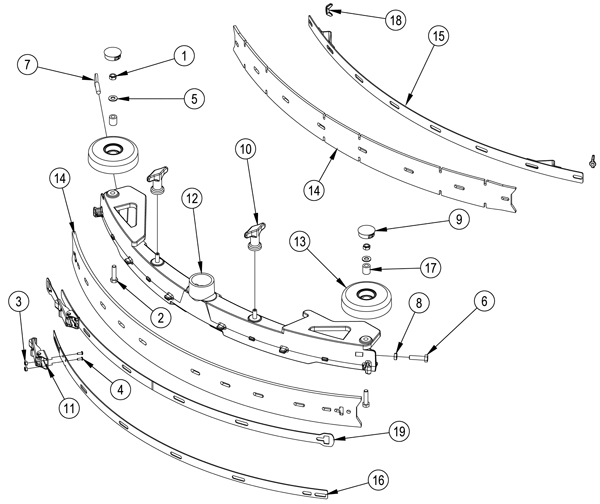

Squeegee Assembly - 28 inch - 272-7599 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
272-3656 |
28 inch squeegee assembly |
1 |
(includes 1-19) |
| 1 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 2 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
| 3 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
(before June 2012) |
| 4 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
(before June 2012) |
| 5 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 6 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
| 7 |
272-3671 |
Screw 5/16-18 x 1 1/4 thumb stainless steel |
1 |
|
| 8 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 10 |
172-4099 |
Nut 5/16-18 thumb |
2 |
|
| 11 |
172-0094 |
Latch |
1 |
(before June 2012) |
| 12 |
N/A |
Not available |
|
(The squeegee casting is not avaliable for sale separately. If you need to replace your squeegee casting please order a new squeegee assembly 272-3656.) |
| 14a |
272-3672 |
Squeegee blade kit 28 inch gum rubber |
1 |
(after October 2011) (When installing these blades on a machine built before November 2011 you must also order a new rear strap 272-7285.) |
| 14b |
272-8961 |
Squeegee blade kit 28 inch gum rubber |
1 |
(before November 2011)(When installing these blades on a machine built before November 2011 you must also order a new rear strap 272-7285.) |
| 14c |
272-3673 |
Squeegee blade kit 28 inch urethane |
1 |
(optional) (after October 2011) (When installing these blades on a machine built before November 2011 you must also order a new rear strap 272-7285.) |
| 14d |
272-3673 |
Squeegee blade kit 28 inch urethane |
1 |
(optional) (before November 2011) (When installing these blades on a machine built before November 2011 you must also order a new rear strap 272-7285.) |
| 14e |
272-3675 |
Squeegee blade kit 28 inch Linatex (red) |
1 |
(optional) (after October 2011) (When installing these blades on a machine built before November 2011 you must also order a new rear strap 272-7285.) |
| 14f |
272-3675 |
Squeegee blade kit 28 inch Linatex (red) |
1 |
(optional) (before November 2011) (When installing these blades on a machine built before November 2011 you must also order a new rear strap 272-7285.) |
| 15 |
272-3677 |
Front strap |
1 |
|
| 16a |
272-3678 |
Rear strap |
1 |
(before SN3000023100) |
| 16b |
272-7285 |
28 inch weldment and rear band kit |
1 |
(after SN3000023099) |
| 18 |
999-0603 |
Nut 1/4-20 wing stainless steel |
2 |
(before SN3000023100) |
| 19 |
272-3679 |
Band clamp |
1 |
(after May 2012) |
|
|

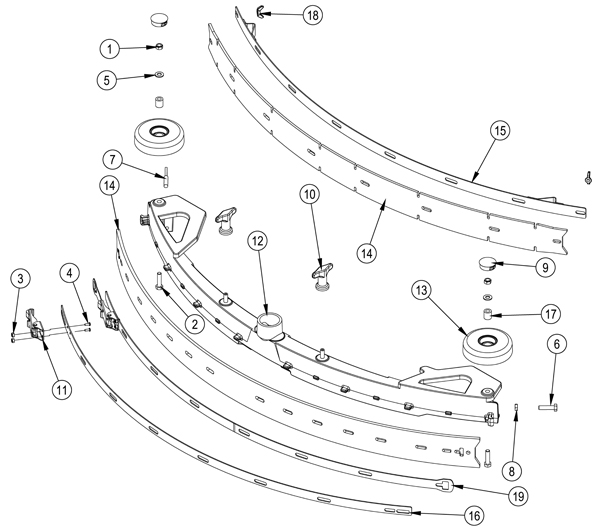

Squeegee Assembly - 34 inch - 272-7600 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
272-7245 |
34 inch squeegee assembly |
1 |
|
| 1 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 2 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
| 3 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
(before May 2012) |
| 4 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
(before May 2012) |
| 5 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 6 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
1 |
|
| 7 |
272-3671 |
Screw 5/16-18 x 1 1/4 thumb stainless steel |
1 |
|
| 8 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 10 |
172-4099 |
Nut 5/16-18 thumb |
2 |
|
| 11 |
172-0094 |
Latch |
1 |
(before May 2012) |
| 12 |
N/A |
Not available |
|
(The squeegee casting is not available for sale separately. If you need to replace your squeegee casting please order a new squeegee assembly, 272-7245) |
| 14a |
172-4688 |
Squeegee blade kit 34 inch gum rubber |
1 |
|
| 14b |
572-8127 |
Polyurethane squeegee blade kit (L) |
1 |
(optional) |
| 14c |
272-3682 |
Squeegee blade kit 34 inch gum rubber (red) |
1 |
(optional) |
| 15 |
272-3683 |
Front strap |
1 |
|
| 16a |
272-3684 |
Rear strap |
1 |
(after SN300006846 and before May 2012) |
| 16b |
272-3685 |
Rear strap |
1 |
(before SN300006847) |
| 18 |
999-0603 |
Nut 1/4-20 wing stainless steel |
2 |
(before SN300006847) |
| 19 |
272-3686 |
Band clamp |
1 |
(after April 2012) |
|
|
Wiring Diagram - Standard and Ecoflex - 272-7601 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A1 |
272-3571 |
Interface panel assembly (OBSOLETE) |
1 |
|
| A2 |
272-3514 |
Speed control |
1 |
|
| BAT |
N/A |
Not available |
|
(Battery) |
| F1a |
172-8836 |
150amp fuse |
1 |
|
| F1b |
991-3061 |
150amp fuse |
1 |
|
| CB1 |
172-2523 |
70amp circuit breaker |
1 |
|
| CB2 |
272-9374 |
10amp circuit breaker |
1 |
|
| H1 |
272-9485 |
Warning beacon |
1 |
|
| H2 |
172-8839 |
Backup alarm |
1 |
|
| K1 |
272-8794 |
24V contactor |
1 |
|
| K2 |
172-2163 |
24V solenoid 4 post (2 large 2 small) |
1 |
|
| L1 |
272-9265 |
Solenoid valve |
1 |
|
| M1 |
272-8807 |
Drive wheel motor |
1 |
|
| M2 |
272-2175 |
Chemical pump |
1 |
|
| M4 |
272-3551 |
Lift actuator assembly |
1 |
|
| M5 |
272-9271 |
Vacuum motor |
1 |
|
| M6 |
272-9271 |
Vacuum motor |
1 |
(optional) |
| M7a |
272-2148 |
24V brush motor |
1 |
(cylindrical) |
| Mab |
272-3605 |
Motor gearbox assembly |
2 |
(disk) |
| M8a |
272-2148 |
24V brush motor |
1 |
(cylindrical) |
| M8b |
272-3605 |
Motor gearbox assembly |
2 |
(disk) |
| R1 |
N/A |
Not available |
|
(part of 272-8880) |
| S1a |
272-2195 |
Key switch assembly |
1 |
|
| S1b |
272-2196 |
Keys (pkg of 2) |
1 |
|
| S2 |
272-9417 |
Seat switch |
1 |
|
| S4 |
172-9233 |
Emergency stop button |
1 |
|
| NS |
272-2358 |
24V onboard battery charger |
1 |
|
| N/S |
162-0019 |
6V 390Ah wet battery (SNSR) |
4 |
|
|
|

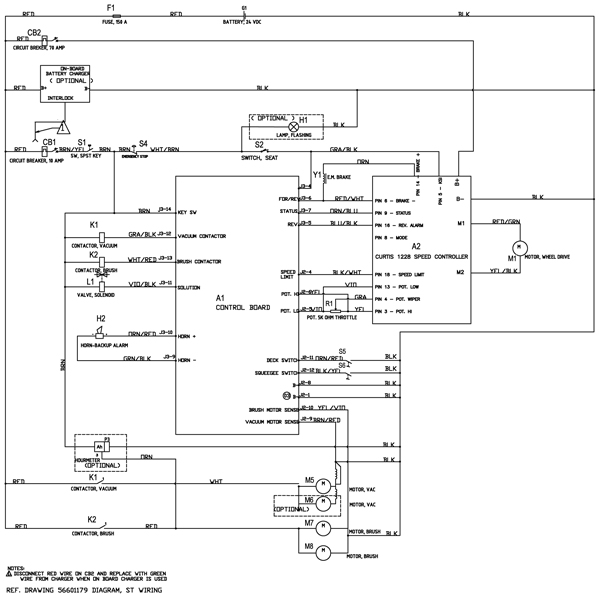

Wiring Diagram - ST - 272-7602 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A2 |
272-3514 |
Speed control |
1 |
|
| BAT 1 |
162-0048 |
6V 415Ah AGM battery (Group L16) |
4 |
|
| BAT 2 |
162-0019 |
6V 390Ah wet battery (SNSR) |
4 |
|
| F1a |
172-8836 |
150amp fuse |
1 |
|
| CB1 |
172-2523 |
70amp circuit breaker |
1 |
|
| CB2 |
272-9374 |
10amp circuit breaker |
1 |
|
| H1 |
272-9485 |
Warning beacon |
1 |
|
| H2 |
172-8839 |
Backup alarm |
1 |
|
| K1 |
272-8794 |
24V contactor |
1 |
|
| K2 |
172-2163 |
24V solenoid 4 post (2 large 2 small) |
1 |
|
| L1 |
272-9265 |
Solenoid valve |
1 |
|
| M1 |
272-8807 |
Drive wheel motor |
1 |
|
| M5a |
272-9271 |
Vacuum motor |
1 |
|
| M6a |
272-9271 |
Vacuum motor |
1 |
(optional) |
| M6b |
991-1221 |
Carbon brush without plastic cover (pkg of 2) |
1 |
|
| M7 |
272-3605 |
Motor gearbox assembly |
2 |
|
| M8 |
272-3605 |
Motor gearbox assembly |
2 |
|
| R1 |
N/A |
Not available |
|
(part of 272-8880) |
| S1a |
272-2195 |
Key switch assembly |
1 |
|
| S1b |
272-2196 |
Keys (pkg of 2) |
1 |
(optional) |
| S2 |
272-9417 |
Seat switch |
1 |
|
| S4 |
172-9233 |
Emergency stop button |
1 |
|
| S5 |
272-8850 |
Proximity sensor |
1 |
|
| N/S |
272-2358 |
24V onboard battery charger |
1 |
|
|
|

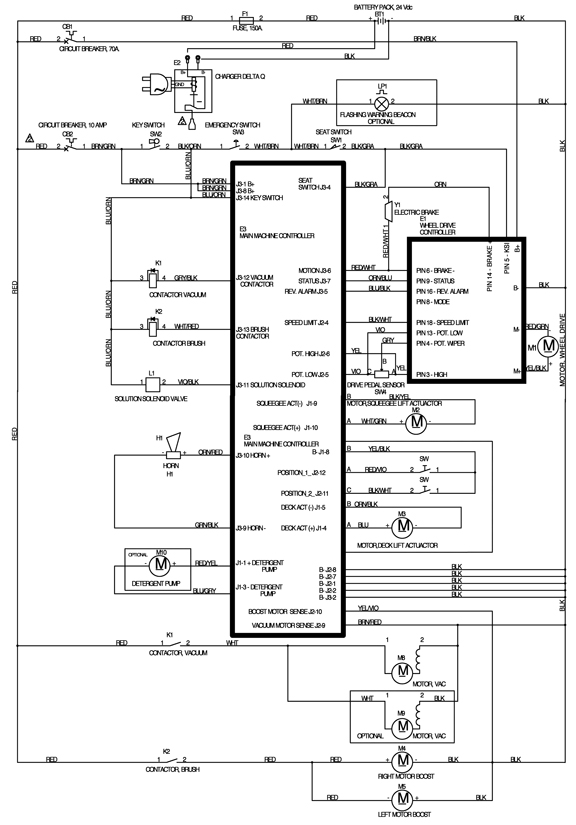

Wiring Diagram - REV - 272-7603 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| BT1 |
N/A |
Not available |
|
(Battery) |
| E1 |
272-6348 |
Speed control |
1 |
|
| E2 |
272-2358 |
24V onboard battery charger |
1 |
|
| E3a |
372-1633 |
Interface panel assembly |
1 |
|
| E3b |
272-6350 |
Interface panel assembly (OBSOLETE) |
1 |
|
| F1a |
172-8836 |
150amp fuse |
1 |
|
| CB1 |
172-2523 |
70amp circuit breaker |
1 |
|
| CB2 |
272-9374 |
10amp circuit breaker |
1 |
|
| H1 |
172-8839 |
Backup alarm |
1 |
|
| K1 |
272-8794 |
24V contactor |
1 |
|
| K2 |
172-2163 |
24V solenoid 4 post (2 large 2 small) |
1 |
|
| L1 |
272-9265 |
Solenoid valve |
1 |
|
| LP1 |
272-9485 |
Warning beacon |
1 |
|
| M1 |
272-8807 |
Drive wheel motor |
1 |
|
| M2 |
272-3551 |
Lift actuator assembly |
1 |
|
| M8 |
272-9271 |
Vacuum motor |
1 |
|
| M9 |
272-9271 |
Vacuum motor |
1 |
|
| M10 |
272-2175 |
Chemical pump |
1 |
|
| SW1 |
272-9417 |
Seat switch |
1 |
|
| SW2a |
272-2195 |
Key switch assembly |
1 |
|
| SW2b |
272-2196 |
Keys (pkg of 2) |
1 |
(optional) |
| SW3 |
172-9233 |
Emergency stop button |
1 |
|
|
|
- Batteries, Brushes, and Charger - Disk - 272-7659 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0019 |
6V 390Ah wet battery (SNSR) |
4 |
|
| 2 |
162-0048 |
6V 415Ah AGM battery (Group L16) |
4 |
|
| 3 |
272-2358 |
24V onboard battery charger |
1 |
|
| 4 |
996-0169 |
13 inch heavy grit stripping brush - 80 grit |
2 |
(28 inch machines) |
| 5 |
996-0120 |
13 inch medium grit scrubbing brush - 180 grit |
2 |
(28 inch machines) |
| 6 |
996-0096 |
13 inch lite grit scrubbing brush - 500 grit |
2 |
(28 inch machines) |
| 7 |
996-0282 |
13 inch polypropelene scrubbing brush |
2 |
(28 inch machines) |
| 8 |
996-0061 |
13 inch Pad driver |
2 |
(28 inch machines) |
| 9 |
996-0412 |
16 inch heavy grit stripping brush - 80 grit |
2 |
(34 inch machines) |
| 10 |
996-0413 |
16 inch medium grit scrubbing brush - 180 grit |
2 |
(34 inch machines) |
| 11 |
996-0414 |
16 inch lite grit scrubbing brush - 500 grit |
2 |
(34 inch machines) |
| 12 |
996-0415 |
16 inch polypropylene scrubbing brush |
2 |
(34 inch machines) |
| 13 |
996-0417 |
16 inch Pad driver |
2 |
(34 inch machines) |
| 14 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
1 |
|
|
|
- Batteries, Brushes, and Charger - Cylindrical - 272-7660 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0019 |
6V 390Ah wet battery (SNSR) |
4 |
|
| 2 |
162-0048 |
6V 415Ah AGM battery (Group L16) |
4 |
|
| 3 |
272-2358 |
24V onboard battery charger |
1 |
|
| 4 |
172-8969 |
Nylon soft scrubbing brush - CYLINDRICAL |
1 |
|
| 5 |
172-8970 |
Nylon hard scrubbing brush - CYLINDRICAL |
1 |
|
| 6 |
172-8971 |
Scrubbing brush - CYLINDRICAL |
1 |
|
| 7 |
172-8972 |
Scrubbing brush - CYLINDRICAL |
1 |
|
| 8 |
172-8973 |
Scrubbing brush - CYLINDRICAL |
1 |
|
| 9 |
172-8968 |
Polypropylene scrubbing brush - CYLINDRICAL |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
