Steering Column Assembly - 172-0717 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 002 |
999-1373 |
Screw 3/8-16 x 3/8 socket set lock stainless steel |
2 |
|
| 003 |
999-0120 |
Washer 3/8 SAE flat |
4 |
|
| 005 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
2 |
|
| 006 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
| 007 |
999-0363 |
Screw 8-32 x 3/8 hex head unslotted thread rolling |
2 |
|
| 008 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 009 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
1 |
|
| 010 |
272-1454 |
Screw 1/4-20 X 3/8 socket set lock |
2 |
|
| 011 |
999-9092 |
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
| 012 |
999-1372 |
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
| 013 |
172-9387 |
Woodruff key |
4 |
|
| 014 |
172-0392 |
Retaining ring |
2 |
|
| 015 |
999-1363 |
Washer 7/8 flat stainless steel |
1 |
|
| 016 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
| 017 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
|
| 018 |
999-0508 |
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
8 |
|
| 019 |
999-0114 |
Washer 1/2 SAE flat |
1 |
|
| 020 |
172-9056 |
Extension spring |
1 |
|
| 021 |
172-8919 |
Flanged bearing |
2 |
|
| 023 |
172-0115 |
Shaft collar |
2 |
|
| 025 |
172-9068 |
Roller chain |
1 |
|
| 026 |
172-9071 |
Solution control cable |
1 |
|
| 027 |
172-9072 |
Upper steering shaft |
1 |
|
| 028 |
172-9074 |
Universal joint |
1 |
|
| 030 |
172-9075 |
Steering wheel |
1 |
|
| 031 |
172-9078 |
Steering wheel adapter |
1 |
|
| 034 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
1 |
|
| 035a |
272-1229 |
Lower column |
1 |
(before SN 1797187) |
| 035b |
272-1229 |
Lower column |
1 |
(after SN 1797186) |
| 036 |
172-3487 |
Upper column |
1 |
|
| 037 |
172-3488 |
Locking rod |
1 |
|
| 038 |
172-3489 |
Bearing nyliner |
3 |
(qty of 1 after SN 1797186) |
| 039 |
172-3490 |
Lower steering shaft |
1 |
|
| 040 |
172-3491 |
Lower column shroud |
1 |
|
| 041 |
172-3492 |
Upper column shroud |
1 |
|
| 043 |
172-9388 |
Flanged bearing |
2 |
|
| 044 |
272-9484 |
Upper column |
1 |
(SN after 1942863) |
| 045 |
472-8232 |
STEERING UPGRADE KIT |
1 |
|
| 046 |
272-9479 |
Extension spring |
1 |
(SN after 1942863) |
| 047 |
272-9480 |
Steering column ratchet |
1 |
(SN after 1942863) |
| 048 |
999-0830 |
Screw 1/4-20 x 1 hex head plain finish |
1 |
(SN after 1942863) |
| 049 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
| 050 |
272-9727 |
Screw 1/4-20 x 1/2 hex head lock |
2 |
(SN after 1942863) |
| 051 |
999-0971 |
Nut 1/4-20 jam stainless steel |
2 |
(SN after 1942863) |
| 052 |
172-0294 |
Retaining ring |
1 |
(SN after 1942863) |
| 053 |
272-9481 |
Flanged bearing |
2 |
(SN after 1942863) |
| 054 |
999-9082 |
Screw M8-1.25 x 25mm hex head stainless steel |
2 |
(SN after 1942863) |
| 055 |
272-9482 |
Rod |
1 |
(SN after 1942863) |
| 056 |
272-9483 |
Steering weldment |
1 |
(SN after 1942863) |
| N/S |
172-9123 |
Logo decal (OBSOLETE) |
1 |
|
|
|
Squeegee System - 172-0718 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0340 |
Nut 5/16-24 nylon insert lock zinc plated |
2 |
|
| 002 |
272-1574 |
Spring pin 3/16 x 1 inch |
1 |
|
| 003 |
999-0340 |
Nut 5/16-24 nylon insert lock zinc plated |
6 |
|
| 004 |
172-4033 |
3/8 inch retaining ring |
2 |
|
| 005 |
999-1163 |
Nut 5/16-24 wing stainless steel |
1 |
|
| 006 |
172-9084 |
Connecting rod |
1 |
|
| 010 |
172-9090 |
Extension spring |
2 |
|
| 012 |
172-9091 |
Squeegee adjustment knob |
1 |
|
| 013 |
172-9095 |
Connecting rod |
2 |
|
| 015 |
172-3483 |
Cotter pin |
1 |
|
| 016 |
172-3484 |
Clevis pin |
4 |
|
| 017 |
172-3485 |
Squeegee mount |
1 |
|
| 018a |
172-3452 |
Squeegee assembly (OBSOLETE) |
1 |
(Advenger 2410, Advenger 2610, BR 600s and BR 650S) (before SN 1819567) |
| 018b |
172-3453 |
Squeegee assembly |
1 |
(Advenger 2410, Advenger 2610, BR 600s and BR 650S) (after SN 1819568) |
| 018c |
172-3453 |
Squeegee assembly |
1 |
(Advenger 2810, Advenger 3210, BR 700s and BR 800s) (before SN 1819567) |
| 018d |
172-3454 |
Squeegee assembly |
1 |
(Advenger 2810, Advenger 3210, BR 700s and BR 800s) (after SN 1819568) |
| 020a |
272-1421 |
36V motor actuator |
1 |
(machines built before 8.2003 and shipped after 3.2004) |
| 020b |
272-8001 |
36V control and actuator update kit |
1 |
(machines built between 8.2003 and 3.2004) |
| 021 |
172-9096 |
Right side rod end |
2 |
|
| 022 |
172-9094 |
Left side rod end |
2 |
|
| 023 |
172-9088 |
Cable assembly |
1 |
|
|
|
Squeegee Assembly - 172-0719 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
172-3452 |
Squeegee assembly (OBSOLETE) |
1 |
(24 inch, BR 600S) (includes 001-015) |
| 000b |
172-3453 |
Squeegee assembly |
1 |
(26 and 28 inch, BR 650S and BR 700S) (includes 001-015) |
| 000c |
172-3453 |
Squeegee assembly |
1 |
(32 inch and BR 800S) (includes 001-015) |
| 001 |
272-2754 |
Screw 5/16-18 x 3 hex head full thread |
2 |
|
| 002 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 003 |
999-0336 |
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
| 004 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 005 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
| 006 |
999-0603 |
Nut 1/4-20 wing stainless steel |
4 |
|
| 007a |
172-0045 |
Guide wheel |
2 |
(OEM) |
| 007b |
991-3051 |
Guide wheel |
2 |
(NON-OEM) |
| 008a |
172-4099 |
Nut 5/16-18 thumb |
2 |
(OEM) |
| 008b |
991-3056 |
Nut 5/16-18 thumb |
2 |
(NON-OEM) |
| 010 |
999-1256 |
Screw 5/16-18 x 3/8 x 1 socket head shoulder |
2 |
|
| 011a |
172-3456 |
Left rear strap |
1 |
(24 inch and BR 600S) |
| 011b |
172-3457 |
Left rear strap |
1 |
(26 and 28 inch, BR 650S and BR 700S) |
| 011c |
172-3458 |
Left rear strap |
1 |
(32 inch and BR 800S) |
| 012a |
172-3459 |
Right rear strap |
1 |
(24 inch and BR 600S) |
| 012b |
172-3460 |
Right rear strap |
1 |
(26 and 28 inch, BR 650S and BR 700S) |
| 012c |
172-3461 |
Right rear strap |
1 |
(32 inch and BR 800S) |
| 013a |
172-3462 |
Front strap |
1 |
(24 inch and BR 600S) |
| 013b |
172-3463 |
Front strap |
1 |
(26 and 28 inch, BR 650S and BR 700S) |
| 013c |
172-3464 |
Front strap |
1 |
(32 inch and BR 800S) |
| 014a |
172-3474 |
Squeegee blade kit 24 inch gum rubber (pkg of 2) |
1 |
(24 inch and BR 600S) |
| 014b |
172-3477 |
Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene |
1 |
(26 and 28 inch, BR 650S and BR 700S) (OEM) |
| 014c |
994-0026 |
Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene |
1 |
(26 and 28 inch, BR 650S and BR 700S) (NON-OEM) |
| 014d |
172-3480 |
Squeegee blade kit 32 inch gum rubber (pkg of 2) |
1 |
(32 inch and BR 800S) |
| 014e |
172-3475 |
Squeegee blade kit 24 inch gum rubber (pkg of 2) |
1 |
(24 inch and BR 600S) |
| 014f |
172-3476 |
Squeegee blade kit neoprene |
1 |
(24 inch and BR 600S) |
| 014g |
172-3478 |
Squeegee blade kit 26 and 28 inch linatex (pkg of 2) |
1 |
(26 and 28 inch, BR 650S and BR 700S) |
| 014h |
172-3479 |
Squeegee blade kit 24 inch neoprene |
1 |
(26 and 28 inch, BR 650S and BR 700S) |
| 014i |
172-3481 |
Squeegee blade kit 32 inch Linatex (red) (pkg of 2) |
1 |
(32 inch and BR 800S) |
| 014j |
172-3482 |
Squeegee blade kit 26 and 28 inch neoprene |
1 |
(32 inch and BR 800S) |
| 014k |
172-3470 |
Squeegee blade rear |
1 |
(32 inch) |
| 014l |
172-3467 |
Front blade |
1 |
(32 inch) |
| 014m |
991-7115 |
squeegee blade kit front and rear |
1 |
(NON-OEM) |
| 015a |
172-3471 |
Squeegee weldment |
1 |
(24 inch and BR 600S) |
| 015b |
172-3472 |
Squeegee weldment |
1 |
(26 and 28 inch, BR 650S and BR 700S) |
| 015c |
172-3473 |
Squeegee weldment |
1 |
(32 inch and BR 800S) |
| N/S |
172-3465 |
Squeegee blade front |
1 |
(52 inch front blade for 24 inch model) |
| N/S |
172-3468 |
Squeegee blade rear |
1 |
(52 inch rear blade for 24 inch model) |
|
|
Solution Assembly - 172-0720 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 002 |
999-0006 |
Washer 3/16 flat zinc plated |
3 |
|
| 003 |
999-0256 |
Screw 10-32 x 1/2 truss head slotted zinc plated |
4 |
|
| 004 |
999-0030 |
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
4 |
|
| 005 |
999-0477 |
Screw 10-24 x 5/16 truss head phillips zinc |
3 |
|
| 006 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
3 |
|
| 007 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
11 |
|
| 008 |
999-1030 |
Screw 1/4-20 x 2 pan head phillips stainless steel |
1 |
|
| 009 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
| 010 |
999-1376 |
Screw 6-32 x 1/2 hex head stainless steel |
1 |
|
| 011 |
999-0400 |
Screw 10-24 x 1 pan head phillips zinc plated |
5 |
|
| 012 |
999-1106 |
Screw 10-24 x 2 pan head phillips zinc plated |
4 |
|
| 013 |
999-0399 |
Screw 5/16-18 x 3/4 pan head phillips zinc plated |
2 |
|
| 014 |
999-0278 |
Nut 5/16-18 nylon insert lock jam zinc plated |
1 |
|
| 015 |
999-0227 |
Nut 6-32 hex nylon insert lock jam zinc plated |
1 |
|
| 016 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
| 017 |
999-0333 |
Screw 10-24 x 1/2 pan head phillips stainless steel |
5 |
|
| 018 |
999-1030 |
Screw 1/4-20 x 2 pan head phillips stainless steel |
3 |
|
| 019 |
999-0810 |
Screw 5/16-18 x 3/4 flat head slotted stainless steel |
4 |
|
| 020 |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
3 |
|
| 021 |
172-0392 |
Retaining ring |
3 |
|
| 022 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
| 023 |
172-0553 |
Washer 17/64 x 1/16 flat |
2 |
|
| 024 |
172-2067 |
Washer 11/32 x 1/8 flat |
4 |
|
| 025 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 026 |
997-2002 |
Hose clamp #6 |
4 |
|
| 027 |
172-0254 |
Nylon pipe cap |
1 |
|
| 028 |
172-9023 |
Cable clamp |
1 |
|
| 029 |
172-0197 |
Rubber washer |
1 |
|
| 030 |
172-0223 |
Battery cable boot |
2 |
|
| 031a |
172-2103 |
Elbow barb |
1 |
(before SN 1757999) |
| 031b |
272-1448 |
90 degree elbow barb |
1 |
(after SN 1758000) |
| 032a |
172-8806 |
Hinge (OBSOLETE) |
1 |
|
| 033a |
172-9033 |
Adapter barb 1/2 x 3/4 |
1 |
(before SN 1757999) |
| 033b |
170-0264 |
Hose barb |
1 |
(after SN 1758000) |
| 036 |
997-2101 |
6 inch cable tie |
2 |
|
| 037 |
999-0601 |
Screw 5/16-18 x 5/8 pan head phillips zinc plated |
1 |
|
| 039 |
181-0176 |
Phenolic spacer |
1 |
|
| 040 |
172-2105 |
Manual solution valve |
1 |
|
| 041 |
172-2327 |
Wire reinforced clear hose (OBSOLETE) |
7 in |
|
| 042b |
172-8800 |
Seat switch |
1 |
|
| 043 |
272-2590 |
Solution tank (OBSOLETE) |
1 |
|
| 044 |
172-3432 |
Solution tank cover (OBSOLETE) |
1 |
|
| 046a |
172-3434 |
Control panel assembly |
1 |
|
| 046b |
272-9259 |
Control panel assembly |
1 |
|
| 046c |
272-8156 |
Panel assembly |
1 |
|
| 046d |
272-1316 |
Key switch assembly |
1 |
|
| 046e |
172-8098 |
Replacement key |
1 |
|
| 047a |
172-3435 |
Tee barb |
1 |
(before SN 1757999) |
| 047b |
272-1451 |
Tee barb |
1 |
(after SN 1758000) |
| 048a |
172-3446 |
Flow control kit |
1 |
(updates machines before SN 1797186) |
| 048b |
272-1459 |
Valve bracket |
1 |
(after SN 1797186) |
| 049 |
172-3437 |
Cable clamp |
5 |
|
| 050 |
272-0462 |
Cable clamp |
4 |
|
| 051 |
172-3438 |
Actuator cover |
1 |
|
| 052 |
172-3439 |
Disconnect bar |
1 |
|
| 053 |
172-3344 |
Tank mount bracket |
1 |
|
| 054a |
172-3440 |
Seat mount weldment (OBSOLETE) |
1 |
(before SN 1726172) |
| 054b |
272-2592 |
Seat mount weldment (OBSOLETE) |
1 |
(after SN 1726172) |
| 057 |
172-3443 |
Charger connector assembly |
1 |
(plug to batteries) |
| 058 |
172-3444 |
Hinge bracket |
1 |
|
| 059 |
172-3445 |
Quick disconnect female coupling |
1 |
|
| 060a |
172-3446 |
Flow control kit |
1 |
(before SN 1797186) |
| 060b |
272-1460 |
Water valve bracket |
1 |
(after SN 1797186) |
| 061 |
172-3447 |
Battery box panel |
1 |
|
| 062a |
172-3448 |
Strainer |
1 |
(before SN 1757999) |
| 062b |
272-1461 |
Strainer |
1 |
(after SN 1758000) |
| 065 |
272-2586 |
36V solenoid valve |
1 |
|
| 066 |
172-1770 |
Connector assembly |
1 |
|
| 067a |
172-2327 |
Wire reinforced clear hose (OBSOLETE) |
1 |
(before SN 1757999) |
| 067b |
272-1462 |
Clear hose 3/4 inches |
1 |
(after SN 1758000) |
| 069a |
172-3449 |
Battery connector kit |
1 |
(kit includes 070-073) (For Advance models Battery connector kit (172-3449) is included with machine. For Nilifisk models battery cables are not included, but (272-1470) can be ordered separately if battery connectors are desired) |
| 070 |
272-1144 |
Cable assembly |
4 |
|
| 071 |
997-2101 |
6 inch cable tie |
10 |
|
| 072 |
172-0223 |
Battery cable boot |
10 |
|
| 073 |
172-3450 |
Battery cable assembly- ring type 4x15 1/2 |
1 |
|
| 074 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
(after SN 1758000) |
| 075 |
272-1469 |
Solution valve |
1 |
(after SN 1758000) |
| 076a |
997-2004 |
Hose clamp |
4 |
(after SN 1758000) |
| 076b |
997-2002 |
Hose clamp #6 |
4 |
(before SN 1757999) |
| 077a |
172-1062 |
7 inch spiral hose |
1 |
(after SN 1758000) |
| 077b |
172-2327 |
Wire reinforced clear hose (OBSOLETE) |
7 in |
(before SN 1757999) |
| N/S |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| N/S |
272-2248 |
Battery watering kit |
1 |
|
| N/S |
991-6025 |
Wire 4 x14.5, 3/8 ring x 3/8 ring |
1 |
(NON-OEM) |
| N/S |
172-3451 |
Battery spacer |
1 |
(for Advance models only) |
| N/S |
272-2593 |
Main harness (OBSOLETE) |
1 |
|
|
|
Skirt Assembly - Disk - After SN 179475 - 172-0721 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
172-3399 |
Left skirt assembly |
1 |
(32 inch) (includes 001, 003-012, 014 and 015) |
| 000b |
272-1285 |
Left skirt assembly |
1 |
(24, 26 and 28 inch) (includes 001, 003-012, 014 and 015) |
| 000c |
172-3400 |
Right skirt assembly |
1 |
(all models) (includes 001-013 and 015) |
| 001a |
172-0083 |
3 inch guide wheel |
1 |
(these items are on the Right Skirt Assembly on all models, but only on the 32 inch Left Skirt Assembly) |
| 001b |
991-3060 |
Bumper wheel |
1 |
|
| 001c |
991-3030 |
Wheel |
1 |
(NON-OEM) |
| 002 |
172-3428 |
No step decal |
1 |
(right skirt assembly only) |
| 003 |
172-0095 |
Bushing |
1 |
(this is on the right skirt on all models, but only on the 32 inch left skirt) |
| 004 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
(this is on the right skirt assembly on all models, but only on the 32 inch left skirt assembly) |
| 005 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
1 |
(this is on the right skirt assembly on all models, but only on the 32 inch left skirt assembly) |
| 006 |
999-0439 |
Nut M6-1 hex coarse thread |
9 |
(qty of 8 on 000c 272-1285) |
| 007 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
|
| 008 |
999-0518 |
Bolt M6-1 x 25mm hex head full thread zinc |
6 |
|
| 009 |
272-1288 |
Washer 21/64-1 x 1/16 flat stainless steel |
2 |
|
| 010 |
272-1670 |
Washer 3/8 bowed |
2 |
(this is on the right skirt assembly on all models, but only on the 32 inch left skirt assembly) |
| 011 |
172-3426 |
Skirt blade gum rubber rear |
1 |
|
| 012 |
272-1292 |
Skirt blade gum rubber front |
1 |
|
| 013 |
272-6094 |
Right hand skirt frame |
1 |
|
| 014 |
272-6095 |
Left hand skirt frame |
1 |
|
| 015 |
272-1378 |
Blade retainer |
1 |
|
| N/S |
272-1444 |
28 inch disk linatex kit |
1 |
(includes required mounting fasteners) |
| N/S |
272-1439 |
26 inch disk gum rubber kit (red) |
1 |
(includes required mounting fasteners) |
| N/S |
272-1289 |
Skirt blade skirt linatex rear |
1 |
|
| N/S |
272-1447 |
32 inch disk linatex kit |
1 |
(includes required mounting fasteners) |
| N/S |
272-1446 |
32 inch blade kit gum rubber |
1 |
(includes required mounting fasteners) |
| N/S |
272-1426 |
24 inch disk gum rubber kit (red) |
1 |
(includes required mounting fasteners) |
| N/S |
272-1295 |
Skirt blade linatex front |
1 |
|
| N/S |
272-1379 |
24 inch disk gum rubber kit |
1 |
(includes required mounting fasteners) |
| N/S |
272-1442 |
28 inch blade kit gum rubber |
1 |
(includes required mounting fasteners) |
| N/S |
272-1437 |
26 inch gum rubber kit |
1 |
(includes required mounting fasteners) |
|
|
Skirt Assembly - Disk - Before SN 179475 - 172-0722 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
172-3400 |
Right skirt assembly |
1 |
(all models) (includes 001-010) |
| 000b |
172-3399 |
Left skirt assembly |
1 |
(32 inch) (includes 001-010) |
| 000c |
272-1285 |
Left skirt assembly |
1 |
(24, 26 and 28 inch) |
| 001 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
(item is on the right skirt assembly, but only the 32 inch left skirt assembly) |
| 002 |
999-1147 |
Bolt M6-1 x 40mm hex head stainless steel |
1 |
(item is on the right skirt assembly, but only the 32 inch left skirt assembly) |
| 003 |
272-1670 |
Washer 3/8 bowed |
2 |
(item is on the right skirt assembly, but only the 32 inch left skirt assembly) |
| 004 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
8 |
|
| 005 |
999-0502 |
Bolt M6-1 x 20mm hex head full thread zinc |
7 |
|
| 006a |
172-0083 |
3 inch guide wheel |
1 |
(item is on the right skirt assembly, but only the 32 inch left skirt assembly) |
| 006b |
991-3060 |
Bumper wheel |
1 |
|
| 006c |
991-3030 |
Wheel |
1 |
(NON-OEM) |
| 007 |
172-0095 |
Bushing |
1 |
(item is on the right skirt assembly, but only the 32 inch left skirt assembly) |
| 008a |
172-3399 |
Left skirt assembly |
1 |
|
| 008b |
272-6094 |
Right hand skirt frame |
1 |
|
| 009 |
172-3426 |
Skirt blade gum rubber rear |
1 |
|
| 010 |
172-3427 |
Squeegee blade retainer |
1 |
(right skirt assembly only) |
| 011 |
172-3428 |
No step decal |
1 |
|
| N/S |
172-3410 |
26 inch skirt blade kit linatex disk |
1 |
(optional) (includes required mounting fasteners) |
| N/S |
172-3416 |
32 inch skirt blade kit linatex disk |
1 |
(optional) (includes required mounting fasteners) |
| N/S |
172-3411 |
28 inch skirt blade kit gum rubber disk |
1 |
(optional) (includes required mounting fasteners) |
| N/S |
172-3407 |
24 inch skirt blade kit gum rubber disk |
1 |
(optional) (includes required mounting fasteners) |
| N/S |
172-3408 |
26 inch skirt blade kit gum rubber disk |
1 |
(optional) (includes required mounting fasteners) |
| N/S |
172-3405 |
24 inch skirt blade kit gum rubber disk |
1 |
(optional) (includes required mounting fasteners) |
| N/S |
172-3414 |
32 inch skirt blade kit gum rubber disk |
1 |
(optional) (includes required mounting fasteners) |
| N/S |
172-3413 |
28 inch skirt blade kit linatex disk |
1 |
(optional) (includes required mounting fasteners) |
|
|
Skirt Assembly - Cylindrical - 172-0723 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
172-3371 |
Left skirt assembly |
1 |
(Includes 001-015) |
| 000b |
172-3372 |
Right skirt assembly |
1 |
(Includes 001-015) |
| 001 |
999-0024 |
Washer 5/16 flat stainless steel |
2 |
|
| 002 |
999-0783 |
Screw M8-1.25 x 16mm hex head |
1 |
|
| 003 |
999-1133 |
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
| 004 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
| 005 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
5 |
|
| 006 |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
6 |
|
| 007 |
272-1599 |
Bolt M6 x 15mm hex head nylok |
1 |
|
| 010 |
172-8874 |
Gum rubber skirt |
1 |
|
| 011 |
172-2344 |
Extension spring |
1 |
|
| 013 |
272-6089 |
Skirt retainer |
1 |
|
| 014a |
272-6090 |
Left hand skirt bracket weldment |
1 |
|
| 014b |
272-6091 |
Right hand skirt bracket weldment |
1 |
|
| 015a |
272-6092 |
Left hand mount bracket |
1 |
|
| 015b |
272-6093 |
Right hand mount bracket |
1 |
|
| N/S |
172-3417 |
linatex skirt |
1 |
Optional |
| N/S |
172-8875 |
Oil resistant skirt |
1 |
Optional |
|
|
Scrub Assembly - Disk - 172-0724 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
18 |
|
| 2 |
172-3375 |
Square keyway |
2 |
|
| 3 |
999-0494 |
Bolt 5/16-18 x 7/8 hex head stainless steel |
4 |
|
| 4 |
999-0496 |
Nut M8-1.25 nylon insert lock stainless steel |
6 |
|
| 5 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
12 |
|
| 6 |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
8 |
|
| 7 |
999-1312 |
Screw M6-1 x 20mm hex head stainless steel |
4 |
(26 in, 28 in, BR 650S and BR 700S) |
| 8 |
272-5780 |
Screw M8-1 x 25mm hex head lock SS |
6 |
|
| 9 |
172-3360 |
Ring pin 1/2 x 1-1/4 |
2 |
|
| 10 |
999-0360 |
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
| 11 |
999-1152 |
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
6 |
|
| 12 |
172-3047 |
Washer 11/32 x 1/8 flat |
4 |
|
| 13 |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
| 14 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
4 |
|
| 15 |
999-0588 |
Washer 7/8 flat stainless steel |
2 |
|
| 18 |
272-5779 |
Spring retainer |
2 |
|
| 21 |
172-2070 |
Thermoid disk |
4 |
|
| 23 |
172-2089 |
Drive plate |
2 |
|
| 25 |
172-8941 |
Compression spring |
1 |
|
| 26 |
172-8952 |
Spring housing |
1 |
|
| 27 |
172-8953 |
Compression spring |
1 |
|
| 28 |
172-8954 |
Nut retainer |
1 |
|
| 29 |
172-8954 |
Nut retainer |
1 |
|
| 30 |
999-9116 |
Screw M6-1 x 12mm hex head stainless steel |
16 |
|
| 31 |
991-5122 |
1/4 nylon tree push-in rivet |
18 |
|
| 32 |
999-0785 |
Screw M8-1.25 x 30mm hex head stainless steel |
6 |
|
| 33 |
999-1377 |
Nut M12-1.75 hex jam |
4 |
|
| 34 |
999-1349 |
Screw M12-1.75 x 70mm full thread hex head stainless steel |
4 |
|
| 35 |
172-9011 |
3/8 spiral hose |
1 |
|
| 36 |
272-1035 |
Solution hose |
1 |
|
| 37 |
172-2327 |
Wire reinforced clear hose (OBSOLETE) |
1 |
|
| 38 |
272-6069 |
Motor bracket |
2 |
|
| 39 |
172-3380 |
Deck weldment - disc |
1 |
(24 in, 26 in, 28 in, BR 600s, BR 650S, BR 700S) |
| 41a |
172-3384 |
Motor gearbox assembly |
1 |
(24 in, BR 600S) |
| 41b |
172-3385 |
Motor gearbox assembly (OBSOLETE) |
1 |
(26 in, BR 650S) |
| 41c |
172-3386 |
Motor gearbox assembly |
1 |
(28 in, BR 700S) |
| 42 |
172-3396 |
Hub mount shaft |
2 |
|
| 43 |
272-6073 |
Forward skirt bracket |
2 |
(26 in and 28 in, BR 650S and BR 700S) |
| 45 |
172-3368 |
Cotterless hitch pin |
1 |
|
| 46 |
172-3369 |
Quick disconnect male coupling |
1 |
(before TSBUS2005-888) |
| 47a |
272-1285 |
Left skirt assembly |
1 |
(before TSBUS2004-884) (24 in, 26 in, 28 in, BR 600s, BR 650S, BR 700S) |
| 47b |
272-1285 |
Left skirt assembly |
1 |
(after TSBUS2004-884) (24 in, 26 in, 28 in, BR 600s, BR 650S, BR 700S) |
| 48a |
172-3400 |
Right skirt assembly |
1 |
(before TSBUS2004-884) (all models) |
| 48b |
172-3400 |
Right skirt assembly |
1 |
(after TSBUS2004-884) (all models) |
| 49 |
172-3388 |
Square keyway |
2 |
(before TSBUS2004-884) |
| 50a |
172-3405 |
24 inch skirt blade kit gum rubber disk |
1 |
(before TSBUS2004-884) (24 in) (includes required mounting fastners) |
| 50b |
172-3406 |
Neoprene 24 disk kit |
1 |
(before TSBUS2004-884) (24 in) (includes required mounting fastners) |
| 50c |
172-3407 |
24 inch skirt blade kit gum rubber disk |
1 |
(before TSBUS2004-884) (24 in) (includes required mounting fastners) |
| 50d |
272-7310 |
Side blade kit gum rubber |
1 |
(before TSBUS2004-884) (24 in, 26 in, 28 in) (includes blades for skirt assembly only) |
| 50e |
472-6926 |
BLADE KIT-DISC RED GUM SD |
1 |
(before TSBUS2004-884) (24 in, 26 in, 28 in ) (includes blades for skirt assembly only) |
| 50f |
172-3408 |
26 inch skirt blade kit gum rubber disk |
1 |
(before TSBUS2004-884) (26 in) (includes required mounting fastners) |
| 50g |
172-3409 |
Neoprene 26 disk kit |
1 |
(before TSBUS2004-884)(26 in) (includes required mounting fastners) |
| 50h |
172-3410 |
26 inch skirt blade kit linatex disk |
1 |
(before TSBUS2004-884) (26 in) (includes required mounting fastners) |
| 50i |
172-3411 |
28 inch skirt blade kit gum rubber disk |
1 |
(before TSBUS2004-884) (28 in) (includes required mounting fastners) |
| 50j |
272-6075 |
Disk deck blade kit 28 inch polyurethane |
1 |
(before TSBUS2004-884) (28 in) (includes required mounting fastners) |
| 50k |
172-3413 |
28 inch skirt blade kit linatex disk |
1 |
(before TSBUS2004-884) (28 in) (includes required mounting fastners) |
| 50l |
272-1379 |
24 inch disk gum rubber kit |
1 |
(after TSBUS2004-884) (24 in) (includes required mounting fastners) |
| 50m |
272-1426 |
24 inch disk gum rubber kit (red) |
1 |
(after TSBUS2004-884) (24 in) (includes required mounting fastners) |
| 50n |
272-5430 |
Scrub deck blade kit gum rubber |
1 |
(after TSBUS2004-884) (24 in, 26in, 28in) (includes blades for skirt assembly only) |
| 50o |
272-5431 |
Scrub deck blade kit red gum rubber |
1 |
(after TSBUS2004-884) (24 in, 26in, 28in) (includes blades for skirt assembly only) |
| 50p |
272-1437 |
26 inch gum rubber kit |
1 |
(after TSBUS2004-884) (26 in) (includes required mounting fastners) |
| 50q |
272-1439 |
26 inch disk gum rubber kit (red) |
1 |
(after TSBUS2004-884) (26 in) (includes required mounting fastners) |
| 50r |
272-1442 |
28 inch blade kit gum rubber |
1 |
(after TSBUS2004-884) (28 in) (includes required mounting fastners) |
| 50s |
272-1444 |
28 inch disk linatex kit |
1 |
(after TSBUS2004-884)(28 in) (includes required mounting fastners) |
| 51 |
172-3389 |
Gearbox cover |
2 |
|
| 53 |
172-2088 |
Drive hub (OBSOLETE) |
2 |
|
| 55 |
172-2503 |
Tank leveler |
2 |
|
| 56 |
172-9010 |
Solution drain hose |
2 |
|
| 57 |
999-0199 |
Nut 10-24 nylon insert lock zinc plated |
2 |
|
| 58 |
172-2001 |
Hair cotter pin |
2 |
|
| N/S |
172-8922 |
Plastic drive nut |
1 |
|
| N/S |
172-3388 |
Square keyway |
2 |
|
| N/S |
172-3389 |
Gearbox cover |
2 |
|
| N/S |
172-8862 |
Brush side ball bearing |
1 |
|
| N/S |
172-3393 |
Brush ring |
1 |
|
| N/S |
172-3394 |
Carbon brush (sold individually) |
4 |
|
|
|
Scrub Assembly - Cylindrical - 172-0725 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-5720 |
Screw 1/4-20 x 1/4 socket lock |
2 |
|
| 2 |
999-0361 |
Bolt 1/4-20 x 3/8 hex head grade 5 zinc |
2 |
|
| 3 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 4 |
999-0120 |
Washer 3/8 SAE flat |
4 |
|
| 5 |
999-0346 |
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
4 |
|
| 6 |
272-1595 |
Screw 1/2-13 X 4-1/2 hex head |
2 |
|
| 7 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 8 |
999-0262 |
Nut 1/2-13 nylon insert jam lock zinc plated |
4 |
|
| 9 |
172-3369 |
Quick disconnect male coupling |
1 |
(before TSBUS2005-888) |
| 10 |
272-1596 |
Bolt 1/4-20 x 3/4 hex head lock |
6 |
|
| 11 |
172-2001 |
Hair cotter pin |
4 |
|
| 13 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
1 |
|
| 15 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
8 |
|
| 16 |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
| 17 |
272-1624 |
Bolt M10-1.5 x 40mm hex |
2 |
|
| 18 |
999-1329 |
Screw M6-1 x 100mm hex head |
1 |
|
| 19 |
172-3360 |
Ring pin 1/2 x 1-1/4 |
2 |
|
| 20 |
999-0360 |
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
| 21 |
172-0345 |
Terminal stud |
2 |
|
| 22 |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
| 23 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
4 |
|
| 26a |
472-6988 |
MANIFOLD PVC 24 ADVENGER (OBSOLETE) |
2 |
(BR 600S) |
| 26b |
472-6987 |
MANIFOLD PVC 26 ADVENGER |
2 |
(BR 650S) |
| 26c |
272-5415 |
28 inch manifold |
2 |
(BR 700S) |
| 26d |
272-5416 |
32 inch manifold |
2 |
(BR 800S) |
| 27 |
172-9013 |
12 inch wire rope |
2 |
|
| 29 |
172-2503 |
Tank leveler |
2 |
|
| 33 |
172-8928 |
Poly-v sheave |
1 |
|
| 34 |
172-8929 |
Right belt guard |
1 |
|
| 35 |
172-8930 |
Left belt guard |
1 |
|
| 36 |
172-8931 |
Poly V belt |
1 |
|
| 37 |
172-8932 |
Poly-V belt |
1 |
|
| 38 |
172-8941 |
Compression spring |
1 |
|
| 40 |
172-8952 |
Spring housing |
1 |
|
| 41 |
172-8953 |
Compression spring |
1 |
|
| 42 |
172-8954 |
Nut retainer |
1 |
|
| 43 |
172-8955 |
Nut retainer |
1 |
|
| 44 |
172-0103 |
Electrical mount |
2 |
|
| 45 |
172-8964 |
Terminal insulator |
2 |
|
| 47 |
272-1562 |
Screw 1/4-20 x 3/5 pan head thread forming |
8 |
|
| 48 |
N/A |
Not available |
1 |
(Serial number plate) |
| 49 |
172-2815 |
Main solution hose |
1 |
|
| 50a |
472-6990 |
HOUSING WELDMENT 24 (OBSOLETE) |
1 |
(BR 600S) |
| 50b |
N/A |
Not available |
1 |
(BR 650S) (26 inch housing weldment) |
| 50c |
272-5417 |
28 inch housing weldment (OBSOLETE) |
1 |
(BR 700S) |
| 50d |
272-6060 |
32 inch housing weldment |
1 |
(BR 800S) |
| 51a |
172-3365 |
Hopper weldment 24inch (OBSOLETE) |
1 |
(BR 600S) |
| 51b |
172-3366 |
Hopper weldment 26inch (OBSOLETE) |
1 |
(BR 650S) |
| 51c |
272-3588 |
Hopper weldment |
1 |
(BR 700S) |
| 51d |
272-6061 |
32 inch hopper weldment |
1 |
(BR 800S) |
| 53 |
172-3368 |
Cotterless hitch pin |
1 |
|
| 55 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
| 56 |
172-3371 |
Left skirt assembly |
1 |
|
| 57 |
172-3372 |
Right skirt assembly |
1 |
|
| 58 |
172-3373 |
Idler end assembly |
2 |
(includes 61-65) |
| 59 |
172-8933 |
Drive end assembly |
2 |
(includes 66-73) |
| 61 |
172-4656 |
Ball bearing |
1 |
|
| 63 |
272-2170 |
Idler bearing plate |
1 |
|
| 65 |
172-1837 |
Bearing washer |
1 |
|
| 66 |
181-0003 |
Screw 1/4-20 x 1/2 socket set lock |
2 |
|
| 67 |
172-8956 |
Square keyway |
1 |
|
| 68 |
172-4656 |
Ball bearing |
2 |
|
| 70 |
172-8959 |
Poly-v sheave |
1 |
|
| 71 |
272-2169 |
Bearing plate |
1 |
|
| 73 |
172-1837 |
Bearing washer |
1 |
|
| N/S |
172-8922 |
Plastic drive nut |
1 |
|
| N/S |
172-1033 |
F.E. Bearing |
1 |
|
| N/S |
172-9303 |
Brush cap assembly (OBSOLETE) |
1 |
|
| N/S |
172-9304 |
Carbon brush (sold individually) |
4 |
|
| N/S |
172-1816 |
Brush cover cap (OBSOLETE) |
4 |
|
| N/S |
172-3367 |
Brush motor harness |
1 |
|
|
|
Recovery Assembly - 172-0726 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0571 |
Screw 10-24 x 3/8 pan head phillips stainless steel |
8 |
|
| 2 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
7 |
|
| 3 |
999-1030 |
Screw 1/4-20 x 2 pan head phillips stainless steel |
6 |
|
| 4 |
999-9006 |
Screw 5/16-18 x 3/4 pan head phillips stainless steel |
1 |
|
| 5 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
5 |
|
| 6 |
172-3333 |
Cover pivot pin |
1 |
|
| 7 |
172-0517 |
Float cage half (2 required for full float cage) |
2 |
|
| 10 |
272-1159 |
Plastic clamp |
1 |
|
| 11 |
272-0430 |
Vacuum duct gasket |
1 |
|
| 12 |
272-9976 |
#32 hose clamp SAE |
3 |
|
| 13 |
172-3169 |
Plastic clamp |
1 |
|
| 14 |
172-3334 |
Recovery tank (OBSOLETE) |
1 |
|
| 15 |
172-3335 |
Foam cylinder |
2 |
|
| 16 |
272-0430 |
Vacuum duct gasket |
1 |
|
| 17 |
172-3337 |
Top panel muffler |
1 |
|
| 18 |
172-3338 |
Bottom panel muffler |
1 |
|
| 19 |
272-6565 |
Gasket strip |
1 |
|
| 20 |
272-8999 |
Exhaust cover |
1 |
|
| 21 |
172-0126 |
Acoustical foam |
1 |
(after SN see chart) |
| 22 |
272-9000 |
Vacuum motor cover |
1 |
|
| 23 |
272-9139 |
Recovery tank lid |
1 |
|
| 24a |
172-3344 |
Tank mount bracket |
2 |
|
| 24b |
272-6102 |
Tank mount bracket |
1 |
(new style) |
| 25 |
272-1252 |
Sound foam |
1 |
(after SN see chart) |
| 26 |
172-3346 |
Recovery tank lid gasket |
1 |
|
| 27 |
172-3347 |
Filter screen |
1 |
|
| 29 |
172-3349 |
Separator plate |
1 |
|
| 30 |
272-5303 |
Recovery tank lid and gasket |
1 |
|
| 31 |
172-3351 |
Vibration mount |
3 |
|
| 32a |
172-3352 |
Drain hose |
1 |
|
| 32b |
272-8537 |
Drain hose cap assembly |
1 |
|
| 32c |
272-9273 |
Drain hose extension |
1 |
|
| 33 |
172-3353 |
Vacuum muffler |
1 |
|
| 35a |
172-3355 |
Vacuum hose assembly (OBSOLETE) |
1 |
|
| 35b |
991-5152 |
Vacuum hose assembly |
1 |
(NON-OEM) |
| 36 |
272-1253 |
Vacuum hose 2 x 6 |
1 |
(after SN see chart) |
| 37a |
272-5681 |
Carbon brush (pkg of 2) |
1 |
|
| 37b |
172-1071 |
36V vacuum motor assembly |
1 |
|
| 37c |
272-5681 |
Carbon brush (pkg of 2) |
1 |
|
| 37d |
991-1237 |
36V 3 stage vacuum motor bypass dual ball tangential |
1 |
|
| 38 |
172-3357 |
9 inch wire rope |
1 |
|
| 39 |
272-9978 |
Screw 10-14 x 1/2 pan head phillips plastite |
2 |
|
| 42 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
4 |
|
| 43 |
272-1254 |
Sound foam |
1 |
(after SN see chart) |
| 44 |
997-2102 |
Cable tie |
1 |
(after SN see chart) |
| 45 |
999-1862 |
Washer #10 flat SAE stainless steel |
9 |
|
| N/S |
172-3359 |
Vacuum harness |
1 |
|
|
|
Front Wheel Assembly - 172-0727 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
999-0005 |
Screw 5/16-18 x 7/8 socket head |
1 |
|
| 002 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 003 |
272-1652 |
Bolt 3/8-16 x 5/6 lock |
4 |
|
| 004 |
999-1379 |
Screw M8-1.25 x 70mm socket head stainless steel |
4 |
|
| 005 |
999-1828 |
Screw M8-1.25 x 55mm socket head stainless steel |
4 |
|
| 006 |
172-2067 |
Washer 11/32 x 1/8 flat |
1 |
|
| 007 |
172-3315 |
Bearing cup |
1 |
|
| 008 |
172-3316 |
Bearing cone |
1 |
|
| 010 |
172-0435 |
Top bearing |
1 |
|
| 012 |
172-0951 |
Nut 1-14 hex thin nylock UNF |
1 |
|
| 013 |
991-5122 |
1/4 nylon tree push-in rivet |
3 |
|
| 014 |
172-3319 |
Bearing block |
1 |
|
| 015 |
172-3320 |
Steering plate |
1 |
|
| 017a |
172-3494 |
Drive wheel motor assembly |
1 |
(includes 017b-017i) |
| 017b |
172-3323 |
Brake lever weldment |
1 |
|
| 017c |
172-3324 |
Brake band |
1 |
|
| 017d |
172-8859 |
Brush cover kit |
1 |
(contains 4 seal rings and 4 brush covers) |
| 017e |
172-8860 |
Sealing ring |
1 |
|
| 017f |
172-8861 |
Gearbox ball bearing |
1 |
|
| 017g |
172-8862 |
Brush side ball bearing |
1 |
|
| 017h |
172-8864 |
Carbon brush kit (includes 6 brushes and hardware) |
1 |
|
| 017i |
172-3326 |
Drive wheel with bolts |
1 |
|
| 017j |
272-1255 |
Brake bar (OBSOLETE) |
1 |
|
| 018 |
172-3327 |
Splash guard plate |
1 |
|
| 019 |
172-3328 |
Splash guard |
1 |
|
| 020 |
172-3329 |
Spindle weldment |
1 |
|
| 022 |
999-1556 |
Screw M4-.7 x 8mm pan head phillips zinc plated |
1 |
|
| 023 |
999-0014 |
Screw 10-24 x 3/4 button head socket stainless steel |
1 |
|
| 024 |
999-0960 |
Nut 10-24 hex stainless steel |
1 |
|
| 025 |
999-0377 |
Washer 6 SAE flat plain finish |
1 |
|
| N/S |
272-8000 |
Drive wheel harness kit |
1 |
|
|
|
Electrical Panel Assembly - 172-0728 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
| 2 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
6 |
|
| 3 |
999-0509 |
Screw 1/4-20 x 3/8 pan head phillips zinc plated |
7 |
|
| 4 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
| 5 |
172-0345 |
Terminal stud |
3 |
|
| 6 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
6 |
|
| 7 |
172-2160 |
10amp circuit breaker |
1 |
|
| 8 |
272-8184 |
36V 100amp contactor |
1 |
|
| 10a |
172-8836 |
150amp fuse |
1 |
|
| 10b |
991-3061 |
150amp fuse |
1 |
(NON-OEM) |
| 11 |
172-8839 |
Backup alarm |
1 |
|
| 12 |
172-0231 |
Reset button boot |
1 |
|
| 13 |
172-0232 |
Clear boot cap |
1 |
|
| 14 |
172-0103 |
Electrical mount |
1 |
|
| 15 |
172-3310 |
Electrical cover |
3 |
|
| 17 |
172-3312 |
Electrical panel (OBSOLETE) |
1 |
|
| 18 |
272-2581 |
45amp circuit breaker |
1 |
|
| 20 |
272-8183 |
36V 200amp contactor |
1 |
|
| 21 |
999-1165 |
Screw 8-32 x 3/8 truss head phillips stainless steel |
1 |
|
| 22 |
272-5409 |
Harness guide weldment |
1 |
|
|
|
Drive and Pedal Assembly - 172-0729 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0520 |
Screw 10-24 x 1 pan head phillips stainless steel |
1 |
|
| 2 |
999-0199 |
Nut 10-24 nylon insert lock zinc plated |
1 |
|
| 3 |
999-0779 |
Screw M6-1 x 25mm hex head plain finish |
1 |
|
| 4 |
999-0469 |
Nut M6-1 nylon insert lock zinc plated |
6 |
|
| 5 |
272-5835 |
Screw M6-1 x 75mm hex head |
4 |
|
| 6 |
999-1152 |
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
2 |
|
| 7 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
3 |
|
| 8 |
172-8815 |
Flanged bearing |
1 |
|
| 10 |
272-9419 |
Spring spacer |
1 |
|
| 11 |
172-8818 |
Throttle lever |
1 |
|
| 12 |
172-8819 |
Weldment link |
1 |
|
| 13 |
172-8821 |
Potentiometer housing |
1 |
|
| 14 |
172-2039 |
5K potentiometer |
1 |
|
| 15 |
172-3301 |
Torsion spring |
1 |
|
| 16 |
N/A |
Not available |
1 |
(Foot pedal Bracket) (available in 031) |
| 17 |
N/A |
Not available |
1 |
(Foot pedal) (available in 031) |
| 18a |
N/A |
Not available |
1 |
(Brake bracket) (before SN 2062592) (available in 022a) |
| 18b |
272-6049 |
Brake bracket |
1 |
(after SN 2062591) |
| 22a |
172-3308 |
Pedal weldment |
1 |
(includes 018a and 022b) (before SN 2062592) |
| 22b |
272-6050 |
Pedal weldment |
1 |
(after SN 2062591) |
| 23 |
172-8825 |
Wire assembly |
1 |
|
| 24 |
172-4120 |
Flanged bearing |
2 |
|
| 25 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
6 |
|
| 26 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
7 |
|
| 28 |
999-1383 |
Screw M6-1 x 16mm hex head stainless steel |
1 |
|
| 29 |
172-0392 |
Retaining ring |
1 |
|
| 30 |
172-0369 |
Washer 17/64 x 3/4 x 23/64 flat |
1 |
|
| 31 |
272-5405 |
Pedal assembly |
1 |
(includes 1-17, 21, 23-27, 29 and 30) |
|
|
Decal Assembly - 172-0730 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
172-5000 |
Caution decal |
1 |
|
| 002 |
172-5037 |
Logo decal |
1 |
|
| 003 |
172-3289 |
Emergency decal |
1 |
|
| 004 |
172-3290 |
Battery wiring decal |
1 |
|
| 005 |
172-3291 |
Parking brake decal |
1 |
|
| 006a |
N/A |
Not available |
1 |
(Before TSBUS2004-814) (Solution flow decal) |
| 006b |
272-1256 |
Solution flow decal |
1 |
(After TSBUS2004-814) |
| 007 |
172-3293 |
Circuit breaker decal |
1 |
|
| 008a |
172-3294 |
Advenger decal |
2 |
|
| 008b |
272-1257 |
Nilfisk BR600S decal (OBSOLETE) |
2 |
|
| 008c |
172-3295 |
Nilfisk BR600S decal (OBSOLETE) |
1 |
|
| 008d |
272-1262 |
Nilifisk BR650S decal (OBSOLETE) |
2 |
|
| 008e |
N/A |
Not available |
2 |
(BR650S decal) |
| 008f |
272-1264 |
Nilifisk BR700S decal (OBSOLETE) |
2 |
|
| 008g |
172-3297 |
Nilfisk BR700S decal (OBSOLETE) |
2 |
|
| 008h |
272-1271 |
Nilfisk BR800S decal |
2 |
|
| 008i |
172-3298 |
Nilfisk BR800S decal (OBSOLETE) |
2 |
|
| 009 |
172-9124 |
2 inch logo decal |
1 |
|
| 010 |
172-3299 |
Ladder diagram decal (OBSOLETE) |
1 |
|
| 011 |
172-3300 |
Patent decal |
1 |
|
| 012a |
272-1275 |
Smart solutions decal |
1 |
|
| 012b |
272-1278 |
ECO solutions decal |
1 |
|
|
|
Chassis Assembly - 172-0731 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0114 |
Washer 1/2 SAE flat |
2 |
|
| 2 |
172-2001 |
Hair cotter pin |
1 |
|
| 3 |
999-1128 |
Bolt M12-1.75 x 35mm hex hd stainless steel part thread |
2 |
|
| 4 |
272-1605 |
Bolt M10-1.5 x 20mm hex head nylon lock |
2 |
|
| 8 |
999-1129 |
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
| 9 |
272-1843 |
Flanged bearing |
2 |
|
| 10a |
172-3283 |
Wheel and bearing assembly |
2 |
(includes 010b) |
| 10b |
172-8810 |
Ball bearing |
2 |
|
| 11 |
172-3285 |
Chassis weldment (OBSOLETE) |
1 |
|
| 12 |
172-3286 |
Actuator pin |
1 |
|
| 13 |
272-0404 |
Arm weldment linkage |
1 |
|
| 14 |
999-1948 |
Nut 1/4-20 wing lock |
1 |
|
| 15 |
172-3288 |
Squeegee stop bracket |
1 |
|
| 16 |
272-5393 |
Screw 5/16-18 x 4 hex head full thread |
1 |
|
| 17 |
172-2067 |
Washer 11/32 x 1/8 flat |
1 |
|
| 18 |
999-0430 |
Nut 5/16-18 hex jam plain finish |
1 |
|
| 19 |
997-2101 |
6 inch cable tie |
6 |
|
|
|
Warning Beacon Assembly - 172-0732 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
172-3495 |
Warning beacon kit |
1 |
(Includes 001-007 and Instruction sheet) |
| 001 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
1 |
|
| 002 |
999-0361 |
Bolt 1/4-20 x 3/8 hex head grade 5 zinc |
2 |
|
| 003 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 004 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 005 |
N/A |
Not available |
1 |
(Strobe) |
| 006 |
172-3496 |
Plate weldment |
1 |
|
| 007 |
172-3497 |
Tube weldment |
1 |
|
|
|
Headlight Kit - 172-0733 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
172-3498 |
Headlight kit |
1 |
(includes 001-004 and instruction sheet) |
| 001 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
4 |
|
| 002 |
172-9115 |
Terminal insulator |
2 |
|
| 003 |
N/A |
Not available |
1 |
(Headlight-LED) |
| 004 |
172-9113 |
Headlight guard |
1 |
|
| N/S |
N/A |
Not available |
1 |
(Instruction sheet) |
|
|
Dual Vac Motor Kit - 172-0734 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
172-3499 |
Dual vacuum motor kit |
1 |
(includes 001-012 and instruction sheet) |
| 002 |
272-0430 |
Vacuum duct gasket |
2 |
|
| 003 |
997-2003 |
Hose clamp |
1 |
|
| 004 |
172-3347 |
Filter screen |
1 |
|
| 006 |
172-3500 |
Separator plate |
1 |
|
| 007 |
172-3351 |
Vibration mount |
1 |
|
| 008 |
272-1481 |
Foam spacer |
3 |
|
| 009 |
172-3502 |
Vacuum hose assembly |
1 |
|
| 010a |
272-9272 |
36V 3 stage vacuum motor |
1 |
(Nilfisk-Advance) |
| 010b |
991-1237 |
36V 3 stage vacuum motor bypass dual ball tangential |
1 |
(Ametek-Lamb) |
| 011 |
172-8884 |
Vacuum hose |
1 |
|
| 012 |
272-0436 |
Hose gasket |
1 |
|
|
|
Scrub and Vac Tool Kit - 172-0735 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
172-3503 |
Scrub-n-vac kit |
1 |
(includes 1-32 and Instruction sheet) |
| 1 |
181-1102 |
Solution and vacuum hose assembly |
1 |
|
| 3 |
172-9099 |
Stepped bushing |
3 |
|
| 4 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
3 |
|
| 6 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 7 |
172-3505 |
Wand assembly |
1 |
|
| 9 |
272-1159 |
Plastic clamp |
6 |
|
| 10 |
999-1152 |
Screw 10-24 x 3/8 pan head phillips thread rolling zinc |
12 |
|
| 11 |
172-3507 |
Pump assembly |
1 |
(includes 012-030) |
| 12 |
272-0405 |
Nipple 1/4 to 1/8 |
1 |
|
| 13 |
272-0406 |
Adapter bulk head 1/4 |
1 |
|
| 14 |
999-1862 |
Washer #10 flat SAE stainless steel |
6 |
|
| 15 |
999-0520 |
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
| 16 |
999-0520 |
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
(See SN note) |
| 17 |
999-0199 |
Nut 10-24 nylon insert lock zinc plated |
4 |
|
| 18 |
999-1369 |
Screw 10-24 x 1/2 hex head thread cutting stainless steel |
2 |
|
| 20 |
172-0298 |
Barb fitting 1/4 x 3/8 |
1 |
|
| 22 |
172-8494 |
#6 hose clamp SAE |
7 |
|
| 23 |
170-9289 |
Quick disconnect coupling |
1 |
|
| 24 |
172-3509 |
Spiral hose 3/8 x 63 inches |
1 |
|
| 25 |
272-0458 |
Transient voltage suppressor assembly |
1 |
|
| 26 |
172-1475 |
3 prong circuit board 120V |
1 |
|
| 32 |
172-2734 |
Elbow barb 27/64 x 3/8 |
2 |
|
|
|
Vacuum Wand Caddy Kit - 172-0736 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
172-9097 |
Vacuum wand caddy kit |
1 |
Kit inlcudes 001-010 and Instruction sheet |
| 001 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
2 |
|
| 002 |
172-9099 |
Stepped bushing |
2 |
|
| 003 |
172-9100 |
14 inch squeegee tool (for wand with button lock) (OBSOLETE) |
1 |
|
| 004 |
172-6224 |
Coupler (OBSOELTE) |
1 |
|
| 005 |
172-9101 |
Vacuum hose 1-1/2 x 15 feet long (OBSOLETE) |
1 |
|
| 007 |
172-9103 |
2 piece wand |
1 |
|
| 008 |
172-9104 |
Caddy weldment |
1 |
|
| 009 |
172-6236 |
Coupler extension |
1 |
|
|
|
Onboard Charger Kit - 172-0737 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-0479 |
36V onboard charger kit |
1 |
(includes 001 thru 008 and instruction sheet) |
| 001 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
6 |
|
| 002 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
| 003 |
172-9099 |
Stepped bushing |
3 |
|
| 004 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
6 |
|
| 005 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
3 |
|
| 006 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
| 007a |
993-0438 |
36V 25 AMPS SMART CHARGER,50A GRAY PLUG |
1 |
|
| 007b |
162-5002 |
Diode assembly 1 diode for 36v Battery Charger |
1 |
|
| 008 |
272-0482 |
Charger weldment |
1 |
|
|
|
Side Broom Kit - 172-0738 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-0465 |
Right side broom kit |
1 |
Kit includes 001-029 and not shown parts listed |
| 001 |
999-0024 |
Washer 5/16 flat stainless steel |
6 |
|
| 002 |
999-0267 |
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
| 003 |
999-0081 |
Screw 1/4-20 x 5/8 pan head slotted zinc |
4 |
|
| 004 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 005 |
181-0003 |
Screw 1/4-20 x 1/2 socket set lock |
1 |
|
| 006 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 007 |
272-0467 |
Bolt 5/16-18 x 5 1/2 hex head |
1 |
|
| 008 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
| 009 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 010 |
272-1538 |
Bolt 1/4-20 X 3/8 hex head lock |
4 |
|
| 011 |
999-0519 |
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
| 012 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
6 |
|
| 013 |
172-4427 |
Bolt M8-1-1/4 x 30mm hex |
6 |
|
| 014 |
272-1615 |
Bolt 12mm-1 3/4 x 30mm hex head |
1 |
|
| 015 |
999-0660 |
Nut 3/8-16 wing stainless steel |
1 |
|
| 016 |
172-9497 |
Flanged bearing |
3 |
|
| 019 |
172-0217 |
Waterproof switch |
1 |
|
| 020 |
172-0208 |
Knob (OBSOLETE) |
1 |
|
| 021 |
272-0469 |
Brush holder weldment |
1 |
|
| 022 |
272-0470 |
Sidebroom arm weldment |
1 |
|
| 023 |
272-0471 |
Pivot weldment |
1 |
|
| 024 |
272-0472 |
Bracket weldment |
1 |
|
| 025 |
272-0473 |
Lift bracket |
1 |
|
| 028 |
172-9740 |
Motor assembly |
1 |
24v |
| 029 |
172-3669 |
Polypropelene side broom |
1 |
|
| N/S |
997-2101 |
6 inch cable tie |
1 |
|
| N/S |
272-0476 |
Sidebroom harness |
1 |
|
|
|
Wiring Diagram- Before SN - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

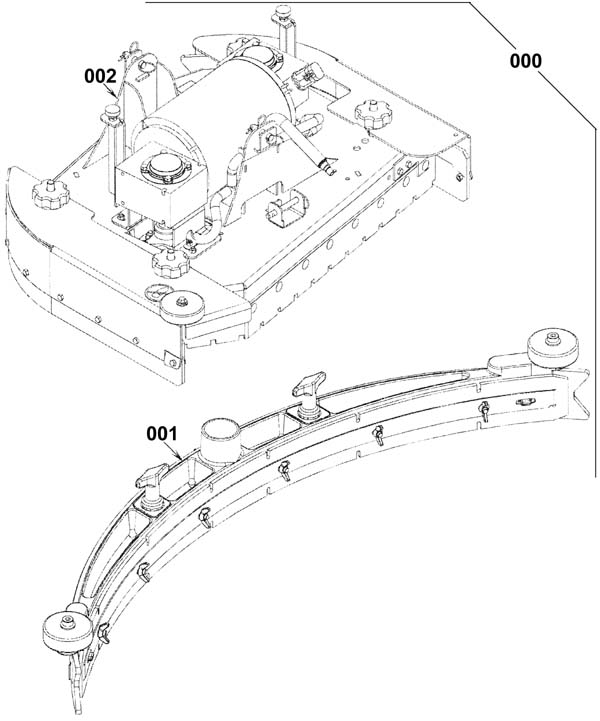

Disk Deck Assembly - 172-0747 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-1526 |
Deck kit 2810D |
1 |
(includes 001 and 002) |
| 001 |
172-3453 |
Squeegee assembly |
1 |
|
| 001a |
172-3477 |
Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene |
1 |
(26 and 28 inch squeegee blade kits) |
| 001b |
172-3478 |
Squeegee blade kit 26 and 28 inch linatex (pkg of 2) |
1 |
(26 and 28 inch squeegee blade kits) |
| 001c |
172-3479 |
Squeegee blade kit 24 inch neoprene |
1 |
(26 and 28 inch squeegee blade kits) |
| 002 |
272-1532 |
28 inch Disk deck assembly (OBSOLETE) |
1 |
|
| 002a |
172-3411 |
28 inch skirt blade kit gum rubber disk |
1 |
(28 inch deck blade kits) (before TSBUS2004-884) |
| 002b |
272-6075 |
Disk deck blade kit 28 inch polyurethane |
1 |
(28 inch deck blade kits) (before TSBUS2004-884) |
| 002c |
172-3413 |
28 inch skirt blade kit linatex disk |
1 |
(28 inch deck blade kits) (before TSBUS2004-884) |
| 002d |
272-1442 |
28 inch blade kit gum rubber |
1 |
(28 inch deck blade kits) (after TSBUS2004-884) |
| 002e |
272-1444 |
28 inch disk linatex kit |
1 |
(28 inch deck blade kits) (after TSBUS2004-884) |
|
|
- Batteries, Brushes and Chargers - 172-9000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
| 2 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 3 |
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
| 4 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
| 5a |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
1 |
(configured for wet batteries; can be changed to support AGM batteries) |
| 5b |
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
1 |
|
| 7 |
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
| 8 |
996-0169 |
13 inch heavy grit stripping brush - 80 grit |
2 |
|
| 9 |
996-0120 |
13 inch medium grit scrubbing brush - 180 grit |
2 |
|
| 10 |
996-0096 |
13 inch lite grit scrubbing brush - 500 grit |
2 |
|
| 11 |
996-0282 |
13 inch polypropelene scrubbing brush |
2 |
|
| 12 |
996-0061 |
13 inch Pad driver |
2 |
|
| 13 |
996-0341 |
Drive lugs - plastic (pkg of 3) |
2 |
|
|
|
- Pads - 255-1400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1440 |
14 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1435 |
14 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1464 |
14 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1442 |
14 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1412 |
14 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1477 |
14 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1438 |
14 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1421 |
14 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1450 |
14 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1465 |
14 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1430 |
14 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1487 |
14 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1490 |
14 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1470 |
14 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1492 |
14 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1480 |
14 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1460 |
14 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1452 |
14 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1420 |
14 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1411 |
14 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1495 |
14 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1447 |
14 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1455 |
14 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1423 |
14 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0120 |
14 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0121 |
14 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0122 |
14 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 28 |
255-0119 |
14 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 29 |
255-0205 |
14 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 30 |
255-0206 |
14 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 31 |
255-0207 |
14 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0204 |
14 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 33 |
255-1424 |
14 x 20 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 34 |
255-9549 |
14 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 35 |
255-9546 |
14 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 36 |
255-9543 |
14 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 37 |
255-9547 |
14 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 38 |
255-9544 |
14 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 39 |
255-9545 |
14 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 40 |
255-9548 |
14 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 41 |
255-9639 |
14 inch Diamond starter pack (1 of each grit) |
|
|
| 42 |
255-1482 |
14 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 43 |
255-1415 |
14 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 44 |
255-1416 |
14 inch 2001 Duala clean and shine pad-high speed (pkg of 5) |
|
|
|
|
Detergent Injection System - 272-0402 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
272-9954 |
Detergent injection assembly |
1 |
(includes 1-21) |
| 001 |
172-0369 |
Washer 17/64 x 3/4 x 23/64 flat |
1 |
|
| 003 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 004 |
999-0152 |
Nut 1/4-20 nylon insert lock zinc plated |
8 |
|
| 005 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
| 006 |
172-4451 |
Screw 1/4-20 x 3/8 pan phillips stainless steel |
3 |
|
| 007 |
272-2174 |
Snub bushing |
5 |
|
| 008 |
172-0032 |
Gasket 1/16 x 1/2 x 120 (OBSOLETE) |
1 |
|
| 009 |
272-9955 |
Control assembly |
1 |
|
| 010 |
272-5397 |
Control decal |
1 |
|
| 011 |
272-5398 |
Detergent tray |
1 |
|
| 012 |
272-5399 |
Detergent box weldment |
1 |
|
| 013 |
272-5400 |
Detergent cover |
1 |
|
| 014 |
272-6045 |
Pump cover |
1 |
|
| 015 |
272-6046 |
Detergent pad |
1 |
|
| 016 |
272-5403 |
Detergent pump |
1 |
|
| 017 |
272-5404 |
Chemical resistant hose |
1 |
|
| 018 |
272-2179 |
Chemical bottle assembly |
1 |
|
| 019 |
272-2180 |
Solution fill cap |
1 |
|
| 020 |
272-2182 |
Dry break cap |
1 |
|
| 021 |
272-2184 |
Dry break insert |
1 |
|
| N/S |
272-9375 |
Chemical bottle assembly |
1 |
(includes 18-21) |
| N/S |
272-2346 |
Indicator assembly |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 572-1000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0003 |
6V 225Ah wet battery (SNSR) |
6 |
|
|
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
|
162-0043 |
6V 224Ah AGM battery (Group GC2) |
6 |
|
|
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
|
162-5063 |
36V 20amp battery charger with SB175 large gray plug |
1 |
|
|
272-0479 |
36V onboard charger kit |
1 |
|
|
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
|
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
|
272-1316 |
Key switch assembly |
1 |
|
|
172-8098 |
Replacement key |
1 |
|
|
172-2105 |
Manual solution valve |
1 |
|
|
272-2586 |
36V solenoid valve |
1 |
|
|
172-3453 |
Squeegee assembly |
1 |
(before SN 1819567) |
|
172-3454 |
Squeegee assembly |
1 |
(after SN 1819568) |
|
172-3477 |
Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene |
1 |
|
|
994-0026 |
Squeegee blade kit 36 1/4 rear & 32 inch front gum/neoprene |
1 |
|
|
172-3478 |
Squeegee blade kit 26 and 28 inch linatex (pkg of 2) |
1 |
|
|
172-3479 |
Squeegee blade kit 24 inch neoprene |
1 |
|
|
991-5152 |
Vacuum hose assembly |
1 |
|
|
272-1253 |
Vacuum hose 2 x 6 |
1 |
|
|
272-9139 |
Recovery tank lid |
1 |
|
|
172-3346 |
Recovery tank lid gasket |
1 |
|
|
272-8537 |
Drain hose cap assembly |
1 |
|
|
172-1071 |
36V vacuum motor assembly |
1 |
|
|
991-1237 |
36V 3 stage vacuum motor bypass dual ball tangential |
1 |
|
|
272-5681 |
Carbon brush (pkg of 2) |
1 |
|
|
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
|
996-0169 |
13 inch heavy grit stripping brush - 80 grit |
1 |
|
|
996-0120 |
13 inch medium grit scrubbing brush - 180 grit |
1 |
|
|
996-0282 |
13 inch polypropelene scrubbing brush |
1 |
|
|
996-0061 |
13 inch Pad driver |
1 |
|
|
|
