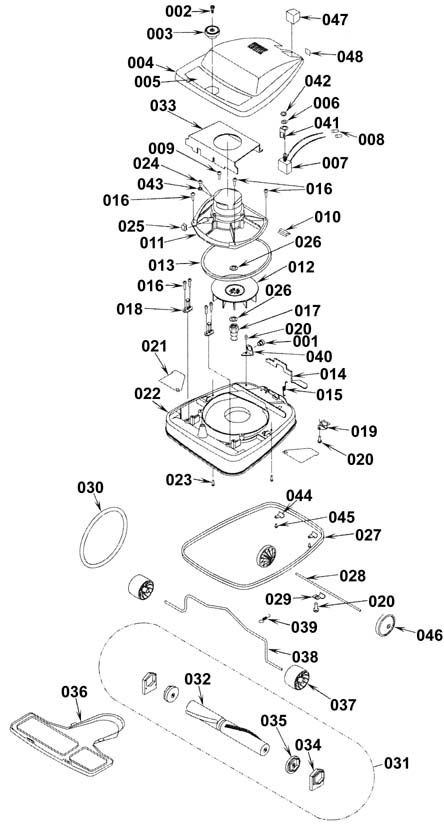

Base Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

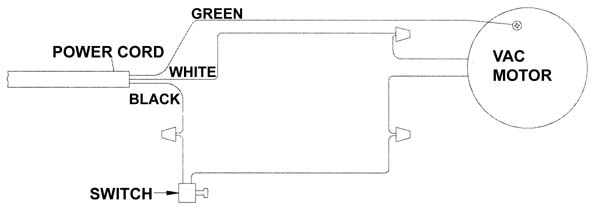

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Handle Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Frequently Replaced Parts - 999-9510 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
181-1161 |
Push switch (OBSOLETE) |
1 |
|
| 2 |
181-1163 |
120V vacuum motor (OBSOLETE) |
1 |
|
| 3 |
182-0010 |
Motor seal gasket |
1 |
|
| 4 |
272-5187 |
Cloth bag assembly (black) (sold individually) |
1 |
|
| 5 |
272-6276 |
Cord hook assembly |
1 |
|
| 6b |
272-9477 |
Pulley and fan kit (green) |
1 |
(lifetime warranty) |
| 7 |
991-0026 |
Brush roll belt rubber (black) |
1 |
|
|
|
