Parts List Complete for NILFISK ADFINITY X20R REV


- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

Solution Tank Assembly - 272-6058
RefNbr Part Number Description Req Notes
1 272-8941 Solution tank hardware kit 1
2 272-7164 Elbow joint 1
3 272-5381 Pedal support 1
4 572-3225 DECALS ADFINITY 17ST-20ST KIT 1
5 172-4694 Gasket 1
6 172-4696 Gasket 1
7 172-4697 Gasket 2
8 272-0005 Squeegee lever fixing kit 1
9 172-4714 Cable kit 1
10 172-4705 Connector support bracket 1
11 272-5383 Weight (OBSOLETE) 1
12 272-7163 Cable kit 1
13 172-4706 Plug 1
14 572-3110 PLATE 1 (Adfinity 17ST and 20ST)
15 272-5371 Solution hose 1
19 572-3498 HANDLE FOR BATTERY CONNECTOR 1
20 172-4695 Locking tank cap 2
21 572-3422 FITTING M 3/8-18 NPT HOSE D.19 1
37 172-4699 Cap (black) 1
38 272-8541 Solution tank 1
44 272-5370 Water sponge 1
48 272-9646 Hose filling 1
49 572-3362 PLATE FOR PEDAL KIT 1 (Adfinity X20R)
50 172-3706 Insulating panel 1

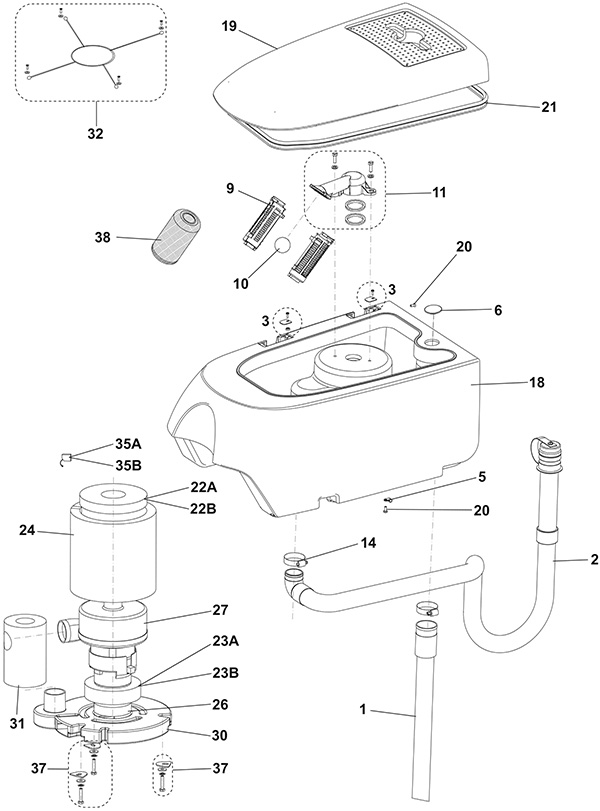

Recovery Tank Assembly - 272-6059
RefNbr Part Number Description Req Notes
1 272-0618 Squeegee vacuum hose kit 1
2 272-8549 Drain hose assembly with plug 1
3 272-6307 Tank fixing kit 1
5 272-8416 P clamp 1
6 172-4719 Plug 1
9 172-0517 Float cage half (2 required for full float cage) 2
10 172-0192 Float ball 1
11 270-8255 Float holder cage kit 1
14 997-2000 Hose clamp 2
18 272-5373 Recovery tank 1
19 272-8547 Recovery tank lid 1
20 999-9096 Screw M5-.8 x 12mm socket head stainless steel 2
21 272-8548 Recovery tank lid gasket 1
22a 270-0364 Vacuum motor gasket 1 (Ametek)
22b 572-3208 GASKET VACUUM MOTOR 1 (Viper)
23a 172-4730 Vacuum motor gasket 1 (Ametek)
23b 272-9865 Vacuum motor gasket 1 (Viper)
24 172-4731 Acoustic insulation panel 1
26 172-4732 Filter 1
27 272-6578 24V 2 stage vacuum motor 1
30 172-4733 Vacuum motor cover 1
31 172-4734 Acoustic insulation pipe 1
32 270-0641 Rubber band kit 1
35a 272-0627 Carbon brush 2 (Ametek)
35b 240-6536 CARBON BRUSH SET -3 STAGE VAC 1 (Viper)
37 172-4736 Vacuum motor hardware kit 1
38 272-7206 Antifoaming filter 1
N/S 172-4735 Recovery tank hardware kit 1
N/S 272-7209 Suction hose elbow kit 1

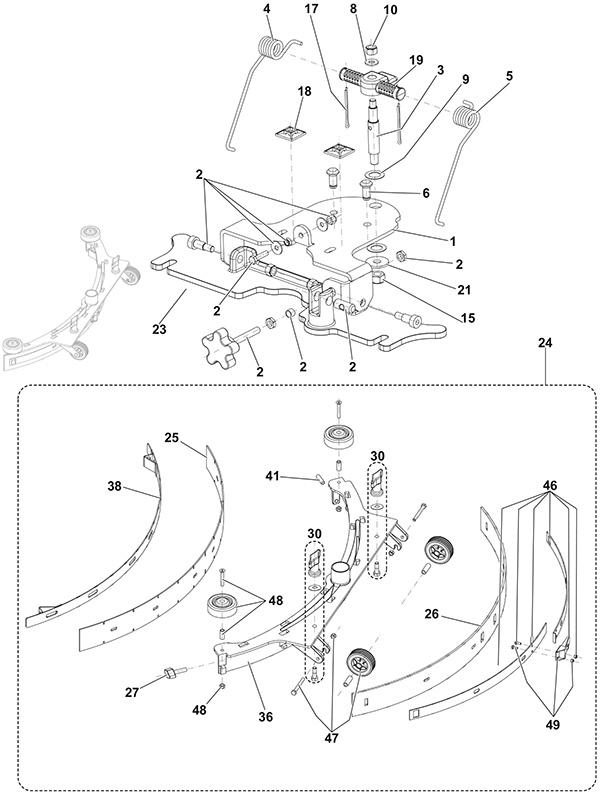

Squeegee Assembly - 272-6063
RefNbr Part Number Description Req Notes
1 172-4774 Squeegee support bracket 1
2 172-4796 Hardware fixing kit 2
3 270-0395 Squeegee pin 1
4 172-4776 Right hand squeegee torsion spring 1
5 172-4777 Spring 1
6 270-0398 Squeegee fixing pin 2
8 999-1267 Washer M8 flat zinc 1
9 272-2000 Washer M15 x 25mm plain nylon 2
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
15 172-4782 Nut M10 self locking 1
17 270-0399 Split pin 2
18 172-4784 Wire tie holder 2
19 270-0114 Spring support 1
21 999-9099 Washer M10 flat stainless steel 1
23 272-7000 Squeegee mounting bracket kit 1
24 272-7162 Squeegee kit 1 (includes 25-49)
25 272-2026 Squeegee blade kit gum rubber 1
26 272-2026 Squeegee blade kit gum rubber 1
27 272-8529 Knob M8 x 30mm stainless steel 1
30 272-6579 Squeegee fixing kit 2
36 172-4788 Squeegee weldment 1
38 172-4789 Front squeegee strap (OBSOLETE) 1
41 172-4790 Dowel M8 x 30mm 1
46 172-4792 Rear squeegee strap and hardware kit 1
47 172-4793 Squeegee wheel kit 2
48 172-4794 Squeegee bumper wheel kit 2
49 172-4795 Squeegee latch kit 1
N/S 272-2026 Squeegee blade kit gum rubber 1
N/S 272-6320 Squeegee adjustment washer kit 1
N/S 372-1312 Squeegee blade kit linatex 1

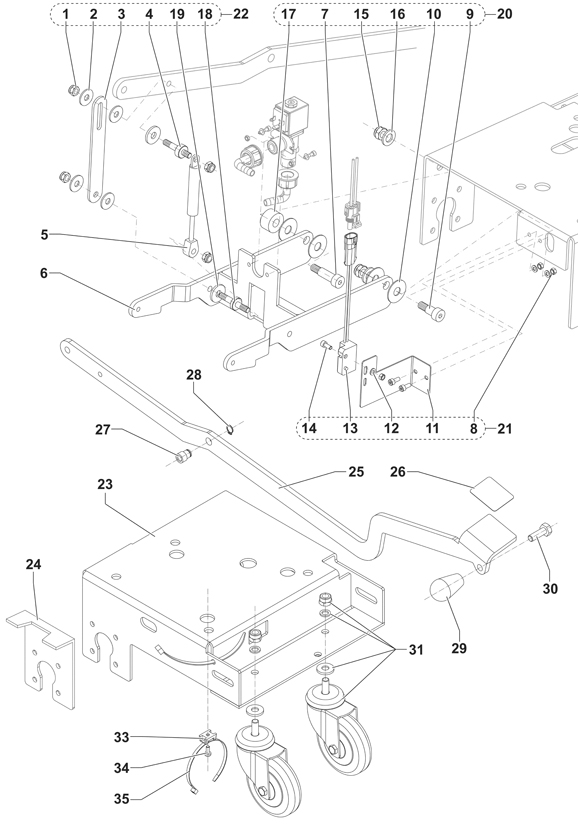

Chassis Assembly - 272-7100
RefNbr Part Number Description Req Notes
2 N/A Not available 4 (washer) (only available with 22)
3 N/A Not available 1 (lift link) (only available with 22)
4 N/A Not available 1 (spring pin) (only available with 22)
5 272-3731 Gas spring 1
6 272-3732 Arm weldment (OBSOLETE) 1
7 N/A Not available 1 (screw) (only available with 20)
8 999-0740 Nut M5-.8 hex stainless steel 3
9 N/A Not available 1 (screw) (only available with 20)
10 272-3734 Hardware mounting kit (OBSOLETE) 4 (washer) (only available with 20)
11 272-3733 Switch bracket 1
12 999-9100 Washer M5 flat stainless steel 3
13 N/A Not available 1 (proximity sensor) (only available with 21)
14 999-1220 Screw M5-.8 x 12mm hex head stainless steel 3
15 N/A Not available 2 (nut) (only available with 20)
16 999-1346 Washer M12 flat stainless steel 2
17 N/A Not available 1 (spacer) (only available with 20)
18 N/A Not available 1 (lower spring pin) (only available with 22)
19 N/A Not available 2 (washer) (only available with 22)
20 272-3734 Hardware mounting kit (OBSOLETE) 1 (includes 7, 9-10, 15-17)
21 272-3735 Sensor kit 1 (includes 8, 11-14)
22 272-3736 Link kit 1 (includes 1-4, 18-19)
23 272-5379 Chassis 1
24 272-3737 Tank supporting bracket (OBSOLETE) 1
25 272-3738 Brush lifting pedal 1
26 172-4740 Anti-skid mat 1
27 172-4741 Flanged bushing 1
28 172-4746 Retaining ring 1
29 172-4711 Knob 1
30 999-1302 Screw M10-1.5 x 30mm hex head 1
31a 270-0365 Caster wheel kit 2 (machines without traverse drive)(standard)
31b 272-3740 Caster wheel with hardware kit stainless steel 2 (machines with traverse drive)(has a stainless steel hub with polyurethane tire that provides enchanced service life and reduced potential to mark tile floors) (optional)
32 270-0365 Caster wheel kit 2
33 172-4710 Wire tie holder 1
34 999-9096 Screw M5-.8 x 12mm socket head stainless steel 1
35 272-0678 Wire tie (OBSOLETE) 3

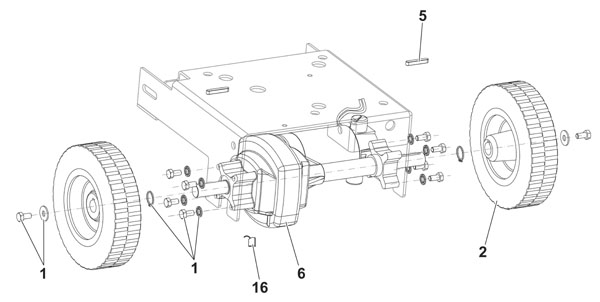

Wheel Assembly - 272-7101
RefNbr Part Number Description Req Notes
1 272-6312 Drive wheel hardware kit 1
2 272-3742 Front drive wheel 2
5 172-4750 Square keyway 2
6 172-4753 24V transaxle 1
16 272-0760 Carbon brush 2

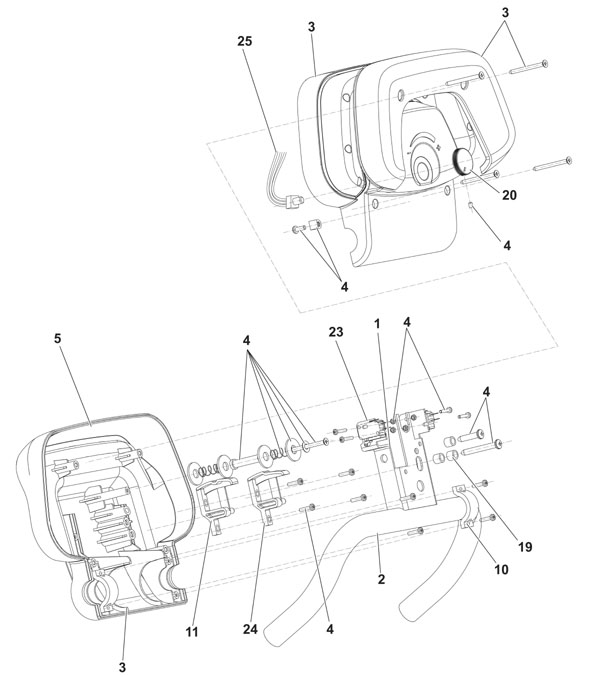

Handle Assembly - 272-7102
RefNbr Part Number Description Req Notes
1 172-4756 Handle harness 1
2 272-3743 Handle bar 1
3 270-0643 Upper/lower handle covers 1
4 172-4765 Handle hardware kit 1
5 272-6317 Lower switch housing 1
10 272-1958 Clamp 2
11 272-6318 Micro switch cam 1
19 172-4761 Spacer 3
20 172-4762 Potentiometer knob 1
23 272-5299 Microswitch 2
24 172-4764 Microswitch cam handle 1
25 172-4766 Speed potentiometer harness 1

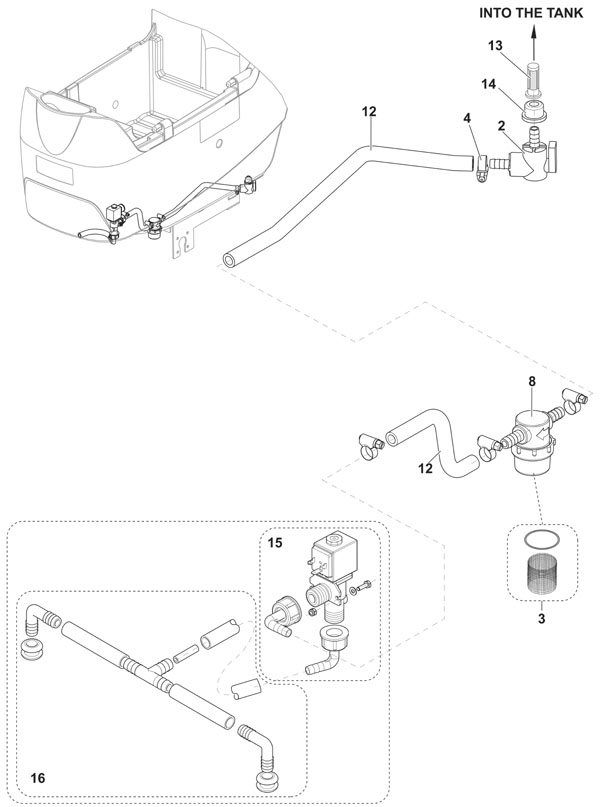

Solution Assembly - 272-7103
RefNbr Part Number Description Req Notes
2 272-9260 Elbow valve 1
3 181-0923 Solution screen and gasket kit 1
4 272-6319 Solution hardware kit 1
8 181-0924 Solution filter assembly 1
12 272-5380 Solenoid valve pipes kit 1
13 172-4768 Solution tank filter 1
14 272-8076 Gasket 1
15 272-3744 Solenoid valve kit 1
16 272-3745 Solution hose kit 1

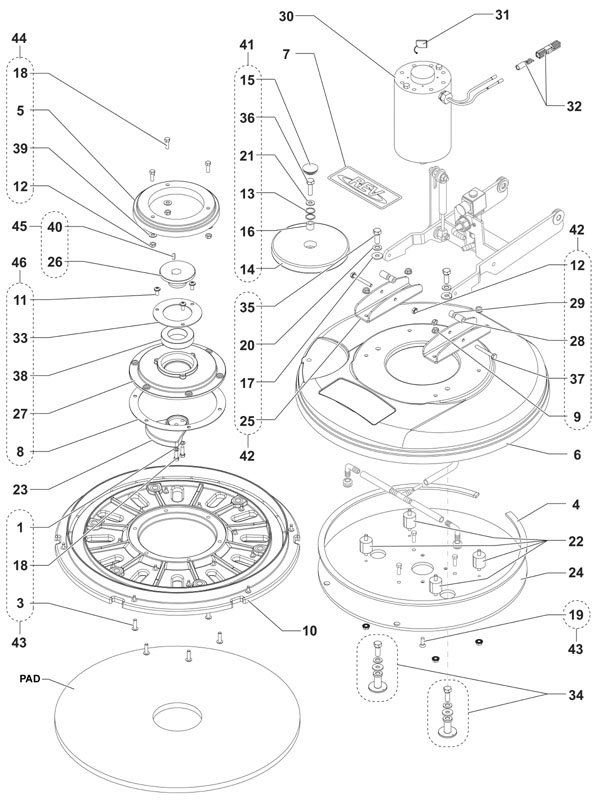

Brush Deck Assembly - 272-7105
RefNbr Part Number Description Req Notes
1 N/A Not available 2 (spring lock washer) (only available in 43)
2 572-8005 20-5 cs red pad 1
3 999-1136 Screw 1/4-20 x 7/8 pan head phillips stainless steel 6
4 272-3758 Gasket 1
5 N/A Not available 1 (splash shield) (only available with 44)
6 272-3759 Brush housing 1
7 272-3760 Decal 1
8 272-6368 Driver gasket 1
9 N/A Not available 8 (nut) (only available with 42)
10 272-7405 Pad driver assembly 1
11 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 3
12 N/A Not available 5 (nut) (only available with 42 and 44)
13 N/A Not available 2 (washer) (only available with 41)
14 N/A Not available 1 (roller bumper) (only available with 41)
15 172-4695 Locking tank cap 1
16 N/A Not available 1 (spacer) (only available with 41)
17 999-0024 Washer 5/16 flat stainless steel 2
18 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 5
19 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 4
20 N/A Not available 2 (washer) (only available with 42)
21 N/A Not available 1 (washer) (only available with 41)
22a 170-9016 Rubber mounting isolator kit 1
22b 991-7152 Isolator kit (pkg of 8) 1 (NON-EOM)
23 272-9946 Counter weight 1
24 272-3761 Motor plate (OBSOLETE) 1
25 N/A Not available 2 (lift bracket) (only available with 42)
26 N/A Not available 1 (eccentric) (only available with 45)
27 272-9947 Motor driver 1
28 N/A Not available 2 (spacer) (only available with 42)
29 N/A Not available 2 (spacer) (only available with 42)
30 272-9948 24V brush motor 1
31 172-8951 Carbon brush and spring kit 1
32 170-0009 Connector housing 2
33 N/A Not available 1 (bearing retainer) (only available with 46)
34 272-3763 Stablizer stud kit 1
35 999-0850 Bolt 3/8-24 x 1 hex head grade 5 plain finish 2
36 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 1
37 999-1892 Screw 1/4-20 x 2 hex cap stainless steel 2
38 270-0065 Bearing 1
39 999-6684 Washer 1/4 flat stainless steel 3
40 N/A Not available 1 (key) (only available with 45)
41 272-7388 Bumper roller kit (OBSOLETE) 1 (includes 13-16, 21, 36)
42 272-3764 Lift bracket kit 1 (includes 9, 12, 17, 20, 25, 28-29, 35, 37)
43 272-3765 Deck hardware kit 1 (includes 1, 3, 18-19)
44 272-9935 Splash guard kit 1 (includes 5, 12, 18, 39)
45 272-9937 Eccentric kit 1 (includes 26 and 40)
46 272-9936 Driver assembly 1 (includes 8, 11, 27, 33, 38)

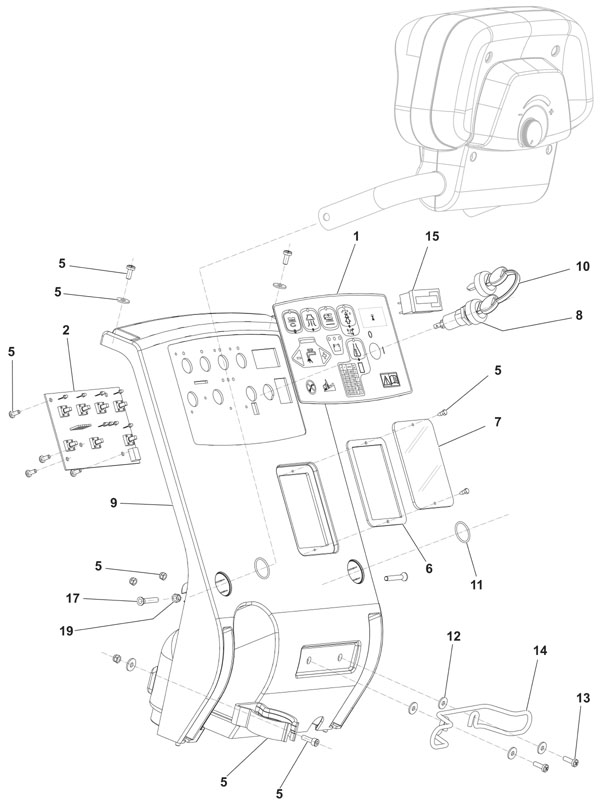

Control Panel Assembly - 272-7106
RefNbr Part Number Description Req Notes
1 172-0822 Control panel decal 1
2 272-3767 Electronic card 1
5 272-6324 Control panel hardware kit 1
6 172-4856 Gasket 1
7 272-0640 Inspection plate 1
8 172-3785 Key switch with two keys 1
9 572-3667 COVER GREY F ELECTRIC COMP. BO 1
10 991-1634 Key (pkg of 2) 1
11 172-4862 O-ring 2
12 999-9100 Washer M5 flat stainless steel 4
13 999-0531 Screw M5-.8 x 16mm pan head slotted zinc 2
14 272-0659 On-board charger cord wrap 1
15 272-9274 24V hour meter 1
17 272-3769 Screw 2
19 999-0497 Nut M6-1 nylon insert lock stainless steel 2
N/S 572-3491 FUSE BLADE 3A PKD 2
N/S 272-9276 20amp fuse 1

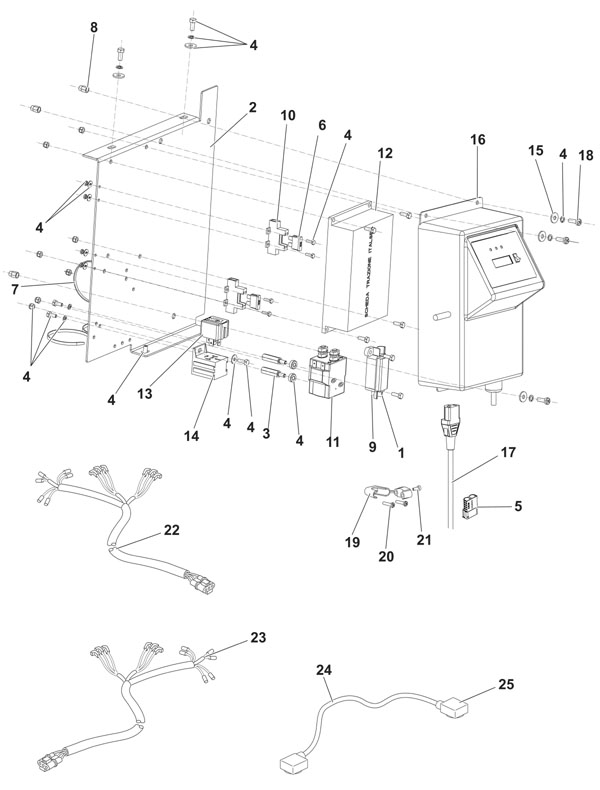

Electrical Assembly - 272-7107
RefNbr Part Number Description Req Notes
1 181-0966 Fuse holder 1
2 272-3770 Support 1
3 272-9277 Spacer 2
4 272-6326 Electrical hardware kit 1
5 272-8374 120amp connector (red) 1
6 272-7144 30amp fuse 2
7 272-8376 Wire tie 3
8 272-9283 Insert M5 3
9 272-6292 40amp brush fuse strip 1
10 472-1367 HOLDER FUSE THERMOPL. UL 94-V0 2
11 272-6328 24V electromagnetic switch 1
12 272-7389 Electronic card traction kit 1
13 272-9288 24V relay 1
14 272-9289 Electrical box harness 1
15 272-3771 Washer 3
16 272-8144 24V onboard battery charger 1
17 272-9290 Onboard charger cord 1
18 272-9291 Screw M5 X 20 3
19 272-9292 Cord holder 1
20 272-1957 Screw M4-.7 x 14mm 2
21 272-9293 Screw M4 x 12mm 1
22 272-3772 Machine harness 1
23 272-9295 Vacuum motor harness 1
24 272-3773 Battery harness 1
25 172-0223 Battery cable boot 4

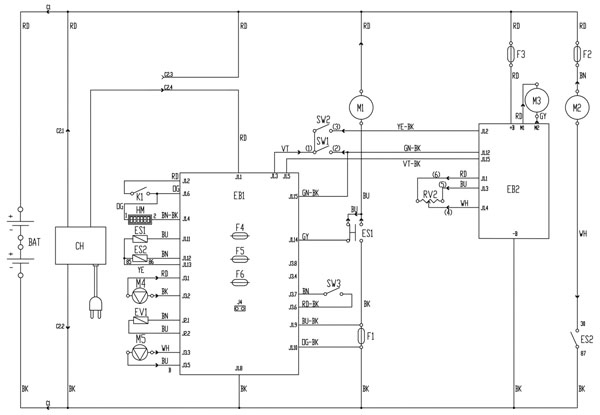

Wiring Diagram - 272-7108
RefNbr Part Number Description Req Notes
C2 272-8374 120amp connector (red)
CH 272-8144 24V onboard battery charger
EB1 272-3767 Electronic card
EB2 272-7389 Electronic card traction kit
ES1 272-6328 24V electromagnetic switch
ES2 272-9288 24V relay
EV1 272-3744 Solenoid valve kit
F1 272-6292 40amp brush fuse strip
F2 272-7144 30amp fuse
F3 272-7144 30amp fuse
F4 572-3491 FUSE BLADE 3A PKD
F5 272-9276 20amp fuse
F6 572-3491 FUSE BLADE 3A PKD
HM 272-9274 24V hour meter
K1 172-3785 Key switch with two keys
M1 272-9948 24V brush motor
M2 272-6578 24V 2 stage vacuum motor
M3 172-4753 24V transaxle
M4 272-2315 Solution pump
M5 172-4771 Chemical mix pump
RV2 172-4766 Speed potentiometer harness
SW1 272-5299 Microswitch
SW3 272-3735 Sensor kit

- Batteries, Brushes, and Chargers - 272-9018
RefNbr Part Number Description Req Notes
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0042 12V 115Ah AGM battery (Group 31) 2
3 272-8144 24V onboard battery charger 1
4 162-5124 24V 12amp smart battery charger with small SB50 red plug 1 (dual mode charger; can be switched to support AGM or wet batteries)
5 162-5124 24V 12amp smart battery charger with small SB50 red plug 1
6 991-2103 50amp charger plug SB50 with pins (red) 1
7 996-1580 19 inch heavy grit stripping brush - 80 grit 1
8 996-1581 19 inch medium grit scrubbing brush - 180 grit 1
9 996-1582 19 inch lite grit scrubbing brush - 500 grit 1
10 996-6157 19 inch daily cleaning brush 1
11 996-0705 Lite polypropelene scrubbing brush 1
12 996-0666 Pad driver assembly 1
13 996-0338 Clutch plate 1
14 991-2206 Center-Lok 3 pad holder 1

- Commonly Asked For Parts - 272-9964
RefNbr Part Number Description Req Notes
01 162-0011 12V 105Ah wet battery (SNSR) 2
02 172-4768 Solution tank filter
03 181-0924 Solution filter assembly
04 272-2026 Squeegee blade kit gum rubber
05 272-6578 24V 2 stage vacuum motor
06 272-7388 Bumper roller kit (OBSOLETE)
07 272-7405 Pad driver assembly
08a 272-0618 Squeegee vacuum hose kit
08b 991-3105 Squeegee vacuum hose assembly
09 991-1634 Key (pkg of 2)
10 272-8076 Gasket
11 372-1312 Squeegee blade kit linatex

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Batteries - 999-5053
RefNbr Part Number Description Req Notes
1 162-0011 12V 105Ah wet battery (SNSR) 2
2 162-0042 12V 115Ah AGM battery (Group 31) 2

- Chargers - 999-5086
RefNbr Part Number Description Req Notes
1 162-5124 24V 12amp smart battery charger with small SB50 red plug 1
2 272-8144 24V onboard battery charger 1
3 991-2103 50amp charger plug SB50 with pins (red) 1
4a 162-5079 SCR assembly kit 1
4b 372-1254 Fuse assembly 1
5 162-5087 AC cord set kit 1
6 162-5081 Control board assembly 1
Webpage Problem Reporting
