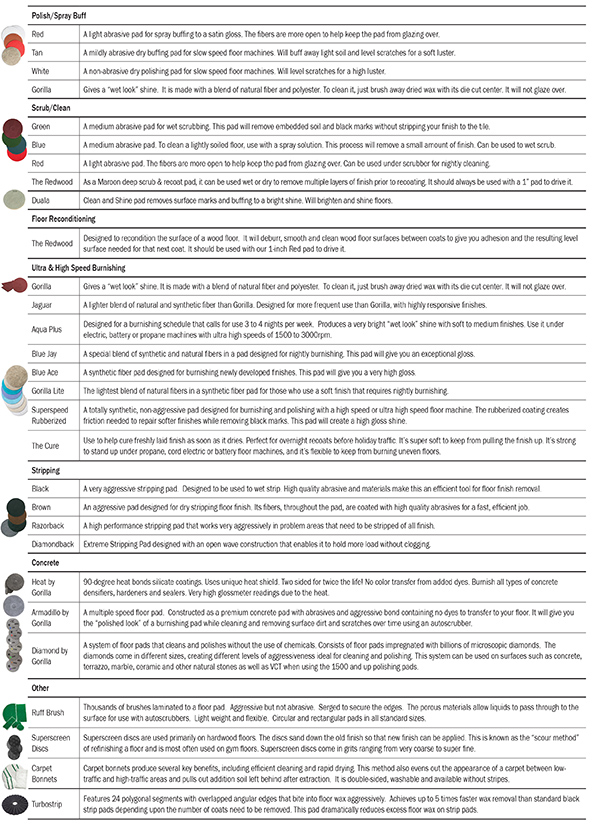

- Pads- 21 inch - 255-2100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2140 |
21 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2135 |
21 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2164 |
21 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2142 |
21 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2112 |
21 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-2177 |
21 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2138 |
21 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2121 |
21 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2150 |
21 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2165 |
21 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2130 |
21 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2167 |
21 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2190 |
21 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-2170 |
21 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-2192 |
21 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-2180 |
21 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-2160 |
21 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-2152 |
21 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-2120 |
21 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-2111 |
21 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-2195 |
21 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-2147 |
21 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-2155 |
21 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 25 |
255-0164 |
21 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 26 |
255-0165 |
21 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 27 |
255-0162 |
21 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 28 |
255-0256 |
21 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0257 |
21 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0258 |
21 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0255 |
21 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 32 |
255-2124 |
21 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 33 |
255-9598 |
21 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 34 |
255-9595 |
21 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 35 |
255-9592 |
21 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 36 |
255-9596 |
21 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 37 |
255-9593 |
21 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 38 |
255-9594 |
21 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 39 |
255-9597 |
21 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 40 |
255-9646 |
21 inch Diamond starter pack (1 of each grit) |
|
|
| 41 |
255-2115 |
21 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 42 |
255-2116 |
21 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pads- 27 inch - 255-2700 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2740 |
27 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2735 |
27 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2770 |
27 inch Blue Ace pad (pkg of 5) |
|
|
| 04 |
255-2742 |
27 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-0065 |
27 inch Cure white pad (pkg of 5) |
|
|
| 07 |
255-2777 |
27 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 08 |
255-2738 |
27 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 09 |
255-2721 |
27 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 10 |
255-2750 |
27 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 11 |
255-2765 |
27 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 12 |
255-2730 |
27 inch jaguar burnishing pad (pkg of 5) |
|
|
| 13 |
255-2767 |
27 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 14 |
255-2769 |
27 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-2790 |
27 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2764 |
27 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2792 |
27 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2780 |
27 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2760 |
27 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2752 |
27 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2720 |
27 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2795 |
27 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-2747 |
27 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-2711 |
27 inch superspeed rubberized pad (pkg of 5) |
|
|
| 26 |
255-9626 |
27 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 27 |
255-9623 |
27 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 28 |
255-9620 |
27 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 29 |
255-9624 |
27 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 30 |
255-9621 |
27 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 31 |
255-9622 |
27 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 32 |
255-9625 |
27 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 33 |
255-9650 |
27 inch Diamond starter pack (1 of each grit) |
|
|
| 34 |
255-2715 |
27 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 35 |
255-2716 |
27 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
Connections Assembly - 372-0021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| B |
472-8141 |
WIRE-HOUR METER |
1 |
|
| C |
472-8157 |
CABLE-BATTERY NEG 10 |
1 |
|
| D |
472-8215 |
NUT-FLANGE 1/4 |
1 |
|
| G |
472-8161 |
CABLE-BATTERY POS 14 |
1 |
|
| H |
472-8179 |
CABLE-BATTERY POS 17 |
1 |
|
| J |
472-8143 |
WIRE-SOLENOID |
1 |
|
| L |
472-8212 |
WASHER-LOCK 5/16 |
1 |
|
| M |
999-0785 |
Screw M8-1.25 x 30mm hex head stainless steel |
1 |
|
|
|
Engine Assembly - 372-0022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-6830 |
Muffler gasket |
2 |
|
| 3 |
472-8217 |
WASHER-LOCK 8MM |
4 |
|
| 4 |
999-1424 |
Nut M8-1.25 hex stainless steel |
4 |
|
| 5 |
472-8171 |
BRACKET-MUFFLER |
1 |
|
| 7 |
472-8215 |
NUT-FLANGE 1/4 |
1 |
|
| 10 |
472-8120 |
ADAPTER-1/8 NPT |
1 |
|
| 11 |
472-8150 |
VALVE-OIL DRAIN |
1 |
|
| 12 |
472-8118 |
SWITCH-OIL PRESSURE |
1 |
|
| 13 |
472-8190 |
VELCRO-STUD |
4 |
|
| 14 |
472-8124 |
FOAM 1/2X1/4X38 |
1 |
|
| 15 |
272-6831 |
Recoil filter |
1 |
|
| 16 |
472-8197 |
HOSE-VACUUM 5/32 |
26 inch |
|
| 17 |
472-8199 |
HOSE-FUEL 3/8X25 |
25 inch |
|
| 19 |
999-0024 |
Washer 5/16 flat stainless steel |
1 |
|
| 20 |
472-8212 |
WASHER-LOCK 5/16 |
3 |
|
| 21 |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
3 |
|
| 22 |
272-6832 |
Sensor plug |
1 |
|
| 24 |
472-8187 |
KEY-.25X1.5 |
1 |
|
| 25 |
472-8198 |
SCR-SET 5/16X3/8 |
2 |
|
| 26 |
166-0008 |
Spark plug (Kawasaki FS481V) |
1 |
|
| 29 |
178-0255 |
Air pre-filter |
1 |
|
|
|
Deck Assembly - 372-0023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
372-1150 |
Spindle assembly |
1 |
(21 inch) |
| 1b |
472-8163 |
SPINDLE ASSY-9.25 |
1 |
(27 inch) |
| 2 |
999-0200 |
Bolt 1/2-13 x 1 1/4 hex head |
4 |
|
| 3 |
999-1416 |
Washer 7/16 flat stainless steel |
4 |
|
| 5 |
172-4982 |
Nut 1/2-13 hex unplated heavy |
1 |
|
| 6 |
472-8123 |
TENSIONER-BELT |
1 |
|
| 7 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
| 8 |
999-0120 |
Washer 3/8 SAE flat |
1 |
|
| 9 |
472-8172 |
BRACKET-WHEEL |
2 |
|
| 10 |
472-8195 |
SCR-FLAT 5/16X1.5 |
8 |
|
| 11 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
| 13 |
999-0349 |
Washer 5/8 SAE flat |
4 |
|
| 14 |
999-0390 |
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
2 |
|
| 15 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
|
|
Handle Assembly - 372-0024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-8170 |
HANDLE-BULKHEAD (OBSOLETE) |
1 |
|
| 2 |
472-8147 |
HANDLE-TOP (OBSOLETE) |
1 |
|
| 3 |
472-8219 |
SCR-CARRIAGE 3/8X4 |
2 |
|
| 4 |
999-0120 |
Washer 3/8 SAE flat |
2 |
|
| 5 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
| 7 |
472-8154 |
CABLE-THROTTLE |
1 |
|
| 9 |
472-8149 |
SOLENOID-STARTER |
1 |
|
| 10 |
999-1032 |
Screw 1/4-20 x 5/8 hex head stainless steel |
2 |
|
| 11 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
2 |
|
| 12 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 13 |
472-8140 |
METER-HOUR/TACH (OBSOLETE) |
1 |
|
| 14a |
472-8137 |
SWITCH-KEY - W/KEY |
1 |
|
| 14b |
472-8114 |
SWITCH-KEY |
1 |
|
| 15 |
472-8201 |
GROMMET-1.5 |
1 |
|
|
|
Main Assembly - 372-0025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-8218 |
SCR-CARRIAGE 3/8X1.25 |
3 |
|
| 2 |
999-0120 |
Washer 3/8 SAE flat |
3 |
|
| 3 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
3 |
|
| 4 |
999-0649 |
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
3 |
|
| 5 |
472-8216 |
WASHER-LOCK 3/8 |
3 |
|
| 6 |
999-0120 |
Washer 3/8 SAE flat |
3 |
|
| 7 |
472-8156 |
REGULATOR ASSY-LP |
1 |
|
| 8 |
999-0830 |
Screw 1/4-20 x 1 hex head plain finish |
2 |
|
| 9 |
472-8211 |
WASHER-LOCK 1/4 |
2 |
|
| 10 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 11 |
162-0007 |
12V 12Ah sealed battery |
1 |
|
| 13a |
472-8138 |
PADHOLDER ASSY 21 |
1 |
|
| 13b |
170-3105 |
27 inch pad driver assembly |
1 |
|
| 14 |
472-8115 |
PAD-RETAINER |
1 |
|
| 16 |
472-8155 |
STRAP-2X23 (OBSOLETE) |
3 |
|
| 17 |
472-8152 |
SLIDE-STRAP |
1 |
|
| 19 |
472-8127 |
LP CYLINDER-STEEL |
1 |
|
|
|
Regulator Assembly - 372-0026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
472-8206 |
REGULATOR-LP |
1 |
|
| 2 |
472-8117 |
FUEL ASSY-ADJUSTMENT |
1 |
|
| 3 |
472-8142 |
FUEL LOCK ASSY |
1 |
|
| 4 |
472-8151 |
HOSE-FUEL 13 |
1 |
|
| 5 |
472-8162 |
FITTING-ELBOW |
1 |
|
| 6 |
472-8164 |
COUPLER-REGO |
1 |
|
| 7 |
472-8144 |
FITTING-1/8 ELBOW |
1 |
|
|
|
Electrical Schematic - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
