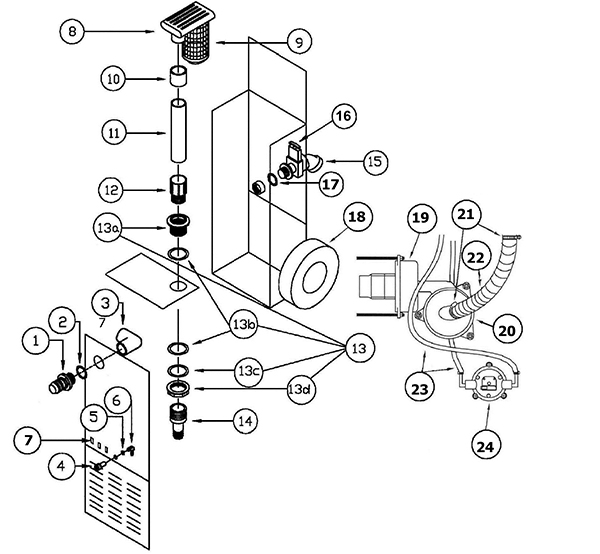

Entire Assembly - 992-0052 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
992-8202 |
1 1/2" Male hose barb |
1 |
|
| 3 |
992-8204 |
Female thread x female slip 90 degree 1 1/2 |
1 |
|
| 4 |
992-8205 |
Quick connect female 1/4" |
1 |
|
| 5 |
992-8206 |
Washa 9/16" Stainless steel |
1 |
|
| 6 |
992-8207 |
Hose barb 90 Deg brass 1/4" x 3/8" |
1 |
|
| 7 |
992-8208 |
Rocker switch |
1 |
|
| 8 |
992-8209 |
Float assembly |
1 |
|
| 9 |
992-8210 |
Ball and cage |
1 |
|
| 10 |
992-8211 |
1 1/2" PVC Slip x Slip |
1 |
|
| 11 |
992-8212 |
17 1/2" x 1 1/2" PVC |
1 |
|
| 12 |
992-8213 |
Male thread 1 1/2" X Female slip 1 1/2" |
1 |
|
| 13 |
992-8214 |
1 ½ inch locknut fitting assembly |
1 |
|
| 14 |
992-8215 |
Hose barb 1 1/4" x 1 1/2" Male thread |
1 |
|
| 16 |
992-8217 |
Dump valve 1 1/2" |
1 |
|
| 17 |
992-8218 |
1 1/2" Rubber gasket |
1 |
|
| 18 |
992-8219 |
Pneumatic wheel 10" |
1 |
|
| 19a |
992-8220 |
Vacuum motor small, 2 stage straight |
1 |
|
| 19b |
992-8221 |
Vacuum motor small, 3 stage straight |
1 |
|
| 20a |
992-8222 |
Vacuum motor small, 2 stage slant |
1 |
|
| 20b |
992-8223 |
Vacuum motor small, 3 stage slant |
1 |
|
| 21 |
992-8224 |
Hose clamps worn gear 1 13/16"-2 3/4" |
1 |
|
| 22 |
992-8225 |
Wire hose 2" |
1 |
|
| 23 |
992-8226 |
Gray hose 3/8" - 2ft |
1 |
|
| 24a |
992-8227 |
Shurflo pump 100 psi |
1 |
|
| 24b |
992-8228 |
Shurflo pump 150 psi |
1 |
|
|
|
- Commonly Asked For Parts - 992-8152 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
992-8152 |
Vacuum hose 1.25 x 50 foot |
|
|
|
|
|
